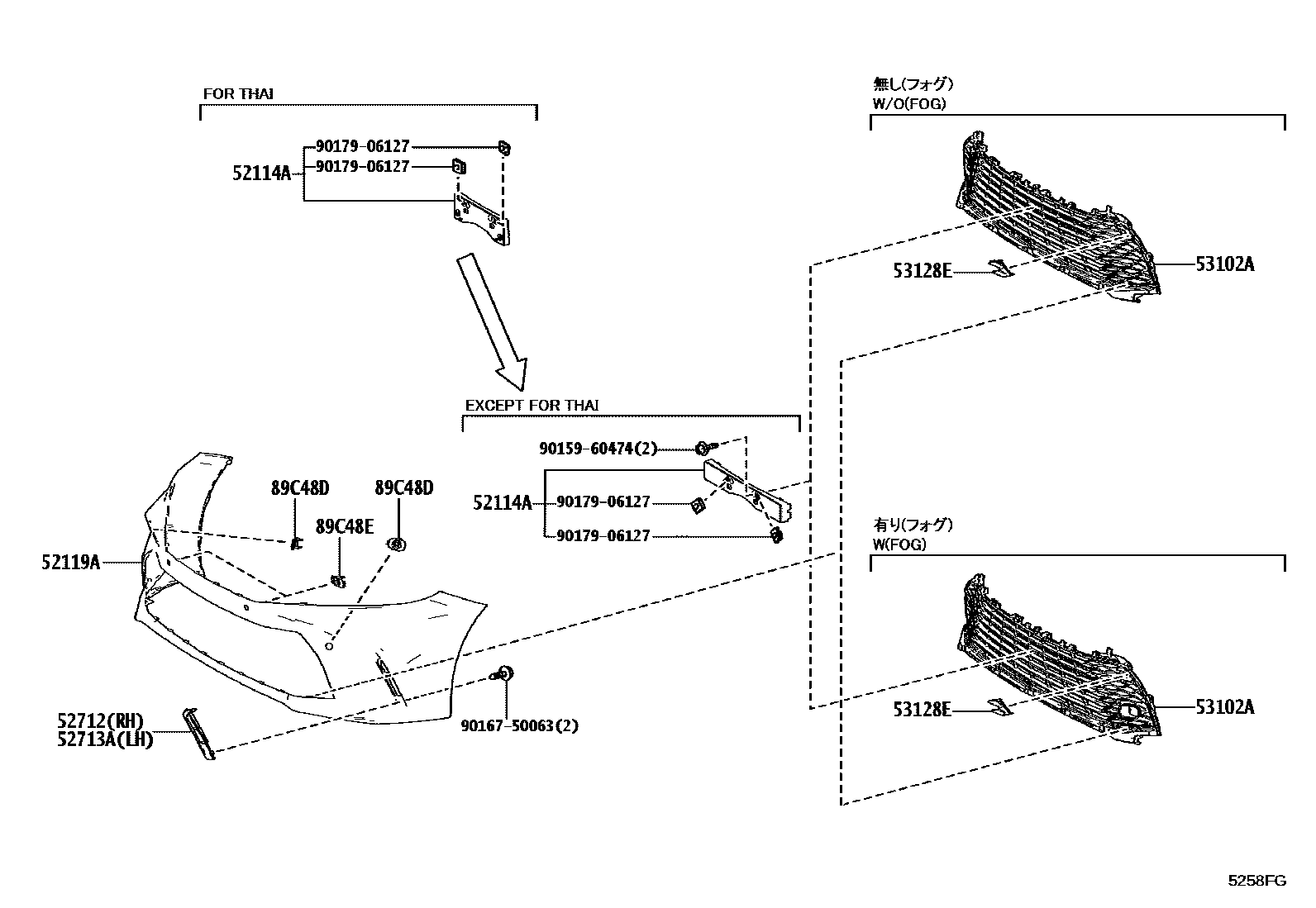

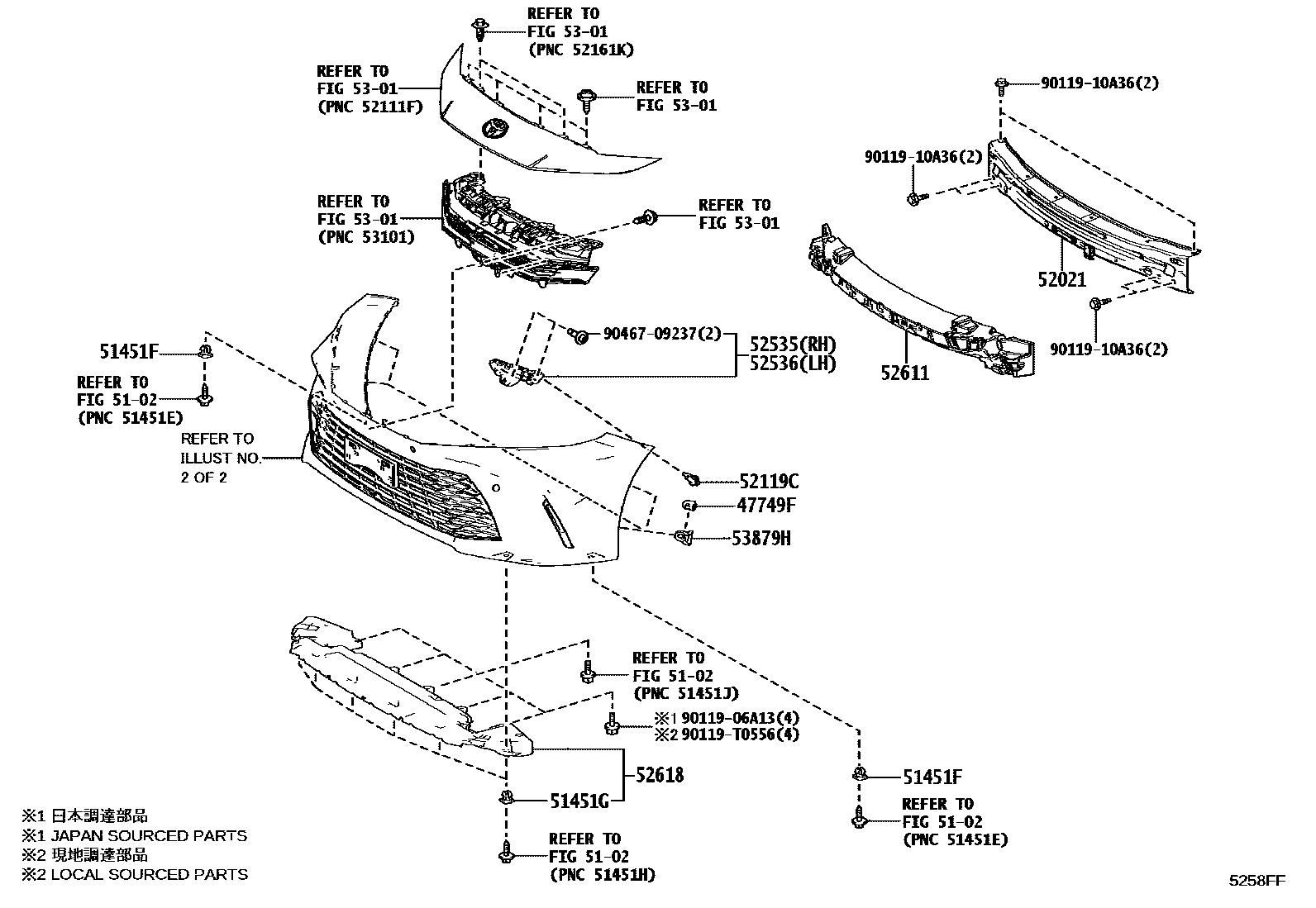

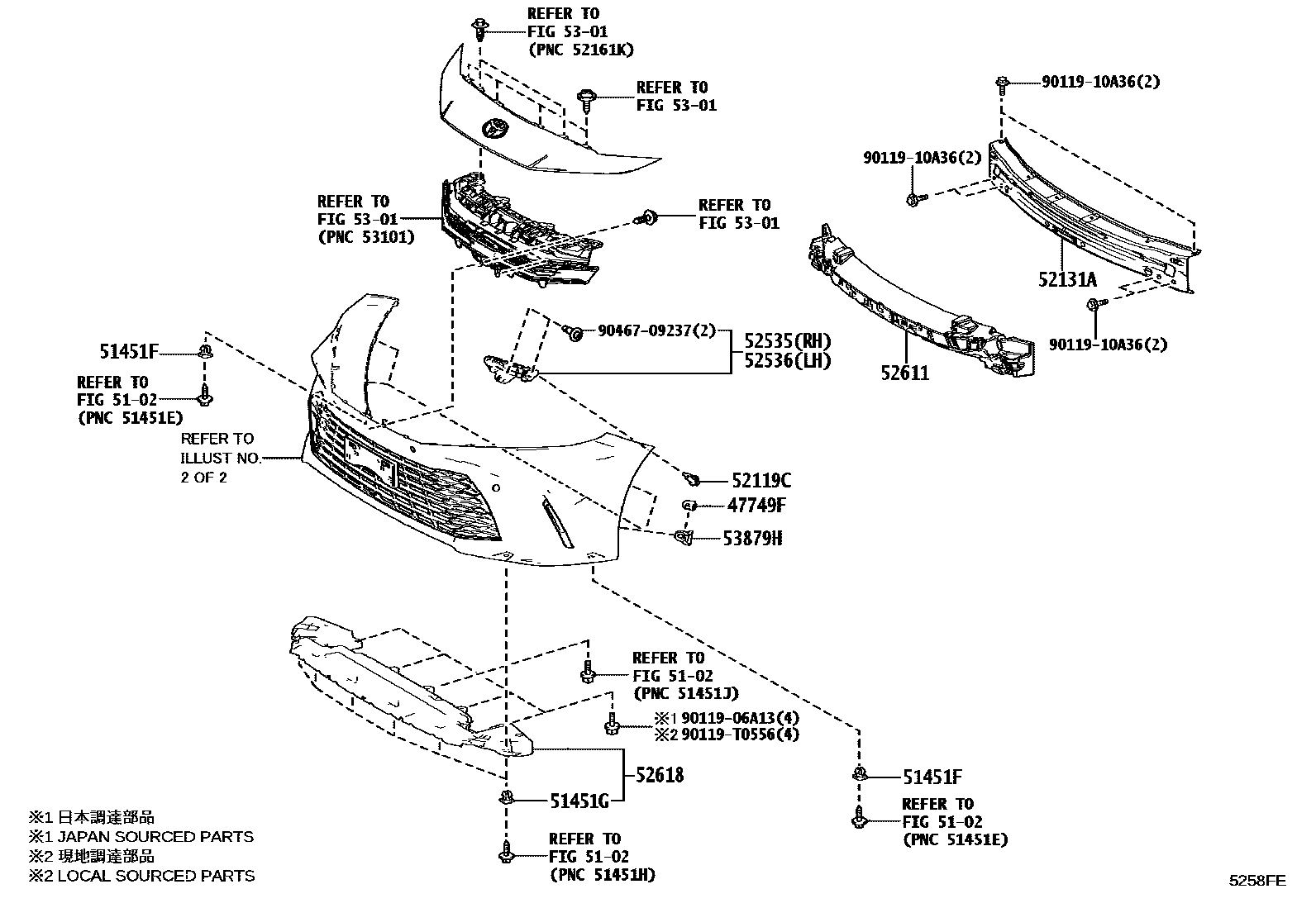

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 · 90189-T0024 |
| 51451G | OEILLET, NO.2 | 90189-06237 · 90189-T0024 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06250 |
| 52114A | Front bumper extension mounting bracket | 52114-06630 · 52114-06640 |
| 52119A | front bumper cover | 52119-0X970 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 · 90467-T0047 |
| 52131A | Front bumper reinforcement | 52131-06211 |
| 52535 | Front bumper right side fixing bracket | 52535-06270 |
| 52536 | Front bumper left fixed bracket | 52536-06260 |
| 52611 | front bumper energy absorber | 52611-06550 |
| 52618 | Front bumper lower shock absorber | 52618-06080 |
| 52712 | Front bumper right side protective strip | 52712-06170 |
| 52713A | Front bumper left protective strip | 52713-06170 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-06830 · 53102-06850 · 53102-06870 · 53102-06880 |
| 53128E | GRILLE, RADIATEUR, COTE INFERIEUR MG | 53128-06310 · 53128-06320 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
