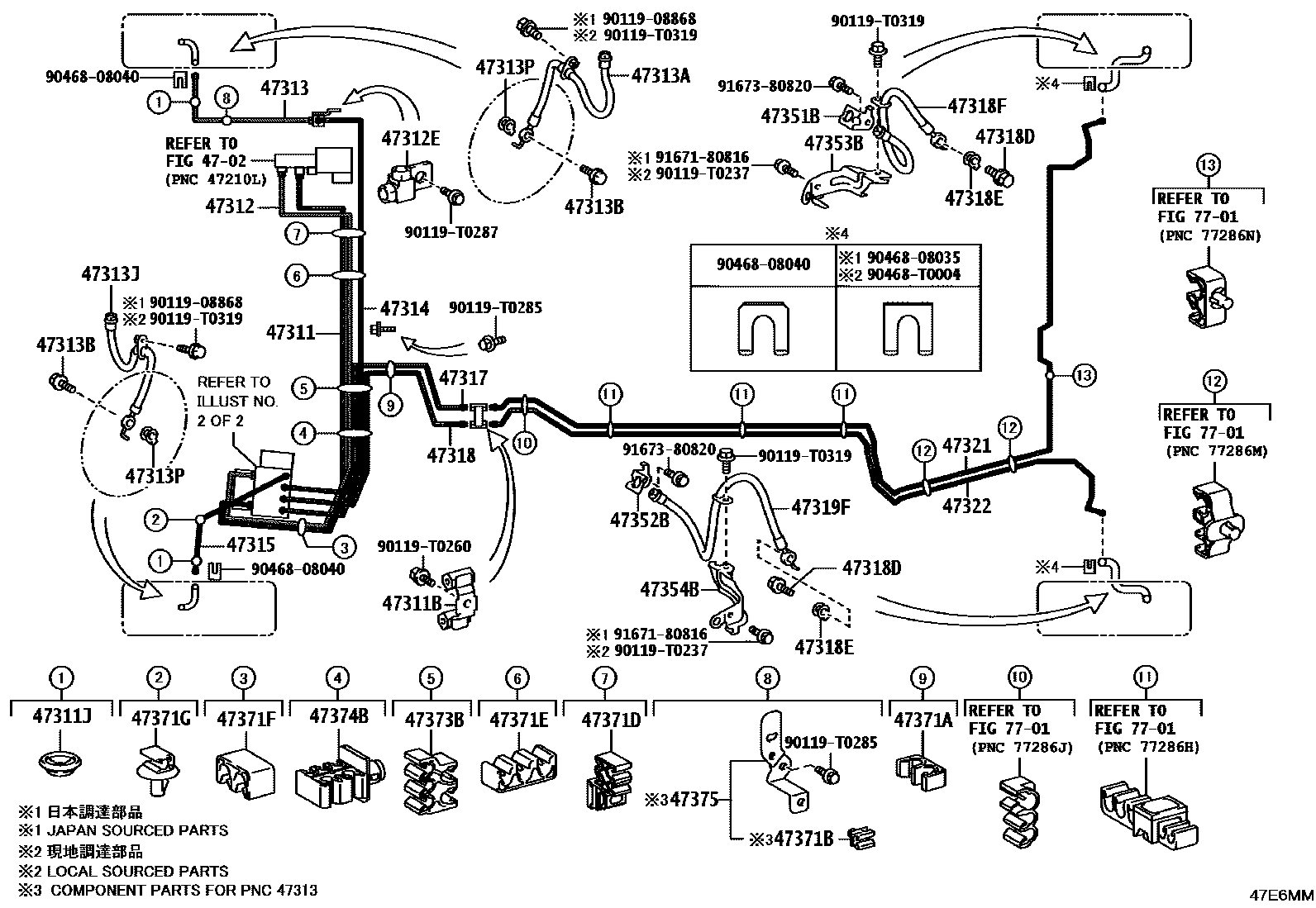

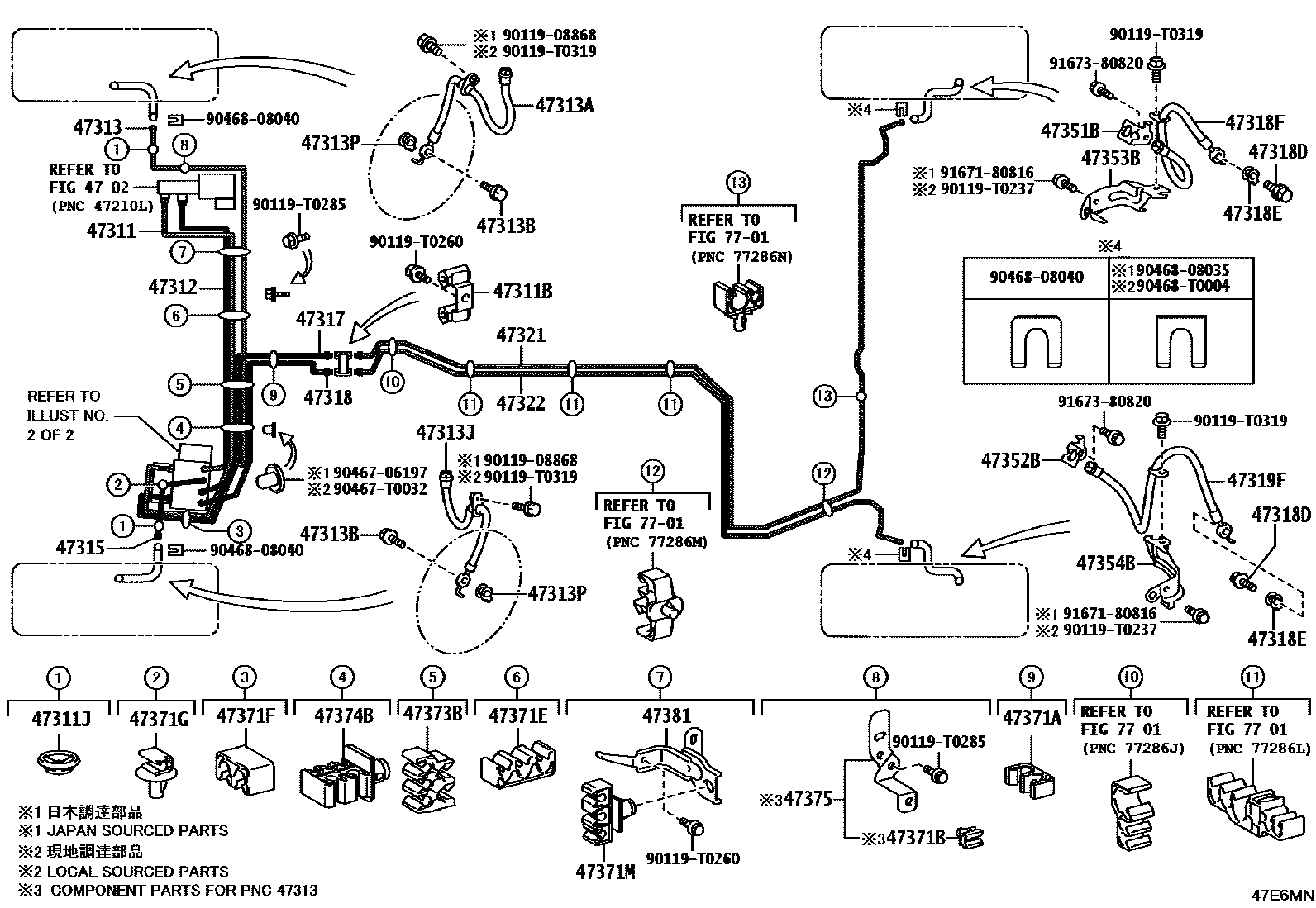

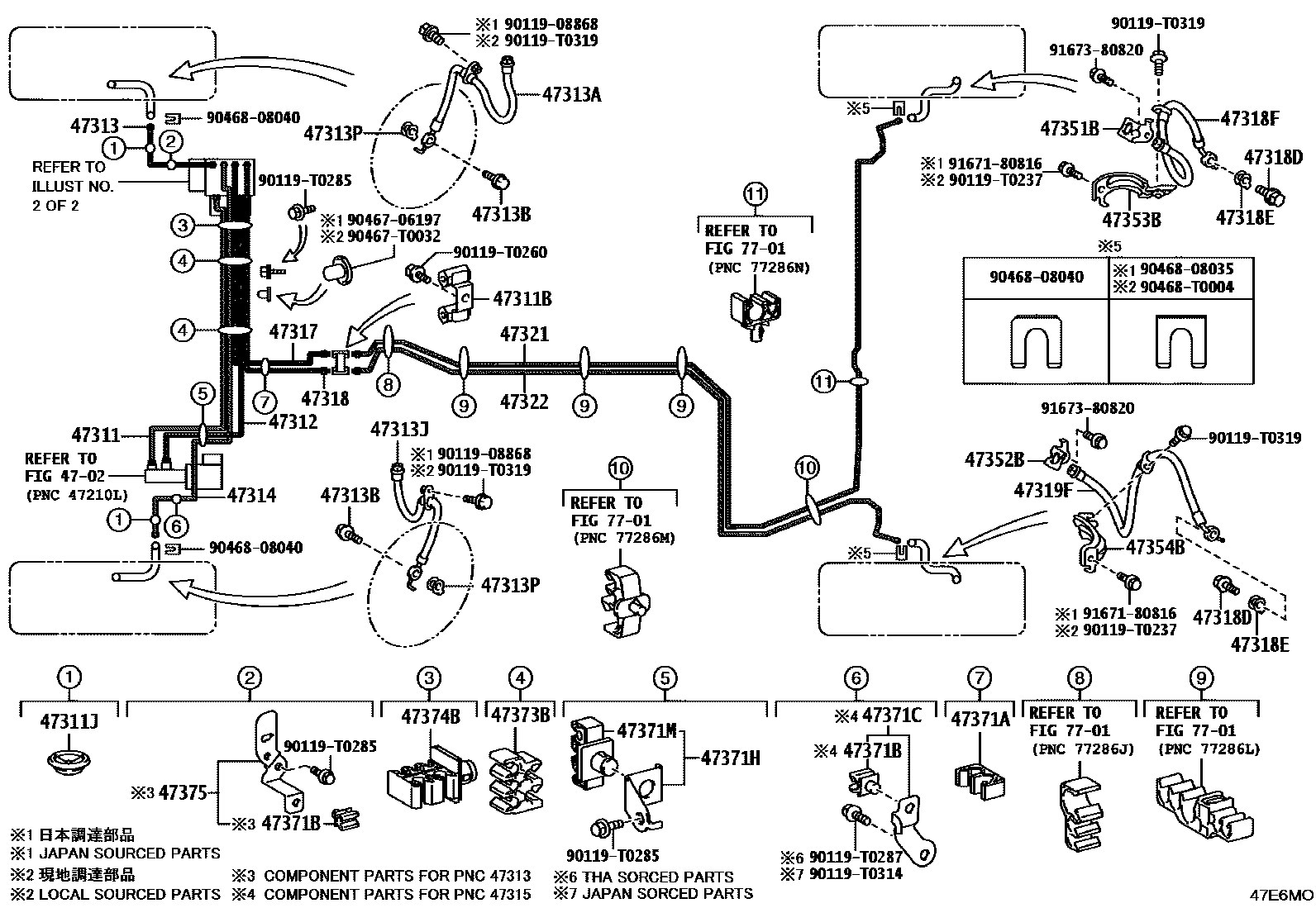

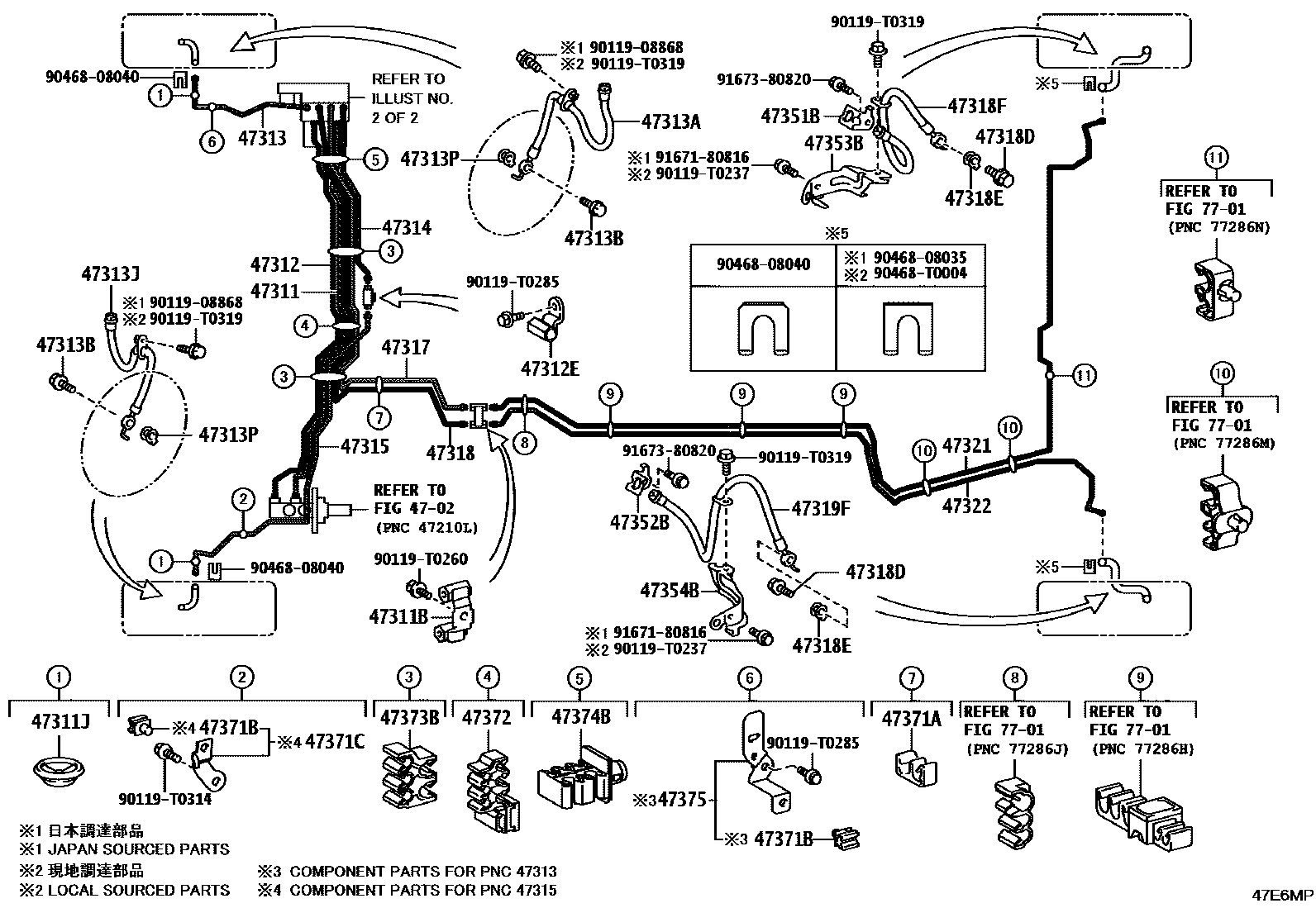

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 7 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

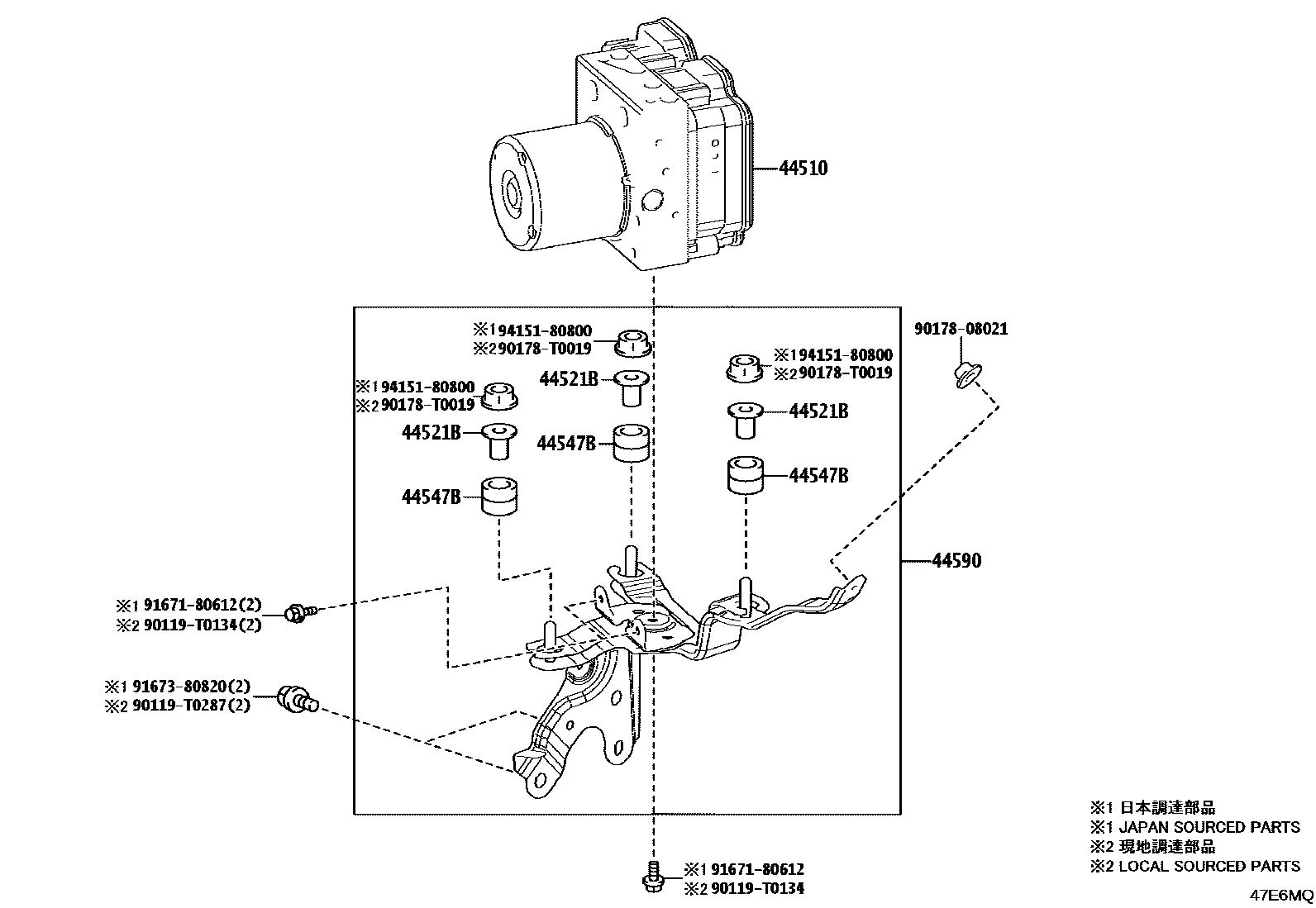

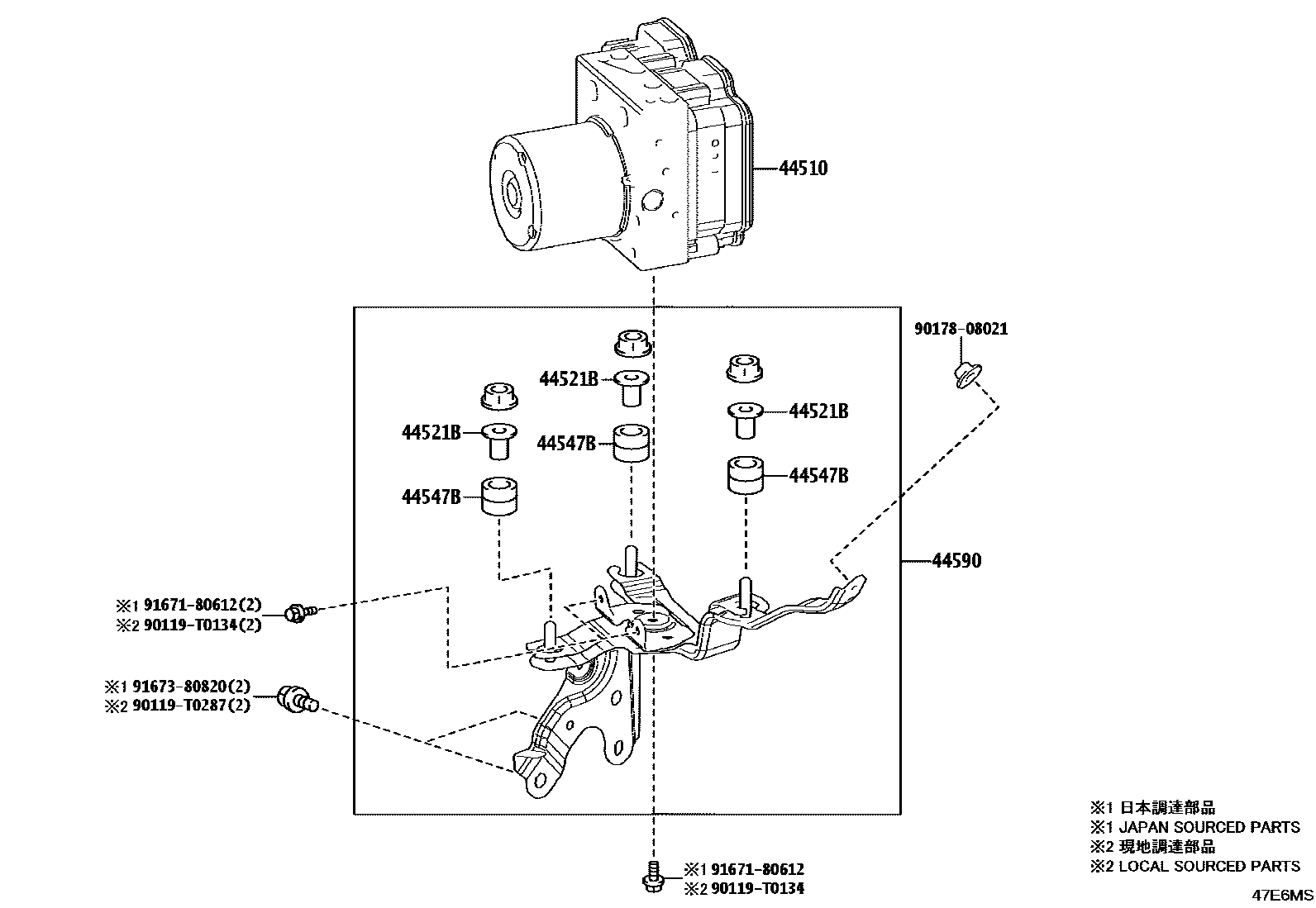

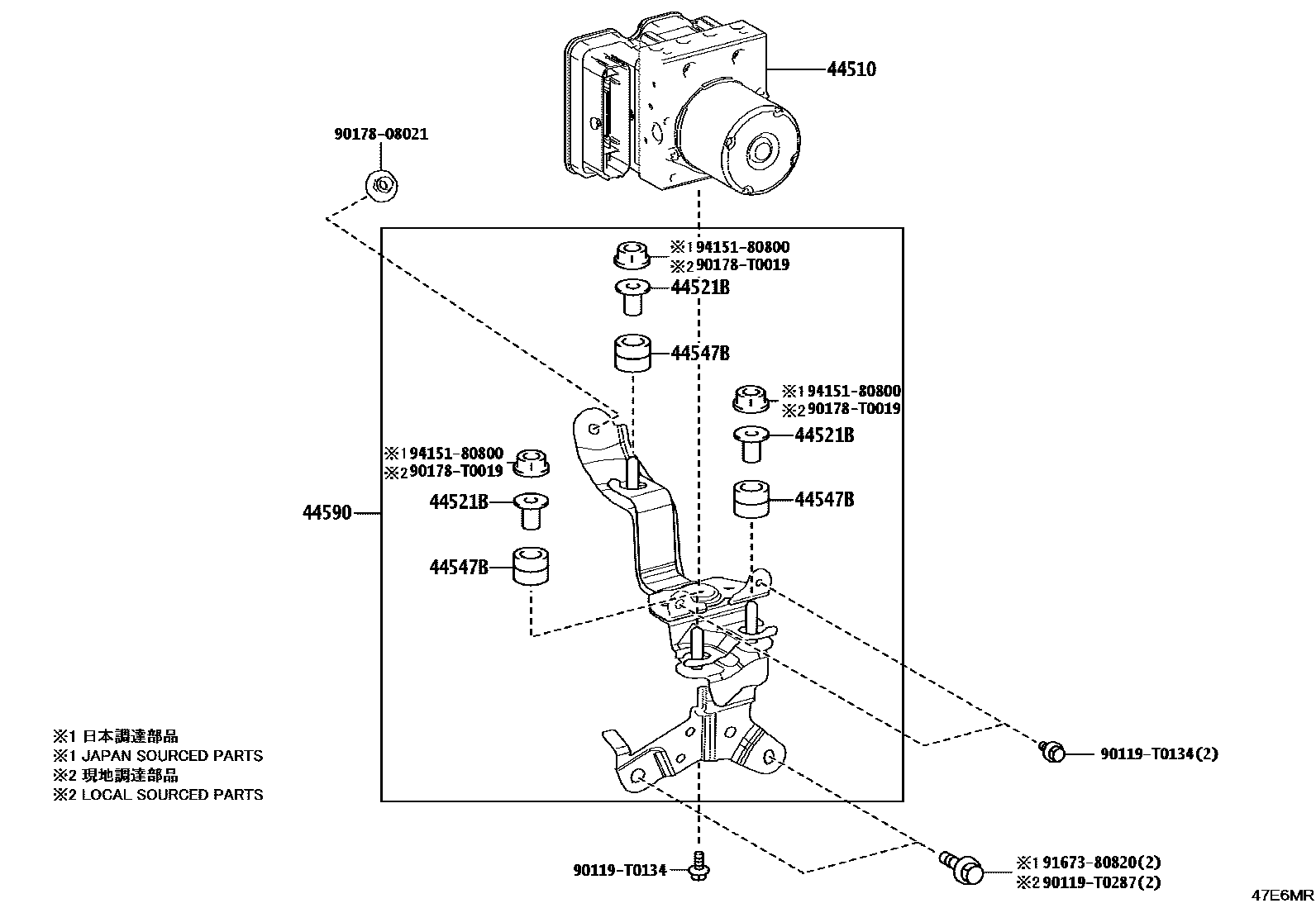

| 44510 | brake actuator assembly | 44050-33G10 · 44050-33G30 · 44050-33J20 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-33020 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-06420 · 44590-06430 · 44590-33220 · 44590-33240 |
| 47311 | No. 1 front brake pipe | 47311-06830 · 47311-06840 · 47311-06850 · 47311-06860 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-06670 · 47312-06680 · 47312-06690 · 47312-06700 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-10306 |
| 47313 | No. 3 front brake pipe | 47313-06630 · 47313-06640 · 47313-06660 |
| 47313A | No. 1 front flexible hose | 90947-T2191 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2192 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06600 · 47314-06610 · 47314-06620 |
| 47315 | No. 5 front brake pipe | 47315-06610 · 47315-06620 · 47315-06630 |
| 47317 | No. 7 front brake pipe | 47317-06720 · 47317-06730 · 47317-06740 · 47317-06750 |
| 47318 | No. 8 front brake pipe | 47318-06290 · 47318-06300 · 47318-06310 · 47318-06320 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2193 |
| 47319F | Left rear flexible hose | 90947-T2194 |
| 47321 | No. 1 rear brake pipe | 47321-06390 · 47321-06430 |
| 47322 | No. 2 rear brake pipe | 47322-06390 · 47322-06430 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06100 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06100 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06080 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06080 |
| 47371A | No. 1 brake pipe clamp | 90464-00904 |
| 47371B | No. 6 brake pipe clamp | 90949-01D56 |
| 47371C | No. 7 brake pipe clamp | 47371-33350 |
| 47371D | No. 8 brake pipe clamp | 90949-01E30 |
| 47371E | No. 9 brake pipe clamp | 90949-01E43 |
| 47371F | No. 10 brake pipe clamp | 90949-01E23 |
| 47371G | No. 11 brake pipe clamp | 90949-01D17 |
| 47371H | No. 12 brake pipe clamp | 47371-48240 |
| 47371M | No. 13 brake pipe clamp | 90949-01E80 |
| 47372 | No. 2 brake pipe clamp | 90949-01E31 |
| 47373B | No. 3 brake pipe clamp | 90949-01E40 |
| 47374B | No. 4 brake pipe clamp | 90949-01E79 |
| 47375 | No. 5 brake pipe clamp | 47371-33340 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-06040 |
