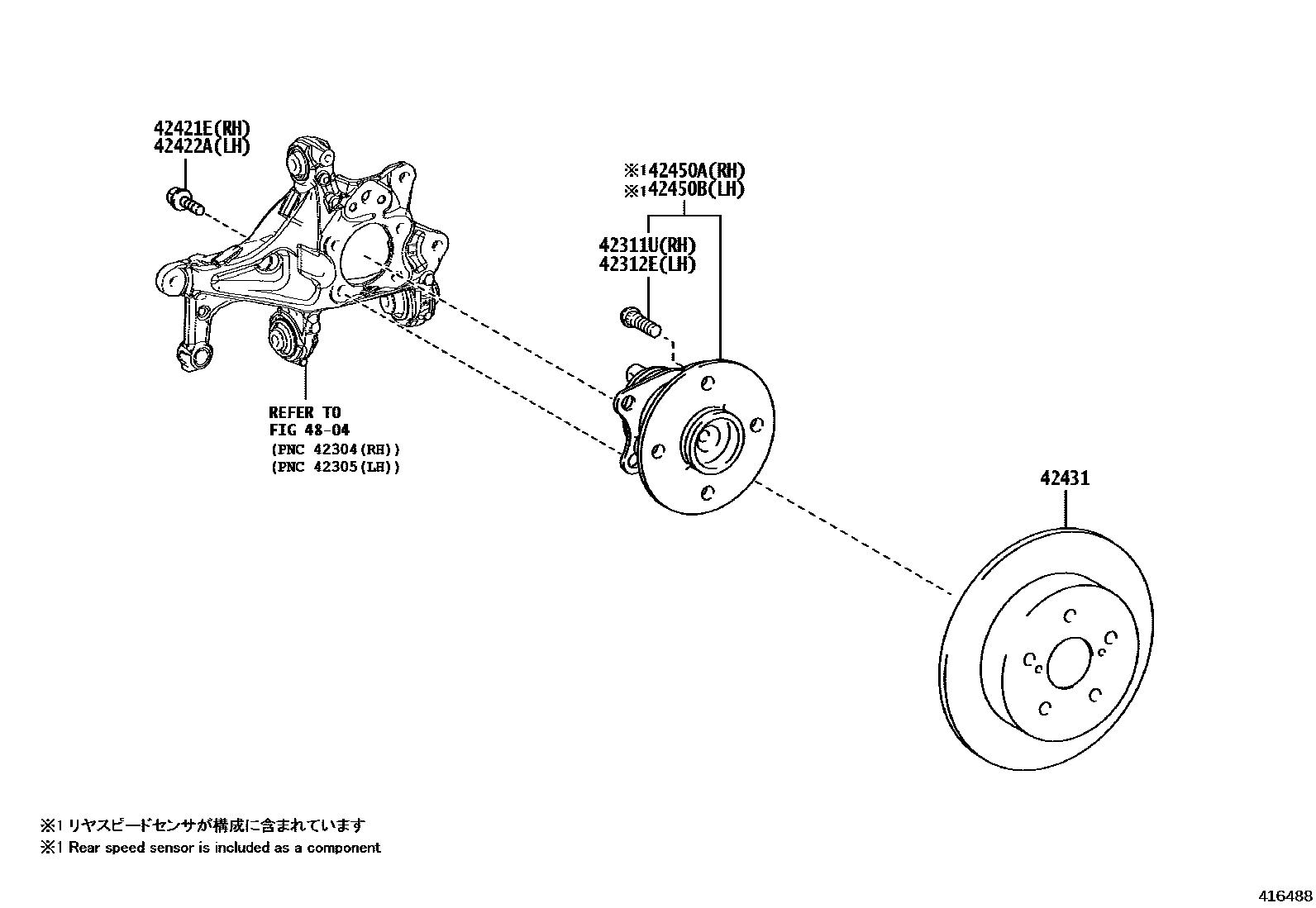

Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102
Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02082 |
| 42312E | Hub bolt (for left rear axle) | 90942-02082 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12406 · 90105-T0387 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12406 · 90105-T0387 |
| 42431 | rear brake disc | 42431-78010 |
| 42450A | Rear axle right hub and bearing assembly | 42450-06210 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-06210 |
