Toyota CAMRY Alternator — Figure 1903

Toyota CAMRY EPC diagram 1903, Alternator, with 2 images and 13 PNC and OE references.

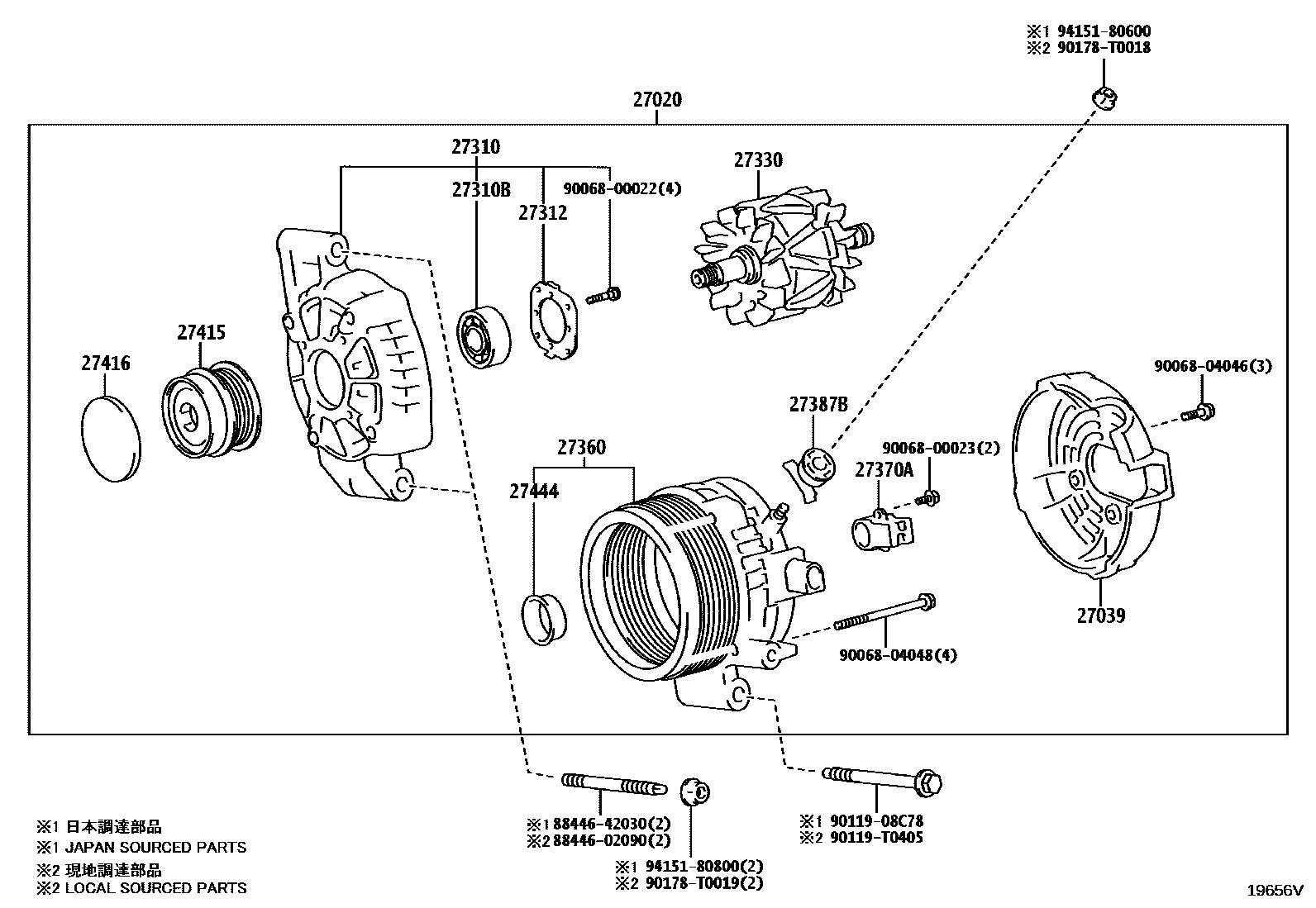

Toyota CAMRY Alternator EPC diagram — 19656V
Alternator — 19656V (202410 – 999999)

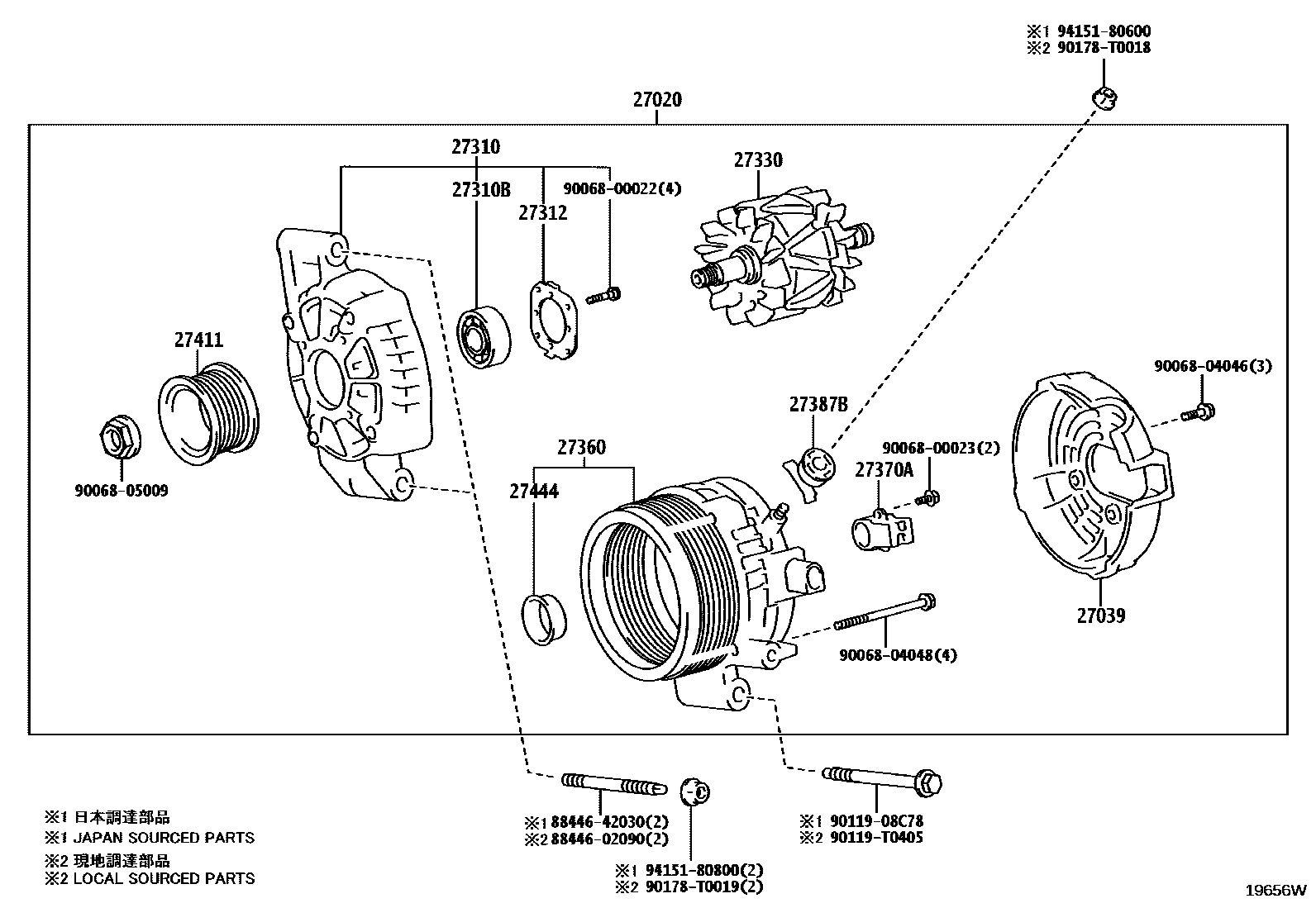

Toyota CAMRY Alternator EPC diagram — 19656W
Alternator — 19656W (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-F0020 · 27060-F2170
27039Alternator Rear End Cover27039-0V220
27310Alternator Drive End Frame Assembly27310-F0020 · 27310-F2130
27310BBearing (for Alternator Drive End Frame)90068-10033
27312Retainer Plate27312-0C020
27330Alternator Rotor Assembly27330-0V220
27360Alternator Stator Coil Assembly27360-F0020
27370AAlternator Brush Holder Assembly27370-0M040
27387BGenerator terminal insulation pad27387-0C020
27411Alternator Pulley27411-0Y200
27415PULLEY, ALTERNATOR W/CLUTCH27415-F0010
27416Generator pulley cover27416-0W050
27444Generator bearing cap seals27444-0Y180
