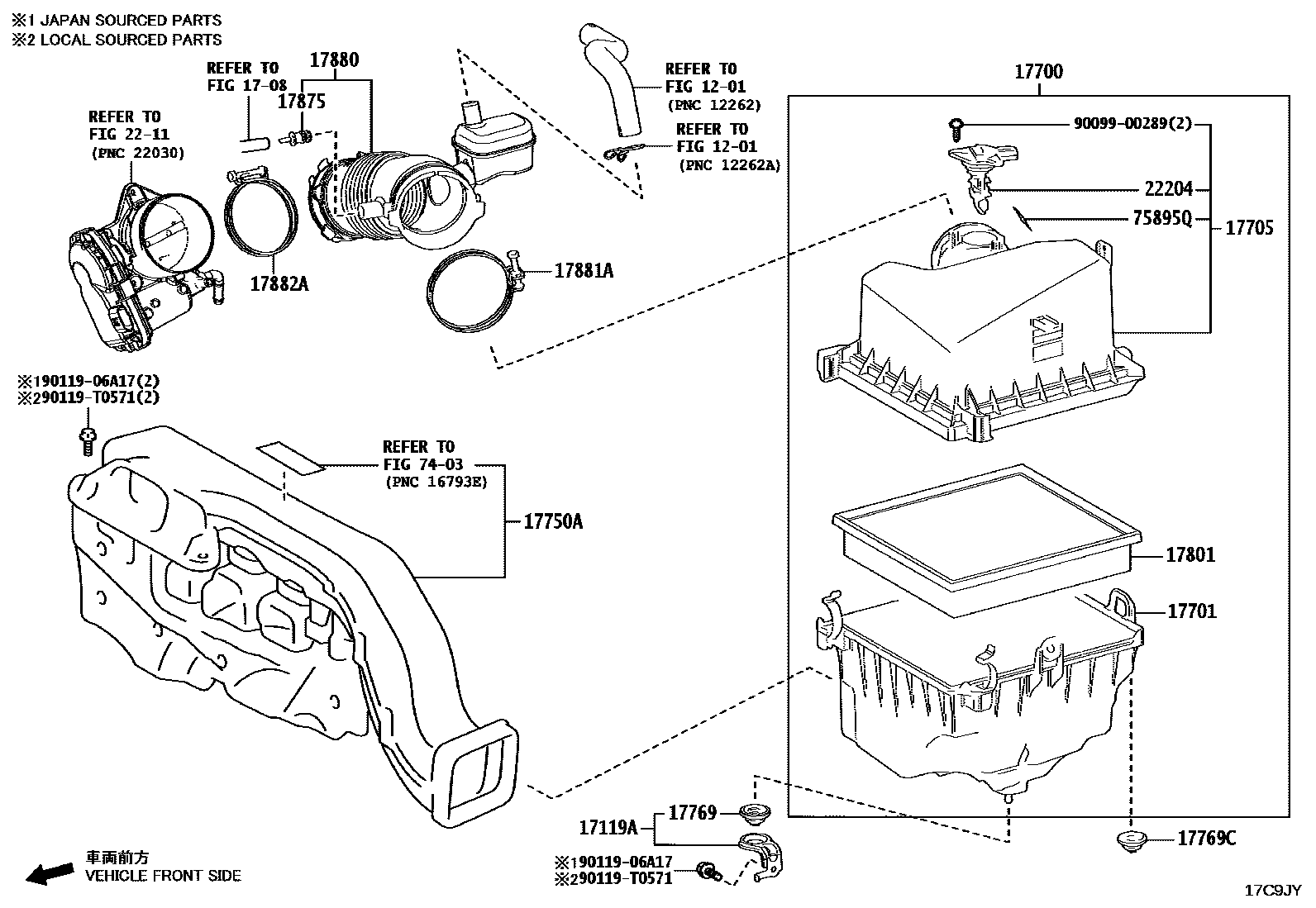

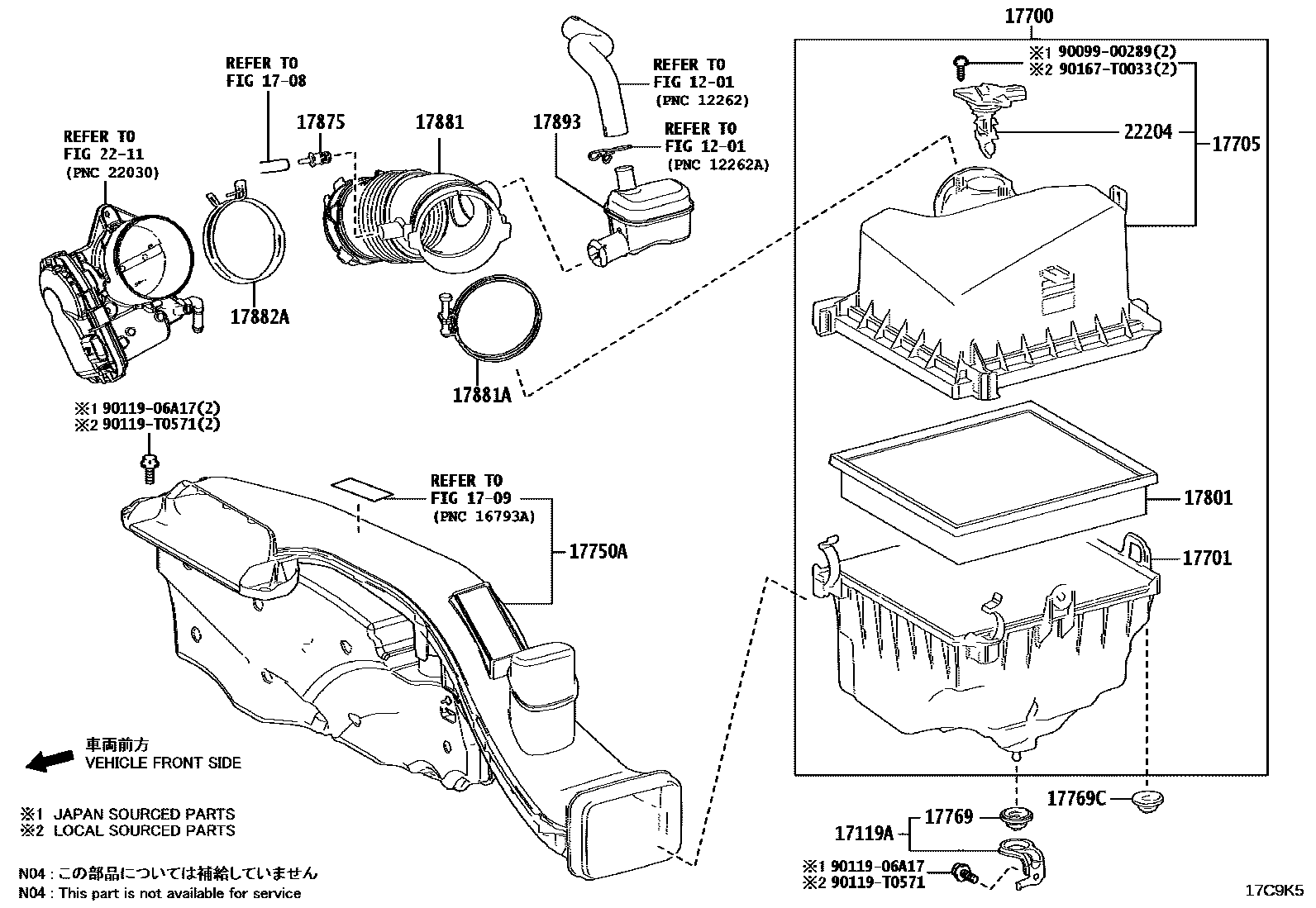

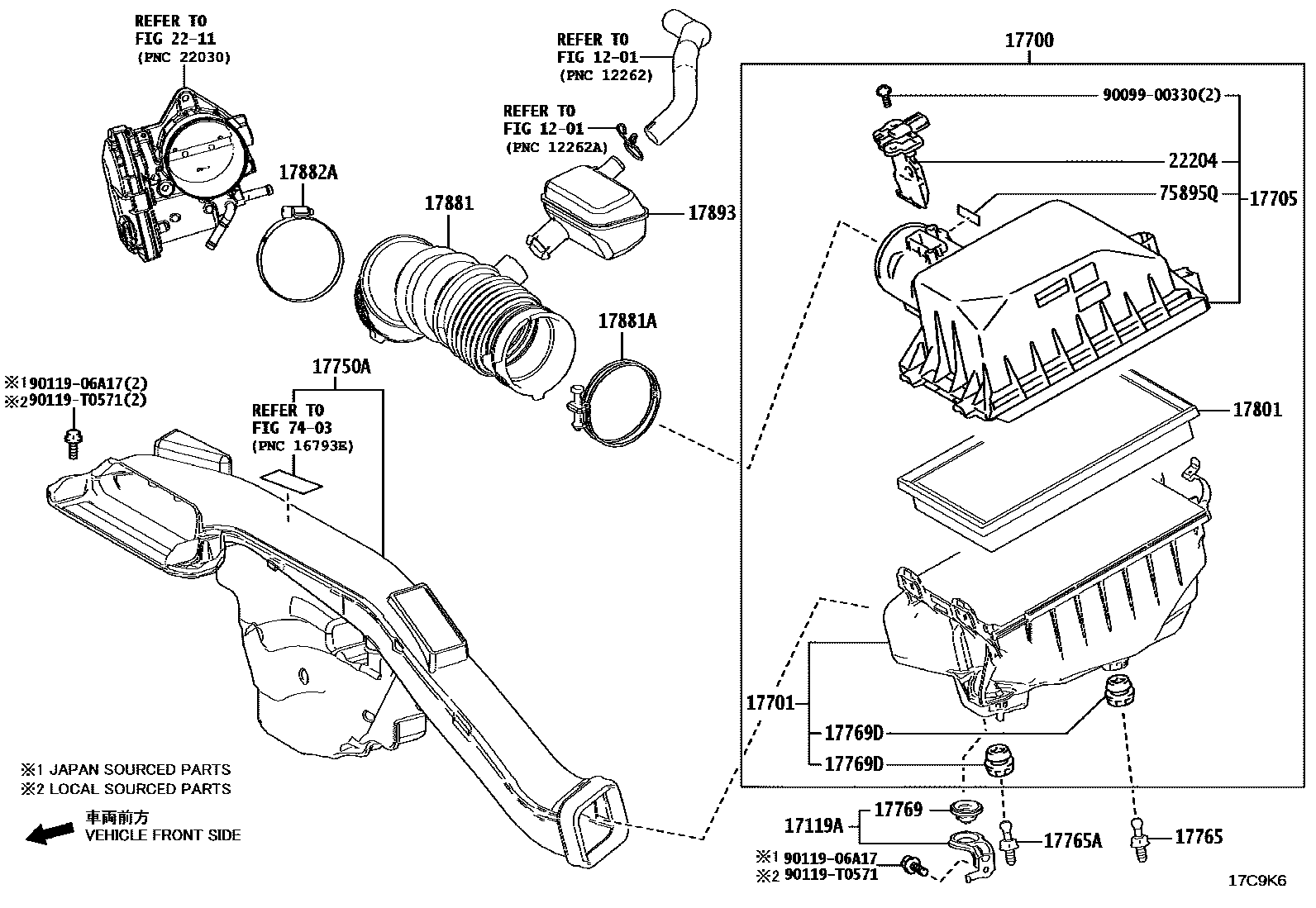

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-F0040 |
| 17700 | air filter assembly | 17700-25151 · 17700-25250 · 17700-F0030 |
| 17701 | Air filter housing sub-assembly | 17701-25081 · 17701-25101 · 17701-F0050 |
| 17705 | Air filter cover sub-assembly | 17705-25050 · 17705-25110 · 17705-F0060 |
| 17750A | Air filter air inlet assembly | 17750-24020 · 17750-25010 · 17750-F0040 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17765A | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25020 |
| 17769C | SUPPORT, FILTRE A AIR, NO.1 | 17769-25020 |
| 17769D | SUPPORT, FILTRE A AIR, NO.2 | 17769-25030 |
| 17801 | Air filter element sub-assembly | 17801-25020 · 17801-77050 |
| 17875 | Intake connecting pipe | 17875-25010 · 17875-31010 |
| 17880 | Air cleaner hose assembly | 17880-24020 |
| 17881 | No. 1 air cleaner hose | 17881-25020 · 17881-F0040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 · 96111-10880 · 96111-20800 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17891-31010 · 90466-71001 · 96111-10880 |
| 17893 | Intake resonator | 17893-25040 · 17893-F0060 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75040 |
| 75895Q | RUBAN, MOULURE, NO.1 | 75895-52050 |
