Toyota CAMRY Engine Oil Pump — Figure 1501

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 2 images and 8 PNC and OE references.

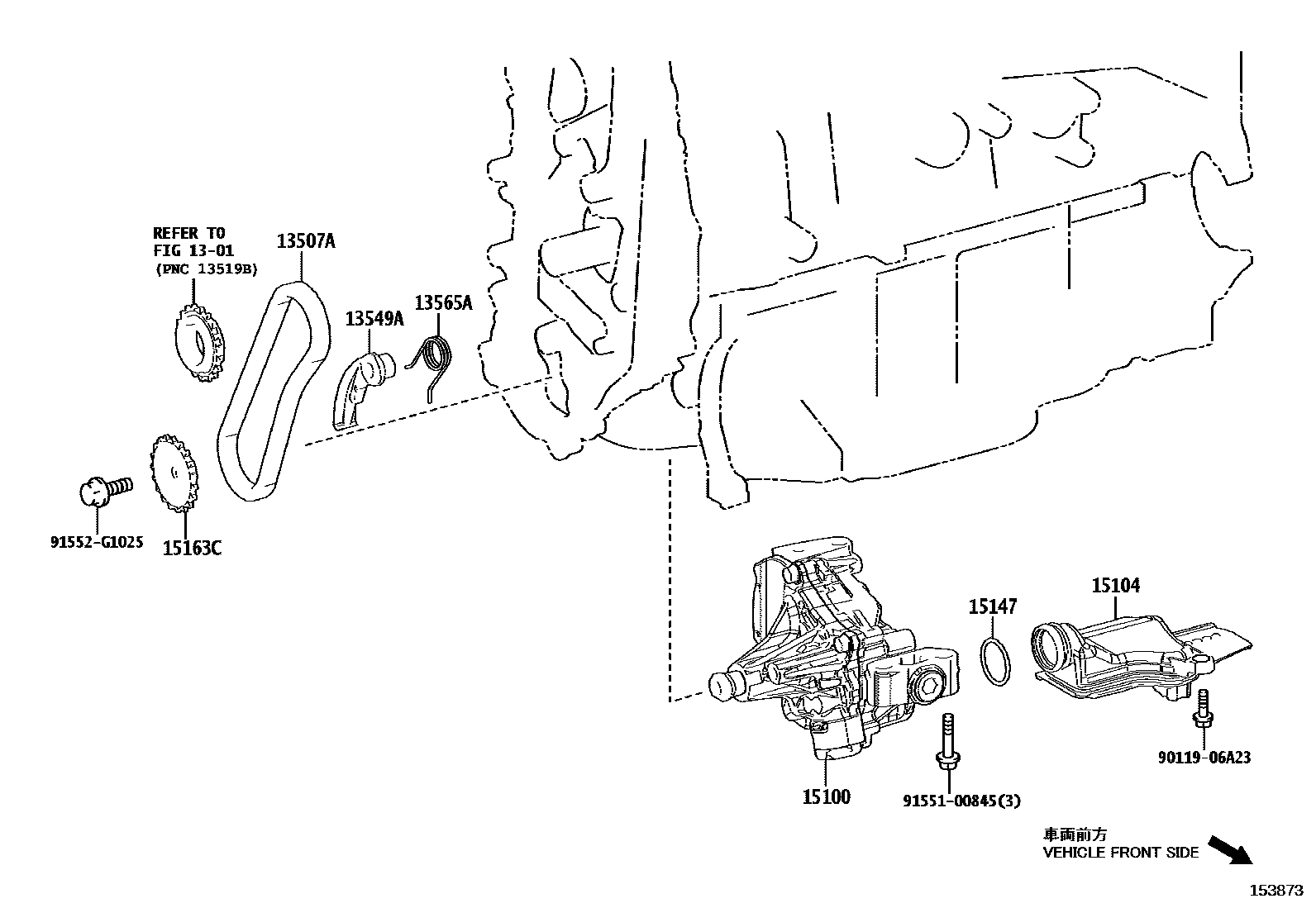

Toyota CAMRY Engine Oil Pump EPC diagram — 153873
Engine Oil Pump — 153873 (202410 – 999999)

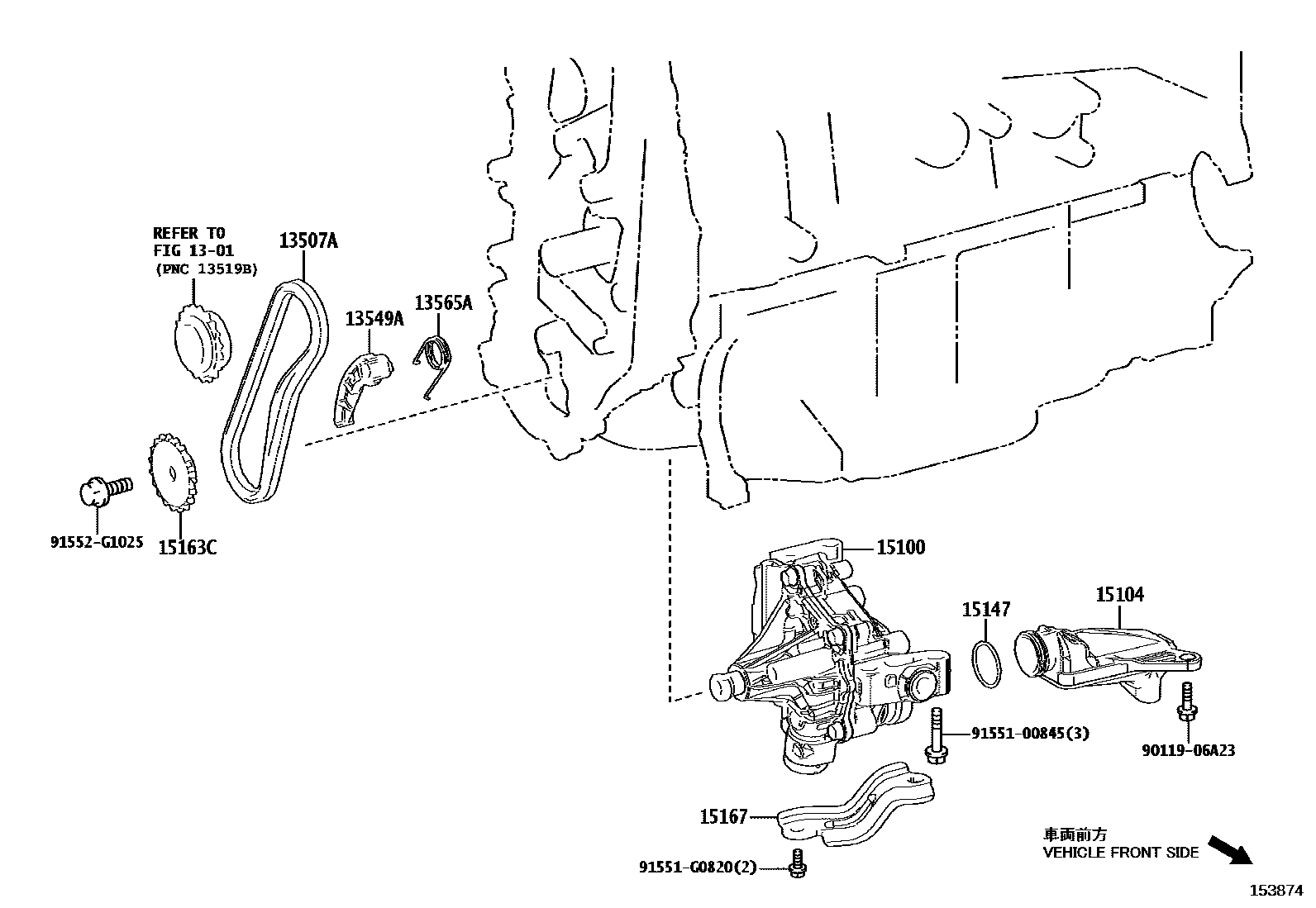

Toyota CAMRY Engine Oil Pump EPC diagram — 153874
Engine Oil Pump — 153874 (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
13507AOil pump drive chain sub-assembly13507-24020 · 13507-25010
13549APLAQUE TENDEUR CHAINE13549-25020
13565Achain damper spring13565-25010
15100Oil pump assembly15100-24020 · 15100-25032
15104Oil filter sub-assembly15104-24010 · 15104-25030
15147Oil filter gasket15147-25010
15163CPIGNON, ARBRE ENTR POMPE HUILE15163-25010
15167Oil pump bracket15167-25011
