Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

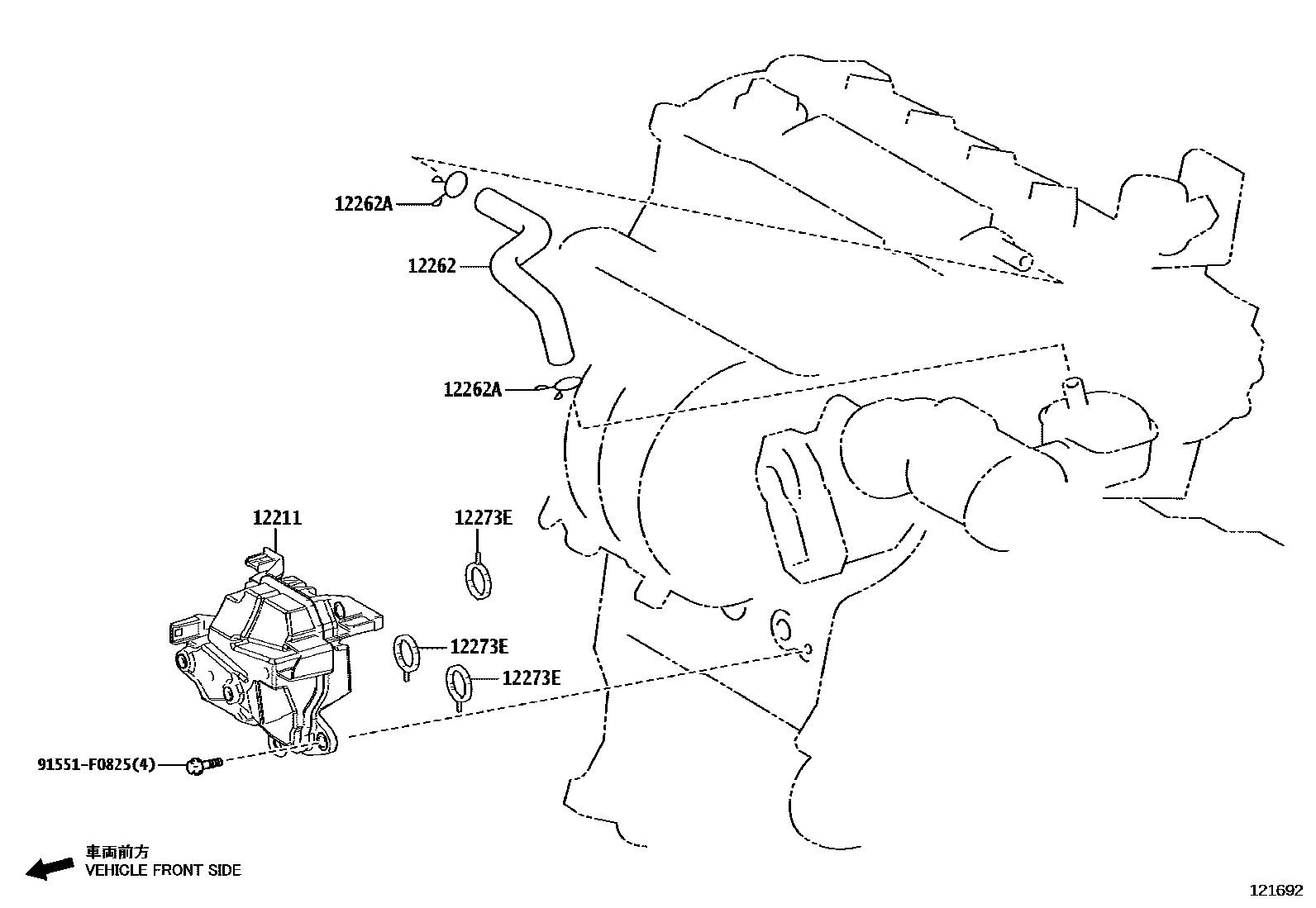

Toyota CAMRY Ventilation Hose EPC diagram — 121692
Ventilation Hose — 121692 (202410 – 999999)

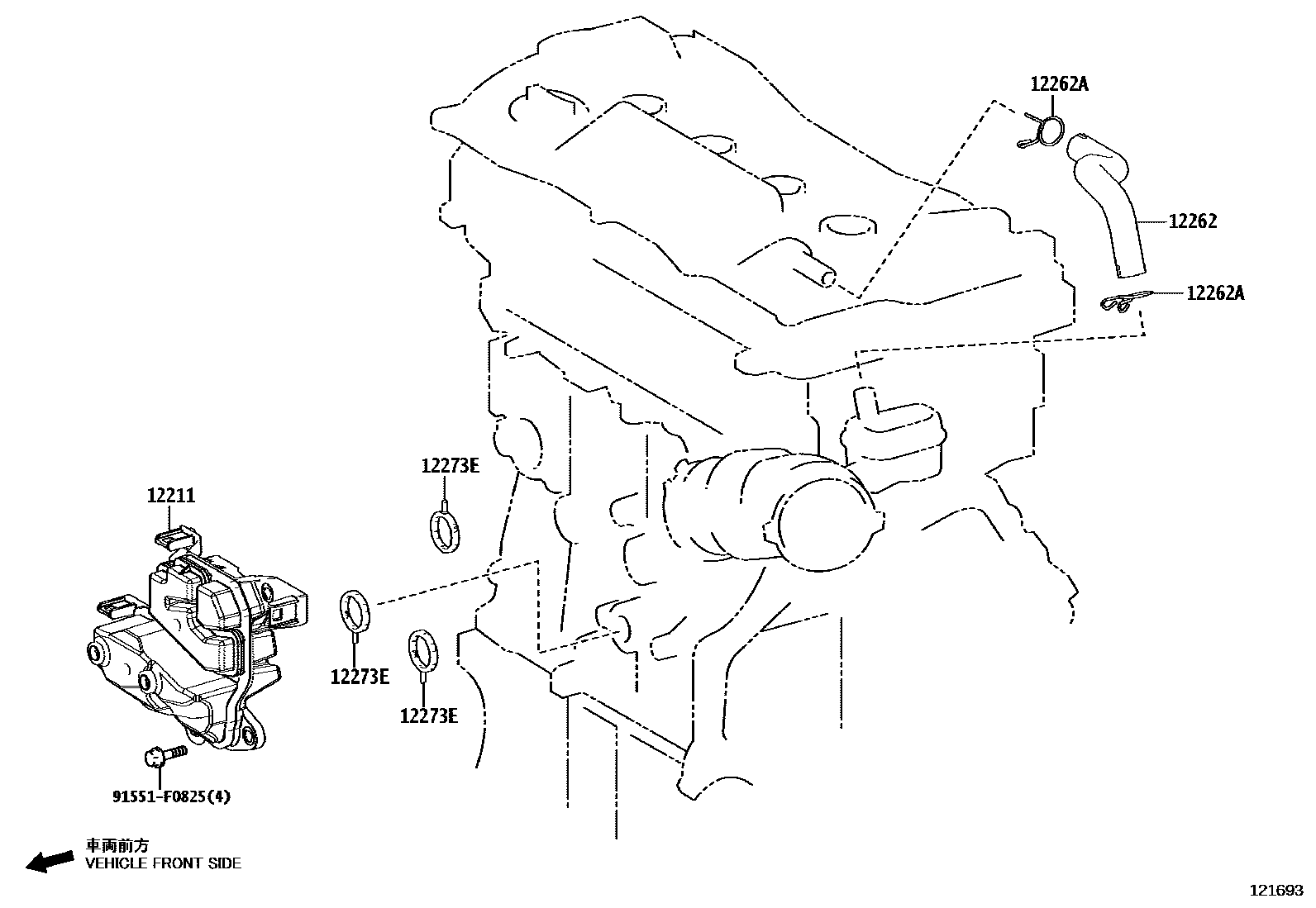

Toyota CAMRY Ventilation Hose EPC diagram — 121693
Ventilation Hose — 121693 (202410 – 999999)

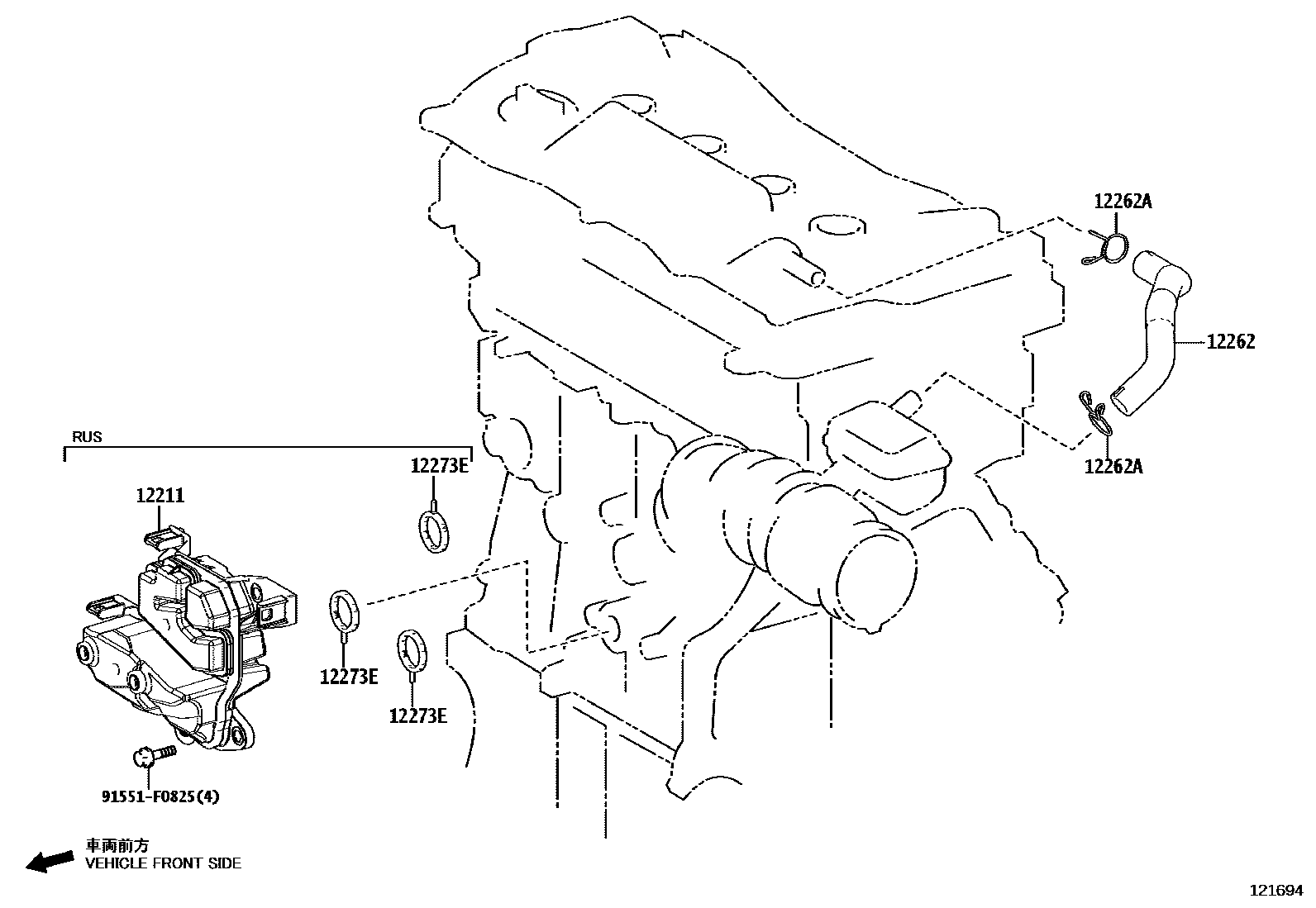

Toyota CAMRY Ventilation Hose EPC diagram — 121694
Ventilation Hose — 121694 (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-24020 · 12211-25011
12262Ventilation hose No. 212262-24060 · 12262-25030 · 12262-25040
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-24010
