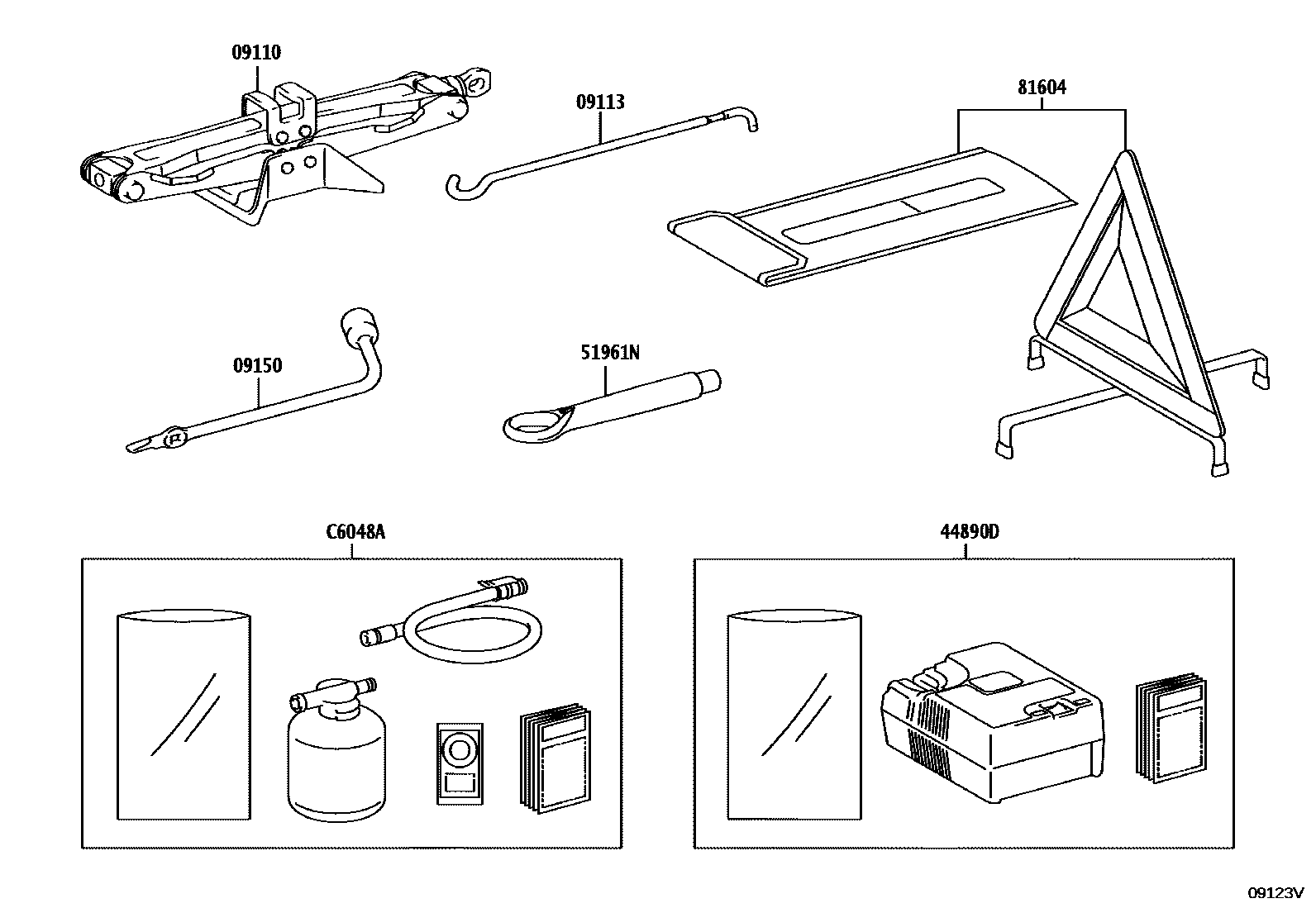

Toyota CAMRY Standard Tools — Figure 0901
Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-33051 |
| 09113 | Jack Handle | 09113-02090 · 09113-42030 |
| 09150 | Wheel Nut Wrench | 09150-42010 |
| 44890D | Air Compressor Assembly | 44890-06010 |
| 51961N | CROCHET, TRANSPORT | 51961-06080 |
| 81604 | Triangular reflector assembly | 81604-02020 |
| C6048A | Tire Repair Sealant | C6048-06010 |
