Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 3 images and 3 PNC and OE references.

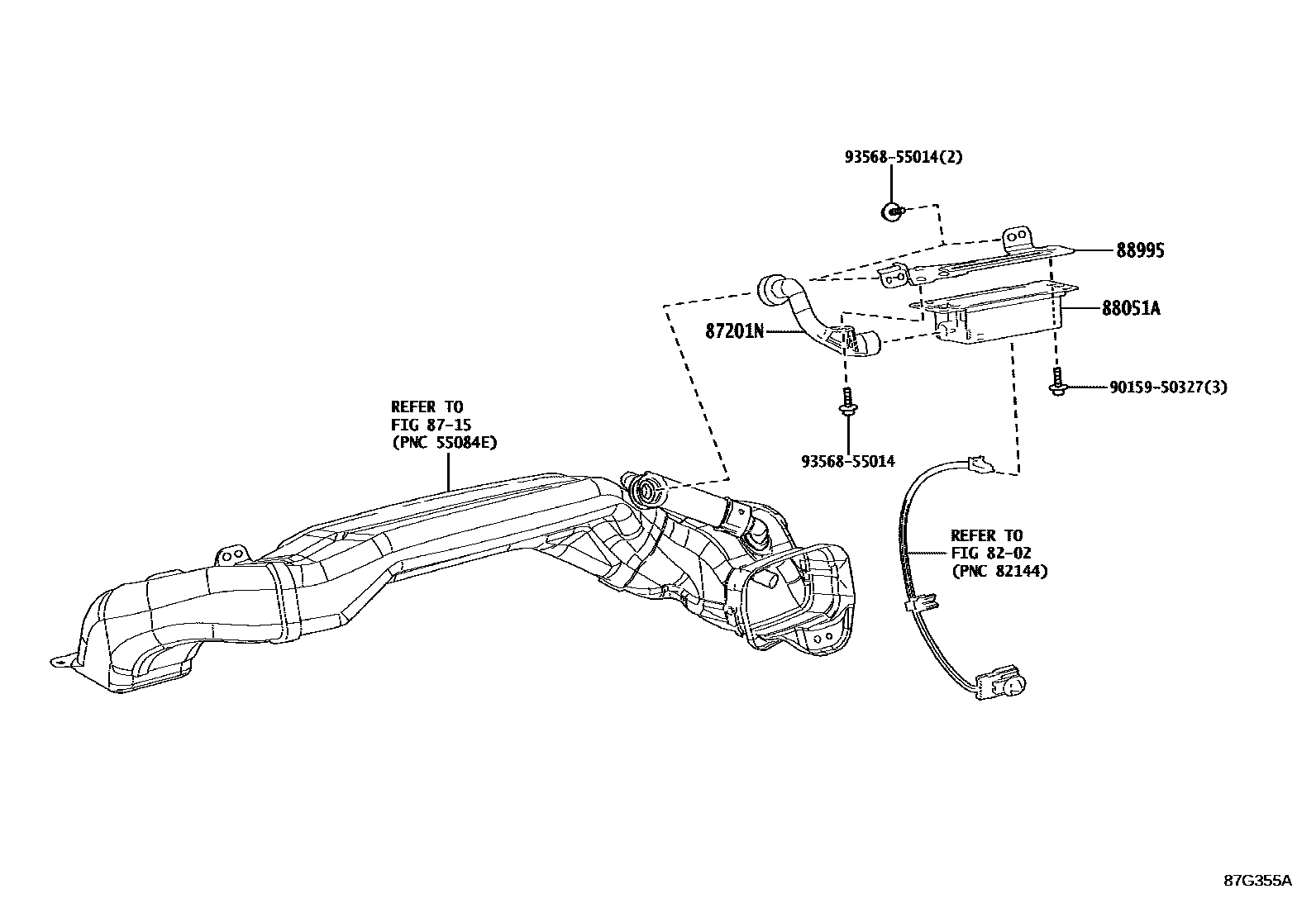

Toyota CAMRY 空气净化器或离子发生器 EPC diagram — 87G355A
空气净化器或离子发生器 — 87G355A (201709 – 999999)

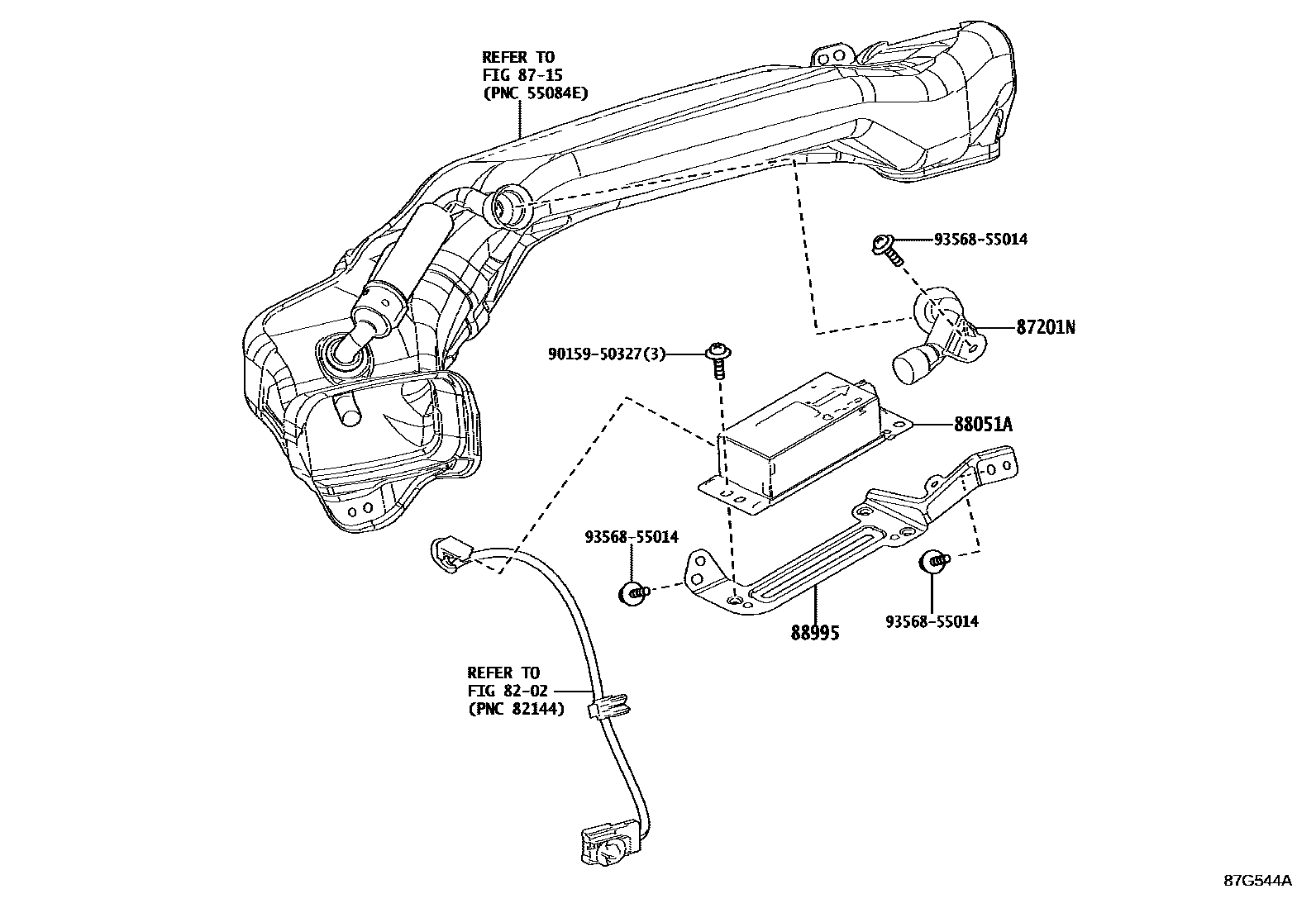

Toyota CAMRY 空气净化器或离子发生器 EPC diagram — 87G544A
空气净化器或离子发生器 — 87G544A (201709 – 999999)

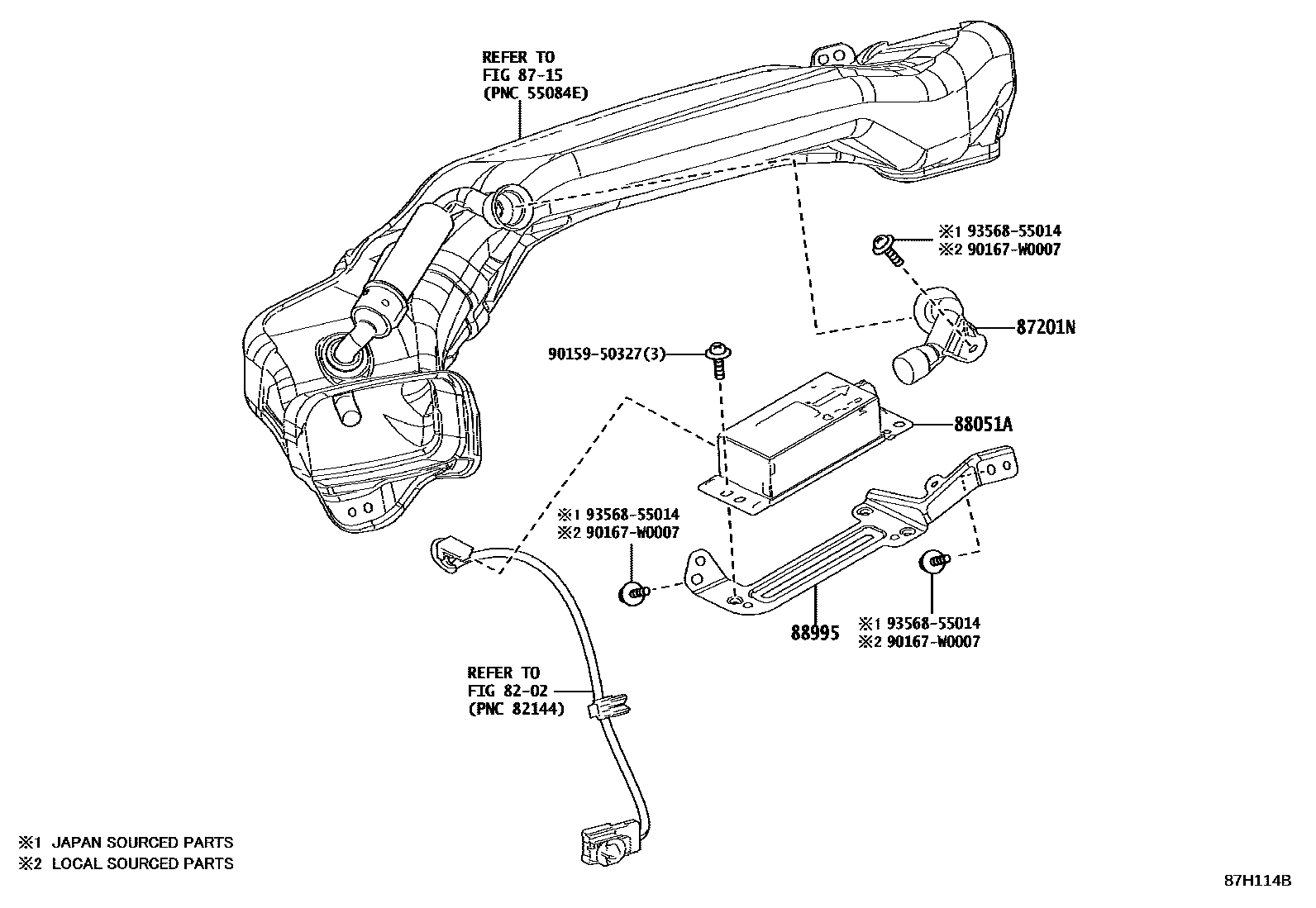

Toyota CAMRY 空气净化器或离子发生器 EPC diagram — 87H114B
空气净化器或离子发生器 — 87H114B (201804 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly55848-33040 · 55848-33050
88051AIon generator sub-assembly88051-28060
88995SUPPORT, GENERATEUR D'IONS, NO.188995-33090 · 88995-33100
