Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

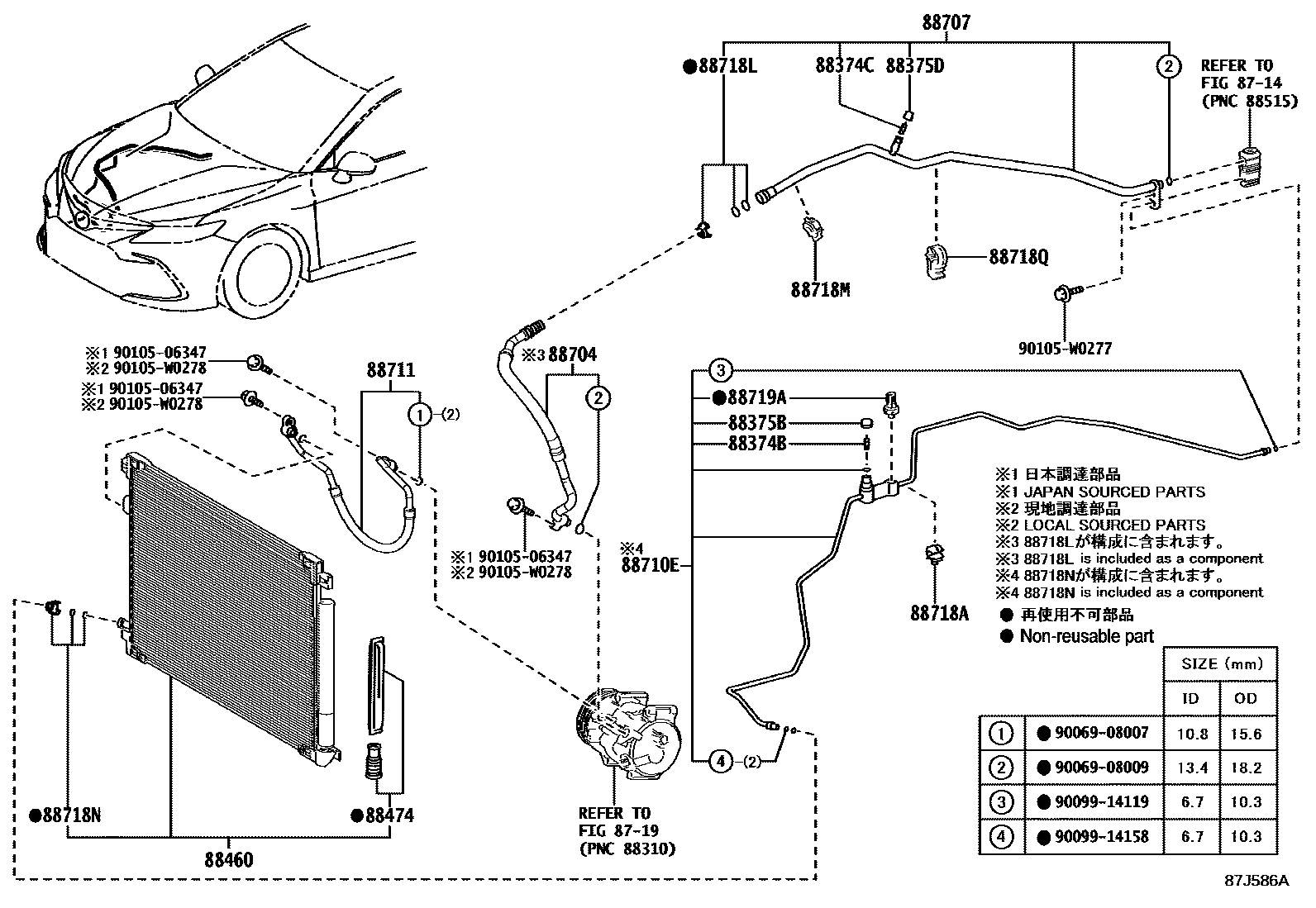

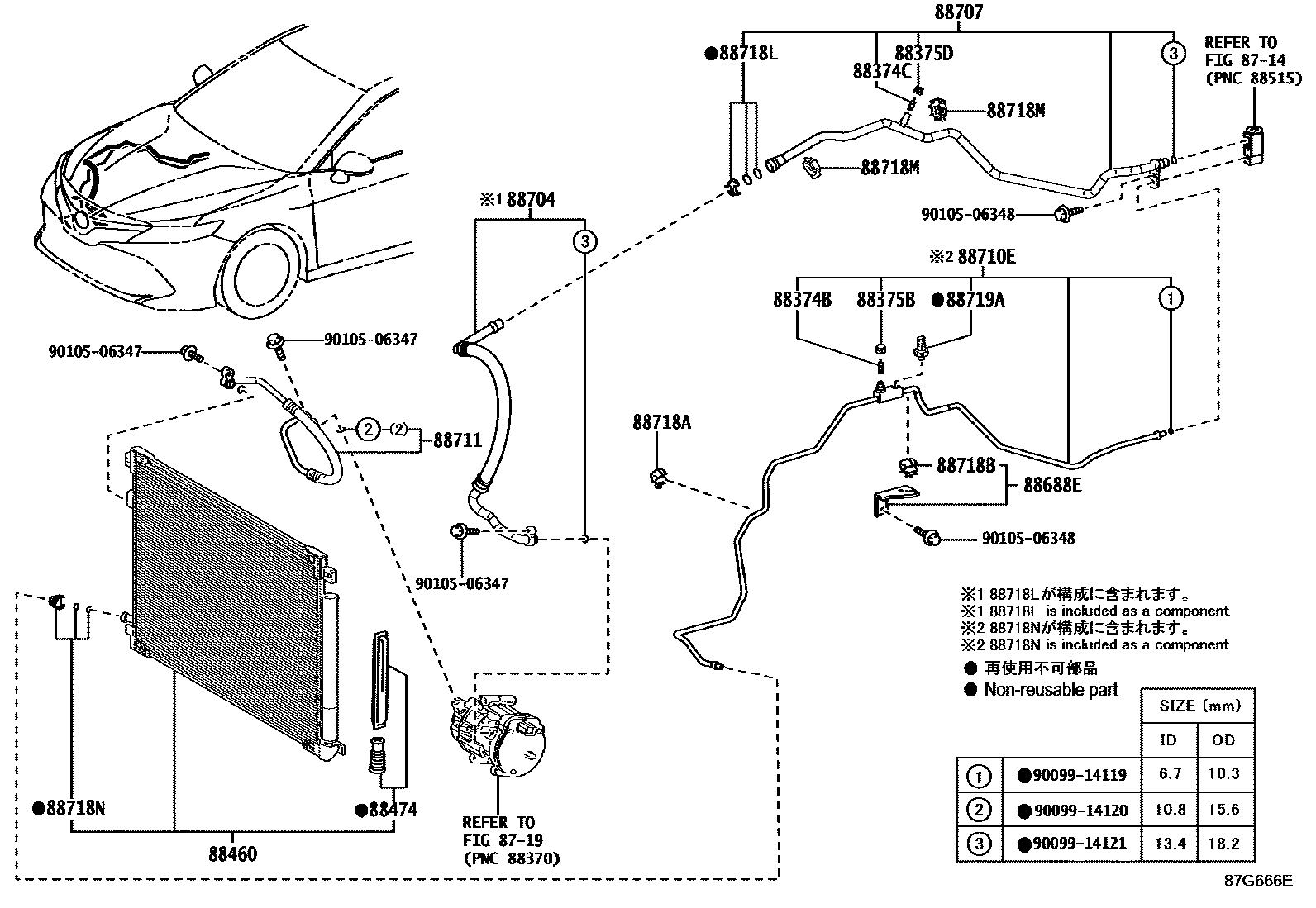

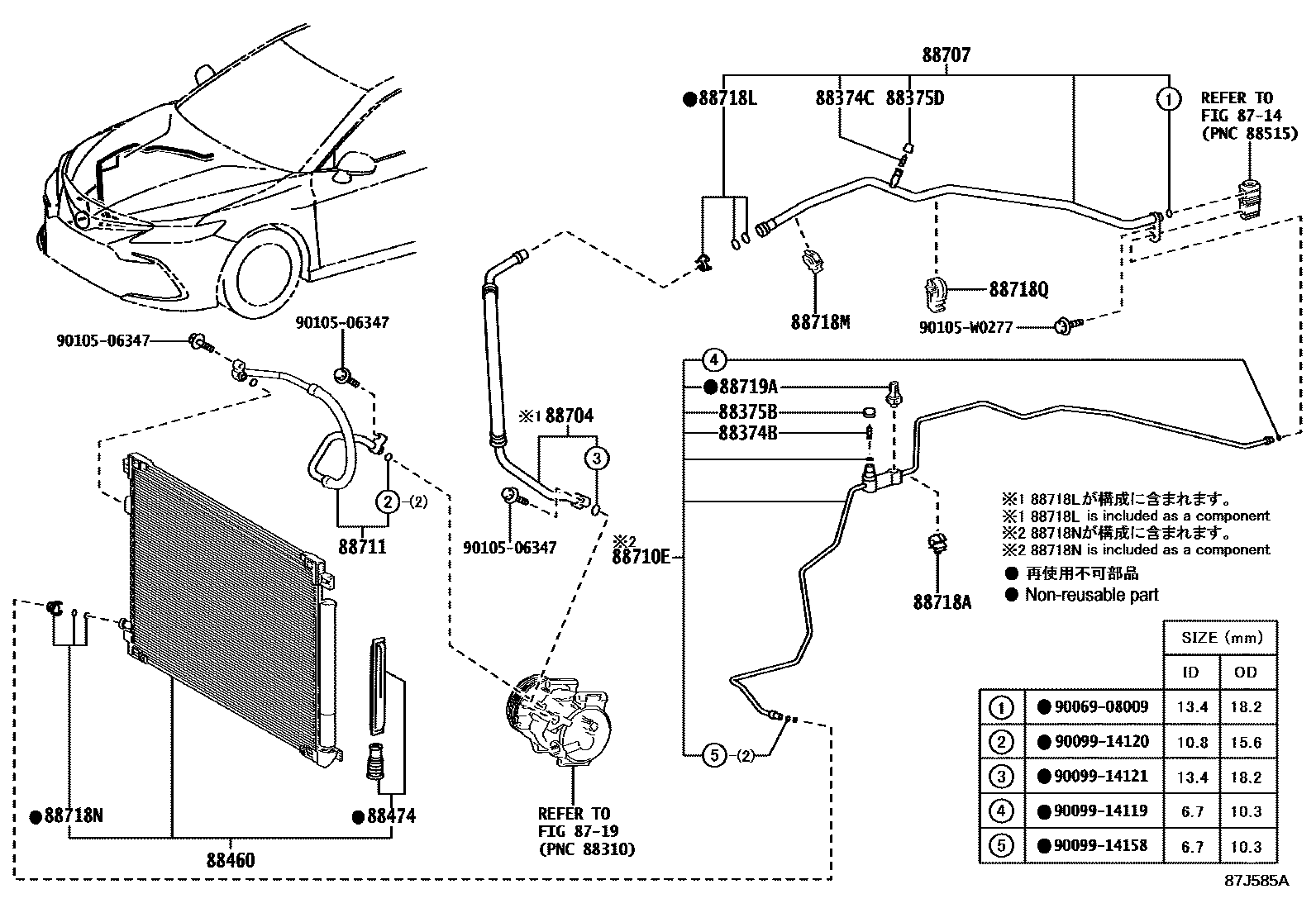

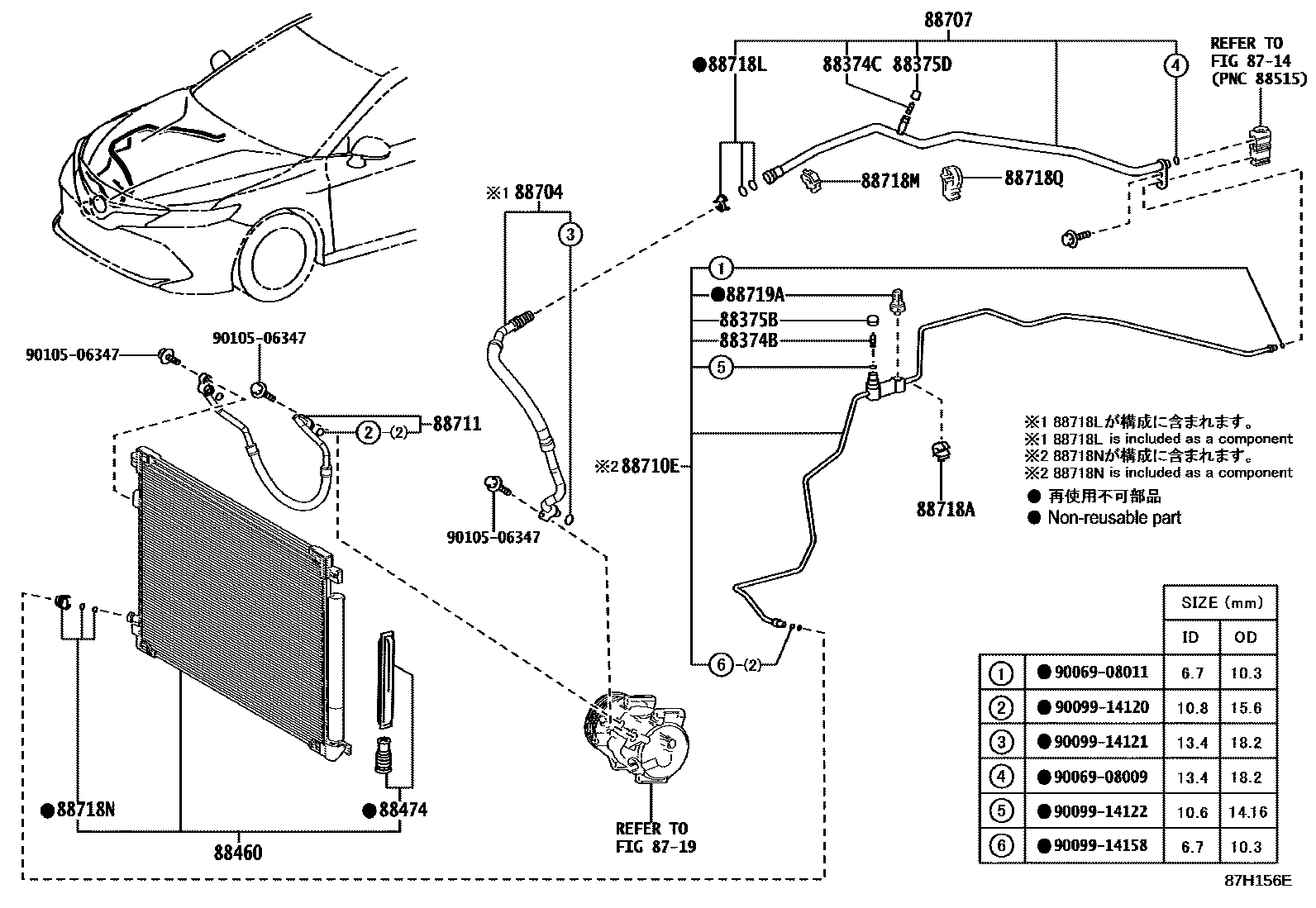

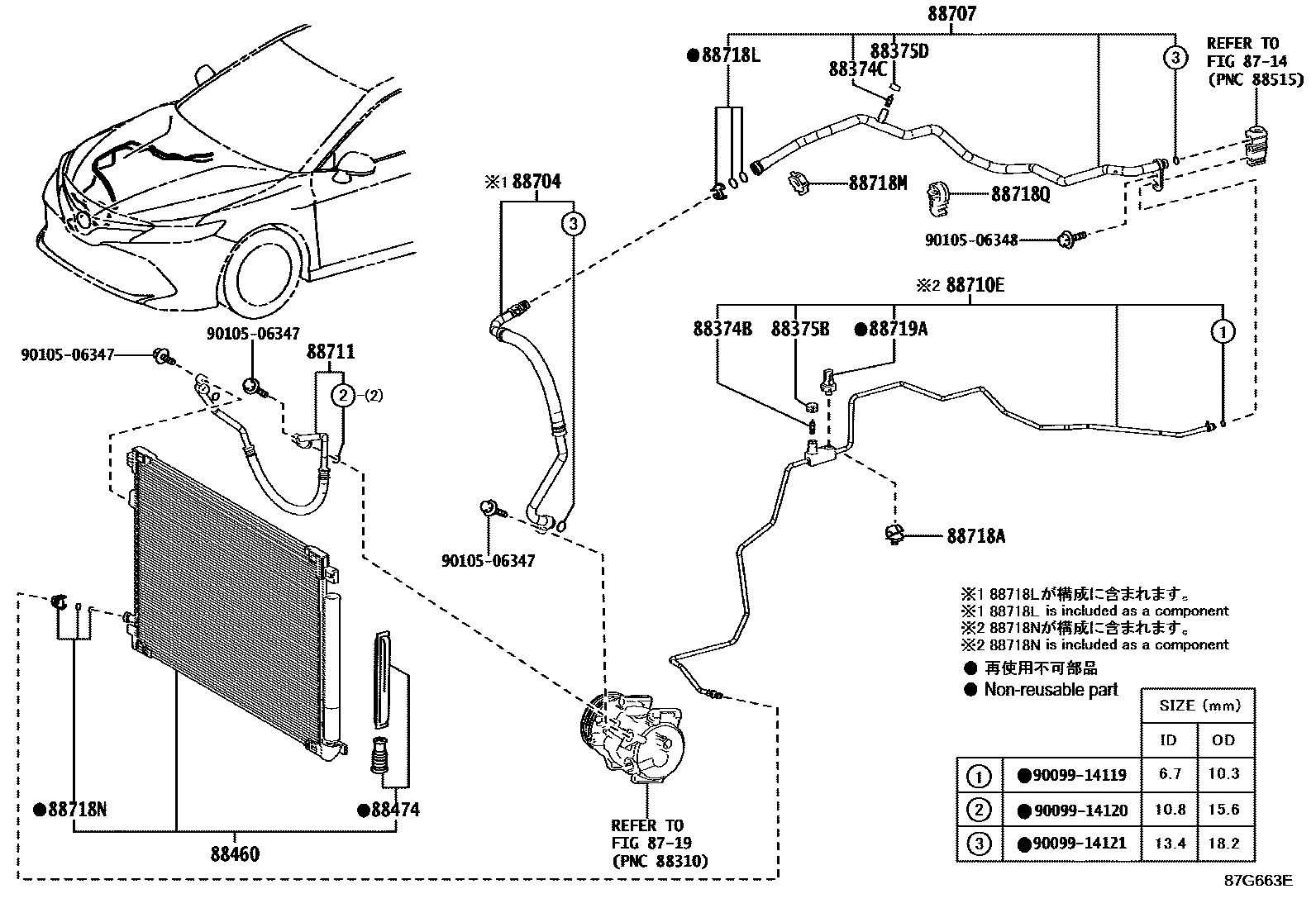

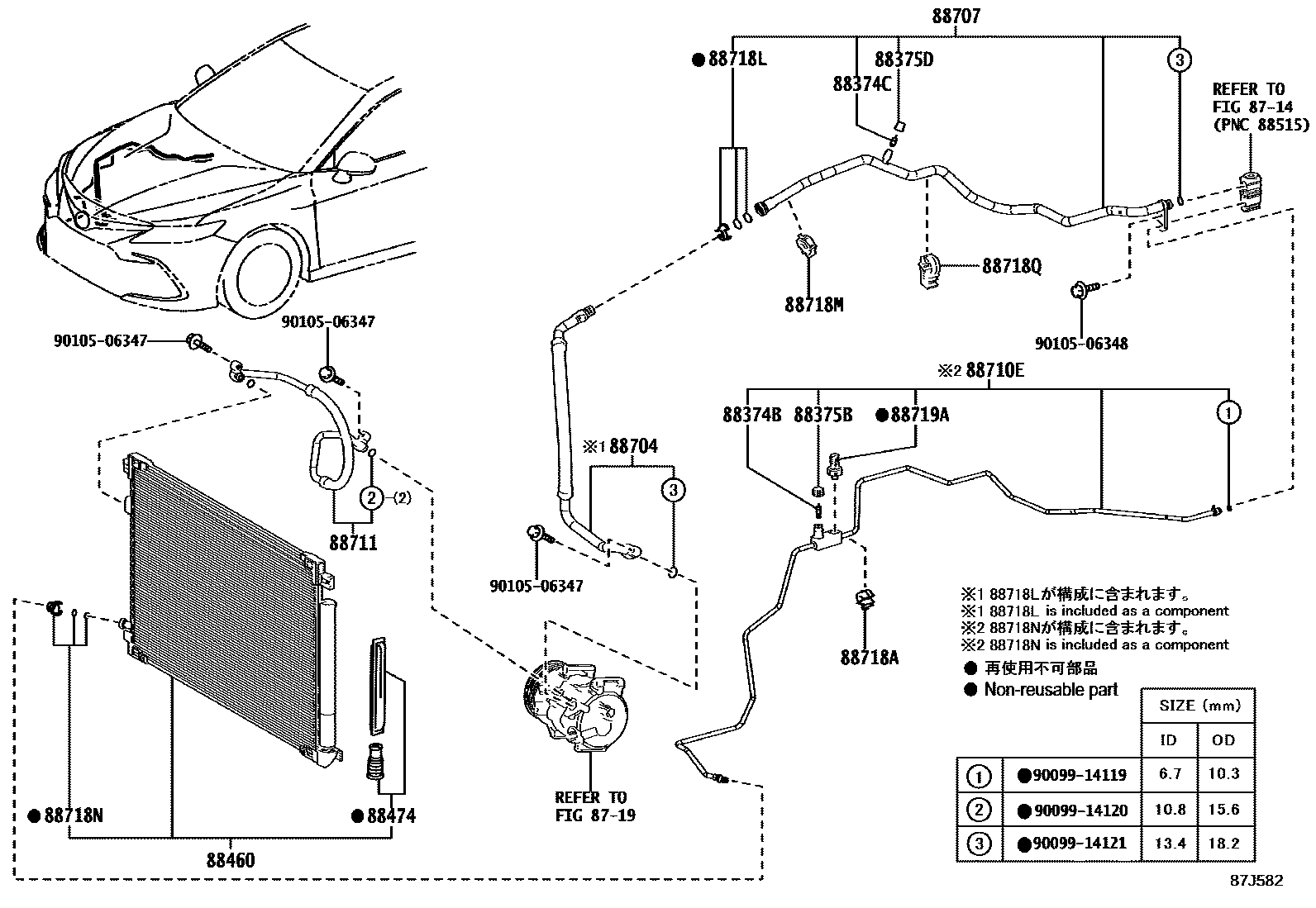

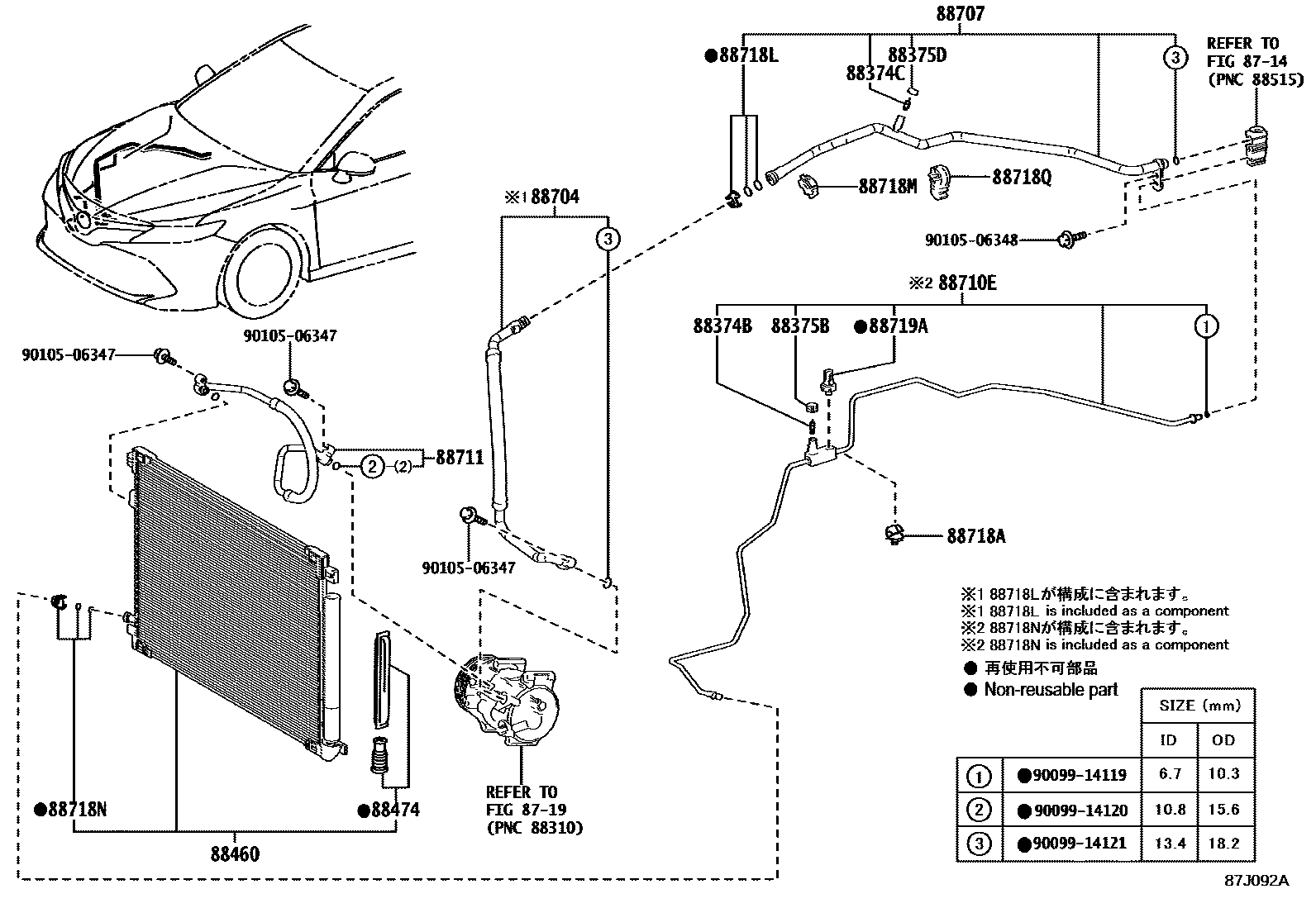

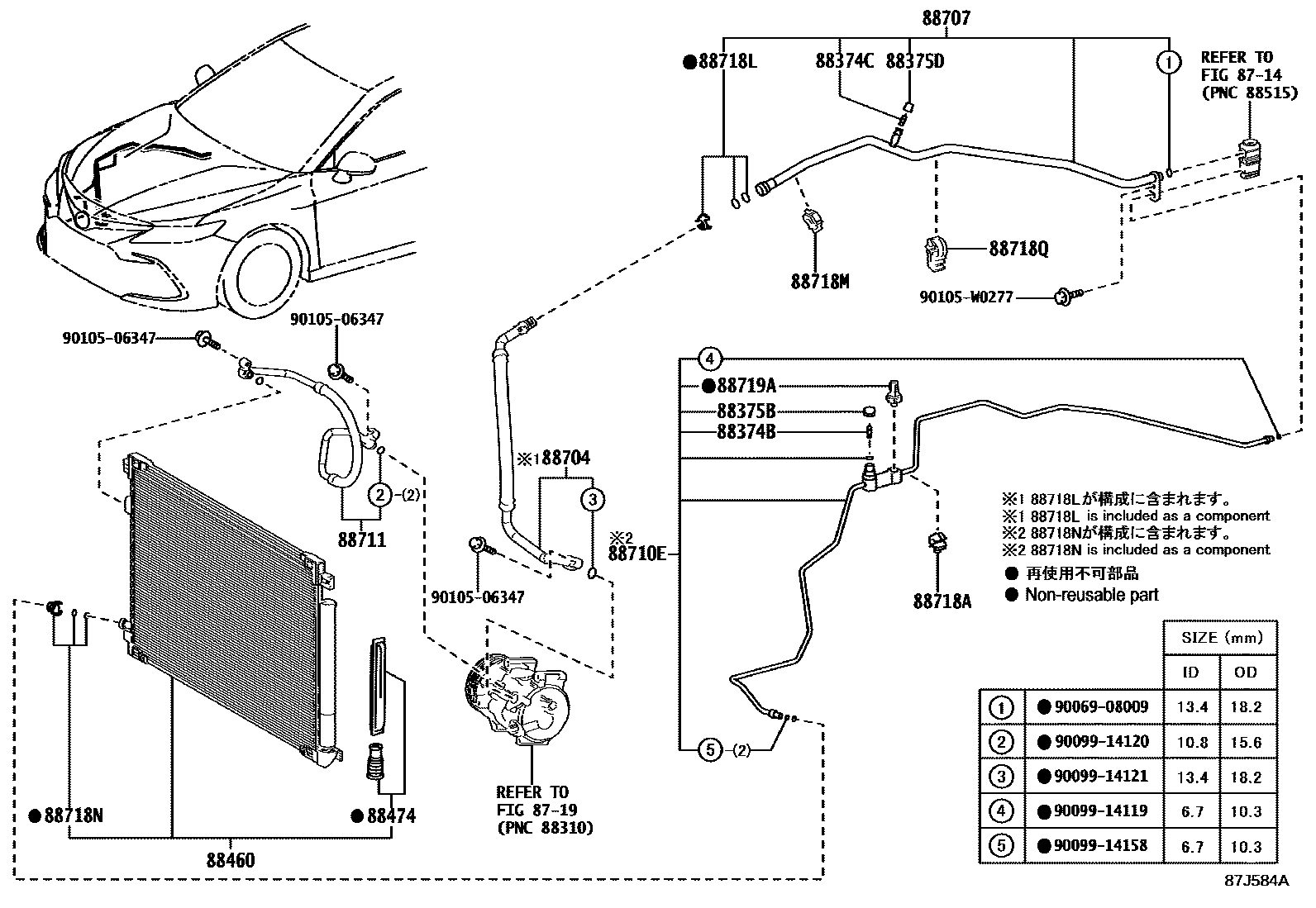

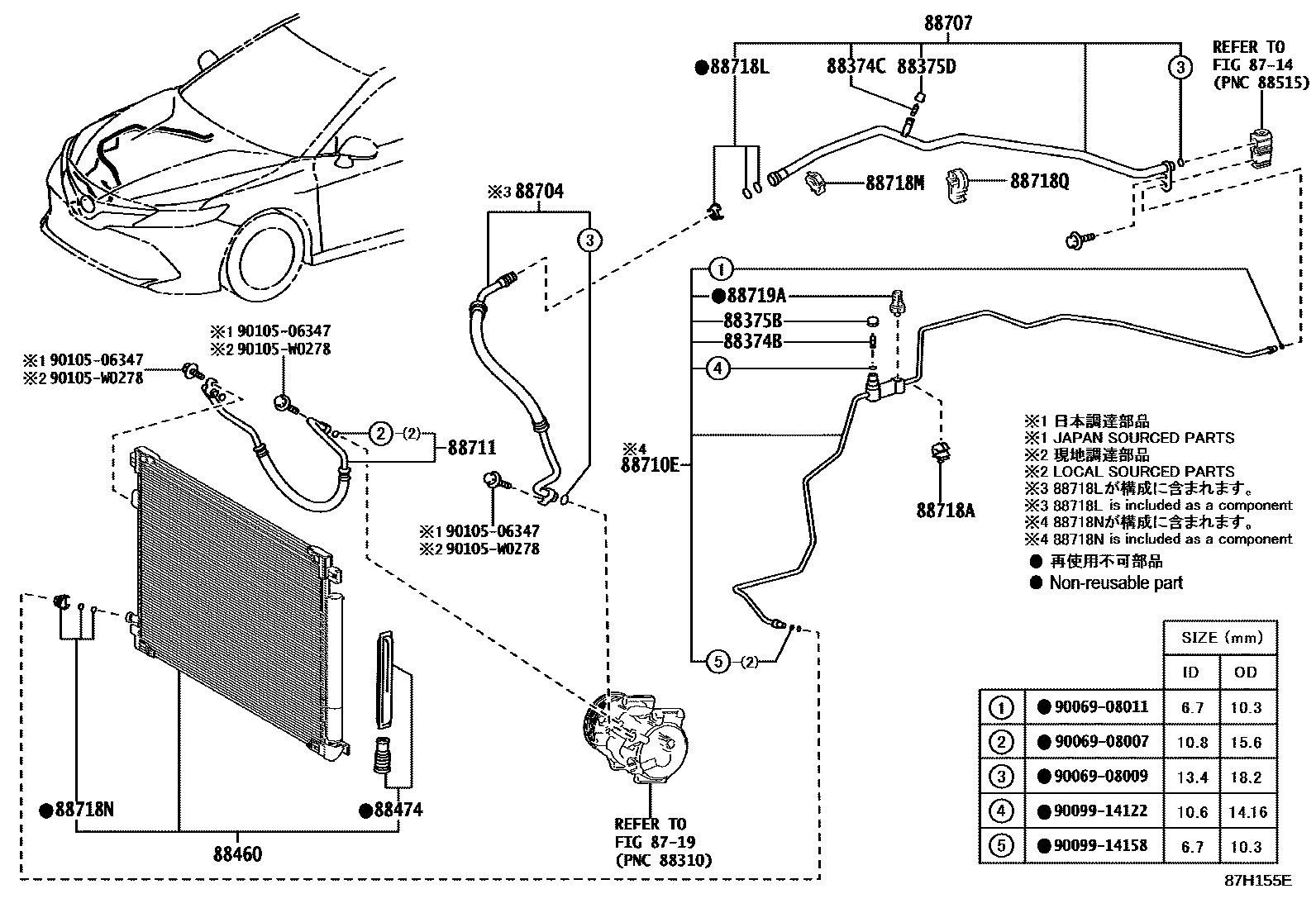

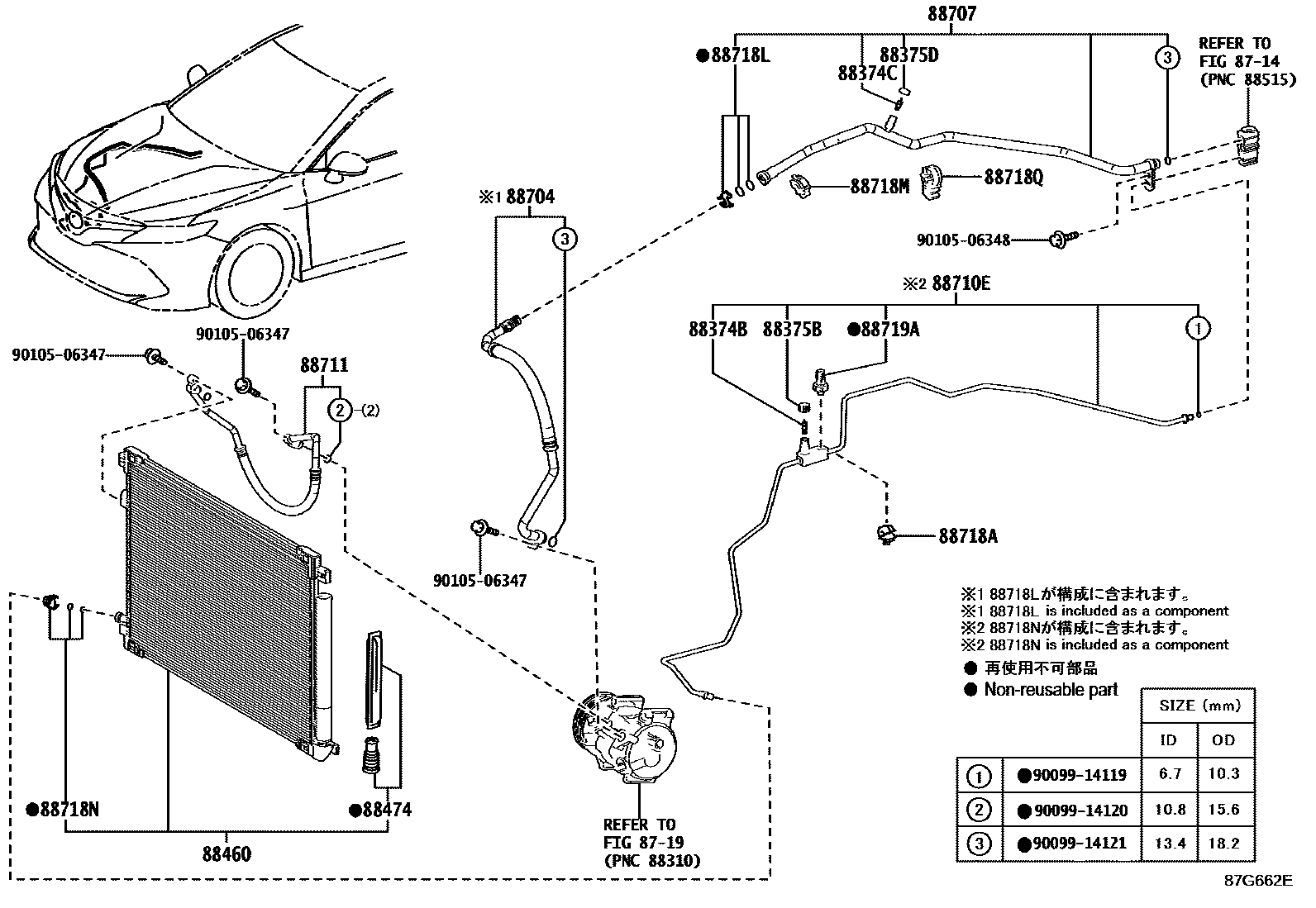

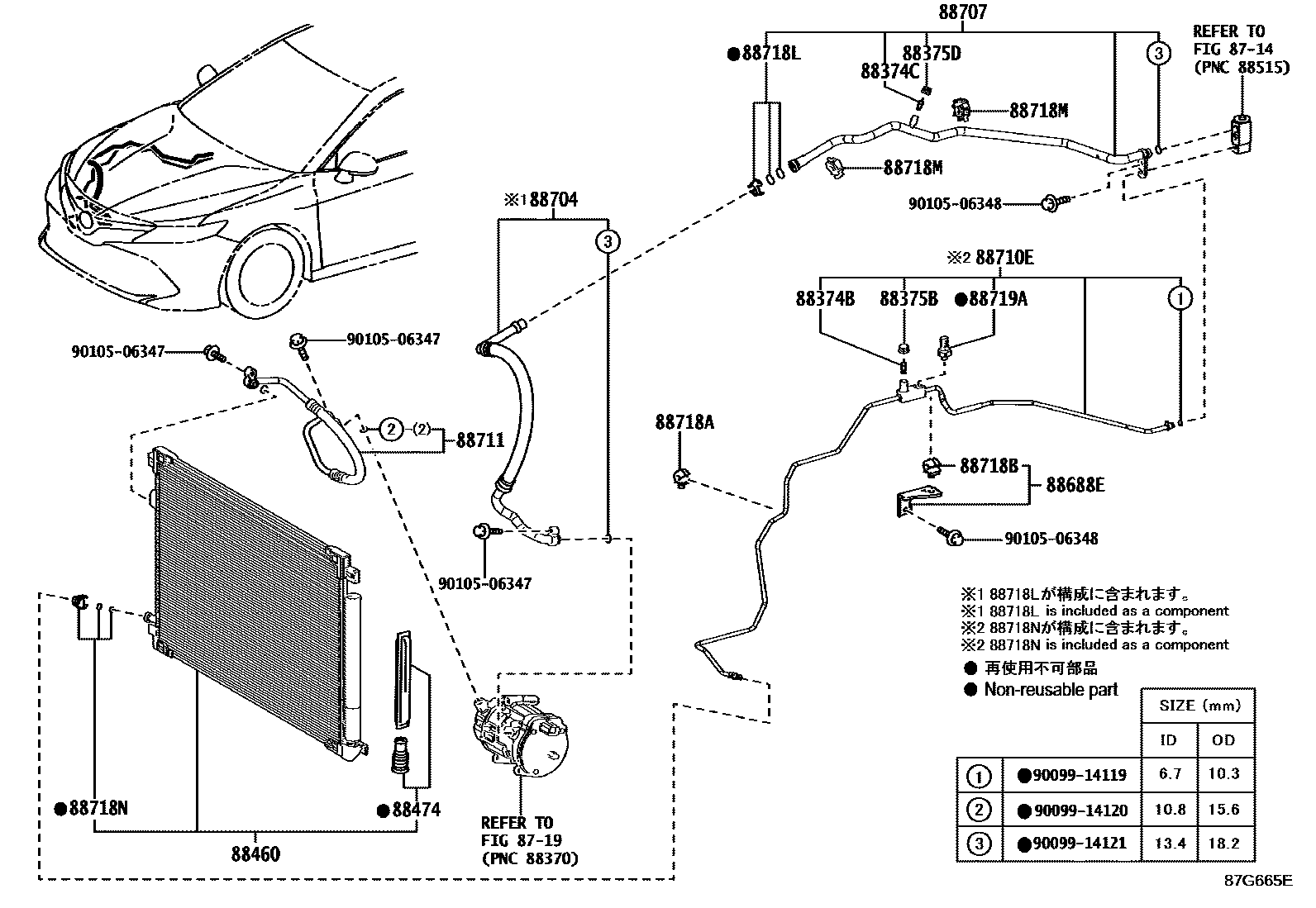

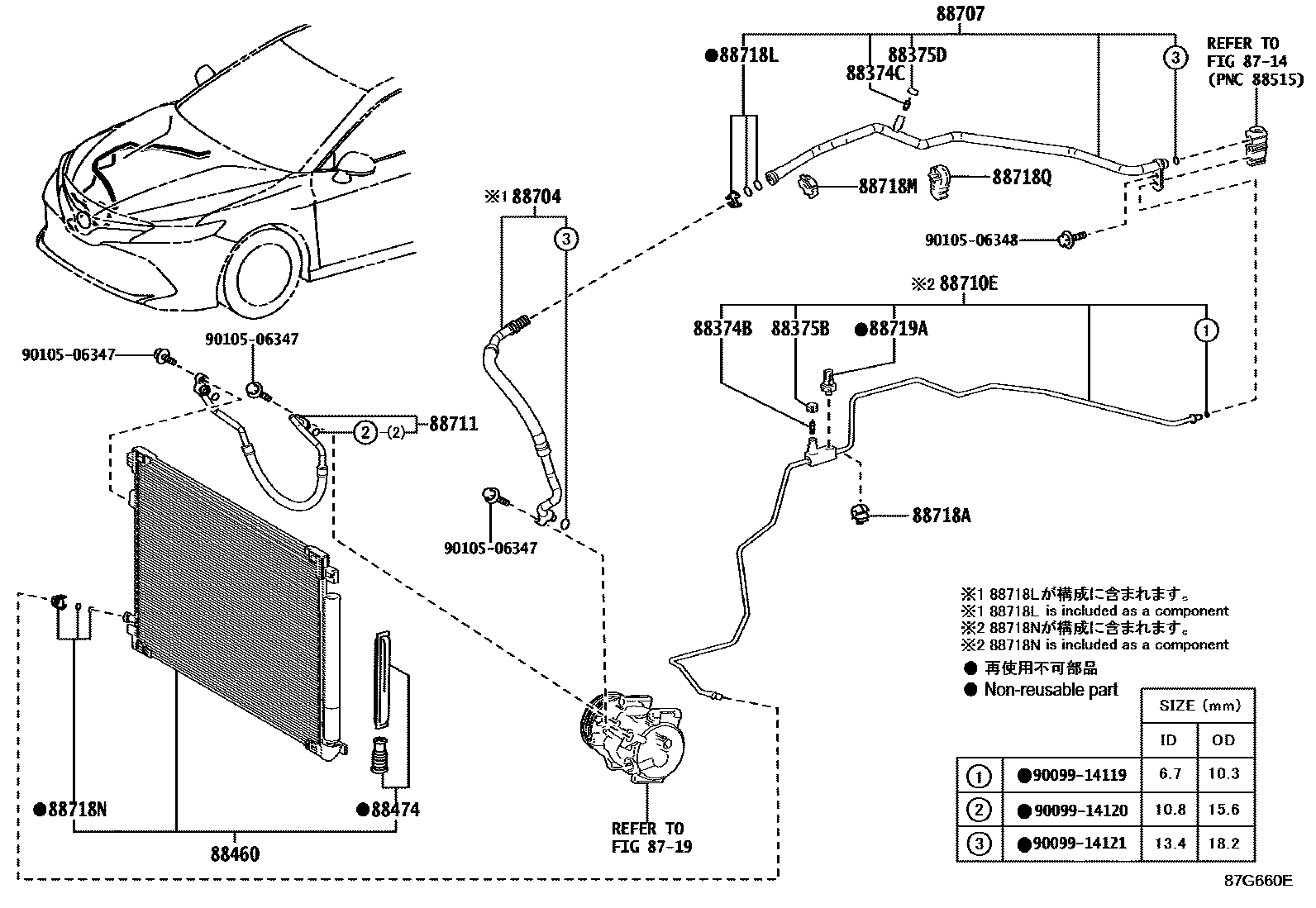

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 12 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-0E020 · 88375-30280 · 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-0E030 · 88375-30290 · 88375-30310 |
| 88460 | Air conditioning condenser assembly | 884A0-33010 · 884A0-33030 |
| 88474 | cooler dryer | 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-33610 |
| 88704 | Oil suction hose sub-assembly | 88704-06230 · 88704-33600 · 88704-33610 · 88704-33620 · 88704-33630 · 88704-33680 |
| 88707 | Suction pipe sub-assembly | 88707-06210 · 88707-33110 · 88707-33130 · 88707-33140 · 88707-33180 · 88707-33190 · 88707-33210 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06480 · 88710-06680 · 88710-33450 · 88710-33460 · 88710-33500 · 88710-33571 · 88710-33580 · 88710-33600 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06390 · 88711-33310 · 88711-33320 · 88711-33330 · 88711-33340 · 88711-33380 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-33560 · 88718-58050 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-58050 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | FIXATION, TUYAUTERIE | 88718-33520 · 88718-42110 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-06600 · 88718-33490 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
