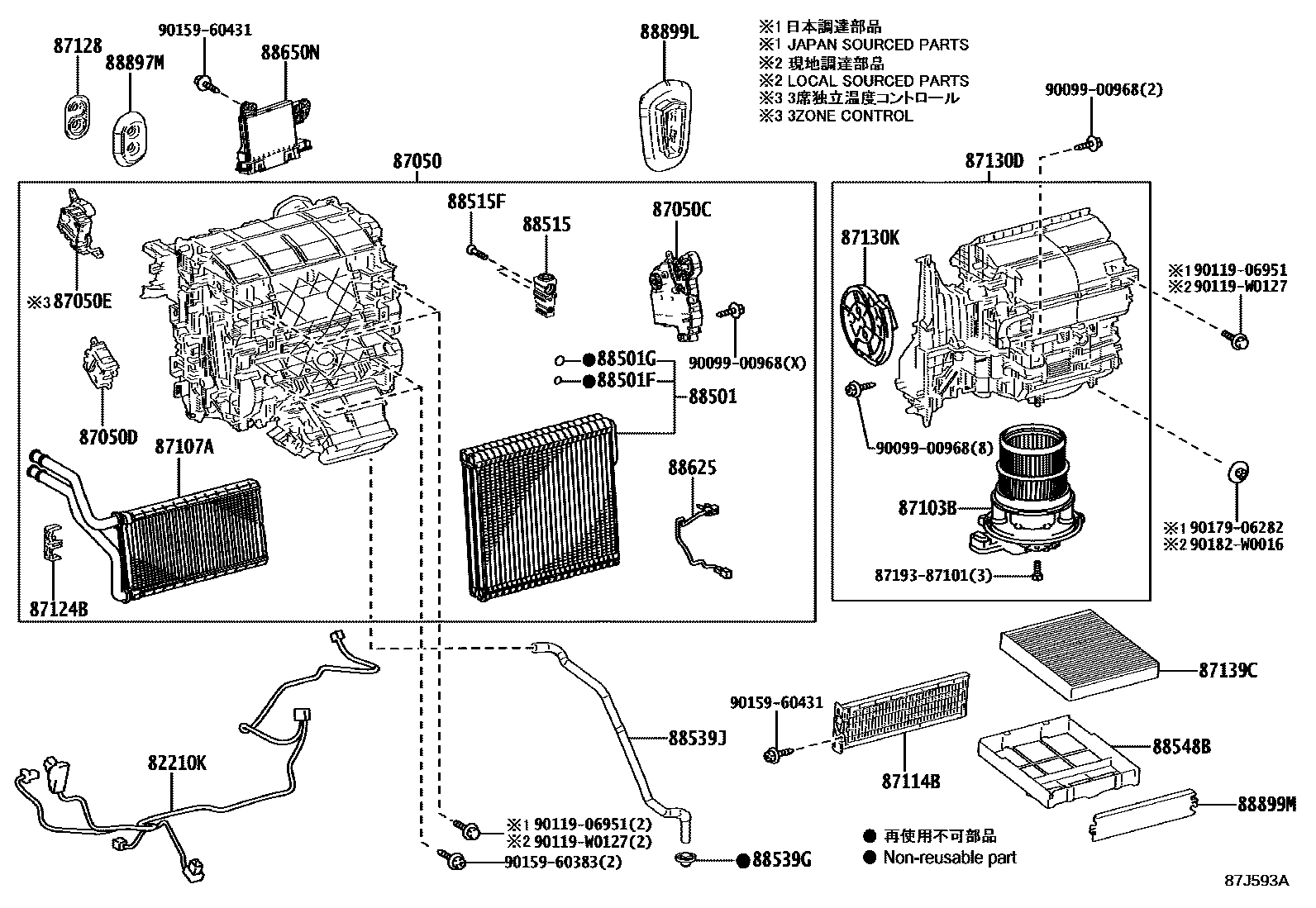

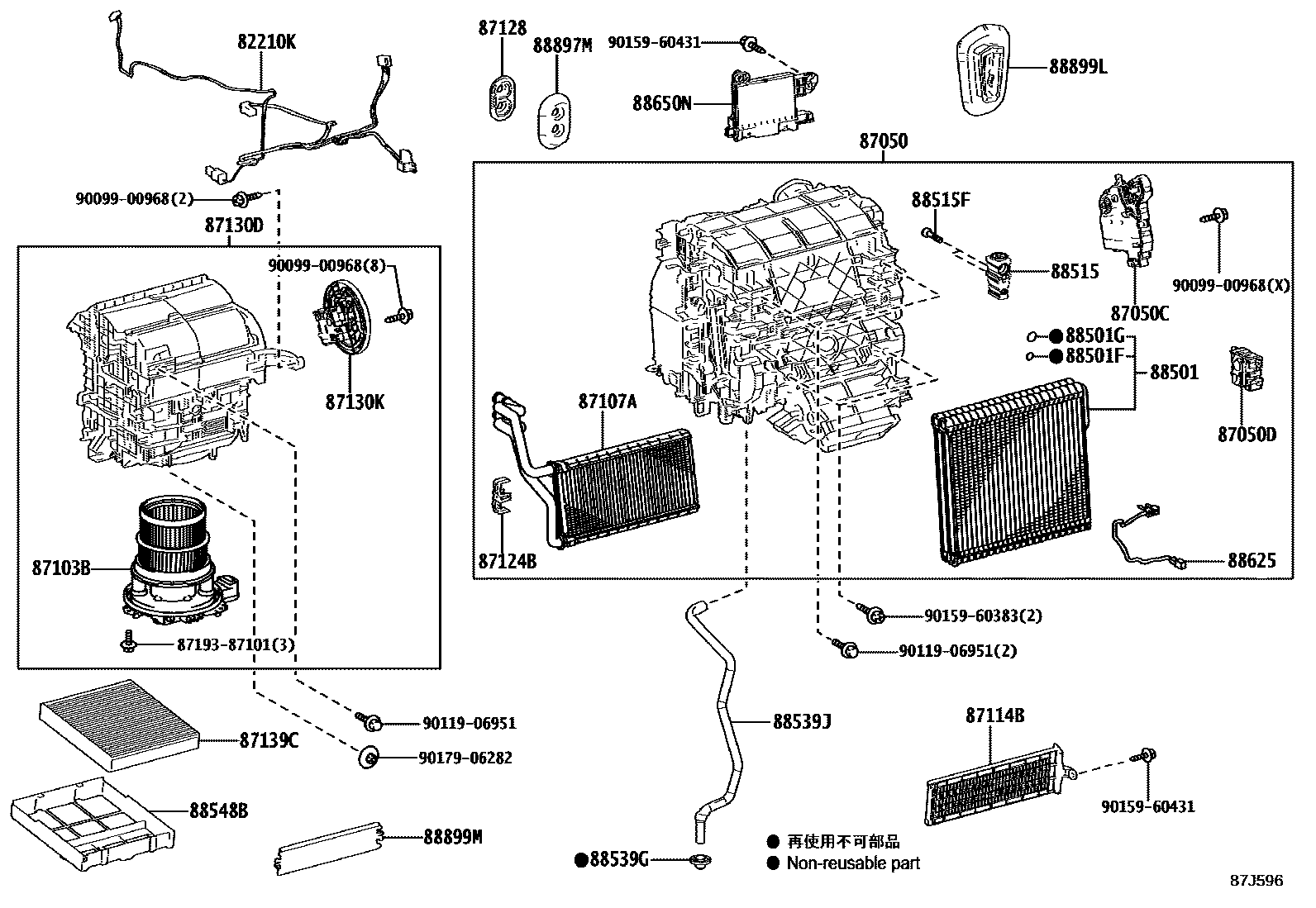

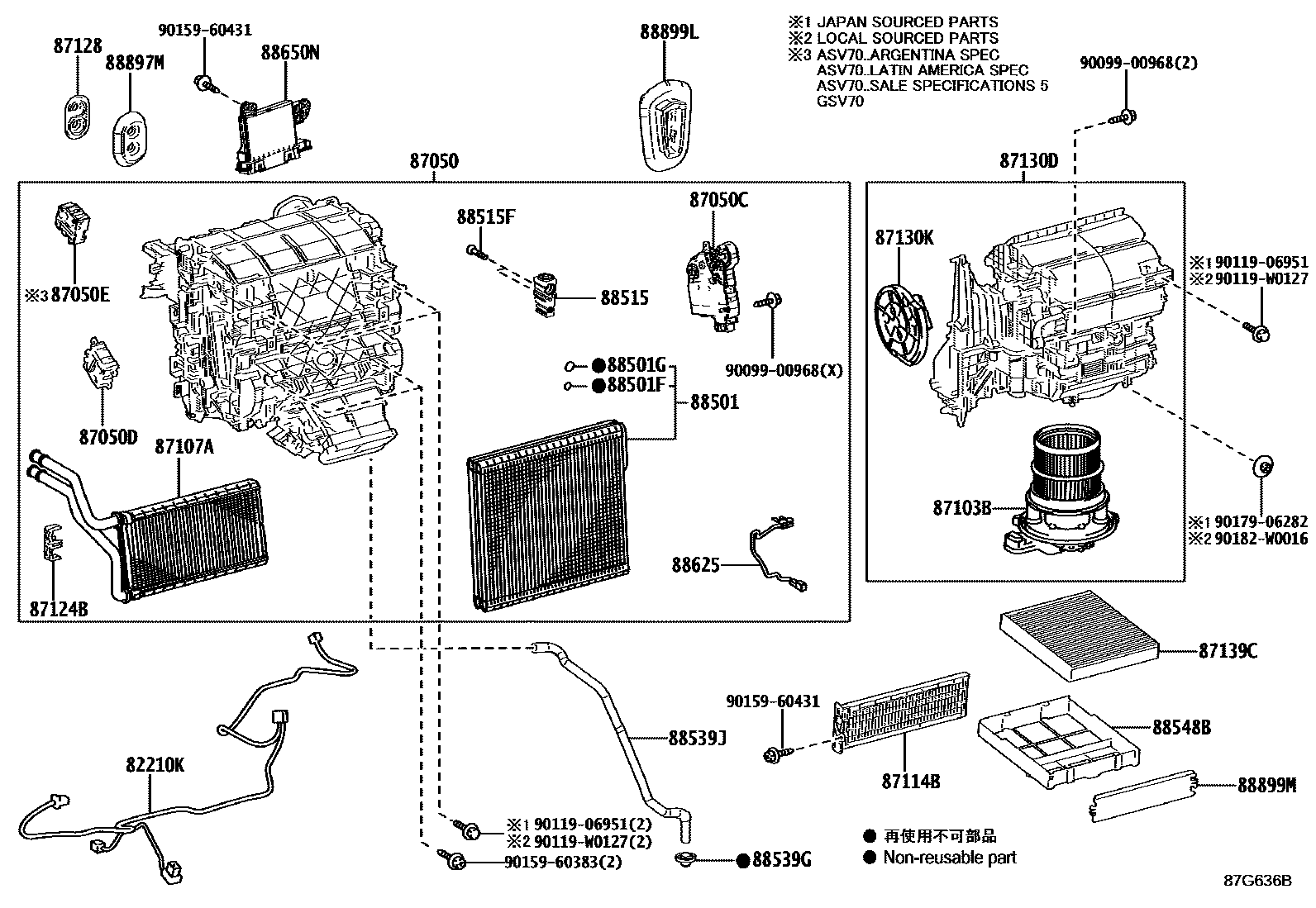

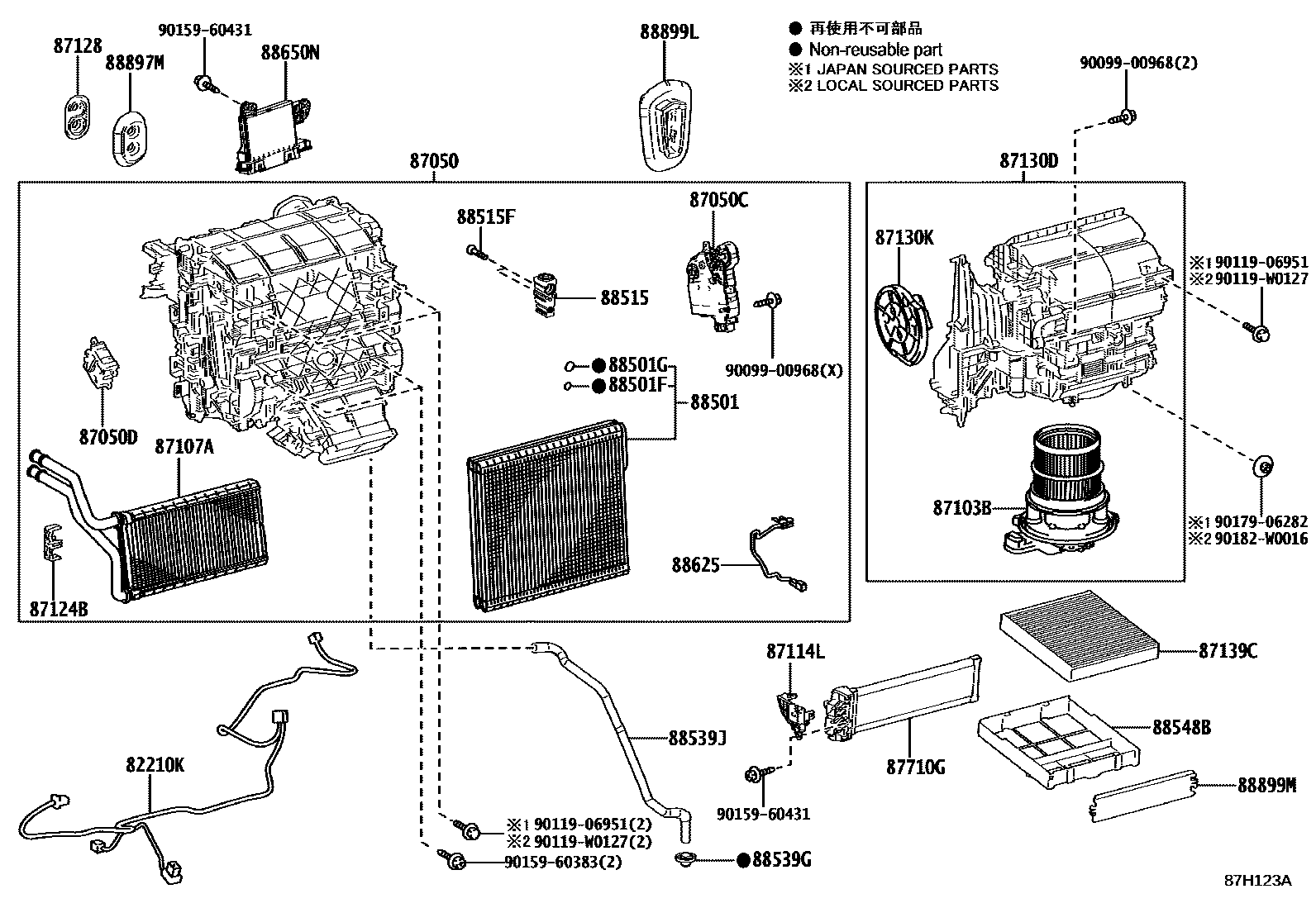

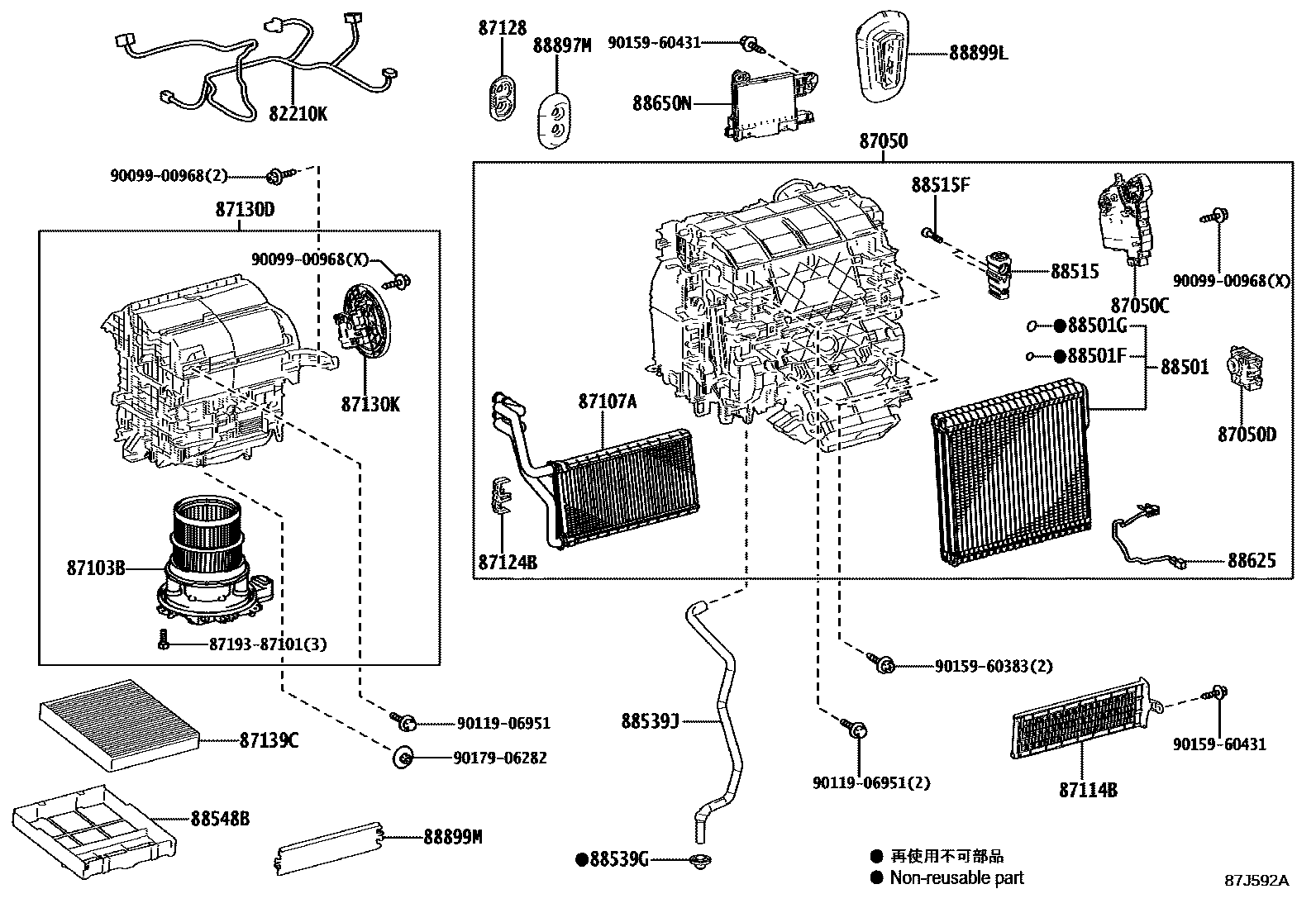

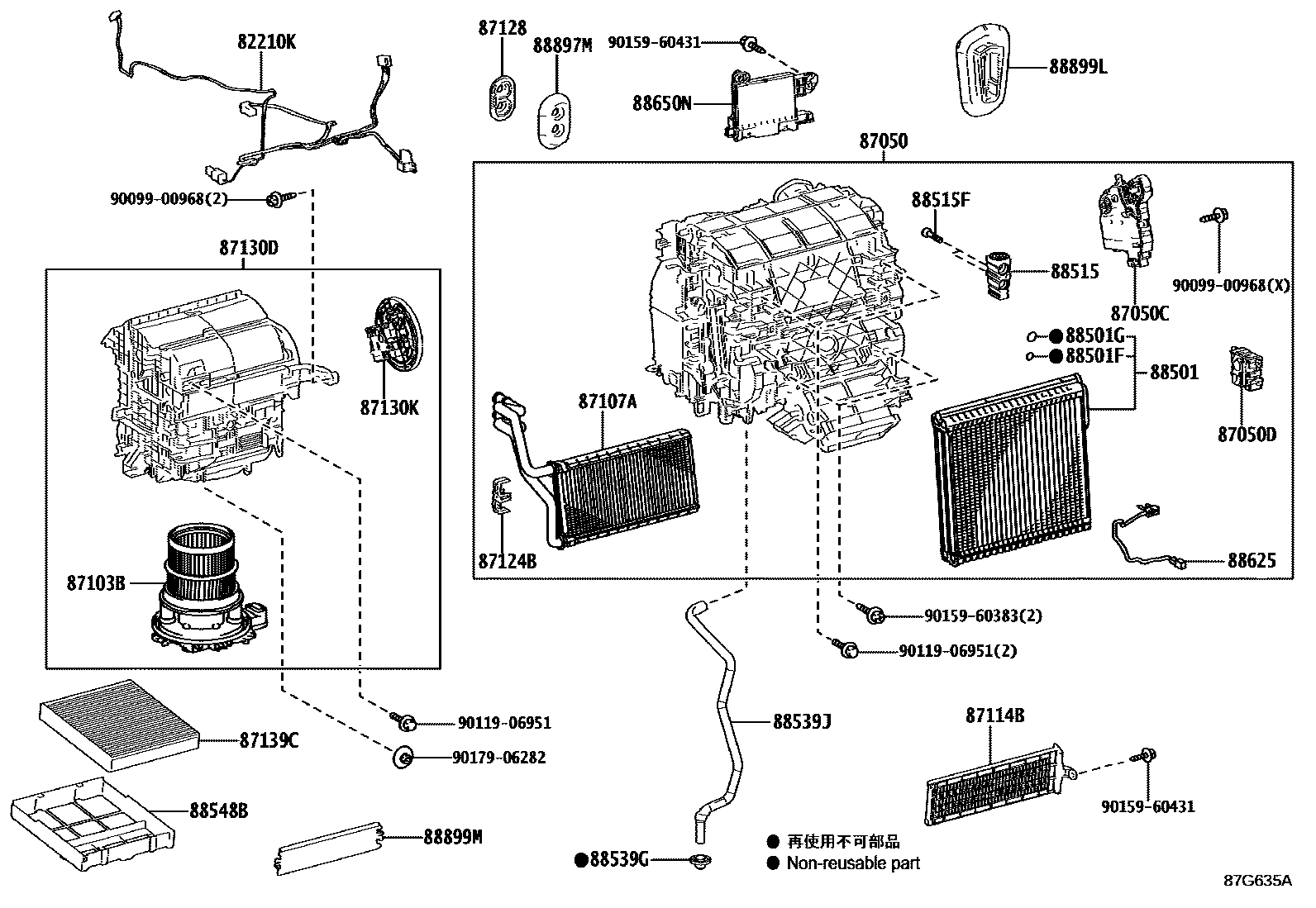

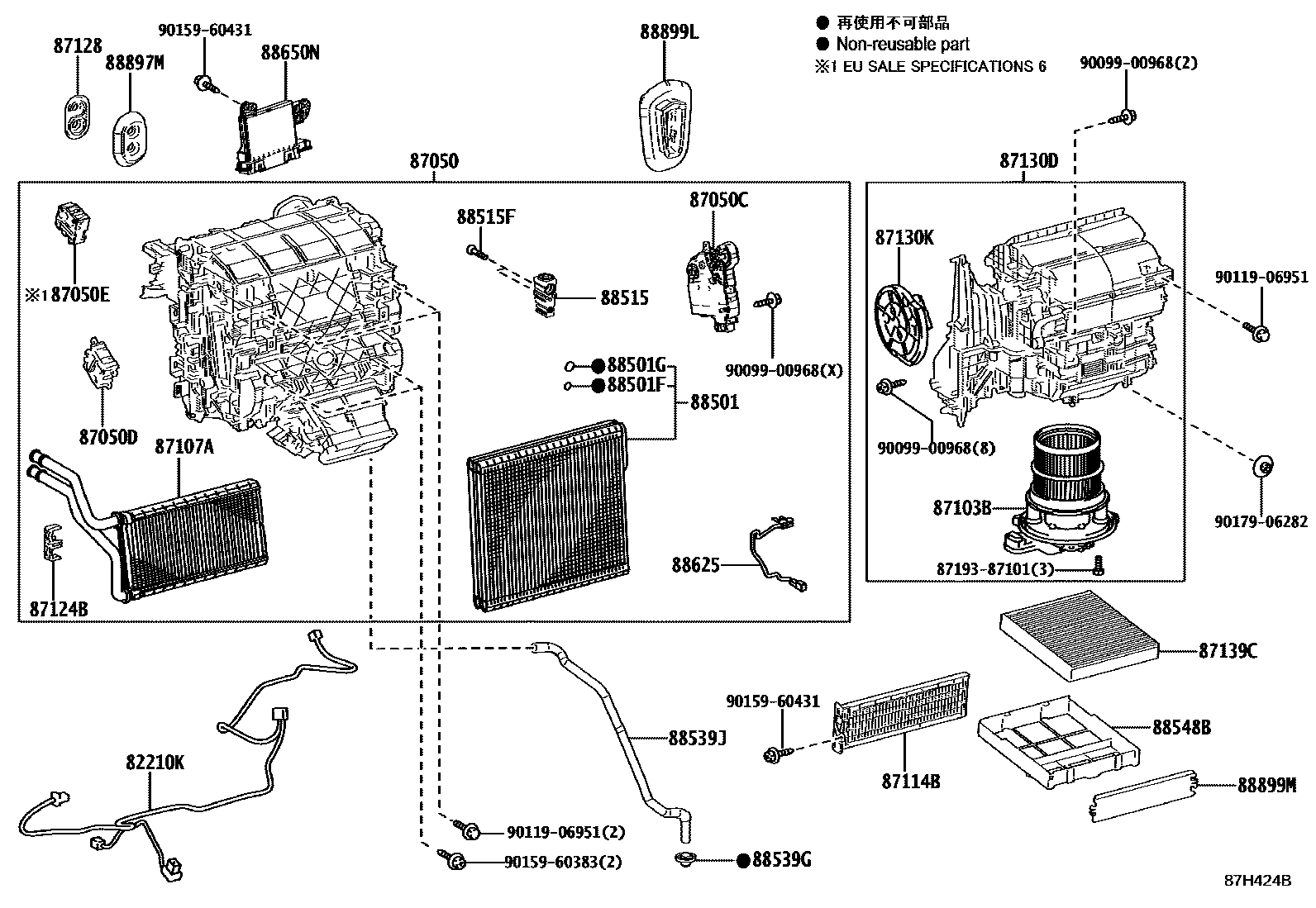

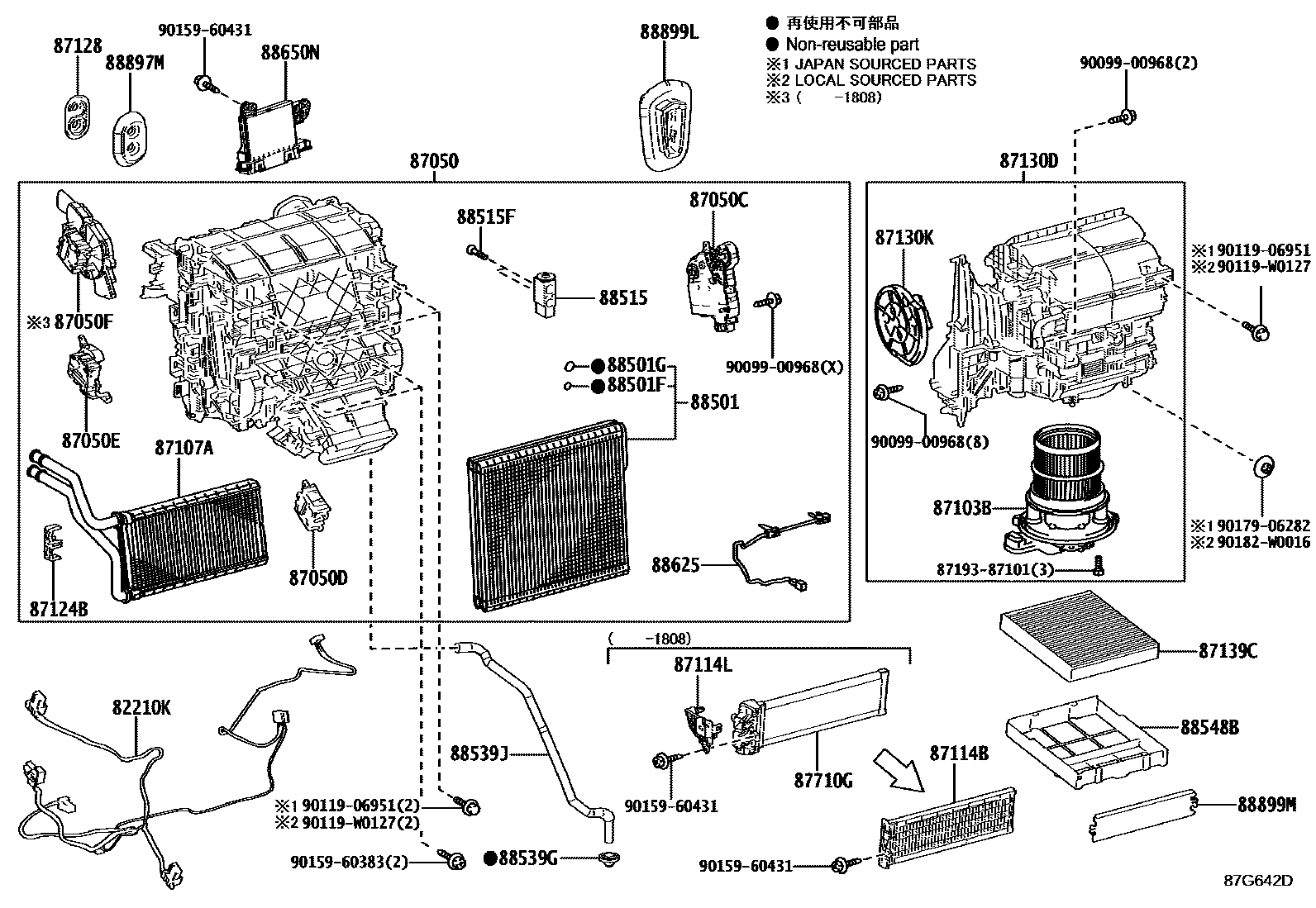

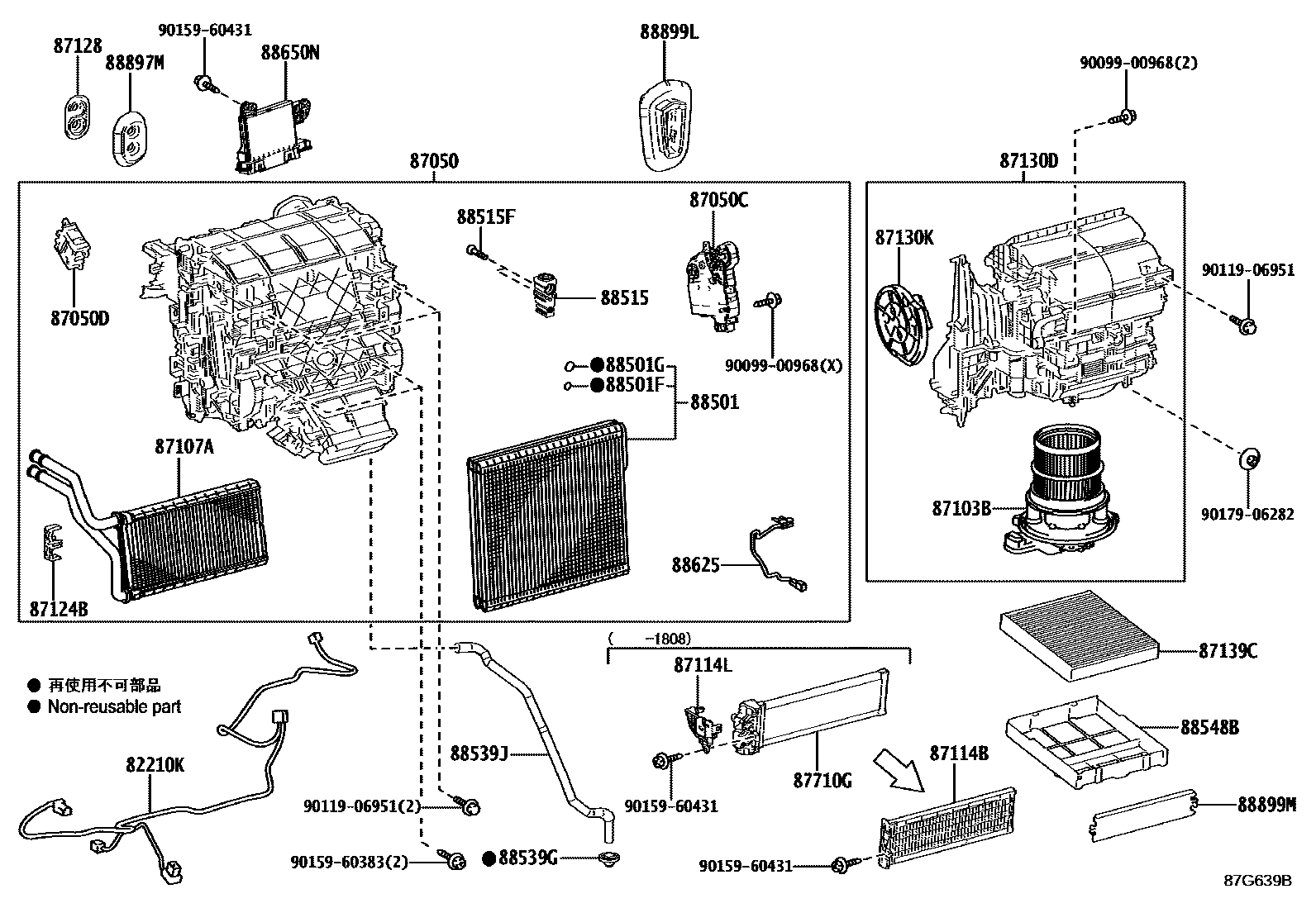

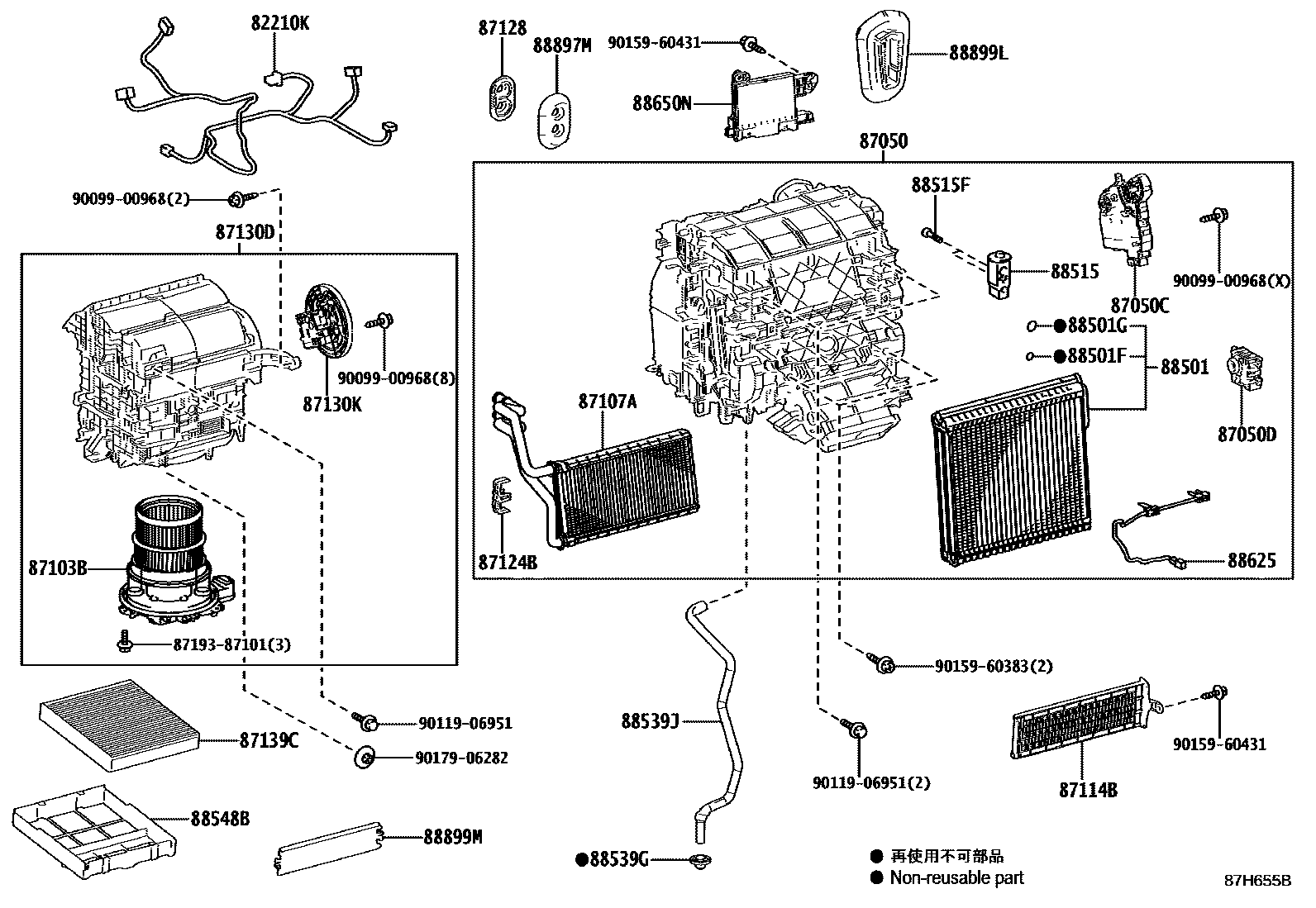

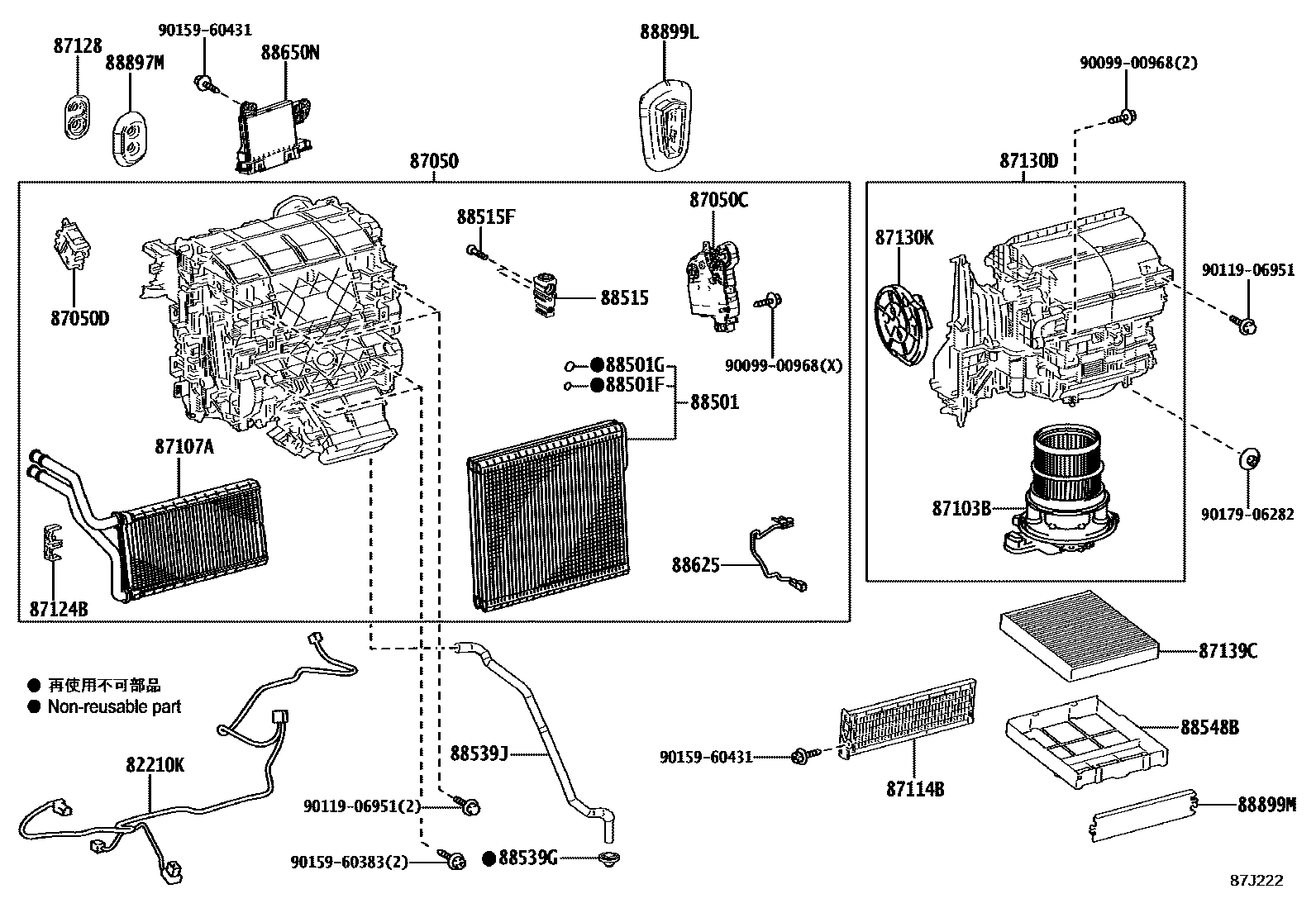

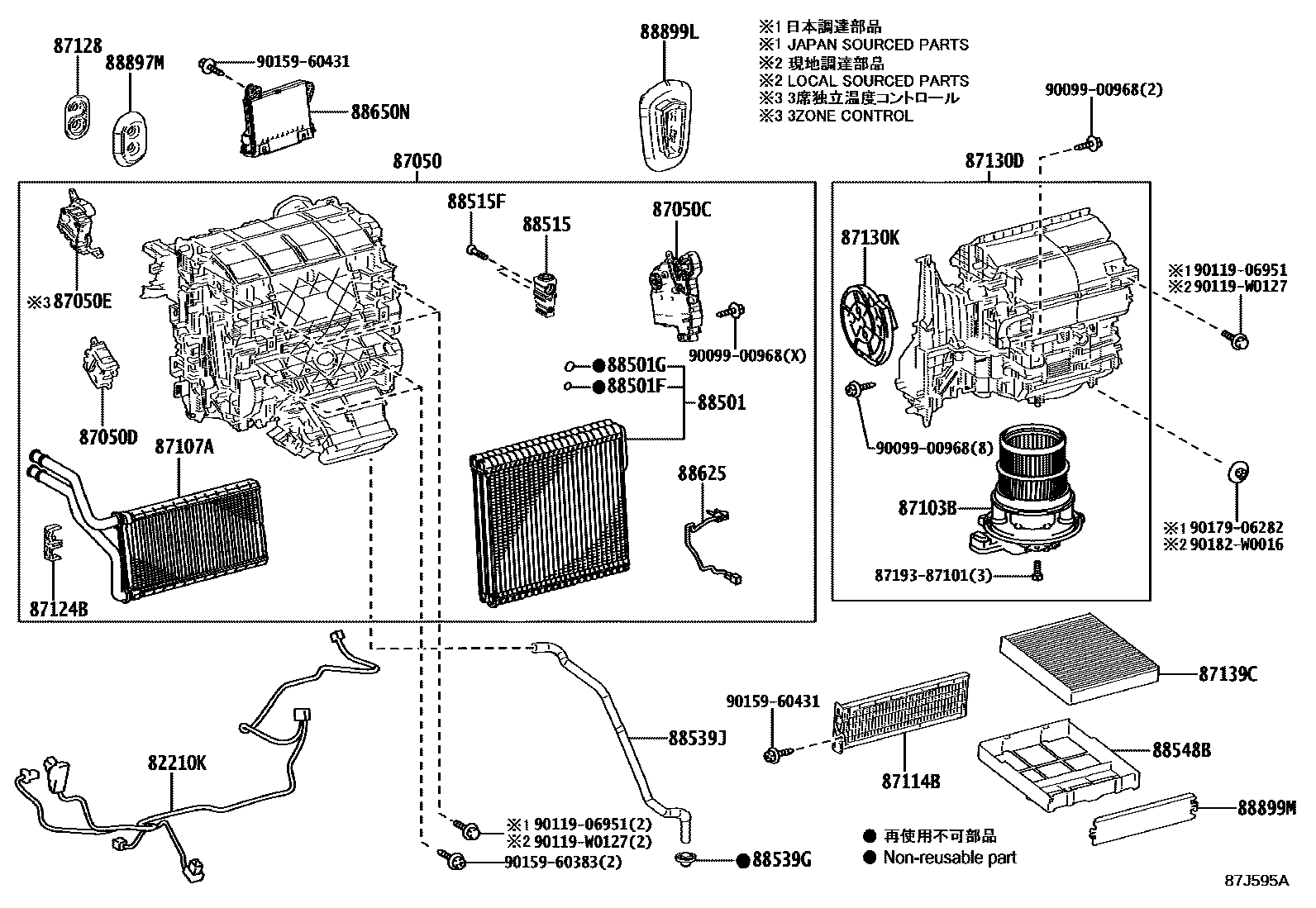

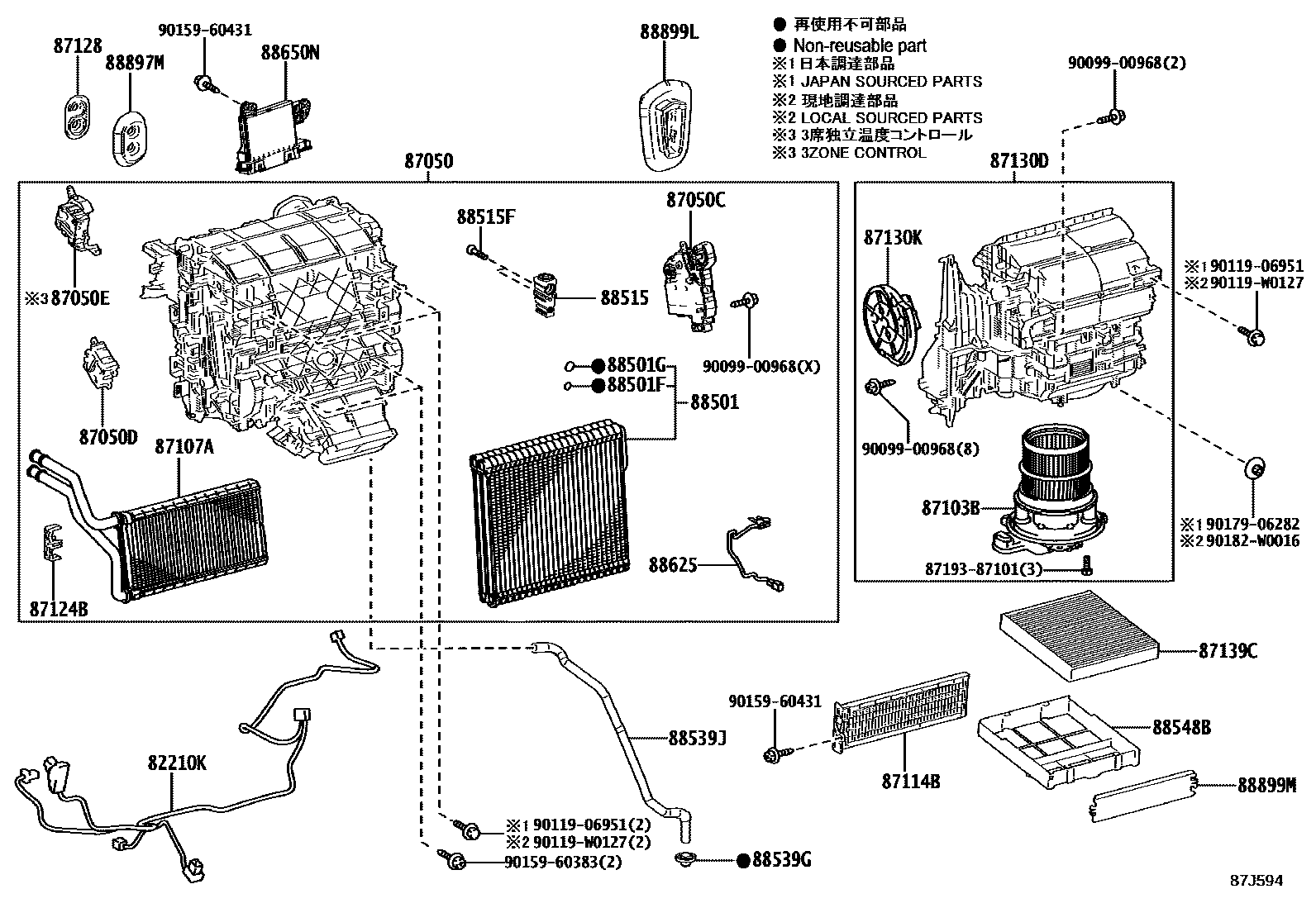

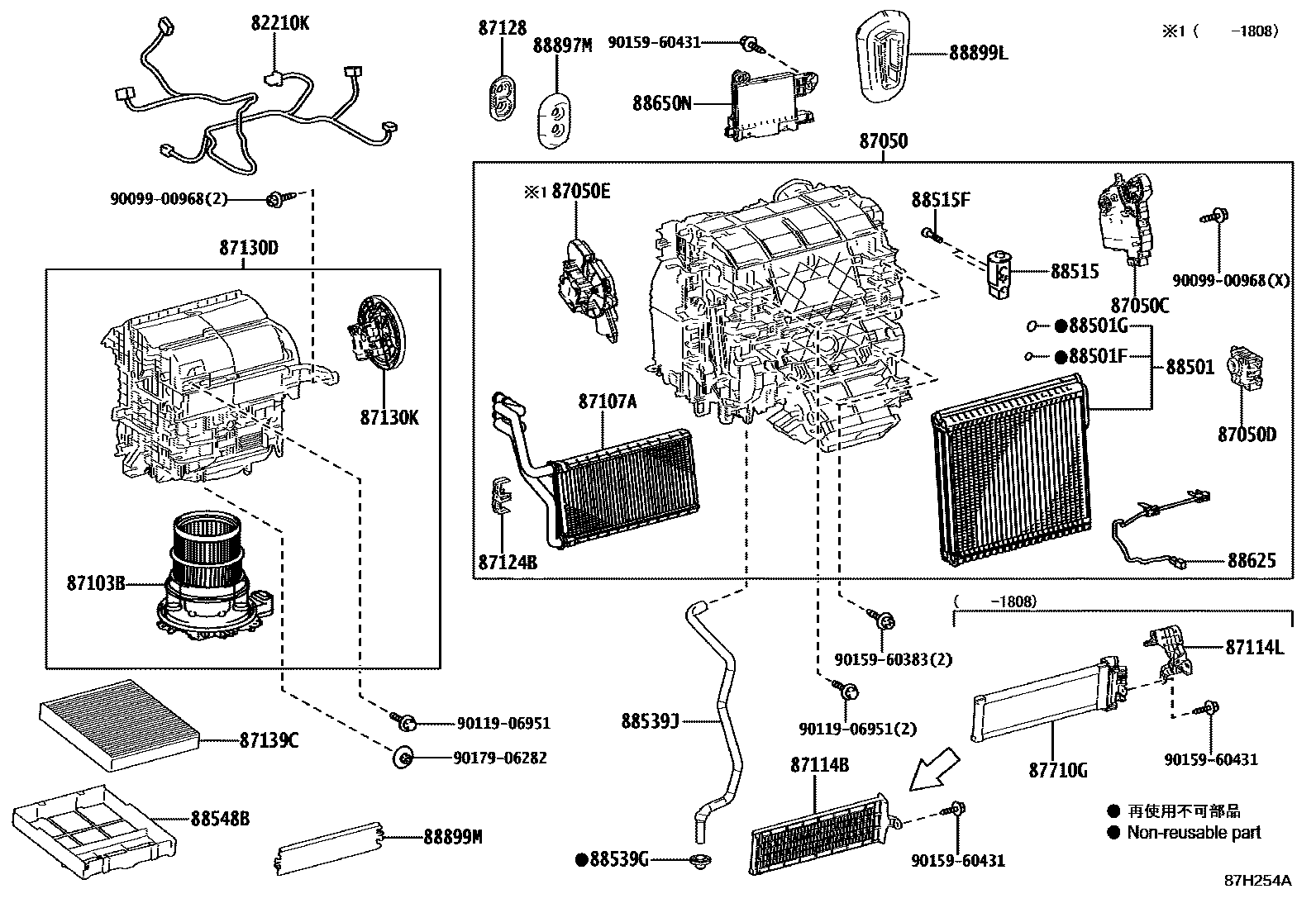

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 15 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33100 · 82212-33110 · 82212-33150 · 82212-33170 · 82212-33180 · 82212-42050 · 82212-42060 |
| 87050 | Air conditioning radiator assembly | 87050-33A40 · 87050-33C00 · 87050-33C20 · 87050-33C30 · 87050-33C40 · 87050-33C70 · 87050-33D00 · 87050-33D20 · 87050-33F50 · 87050-33F60 · 87050-33F70 · 87050-42A50 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-47180 · 87106-48170 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-33340 · 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-28230 · 87106-33310 |
| 87050F | No. 4 air conditioner radiator damper servo mechanism sub-assembly | 87106-48240 |
| 87103B | Blower motor sub-assembly with fan | 87103-42120 · 87103-42130 · 87103-58070 · 87103-58080 |
| 87107A | Heater radiator device sub-assembly | 87107-33130 · 87107-33140 |
| 87114B | heater cover | 87114-33050 |
| 87114L | COUVERCLE CHAUFFAGE, NO.2 | 87114-48120 · 87114-48140 |
| 87124B | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-42470 · 87130-42480 · 87130-47290 · 87130-47300 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-28250 · 87106-58050 |
| 87139C | air purification filter | 87139-58010 |
| 87710G | Rapid heater assembly | 87710-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33340 · 88501-33350 · 88501-33370 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90099-14120 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-30800 · 88515-33080 · 88515-48110 · 88515-52120 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539C | No. 2 cooler unit drain hose | 88899-10110 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-33130 · 88539-33140 · 88539-33141 |
| 88548B | air filter housing | 88899-48070 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 · 88620-33040 |
| 88650N | Air conditioning amplifier assembly | 88650-06840 · 88650-06B50 · 88650-06B51 · 88650-06E70 · 88650-06F50 · 88650-06F60 · 88650-06F80 · 88650-06F90 · 88650-06G70 · 88650-06G80 · 88650-33C60 · 88650-33C61 · 88650-33C62 · 88650-33D20 · 88650-33D21 · 88650-33D22 · 88650-33E10 · 88650-33E11 · 88650-33E20 · 88650-33E21 · 88650-33E90 · 88650-33F00 · 88650-33F10 · 88650-33F11 · 88650-33F30 · 88650-33F31 · 88650-33G20 · 88650-33G30 · 88650-33J70 · 88650-33J80 |
| 88897M | Seals (for heater tubes) | 87128-33020 |
| 88898D | gasket | 88899-33070 |
| 88899L | Cooling unit parts | 88899-33080 · 88899-33090 |
| 88899M | cover (for air cleaner) | 88899-47120 |
