Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

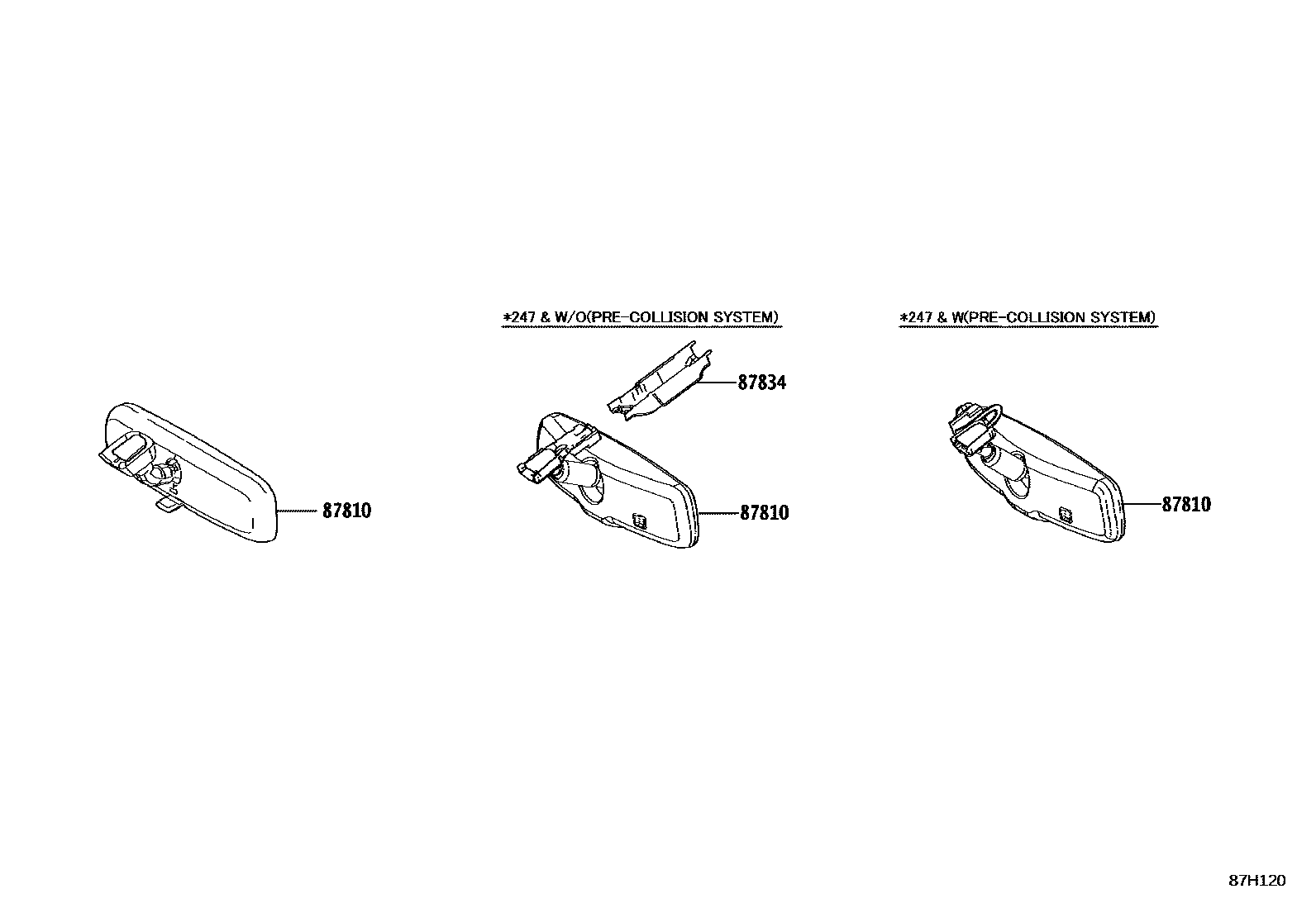

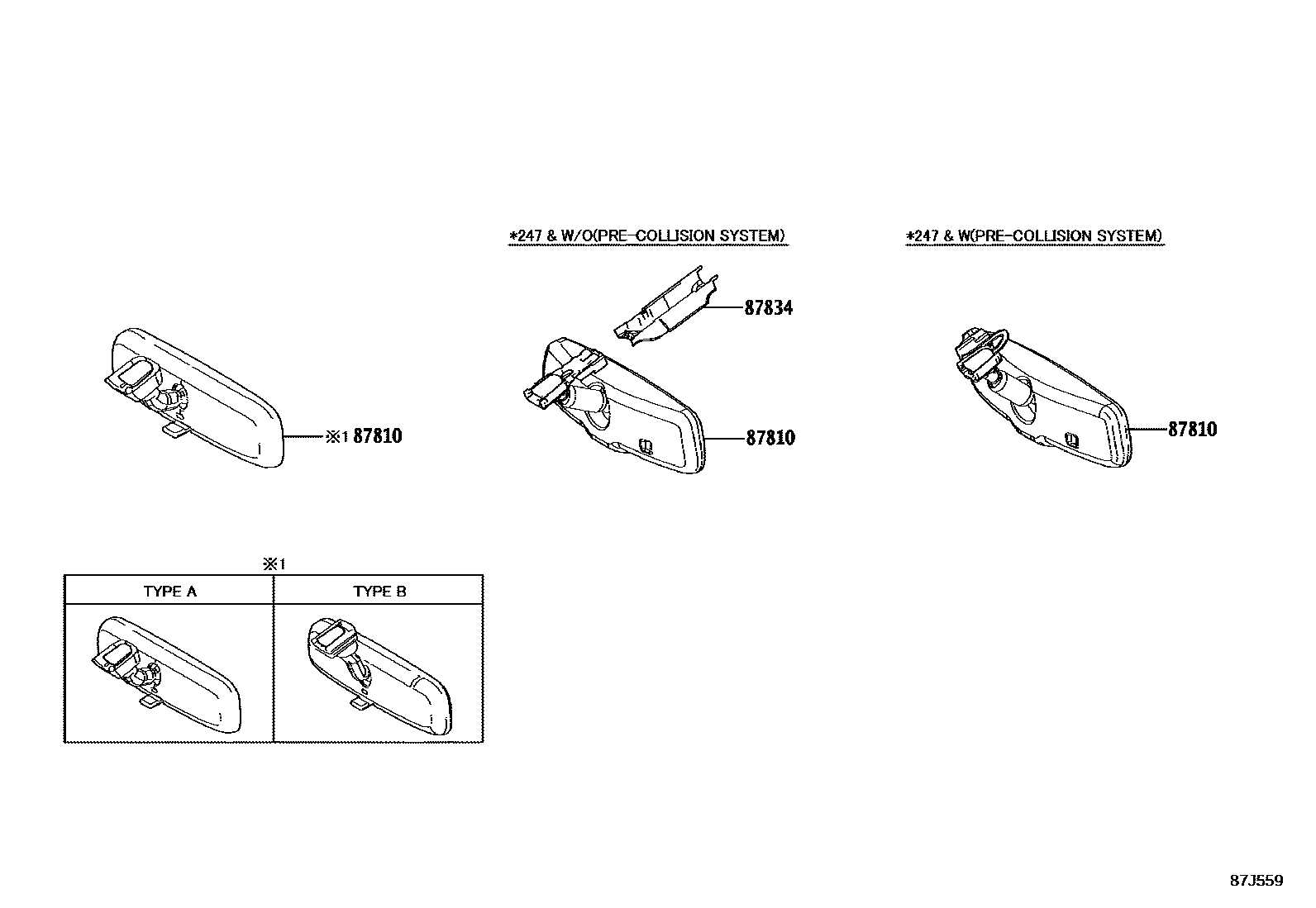

| 87810 | Interior rearview mirror assembly | 87810-0WS50 · 87810-0WS51 · 87810-0WW40 · 87810-0WW41 · 87810-53210 · 87810-60191 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-76010 |

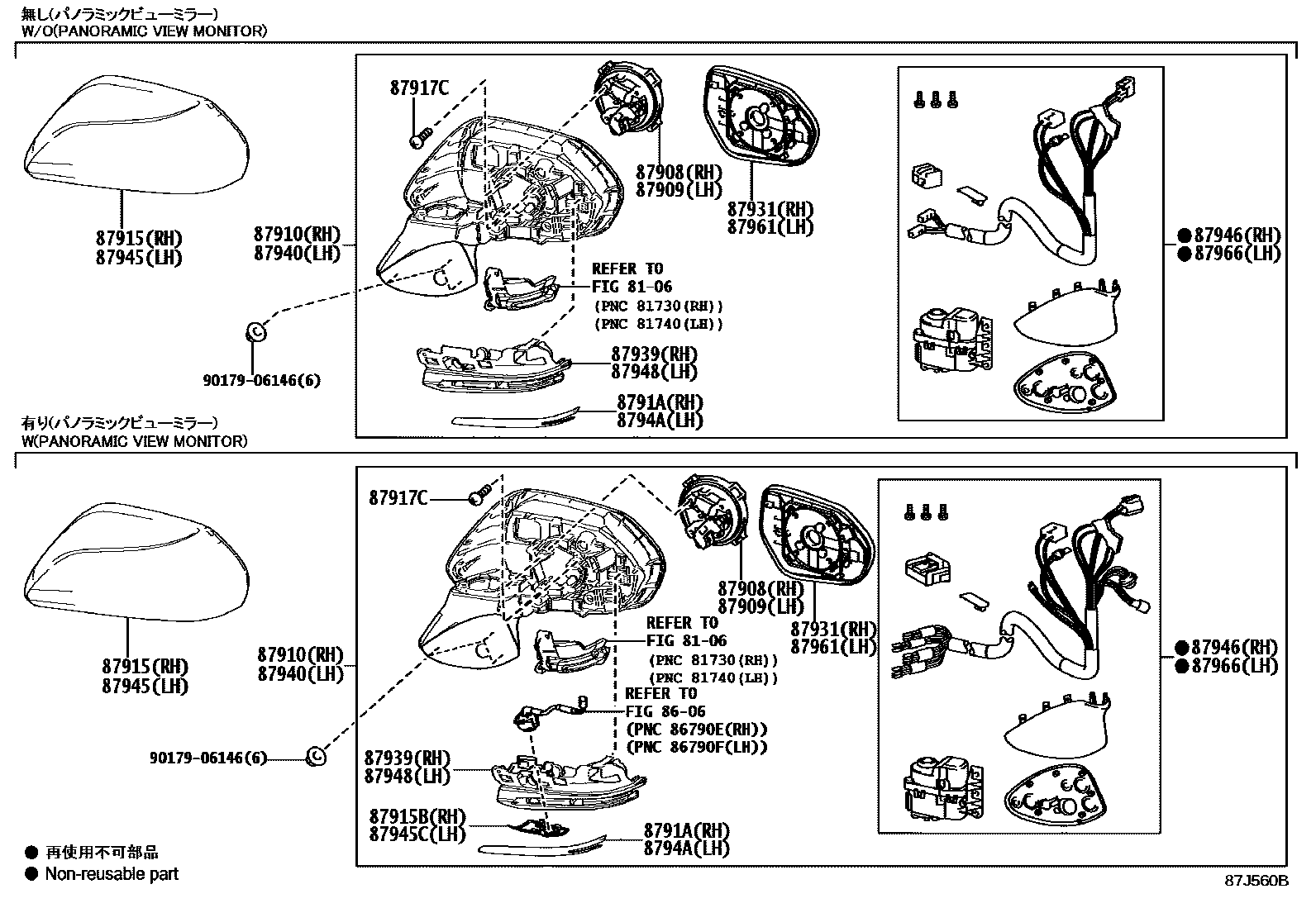

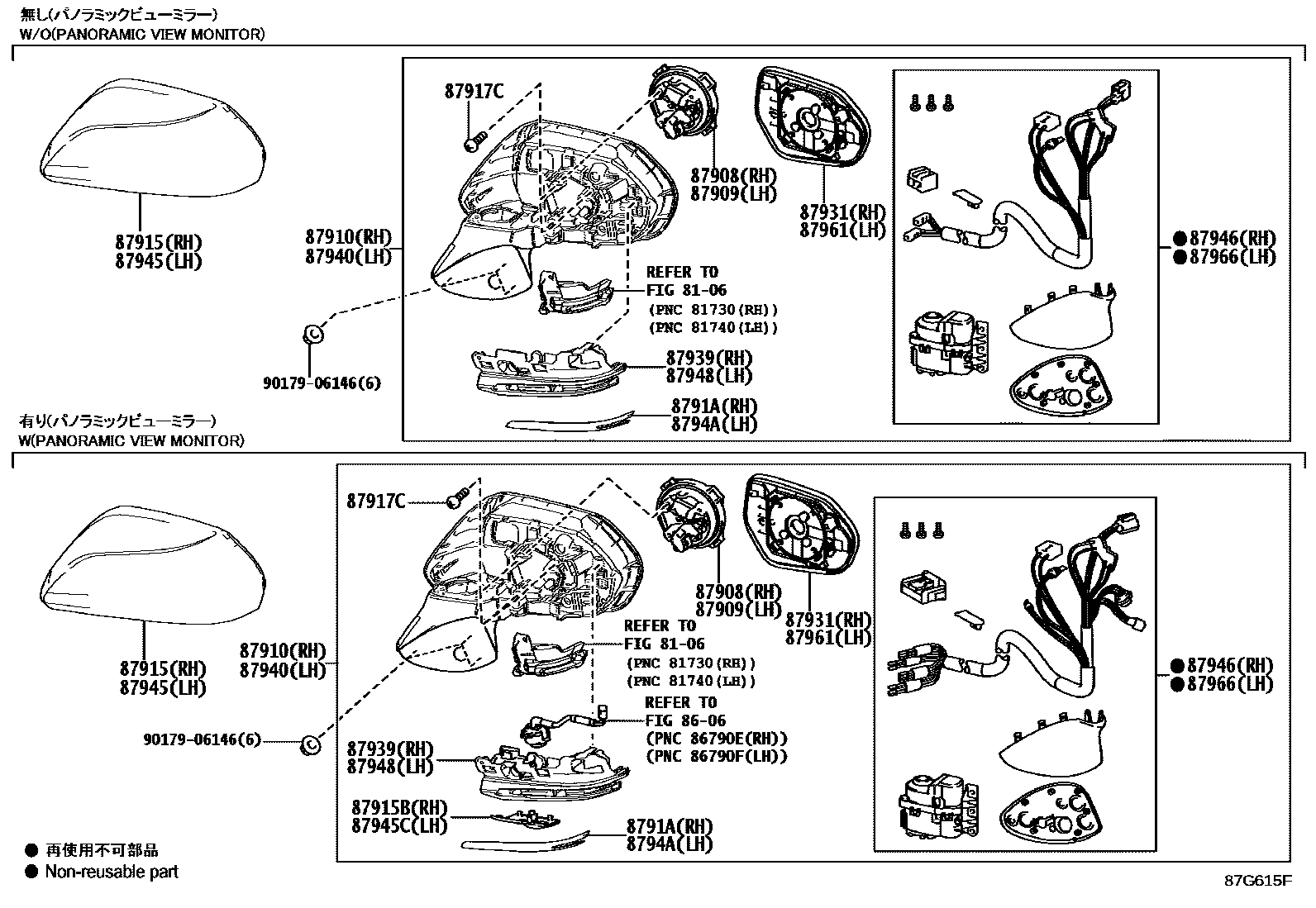

| 87908 | Right exterior rearview mirror actuator assembly | 87908-42M50 · 87908-60V81 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-42M50 · 87908-60V81 |
| 87910 | Right exterior rearview mirror assembly | 87910-33D10 · 87910-33D20 · 87910-33D30 · 87910-33D40 · 87910-33D50 · 87910-33D51 · 87910-33D52 · 87910-33D60 · 87910-33D70 · 87910-33D71 · 87910-33J50 · 87910-33K10 · 87910-33K30 · 87910-33K50 · 87910-33K60 · 87910-33K61 · 87910-33K80 · 87910-33K81 · 87910-33K90 |
| 87915B | Right exterior rearview mirror lower cover | 8791A-33D50 |
| 87917C | Exterior rearview mirror screws | 87917-15010 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-47360 · 8791B-47510 |
| 87931 | Right exterior rearview mirror | 87902-12010 · 87902-33110 · 87902-33150 · 87902-33180 · 87902-33190 · 87902-33200 · 87902-33350 |
| 87939 | Right exterior rearview mirror hole cover | 87939-33D50 · 87939-47360 |
| 87940 | Left exterior rearview mirror assembly | 87940-33D10 · 87940-33D20 · 87940-33D30 · 87940-33D40 · 87940-33D50 · 87940-33D51 · 87940-33D52 · 87940-33D60 · 87940-33D70 · 87940-33D71 · 87940-33J50 · 87940-33K10 · 87940-33K30 · 87940-33K50 · 87940-33K60 · 87940-33K61 · 87940-33K80 · 87940-33K81 · 87940-33K90 |
| 87945C | Left exterior rearview mirror lower cover | 8794A-33D50 |
| 87946 | Right exterior rearview mirror retractor | 87946-33D10 · 87946-33D20 · 87946-33D50 · 87946-33D52 · 87946-33D60 · 87946-33D70 · 87946-33J50 · 87946-33K60 · 87946-33K70 · 87946-33K80 |
| 87948 | Left exterior rearview mirror hole cover | 87948-33D50 · 87948-47250 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794B-47250 · 8794B-47510 |
| 87961 | Left exterior rearview mirror | 87907-12020 · 87907-33130 · 87907-33160 · 87907-33170 · 87907-33180 · 87907-33190 · 87907-33191 · 87907-33200 |
| 87966 | Left exterior rearview mirror retractor | 87966-33D10 · 87966-33D20 · 87966-33D50 · 87966-33D52 · 87966-33D60 · 87966-33D70 · 87966-33J50 · 87966-33K60 · 87966-33K70 · 87966-33K80 |
