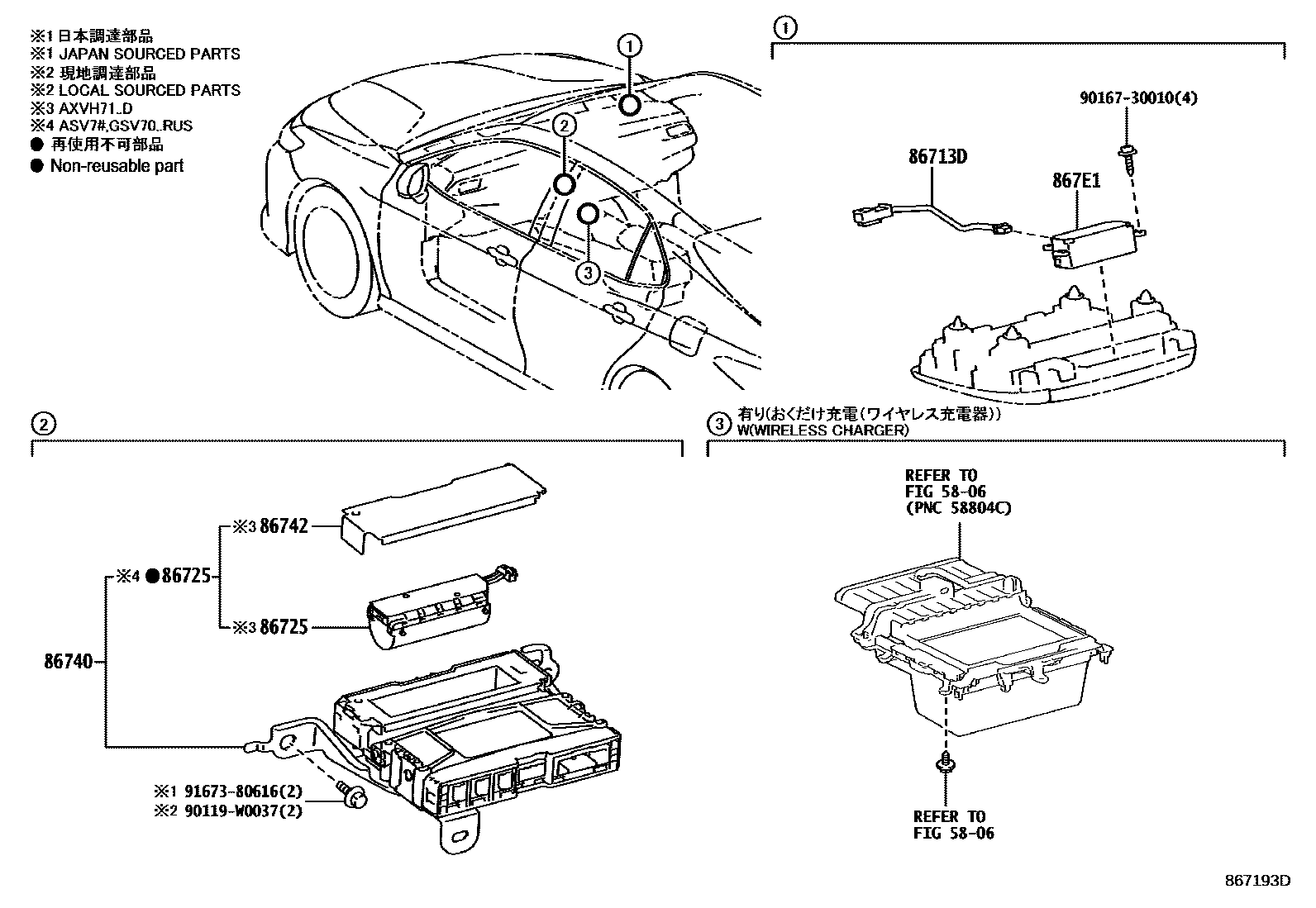

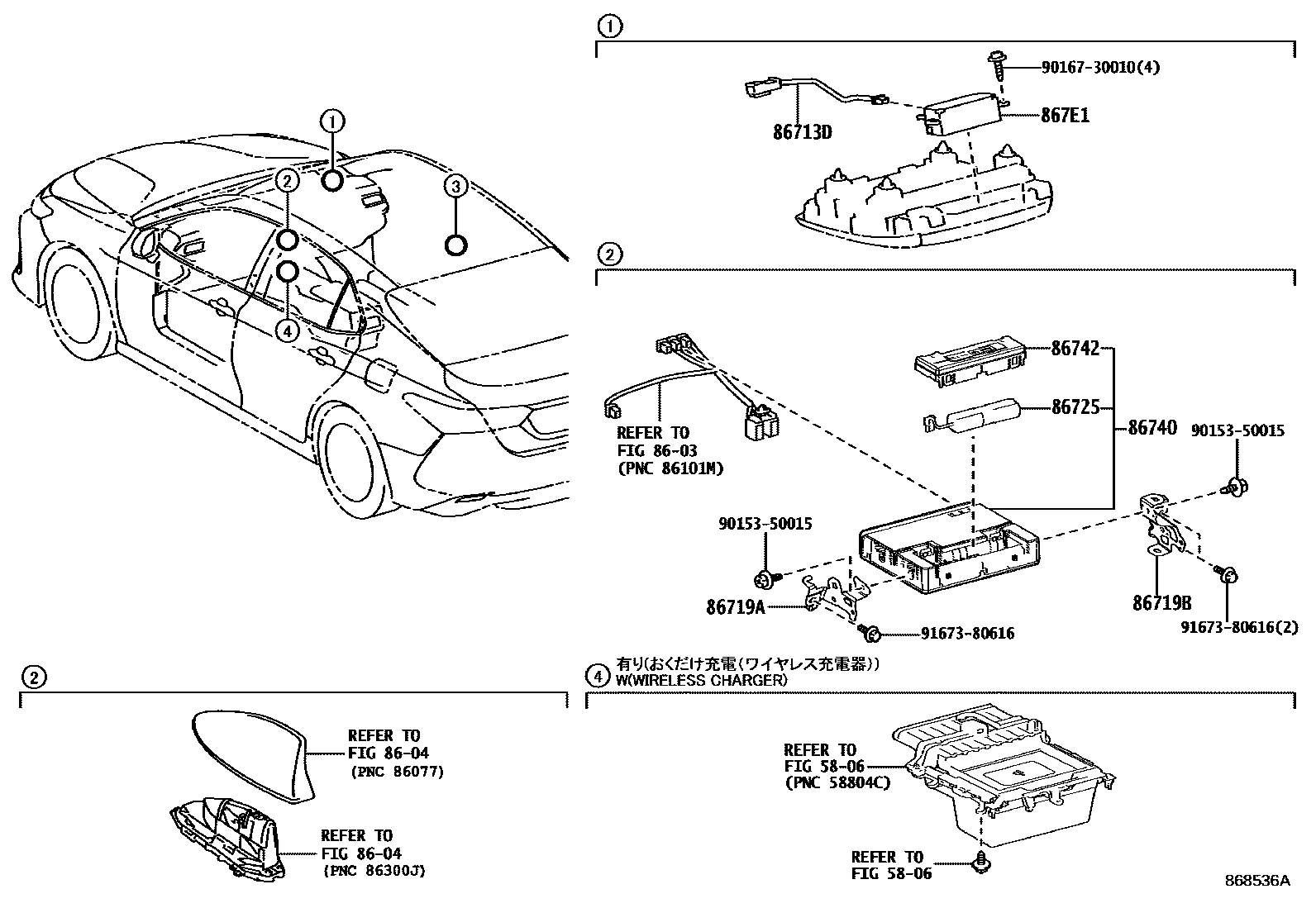

Toyota CAMRY 车载电话和呼救装置 — Figure 8615
Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713D | Distress signal wiring harness | 86713-33120 |
| 86719A | Phone holder No. 1 | 86719-33290 |
| 86719B | Phone holder No. 2 | 86719-33300 |
| 86725 | mobile phone battery | 86725-33010 · 86725-48010 · 86725-78010 |
| 86740 | Telephone transceiver assembly | 86740-06020 · 86740-06110 · 86740-06120 · 86740-06140 · 86740-33090 · 86740-33260 · 86740-33280 · 86740-33281 · 86740-33290 · 86740-50390 · 86740-50400 |
| 86742 | transceiver cover | 86742-0D020 · 86742-33010 |
| 867E1 | BOITIER, TELEMATIQUE COMMUNICATION | 867E1-33011 |
