Toyota CAMRY 倒车影像和摄像头 — Figure 8606

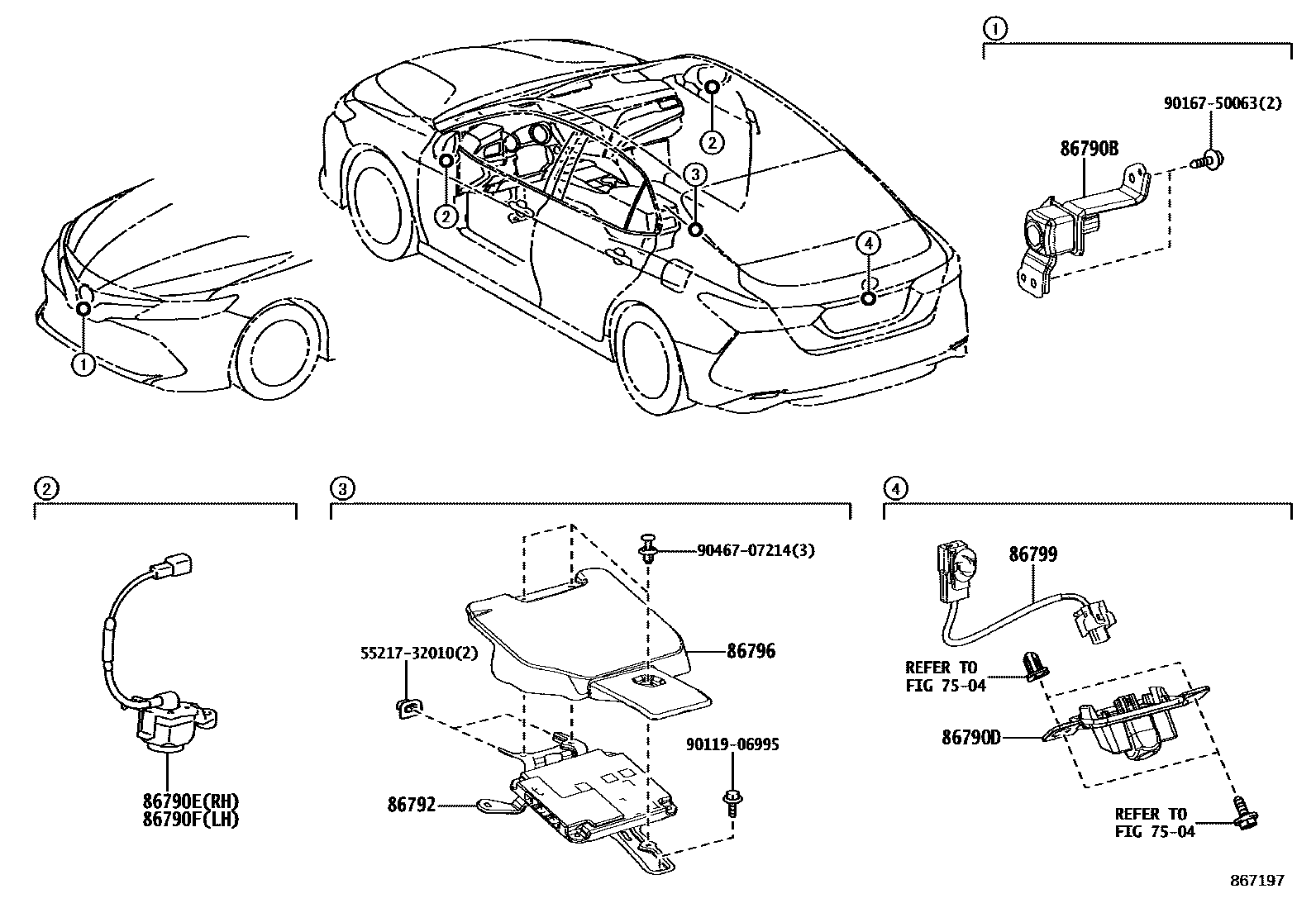

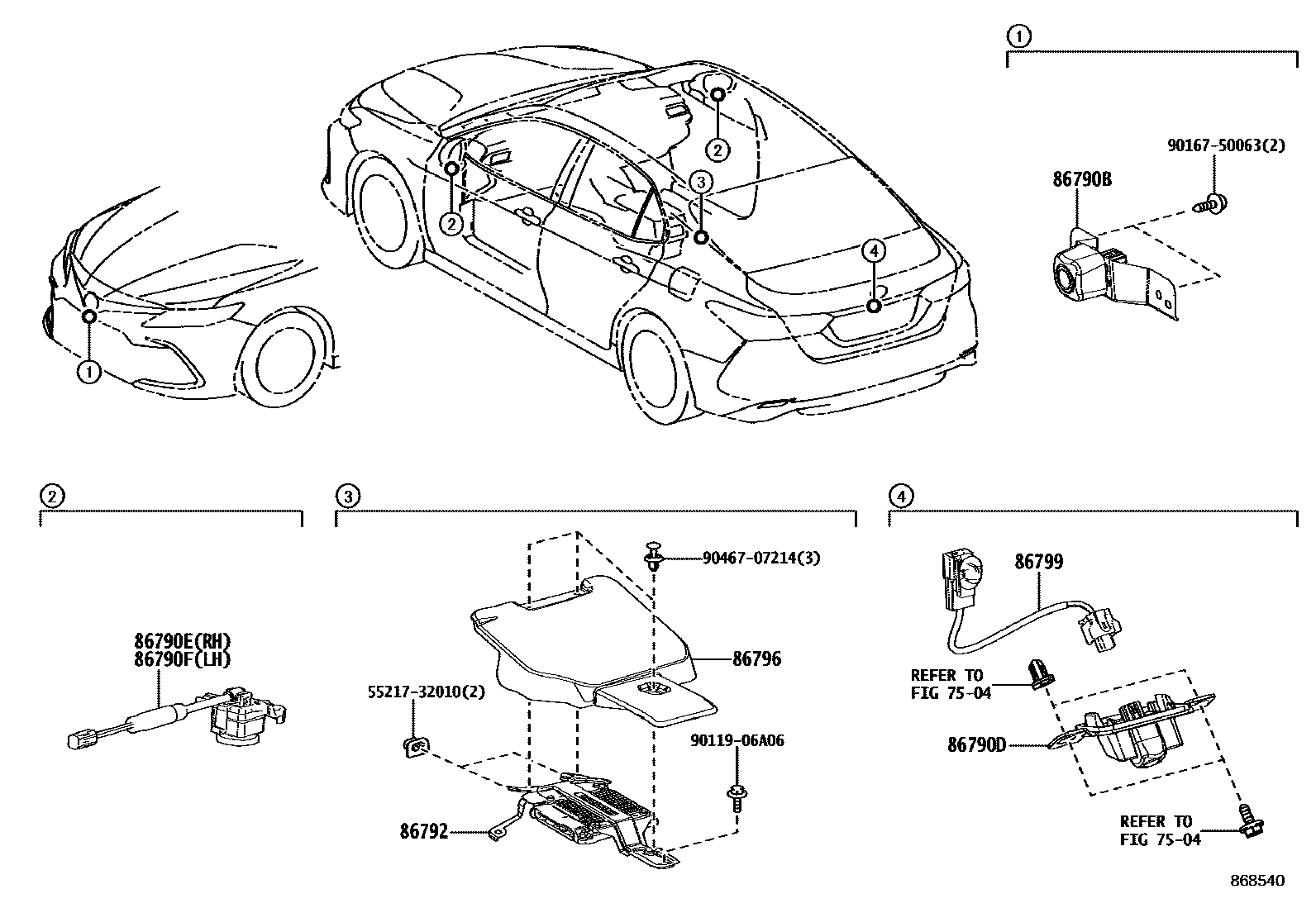

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-33190 · 86790-33220 · 86790-33221 |
| 86790D | Rear reversing image camera assembly | 86790-33180 · 86790-33260 · 867B0-33050 · 867B0-33080 · 867B0-33230 · 867B0-33240 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-33210 · 86790-33250 · 86790-33251 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-33200 · 86790-33240 · 86790-33241 |
| 86792 | Reversing camera controller | 86792-33051 · 86792-33260 · 86792-33261 · 86792-33270 · 86792-33271 |
| 86799 | Reversing image camera wiring harness | 86799-06080 · 86799-06090 · 86799-06100 · 86799-33020 · 86799-33030 · 86799-33040 |
