Toyota CAMRY 扬声器 — Figure 8602

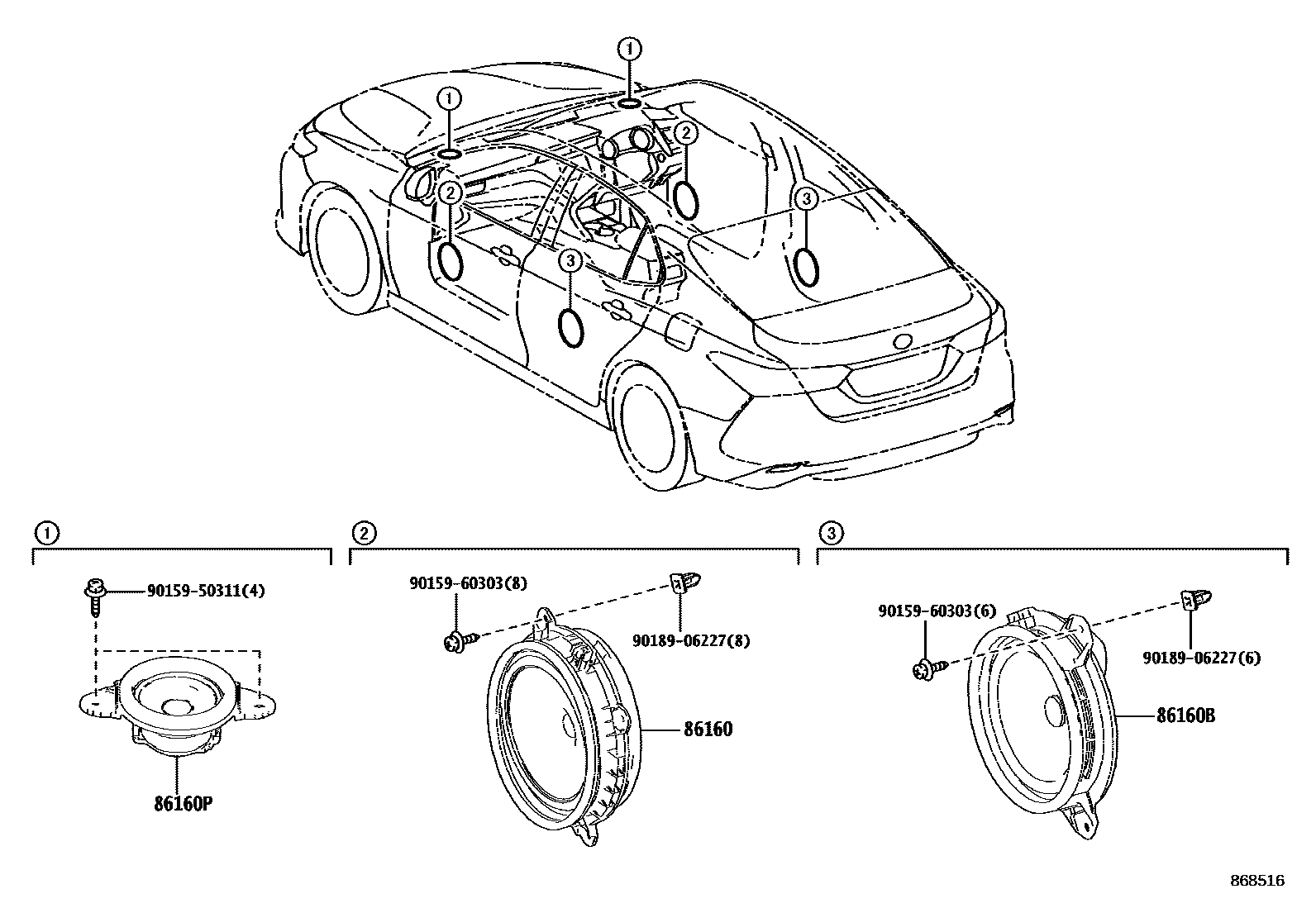

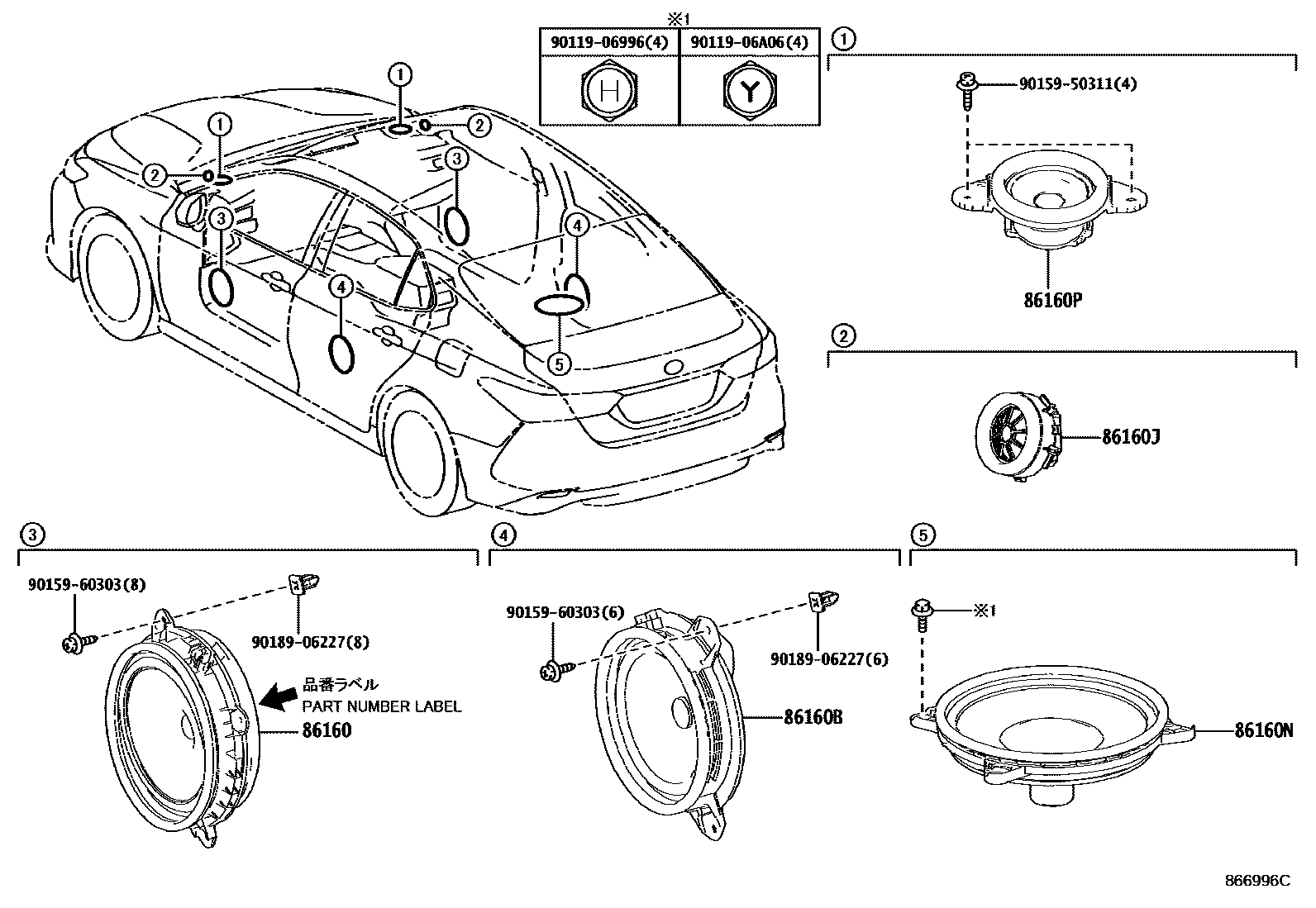

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-30F70 · 86160-33A10 · 86160-33A20 |
| 86160B | Rear speaker assembly | 86160-0D370 · 86160-1A210 · 86160-30E00 · 86160-33A00 · 86160-42170 · 86160-52331 |
| 86160J | No. 3 front speaker assembly | 86150-33060 |
| 86160N | Rear stereo component speaker assembly | 86150-33010 |
| 86160P | No. 2 front speaker assembly | 86160-33760 · 86160-33A30 |
