Toyota CAMRY 前大灯清洗器 — Figure 8505

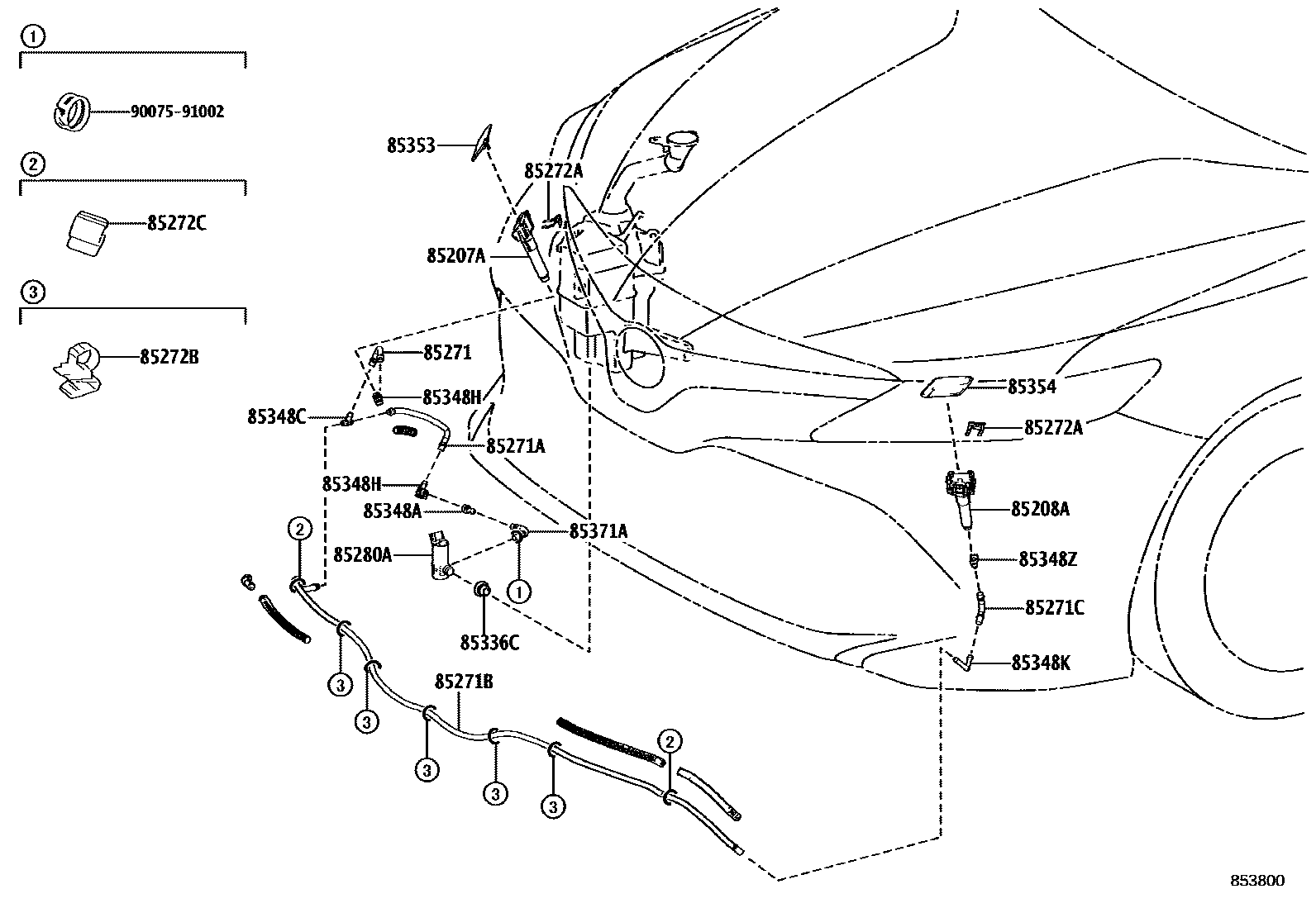

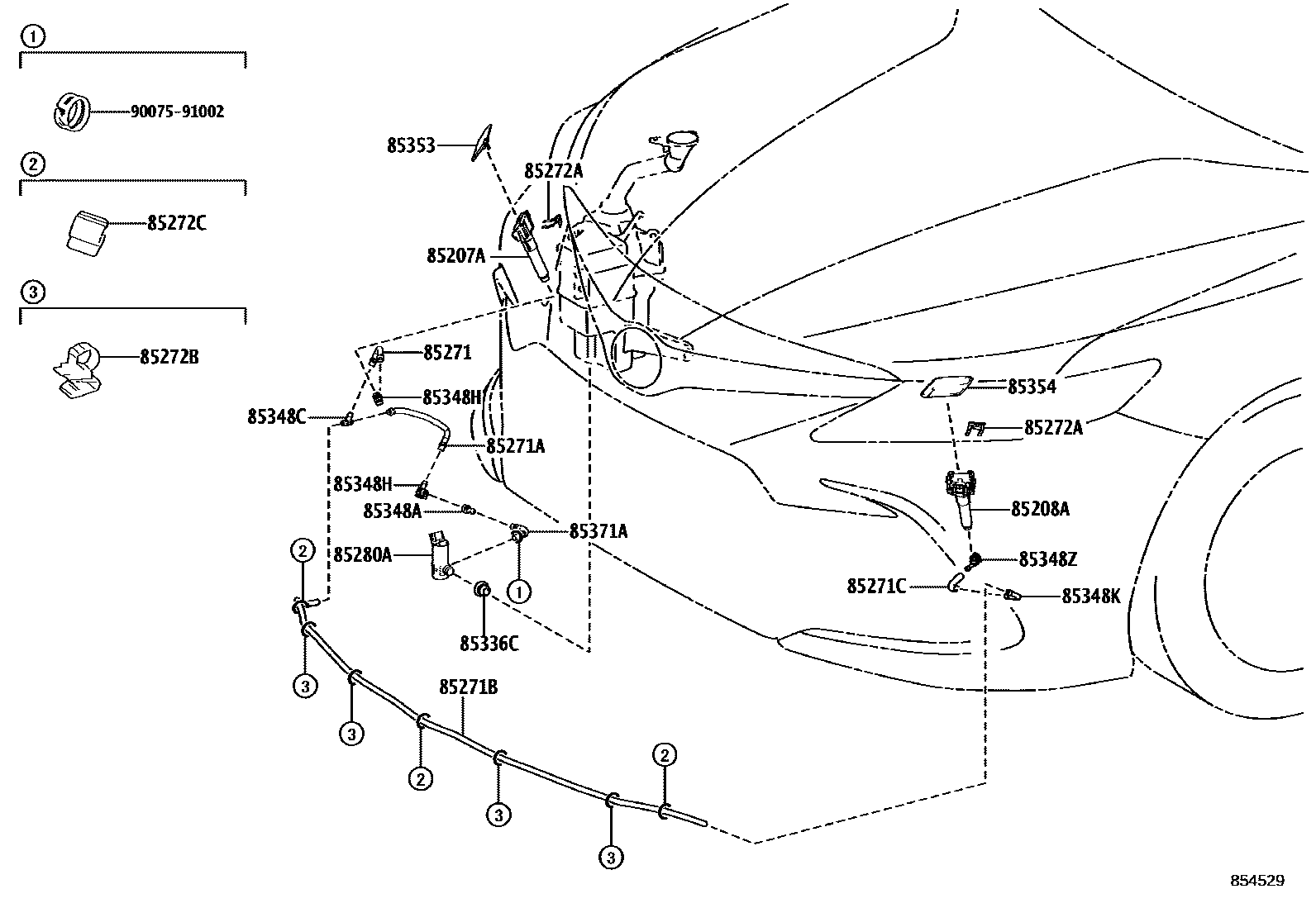

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-33120 · 85207-33150 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-33120 · 85208-33150 |
| 85271 | No. 1 headlight washer hose | 90075-15054 · 90075-15055 · 90075-15058 |
| 85271A | No. 2 headlight washer hose | 90075-15057 · 90075-15076 |
| 85271B | No. 3 headlight washer hose | 90075-15073 · 90075-15092 · 90075-15148 |
| 85271C | No. 4 headlight washer hose | 90075-15059 |
| 85272A | Headlight washer No. 1 clip | 85272-75050 |
| 85272B | Headlight washer clip No. 2 | 82711-45020 · 82711-48190 |
| 85272C | Headlight washer clip No. 3 | 90075-90512 |
| 85280A | Headlight washer motor and pump assembly | 85280-47010 |
| 85336C | Headlight washer motor seal | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17012 |
| 85348C | No. 3 headlight washer hose connector | 90075-17010 · 90075-17020 |
| 85348H | No. 4 headlight washer hose connector | 90075-17009 |
| 85348K | No. 1 headlight washer elbow joint | 90075-17013 · 90075-17021 |
| 85348Z | No. 5 headlight washer hose connector | 90075-17009 · 90075-17011 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15059 |
