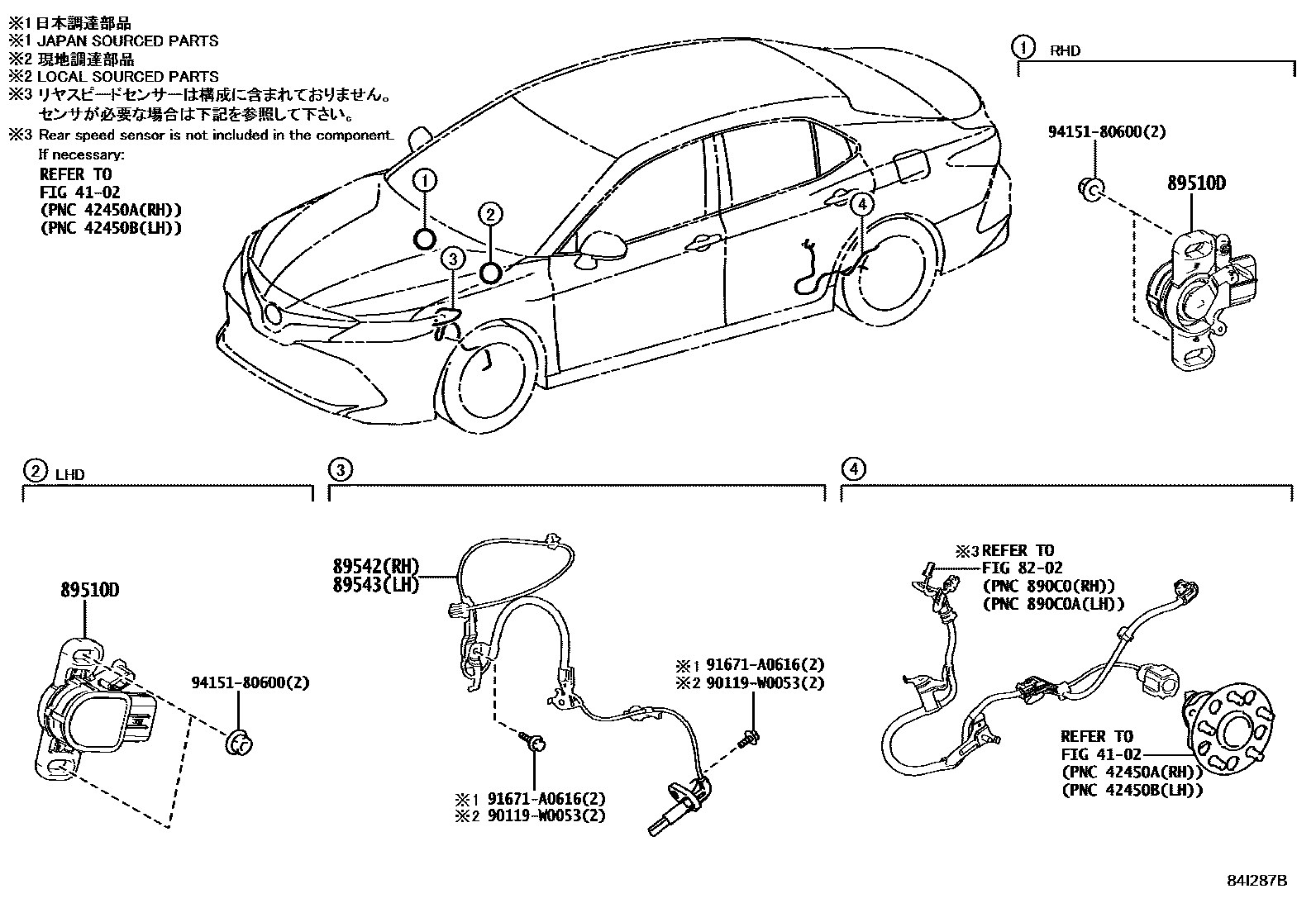

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-47030 · 89510-47040 |
| 89542 | Right front wheel speed sensor | 89542-33141 · 89542-33160 |
| 89543 | Left front wheel speed sensor | 89543-33131 · 89543-33150 |
