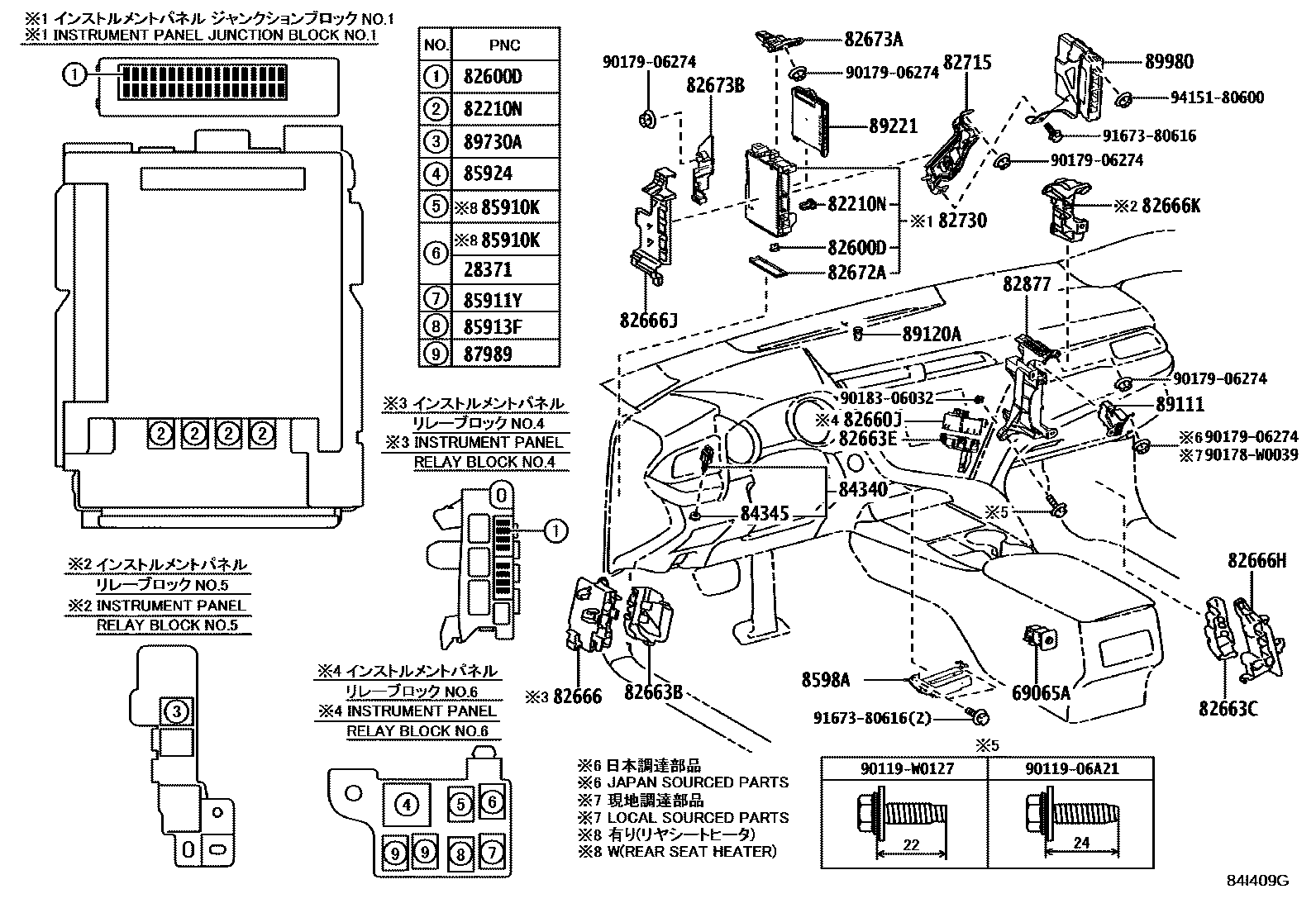

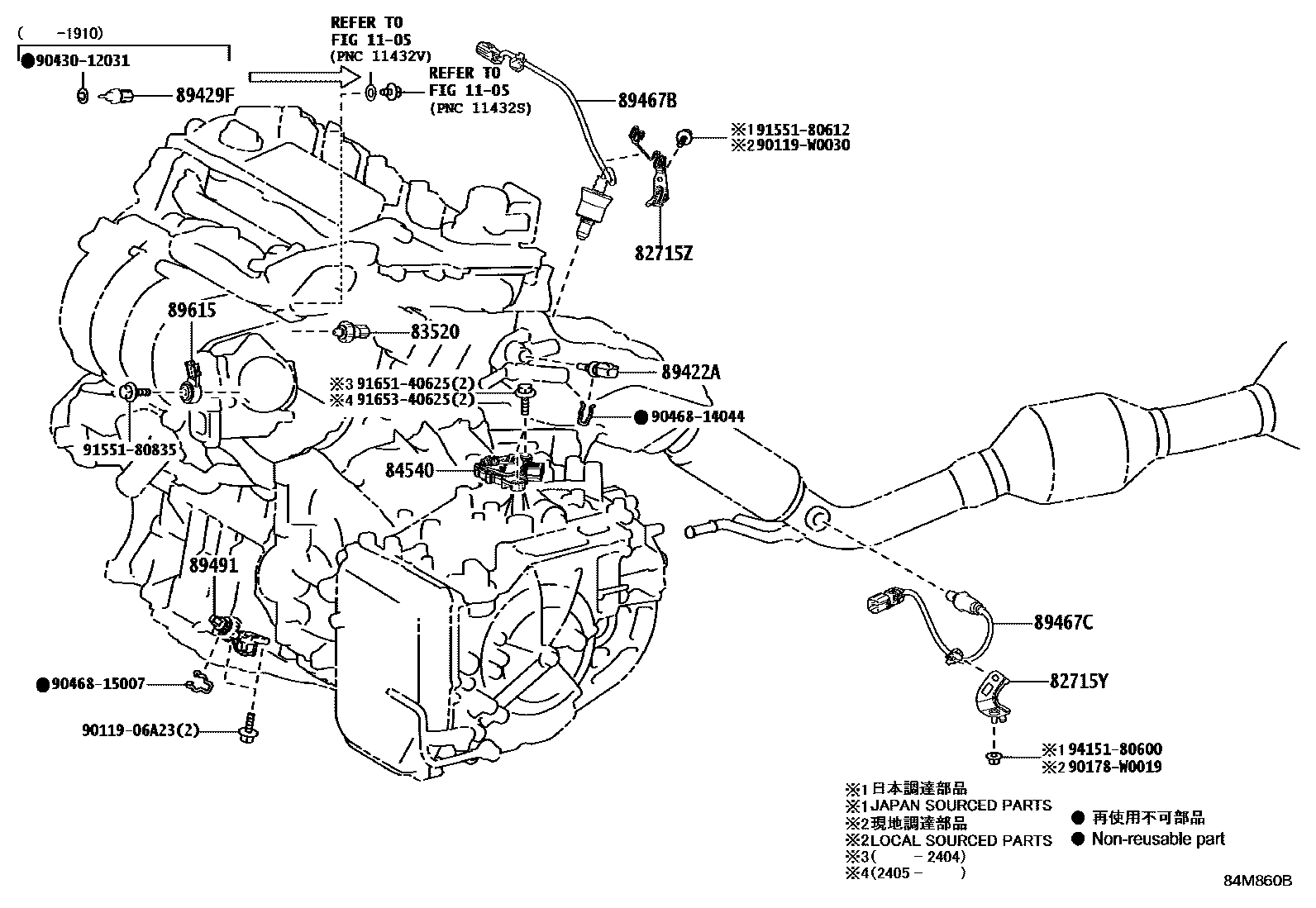

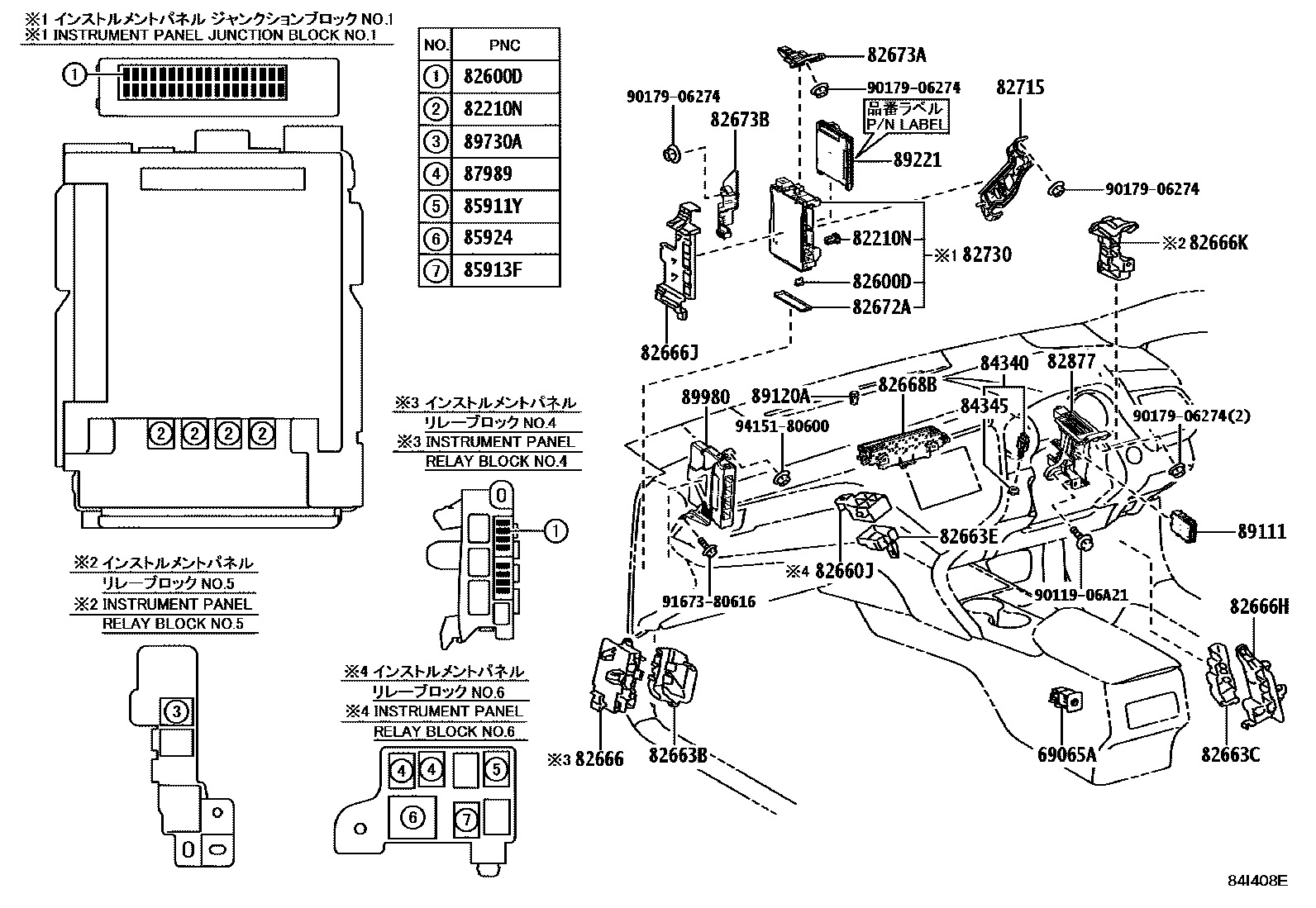

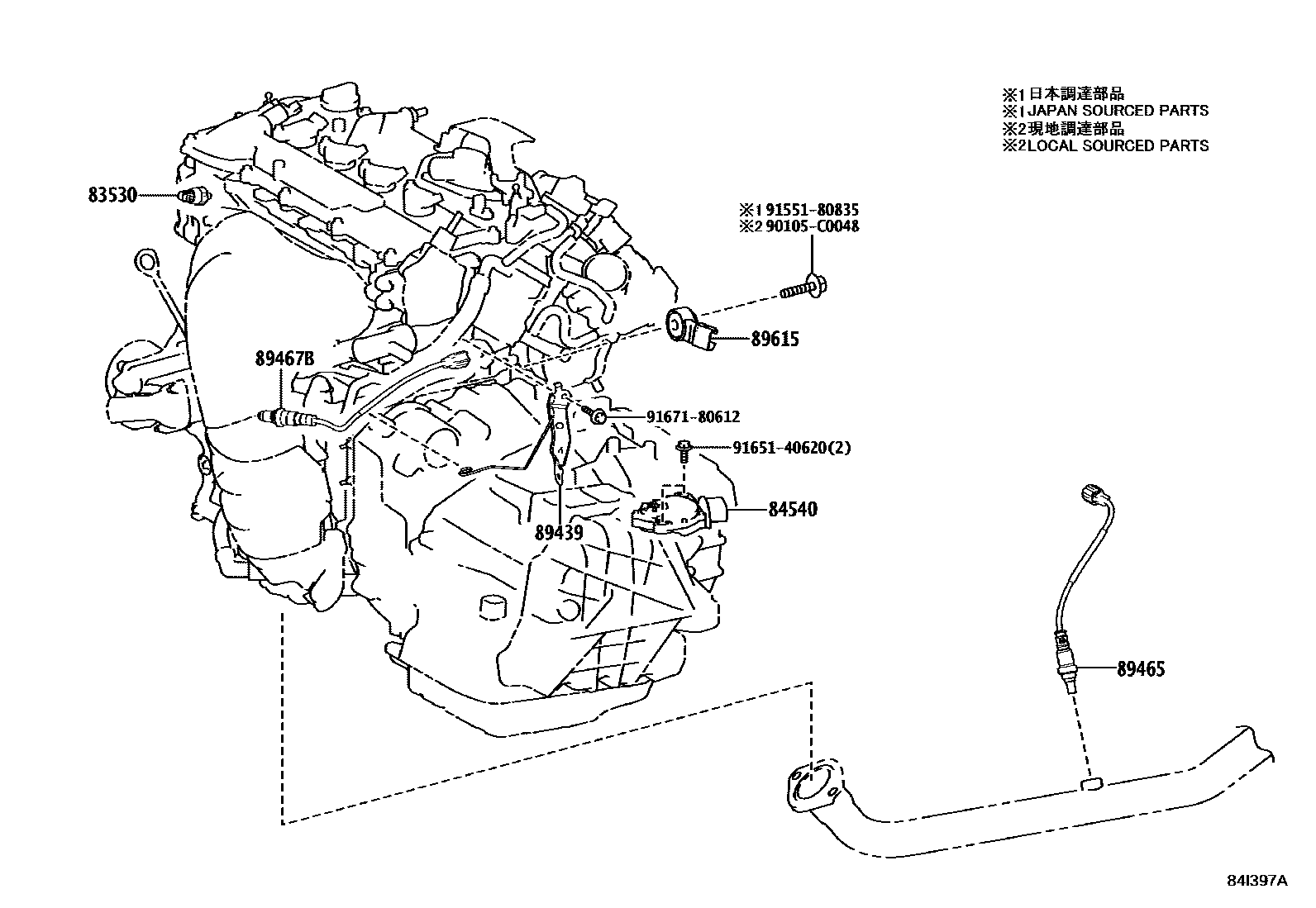

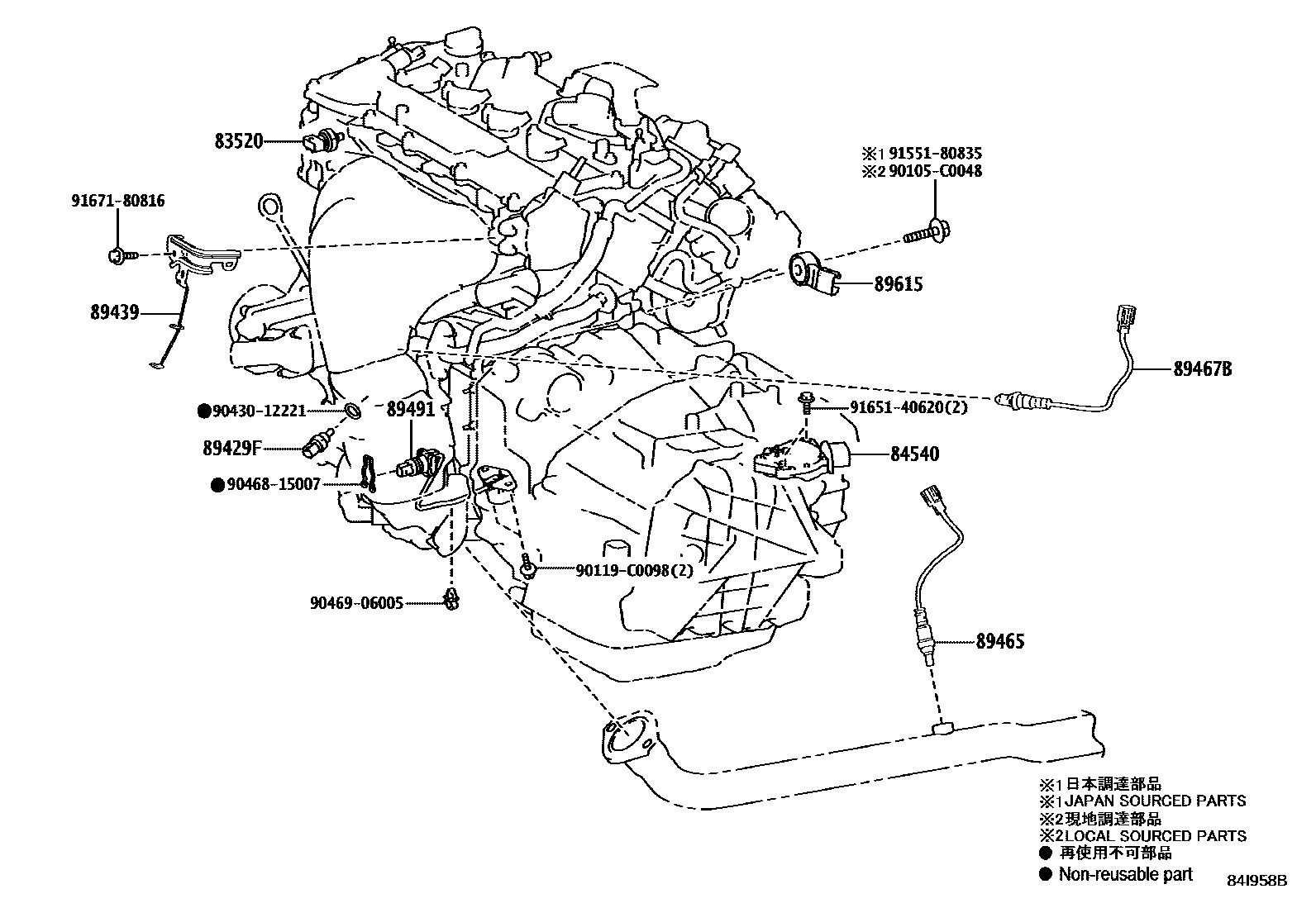

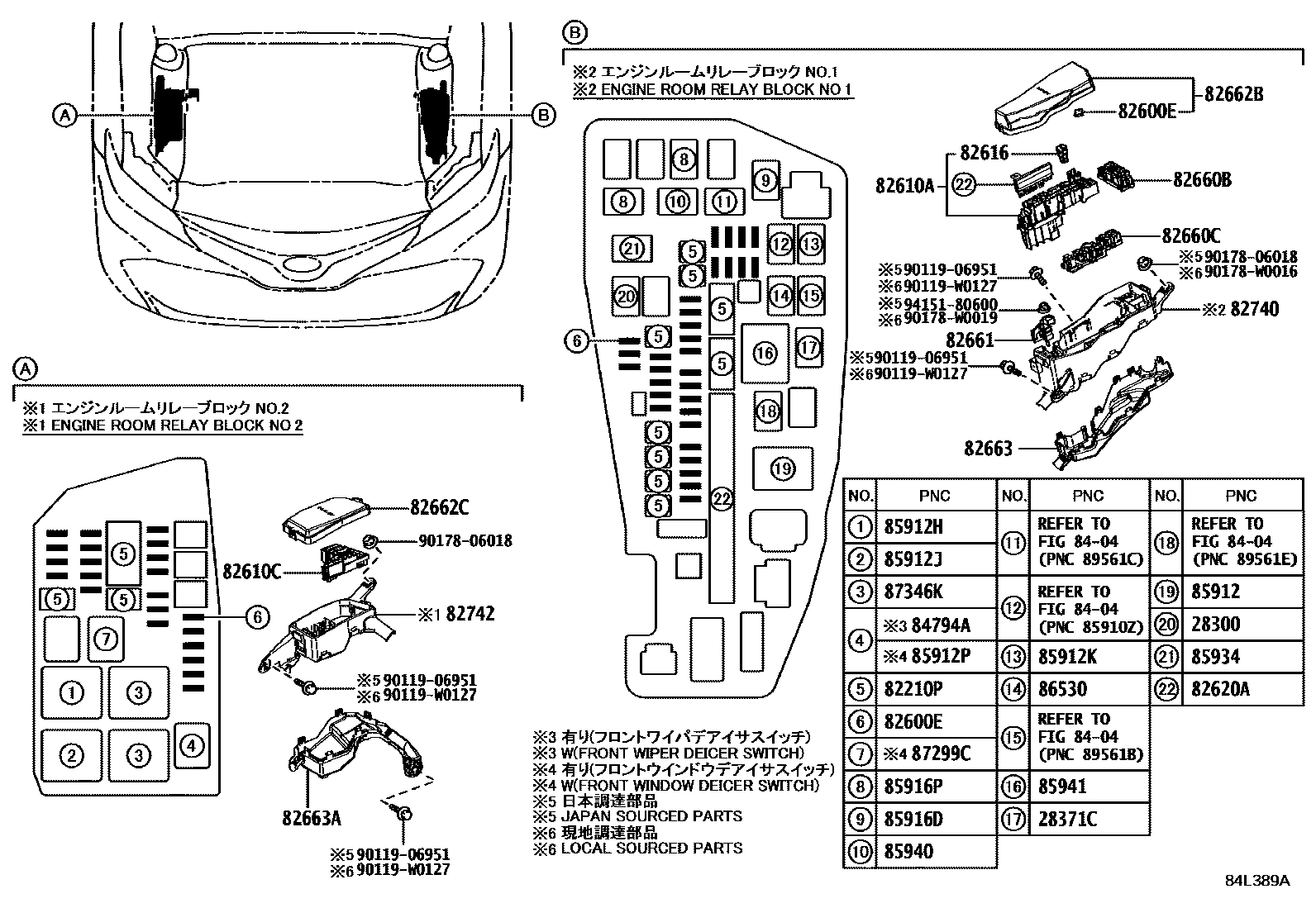

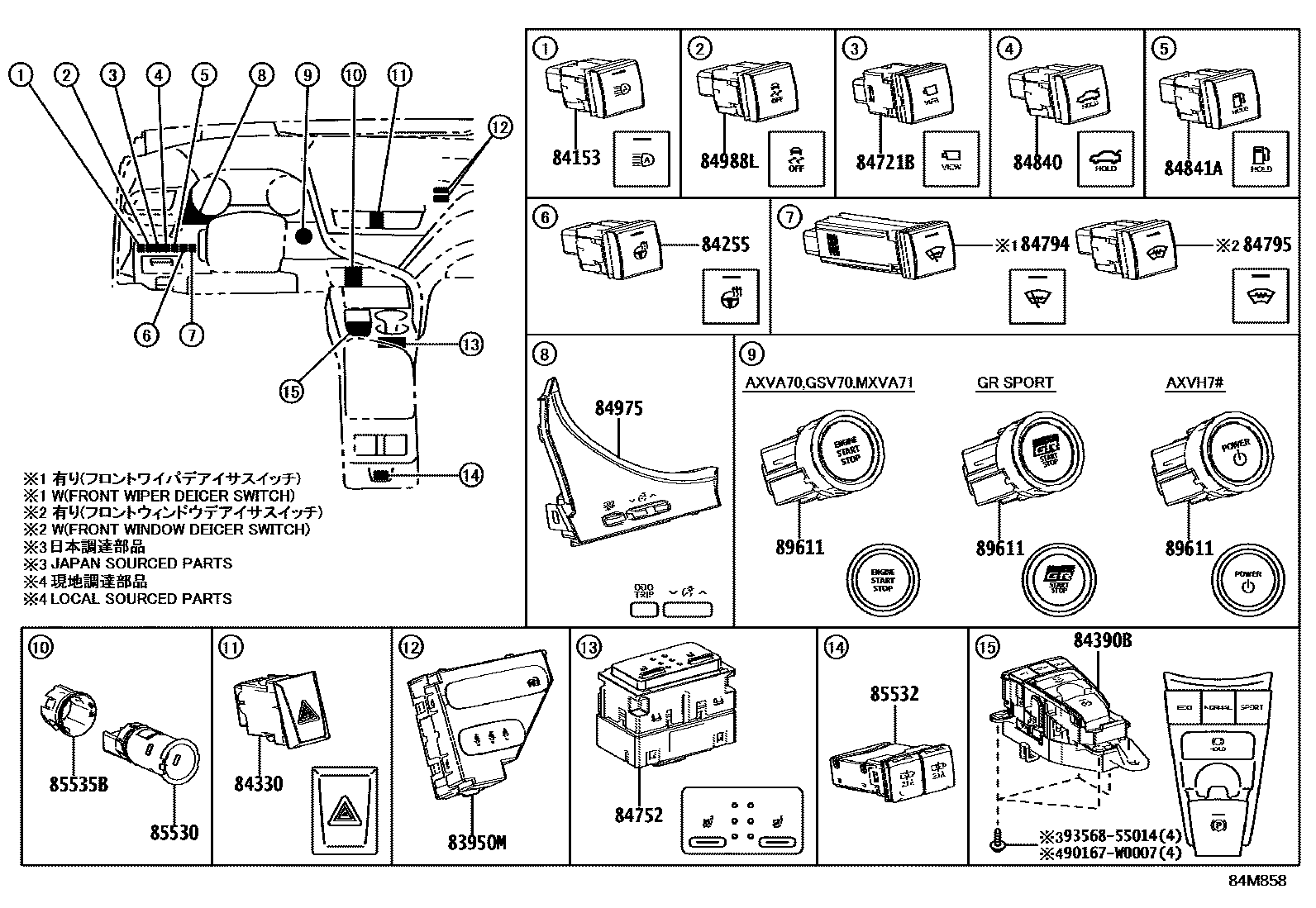

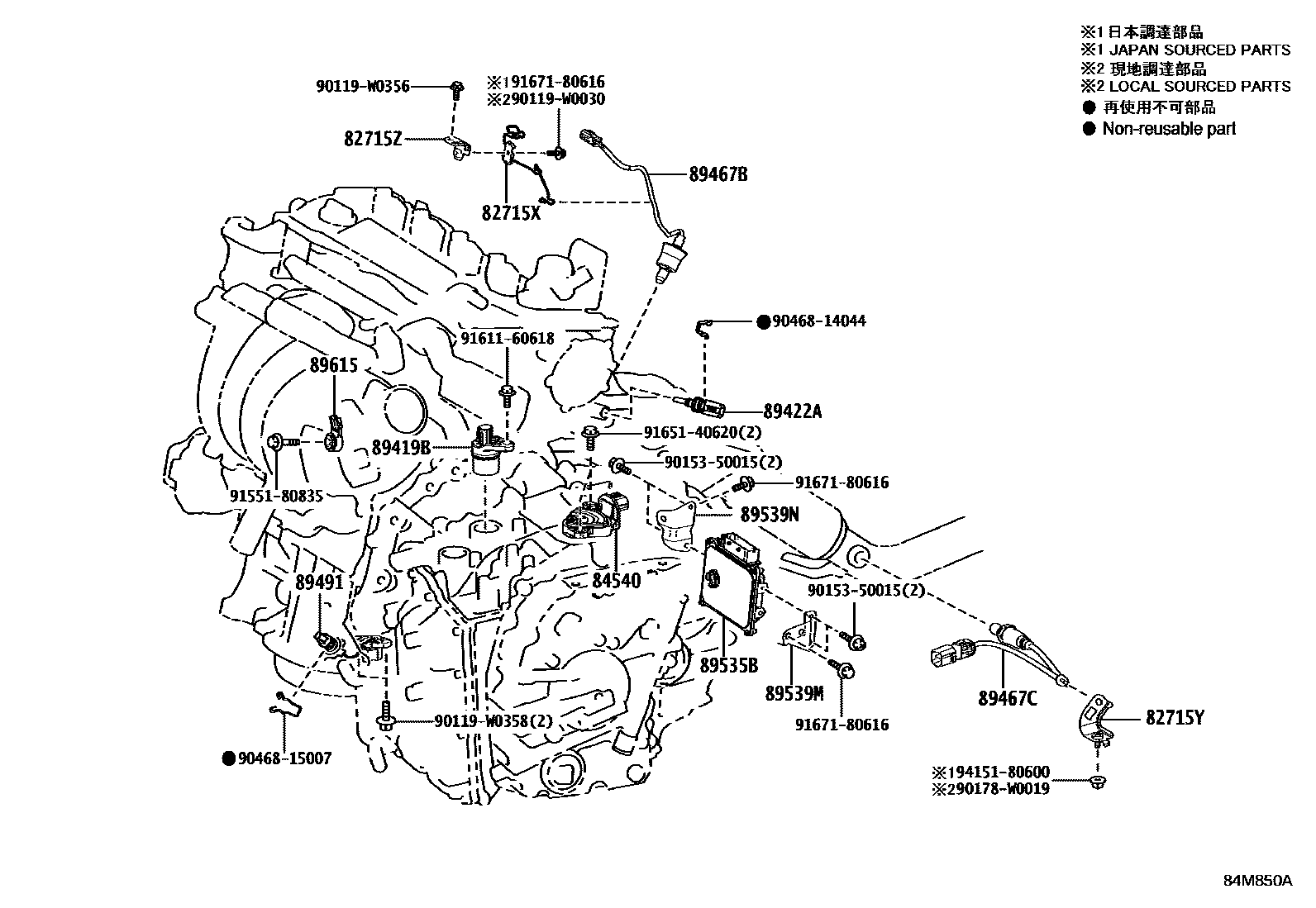

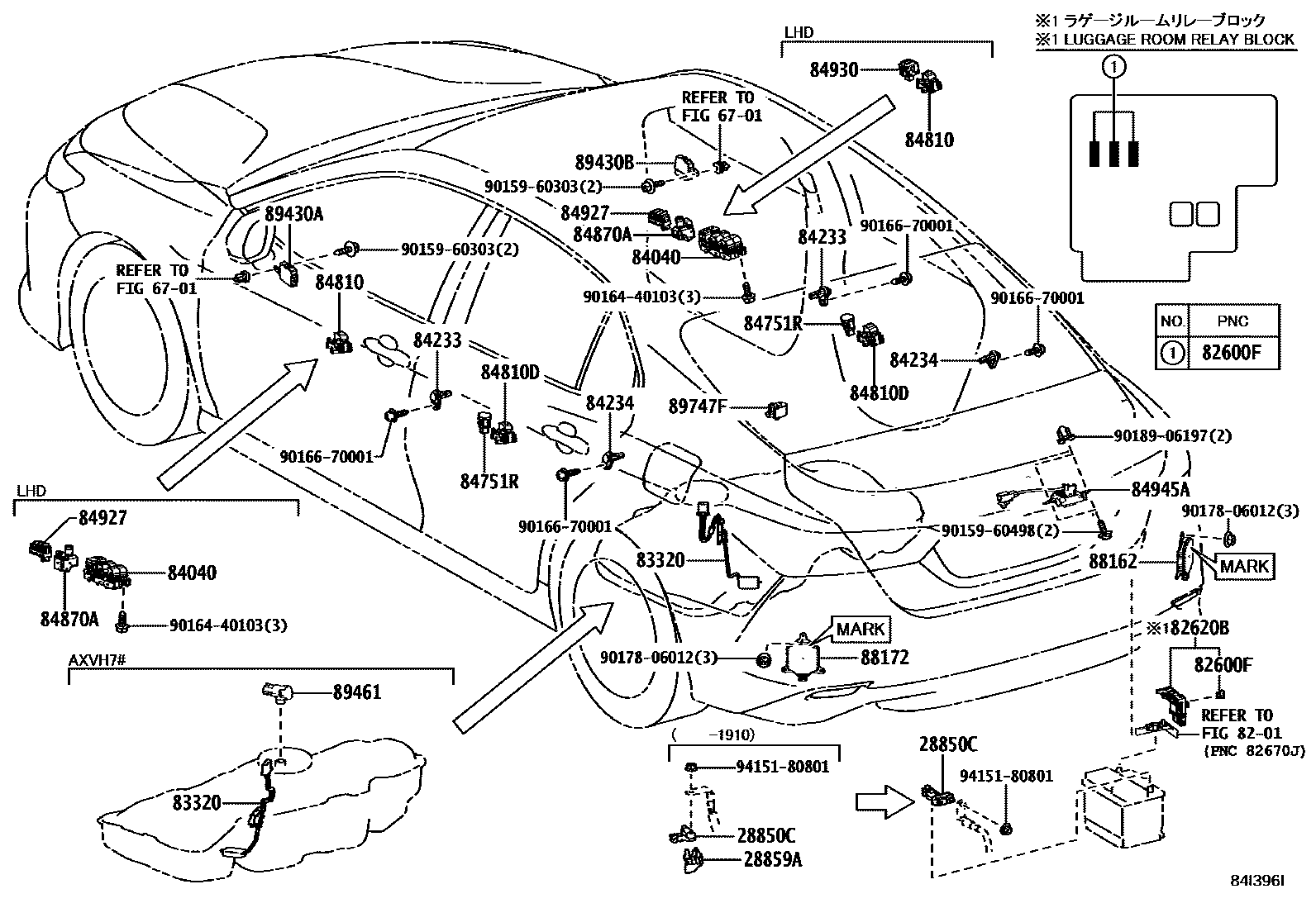

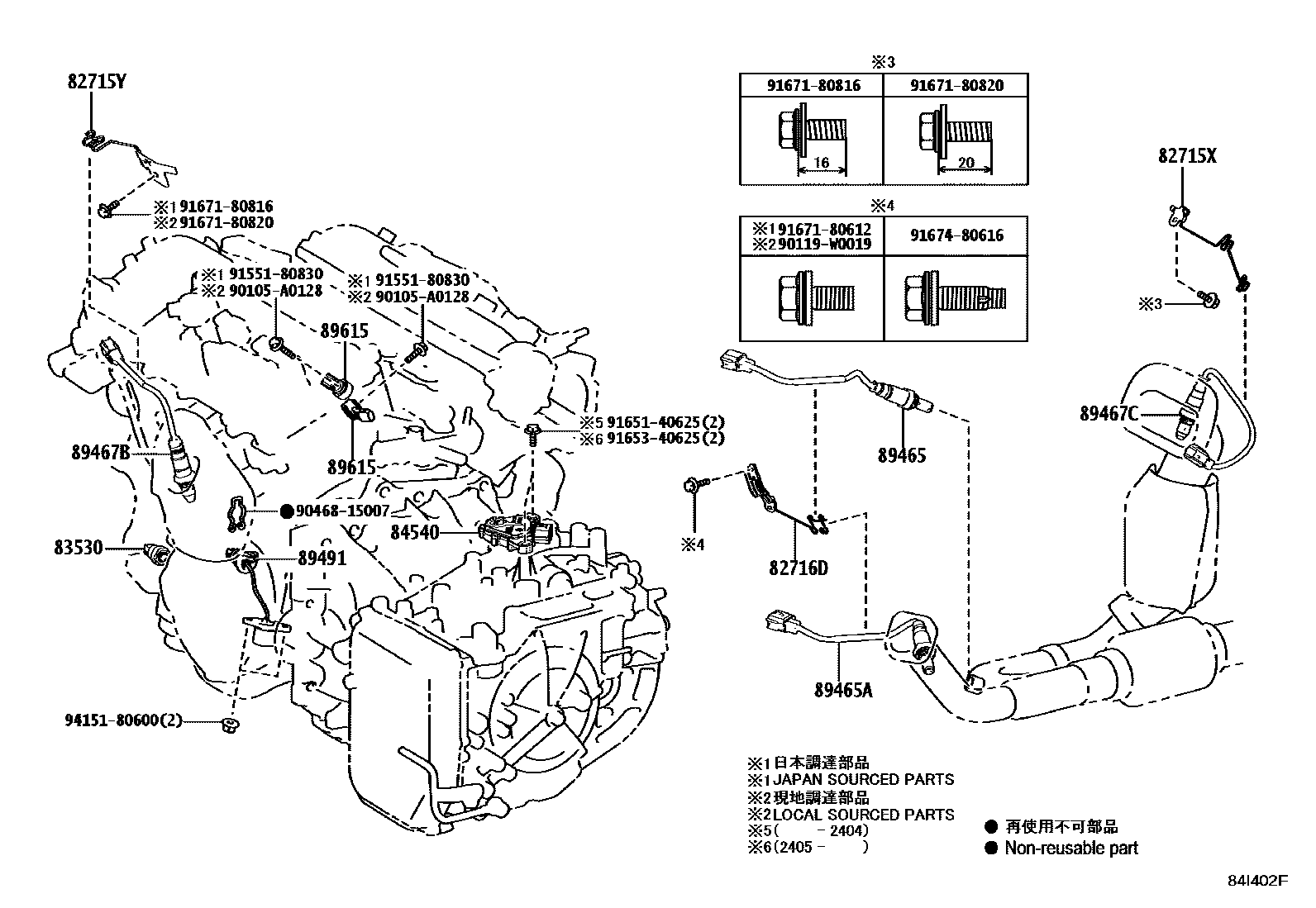

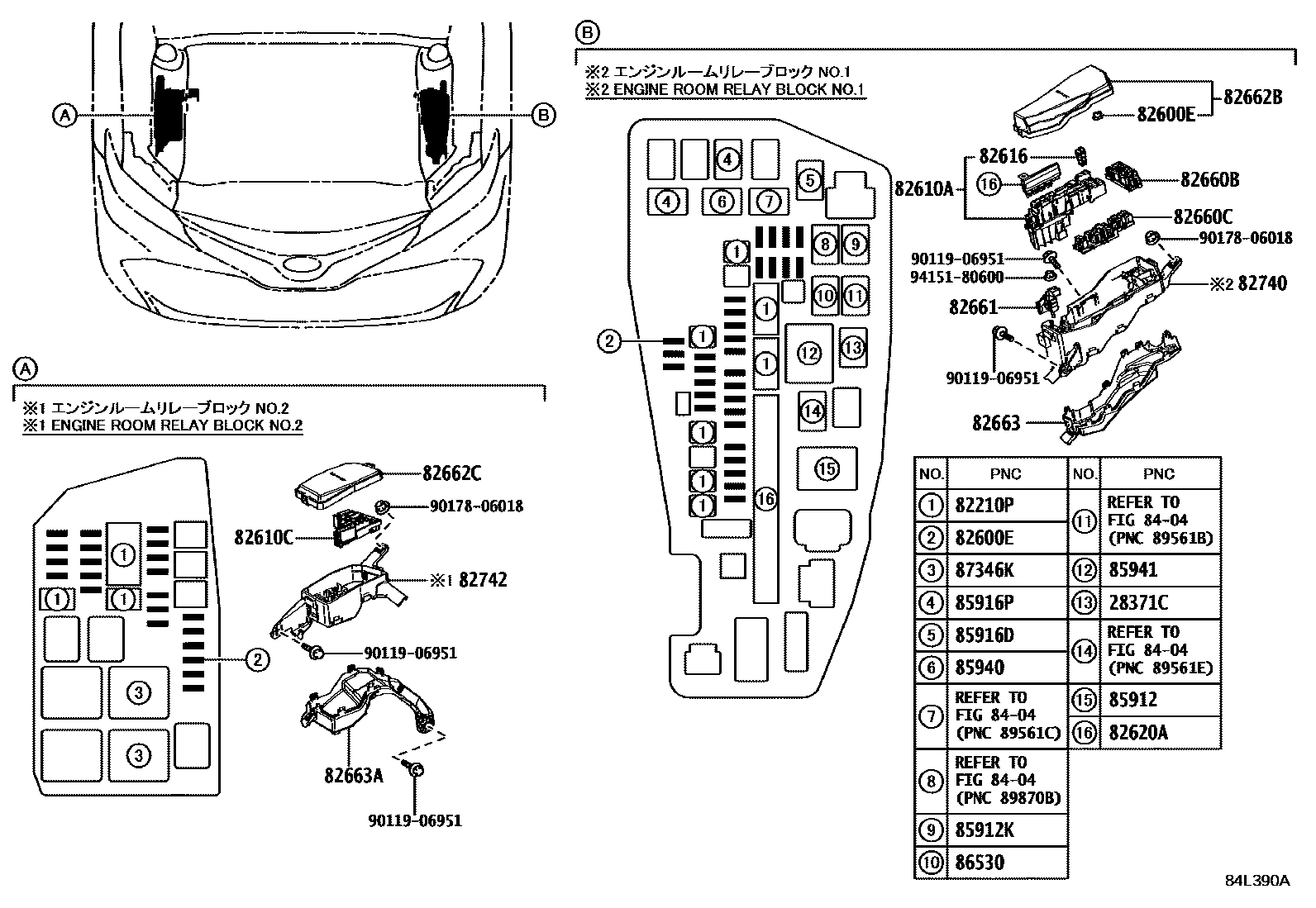

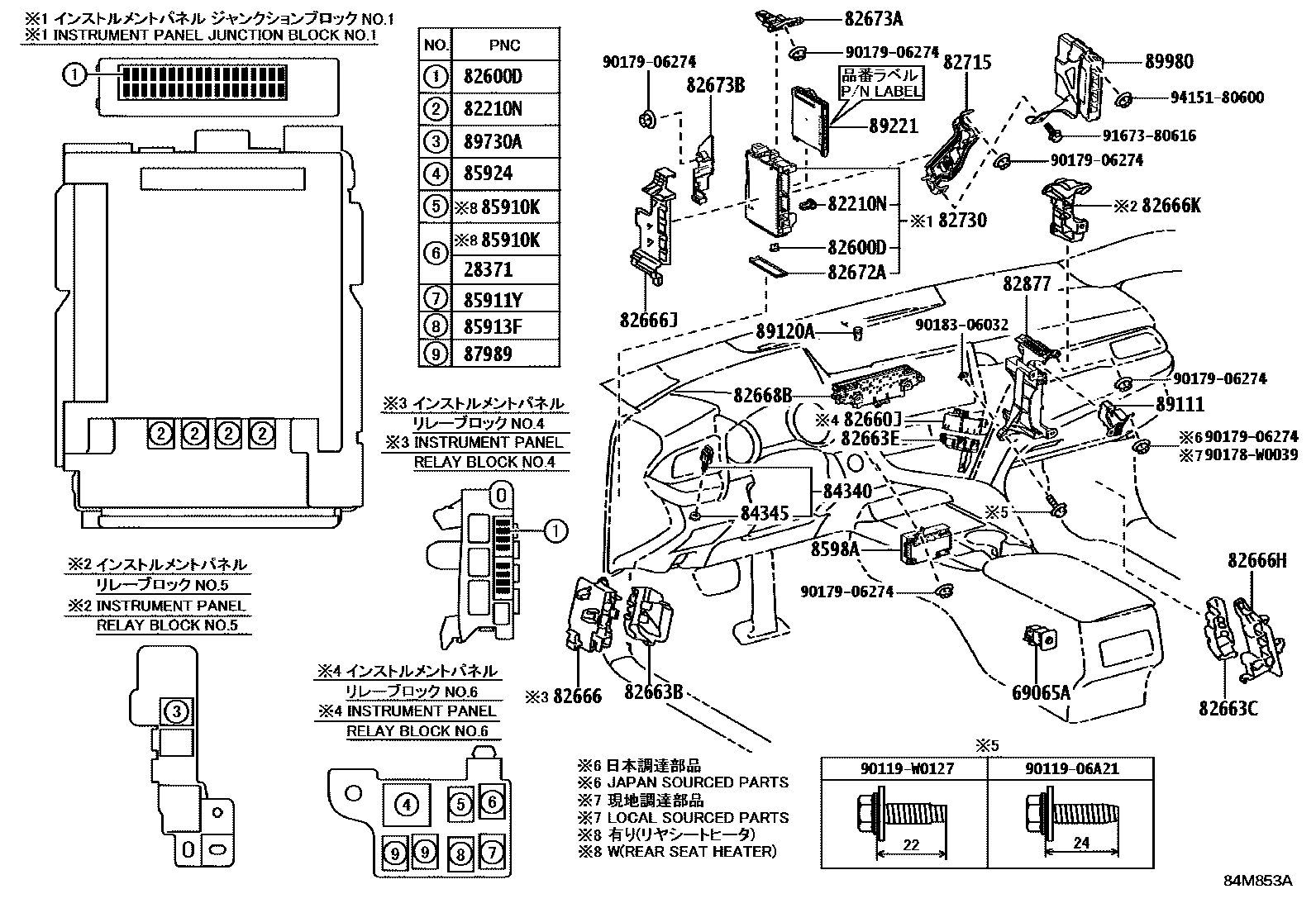

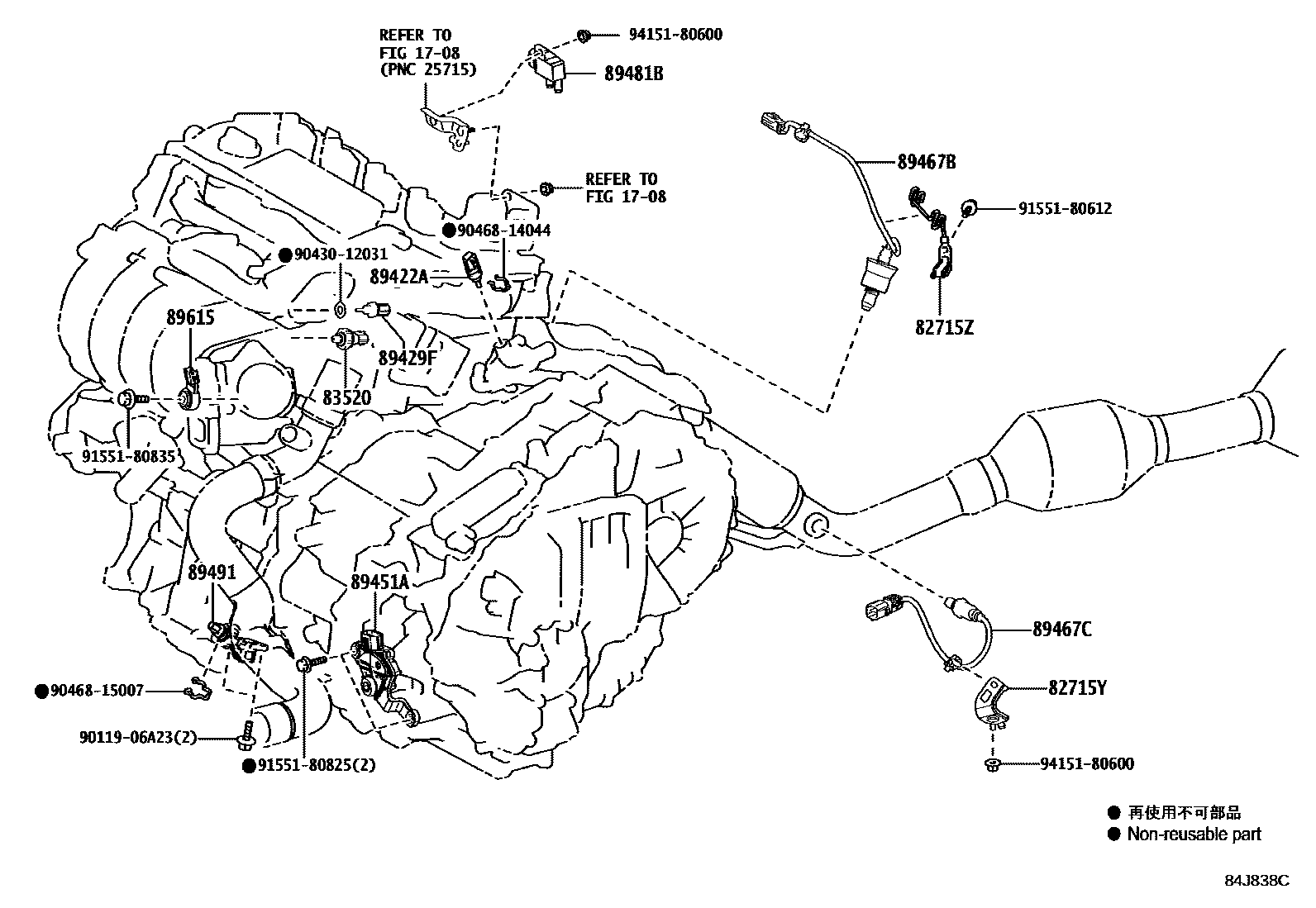

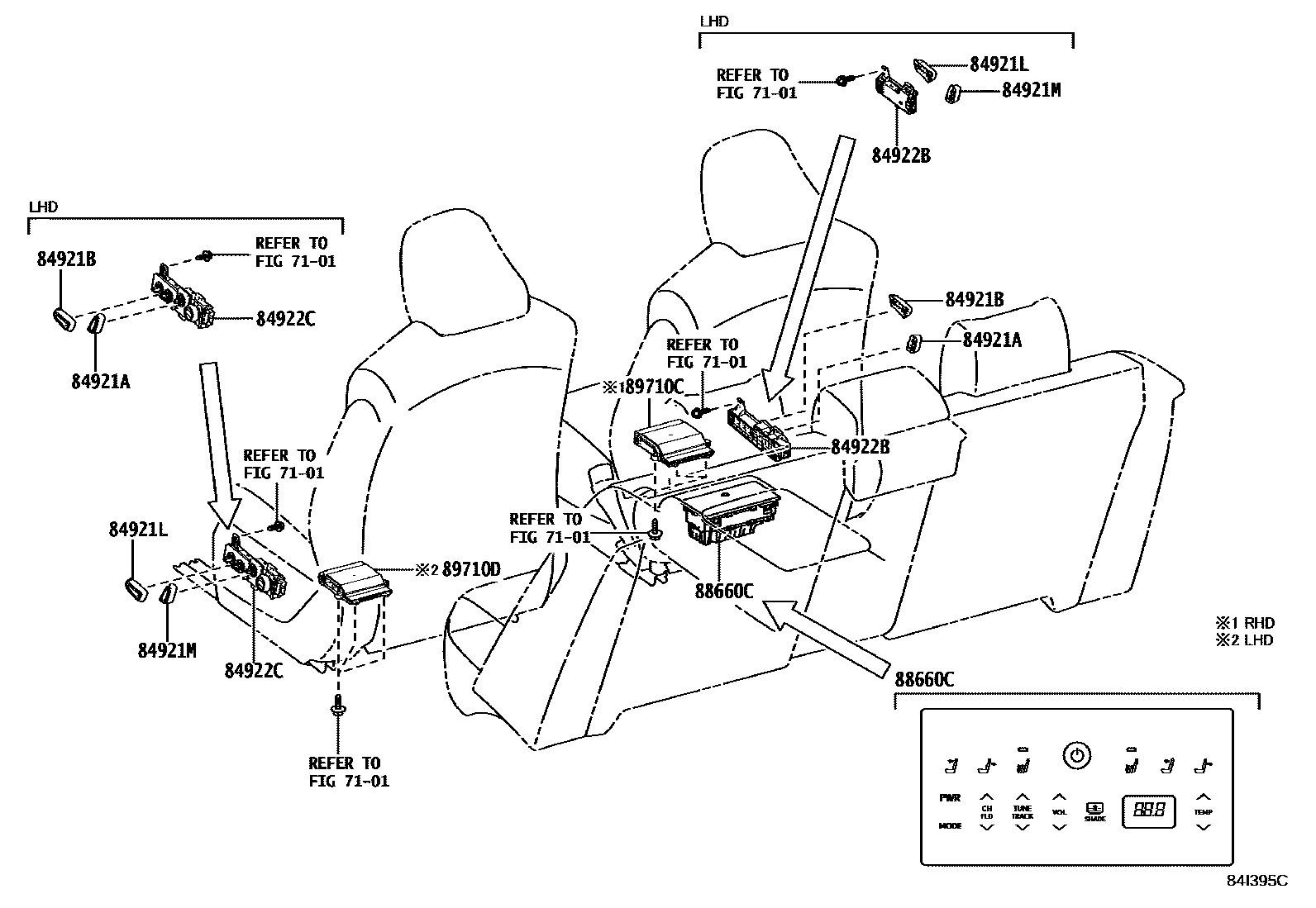

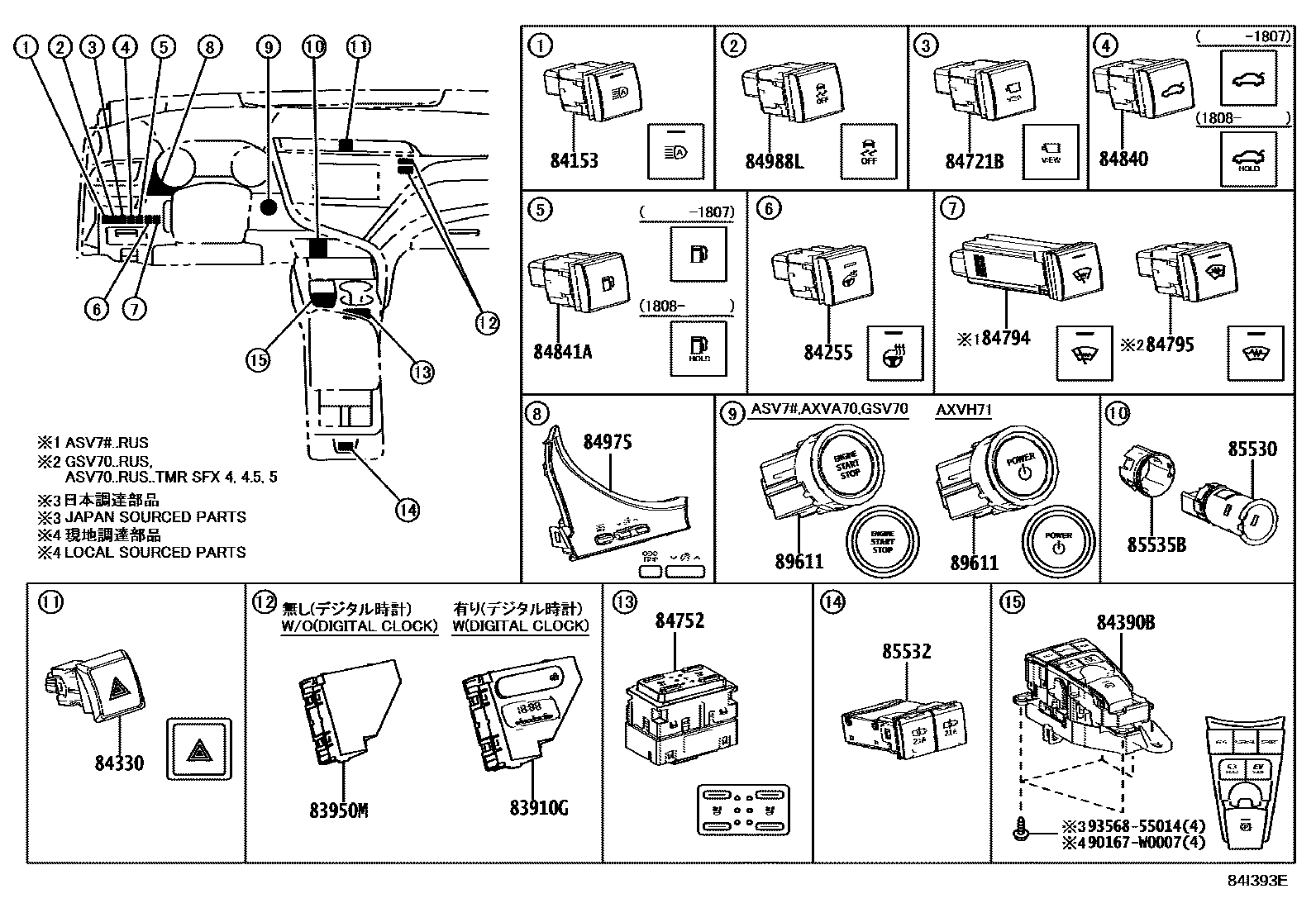

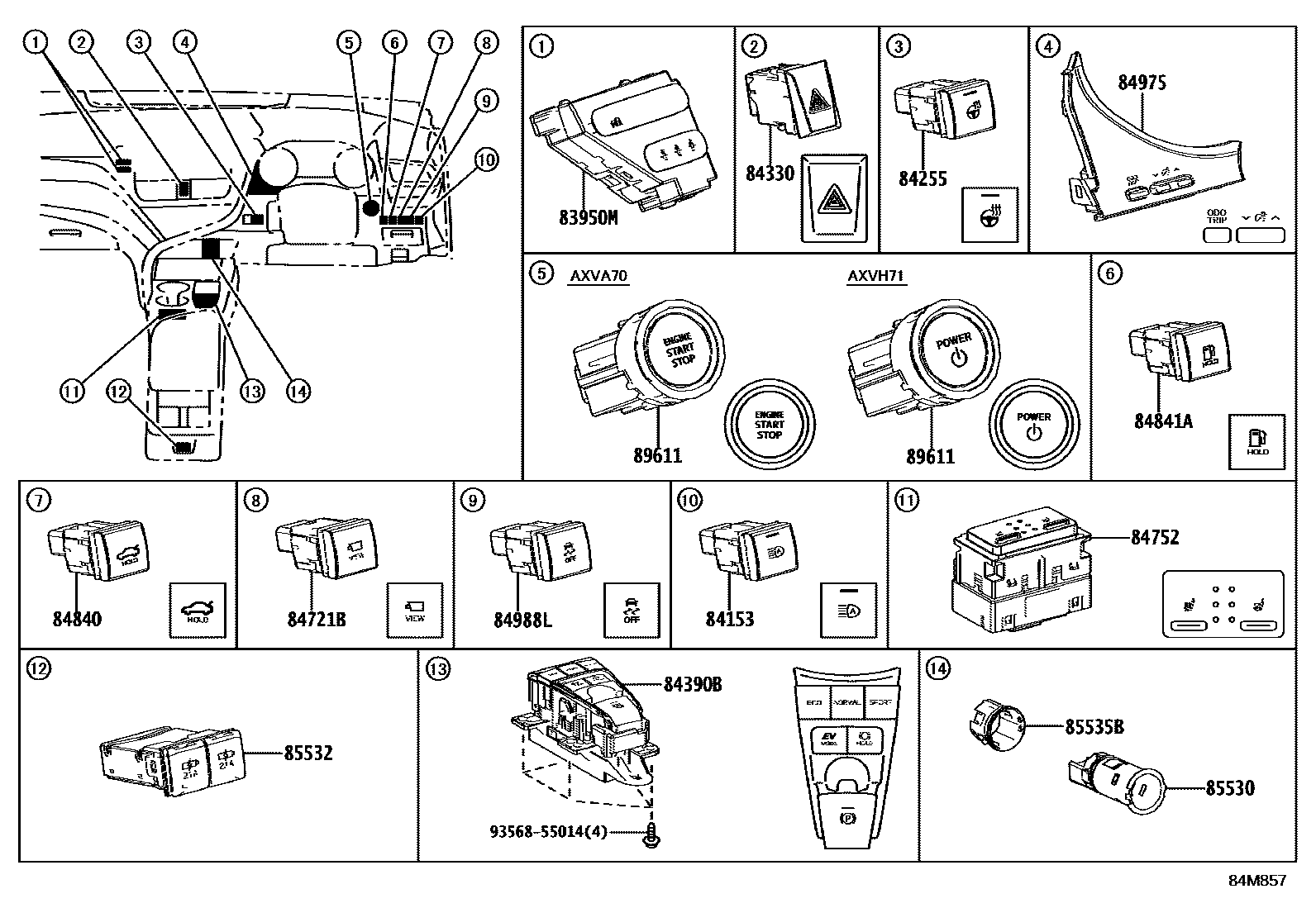

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 19 images and 142 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371 | No. 1 ignition relay | 90080-87021 · 90987-02027 |
| 28371C | No. 2 ignition relay | 90080-87021 · 90987-02027 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-25010 · 28850-70010 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-25010 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-08303 · 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09020 · 90982-09022 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-33130 · 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 · 82620-33150 |
| 82620B | Fuse box assembly | 82620-33110 · 82620-33111 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | ENS. BLOC RELAIS | 82660-33060 · 82660-33080 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-33750 · 82662-33760 · 82662-33770 · 82662-33780 · 82662-33800 · 82662-33810 · 82662-33B20 · 82662-33B21 · 82662-33B40 · 82662-33B41 · 82662-33B50 · 82662-33B51 · 82662-33B52 · 82662-33B60 · 82662-33B61 · 82662-33C20 · 82662-33C21 · 82662-33C30 · 82662-33C31 · 82662-33C50 · 82662-33C51 · 82662-33C60 · 82662-33C61 |
| 82662C | No. 3 relay box upper cover | 82662-33B30 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82663E | No. 7 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82668B | SUPPORT, CONNECTEUR, NO.5 | 82666-33590 |
| 82672A | Junction box cover | 82672-06270 · 82672-06271 · 82672-33390 · 82672-33391 |
| 82673A | Junction box bracket | 82673-06090 · 82673-33120 |
| 82673B | Junction box bracket | 82673-06100 · 82673-33150 |
| 82715 | Wire harness clamp bracket | 82715-33Q20 · 82715-33T30 |
| 82715X | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-12V90 · 82715-33T50 |
| 82715Y | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.3 | 82715-33J90 · 82715-33K30 |
| 82715Z | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-0Z160 · 82715-33K11 · 82715-33V10 |
| 82716D | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-33K00 |
| 82730 | Instrument panel junction box assembly | 82730-06830 · 82730-06831 · 82730-33Q10 · 82730-33Q11 · 82730-33Q30 · 82730-33Q31 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-33030 · 82877-33040 |
| 83320 | Fuel gauge sensor assembly | 83320-33150 · 83320-33160 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 · 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-33260 · 83910-33270 |
| 83950M | Warning light assembly | 83950-33050 · 83950-33070 · 83950-33080 · 83950-33110 · 83950-33120 · 83950-33130 · 83950-33150 · 83950-33170 · 83950-33180 · 83950-33200 · 83950-33210 |
| 84040 | Multi-channel network main switch assembly | 84040-10030 · 84040-10040 · 84040-12230 · 84040-12240 · 84040-33140 · 84040-33150 · 84040-33160 · 84040-33170 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84153 | Automatic high beam switch | 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |

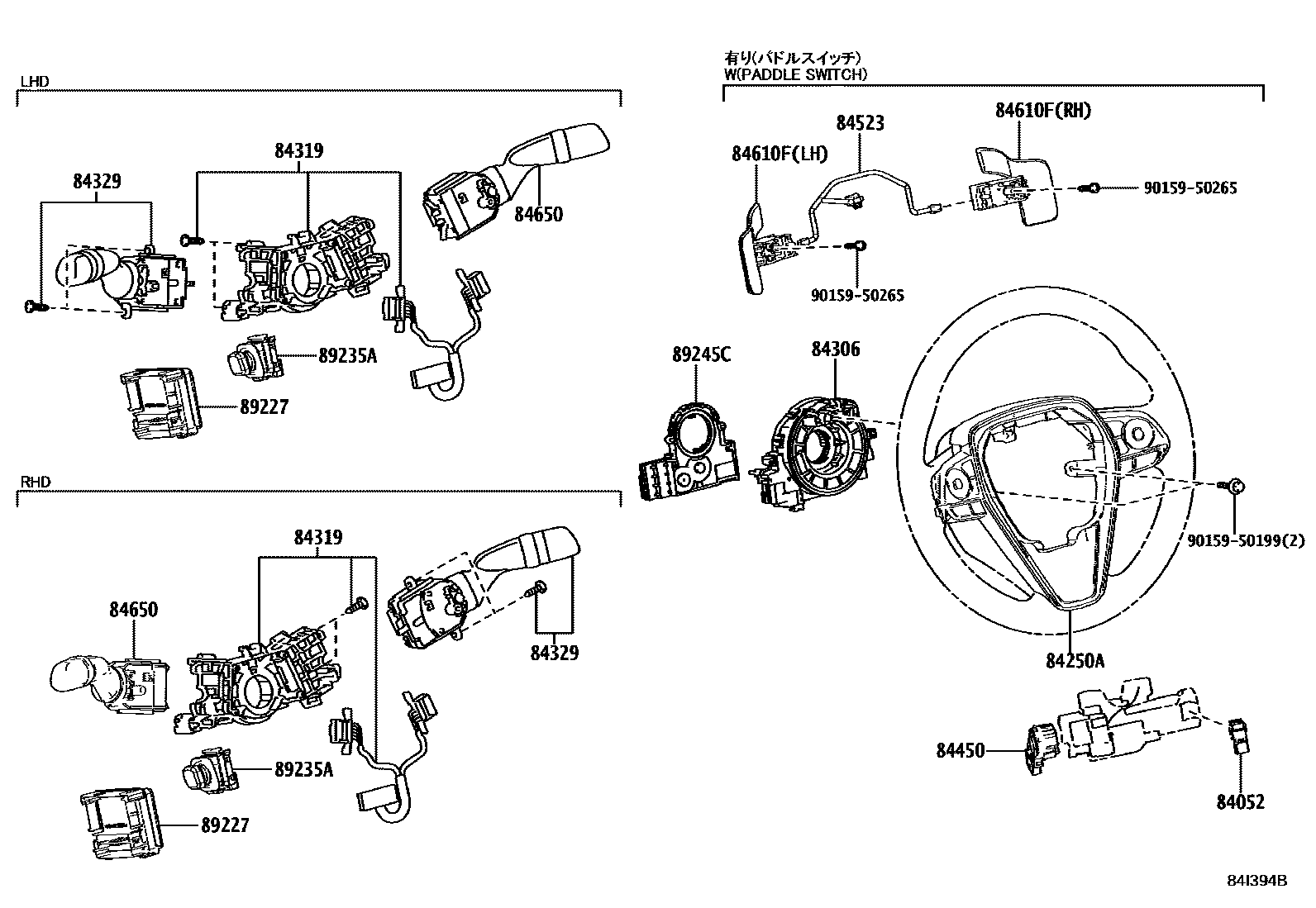

| 84250A | Steering wheel decorative cover switch assembly | 84250-33570 |
| 84255 | Steering heater switch | 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-11010 · 84308-33090 · 84308-33110 |
| 84319 | Steering wheel switch housing | 84319-11010 · 84319-33030 |
| 84329 | turn signal switch | 84329-12170 · 84329-33090 · 84329-33100 · 84329-33110 · 84329-33120 · 84329-33130 |
| 84330 | Hazard warning signal switch assembly | 84332-33100 · 84332-33110 · 84332-33140 |
| 84340 | brake light switch assembly | 84340-19095 · 84340-49075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-33010 · 84390-33020 · 84390-33030 · 84390-33050 · 84390-33060 · 84390-33080 · 84390-33090 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-33010 · 84540-33020 · 84540-33021 |
| 84610F | Transmission shift switch assembly | 84610-33010 · 84610-33011 · 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-33580 · 84652-33590 · 84652-33600 · 84652-33610 |
| 84721B | COMM., MONITEUR VUE PANORAMIQUE | 84721-33010 |
| 84751R | Seat heater switch (rear) | 84751-33140 |
| 84752 | Relax seat switch | 84752-33130 · 84752-33140 · 84752-33150 · 84752-33160 · 84752-33170 · 84752-33410 · 84752-33420 |
| 84794 | Front wiper de-icer switch | 84794-33050 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84795 | INTERRUPTEUR, DEGIVRAGE DE VITRE AVANT | 84795-33020 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84810D | Rear electric window lift switch assembly | 84810-12120 · 84810-26040 · 84810-47010 · 84810-48030 |
| 84840 | Trunk door opening switch assembly | 84840-33120 · 84840-33121 |
| 84841A | Fuel filler cap opener switch | 84841-33040 · 84841-33041 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12160 · 84872-12180 · 84872-12190 · 84872-33040 · 84872-33050 · 84872-33100 · 84872-33120 · 84872-47020 · 84872-47040 · 84872-47050 · 84872-47060 · 84872-48030 · 84872-60110 · 84872-60140 · 84872-60160 · 84872-62020 · 84872-62040 · 84872-62050 |
| 84922B | Front right electric seat switch | 84922-33140 |
| 84922C | Front left electric seat switch | 84922-33180 |
| 84927 | Seat memory switch | 84927-33120 · 84927-33130 |
| 84930 | Door control switch assembly | 84930-47030 |
| 84945A | COMMANDE, CLE ELECTRIQUE COMP BAGAGES | 84945-33040 |
| 84975 | trip odometer switch | 84975-33040 · 84975-33050 |
| 84988L | VSC off switch | 84988-33100 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532 | PRISE, CHARGEUR USB | 85532-33010 · 85532-33020 · 85532-60020 · 85532-78040 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85910K | Rear seat heater relay | 90080-87021 · 90987-02027 |
| 85911Y | RELAIS, CHAUFFAGE SIEGE AV | 90080-87021 · 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912H | RELAI, CELLULE DE CONDUCTIBILITE THERMIQUE, NO.1 | 90987-02025 |
| 85912J | RELAI, CELLULE DE CONDUCTIBILITE THERMIQUE, NO.2 | 90987-02025 |
| 85912K | RELAIS, VVT | 90987-02027 |
| 85912P | RELAIS, HWD, NO.3 | 90987-02027 |
| 85913F | Steering heater relay | 90080-87021 · 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924 | Ignition control relay | 90987-02031 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 90987-02027 |
| 85941 | windshield washer relay | 90987-02025 |

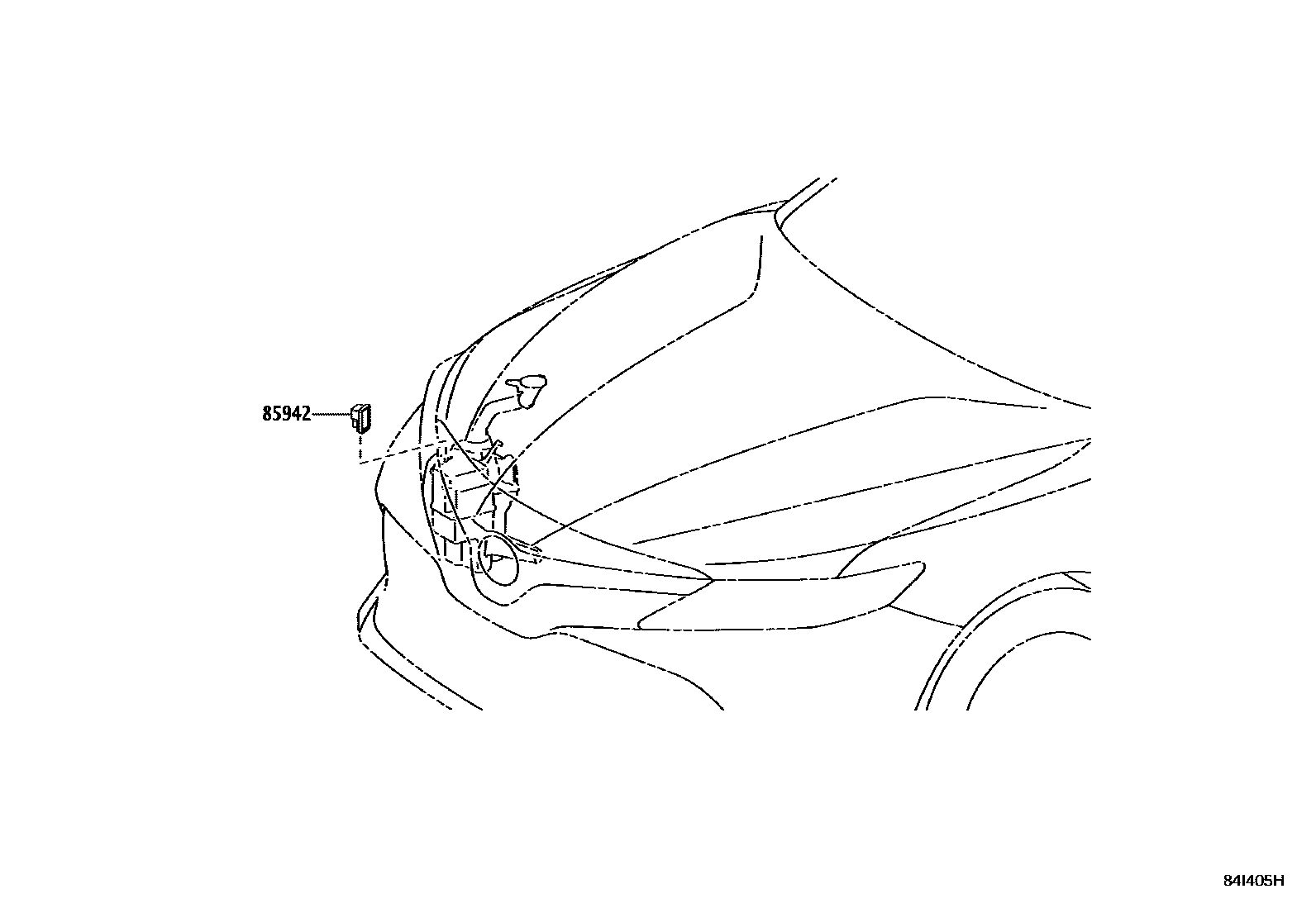

| 85942 | Headlight washer control relay | 85942-53020 |
| 8598A | BATTERIE, COMMANDE DES PORTES | 8598A-33010 · 8598A-33030 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87299C | RELAIS, CHAUFFAGE GICLEUR LAVE-VITRE | 90987-02027 |
| 87346K | PTC heater relay | 90987-02025 |
| 87989 | Rearview mirror control relay | 85927-22010 · 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 88172 | Blind spot monitor left sensor | 88162-33070 · 88162-33071 · 88162-33120 · 88162-33130 · 88162-33131 |
| 88660C | Cooler control switch assembly | 84660-33180 · 84660-33190 |
| 89111 | Network gateway ECU | 89100-33020 · 89100-33021 · 89100-33030 · 89111-06020 · 89111-06040 · 89111-10060 · 89111-12030 · 89111-33180 · 89111-33190 · 89111-76040 · 89111-76050 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-06690 · 89220-06710 · 89220-06711 · 89220-06B20 · 89220-06B30 · 89220-06B40 · 89220-06B60 · 89220-06D40 · 89220-33P50 · 89220-33P80 · 89220-33S30 · 89220-33S40 · 89220-33S50 · 89220-33S60 · 89220-33S70 · 89220-33S80 · 89220-33S90 · 89220-33T00 · 89220-33T10 · 89220-33U20 · 89220-33U30 · 89220-3T010 · 89220-3T020 · 89220-3T030 · 89220-3T040 · 89220-3T050 · 89220-3T060 · 89220-3T070 · 89220-3T080 · 89220-3T090 · 89220-3T120 · 89220-3T130 · 89220-3T230 · 89220-3T240 · 89220-3T250 · 89220-3T260 · 89220-3T270 · 89220-3T280 · 89220-3T290 · 89220-3T300 · 89220-3T310 · 89220-3T320 · 89220-3T330 · 89220-3T340 · 89220-3TA00 · 89220-3TA10 · 89220-3TA20 · 89220-3TA30 · 89220-3TA40 · 89220-3TA50 · 89220-3TA60 · 89220-3TA70 · 89220-3TA80 · 89220-3TA90 · 89220-3TB00 · 89220-3TB10 · 89220-3TB20 · 89220-3TB30 · 89220-3TB40 · 89220-3TB50 · 89220-3TB60 · 89220-3TB70 · 89220-3TB80 · 89220-3TB90 · 89220-3TC00 · 89220-3TC10 · 89220-3TC20 · 89220-3TC40 · 89220-3TC50 · 89220-3TC60 · 89220-3TR00 · 89220-3TR10 · 89220-3TR20 · 89220-3TR30 · 89220-3TR40 · 89220-3TR50 · 89220-3TR60 · 89220-3TR70 · 89220-3TR80 · 89220-3TR90 · 89220-3TS00 · 89220-3TS10 · 89220-3TS20 · 89220-3TS30 · 89220-3TS40 · 89220-3TS50 · 89220-3TS60 · 89220-3TS70 · 89220-3TS80 · 89220-3TS90 · 89220-3TT00 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33030 · 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245C | steering sensor | 8924B-33040 · 8924B-50050 |
| 89419B | CAPTEUR COURSE RAPPORTS | 89419-12011 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89430A | ENS. ORDINATEUR, COMM RETROV EXT, MG | 89430-33250 · 89430-33251 |
| 89430B | ENS. ORDINATEUR, COMM RETROV EXT, MD | 89430-33260 · 89430-33261 |
| 89439 | Sensor holder | 82715-33T60 · 82715-33T70 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-33560 · 89465-33620 · 89465-42230 |
| 89465A | Oxygen sensor No. 2 | 89465-33630 |
| 89467B | air fuel ratio sensor | 89467-06200 · 89467-06220 · 89467-12280 · 89467-33270 · 89467-33290 · 89467-33310 · 89467-48270 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33210 · 89467-48320 |
| 89481B | Differential pressure sensor | 89481-71010 |
| 89491 | Engine oil level sensor | 89491-33040 · 89491-33042 · 89491-33050 · 89491-33051 · 89491-33052 · 89491-48020 · 89491-48021 · 89491-48040 · 89491-48041 |
| 89535B | ORDINATEUR, COMMANDE TRANSMISSION | 89535-33050 |
| 89539M | No. 1 transmission control ECU bracket | 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-42090 |
| 89611 | push button start switch | 89611-30142 · 89611-30143 · 89611-30144 · 89611-30145 · 89611-42012 · 89611-42013 · 89611-42014 · 89611-52041 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89710C | ENS. ORDINATEUR, COMMANDE POSITION, MD | 89710-33071 |
| 89710D | ENS. ORDINATEUR, COMMANDE POSITION, MG | 89710-33060 · 89710-33061 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-33150 · 89980-33160 · 89980-33180 · 89980-33310 · 89980-33330 · 89980-33340 · 89980-33360 · 89980-33370 · 89980-33380 · 89980-33490 · 89980-33500 · 89980-33510 · 89980-33620 · 89980-33630 · 89980-33640 · 89980-33730 · 89980-33740 |
