Toyota CAMRY 车内灯 — Figure 8121

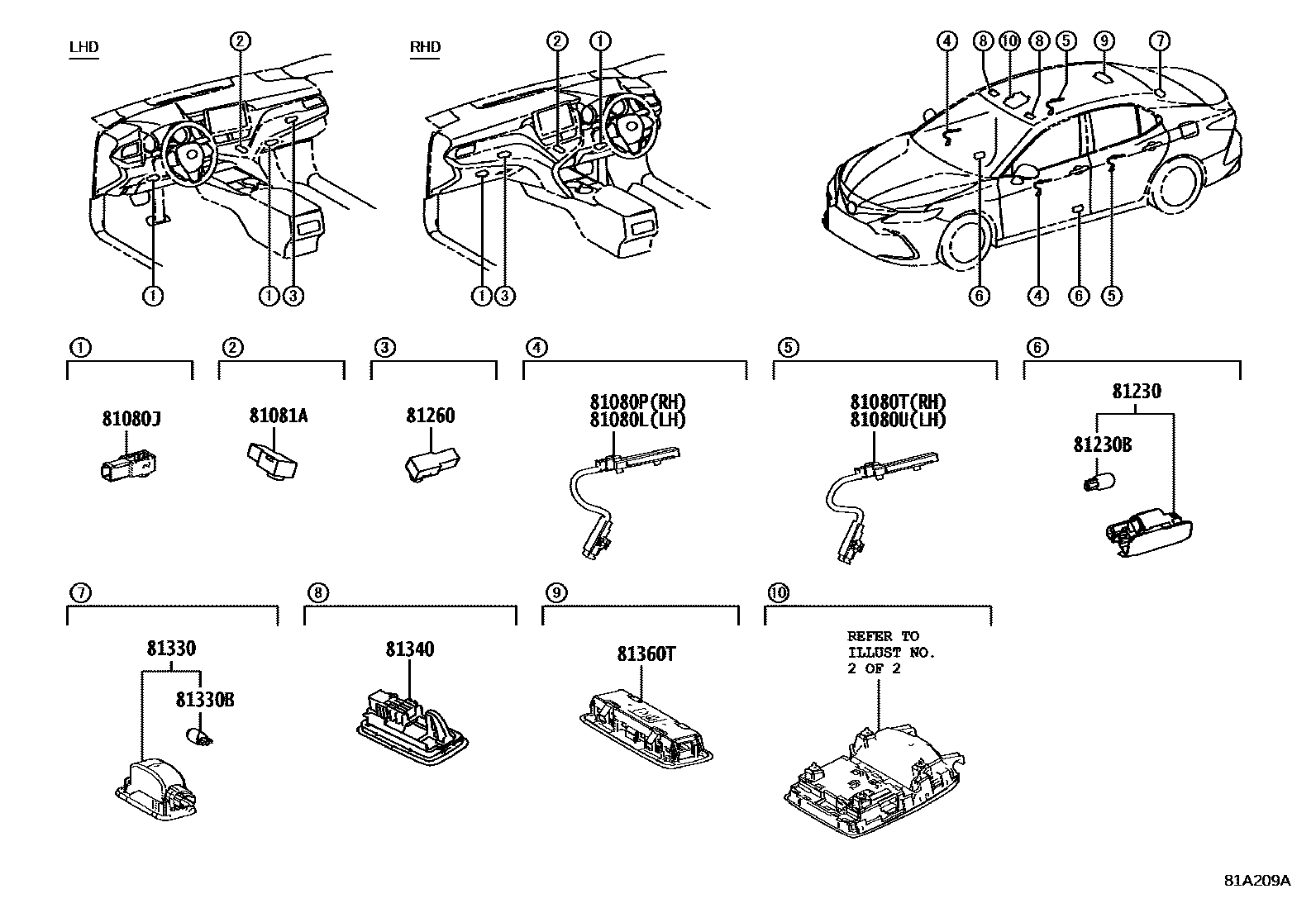

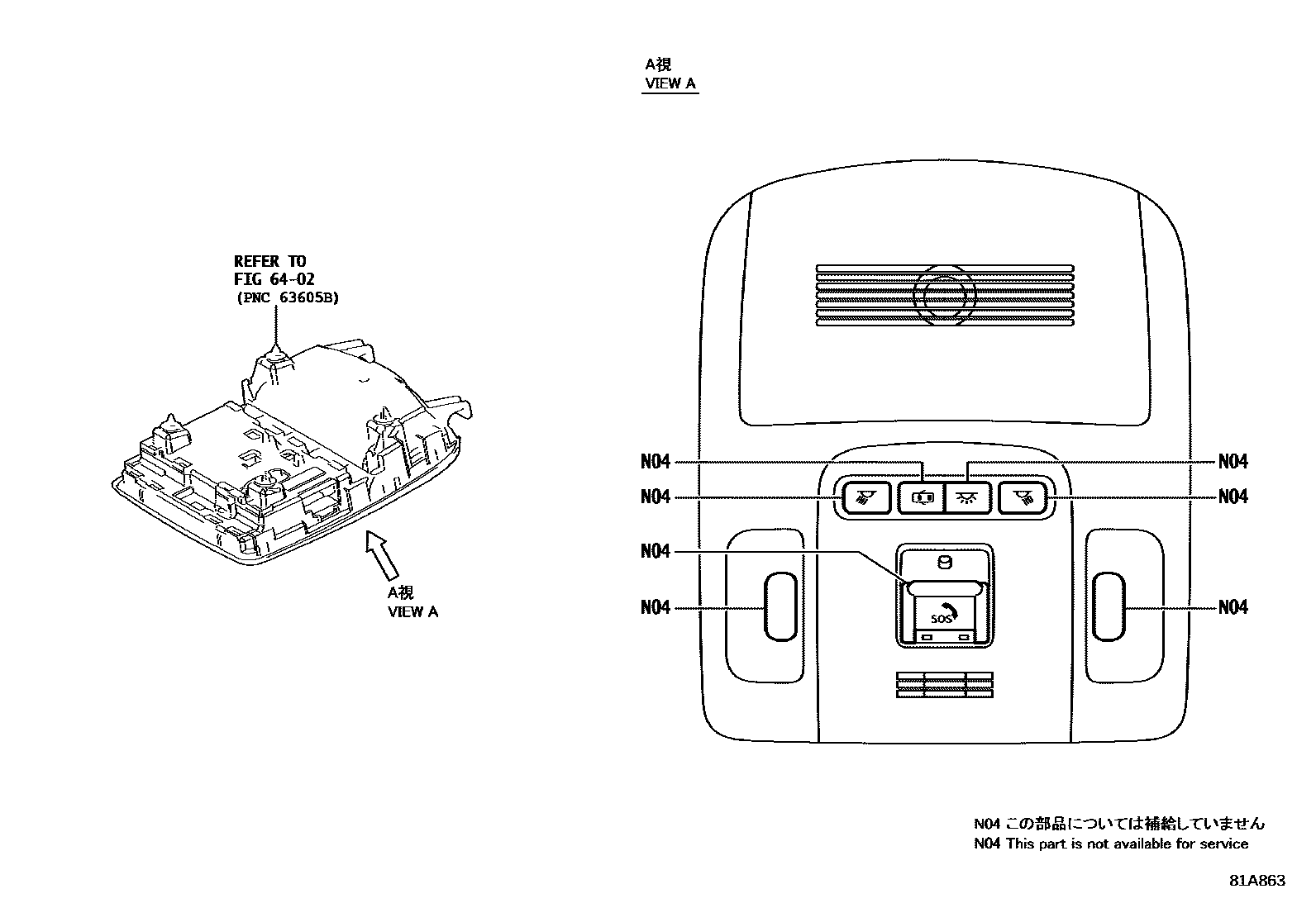

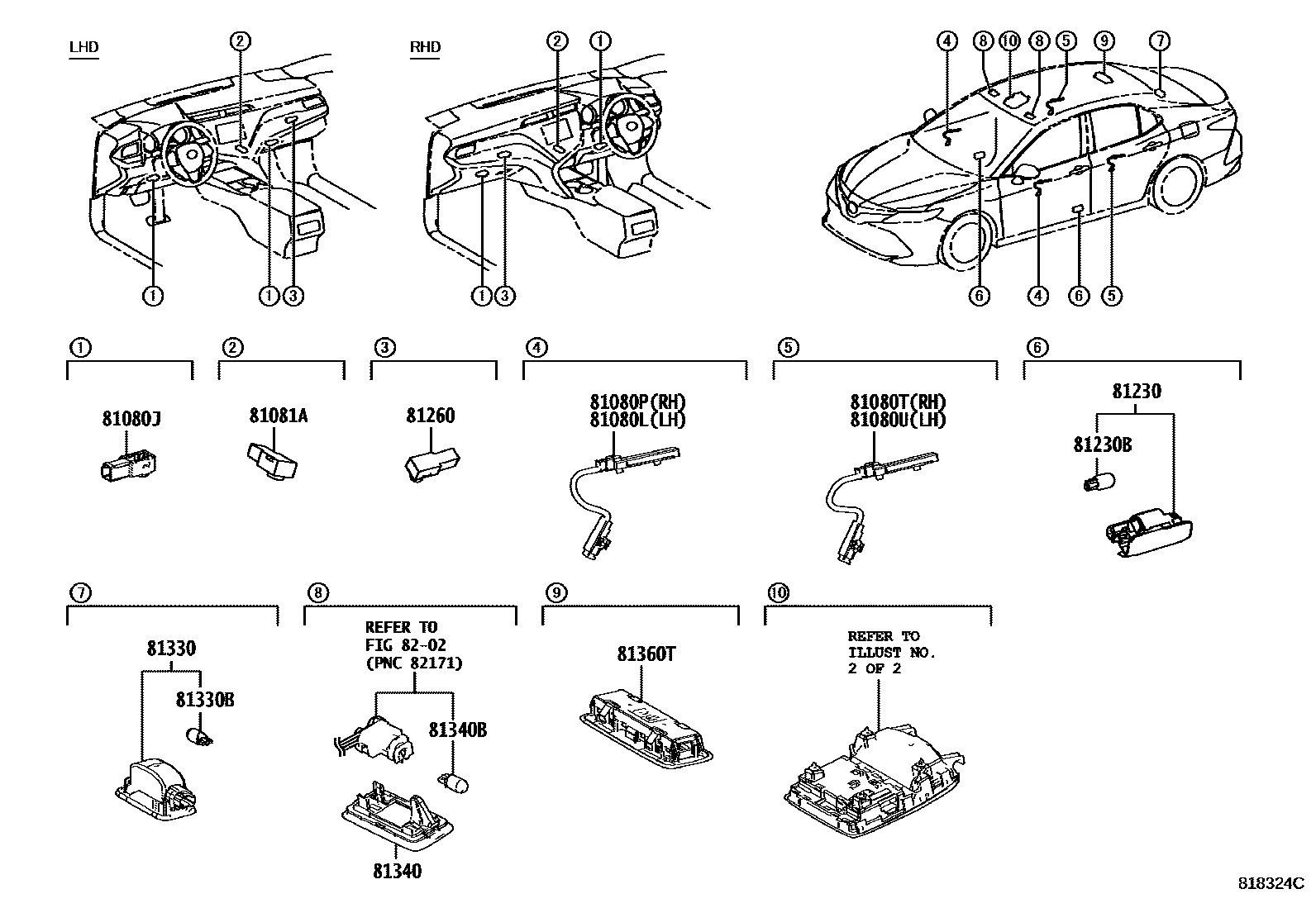

Toyota CAMRY EPC diagram 8121, 车内灯, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080J | No. 1 interior lighting assembly | 81080-33280 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-33160 |
| 81080P | Right No. 1 interior lighting assembly | 81080-33150 |
| 81080T | ENS. LAMPE, ECLAIRAGE INTERIEUR, NO.2 DROIT | 81080-33150 |
| 81080U | ENS. LAMPE, ECLAIRAGE INTERIEUR, NO.2 GAUCHE | 81080-33160 |
| 81081A | No. 2 interior lighting sub-assembly | 81080-33300 |
| 81230 | Door control light assembly | 81230-30200 |
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81260 | Glove box light assembly | 81080-33290 |
| 81330 | No. 1 trunk light assembly | 81250-30210 |
| 81330B | trunk light bulb | 99132-12050 |
| 81340 | Vanity light assembly | 81340-30110 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
