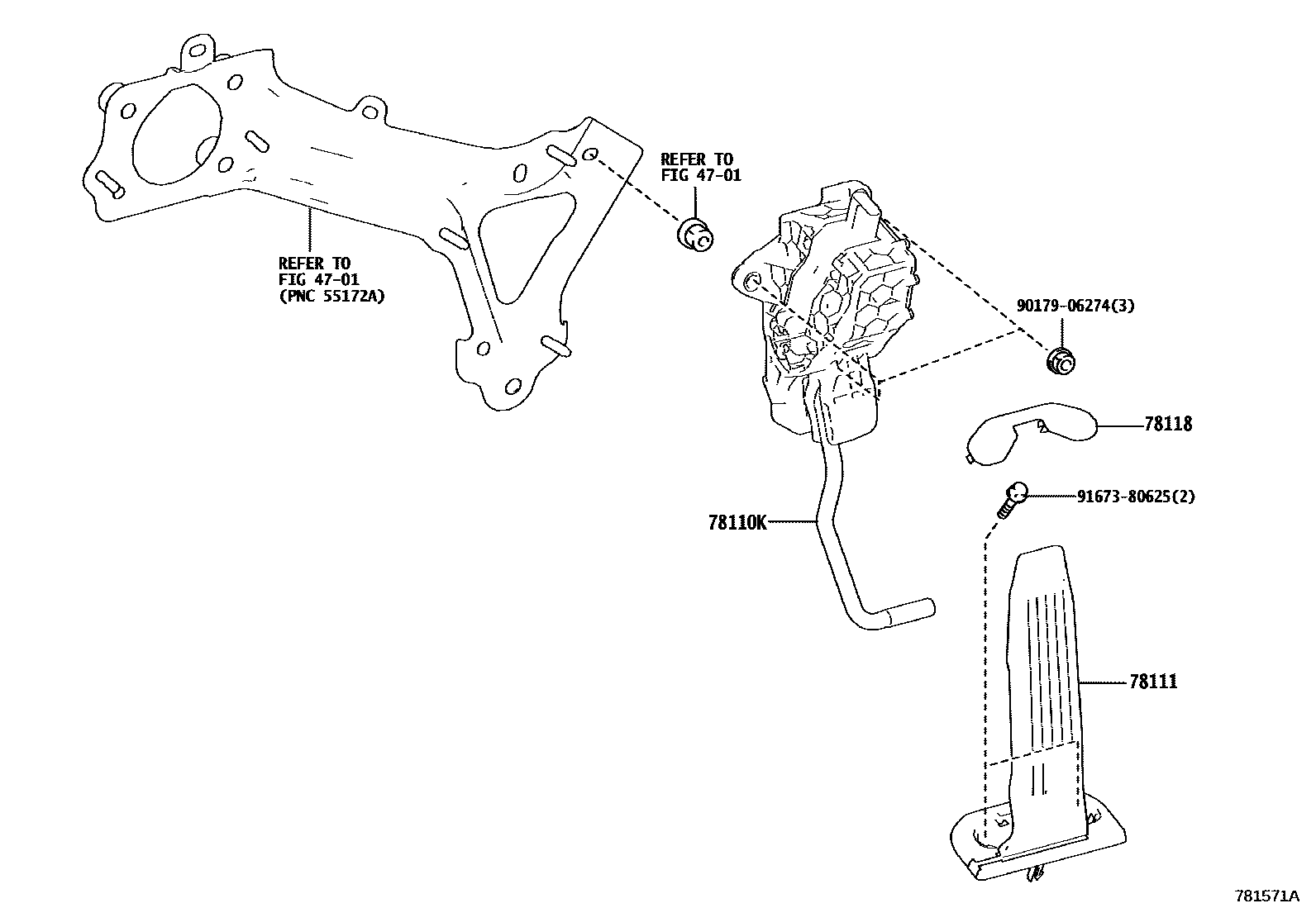

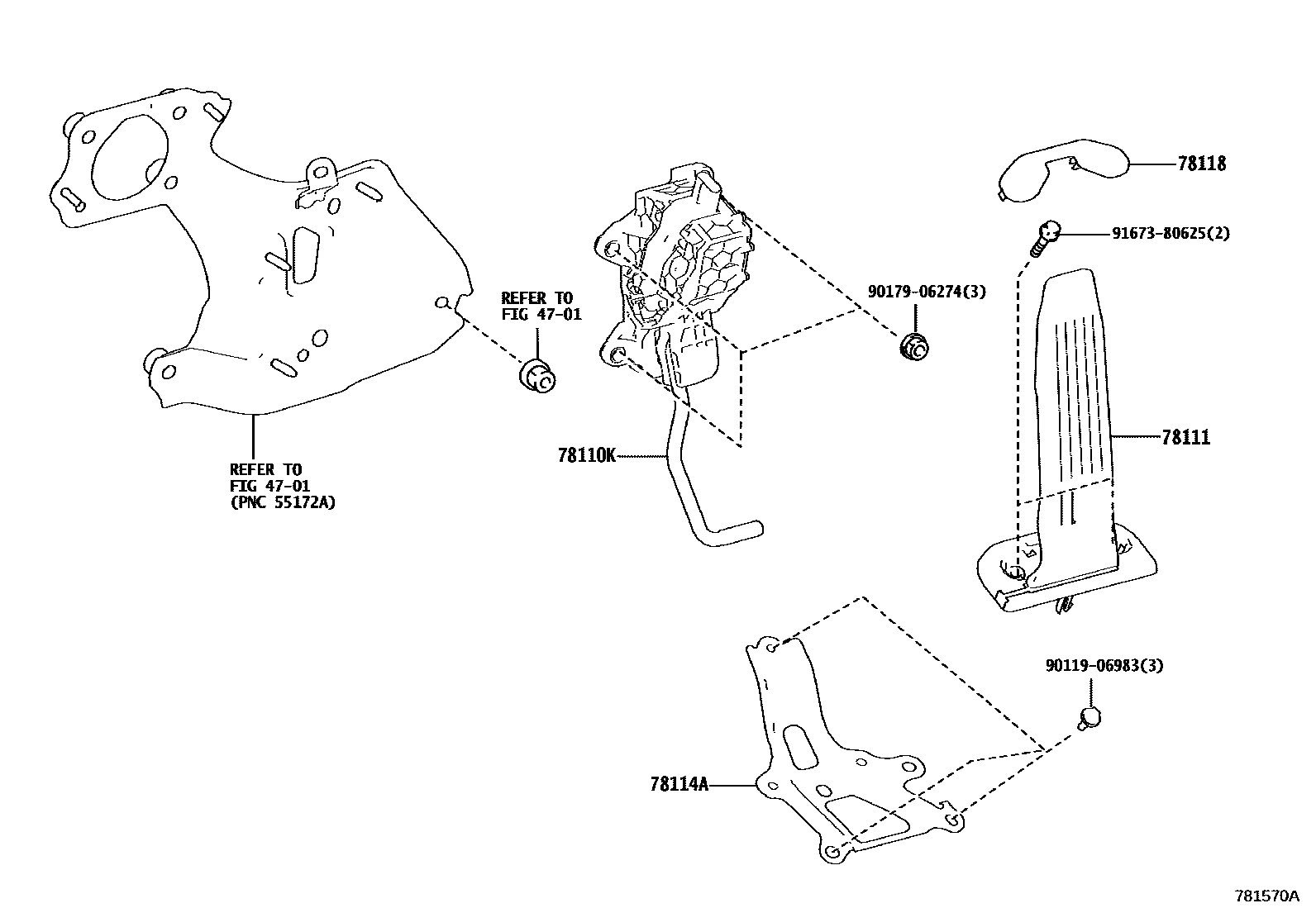

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal sensor assembly | 78110-06120 · 78110-06121 · 78110-06122 · 78110-06130 · 78110-06131 · 78110-06132 · 78110-33130 · 78110-33131 · 78110-33140 · 78110-33141 · 78110-33150 · 78110-33151 · 78110-33161 · 78110-33170 · 78110-33171 · 78110-33180 · 78110-33181 |
| 78111 | accelerator pedal | 78101-33060 · 78101-33061 |
| 78114A | accelerator pedal bracket | 78114-33020 |
| 78118 | accelerator pedal pad | 78117-33020 |
