Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 3 images and 27 PNC and OE references.

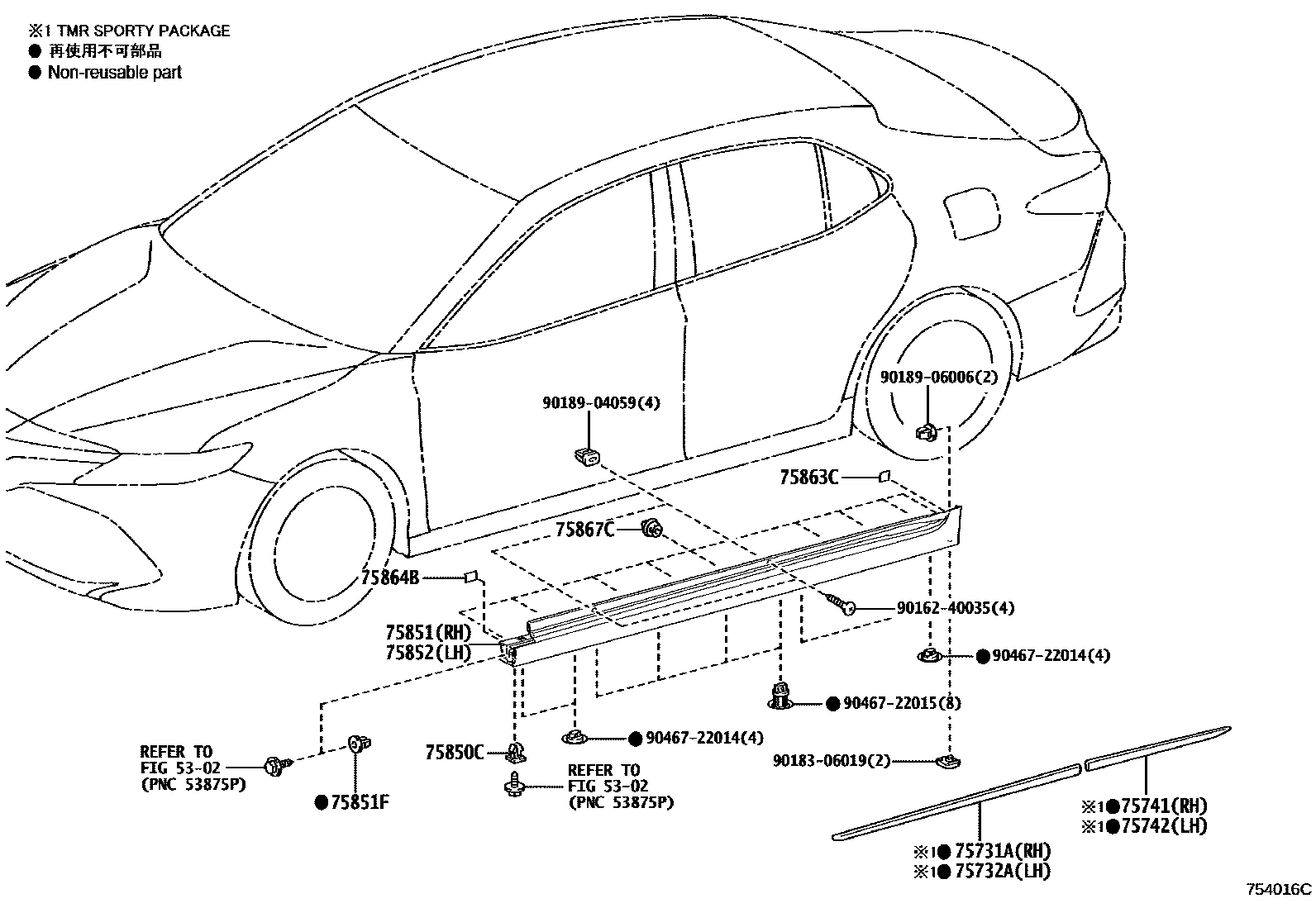

Toyota CAMRY 侧防护条 EPC diagram — 754016C
侧防护条 — 754016C (201804 – 999999)

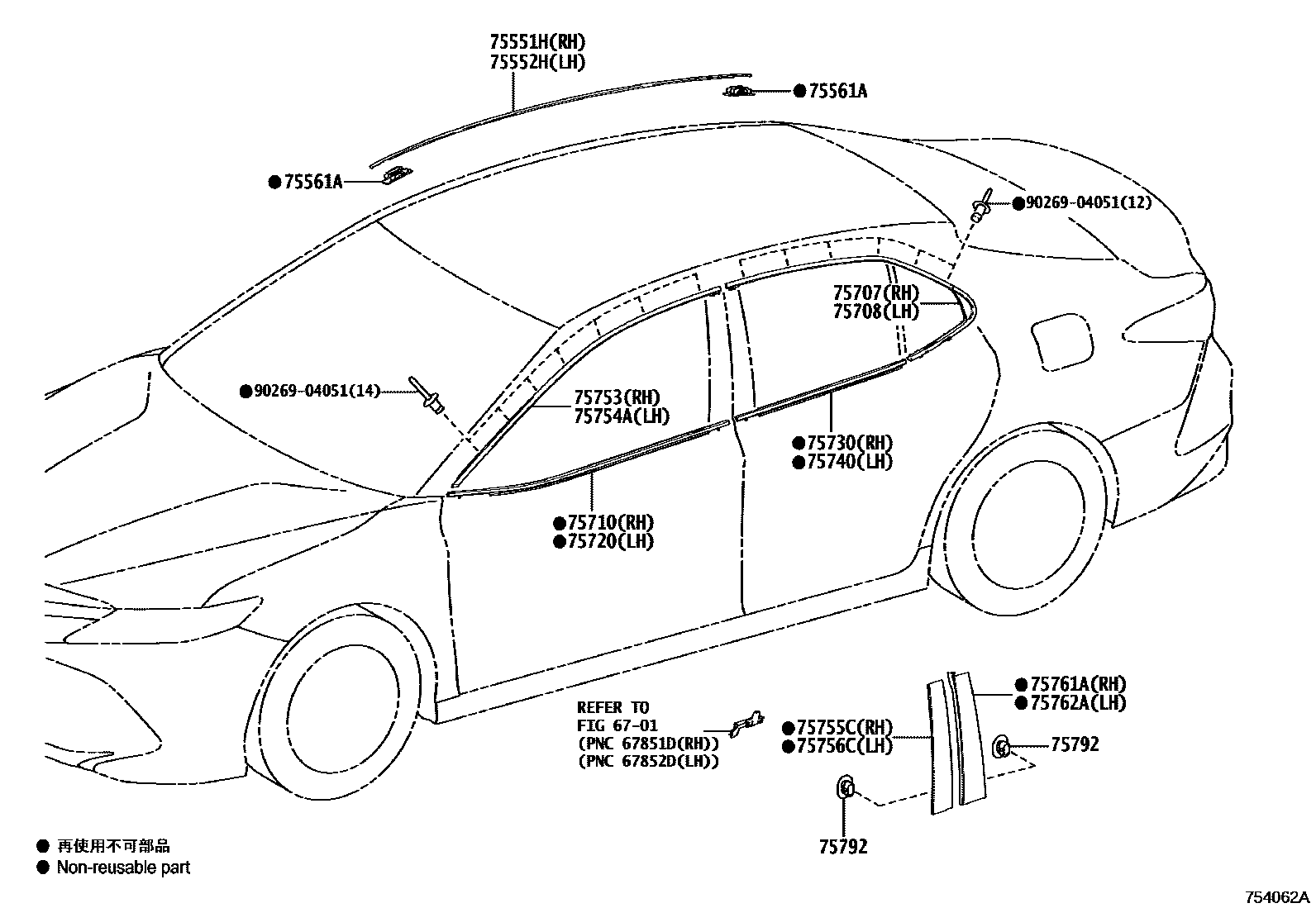

Toyota CAMRY 侧防护条 EPC diagram — 754062A
侧防护条 — 754062A (201709 – 999999)

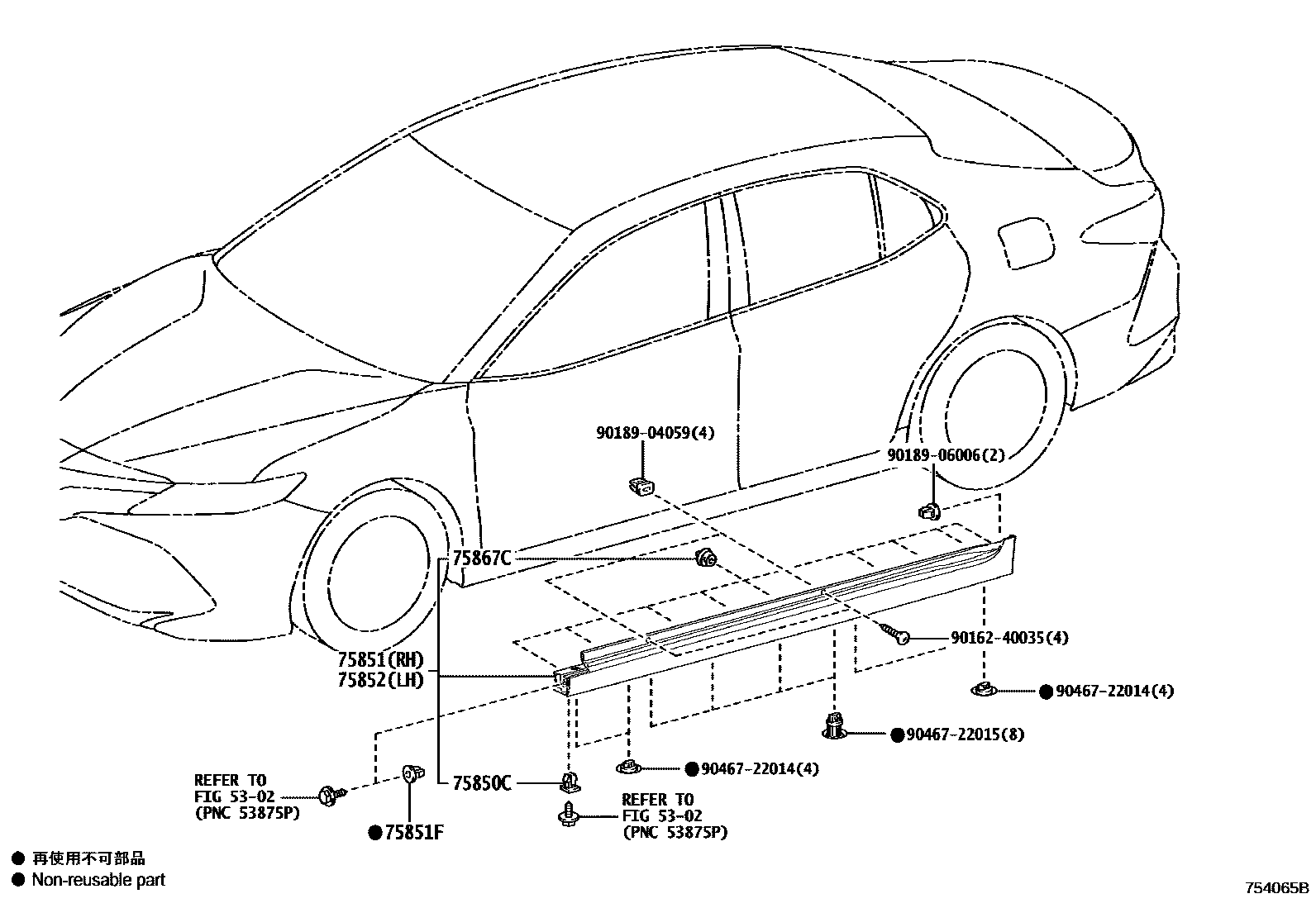

Toyota CAMRY 侧防护条 EPC diagram — 754065B
侧防护条 — 754065B (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551HDrainage groove side on the right side of the roof75555-33080 · 75555-33090
75552HDrainage channel side protection strip on the left side of the roof75556-33080 · 75556-33090
75561ARoof drain channel side decorative strip clip75561-52040
75707Right rear door window frame protective strip sub-assembly75707-33060 · 75707-33070
75708Left rear door window frame protective strip sub-assembly75708-33060 · 75708-33070
75710Right front door waistline protection strip assembly75710-33170 · 75710-33180
75720Left front door waistline protection strip assembly75720-33170 · 75720-33180
75730Right rear door waistline protection strip assembly75730-33170 · 75730-33180
75731ARight front door outer protective strip75731-WY010
75732ALeft front door outer protective strip75732-WY010
75740Left rear door waistline protection strip assembly75740-33170 · 75740-33180
75741Right rear door outer protective strip75741-WY010
75742Left rear door outer protective strip75742-WY010
75753Protective strip on right front door window frame75753-33100 · 75753-33110 · 75753-33140
75754AProtective strip on left front door window frame75754-33100 · 75754-33110 · 75754-33140
75755CRight front door window frame rear protective strip75755-33090 · 75755-33100
75756CLeft front door window frame rear protective strip75756-33090 · 75756-33100
75761ARight rear door window frame front protective strip75761-33090 · 75761-33100
75762ALeft rear door window frame front protective strip75762-33090 · 75762-33100
75792Car door window frame protective strip clip75792-47010
75850COEILLET, NO.190189-06193 · 90189-06237
75851Right side door sill panel protective strip75850-33904 · 75850-33905 · 75851-06944
75851FOEILLET(MOULURE BAS DE CAISSE CARROSSERIE)90189-06006
75852Left side door sill panel protective strip75852-06944 · 75860-33905 · 75860-33906
75863CNo. 3 rocker panel protective strip protective cover75863-33110
75864BNo. 4 door sill panel protective strip protective cover75864-33100
75867CDoor sill panel protective strip clip75867-68010
