Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

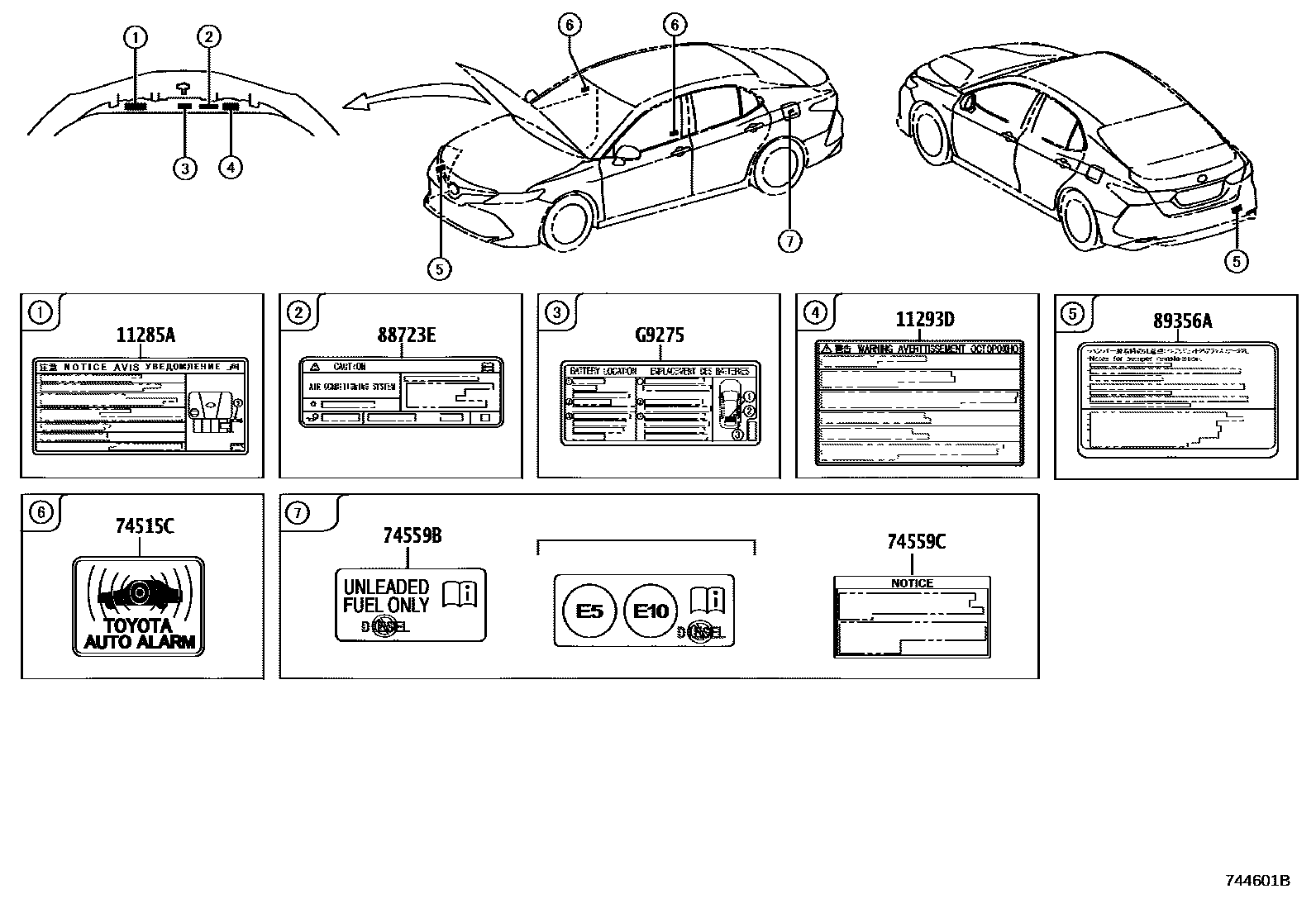

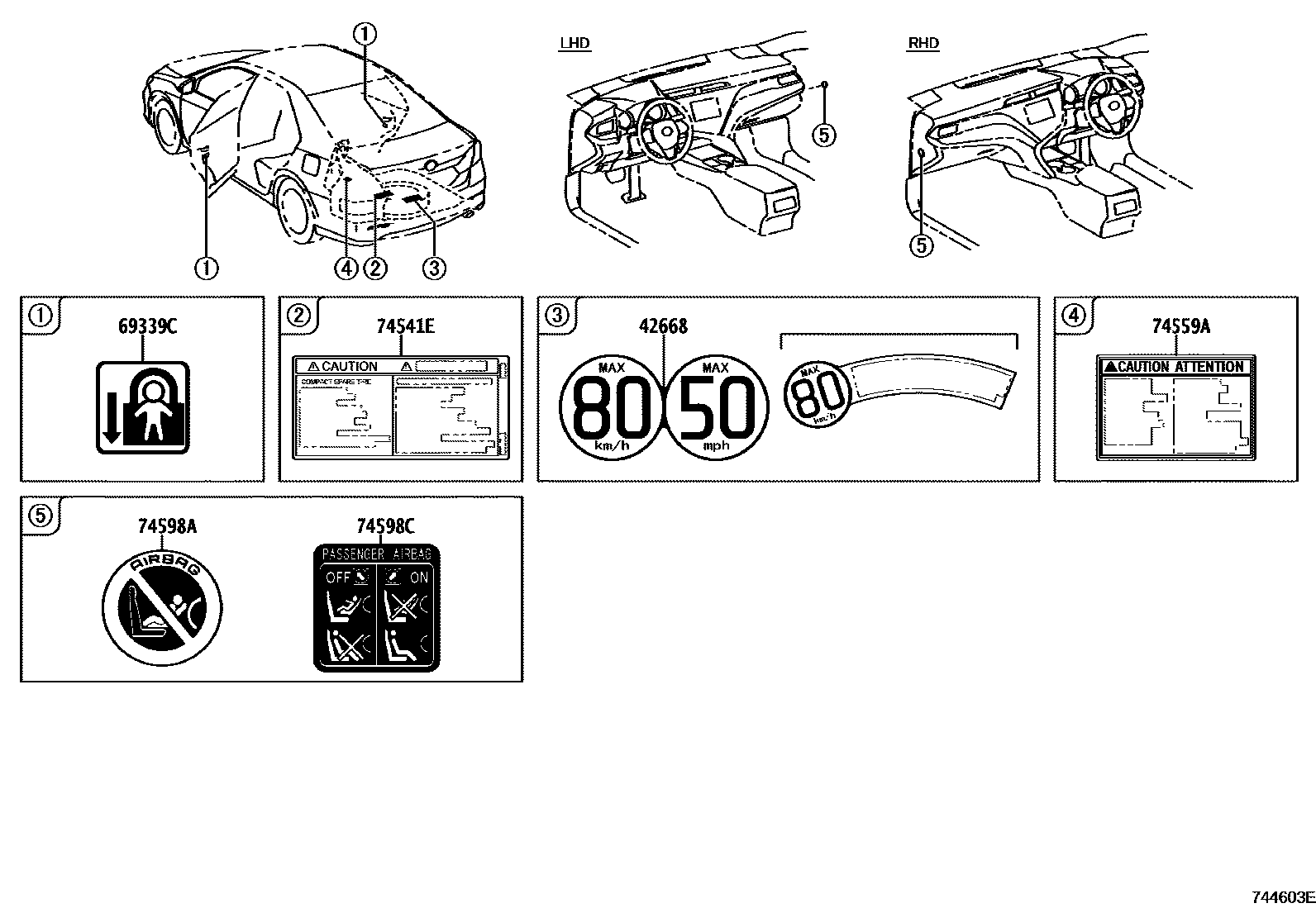

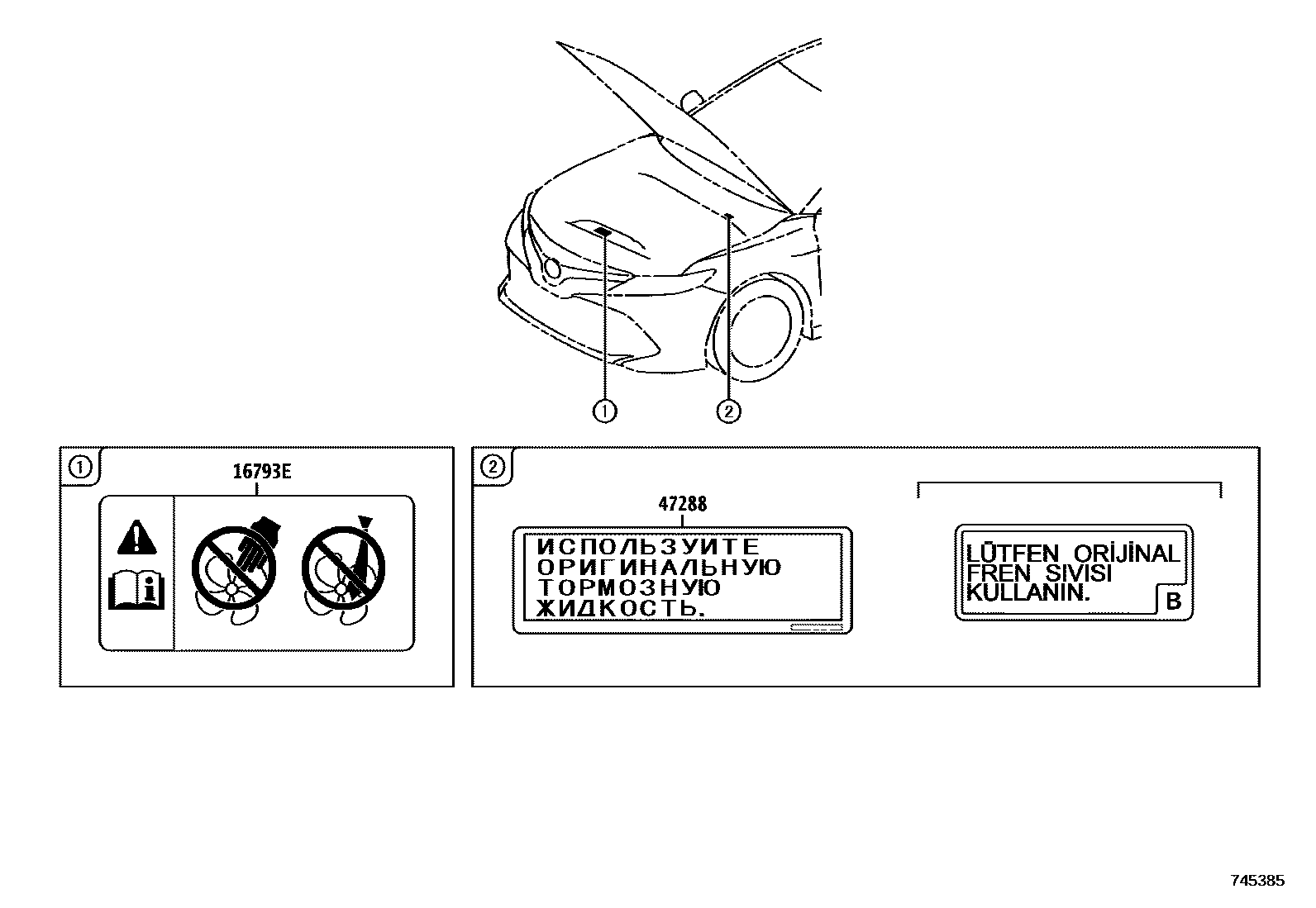

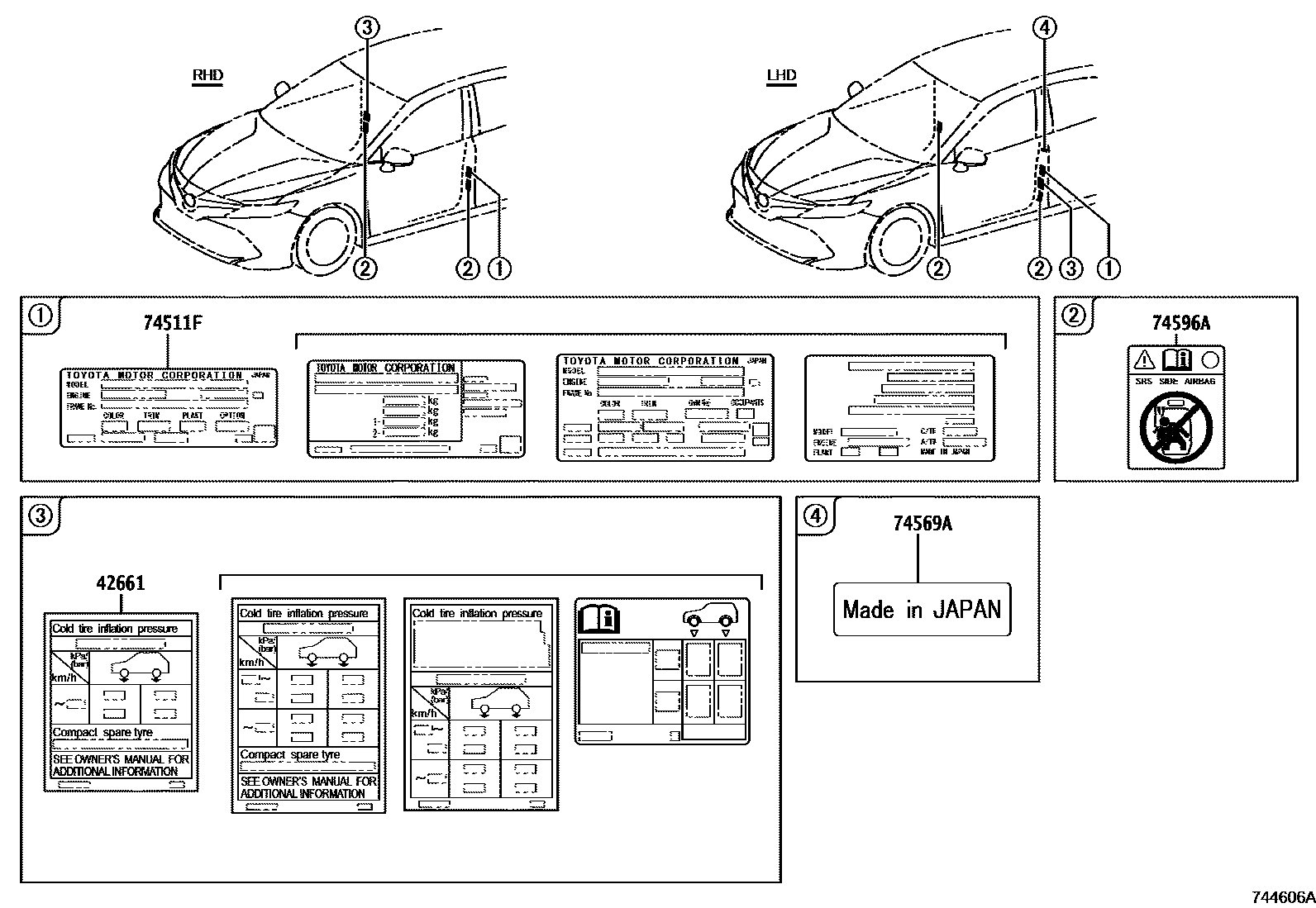

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-25020 |
| 11293D | engine warning label | 11293-36070 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-33C21 · 42661-33C60 · 42661-33C70 · 42661-33C80 · 42661-33D50 · 42661-33D60 · 42661-33D70 · 42661-33D80 · 42661-33E50 · 42661-33G30 · 42661-33G70 · 42661-33J10 · 42661-33J20 · 42661-33J50 · 42661-33J60 · 42661-33J70 |
| 42668 | Small spare tire warning label | 42668-42010 · 42668-78040 |
| 47288 | Brake Fluid Caution Label | 47288-33010 · 47288-64010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A20 · 74511-33070 · 74511-48020 · 74511-60480 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-28090 · 42668-58050 · 42668-78010 |
| 74559A | Fuel warning plate | 74559-30070 |
| 74559B | fuel information label | 74559-11030 · 74559-20140 |
| 74559C | ETIQUETTE, INFORMATIONS CARB, NO.2 | 74559-47030 |
| 74569A | Vehicle information plate | 74569-48010 |
| 74596A | Side air bag warning label | 74596-53012 · 74596-74020 · 74596-78010 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74598C | Passenger air bag warning label | 74598-30080 |
| 88723E | Cooler maintenance warning label | 88723-11070 · 88723-33140 · 88723-33170 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-12010 · G9275-12030 · G9275-48120 |
