Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

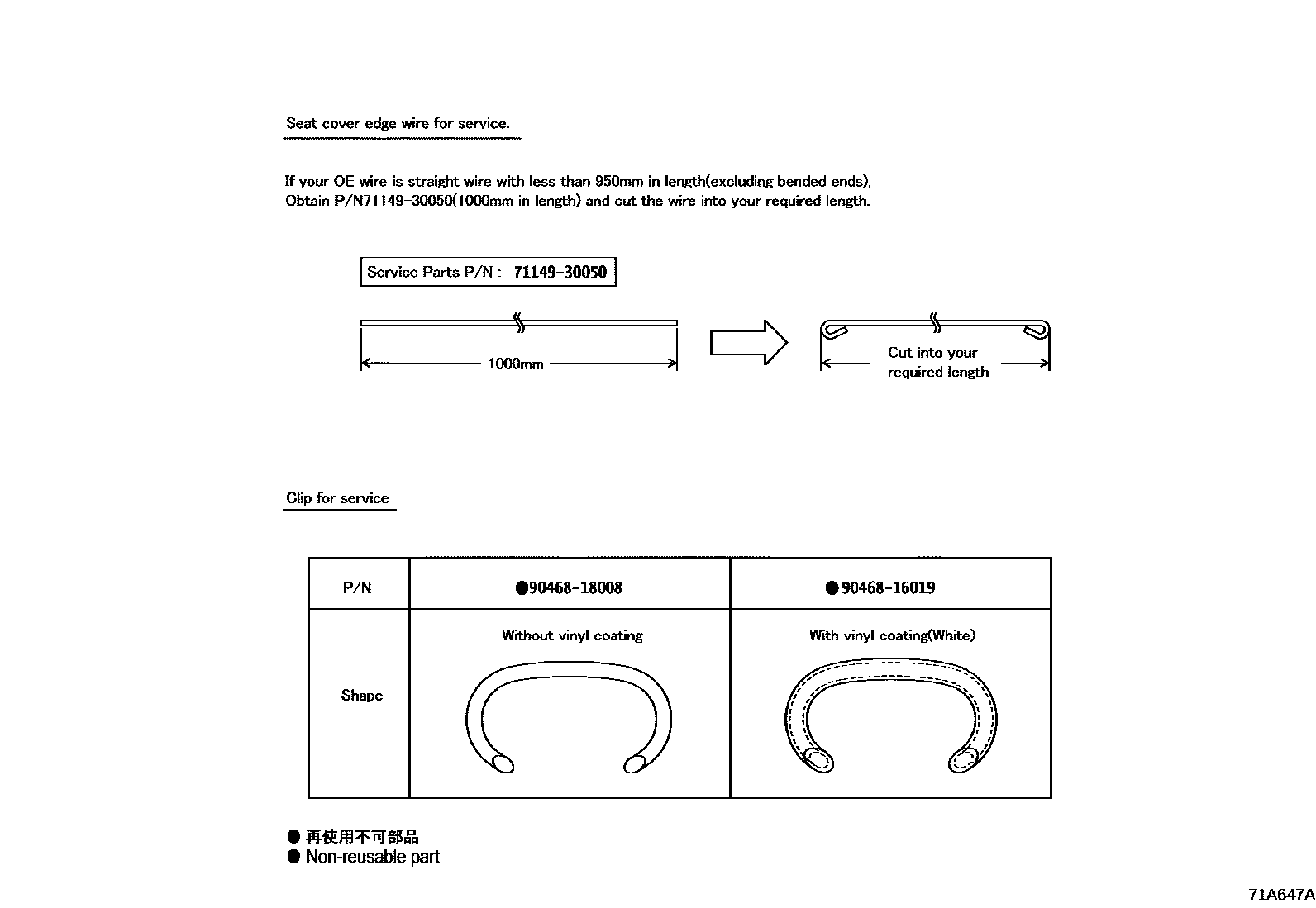

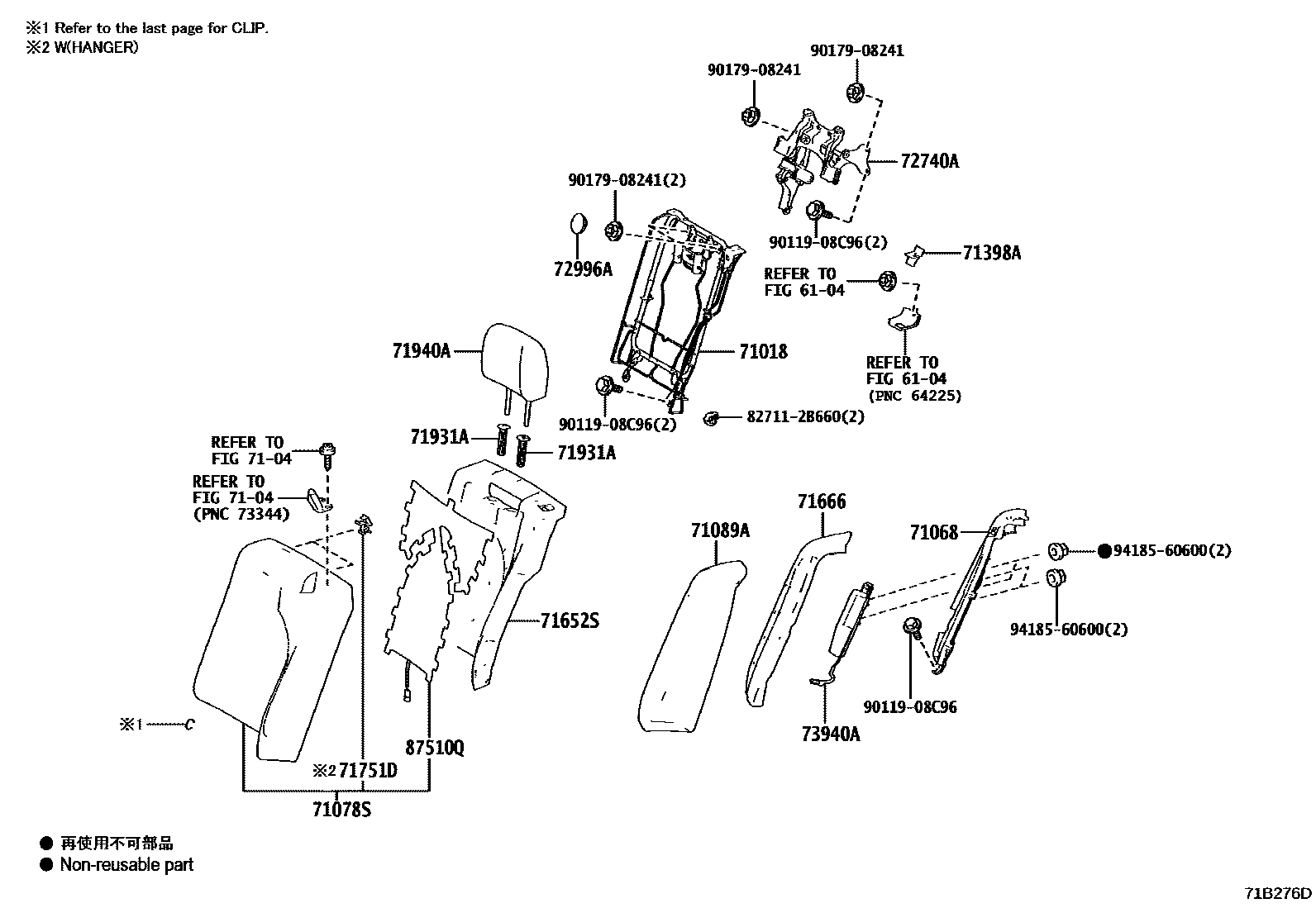

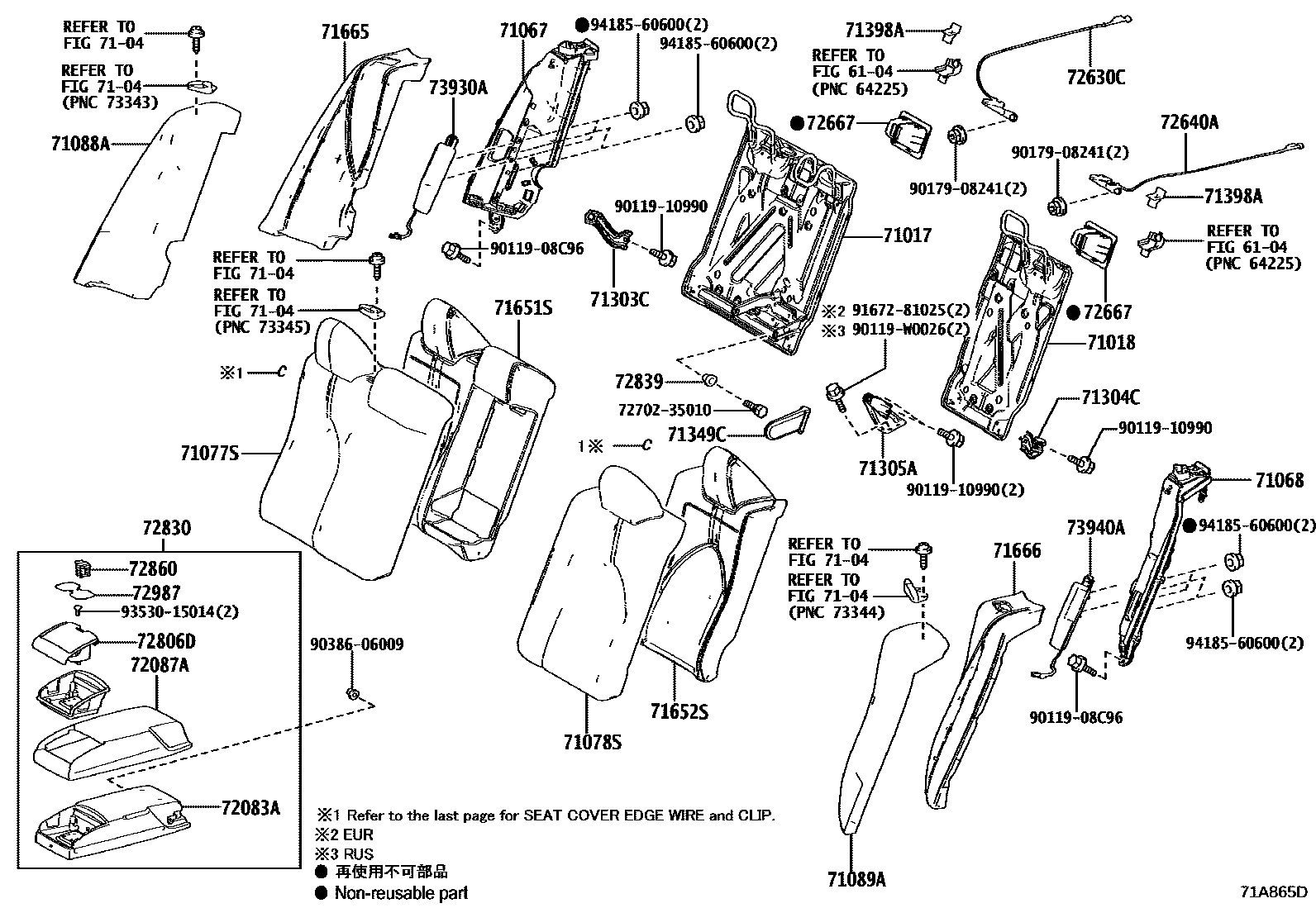

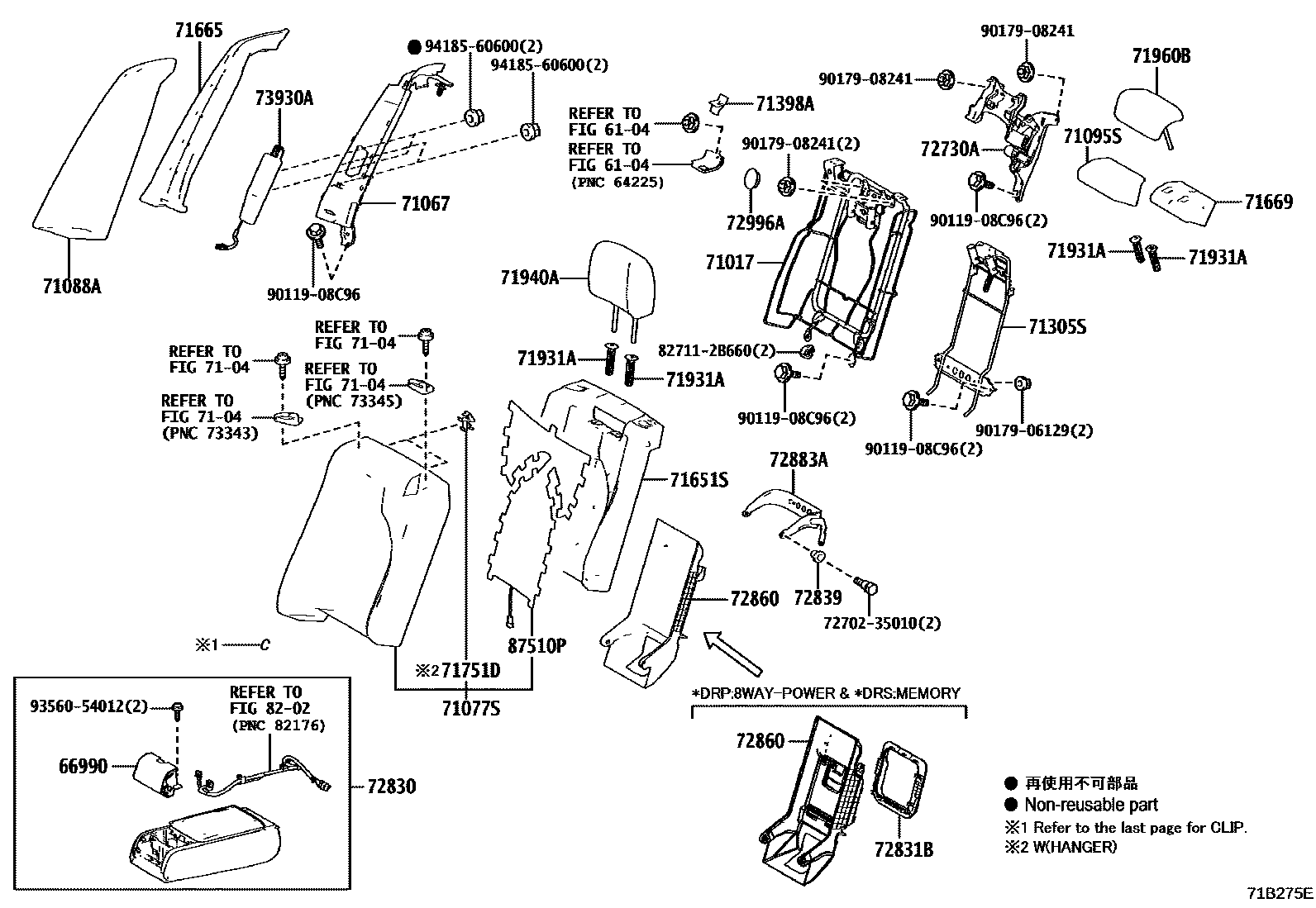

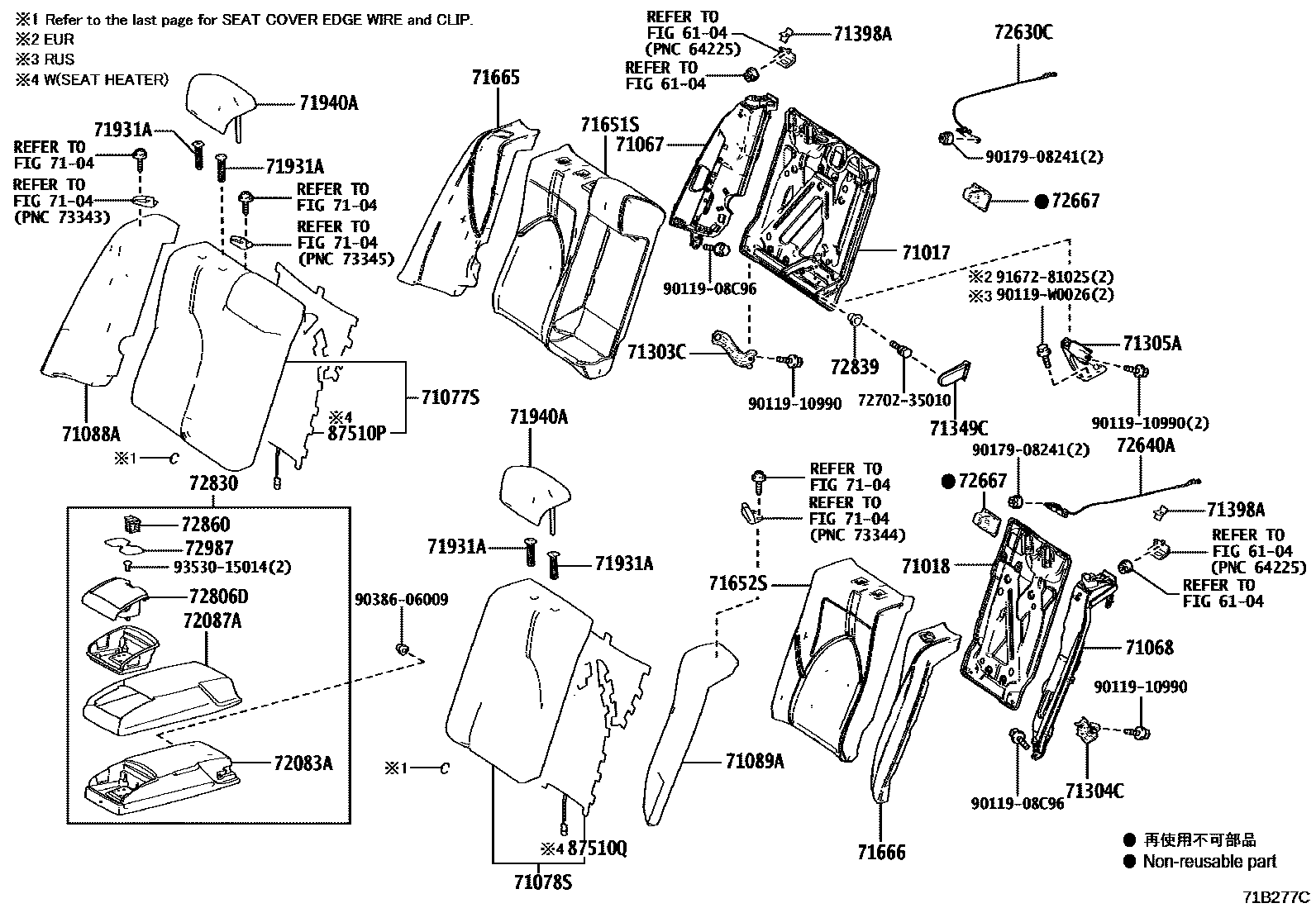

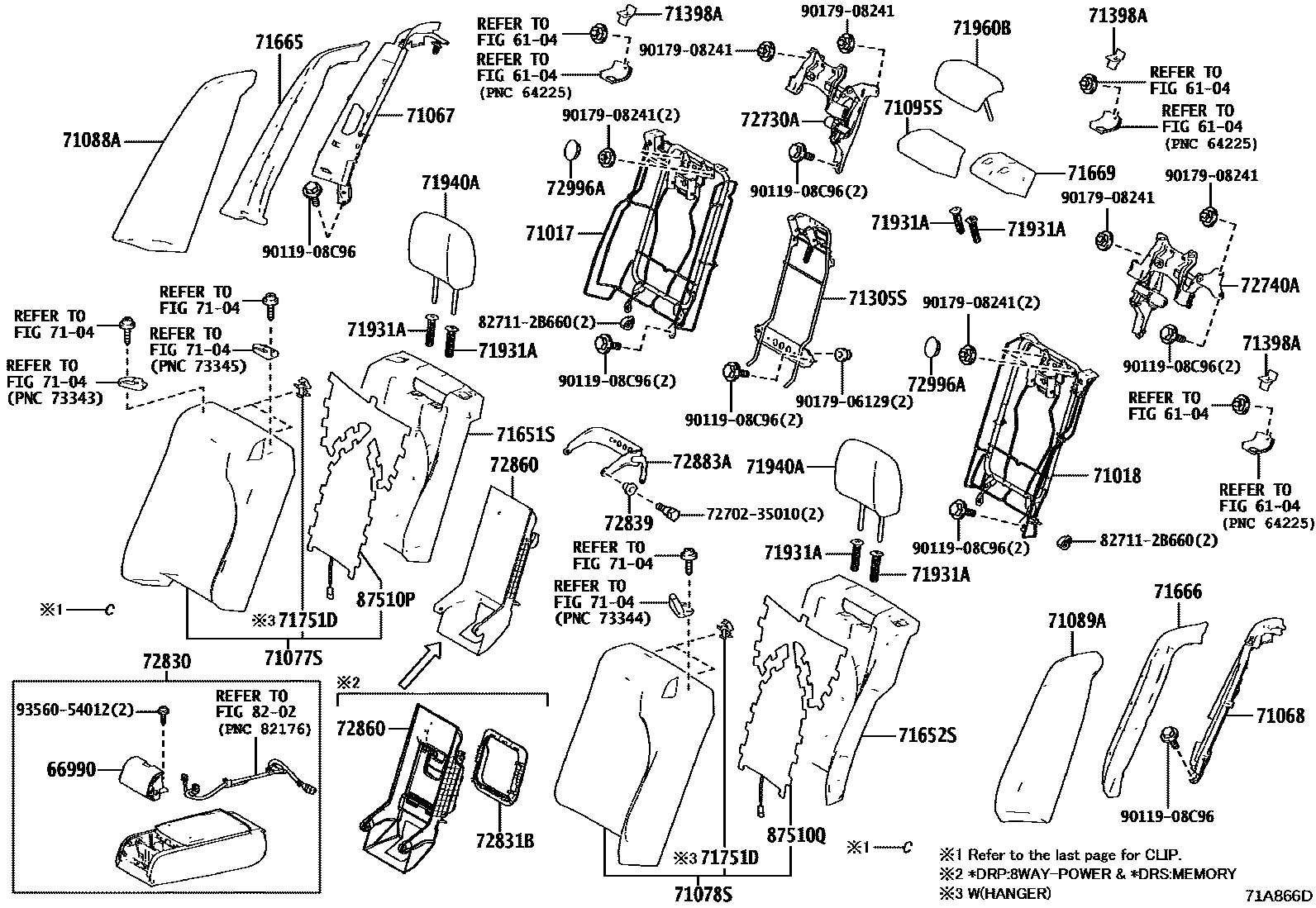

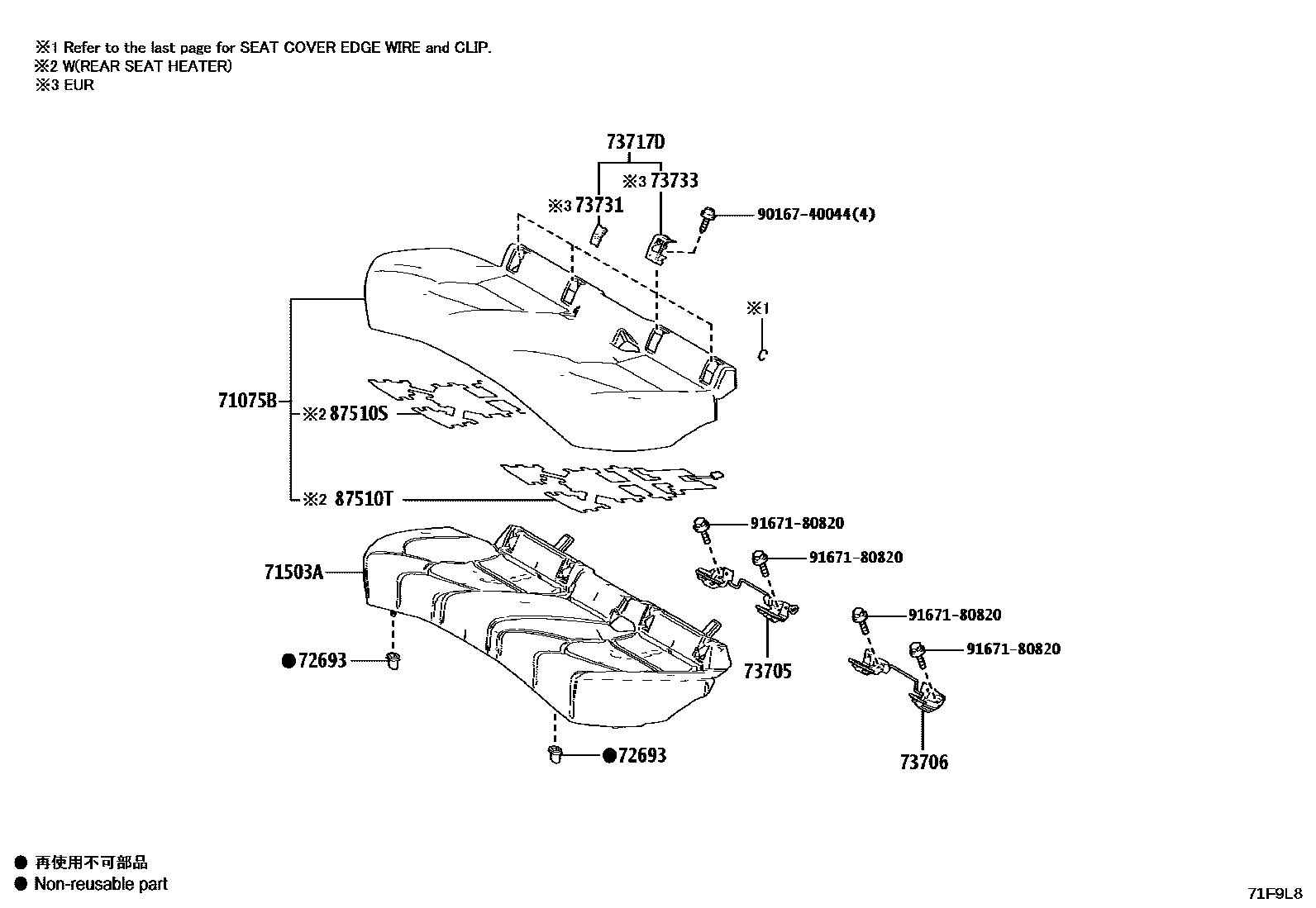

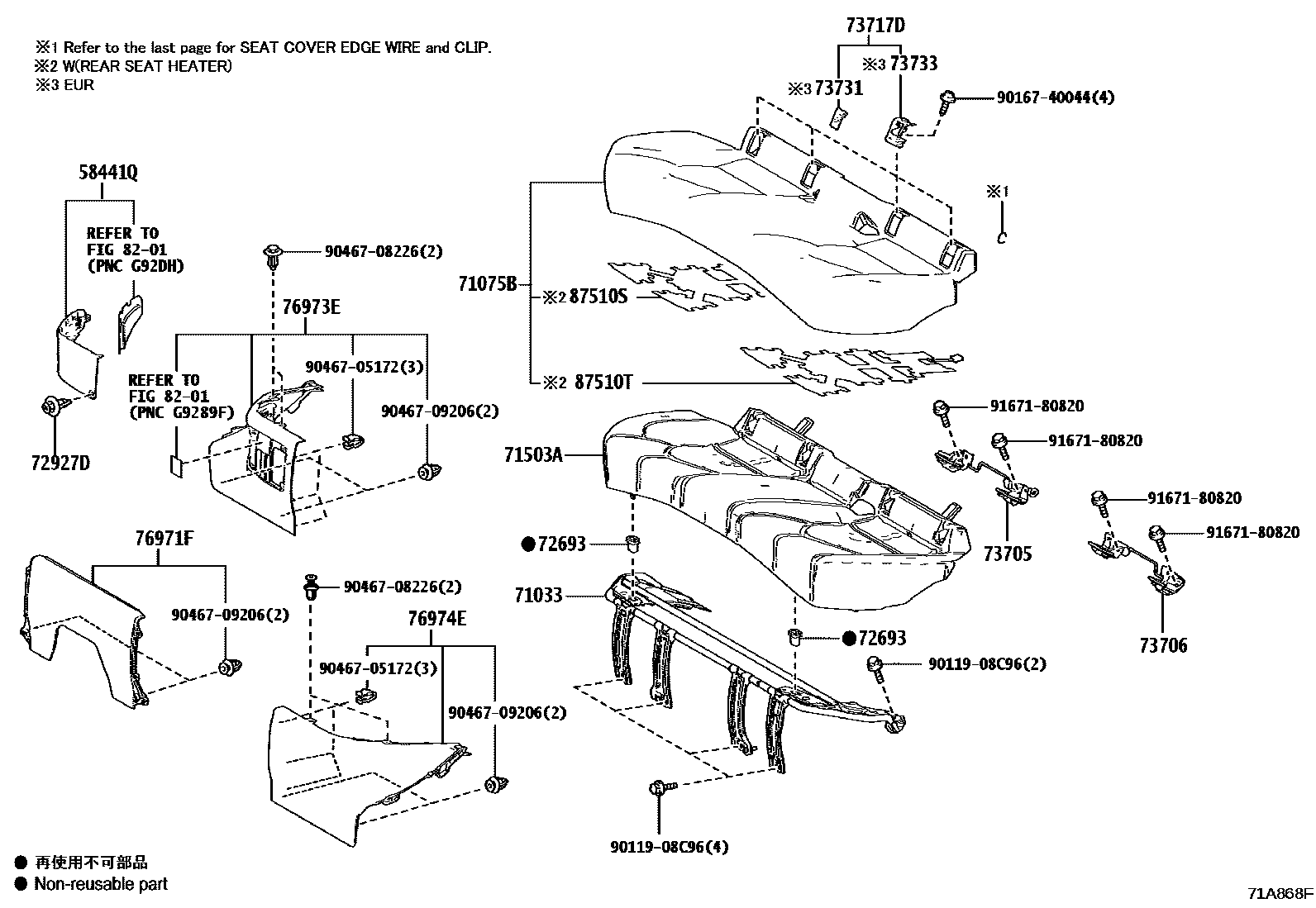

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 8 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33230 · 71017-33240 · 71017-33250 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33160 · 71018-33170 · 71018-33180 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-33020 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-06050 · 71067-06070 · 71067-33010 · 71067-33030 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-06050 · 71068-06070 · 71068-33010 · 71068-33030 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-33F70 |
| 71077S | Right rear seat back cover (for split seats) | 71077-33K90 |
| 71078S | Rear left seat back cover (for split seats) | 71078-06G20 · 71078-33A10 |
| 71089A | Rear left side seat back cover sub-assembly | 71089-33441 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33080 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-33020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33110 |
| 71305S | Center seat back frame sub-assembly | 71305-33100 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-06410 · 71503-33130 · 71503-33150 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06490 · 71651-06500 · 71651-33230 · 71651-33240 · 71651-33250 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06300 · 71652-06310 · 71652-33140 · 71652-33150 · 71652-33160 |
| 71665 | Rear right seat backrest side cushion | 71665-06090 · 71665-06150 · 71665-33060 · 71665-33070 · 71665-33080 · 71665-33100 |
| 71666 | Rear left seat backrest side cushion | 71666-06110 · 71666-06170 · 71666-33070 · 71666-33080 · 71666-33090 · 71666-33110 |
| 71669 | Rear seat back cushion | 71507-33100 |
| 71751D | Rear seat cover hanger | 71751-33050 |
| 72083A | SOUS-ENS. COUSSIN, ACCOUDOIR CENTRAL SIEGE ARRIERE | 72083-33160 · 72083-33170 |
| 72630C | Rear right seat back lock assembly | 72630-33080 |
| 72640A | Rear left seat back lock assembly | 72640-33090 |
| 72667 | Rear seat back locking frame | 72667-06070 · 72667-33010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33070 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33060 |
| 72830 | Rear seat center armrest assembly | 72830-33E00 |
| 72831B | No. 1 rear seat center armrest panel | 72831-07030 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-33060 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33130 · 73705-33140 · 73705-33180 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33130 · 73706-33140 · 73706-33180 |
| 73930A | Rear right seat airbag assembly | 73930-33070 |
| 73940A | Rear left seat air bag assembly | 73940-33070 |
| 87510P | Seat heater assembly | 87530-33190 · 87530-33240 |
| 87510Q | Seat heater assembly | 87530-33201 · 87530-33250 |
| 87510S | Seat heater assembly | 87510-33400 · 87510-33420 |
| 87510T | Seat heater assembly | 87510-33411 · 87510-33430 |
