Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

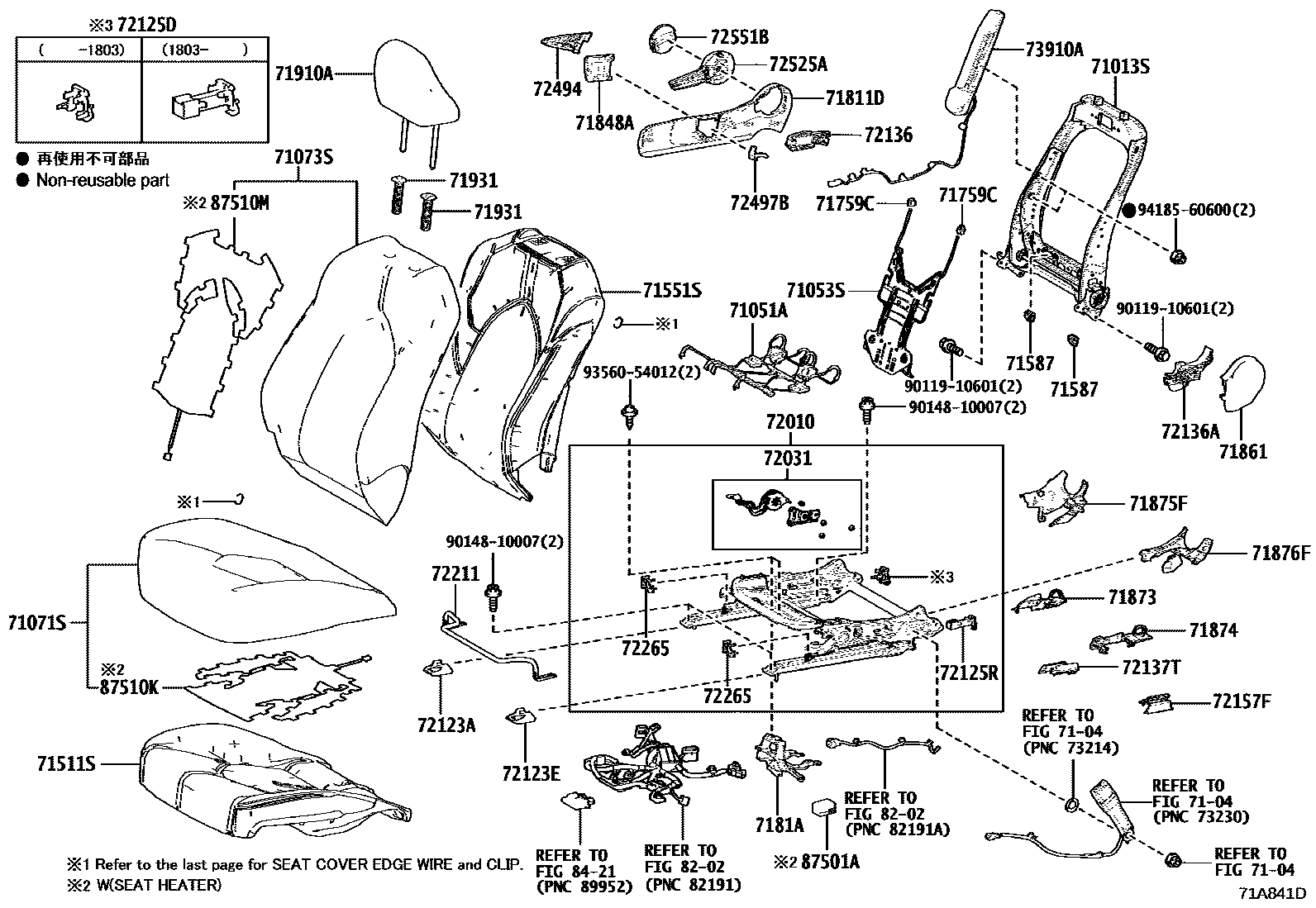

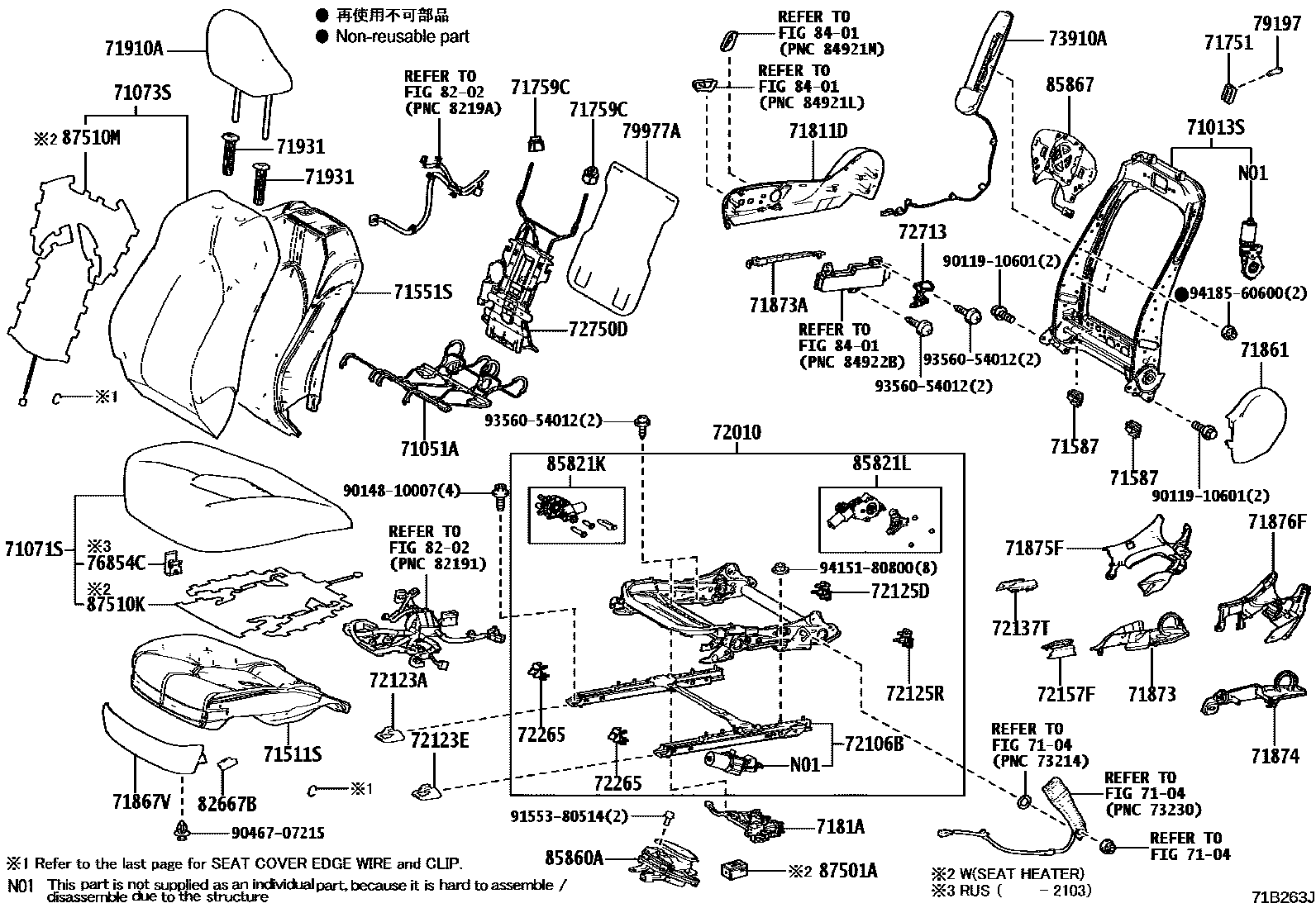

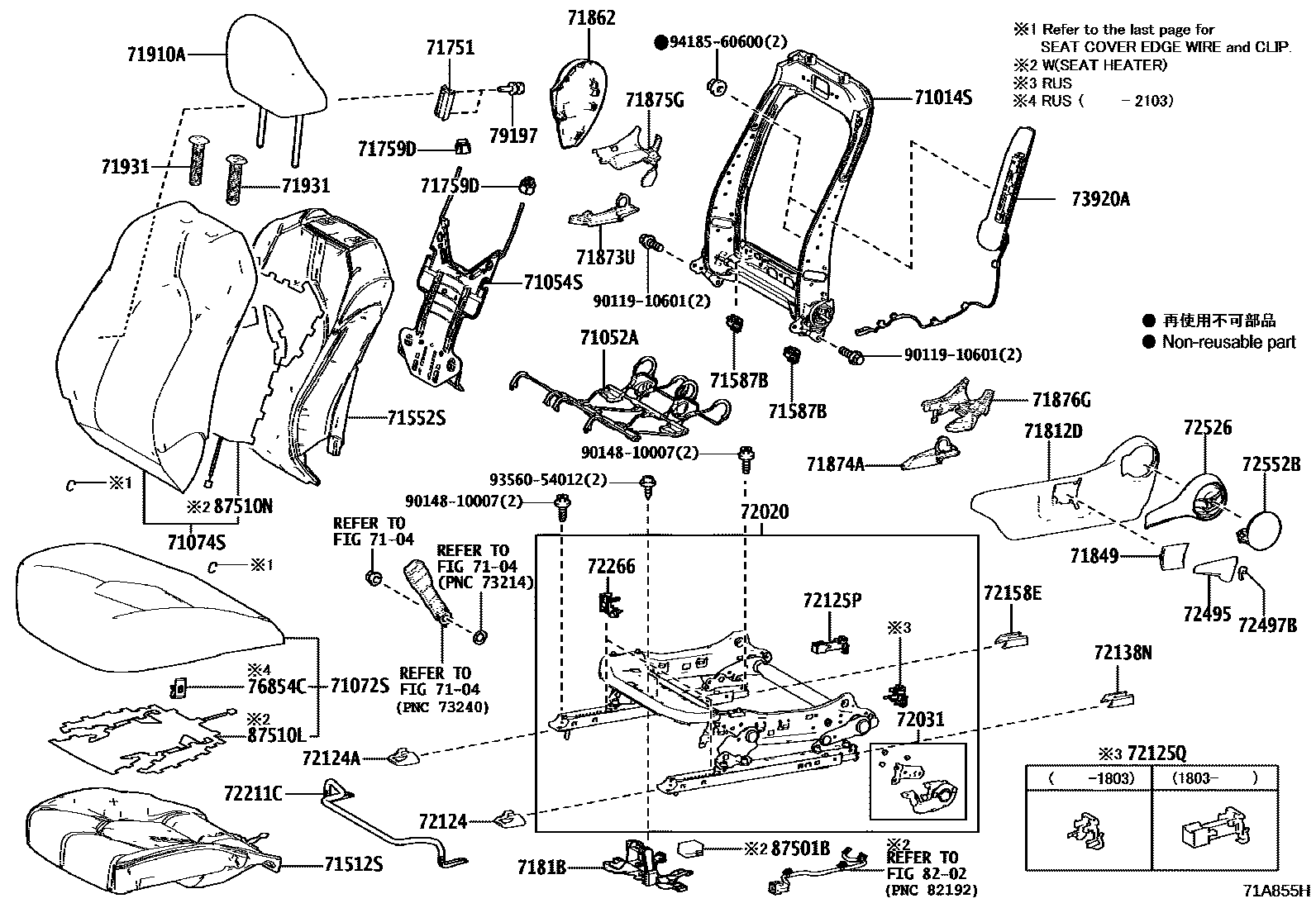

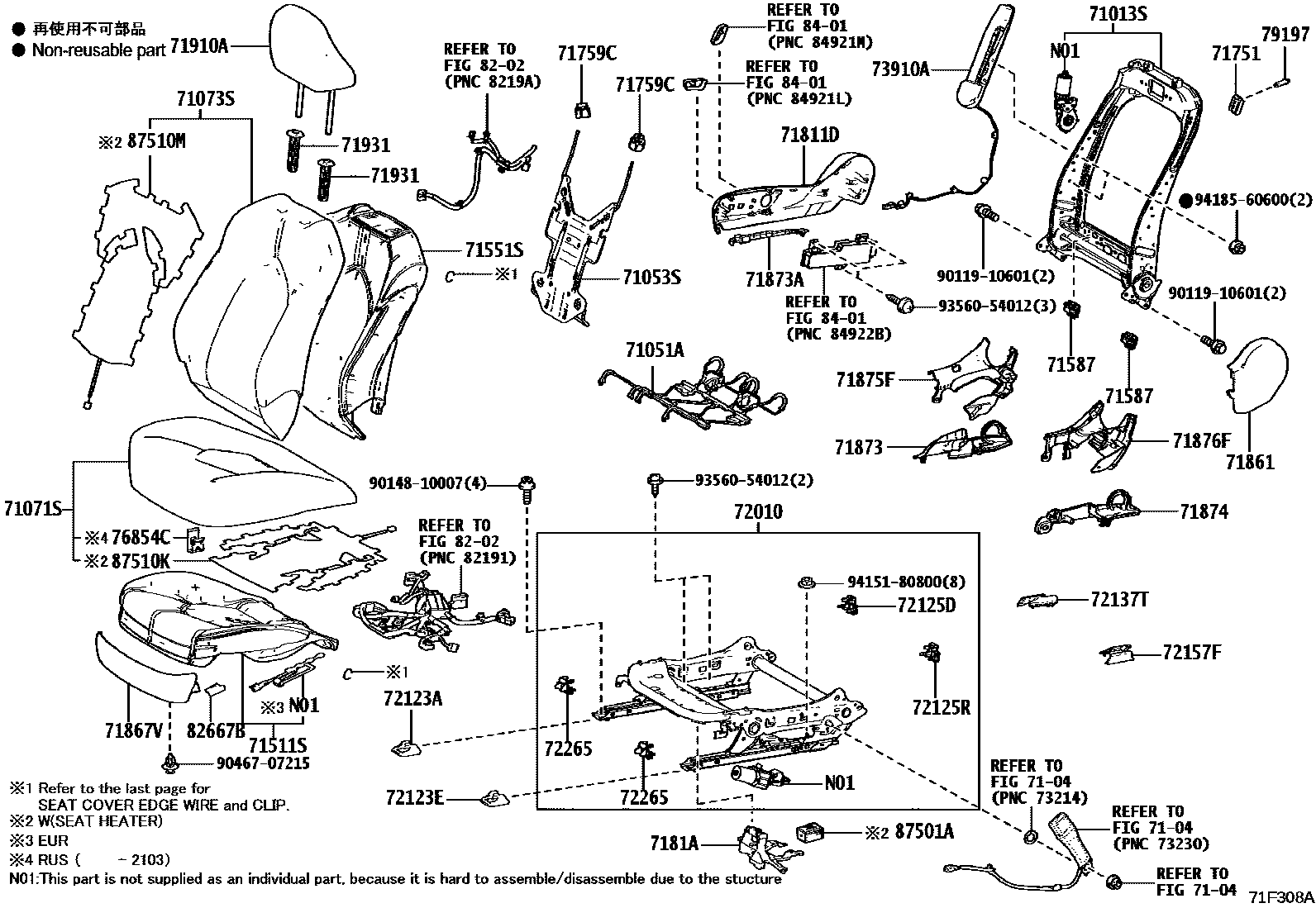

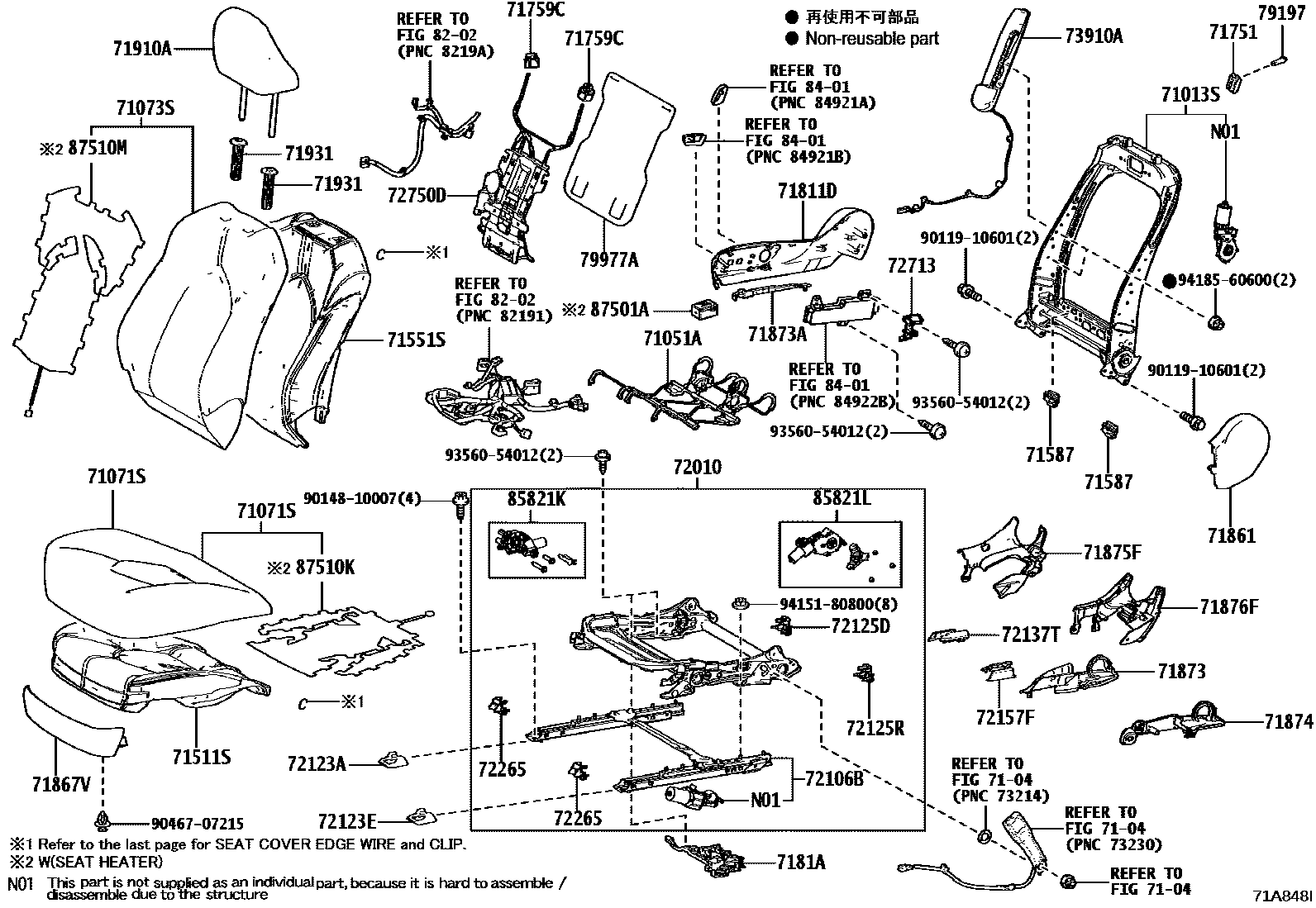

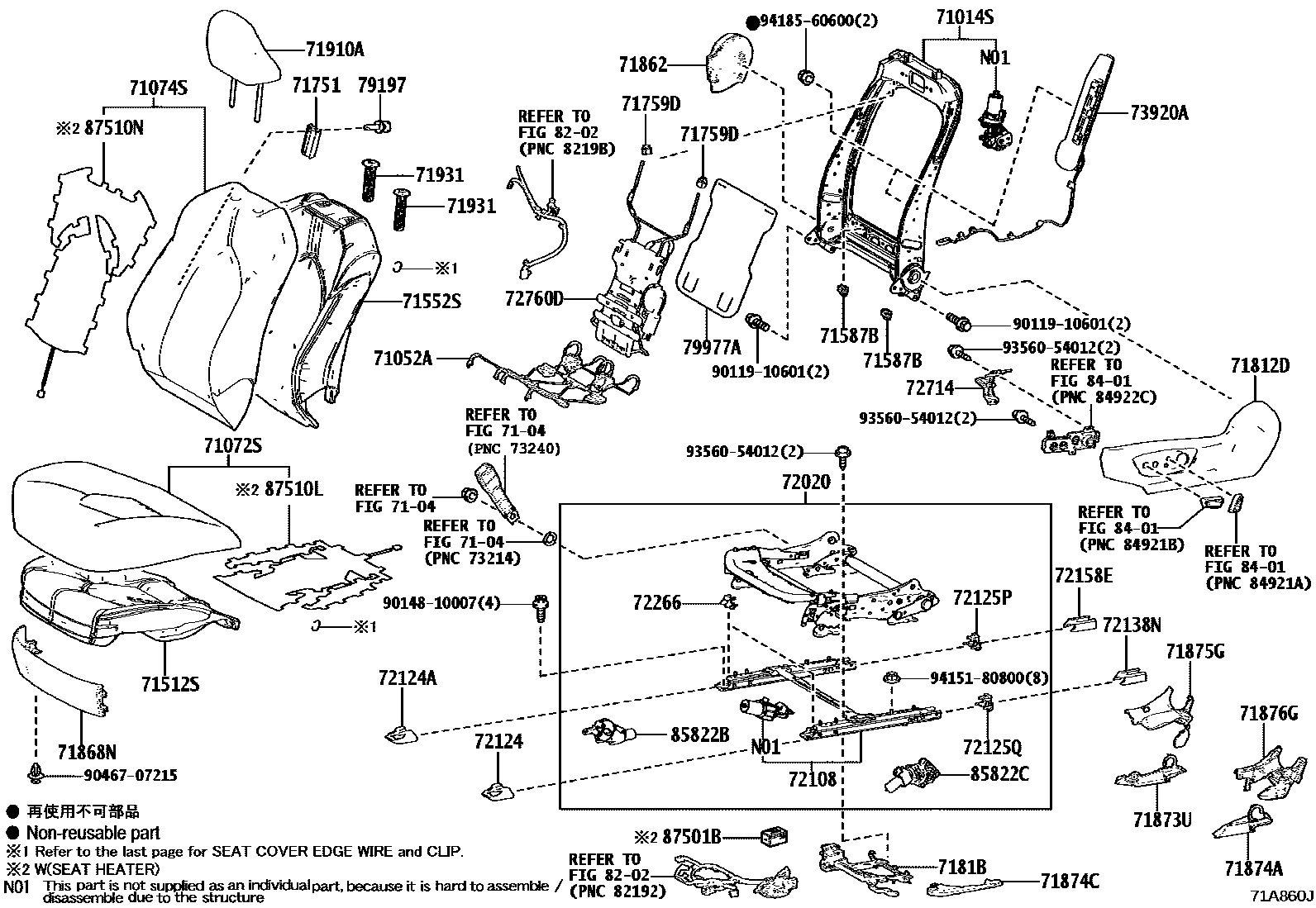

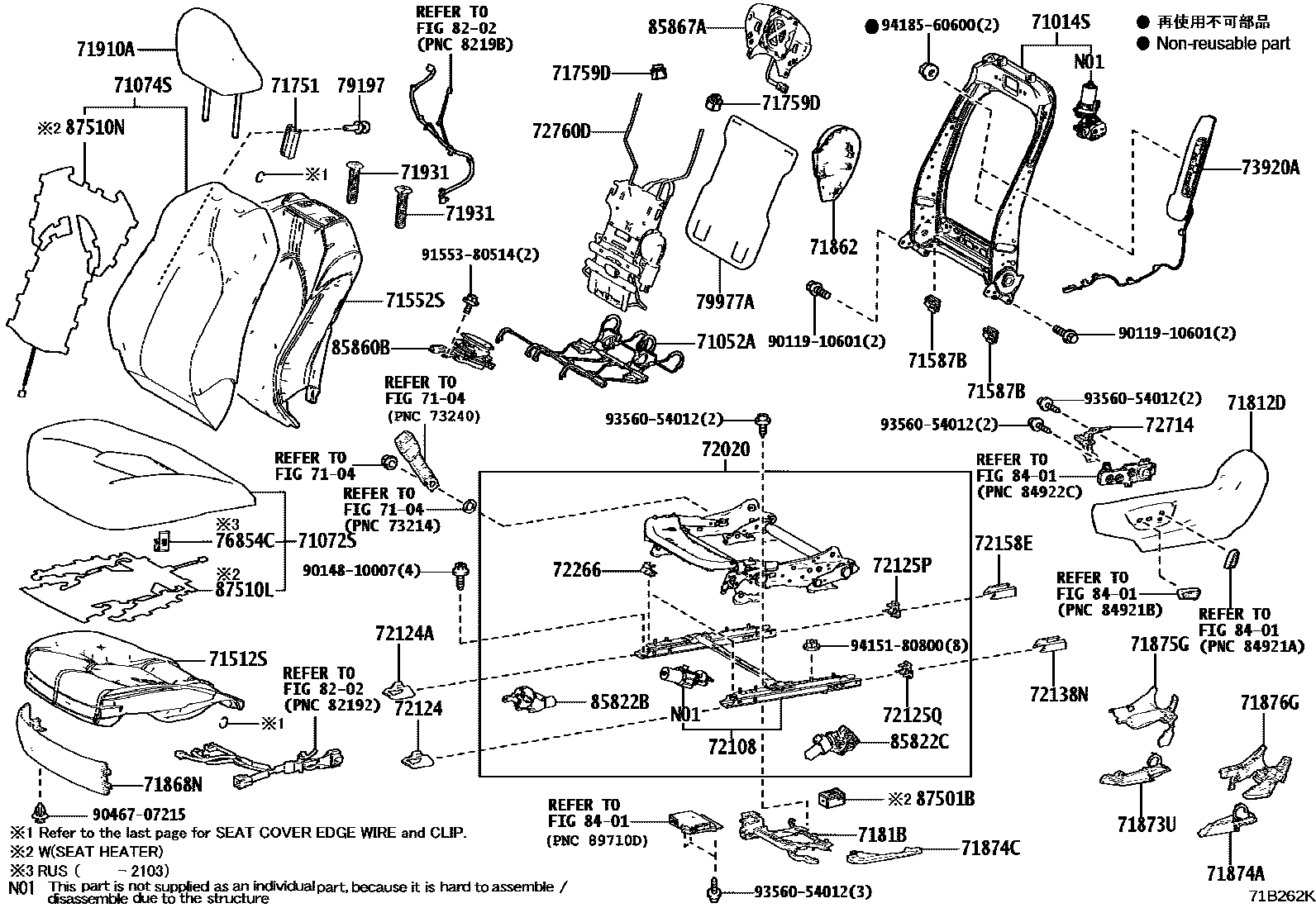

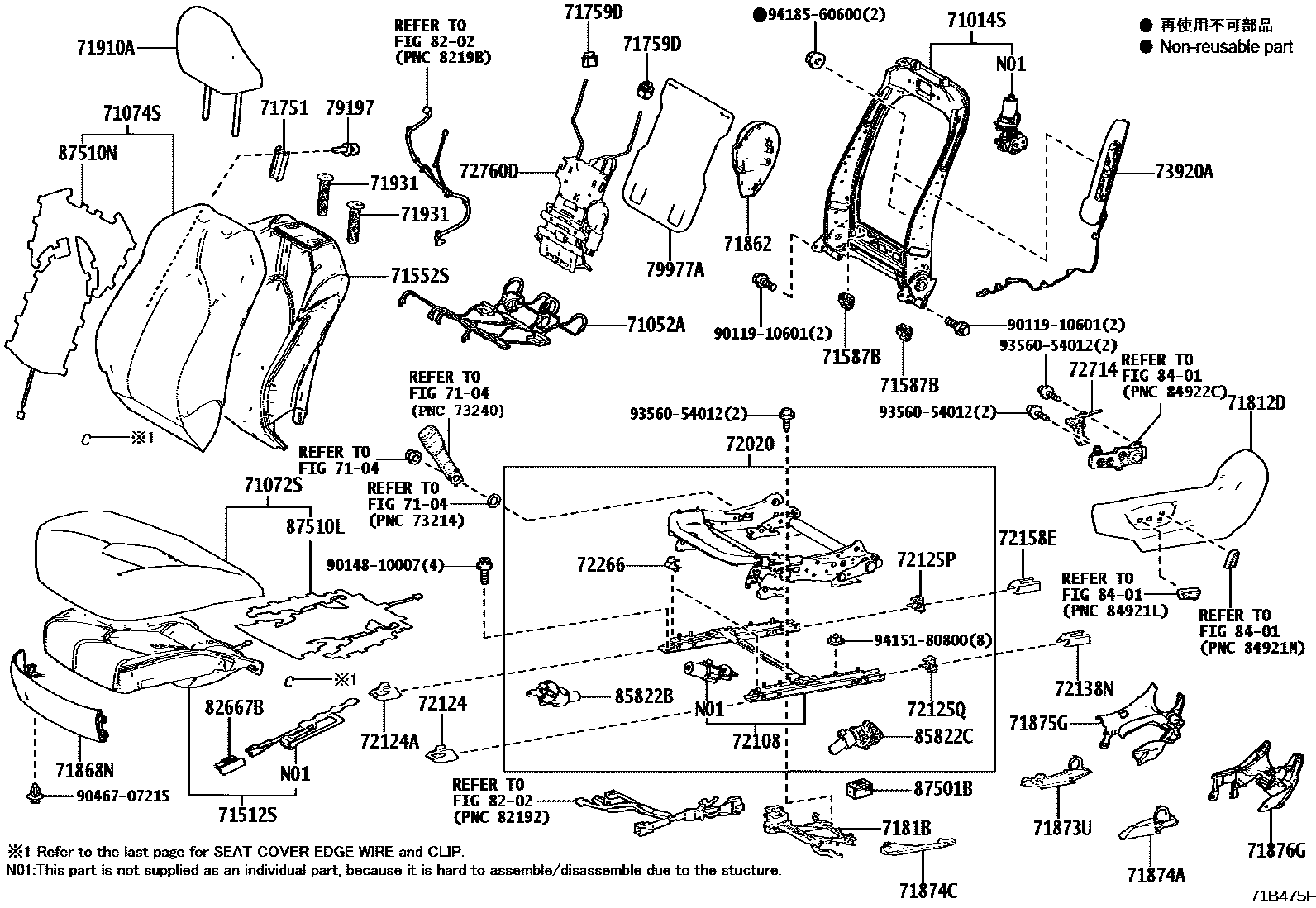

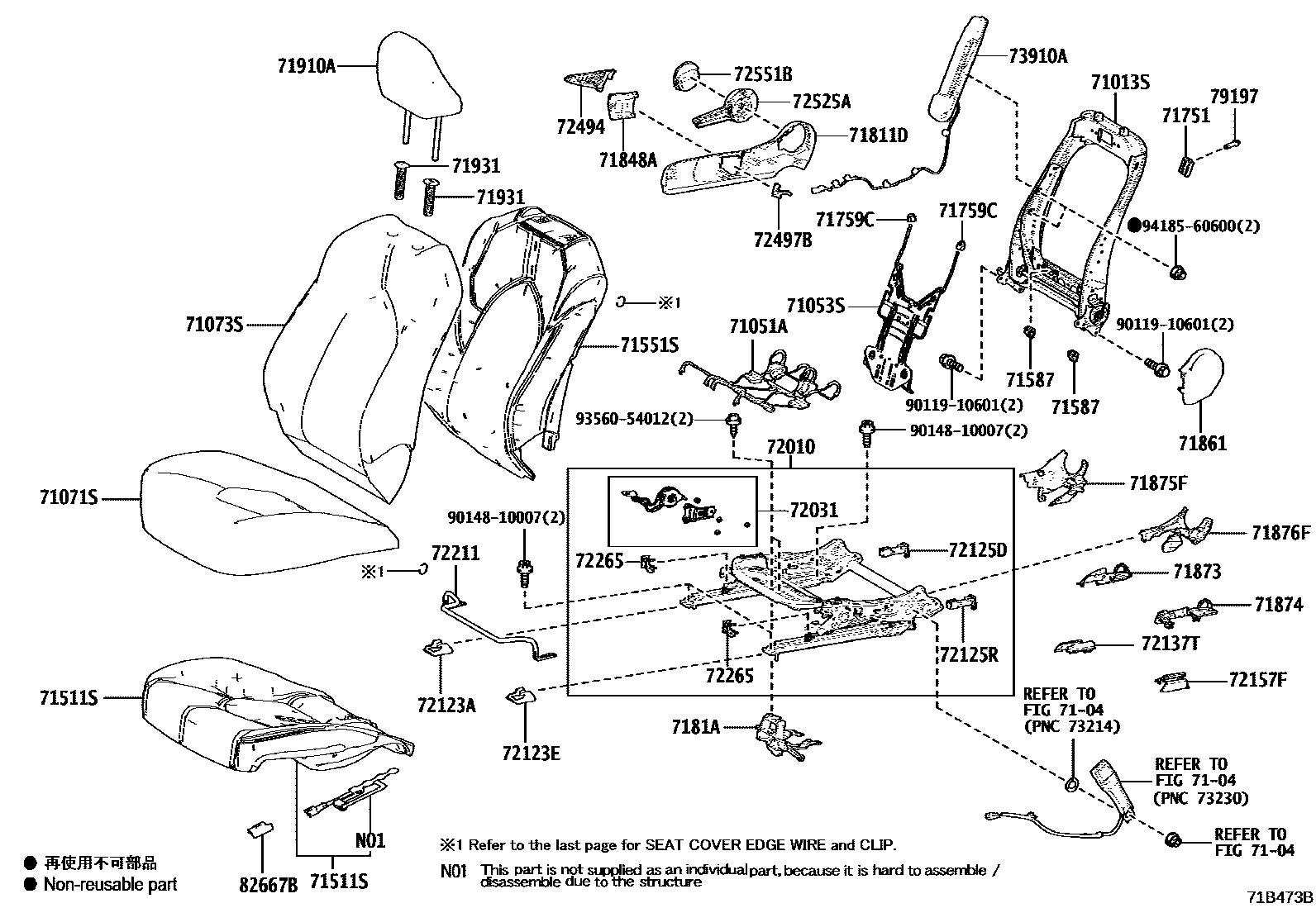

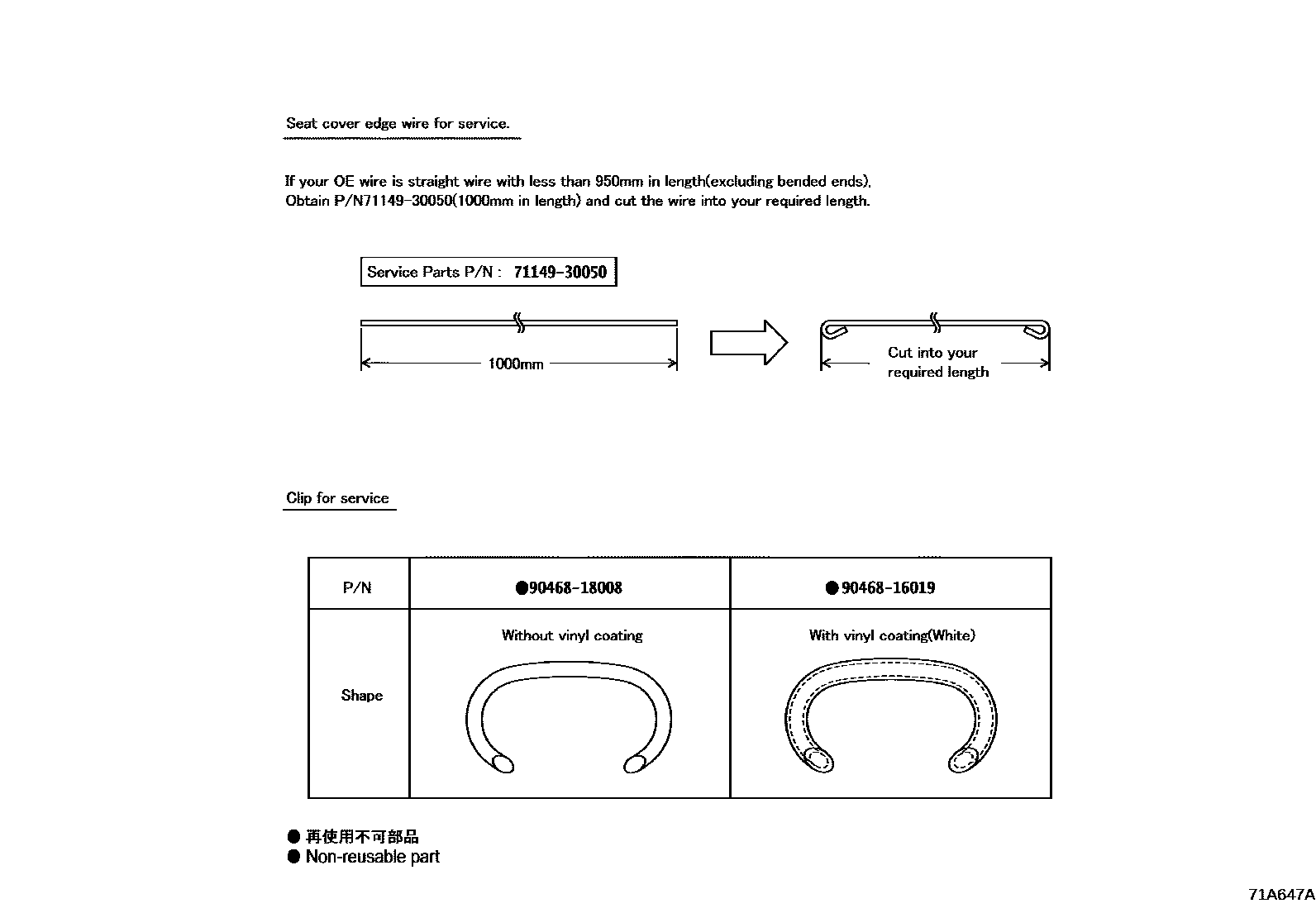

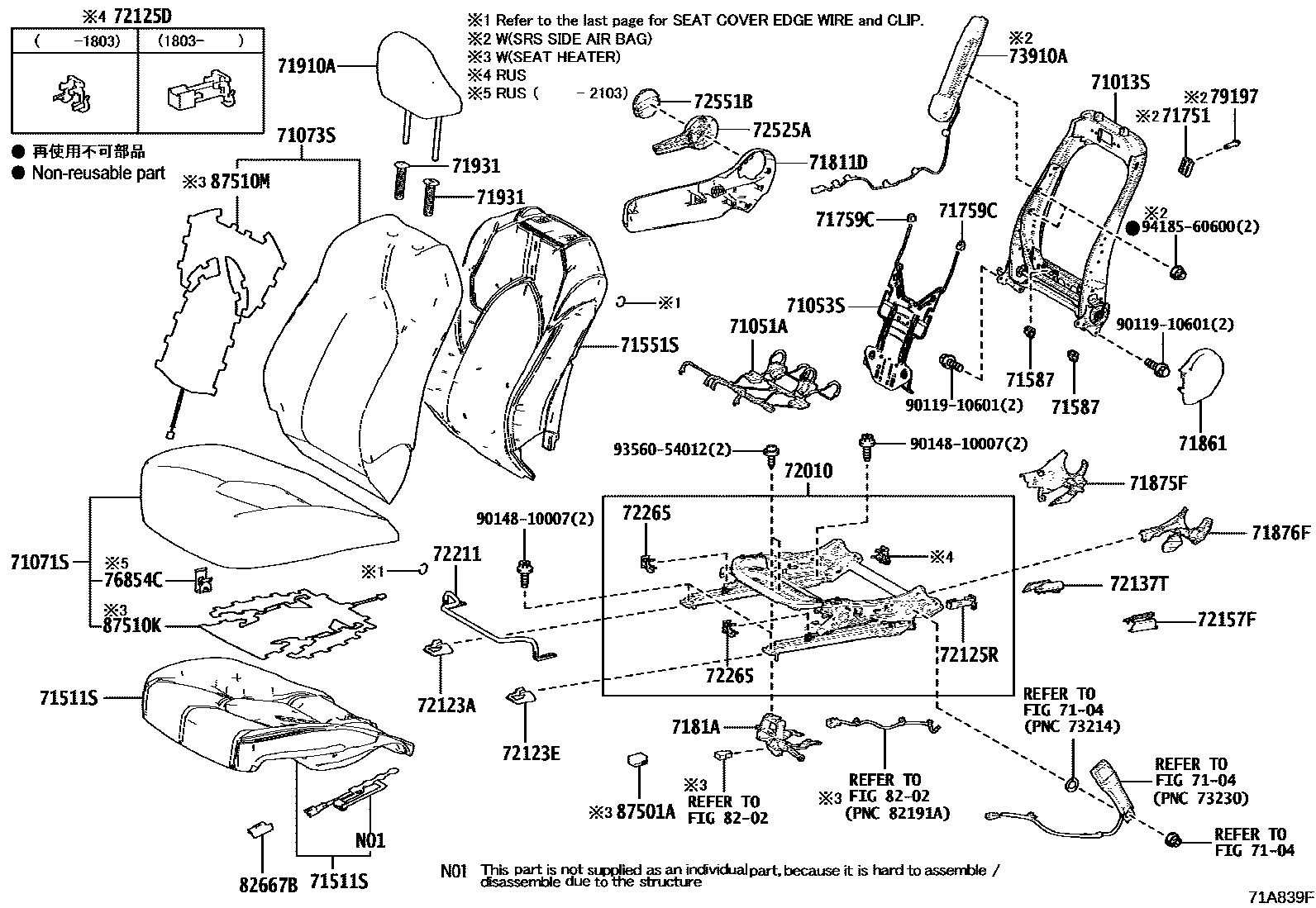

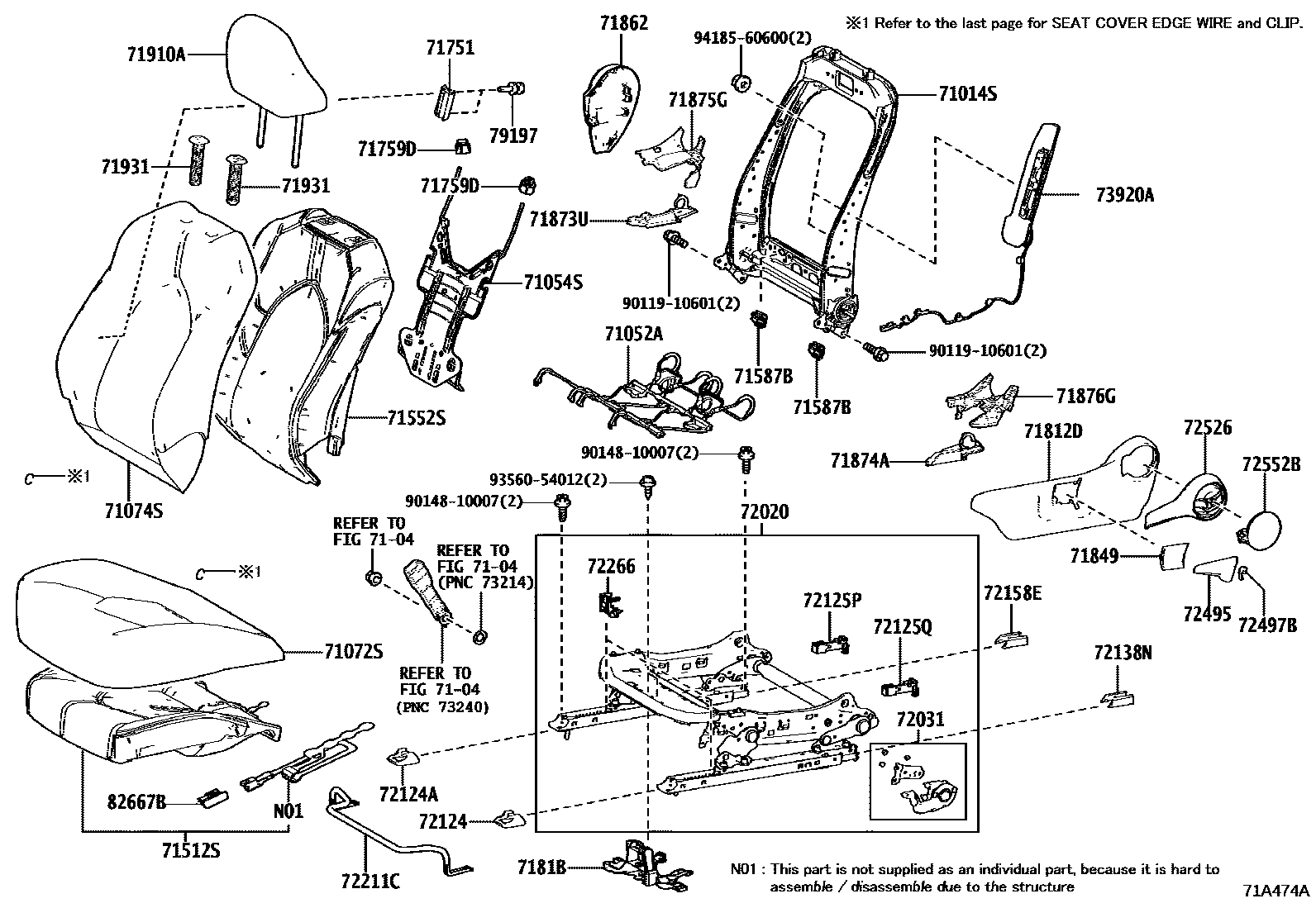

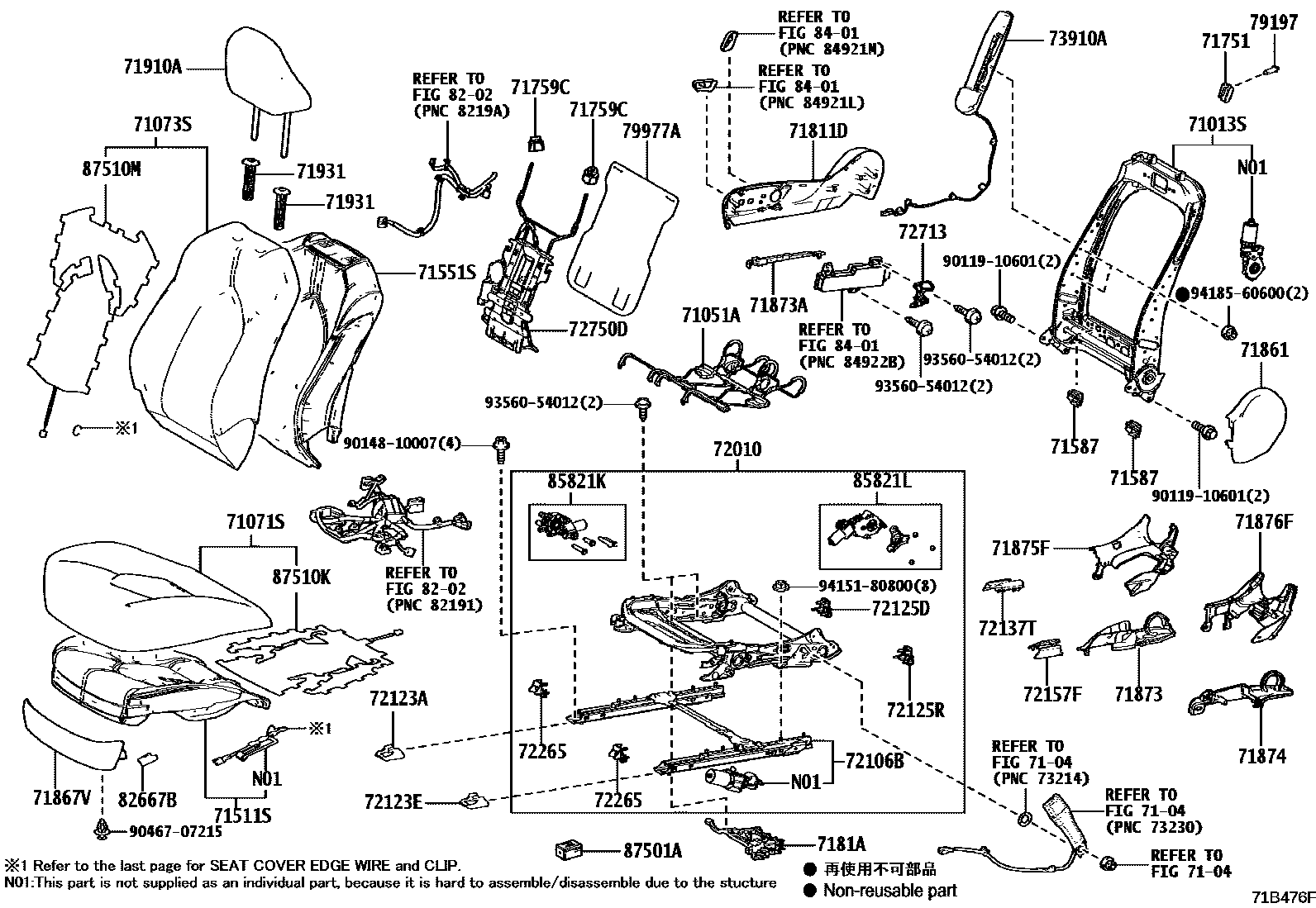

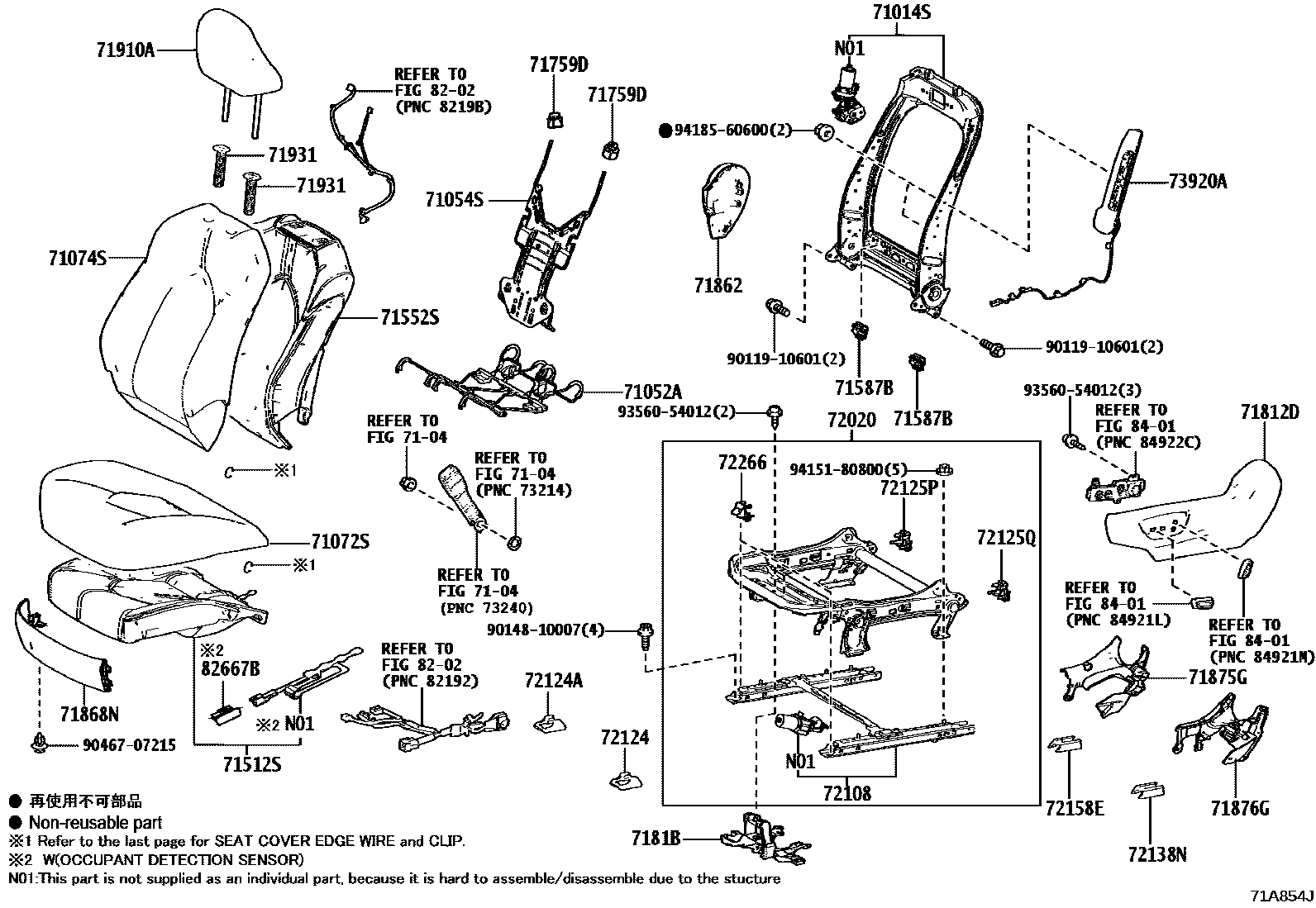

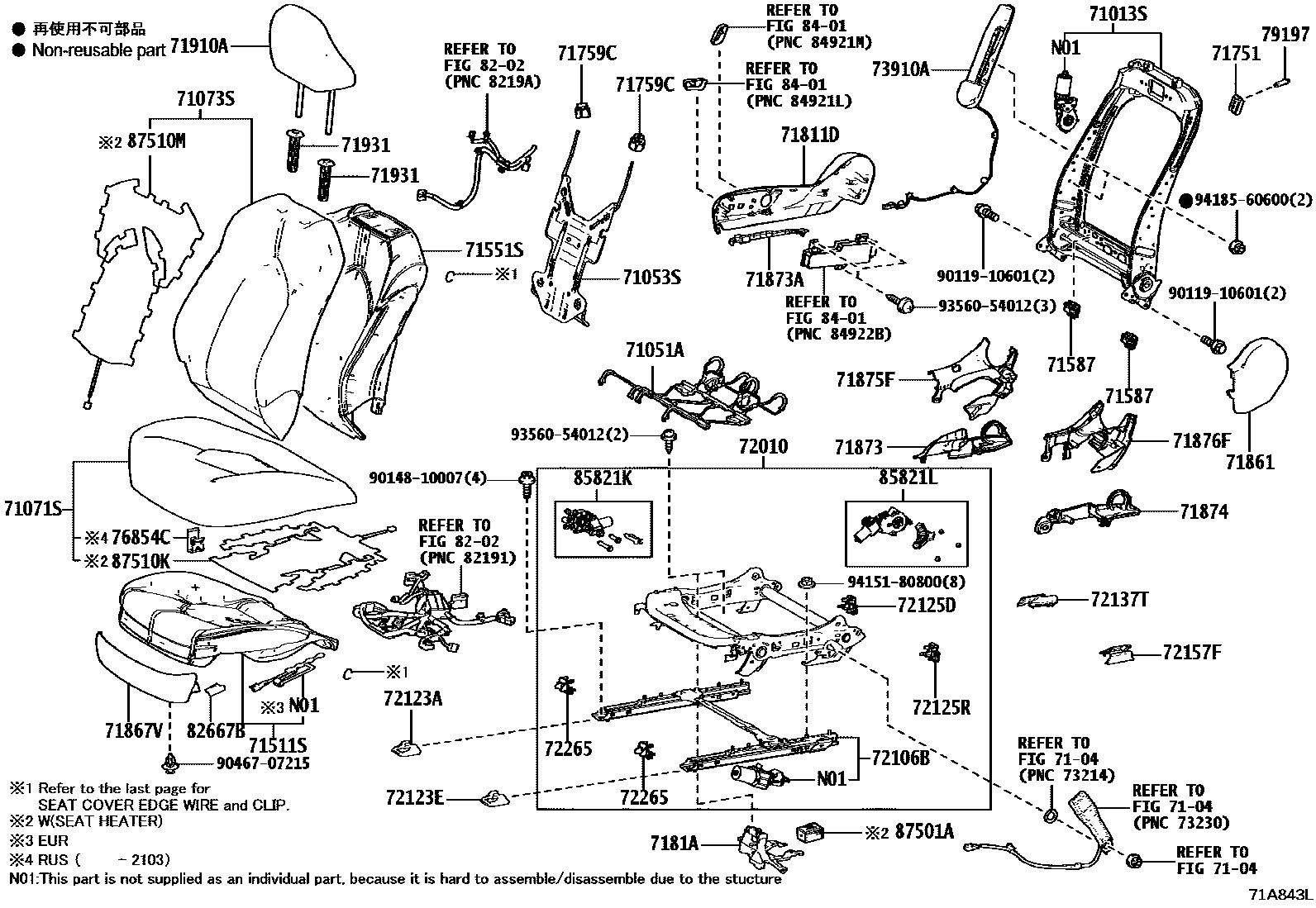

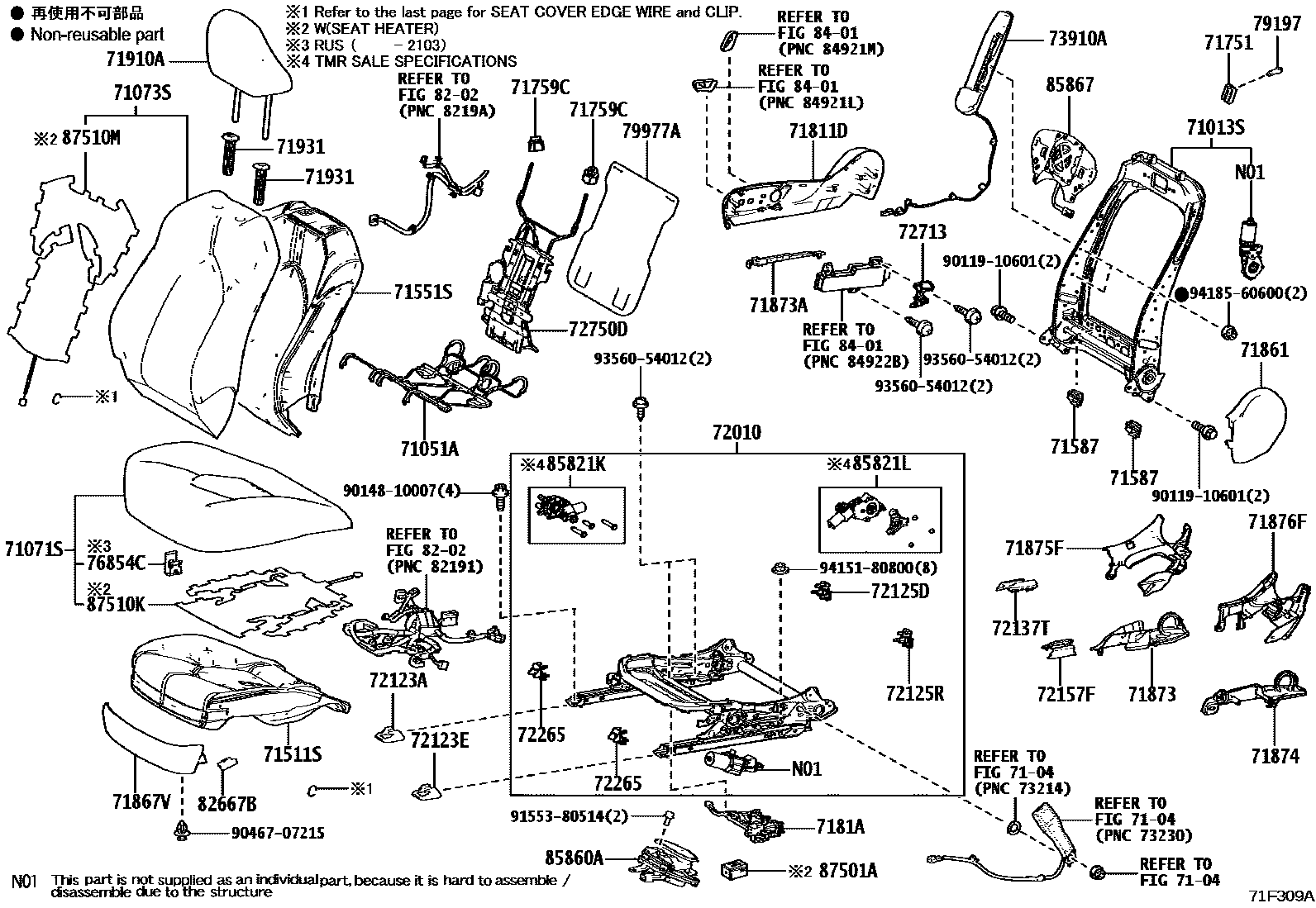

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 17 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06560 · 71013-06561 · 71013-06570 · 71013-06571 · 71013-33340 · 71013-33380 · 71013-33381 · 71013-33390 · 71013-33530 · 71013-33531 · 71013-33550 · 71013-33560 · 71013-33770 |
| 71014S | Front left seat back frame sub-assembly | 71014-06490 · 71014-06500 · 71014-06510 · 71014-06511 · 71014-33150 · 71014-33160 · 71014-33200 · 71014-33210 · 71014-33370 · 71014-33390 · 71014-33400 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 · 71051-F4010 · 71051-F4011 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 · 71051-F4010 · 71051-F4011 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 · 71053-F4010 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 · 71053-F4010 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-33Q50 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-33L60 |
| 71073S | Front right seat back cover (for split seats) | 71073-33T60 |
| 71074S | Front left seat back cover (for split seats) | 71074-33S70 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06290 · 71501-06410 · 71501-33280 · 71501-33290 · 71501-33350 · 71511-06A20 · 71511-06A30 · 71511-33520 · 71511-33530 · 71511-33560 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-33250 · 71502-33260 · 71502-33310 · 71512-06810 · 71512-06820 · 71512-06830 · 71512-33430 · 71512-33440 · 71512-33470 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06810 · 71551-06820 · 71551-33400 · 71551-33410 · 71551-33430 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06700 · 71552-06710 · 71552-33290 · 71552-33300 · 71552-33320 |
| 71587 | Front seat back edge protective cover | 71587-47010 · 71587-F4010 |
| 71587B | Front seat back edge protective cover | 71587-47010 · 71587-F4010 |
| 71751 | CROCHET, HOUSSE DE SIEGE | 71751-47050 |
| 71759C | Front seat back hook No. 1 | 71759-50040 · 71759-52050 · 71759-F4010 |
| 71759D | Front seat back hook 2 | 71759-50040 · 71759-52050 · 71759-F4010 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-06050 · 7181A-33010 · 7181A-47010 · 7181A-F4010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-06050 · 7181B-33010 · 7181B-47010 · 7181B-F4010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 · 71873-F4010 |
| 71873A | Front seat cushion lower guard | 71873-47090 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-47080 · 71874-F4020 |
| 71874 | Front left seat cushion lower guard | 71873-33140 · 71873-47080 · 71873-F4020 |
| 71874A | Front left seat cushion lower guard | 71874-47070 · 71874-F4010 |
| 71874C | Front seat cushion lower guard | 71874-06680 · 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-06410 · 72010-06420 · 72010-06430 · 72010-06431 · 72010-33490 · 72010-33500 · 72010-33540 · 72010-33541 · 72010-33640 · 72010-47360 · 72010-47361 · 72010-47381 |
| 72020 | Front left seat adjuster assembly | 72020-06390 · 72020-06400 · 72020-06410 · 72020-06411 · 72020-06412 · 72020-33440 · 72020-33450 · 72020-33470 · 72020-33570 · 72020-47360 · 72020-47361 · 72020-47381 |
| 72031 | Front seat height adjuster assembly | 72443-47010 · 72443-47011 · 72443-47020 · 72443-47021 |
| 72106B | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MD | 72106-33060 · 72106-33070 · 72106-33080 |
| 72108 | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MG | 72108-33030 · 72108-33040 · 72108-33050 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 · 72123-47060 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-10100 · 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 · 72123-47060 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-10100 · 72123-47060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-47010 · 72125-47020 |
| 72125P | COUVERCLE AR. SUPERIEUR NO. 3 GLISSIERE SIEGE | 72125-47010 · 72125-47020 |
| 72125Q | COUVERCLE AR. SUPERIEUR NO. 4 GLISSIERE SIEGE | 72125-47010 · 72125-47020 |
| 72125R | CACHE, RAIL SIEGE, SUP ARR NO.1 | 72125-47010 · 72125-47020 |
| 72136 | No. 1 seat slide rail lower rail | 72136-33250 |
| 72136A | No. 2 seat slide rail lower rail | 72136-33260 |
| 72136B | No. 3 seat slide rail lower rail | 72136-33290 |
| 72136C | No. 4 seat slide rail lower rail | 72136-33300 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-47060 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-47060 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-47080 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-47050 · 72211-F4010 |
| 72211C | Seat slide adjustment handle | 72211-47050 · 72211-F4010 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72497B | Right height adjuster bracket cover | 72498-47010 · 72498-47020 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-47010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-06050 · 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-11010 · 72750-11020 |
| 72760D | Left lumbar support adjuster assembly | 72760-11010 · 72760-11020 |
| 73910A | Front right seat airbag assembly | 73910-33070 · 73910-33080 |
| 73920A | Front left seat airbag assembly | 73920-33070 · 73920-33080 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 79197 | CROCHET, HOUSSE DOSSIER SIEGE | 79197-47010 |
| 79977A | Seat back felt pad | 79977-33030 |
| 82667B | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-11020 · 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-11030 · 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-11040 · 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-11050 · 85801-47030 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-11010 · 85801-42040 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-11010 · 85802-42020 |
| 85867 | Right seat back temperature control blower | 85867-11010 · 85867-42020 |
| 85867A | Left-hand seat back temperature control blower | 85867-11010 · 85867-42020 |
| 87501A | Right seat heater control sub-assembly | 87501-33010 |
| 87501B | Left side seat heater control sub-assembly | 87501-33010 |
| 87510K | Front right seat cushion heater assembly | 87510-33380 · 87510-33480 |
| 87510L | Front left seat cushion heater assembly | 87510-33390 · 87510-33490 |
| 87510M | Front right seat back heater assembly | 87530-33170 · 87530-33260 |
| 87510N | Front left seat back heater assembly | 87530-33170 · 87530-33260 |
