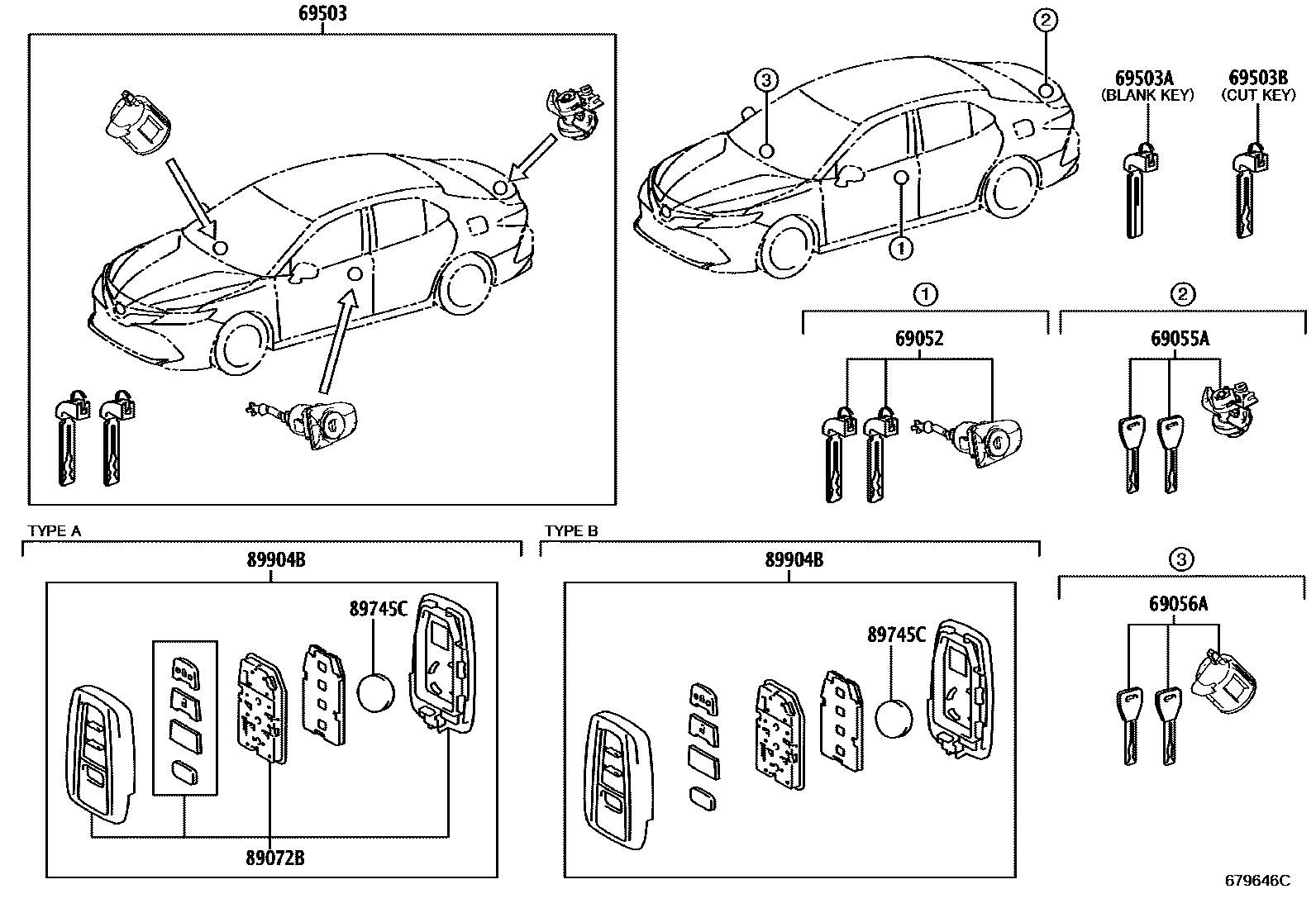

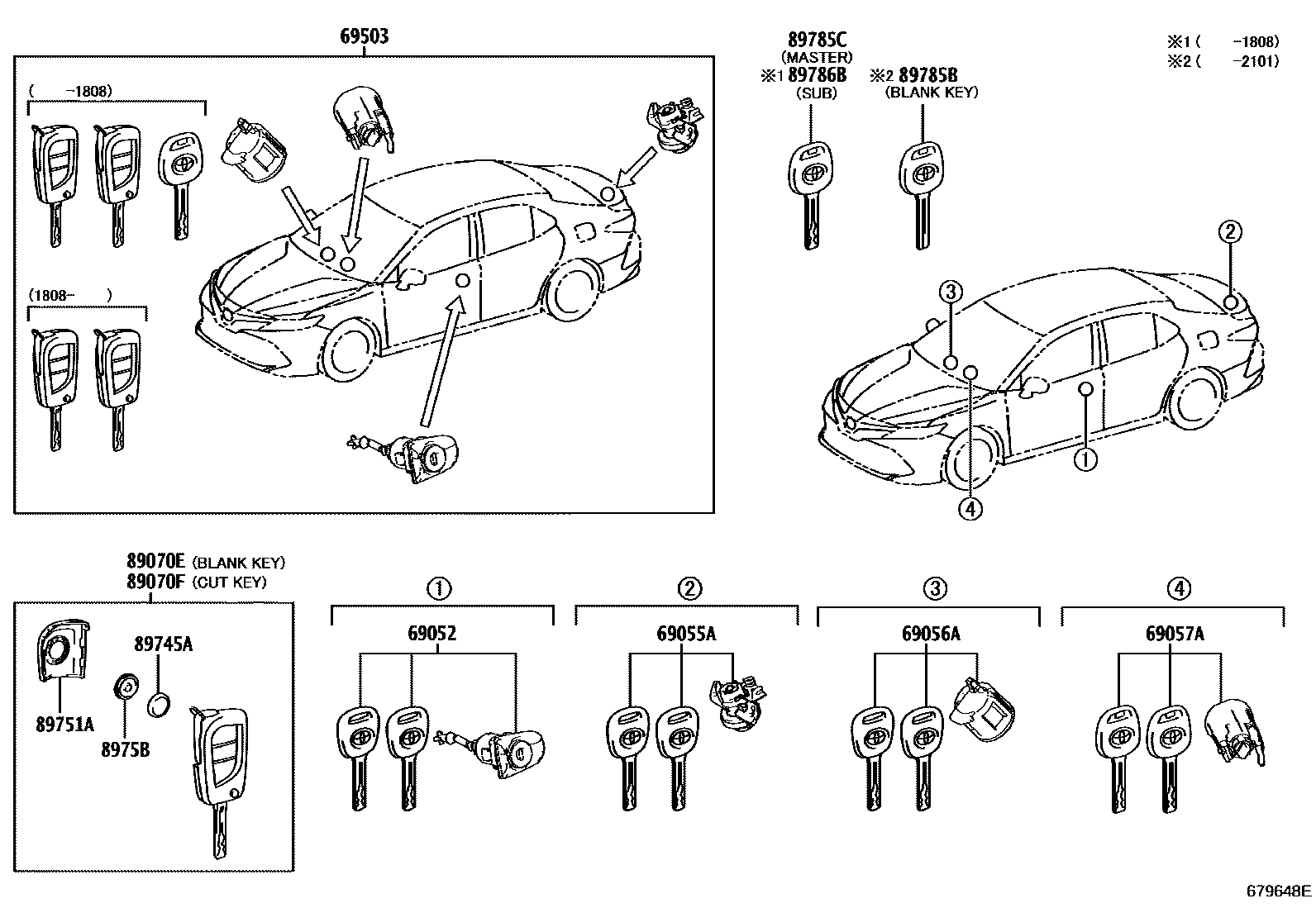

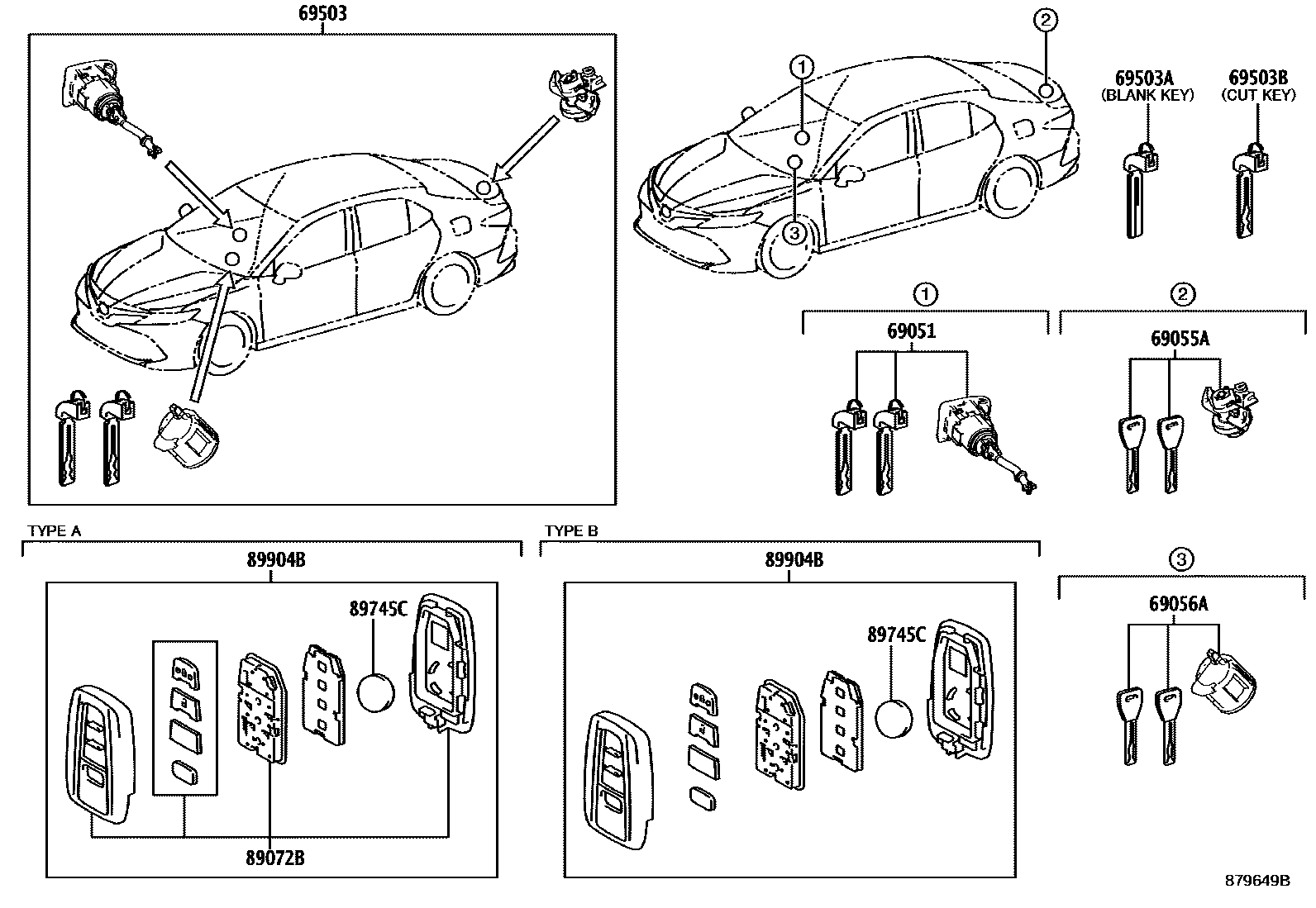

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33390 |
| 69052 | Left door lock cylinder and key assembly | 69052-33400 · 69052-33410 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33500 · 69055-33510 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-30270 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33410 |
| 69503 | Door lock cylinder components | 69005-33E20 · 69005-33E40 · 69005-33F30 · 89704-33B40 · 89704-33B90 · 89704-33C00 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 89070E | Remote key assembly | 89070-33J40 |
| 89070F | Remote key assembly (internal tooth key) | 89070-33F90 · 89070-33F91 · 89070-33J30 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33A10 · 89072-33A60 · 89072-33B10 · 89072-33B20 · 89072-33B70 · 89072-33B90 · 89072-33C00 · 89072-33C10 · 89072-33C80 · 89072-33C90 · 89072-33D10 · 89072-33E80 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 · 8975B-52010 |
| 89785B | transceiver key master transmitter | 89785-12140 |
| 89785C | transceiver key master transmitter | 89785-12150 |
| 89786B | transceiver key secondary transmitter | 89786-33060 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33620 · 89904-33621 · 89904-33630 · 89904-33720 · 89904-33770 · 89904-33790 · 89904-33870 · 89904-33871 · 89904-33880 · 89904-33890 · 89904-33A11 · 89904-33A30 · 89904-33G50 · 89904-33G60 · 89904-33G90 · 89904-33J00 · 89904-33J20 · 89904-33J21 · 89904-33J40 |
