Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 27 PNC and OE references.

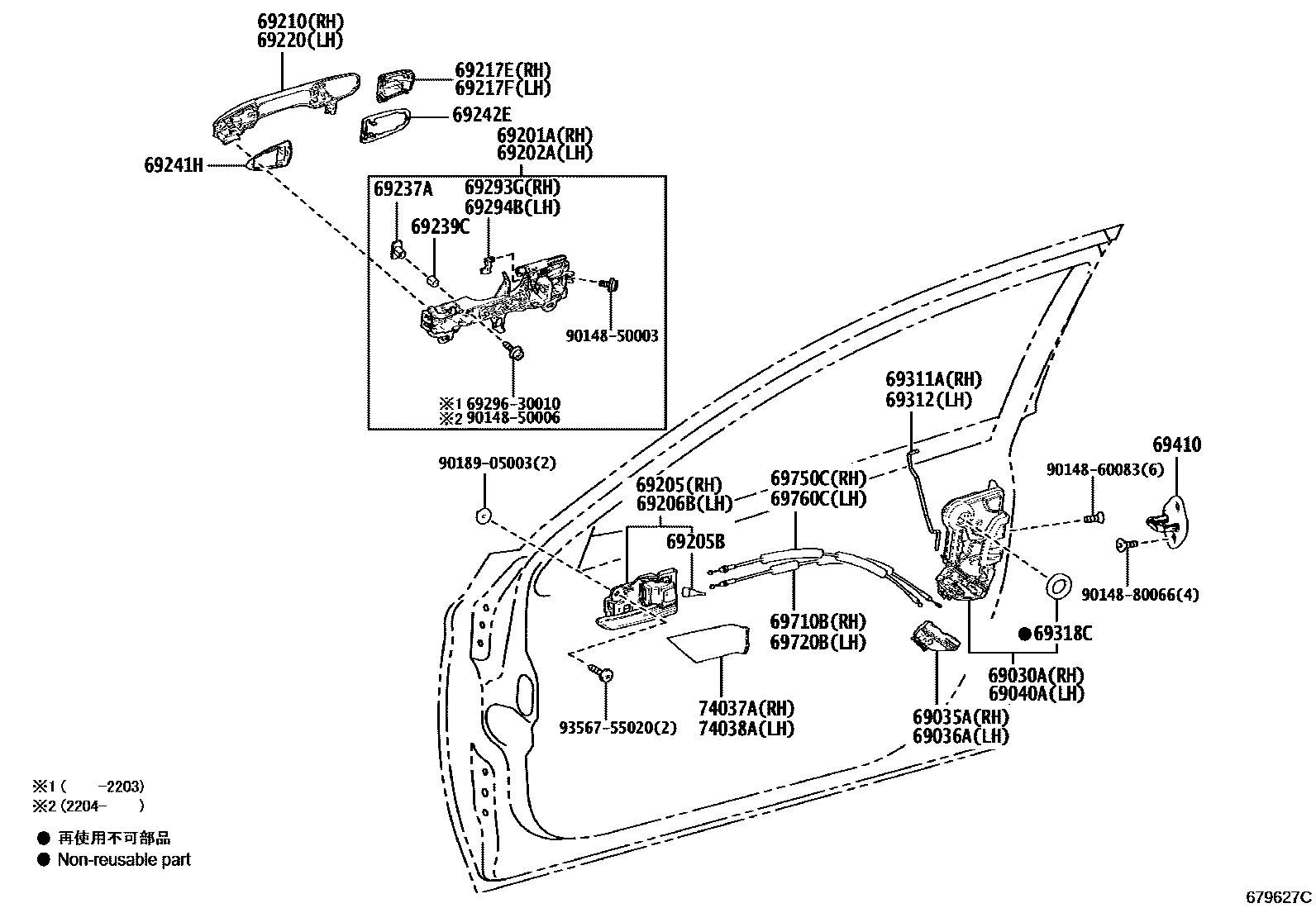

Toyota CAMRY 前门锁和车门把手 EPC diagram — 679627C
前门锁和车门把手 — 679627C (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-30A70 · 69030-53120 · 69030-53130
69035ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD69035-30010
69036ALeft front door lock cover sub-assembly69036-30010
69040ALeft front door door lock assembly with motor69040-30A80 · 69040-53130 · 69040-53140
69201ARight front door outer handle frame sub-assembly69201-33060
69202ALeft front door outer handle frame sub-assembly69202-33060
69205BCushion pad (for inner front door handle)90541-04014
69210Right front door outer handle assembly69210-33100 · 69210-33101 · 69210-33140 · 69210-33141
69217ERight front door outer handle cover69217-47020
69217FLeft front door outer handle cover69217-47020
69220Left front door outer handle assembly69210-33100 · 69210-33101 · 69210-33140 · 69210-33141
69237AECROU, POIGNEE PORTE AVANT69237-62010
69239CBAGUE, POIGNEE PORTE AVANT69239-47010
69241HFront door exterior handle pad69241-47020
69242EFront door rear outer handle pad69242-47030
69293GRight front door outer handle buckle69293-33030
69294BLeft front door outer handle buckle69293-33040
69311ARight front door lock opening lever69311-33120
69312Left front door lock opening lever69312-33120
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-20110
69710BRight front door lock remote control cable assembly69710-33120
69720BLeft front door lock remote control cable assembly69710-33120
69750CRight front door inner lock cable assembly69750-33110
69760CLeft front door inner lock cable assembly69750-33110
74037ASOUS-ENS. CACHE, ACCOUDOIR PORTE AV, MD74037-33020
74038ASOUS-ENS. CACHE, ACCOUDOIR PORTE AV, MG74038-33020
