Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

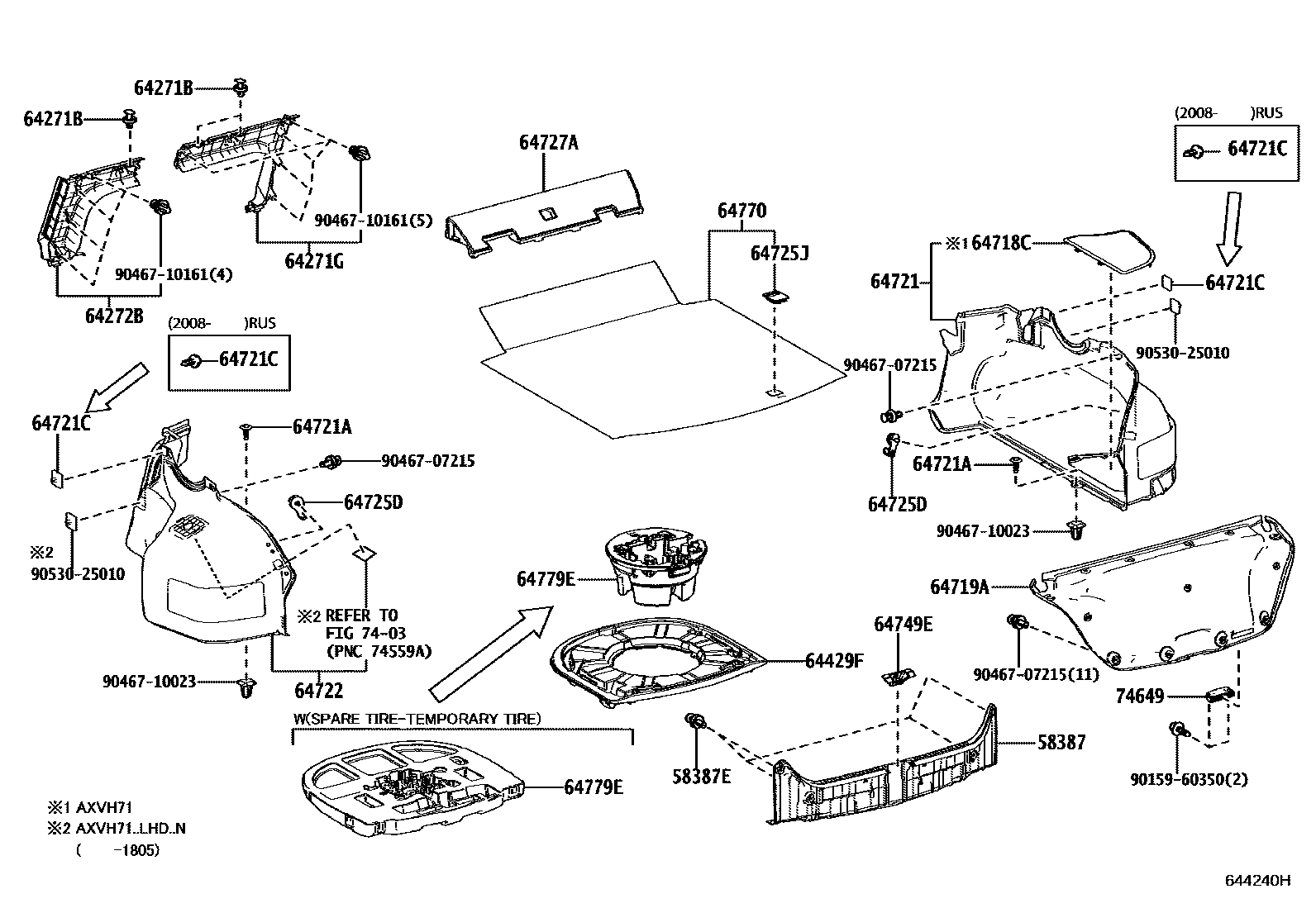

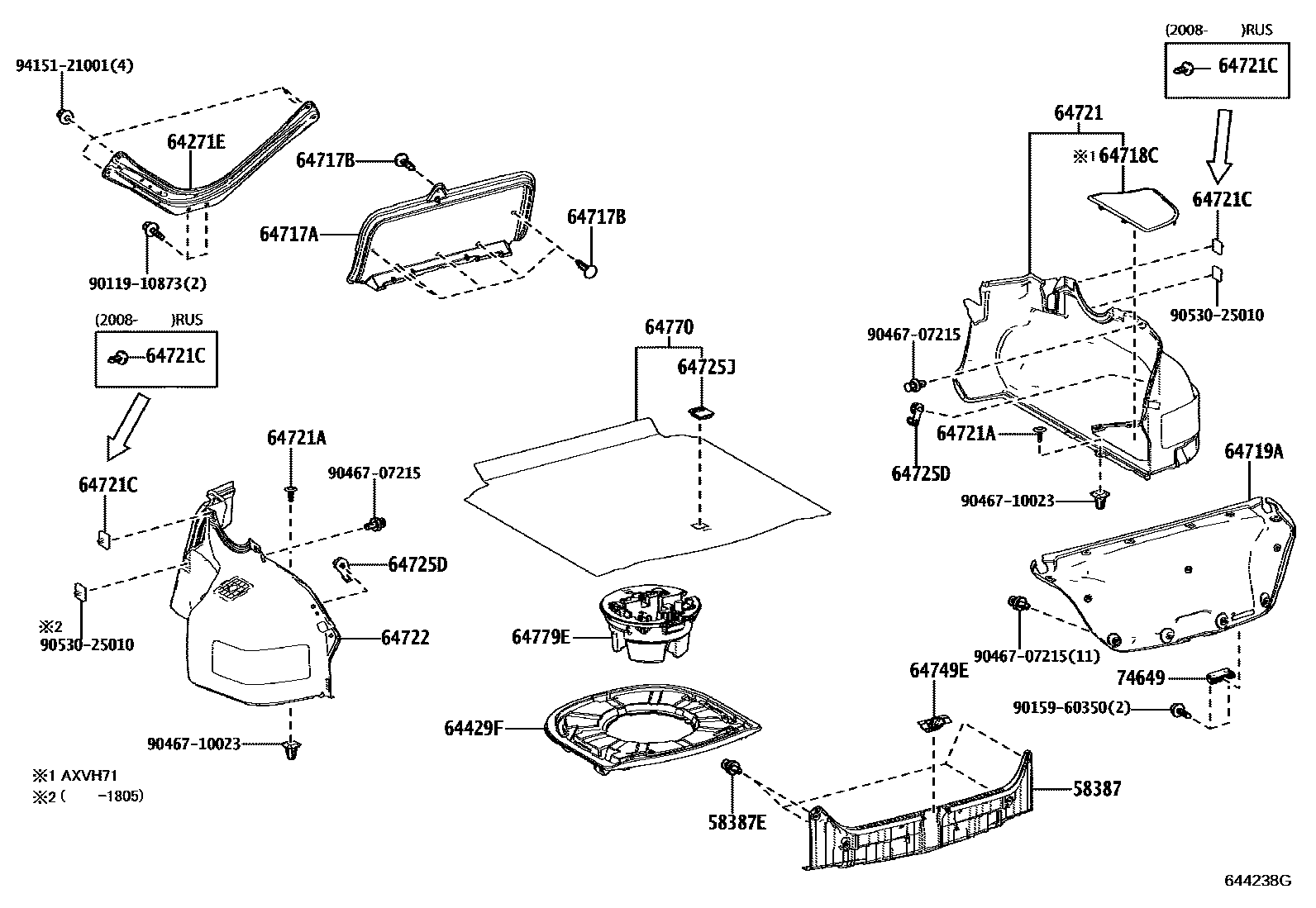

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387E | Clip (for rear floor trim panel) | 90467-07215 |
| 64271B | Clip (for compartment partition) | 90467-07220 |
| 64271E | compartment partition | 64241-33070 |

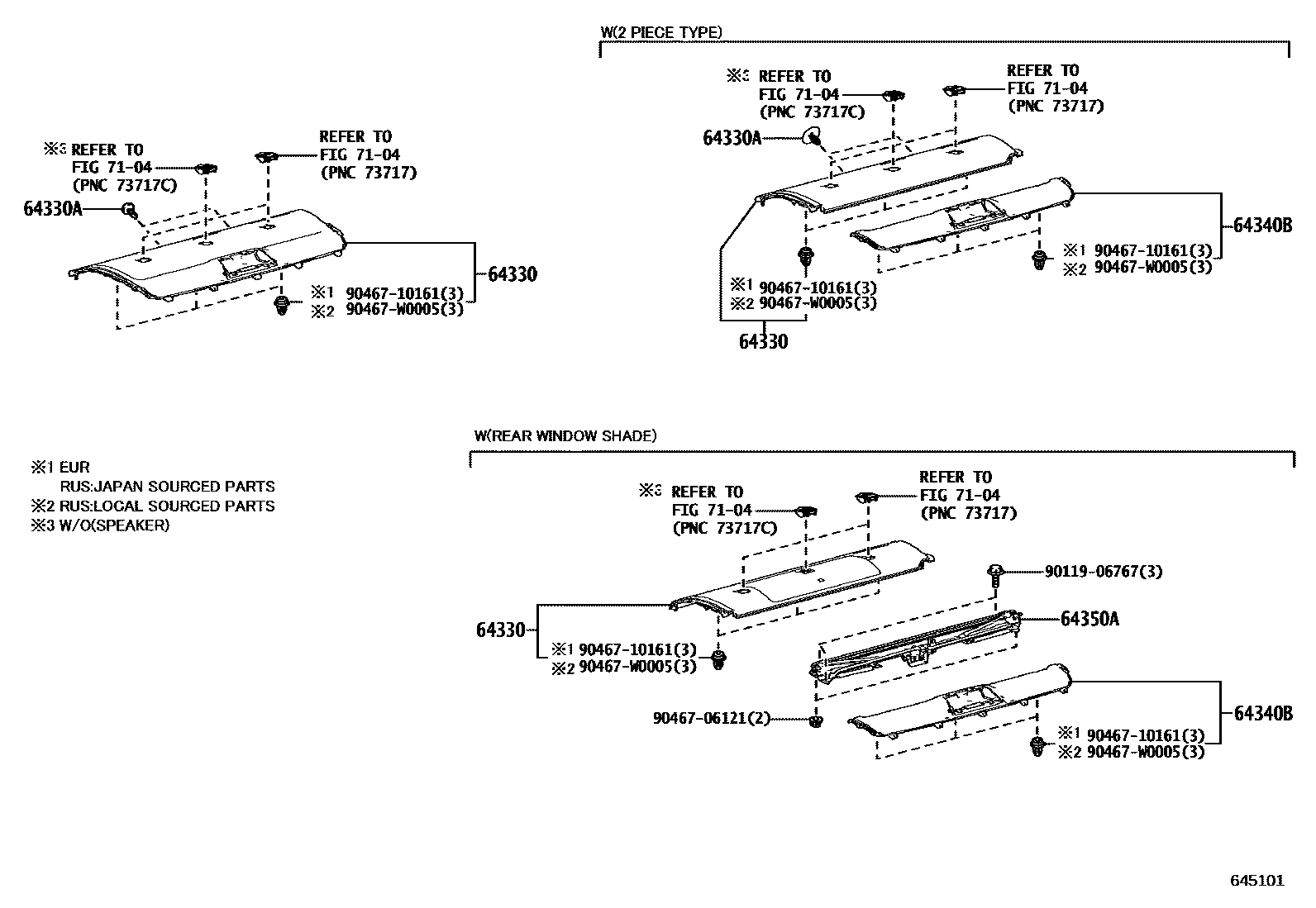

| 64350A | Rear window sun visor assembly | 64350-33030 |
| 64429F | suitcase decorative box | 64429-33020 |
| 64721C | Clip (suitcase) | 90530-25010 |
| 64725J | Luggage decorative hook No. 1 | 64725-33100 |
| 64727A | Luggage interior decorative mat | 64727-06120 · 64727-33060 |
| 64779E | Spare tire cover bracket | 64779-06250 · 64779-33240 · 64779-33250 · 64779-33260 |
