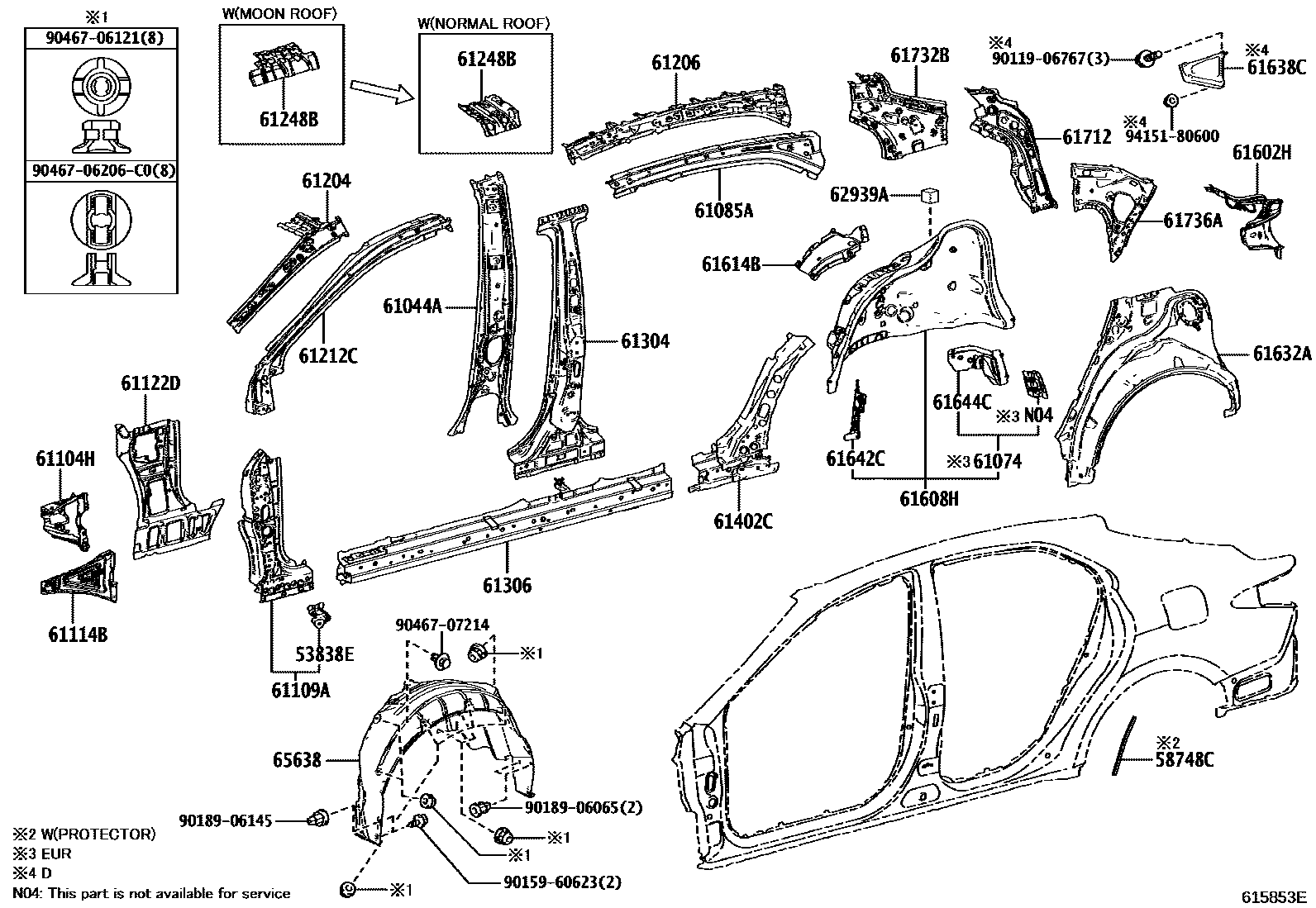

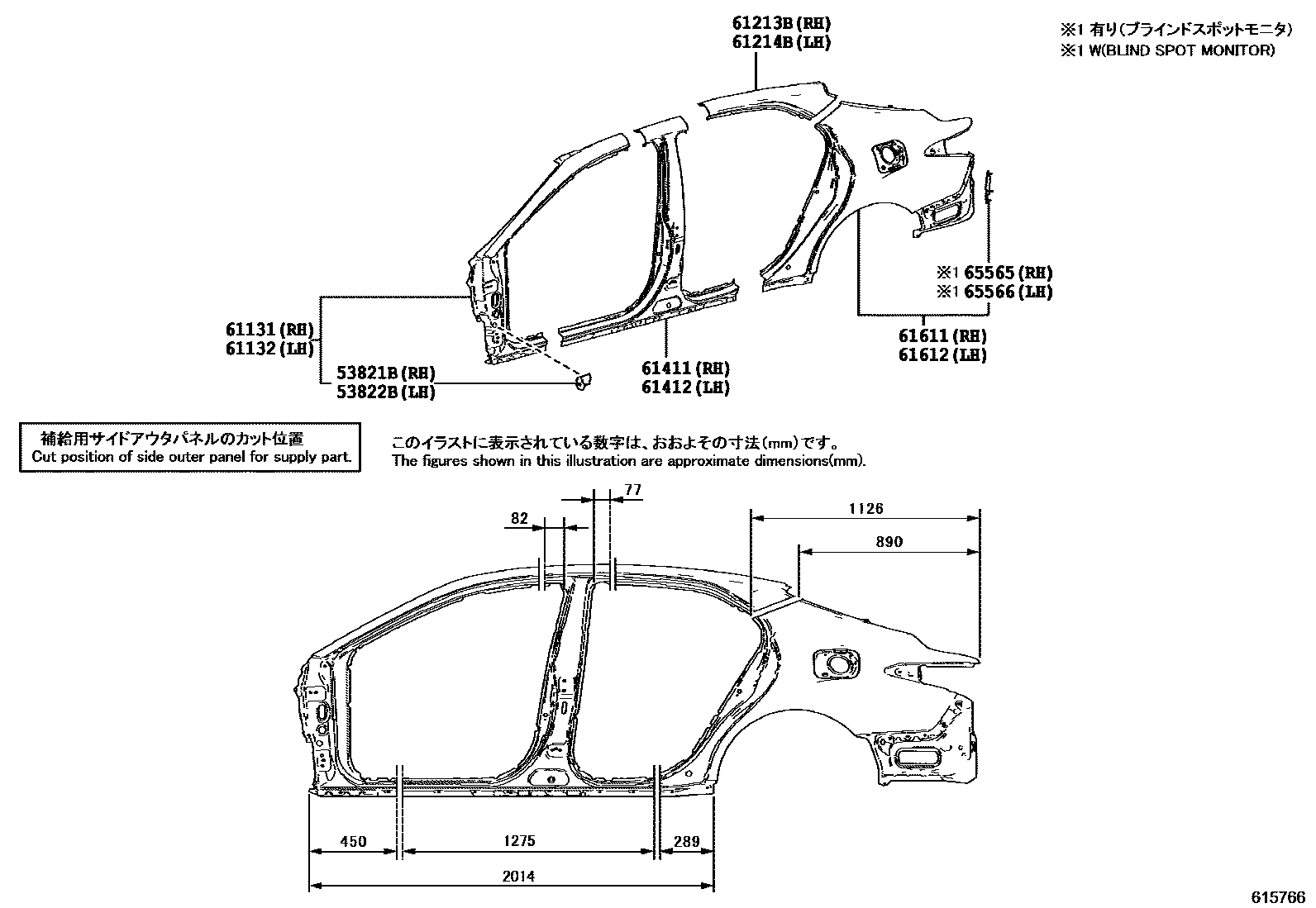

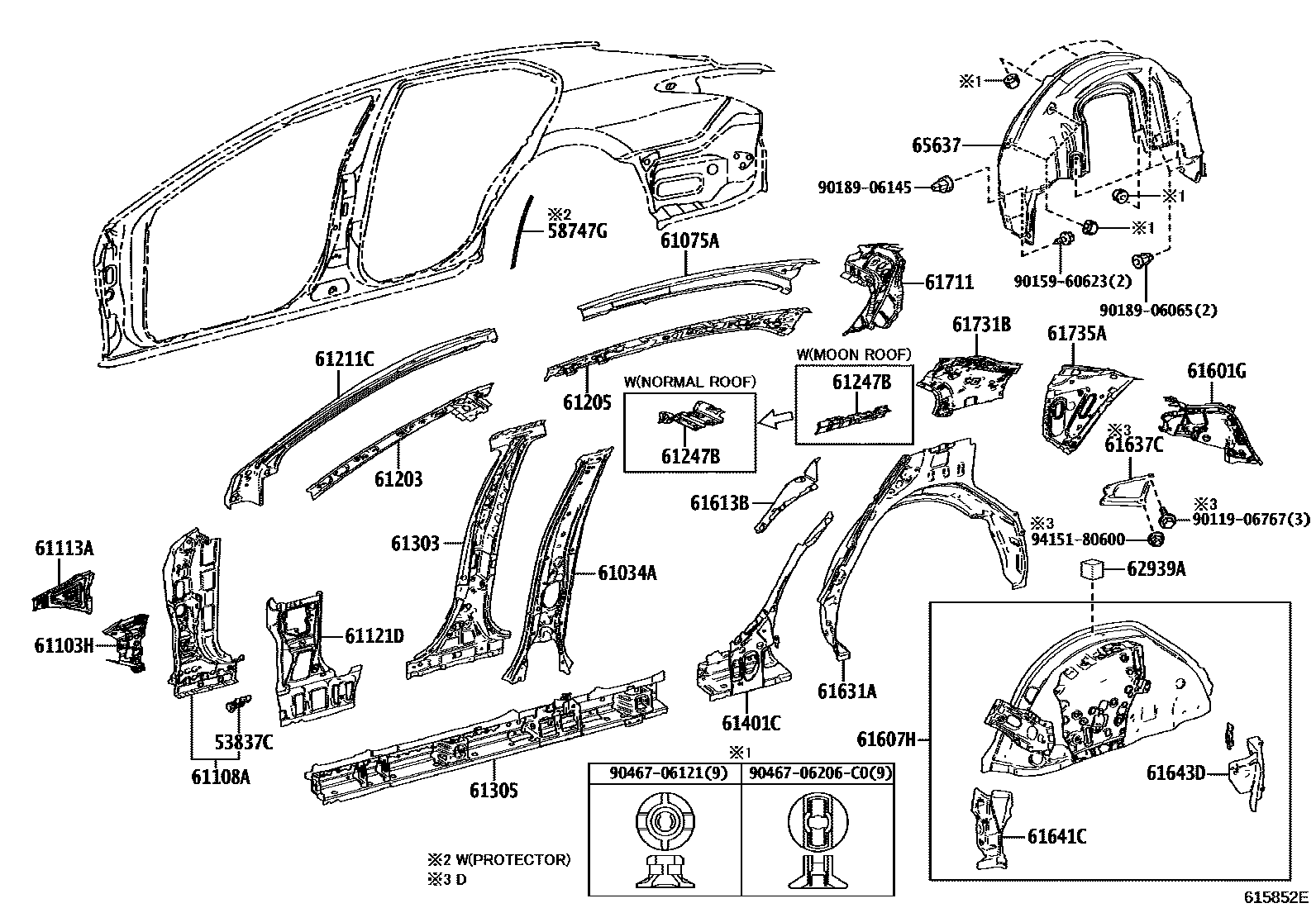

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 3 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-75020 |
| 53822B | Left front fender rear support | 53821-75020 |
| 53837C | No. 2 right front side panel bracket | 53837-33020 |
| 53838E | No. 2 left front side panel bracket | 53838-33040 |
| 58747G | Right rear side panel protector | 58747-06140 · 58747-33080 |
| 58748C | Left rear side panel protector | 58748-06140 · 58748-33090 |
| 61034A | No. 3 right inner column sub-assembly | 61034-33020 |
| 61044A | No. 3 left inner column sub-assembly | 61044-33020 |
| 61074 | Left side wheel cover bracket sub-assembly | 61074-33010 |
| 61075A | No. 3 right longitudinal beam sub-assembly on the outside | 61075-33030 · 61075-33040 |
| 61085A | No. 3 left longitudinal beam sub-assembly on the outside | 61085-33030 · 61085-33040 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61103-33080 · 61103-33081 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61104-33080 · 61104-33081 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-33220 · 61108-33230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-33220 · 61109-33230 |
| 61113A | No. 2 right outer panel | 61113-33020 · 61113-33021 |
| 61114B | No. 2 left outer panel | 61114-33020 · 61114-33021 |
| 61121D | Right front panel | 61121-33100 |
| 61122D | Left front panel | 61122-33100 |
| 61131 | Right body outer front upper pillar | 61131-06210 · 61131-33100 |
| 61132 | Left body outer front upper pillar | 61132-06210 · 61132-33100 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-33090 · 61203-33120 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-33100 · 61204-33110 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-33020 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-33020 |
| 61211C | Roof right side rail | 61211-33090 · 61211-33100 |
| 61212C | Roof left side rail | 61212-33100 · 61212-33110 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06250 · 61213-33150 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06240 · 61214-33150 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-33050 · 61247-33060 · 61247-33070 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-33040 · 61248-33050 · 61248-33060 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-33090 · 61303-33091 · 61303-33100 · 61303-33101 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-33090 · 61304-33091 · 61304-33100 · 61304-33101 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-33909 · 61305-33910 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-33907 · 61306-33908 |
| 61401C | Right door outer sill panel sub-assembly | 61401-33010 |
| 61402C | Left door outer sill sub-assembly | 61402-33020 |
| 61411 | Right door outer sill panel | 61311-06140 · 61311-33090 |
| 61412 | Left door outer sill panel | 61312-06140 · 61312-33090 |
| 61601G | SOUS-ENS. PANNEAU, COTE ARR CARROSSERIE ARR, MD | 61601-06290 · 61601-33390 |
| 61602H | SOUS-ENS. PANNEAU, COTE ARR CARROSSERIE ARR, MG | 61602-06290 · 61602-33270 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-06130 · 61607-33080 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-06130 · 61608-33080 |
| 61611 | Right side hoarding | 61601-06370 · 61601-06380 · 61601-33380 · 61601-33410 |
| 61612 | left side panel | 61602-06370 · 61602-06380 · 61602-33260 · 61602-33290 |
| 61613B | Right front side panel inner panel | 61613-33020 |
| 61614B | Left front side panel inner panel | 61614-33020 |
| 61631A | Right wheel cover outer panel | 61631-06250 · 61631-33090 |
| 61632A | Left side wheel cover outer panel | 61632-06904 · 61632-33904 |
| 61637C | No. 2 right side wheel cover bracket | 61637-33050 |
| 61638C | No. 2 left side wheel cover bracket | 61638-33040 |
| 61641C | Right front side wheel housing corner panel | 61641-33090 |
| 61642C | Left front side wheel housing corner panel | 61642-33090 |
| 61643D | No. 1 right side wheel cover lining | 61643-33070 |
| 61644C | No. 1 left wheel housing lining | 61644-33060 |
| 61711 | Roof right side outer panel | 61711-33090 |
| 61712 | Roof left outer panel | 61712-33110 |
| 61731B | Roof right inner panel | 61731-33160 |
| 61732B | Roof left inner panel | 61732-33150 |
| 61735A | Right rear roof inner panel | 61735-33120 · 61735-33140 |
| 61736A | Left rear roof inner panel | 61736-33120 · 61736-33140 |
| 62939A | Side ventilation silencers | 62939-33020 · 62939-33030 |
| 65565 | Right side panel rear end lining | 65565-33050 |
| 65566 | Left side panel rear end lining | 65565-33050 |
| 65637 | Right rear wheel house lining | 65637-06290 · 65637-33080 · 65637-33110 |
| 65638 | Left rear wheel house lining | 65638-06290 · 65638-33080 · 65638-33110 |
