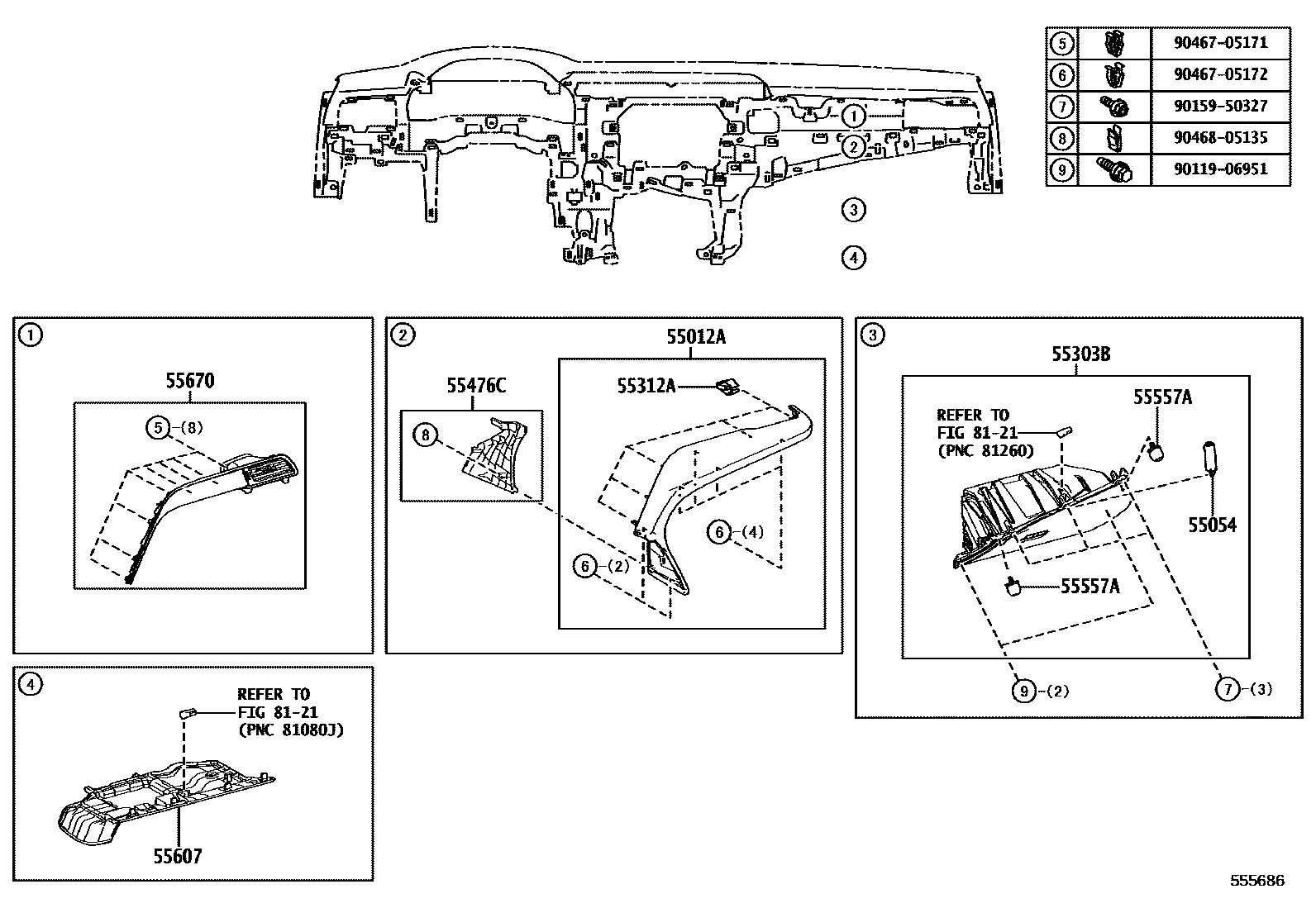

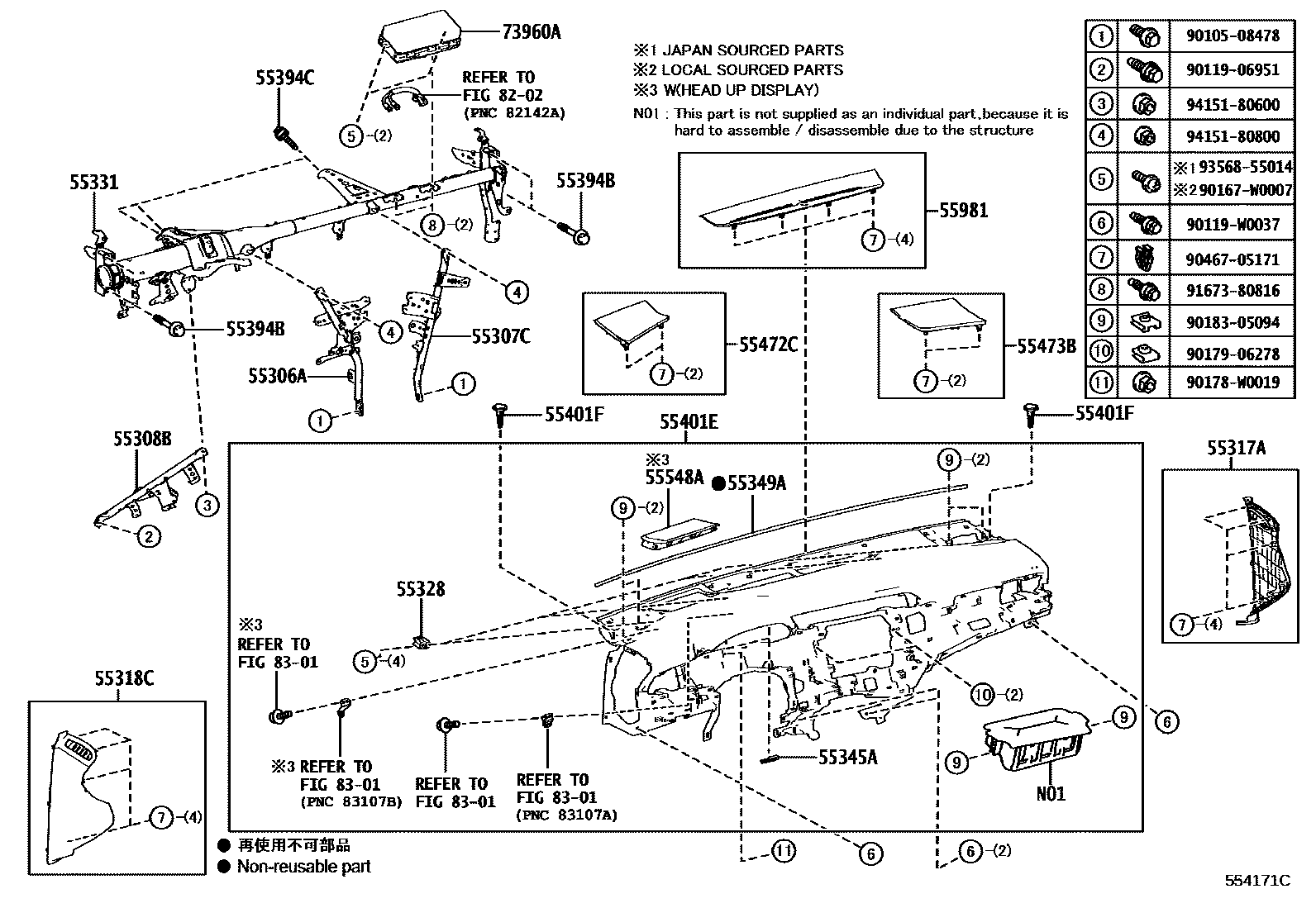

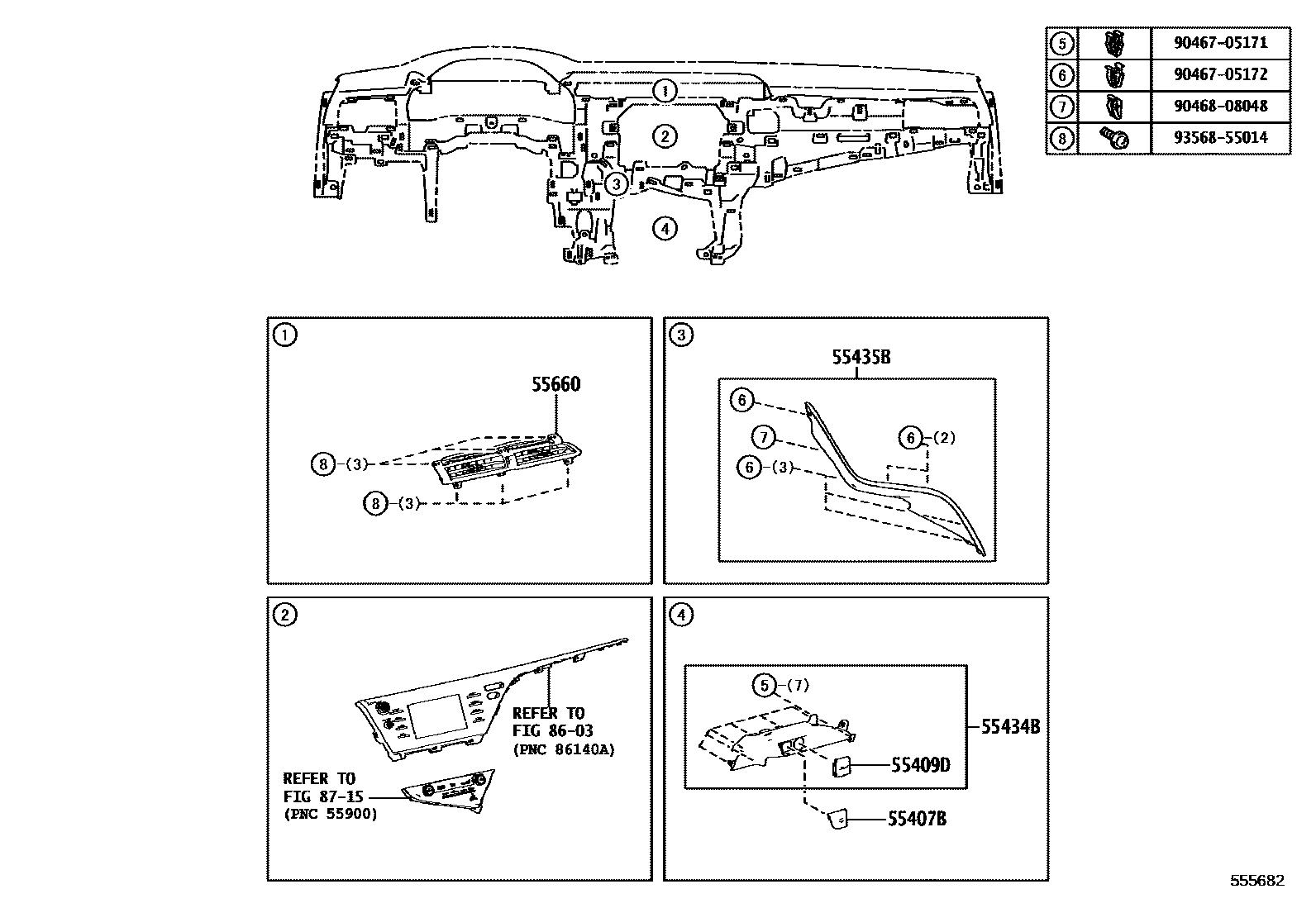

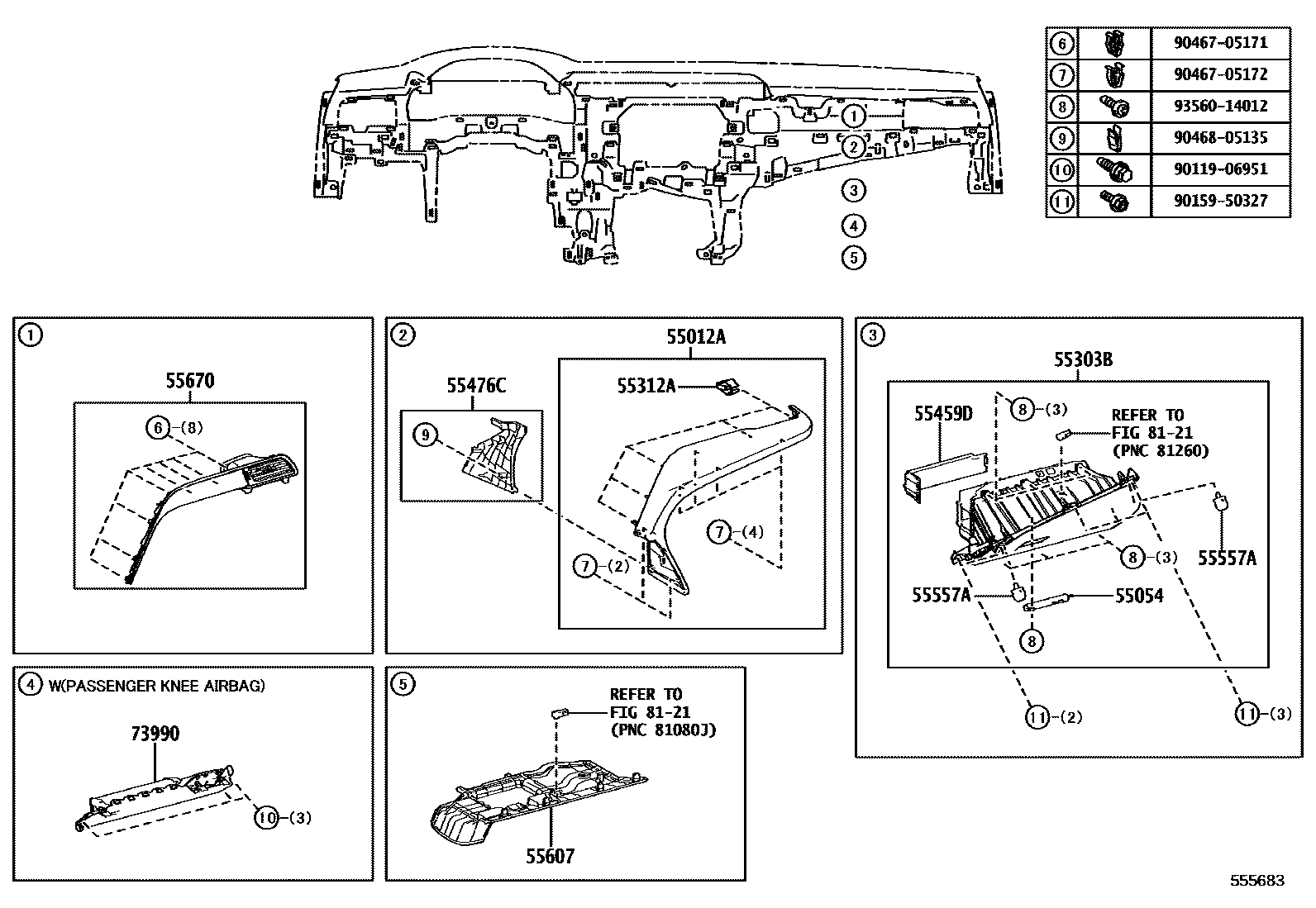

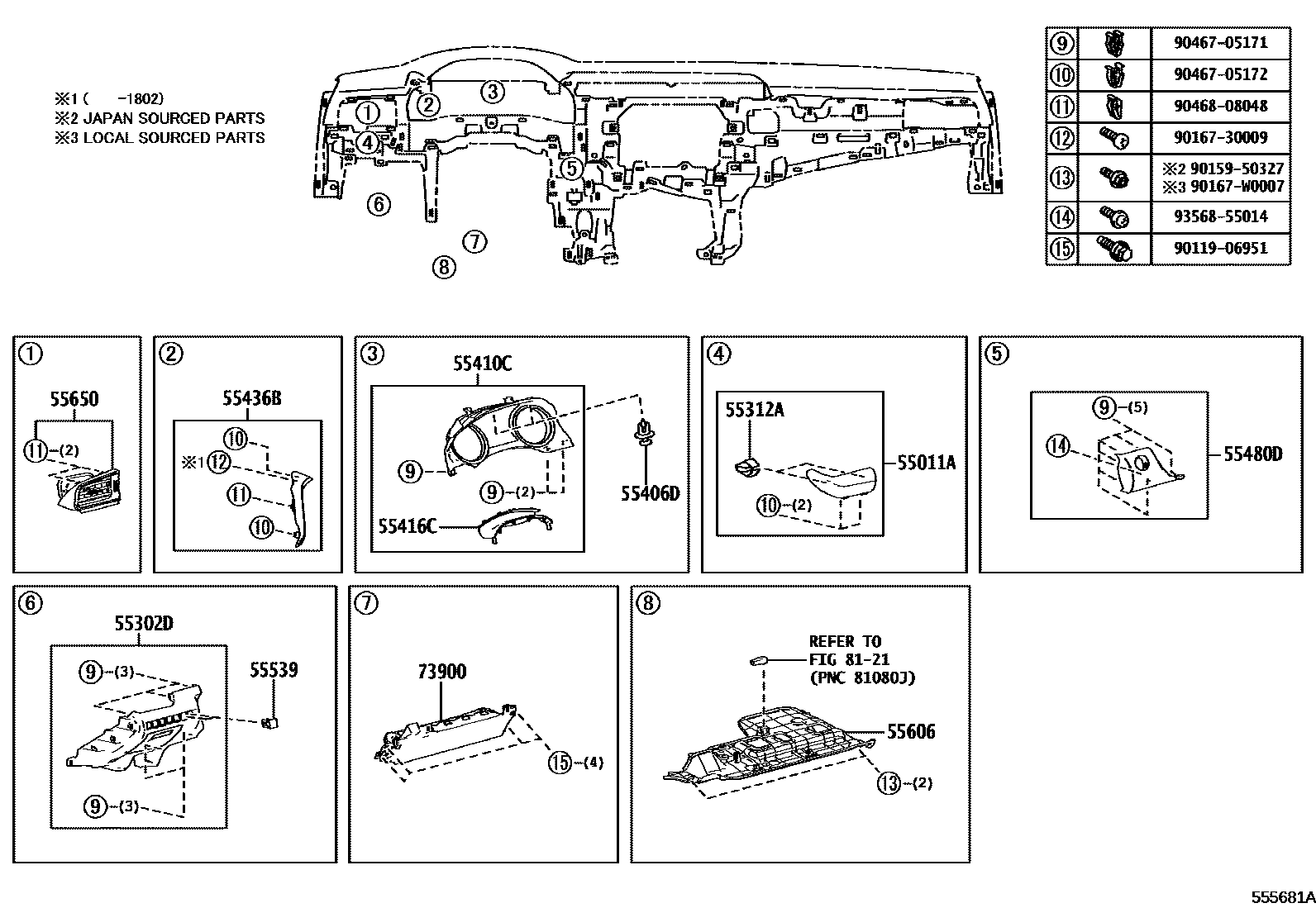

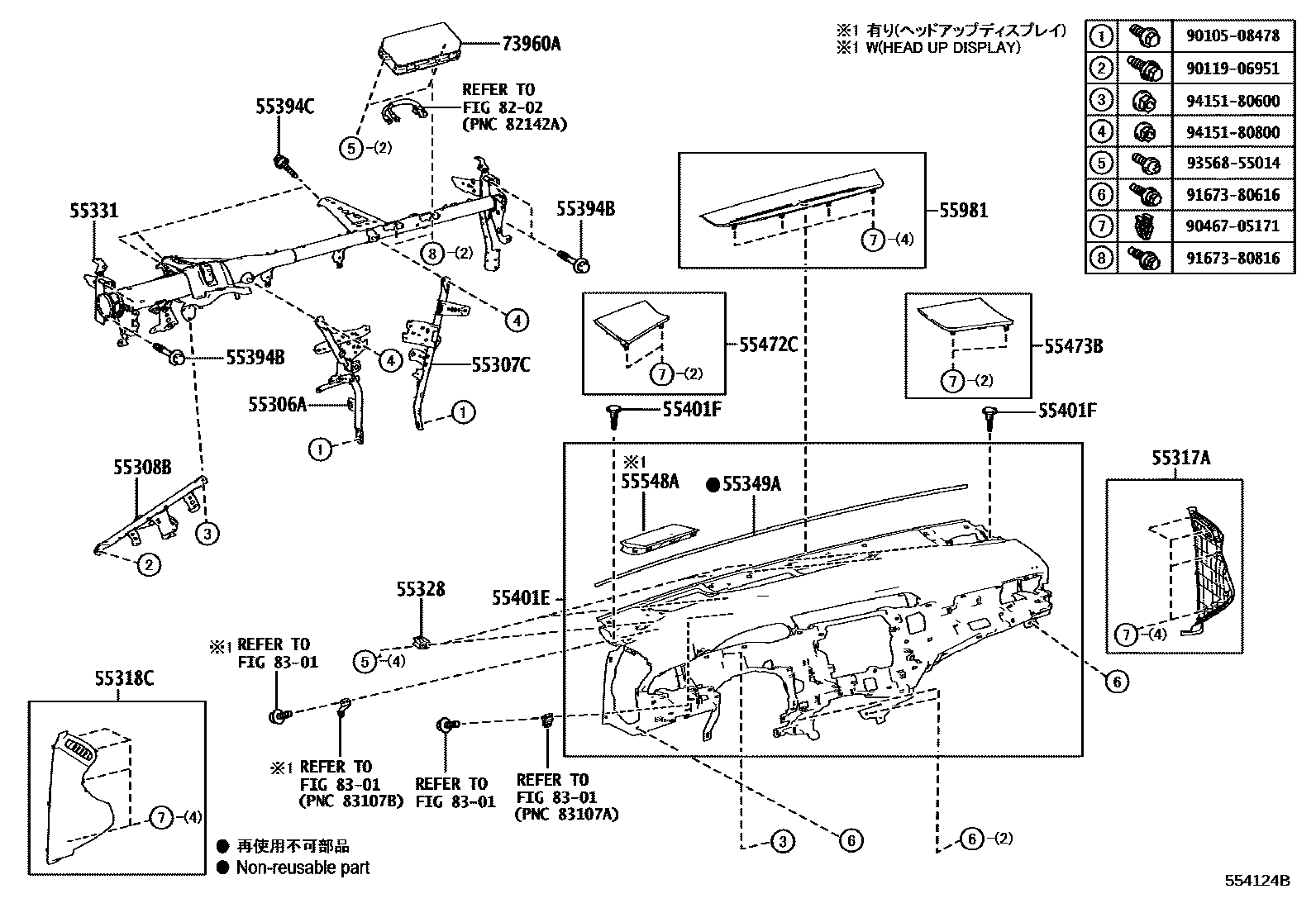

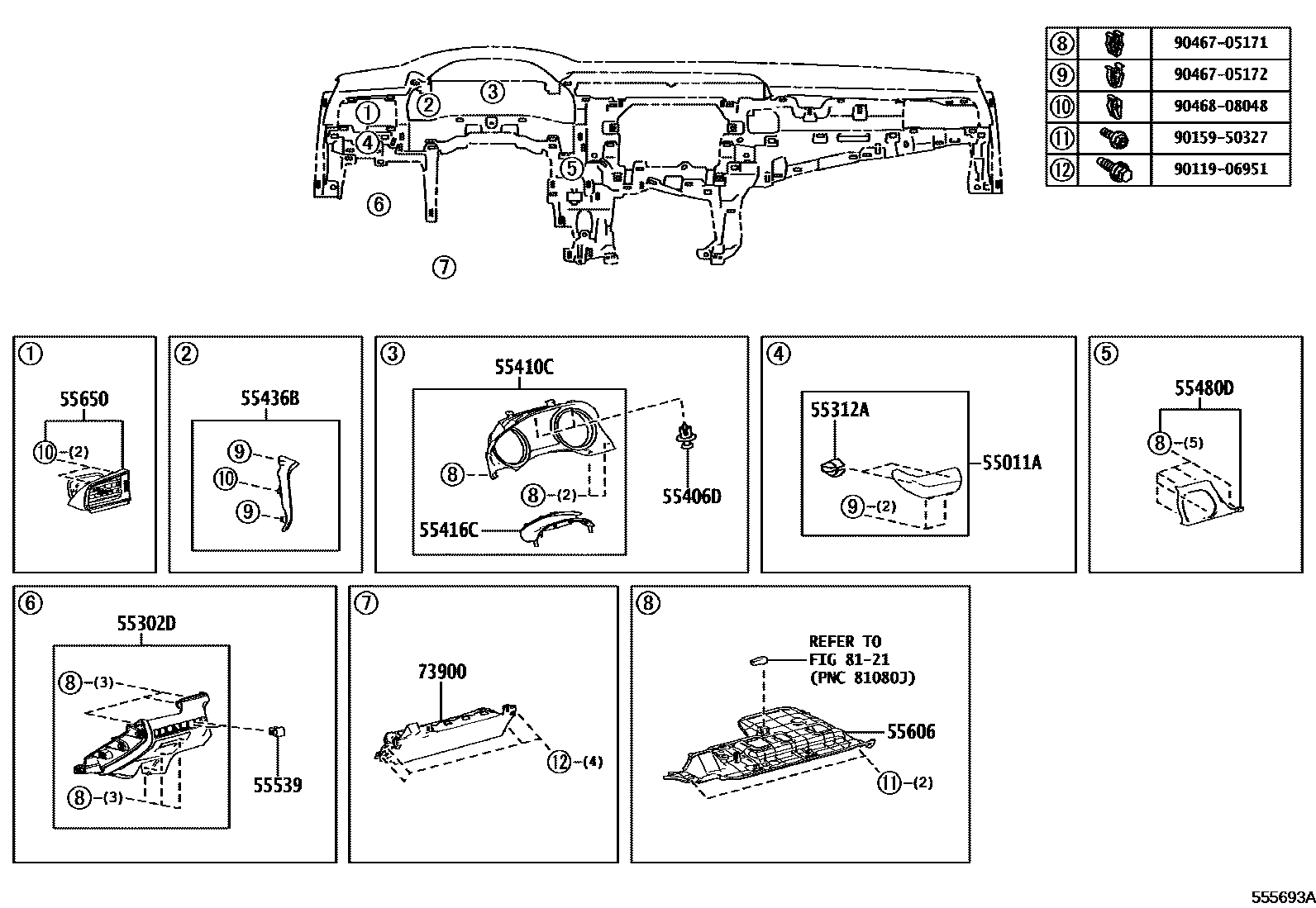

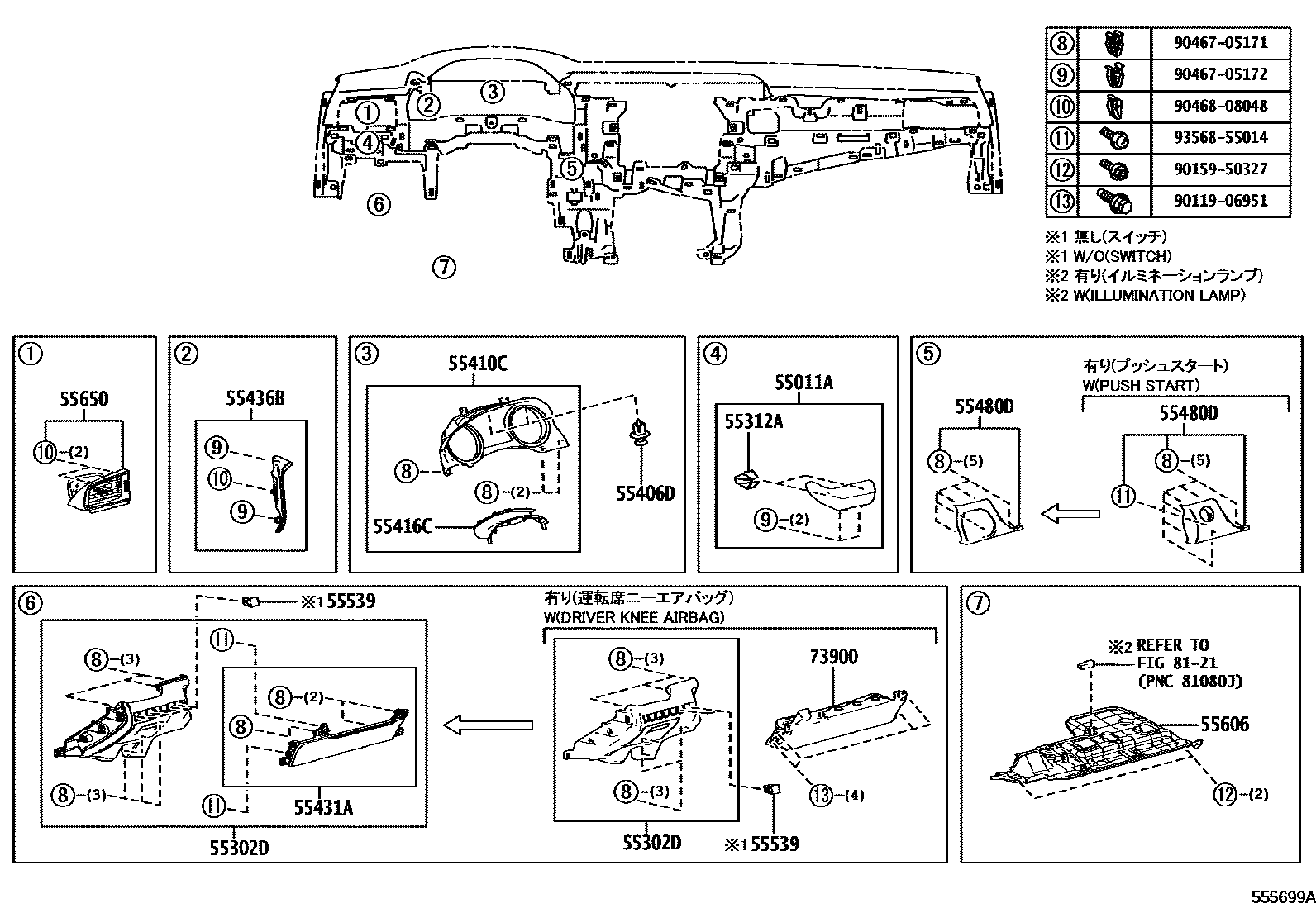

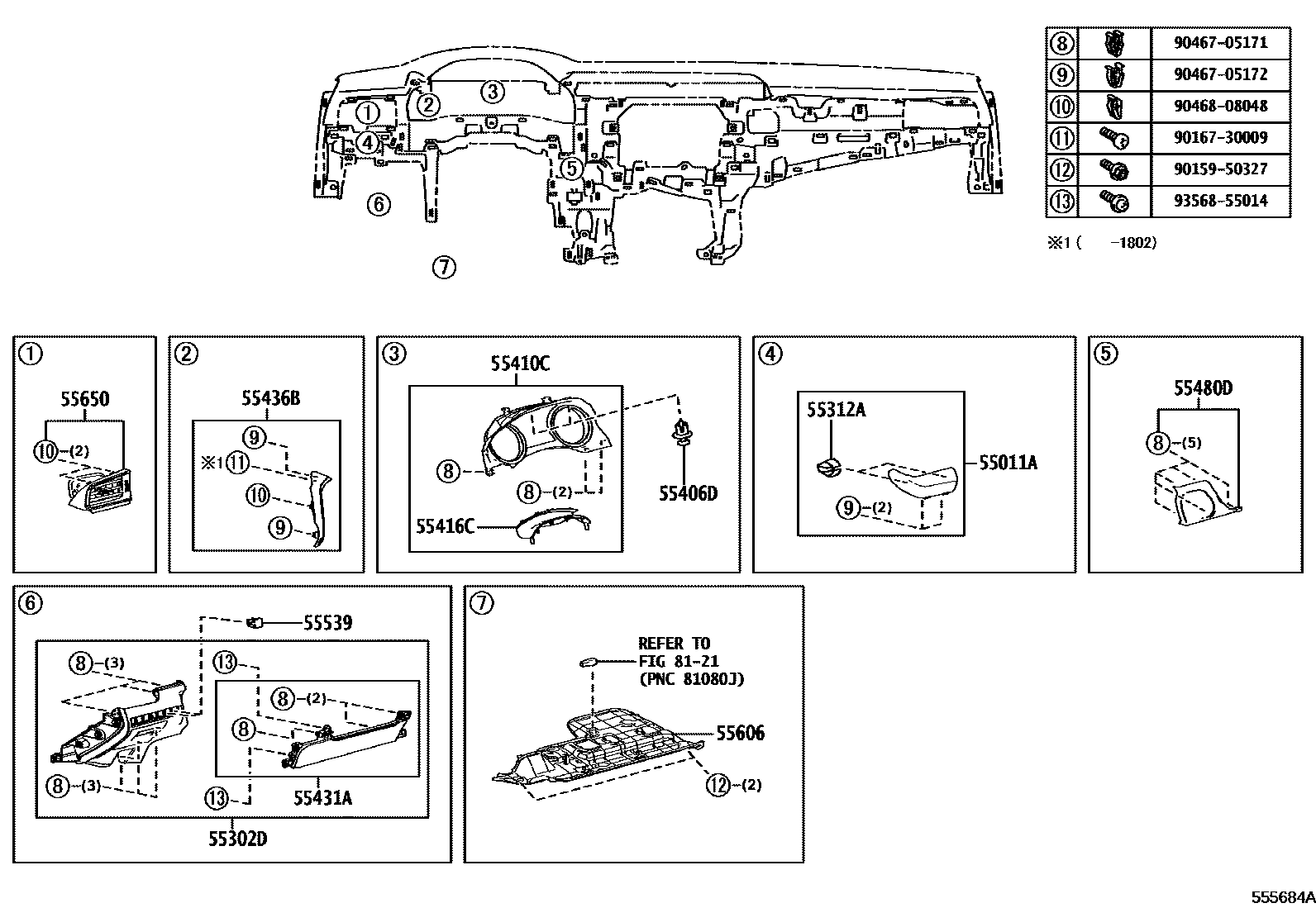

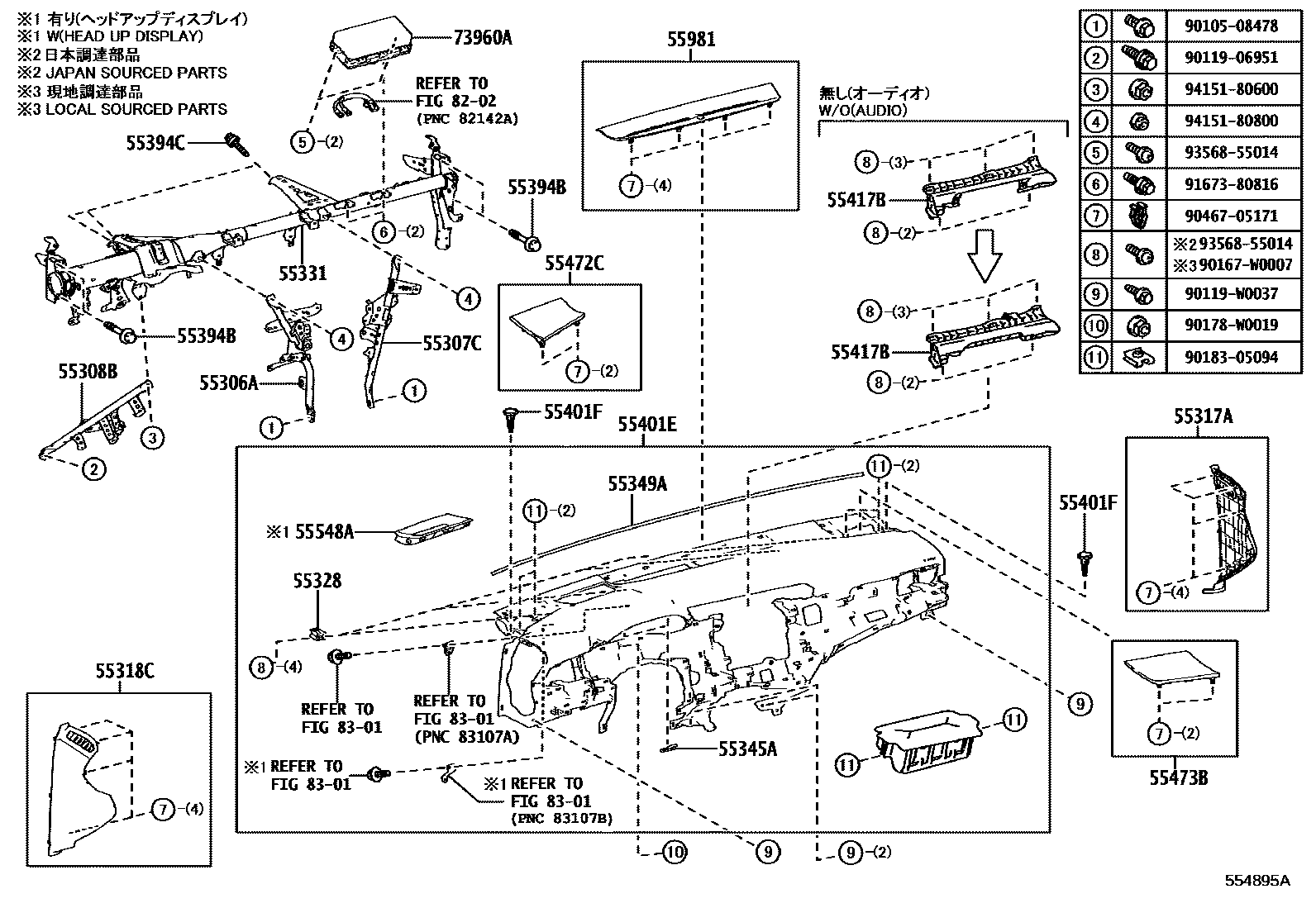

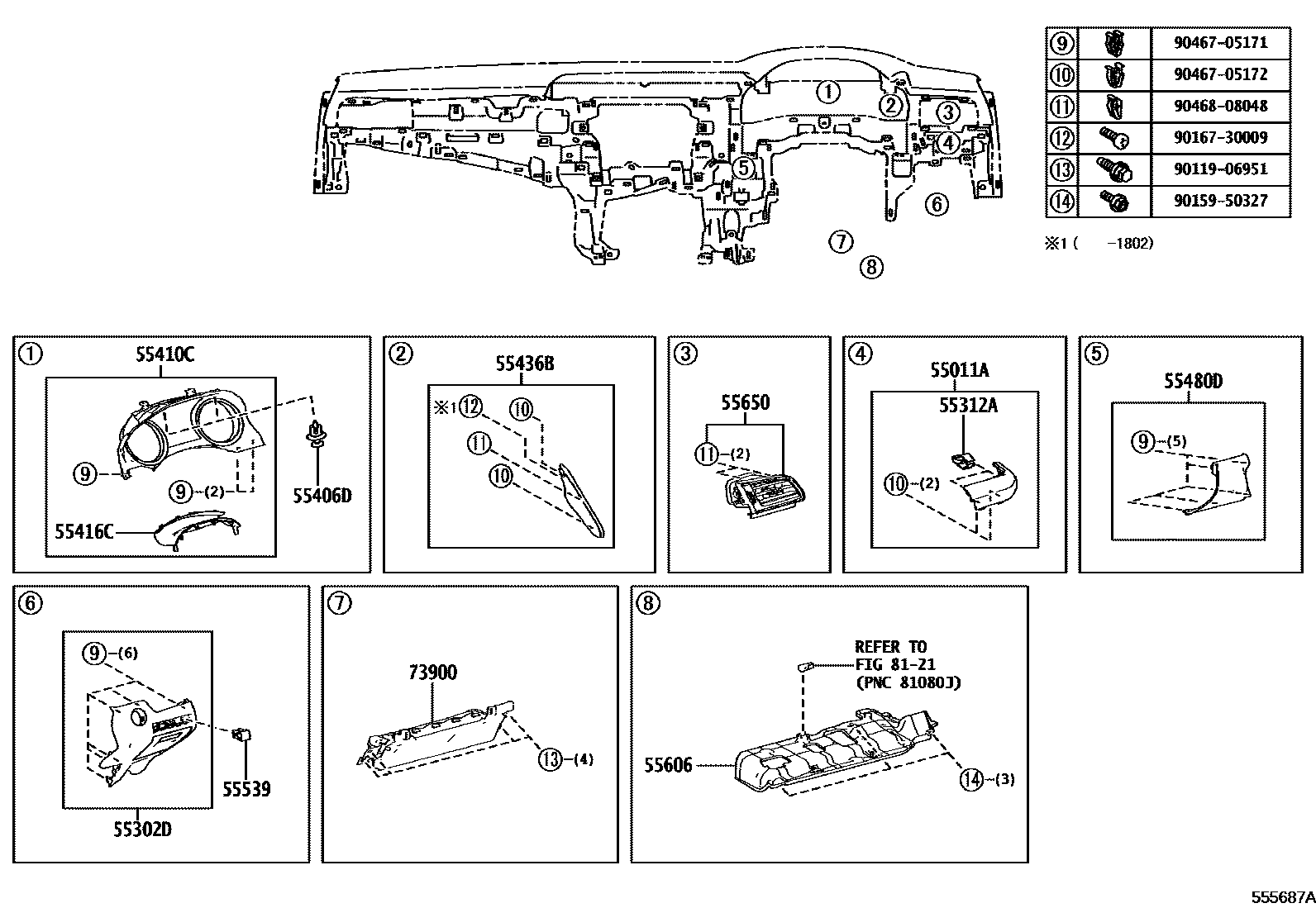

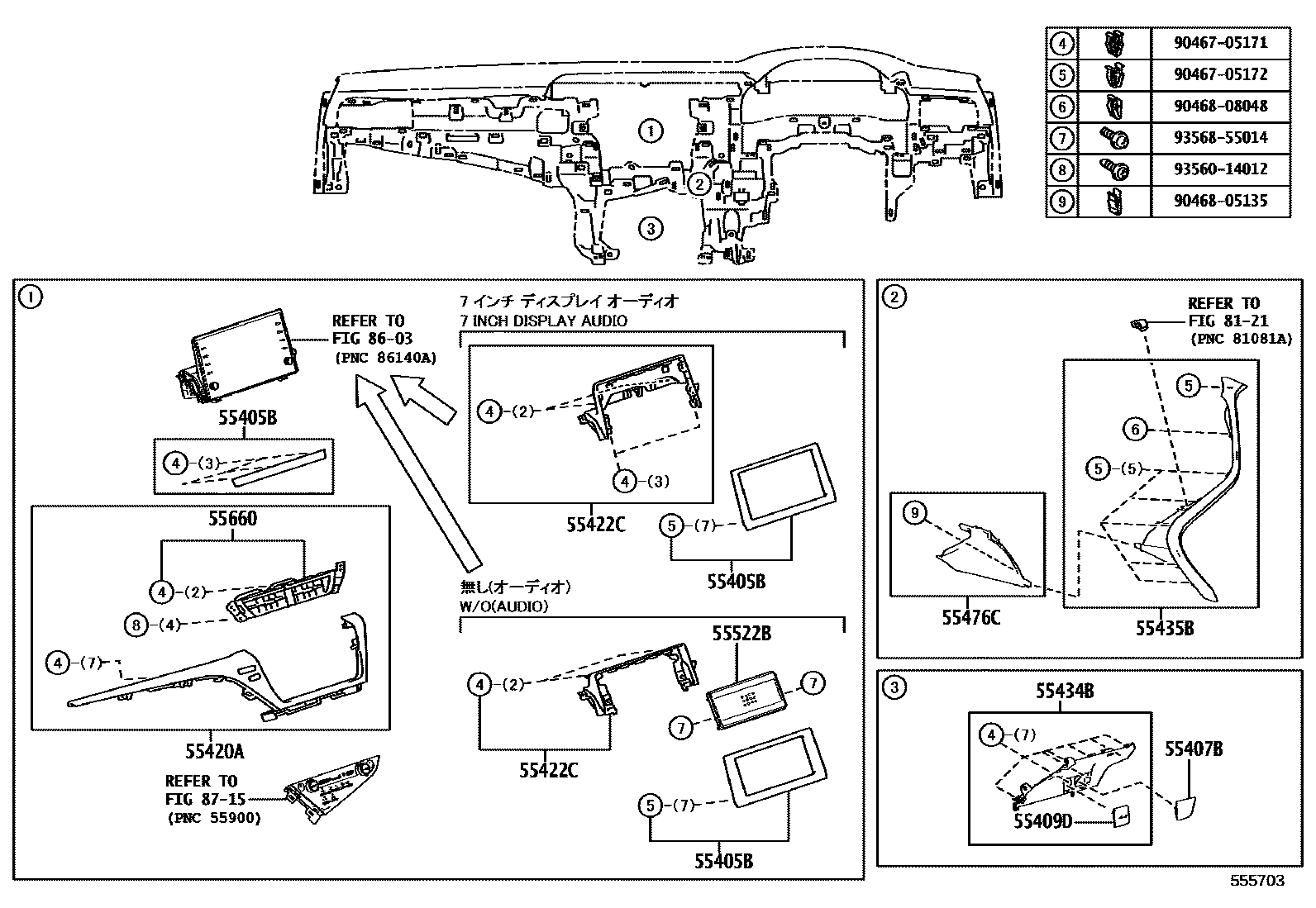

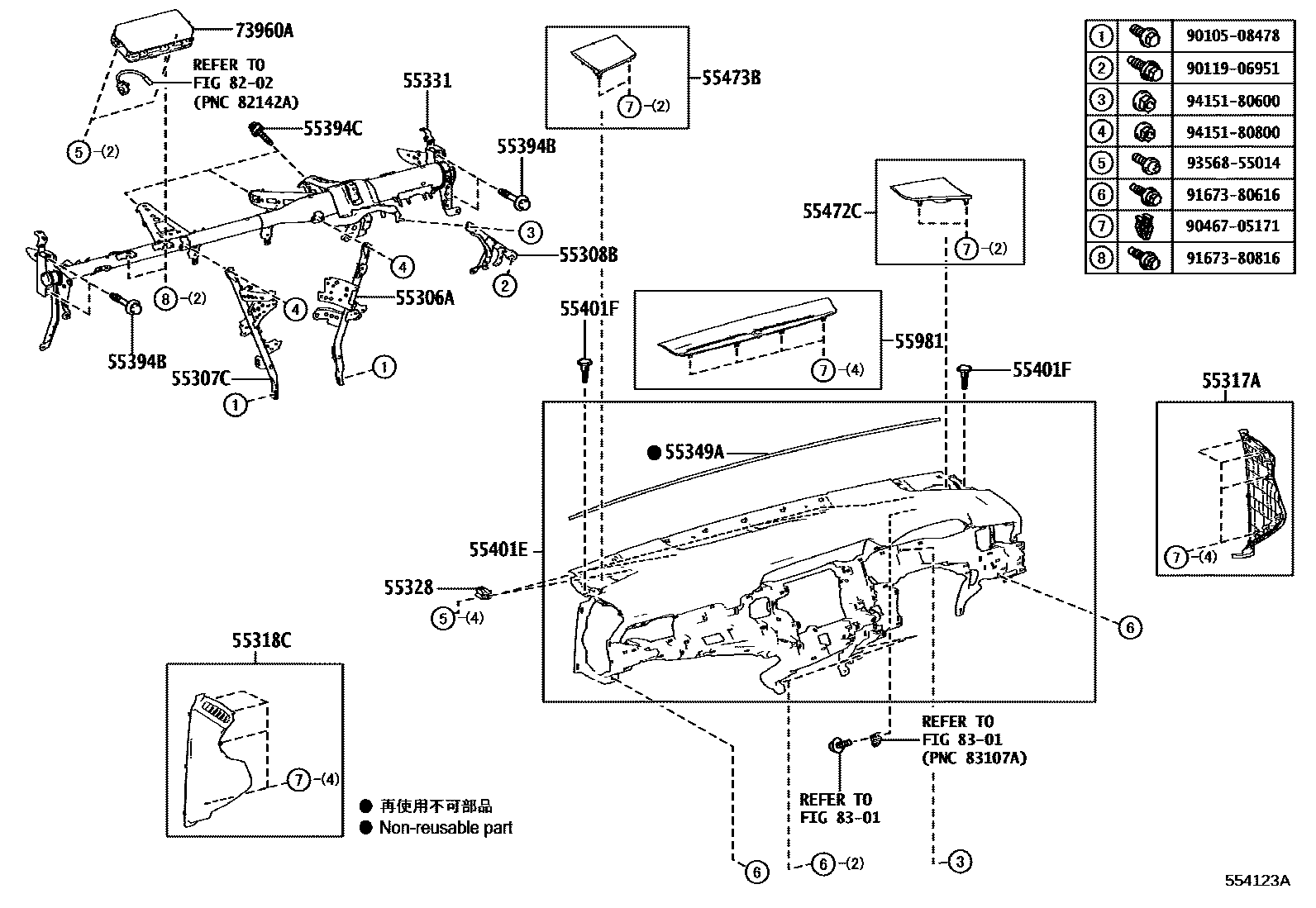

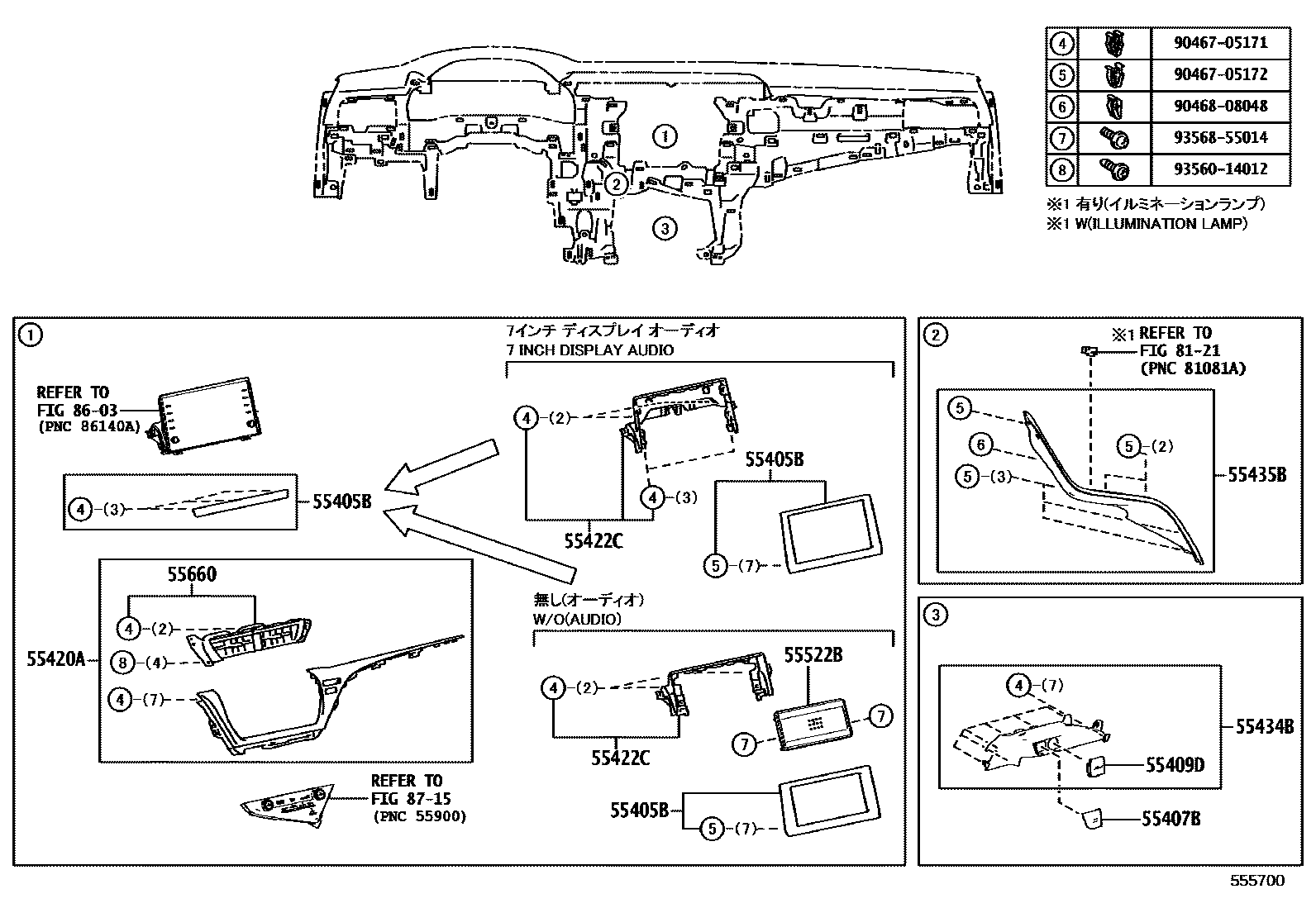

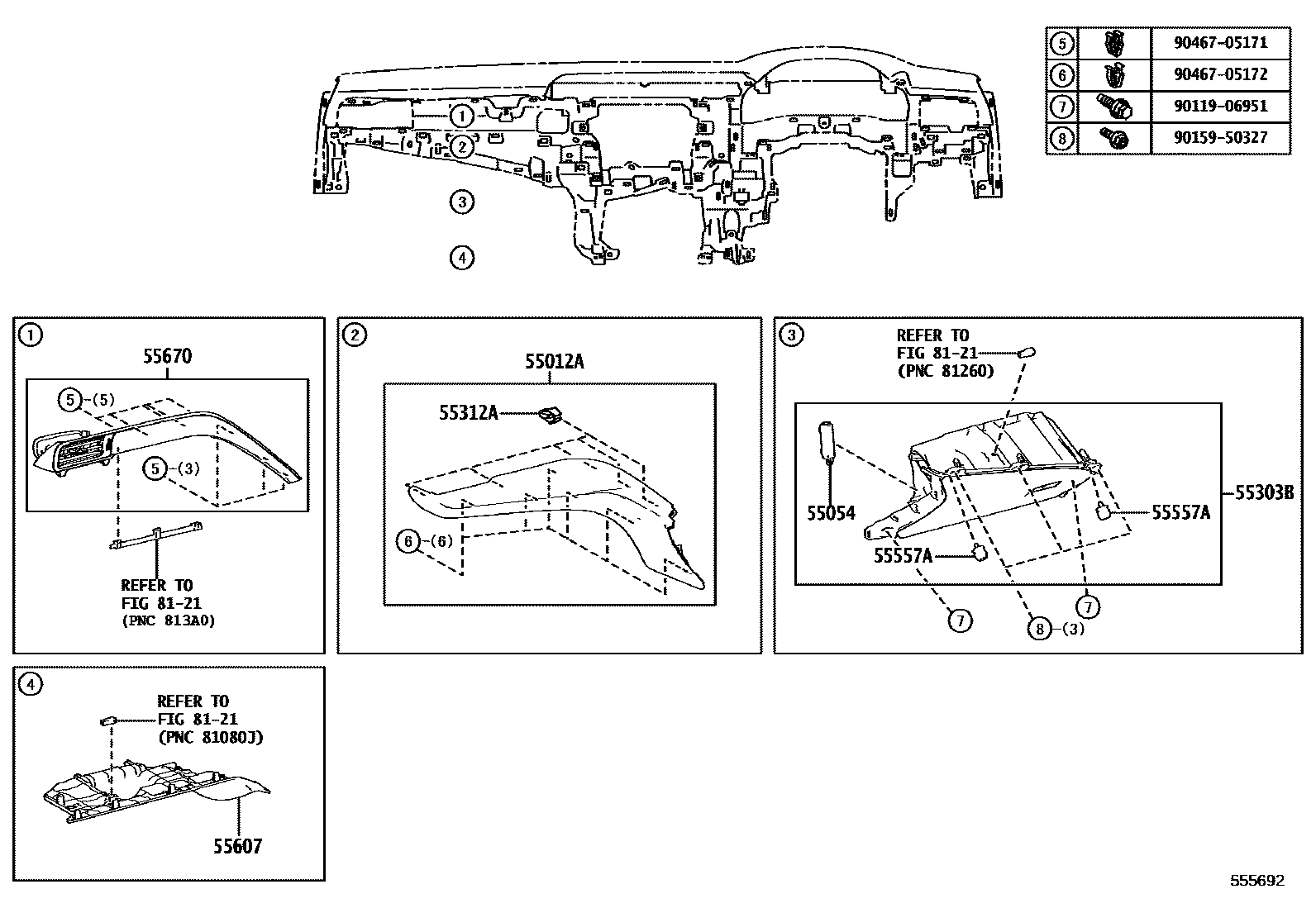

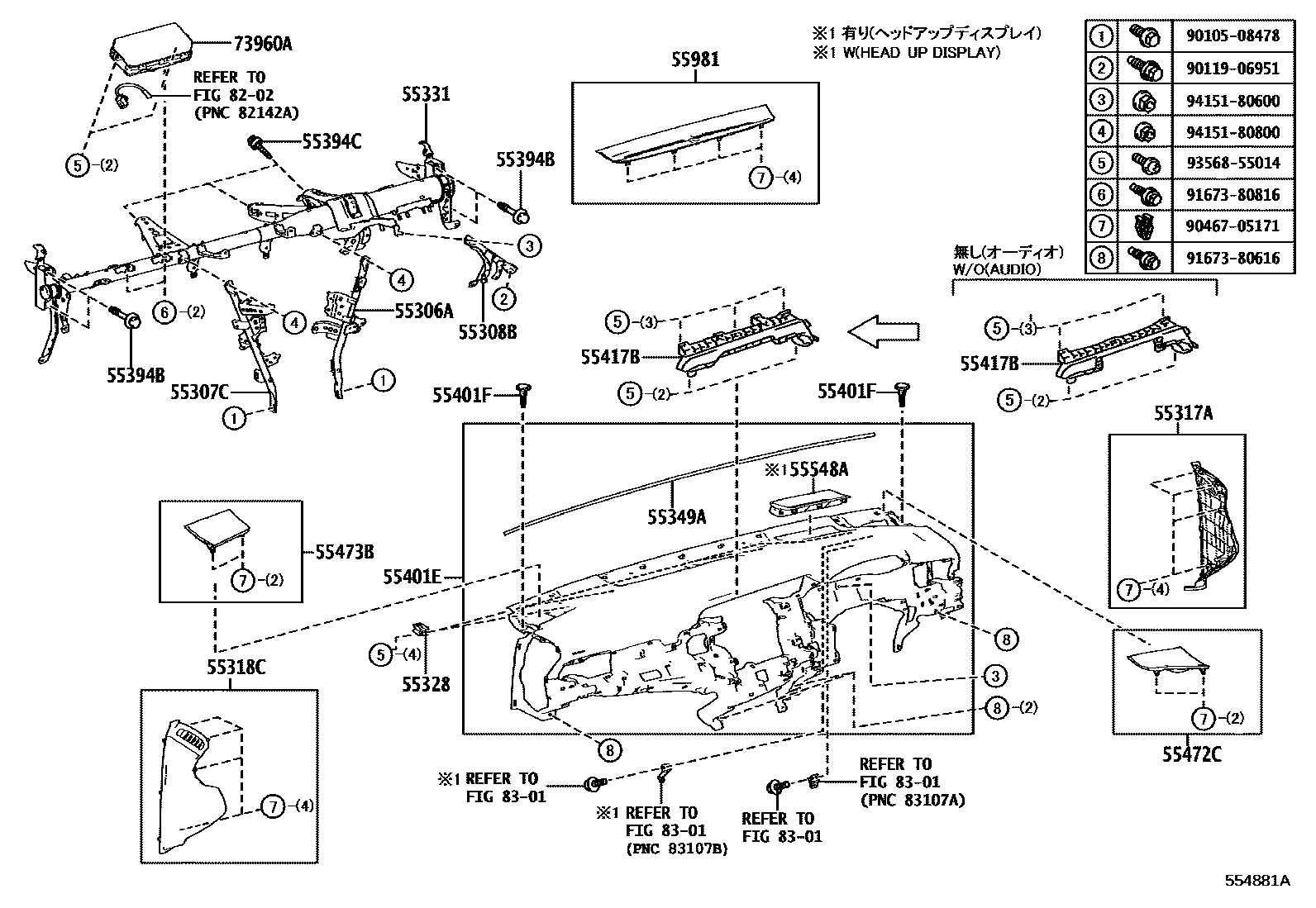

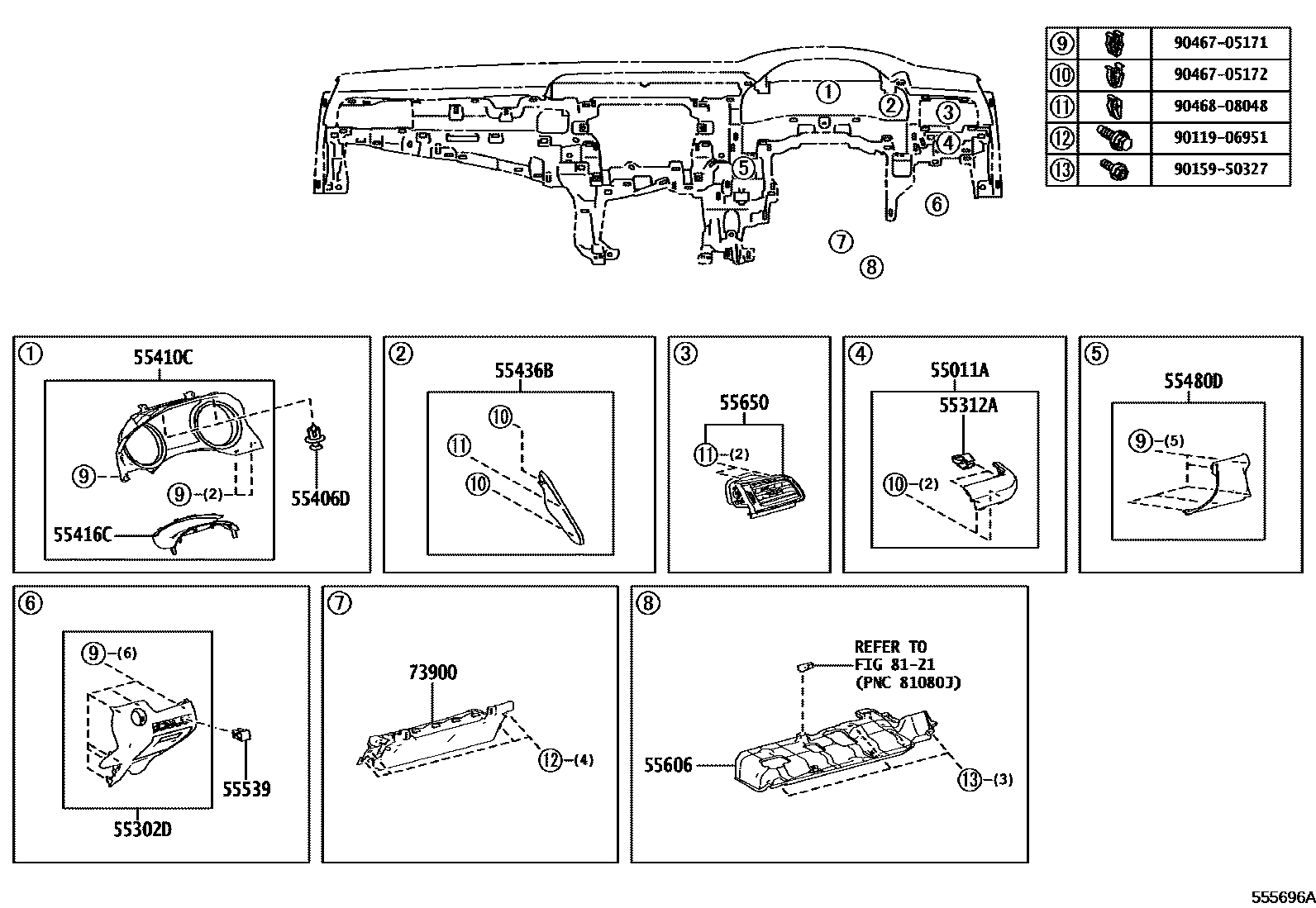

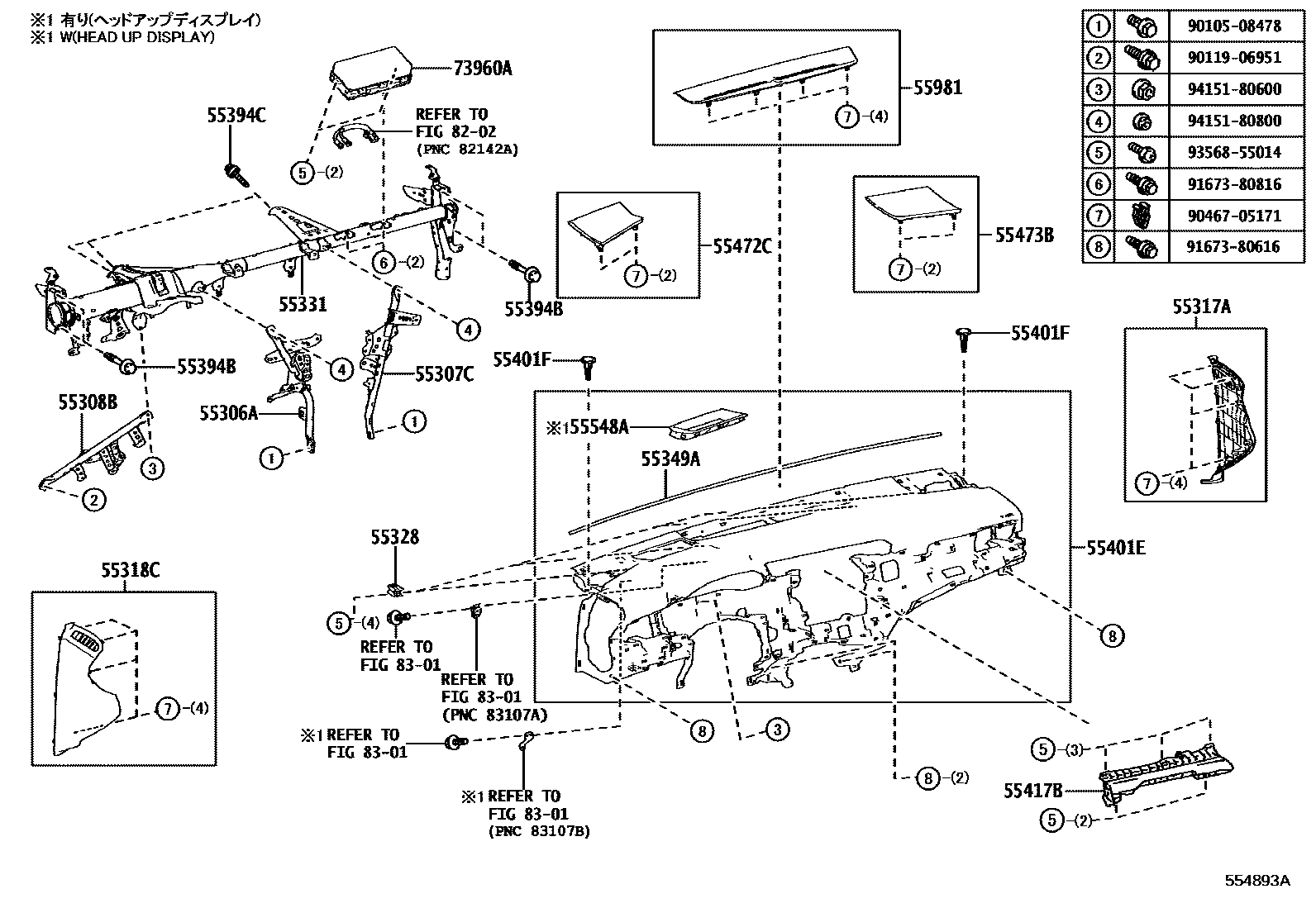

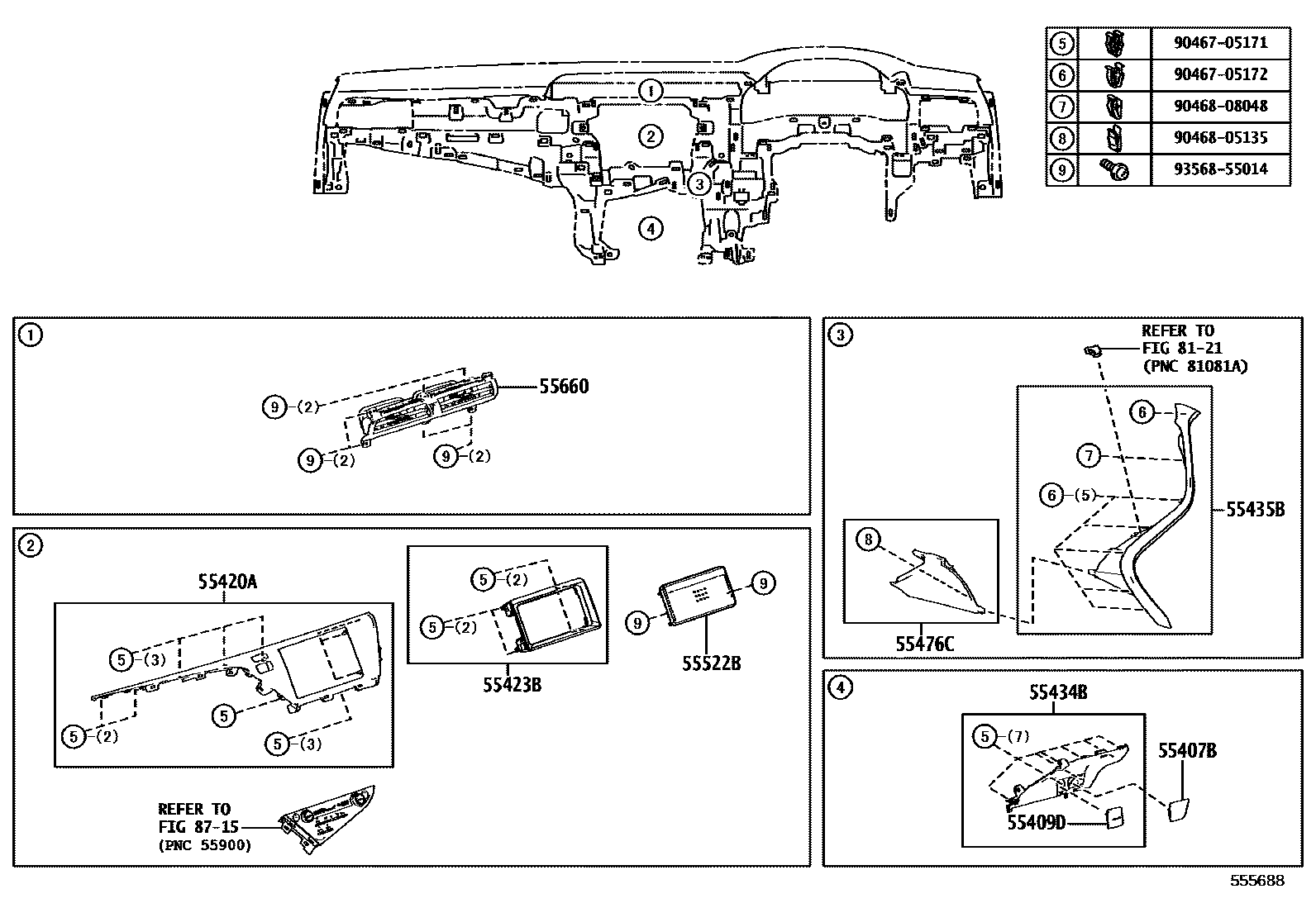

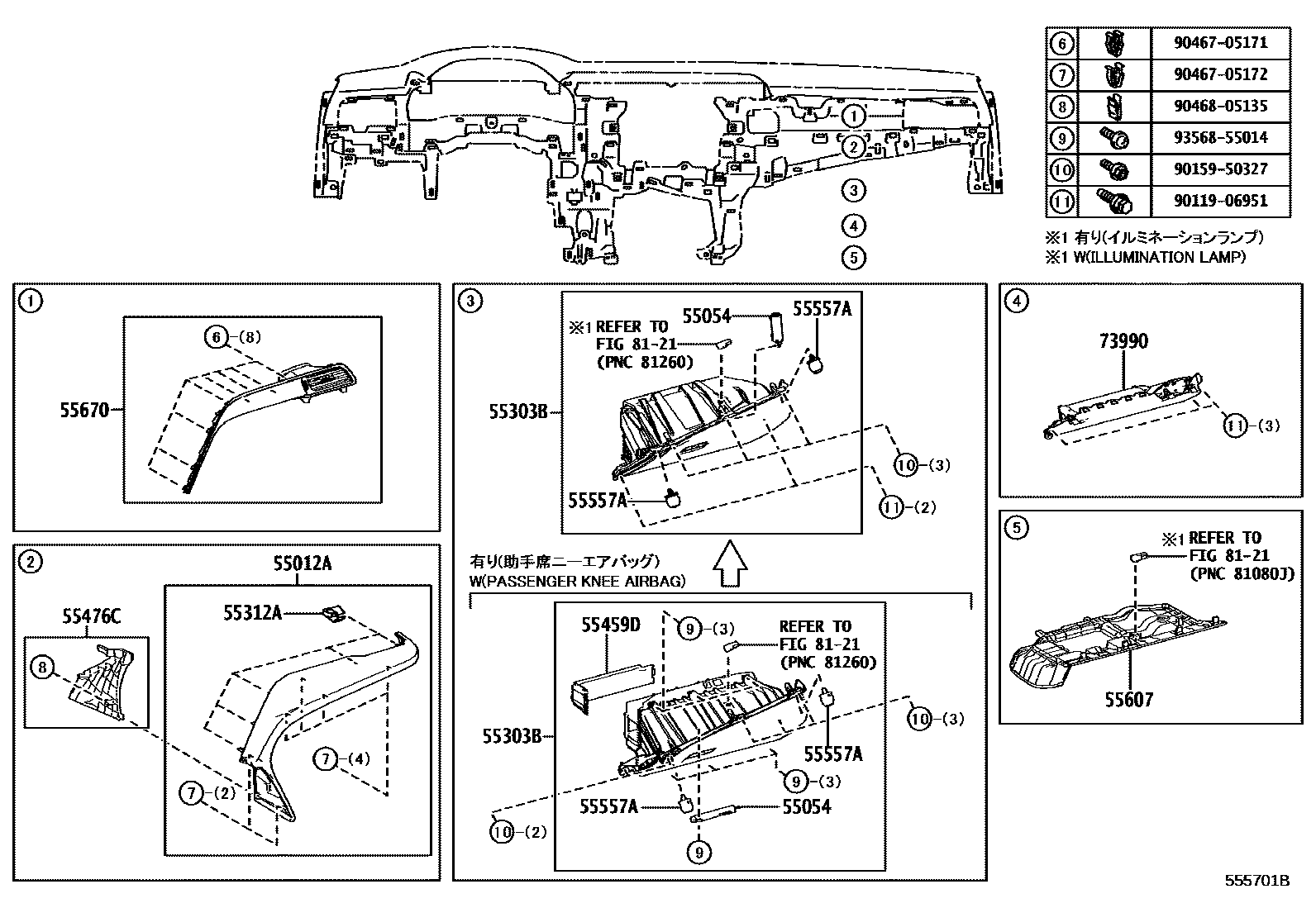

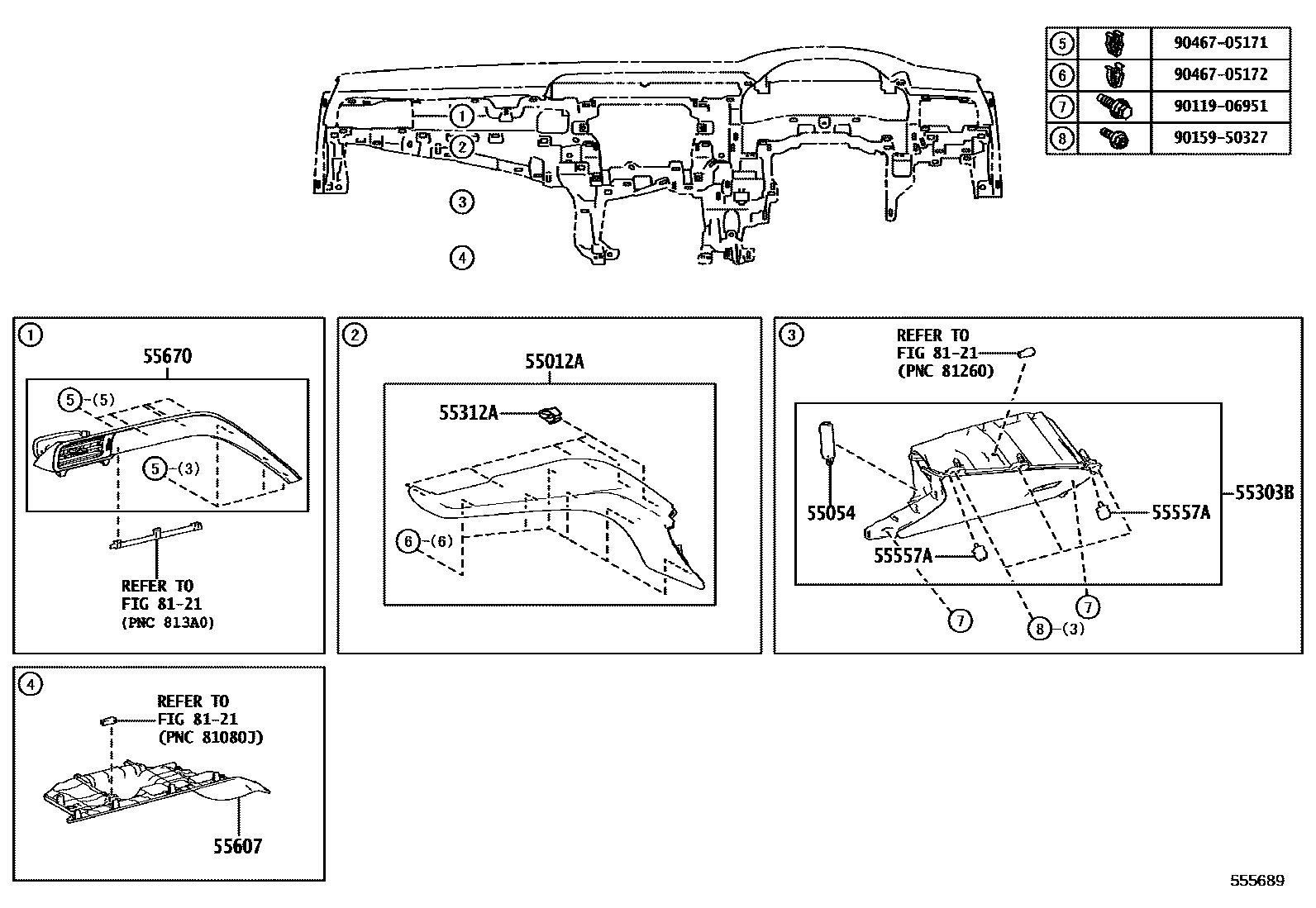

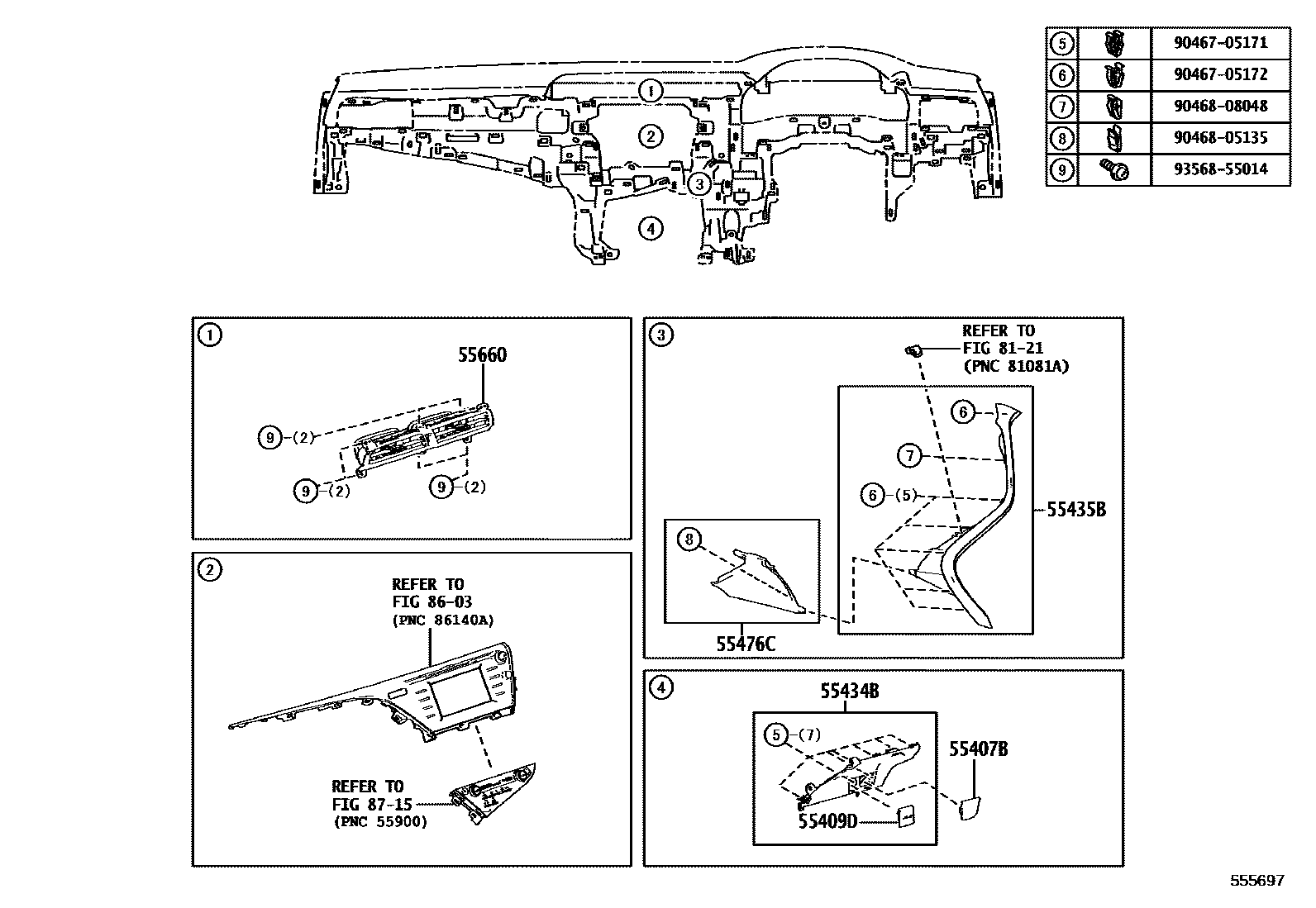

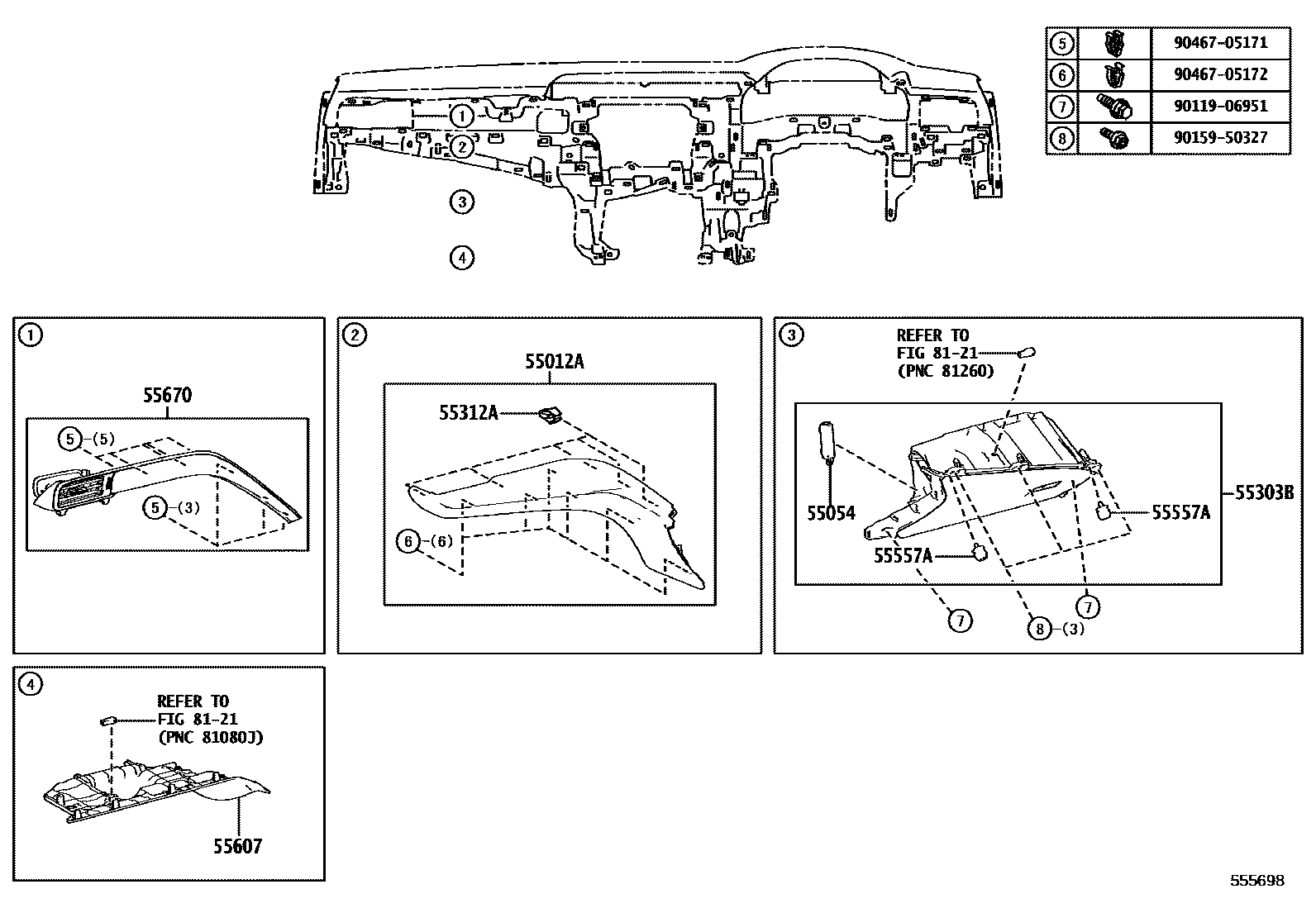

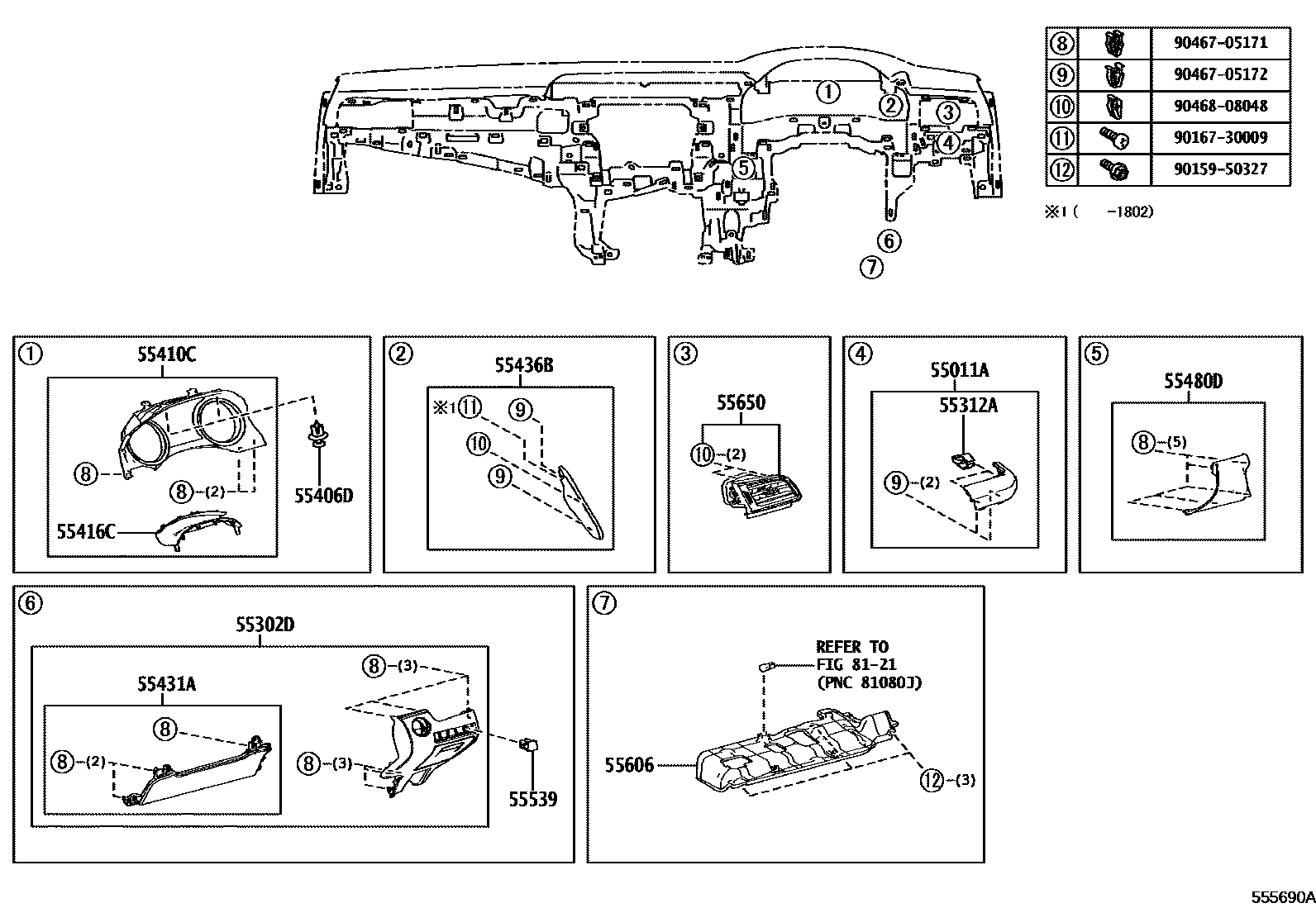

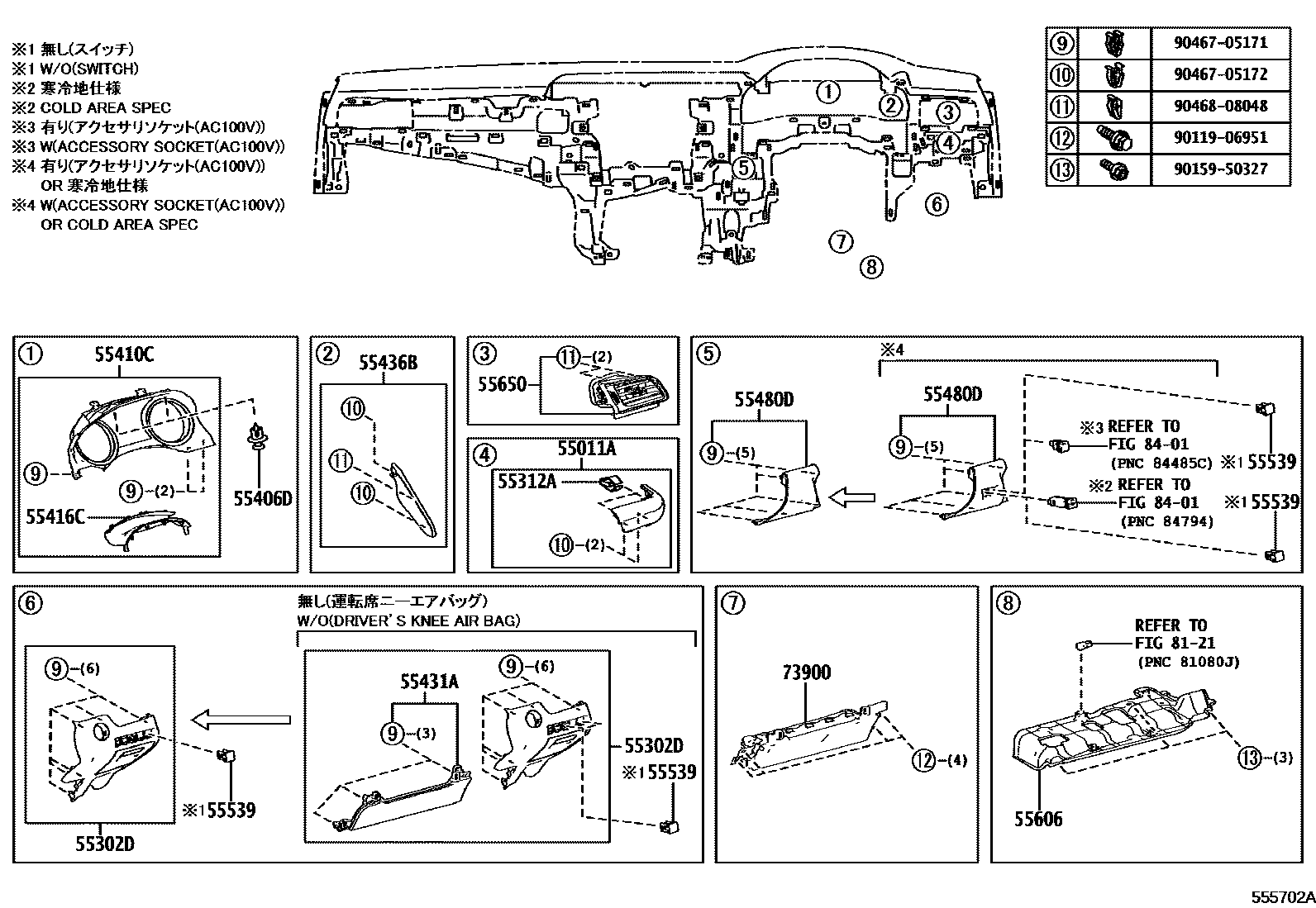

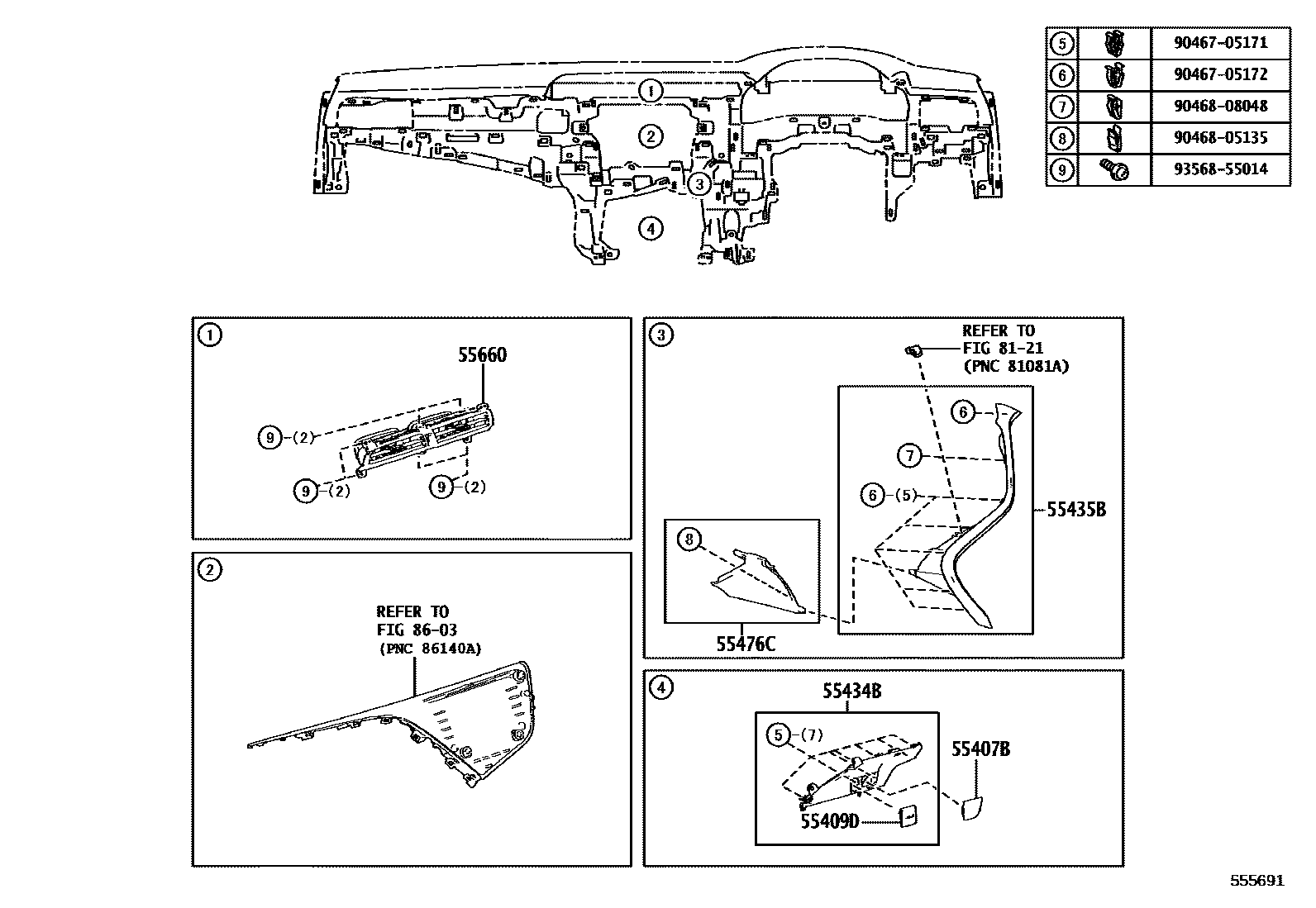

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 30 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33140 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-33160 · 55306-33170 · 55306-33200 · 55306-33210 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33190 · 55307-33200 · 55307-33230 · 55307-33231 · 55307-33240 · 55307-33241 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-33150 · 55308-33160 |
| 55317A | Dashboard right panel | 55317-33170 · 55317-33230 |
| 55318C | Dashboard left panel | 55318-33140 · 55318-33200 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-33430 · 55330-33440 · 55330-33470 · 55330-33480 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-33060 |
| 55394B | Dashboard bolts | 90105-08473 |
| 55394C | Dashboard bolts | 90119-08D16 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-33330 · 55405-33340 · 55405-33390 |
| 55410C | Instrument cluster decorative panel assembly | 55410-33080 · 55410-33090 · 55410-33120 · 55410-33130 |
| 55416C | Instrument cluster decorative panel fixings | 55416-33070 · 55416-33080 · 55416-33110 · 55416-33120 |
| 55417B | Radio tuner trim panel fixing | 55417-33030 · 55417-33060 · 55417-33070 · 55417-33080 · 55417-33090 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-33060 · 55420-33070 · 55420-33080 |
| 55422C | Center instrument cluster upper decorative panel | 55422-33070 · 55422-33080 · 55422-33090 · 55422-33100 |
| 55423B | Instrument cluster decorative panel cover | 55424-33050 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-33100 · 55435-33110 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-33100 · 55436-33110 |
| 55459D | Instrument panel lower left cover | 55459-33070 |
| 55472C | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.1 | 55472-33231 · 55472-33280 |
| 55473B | PANNEAU, HAUT-PARLEUR DE TABLEAU DE BORD, NO.2 | 55473-33101 · 55473-33130 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55548A | Dashboard hole cover | 55548-33130 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06170 · 55606-33030 · 55606-33040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06440 · 55607-33170 · 55607-33171 · 55607-33190 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-33440 · 55650-33450 · 55650-33451 · 55650-33500 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-33280 · 55660-33290 · 55660-33350 · 55660-33360 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-33540 · 55670-33550 · 55670-33560 · 55670-33570 · 55670-33580 · 55670-33590 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33160 · 55981-33171 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33160 · 73960-33170 · 73960-33180 · 73960-33290 |
