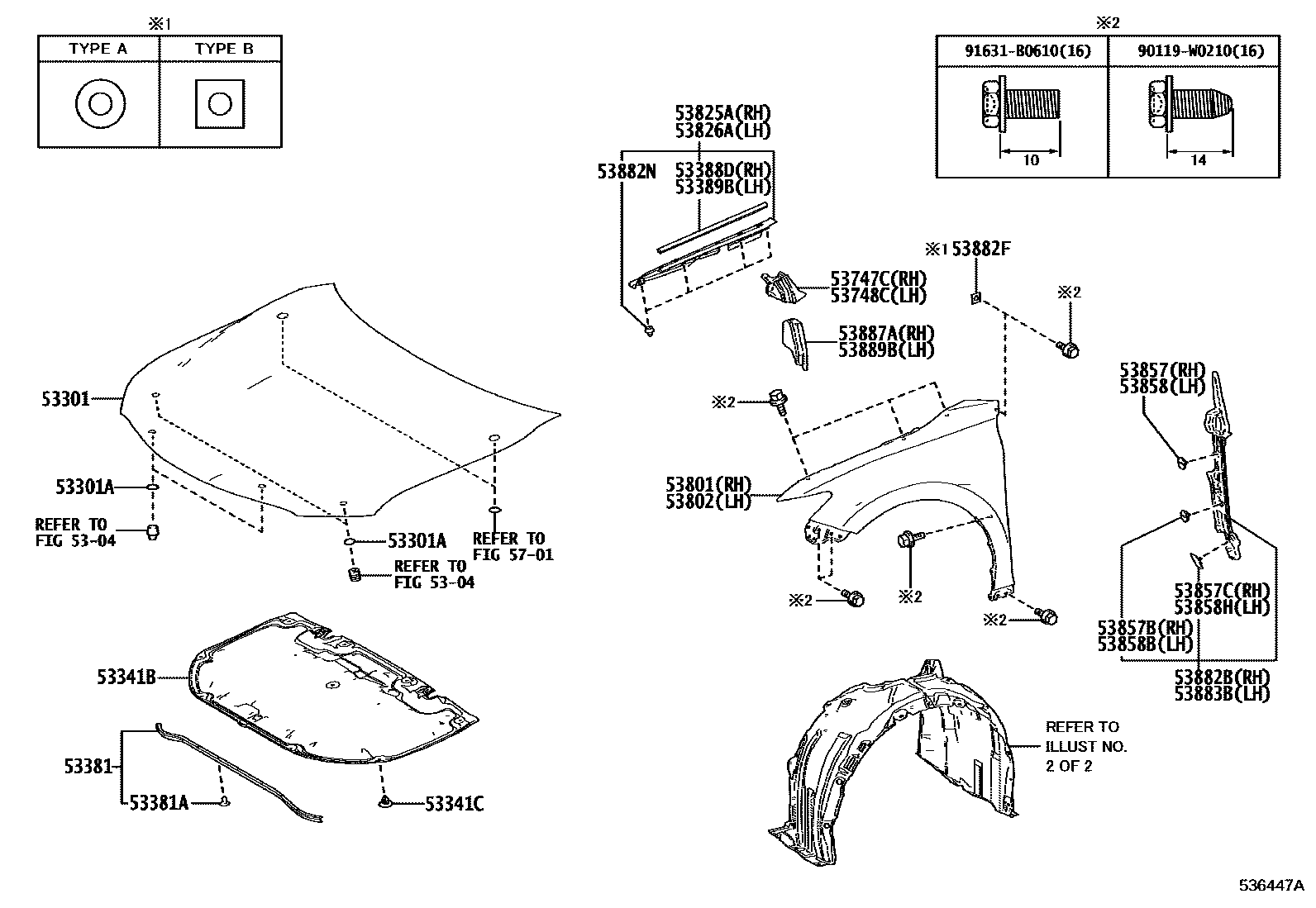

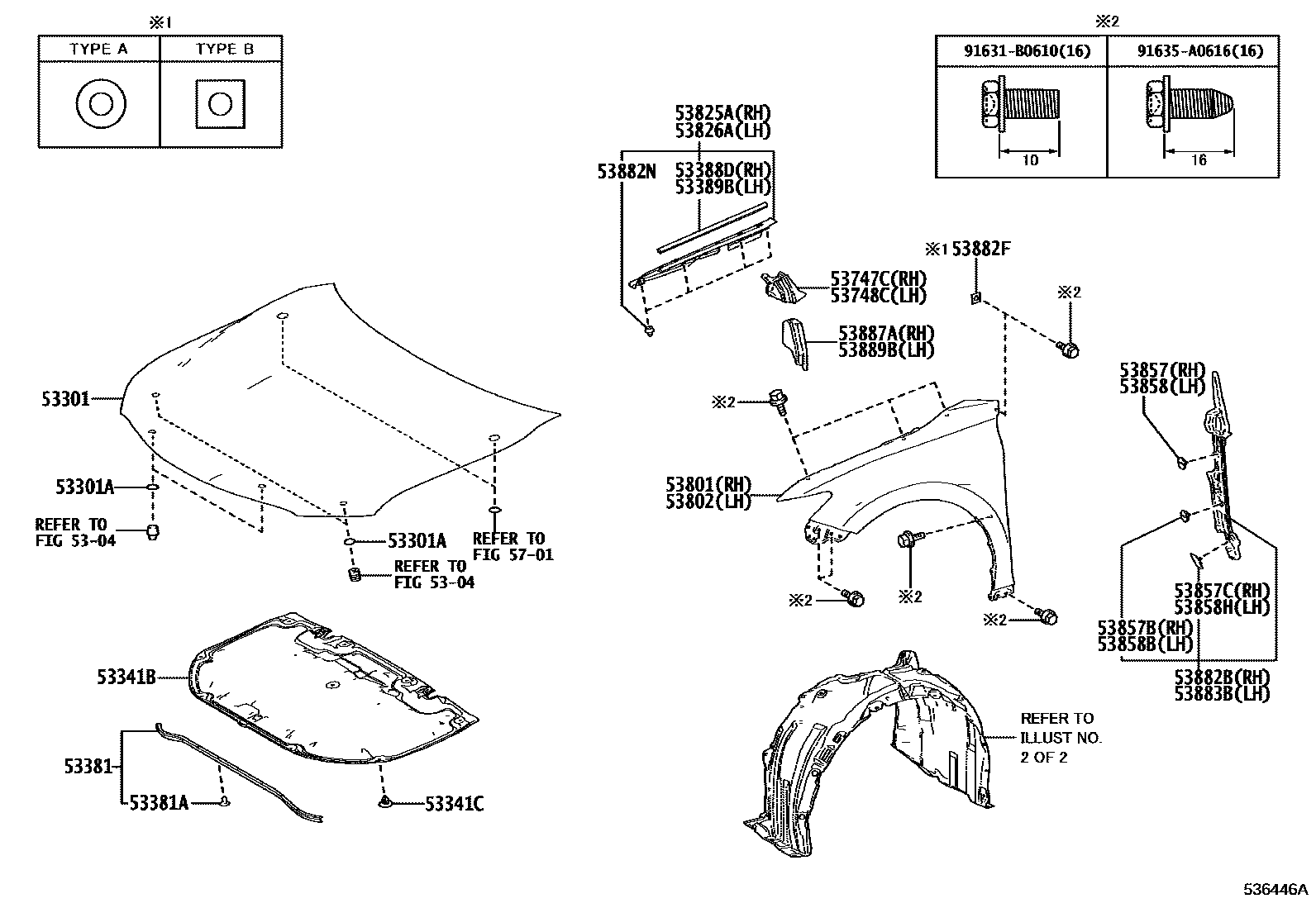

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06380 · 53301-33230 |
| 53301A | Hole plug (for engine cover) | 90950-06124 |
| 53341B | engine cover gasket | 53341-06490 · 53341-33190 · 53341-33191 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-33110 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53388D | Engine cover to right front fender seal | 53388-33080 |
| 53389B | Engine cover to left front fender seal | 53388-33080 |
| 53747C | Right air sealing plate | 53747-06100 · 53747-33030 |
| 53748C | Left air sealing plate | 53748-06100 · 53748-33030 |
| 53801 | Right front fender sub-assembly | 53801-06210 · 53801-33200 |
| 53802 | Left front fender sub-assembly | 53802-06220 · 53802-33200 |
| 53825A | Right front fender protection piece | 53825-33060 |
| 53826A | Protection piece on left front fender | 53826-33060 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53857C | RETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, DR | 53857-12010 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53858H | RETENUE, EXTENSION D'OUVERTURE DE ROUE AVANT, GA | 53857-12010 |

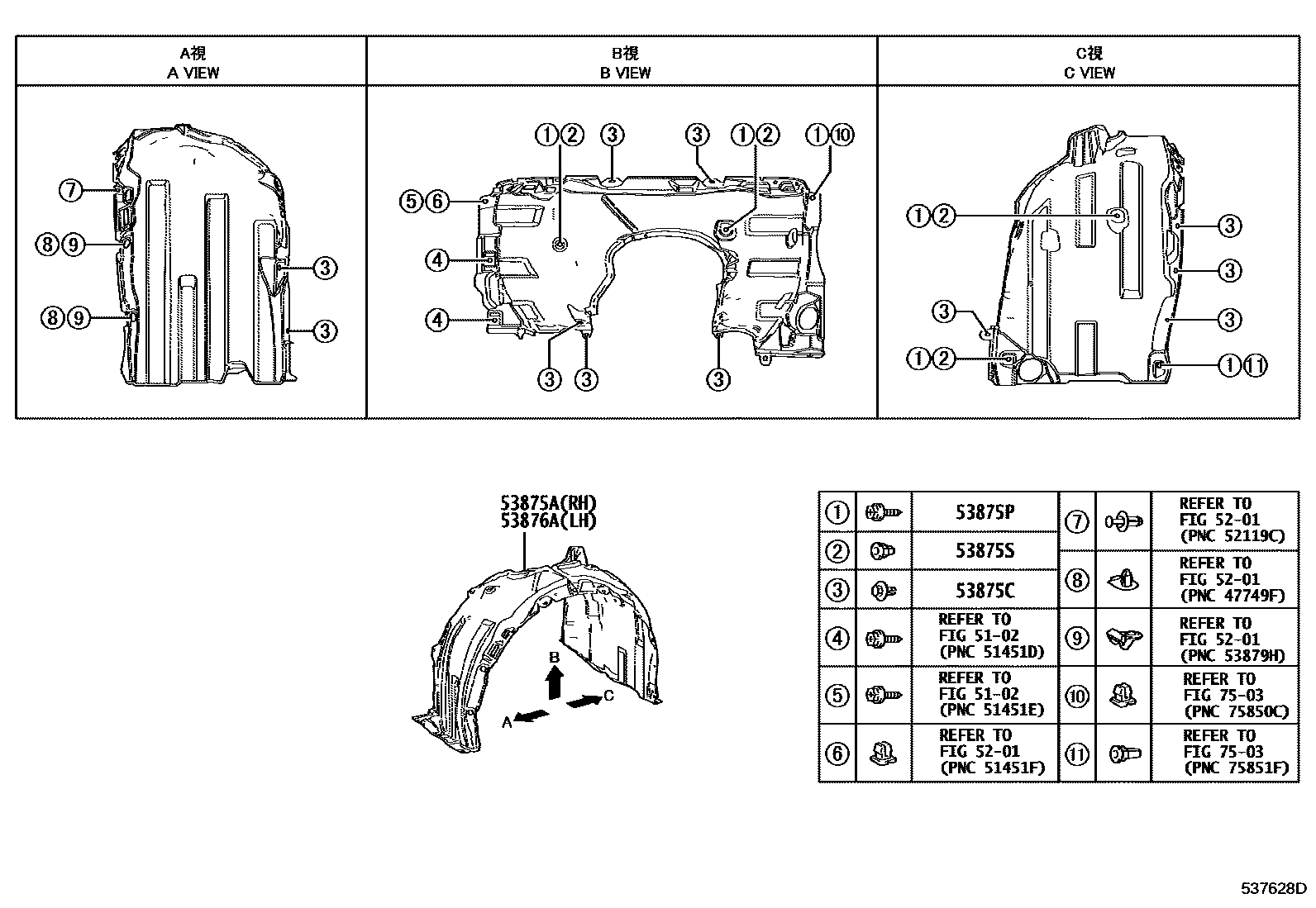

| 53875A | Right front fender lining | 53805-33060 · 53805-33070 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875P | VIS, NO.1 | 90159-60622 · 90159-60623 |
| 53875S | OEILLET, NO.1 | 90189-06065 · 90189-06236 |
| 53876A | Left front fender lining | 53806-33080 · 53806-33090 |
| 53882B | Right front fender seal | 53882-06170 · 53882-33070 |
| 53882F | front fender seal | 53882-30030 · 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-09219 · 90467-10161 |
| 53883B | Left front fender seal | 53883-06160 · 53883-33060 |
| 53887A | No. 1 front fender splash guard seal | 53887-06060 · 53887-33020 |
| 53889B | No. 2 left front fender splash guard seal | 53889-06200 · 53889-33070 |
