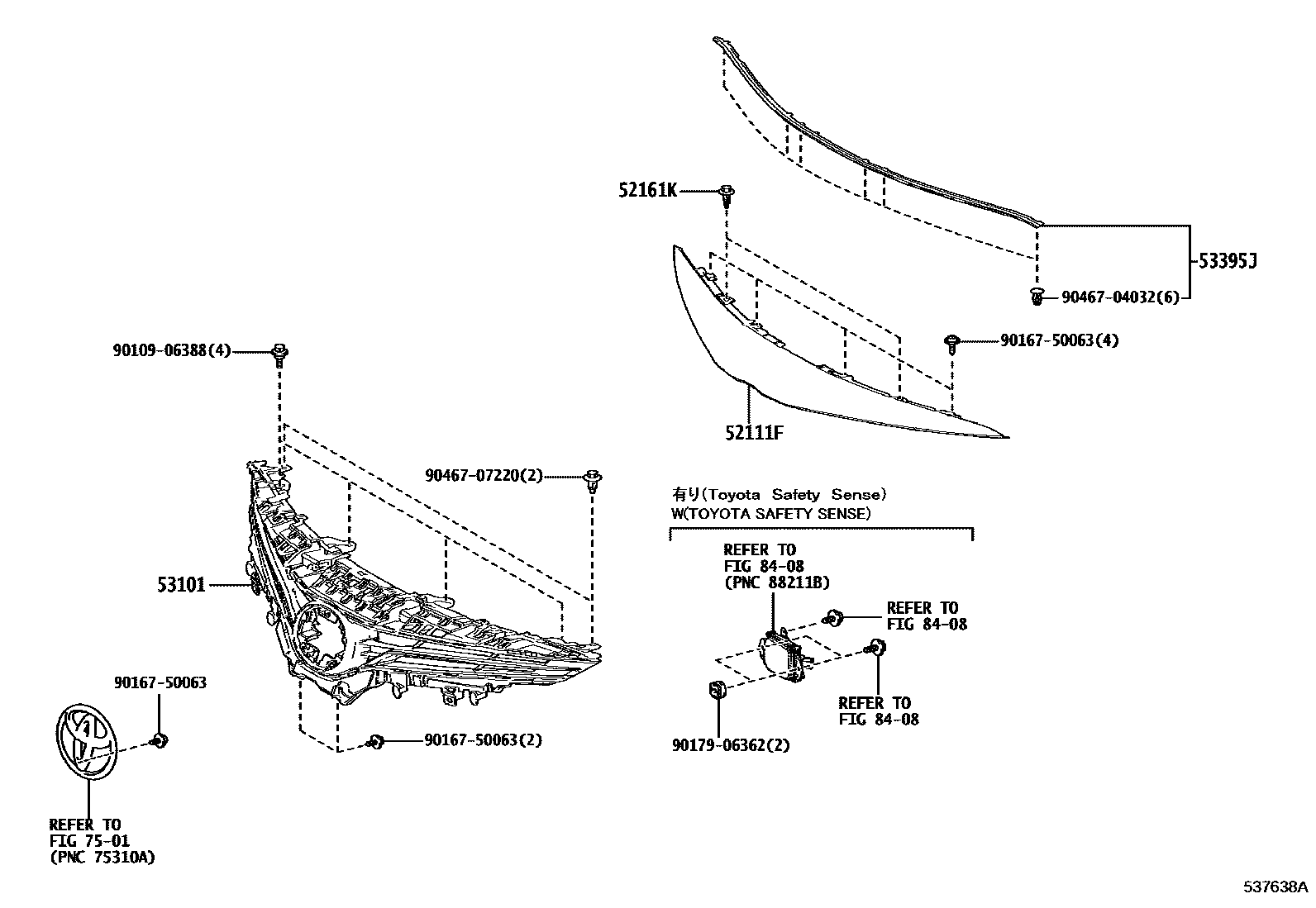

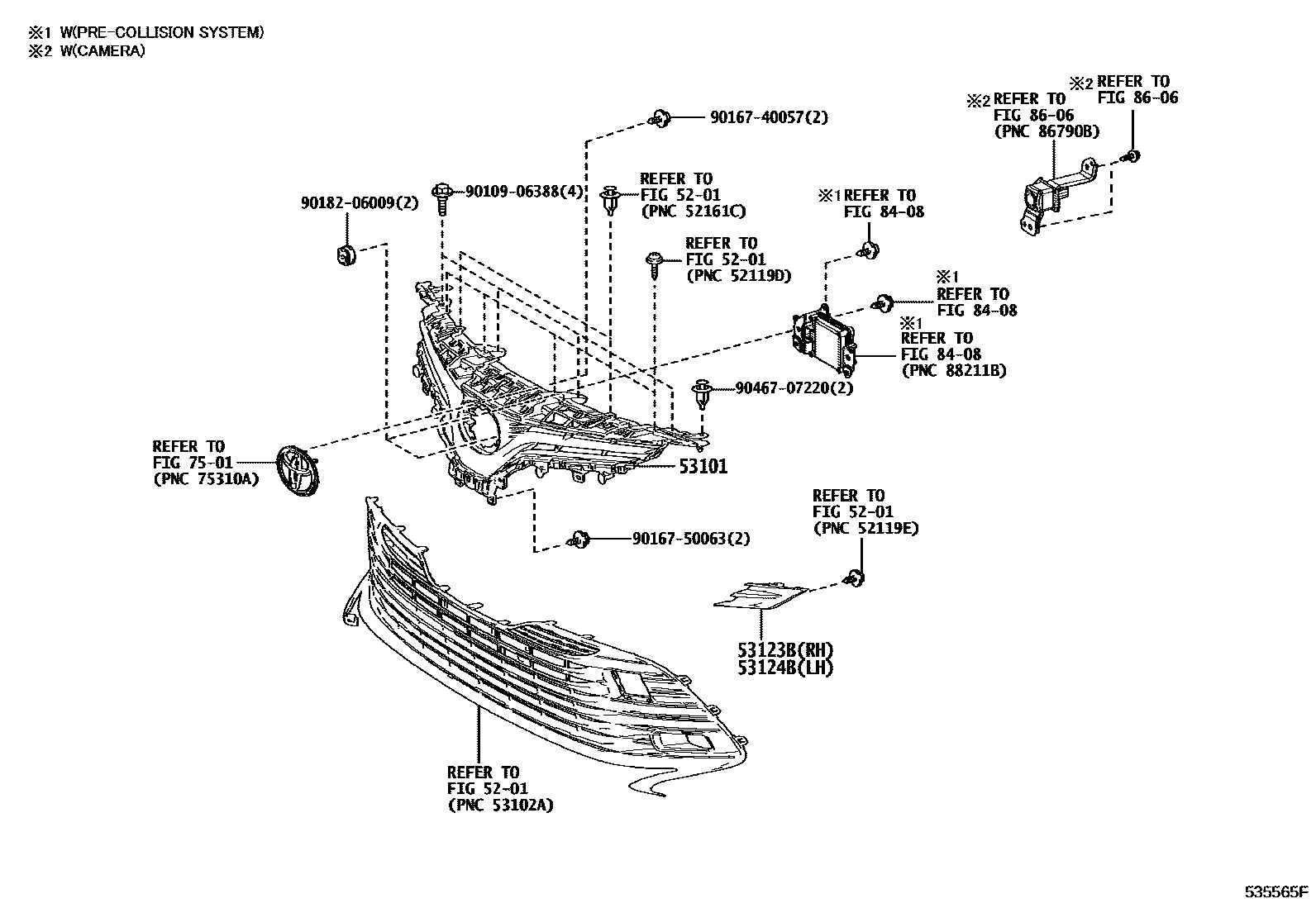

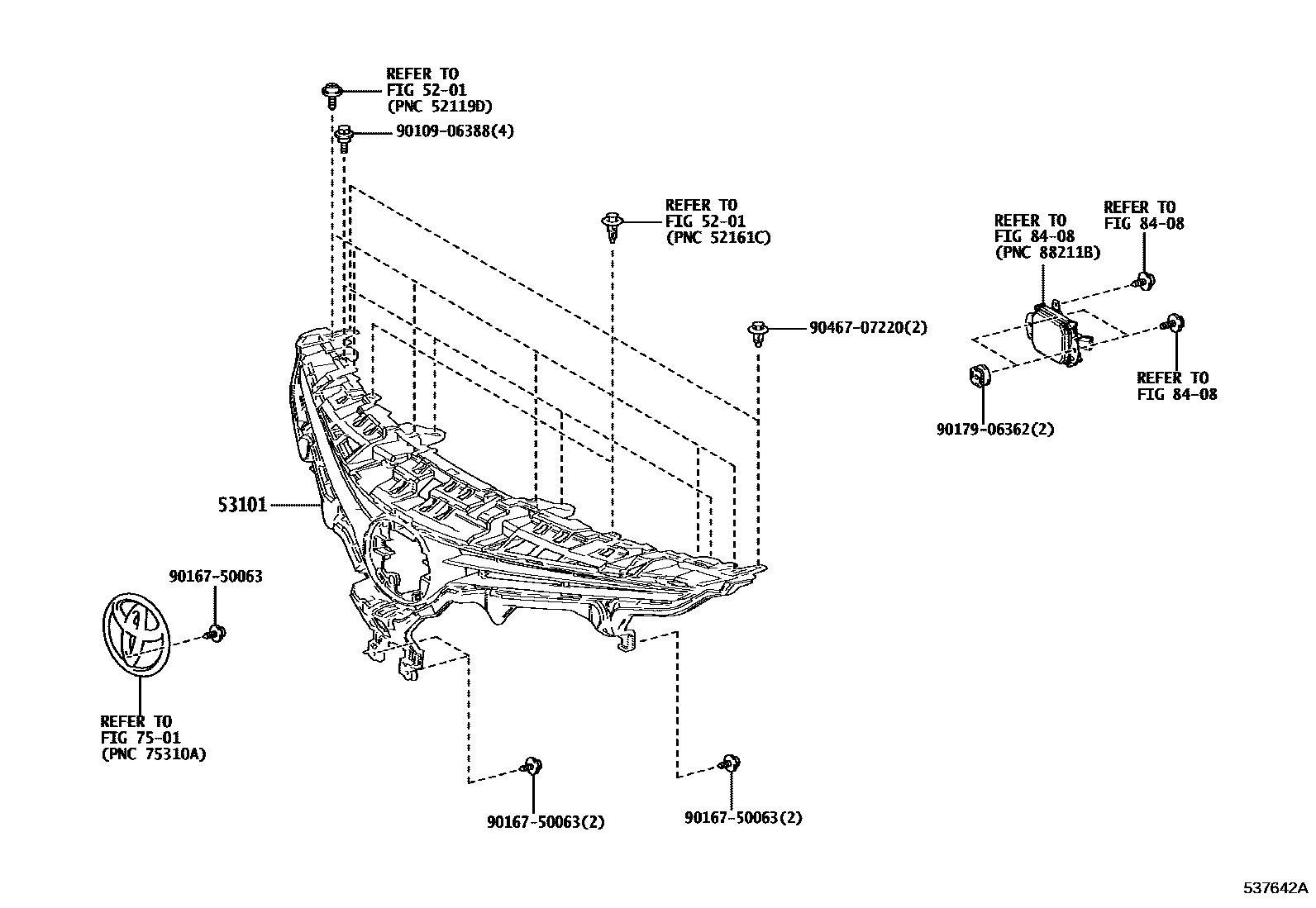

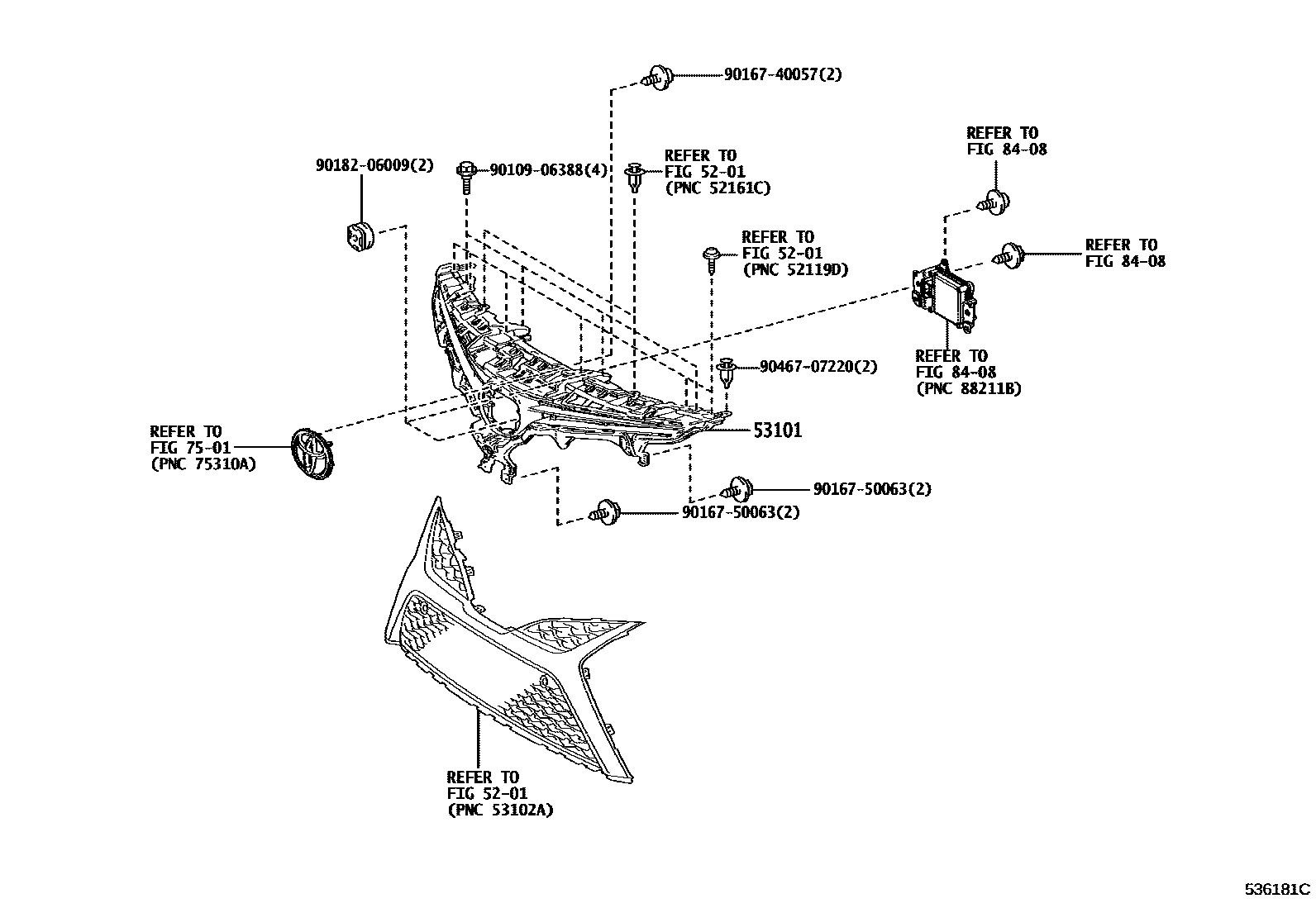

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111F | BARRE, PARE-CHOCS AVANT, CENTRALE | 52111-06901 · 52111-33900 |
| 52161K | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-33410 · 53101-33540 · 53101-33560 · 53101-33570 · 53101-33620 · 53101-33640 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-33050 · 53123-33100 |
| 53124B | Radiator grille left protective strip | 53124-33070 · 53124-33120 |
| 53395J | JOINT ETANCH., CAPOT A PANNEAU EN BOUT AVANT | 53395-33030 |
