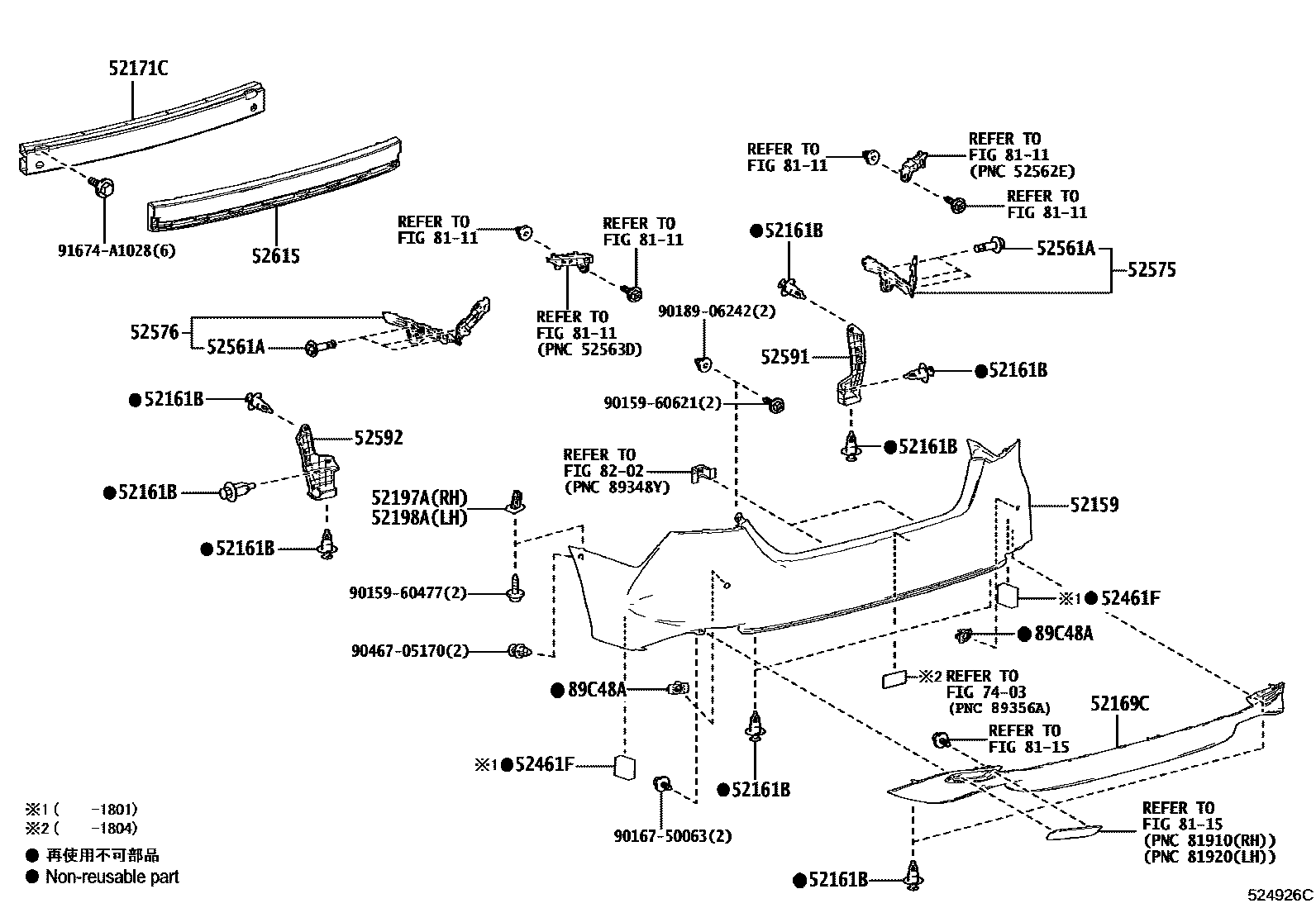

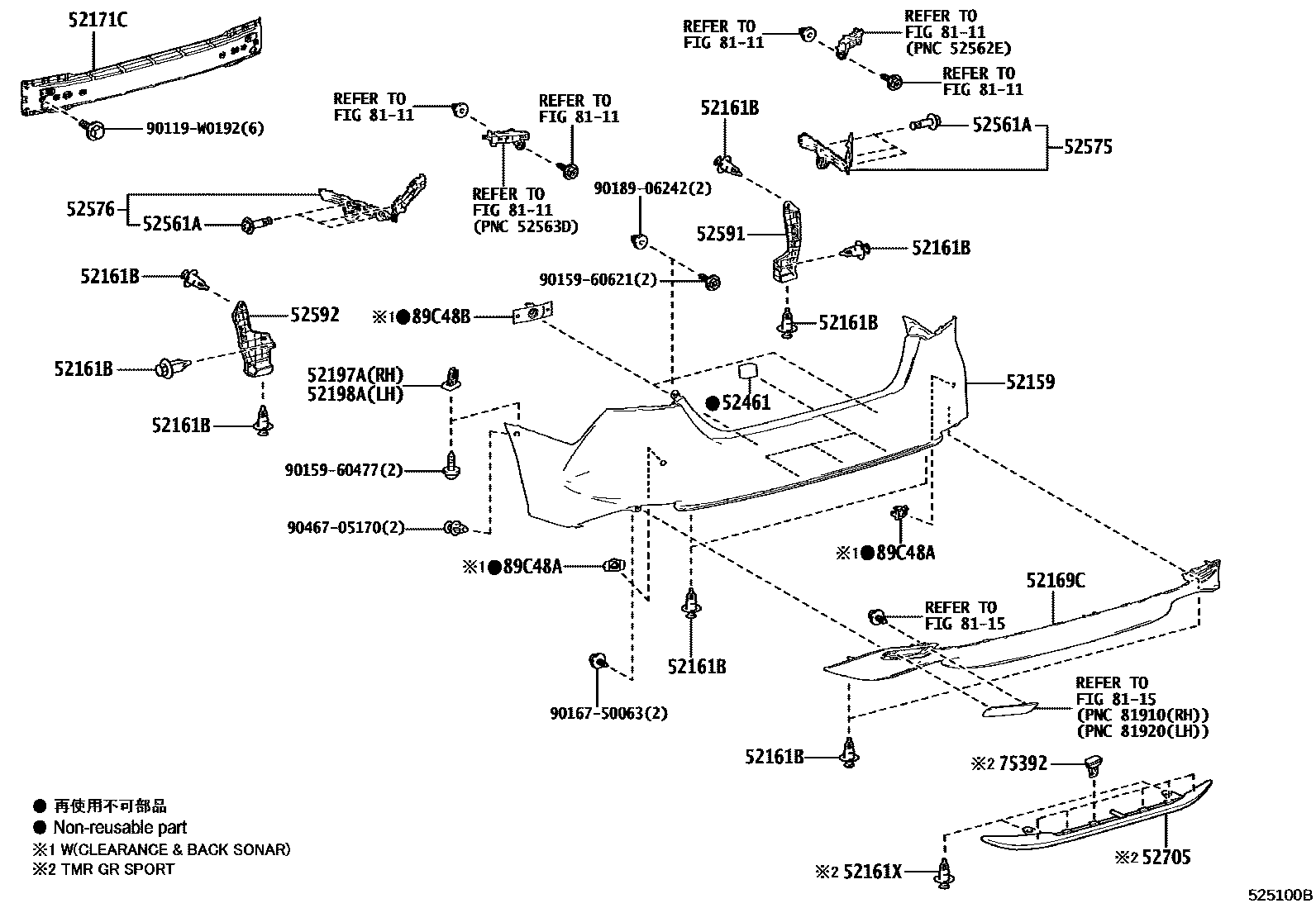

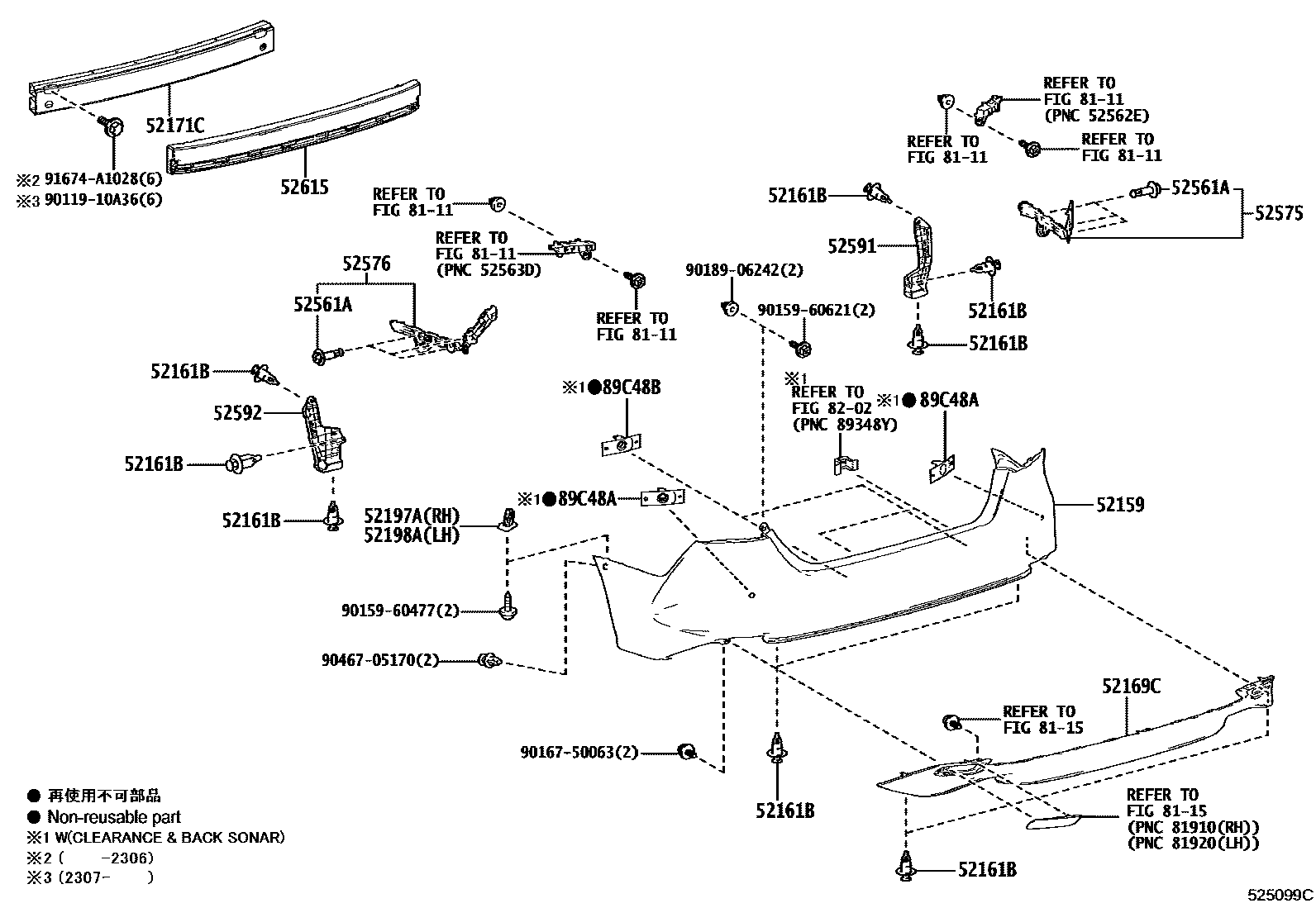

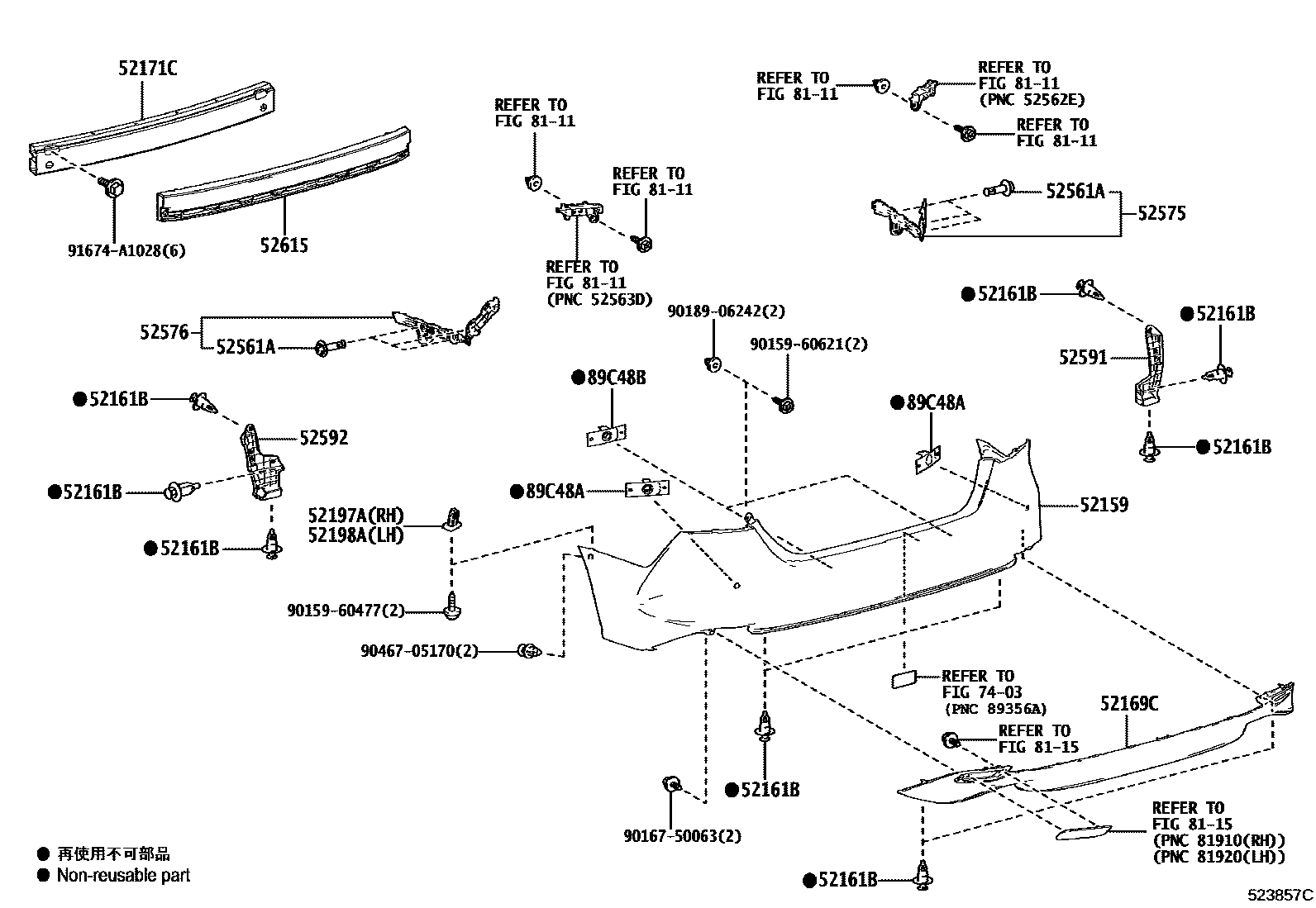

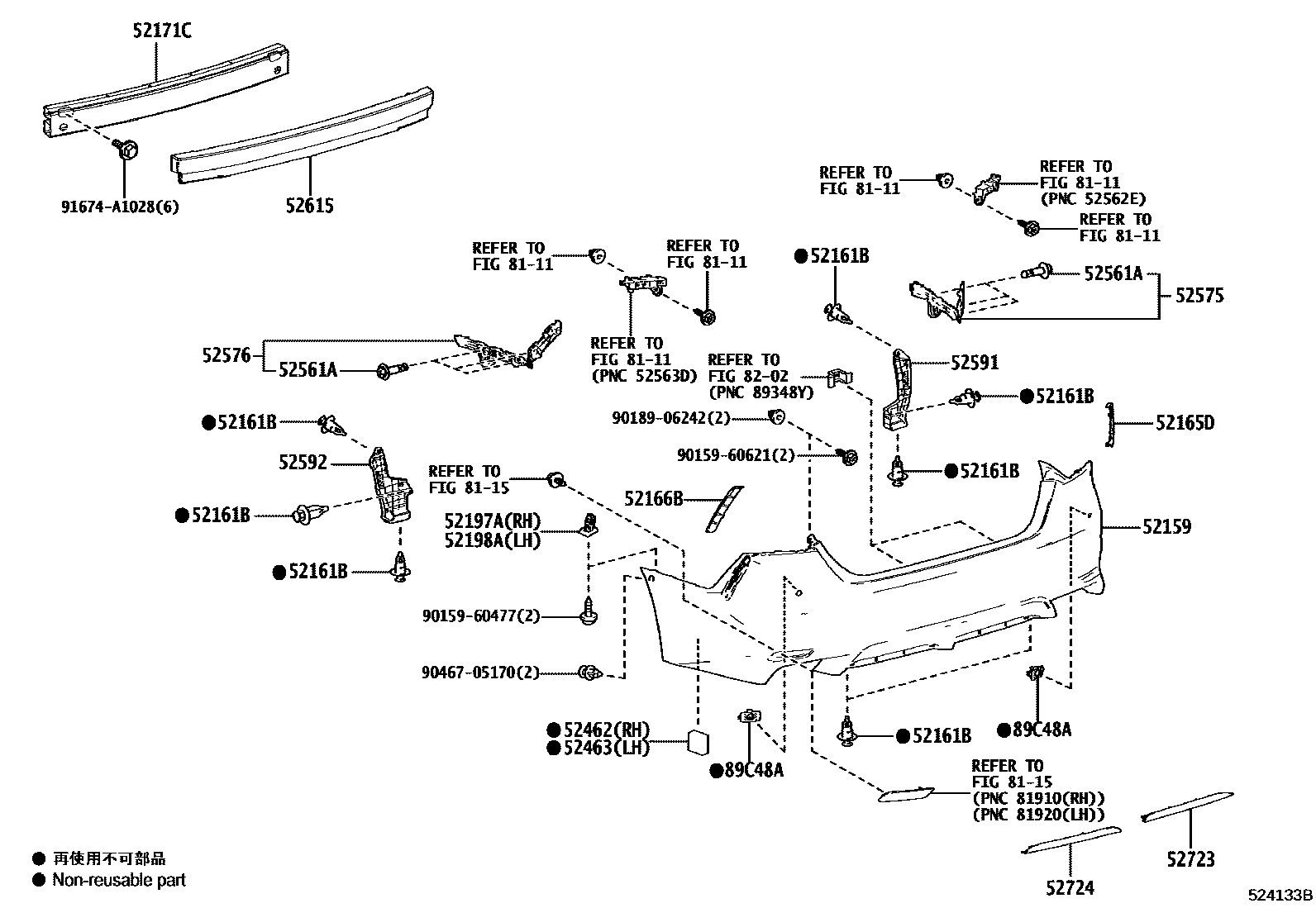

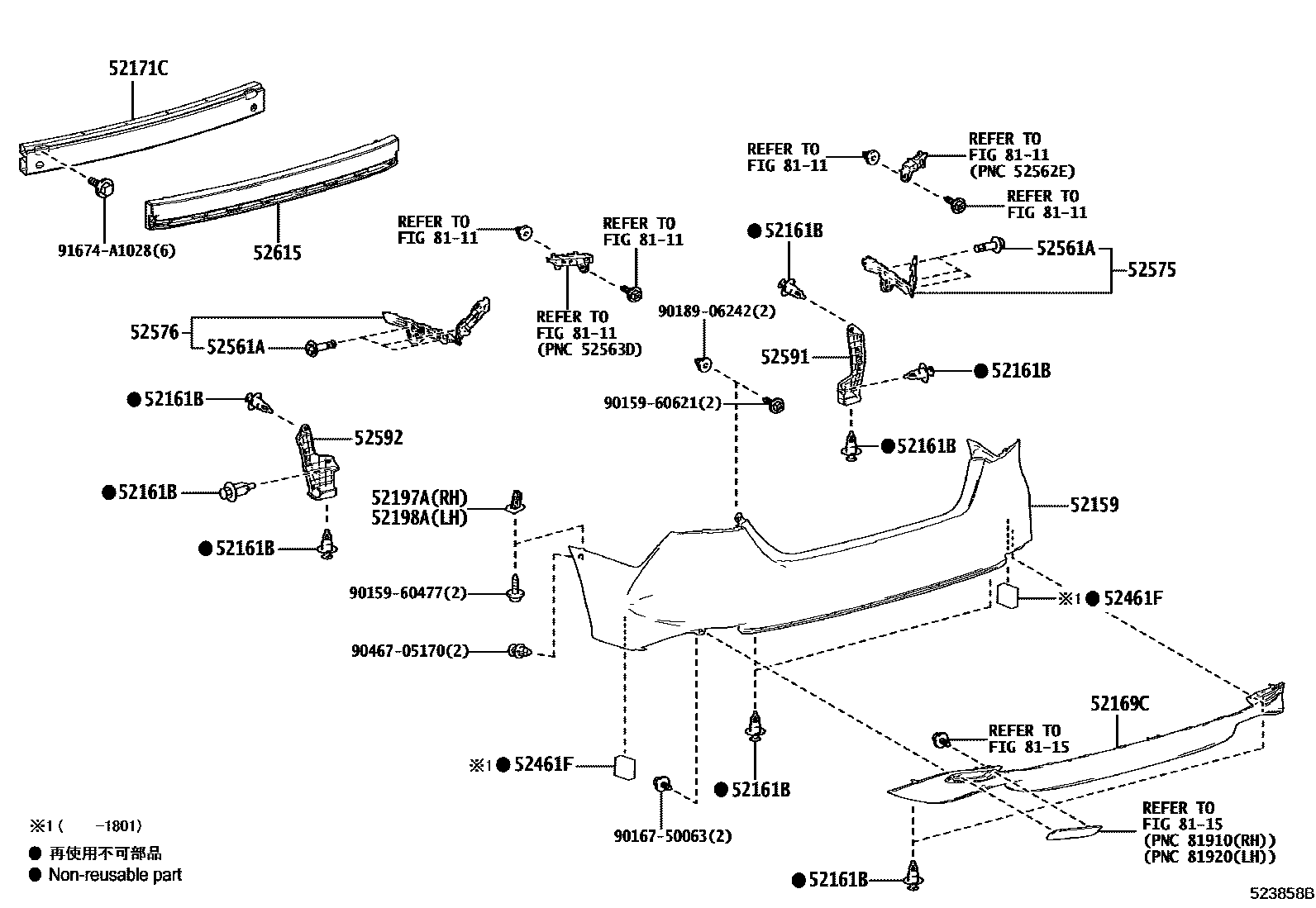

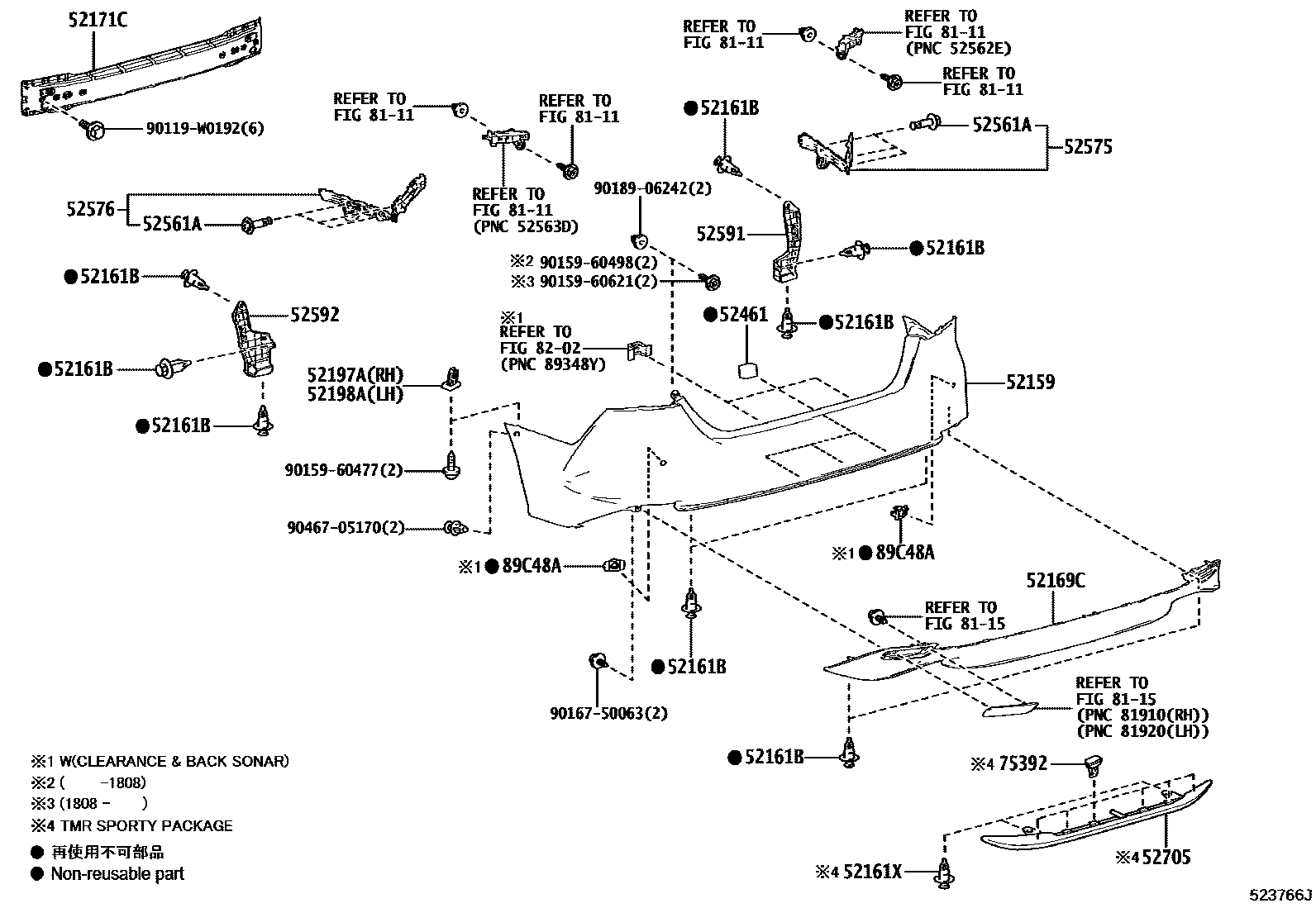

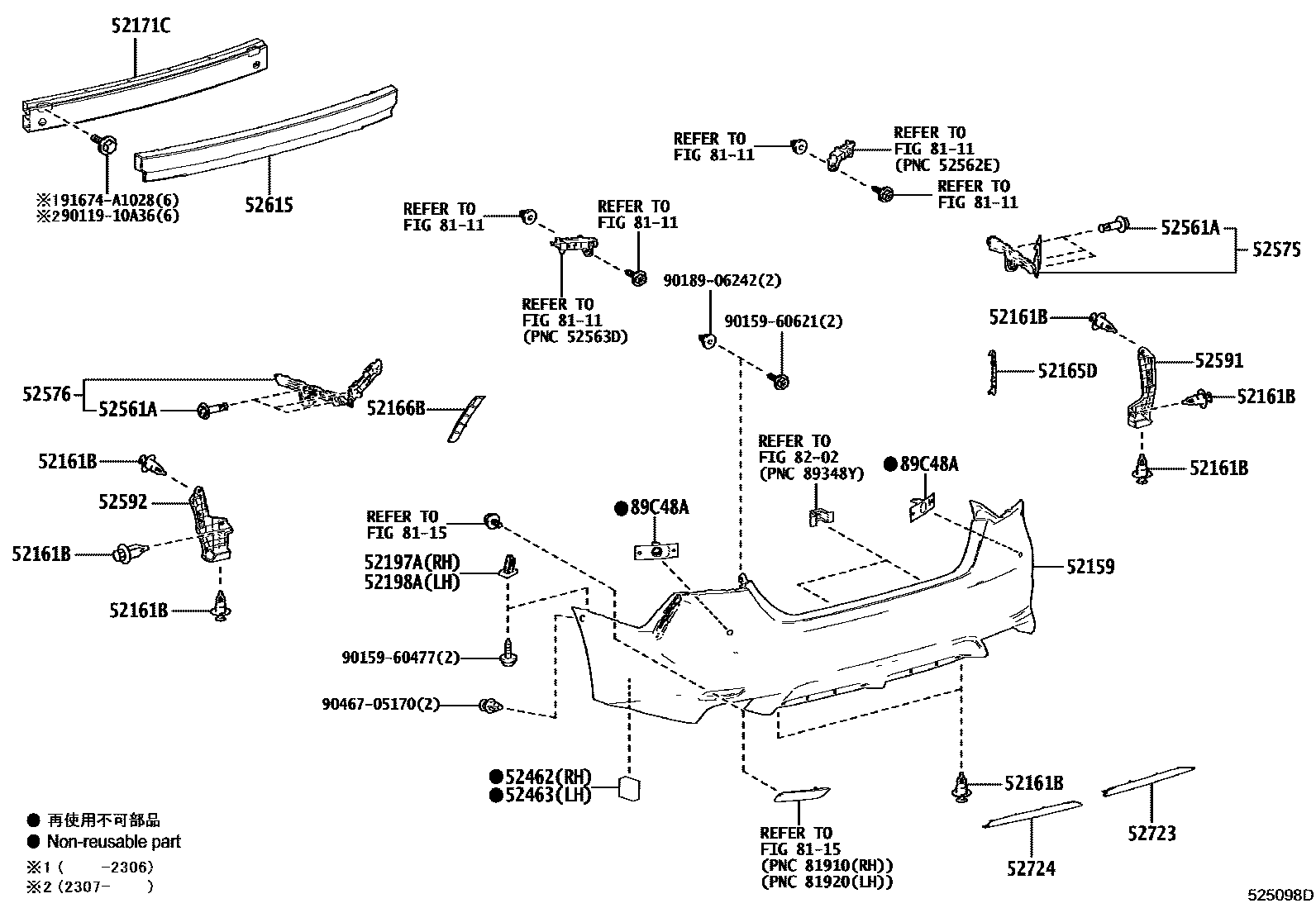

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 8 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X920 · 52159-0X921 · 52159-0X933 · 52159-33958 · 52159-33959 · 52159-33961 · 52159-33982 · 52159-33989 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52161X | PARTIE, PARE-CHOCS ARR | 52161-16010 |
| 52165D | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MD | 52165-33010 |
| 52166B | EXTENSION, ANGLE PARE-CHOCS ARRIERE, MG | 52166-33010 |
| 52169C | Rear bumper lower cover | 52169-06190 · 52169-06280 · 52169-33030 |
| 52171C | RENFORT PARE-CHOCS ARRIERE | 52023-06230 · 52171-33180 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52461 | Rear bumper center lining | 52462-30090 |
| 52461F | rear bumper lining | 52462-33050 |
| 52462 | Rear bumper right side lining | 52462-33060 |
| 52463 | Rear bumper left lining | 52463-33100 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52575 | Rear bumper right side fixing bracket | 52575-33130 |
| 52576 | Rear bumper left side fixing bracket | 52576-33130 |
| 52591 | Rear bumper right seal | 52591-06010 · 52591-33040 |
| 52592 | Rear bumper left seal | 52592-06010 · 52592-33040 |
| 52615 | Rear bumper energy absorber | 52615-33150 · 52615-33190 |
| 52705 | Rear bumper protection strip sub-assembly | 52705-WY010 |
| 52723 | Rear bumper right extension protection strip | 52723-33010 |
| 52724 | Rear bumper left extension protection strip | 52724-33010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-33130 · 89348-33210 · 89348-33400 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-33130 · 89348-33400 |
