Toyota CAMRY Front Spring & Shock Absorber — Figure 4803

Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 31 PNC and OE references.

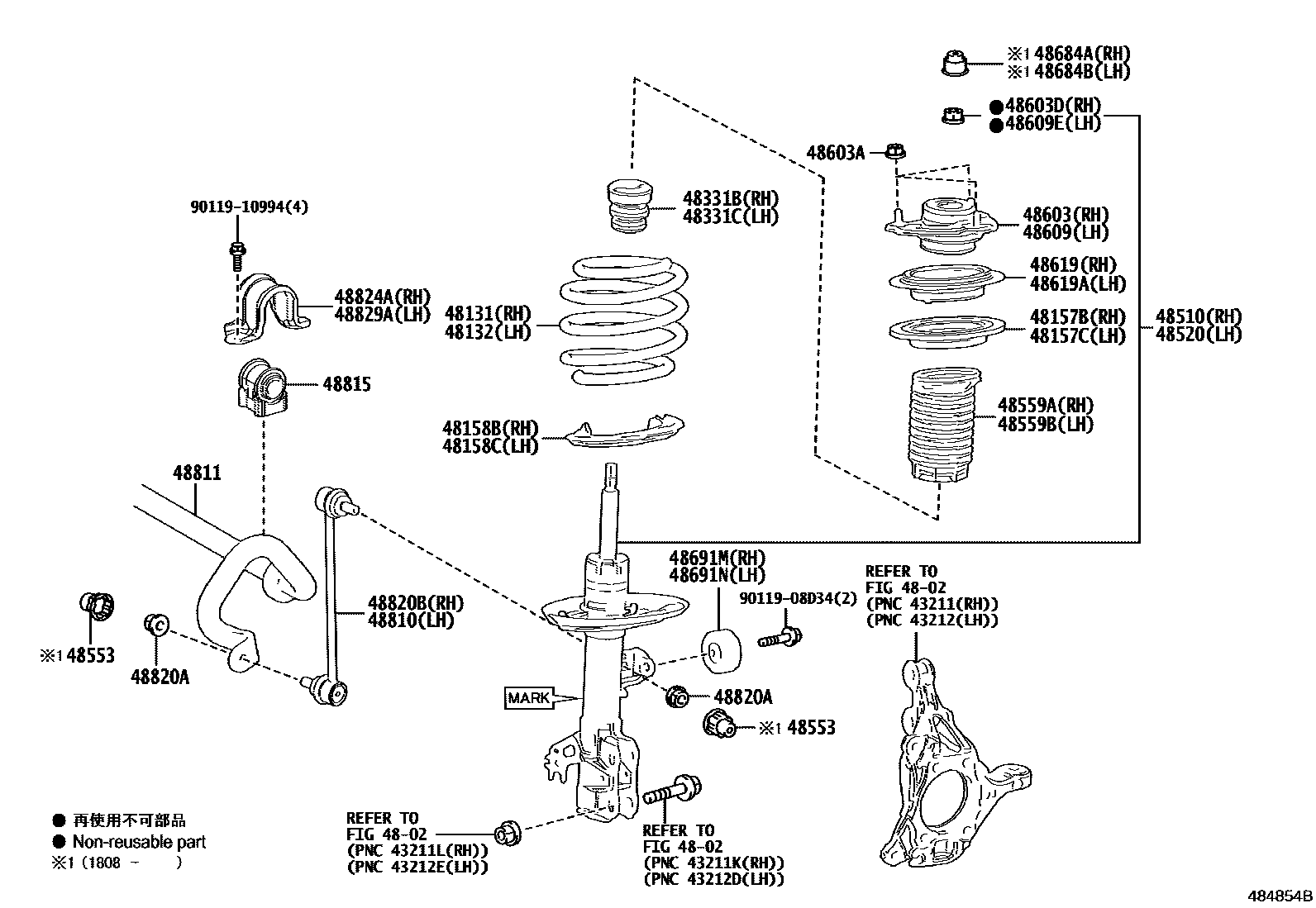

Toyota CAMRY Front Spring & Shock Absorber EPC diagram — 484854B
Front Spring & Shock Absorber — 484854B (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
48131Right front coil spring48131-06E60 · 48131-06E61 · 48131-06E90 · 48131-06E91 · 48131-33C30 · 48131-33C31 · 48131-33C40 · 48131-33C41 · 48131-33C70 · 48131-33C71 · 48131-33C80 · 48131-33C81
48132Left front coil spring48131-06E60 · 48131-06E61 · 48131-06E90 · 48131-06E91 · 48131-33C30 · 48131-33C31 · 48131-33C40 · 48131-33C41 · 48131-33C70 · 48131-33C71 · 48131-33C80 · 48131-33C81
48157BFront coil spring upper right vibration isolation pad48157-33090
48157CFront coil spring upper left vibration isolation pad48157-33090
48158BFront coil spring lower right vibration isolation pad48158-33110
48158CFront coil spring lower left vibration isolation pad48158-33110
48331BRight front spring buffer block48331-06100 · 48331-33080 · 48331-33100 · 48331-33101
48331CLeft front spring buffer block48331-06100 · 48331-33080 · 48331-33100 · 48331-33101
48510Right front shock absorber assembly48510-80861 · 48510-80863 · 48510-80865 · 48510-80A66 · 48510-80C10 · 48510-80C11 · 48510-80C13 · 48510-80C16 · 48510-8Z334 · 48510-8Z335 · 48510-8Z460 · 48510-8Z461
48520Left front shock absorber assembly48520-80534 · 48520-80536 · 48520-80538 · 48520-80626 · 48520-80760 · 48520-80761 · 48520-80763 · 48520-80766 · 48520-8Z192 · 48520-8Z193 · 48520-8Z307 · 48520-8Z308
48553Damper upper cover48553-52030
48559ARight front shock absorber No. 1 dust cover48559-33020
48559BLeft front shock absorber No. 1 dust cover48559-33020
48603Right front suspension bearing sub-assembly48609-33260 · 48609-33270 · 48609-33280
48603ANut (for front suspension mount)90178-10029
48603DNut (for front mount to right front shock absorber)90177-14007
48609Left front suspension bearing sub-assembly48609-33260 · 48609-33270 · 48609-33280
48609ENut (for front mount to left front shock absorber)90177-14007
48619Bearing installed on the right sliding column48619-06010 · 48619-33010
48619ABearing installed on the left sliding column48619-06010 · 48619-33010
48684ARight front suspension support dust cover48684-33030
48684BLeft front suspension support dust cover48684-33030
48691MAMORTISSEUR, SUSPENSION AV, MD48691-06060 · 48691-33030
48691NAMORTISSEUR, SUSPENSION AV, MG48691-06060 · 48691-33030
48810Left front stabilizer bar link assembly48820-33090
48811front stabilizer bar48811-06280 · 48811-33200 · 48811-33210 · 48811-33220
48815Front stabilizer bar bushing No. 148815-33150 · 48815-33160 · 48815-33170
48820ANut (for front stabilizer bar link)94151-21241
48820BRight front stabilizer bar link assembly48820-33090
48824ARight front stabilizer bar bracket No. 148809-33010 · 48824-06040 · 48824-33040 · 48824-33050
48829ALeft front stabilizer bar bracket No. 148824-06040 · 48824-33040
