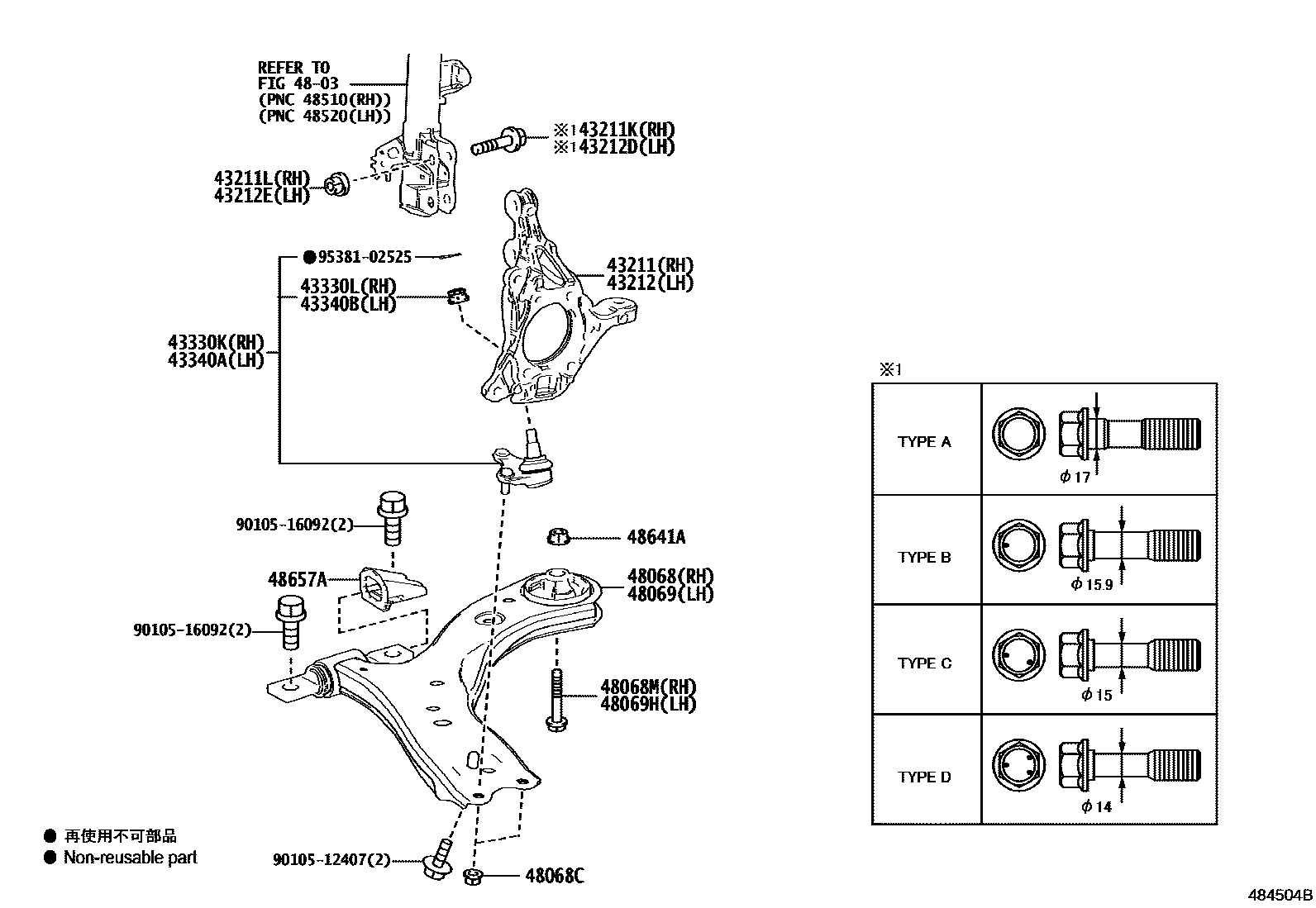

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-33120 · 43211-33130 |
| 43211K | Bolt (for right steering knuckle) | 90105-17012 · 90105-17013 · 90105-17014 · 90105-17015 · 90105-17020 · 90105-17021 |
| 43211L | Nut (for right steering knuckle) | 90178-17002 |
| 43212 | left steering knuckle | 43212-33120 · 43212-33130 |
| 43212D | Bolt (for left steering knuckle) | 90105-17012 · 90105-17013 · 90105-17014 · 90105-17015 · 90105-17020 · 90105-17021 |
| 43212E | Nut (for left steering knuckle) | 90178-17002 |
| 43330K | Right front lower ball joint assembly | 43330-19245 · 43330-19275 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43340A | Left front lower ball joint assembly | 43330-19245 · 43330-19275 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-33090 |
| 48068C | Nut (for front suspension lower arm) | 90178-12019 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90119-14180 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-33090 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90119-14180 |
| 48641A | Nut (for suspension lower arm shaft) | 90179-14068 |
| 48657A | Front lower arm bushing stop | 48657-28010 |
