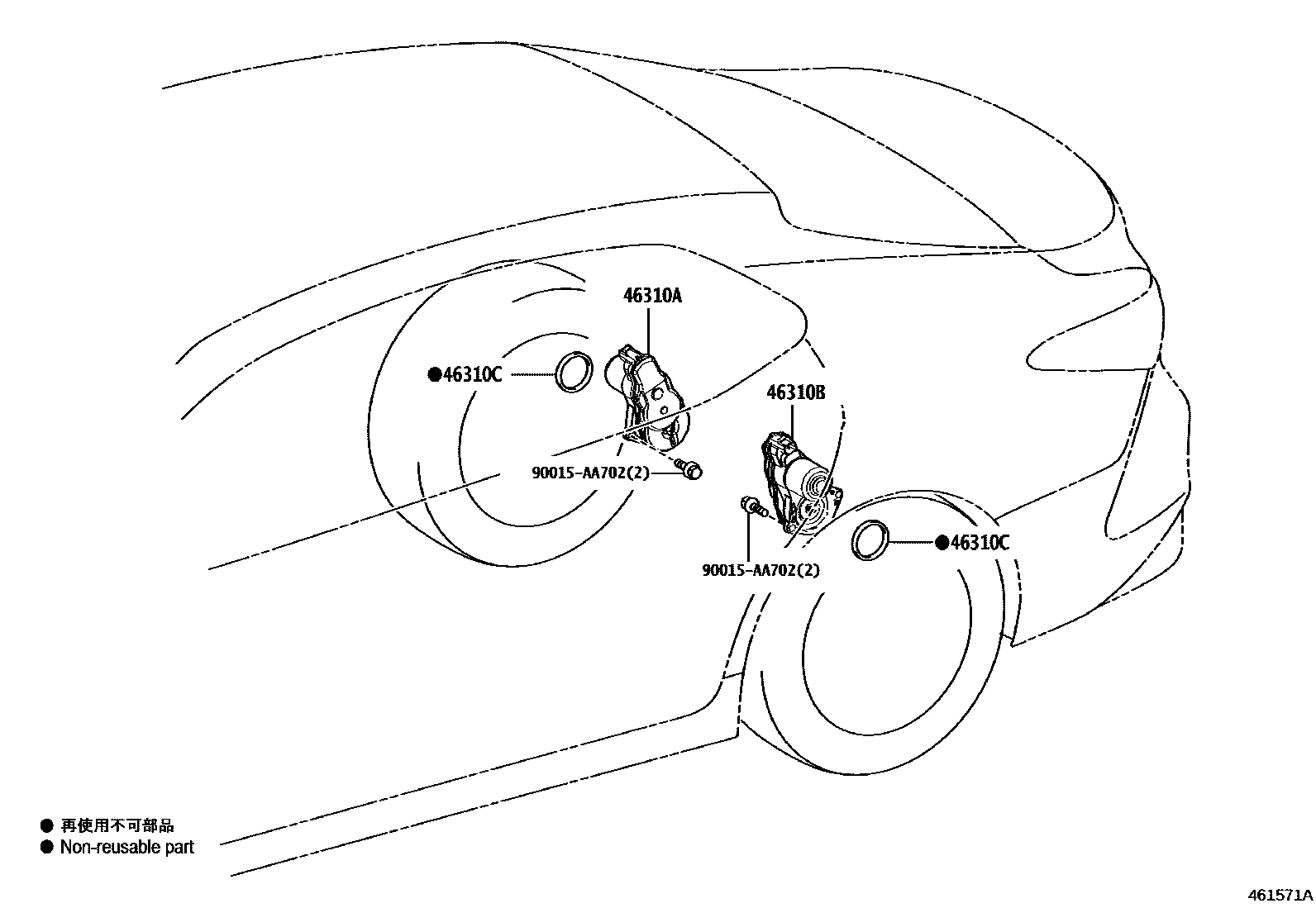

Toyota CAMRY Parking Brake & Cable — Figure 4601
Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46310A | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MD | 46310-33010 |
| 46310B | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MG | 46310-33010 |
| 46310C | JOINT D'ETANCHEITE(POUR ACT FREIN STATIONNEMENT) | 90015-AH005 |
