Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-02010 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-02010 · 04423-33060 |

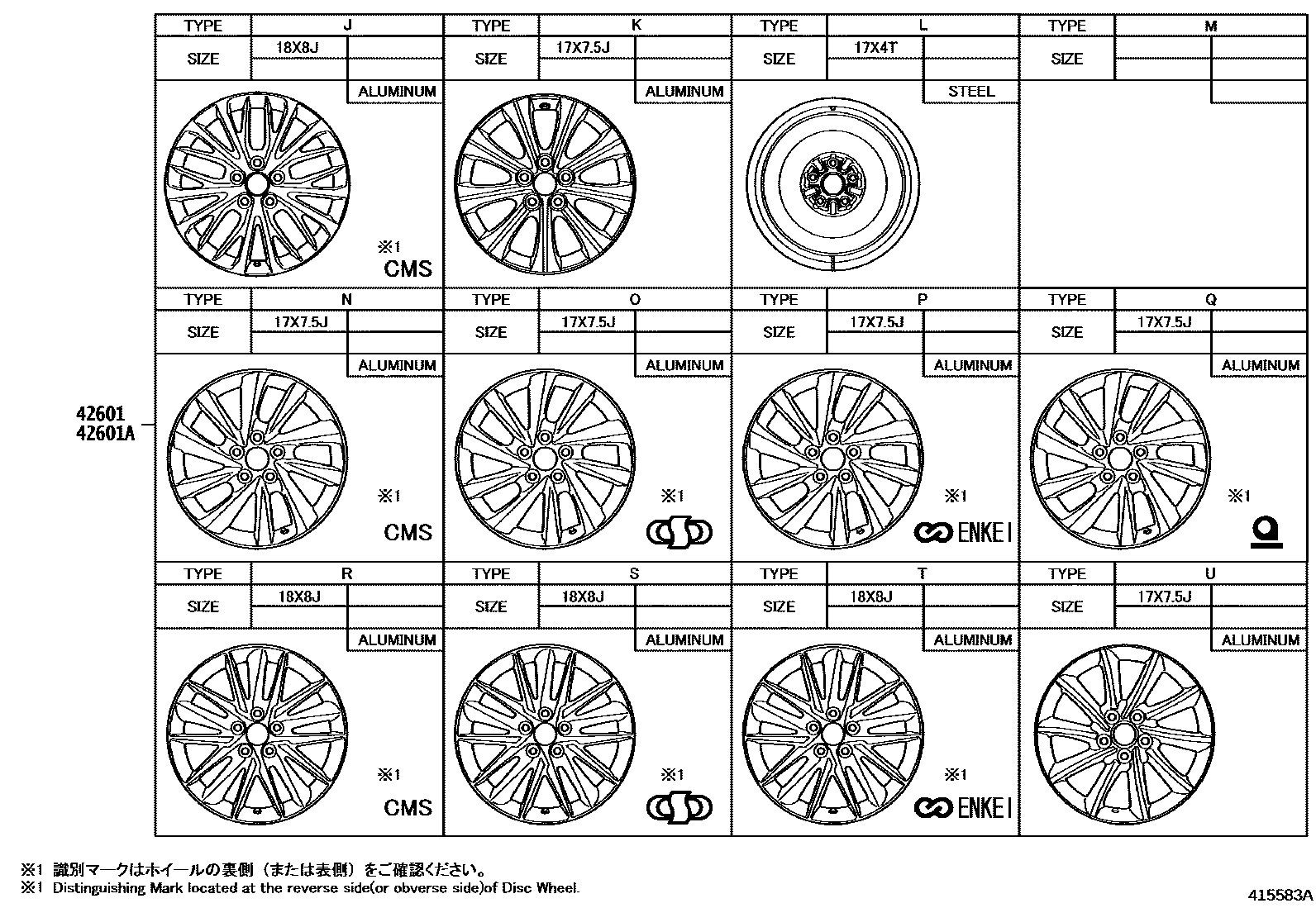

| 42601 | spoke wheel | 42611-06E30 · 42611-06E40 · 42611-06E50 · 42611-06J10 · 42611-06K30 · 42611-06K40 · 42611-06K50 · 42611-33830 · 42611-33B80 · 42611-33B81 · 42611-33C00 · 42611-33C10 · 42611-33C30 · 42611-33C40 · 42611-33C50 · 42611-33C60 · 42611-33C70 · 42611-33C80 · 42611-33C90 · 42611-33D30 · 42611-33E00 · 42611-33E10 · 42611-33F00 · 42611-33F10 · 42611-33F20 · 42611-33F30 · 42611-33F40 · 42611-33F60 · 42611-33F70 · 42611-33F80 · 42611-33F90 · 42611-33G00 · 42611-YYC90 |
| 42601A | Spoke wheel (for spare tire) | 42601-42011 · 42611-06E30 · 42611-06E40 · 42611-06E50 · 42611-06J10 · 42611-06K30 · 42611-06K40 · 42611-06K50 · 42611-33B80 · 42611-33B81 · 42611-33C30 · 42611-33C50 · 42611-33C70 · 42611-33C80 · 42611-33E20 · 42611-33F00 · 42611-33F60 · 42611-33F70 · 42611-33F80 · 42611-33F90 · 42611-33G00 · 42611-42470 · 42611-42471 · 42611-YYC90 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

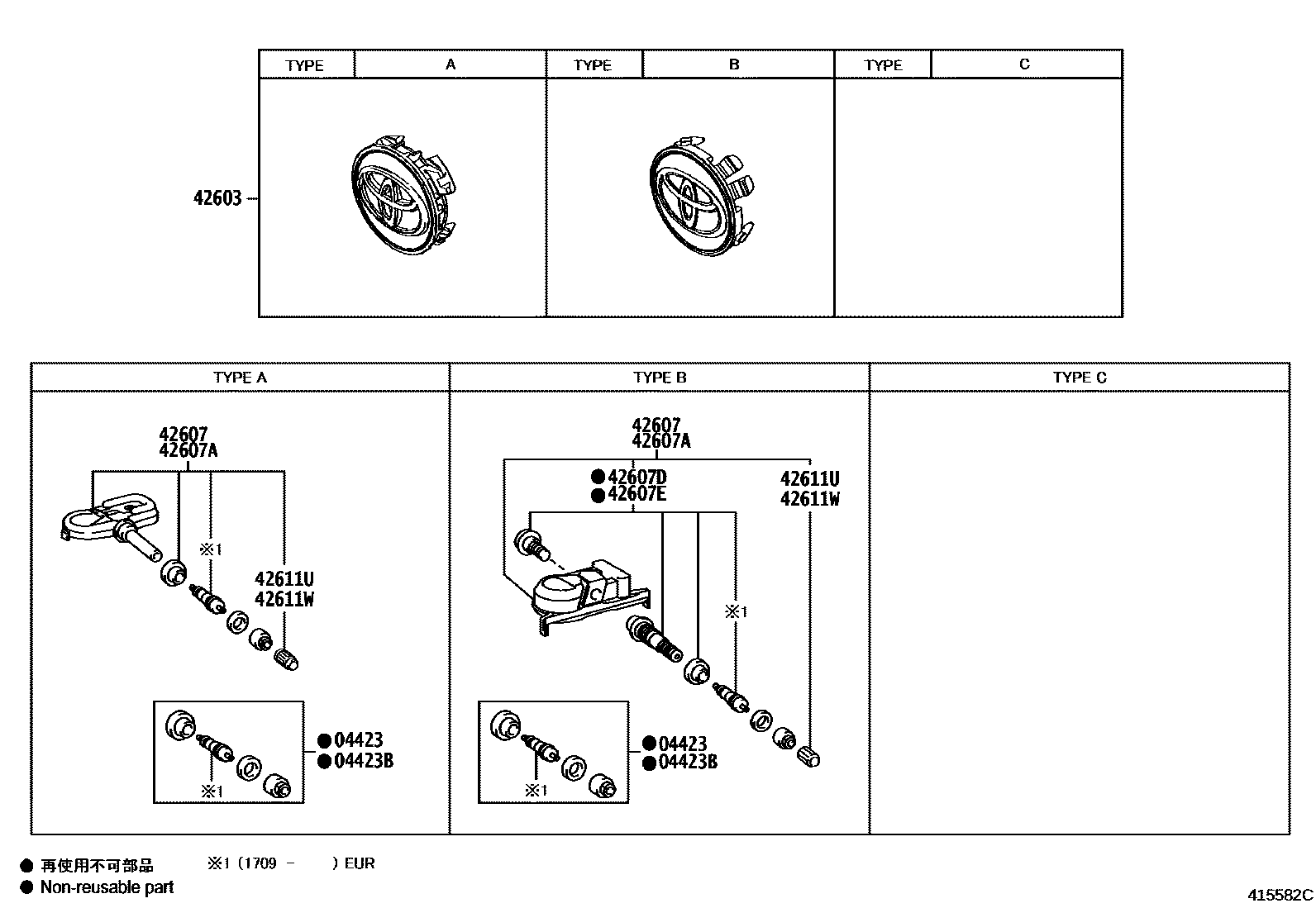

| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02070 · 42607-12020 · 42607-60010 · 42607-F4020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-02070 · 42607-12020 · 42607-60010 · 42607-F4020 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-05044 · 90942-W5003 |
| 42607E | SOUPAPE, CONTROLE PRESSION PNEU (ROUE SECOURS) | 90942-05044 · 90942-W5003 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 · 90942-W5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 · 90942-W5001 |

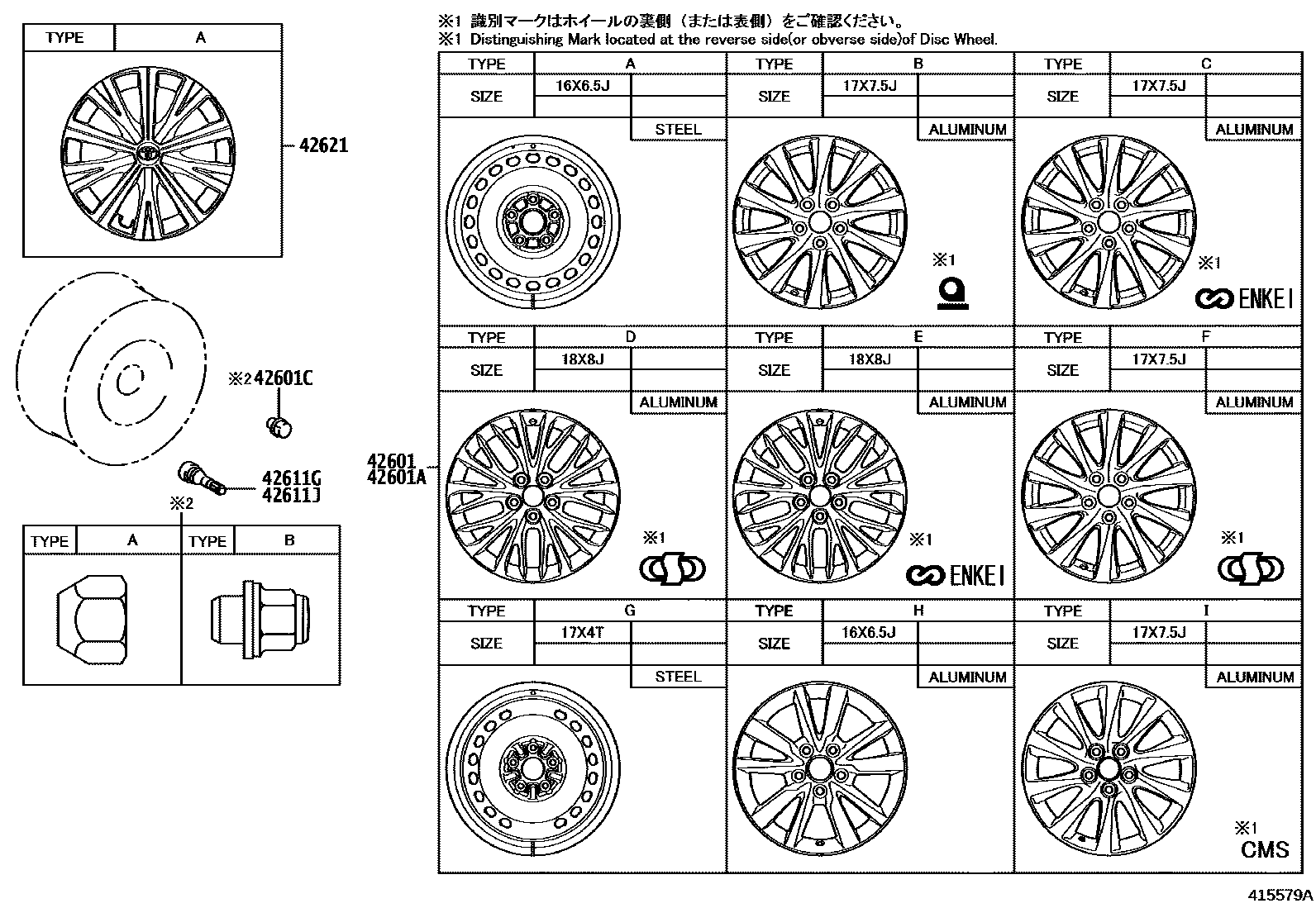

| 42621 | wheel cover | 42602-33190 |
