Toyota CAMRY HV或FCV传动桥总成 — Figure 3901

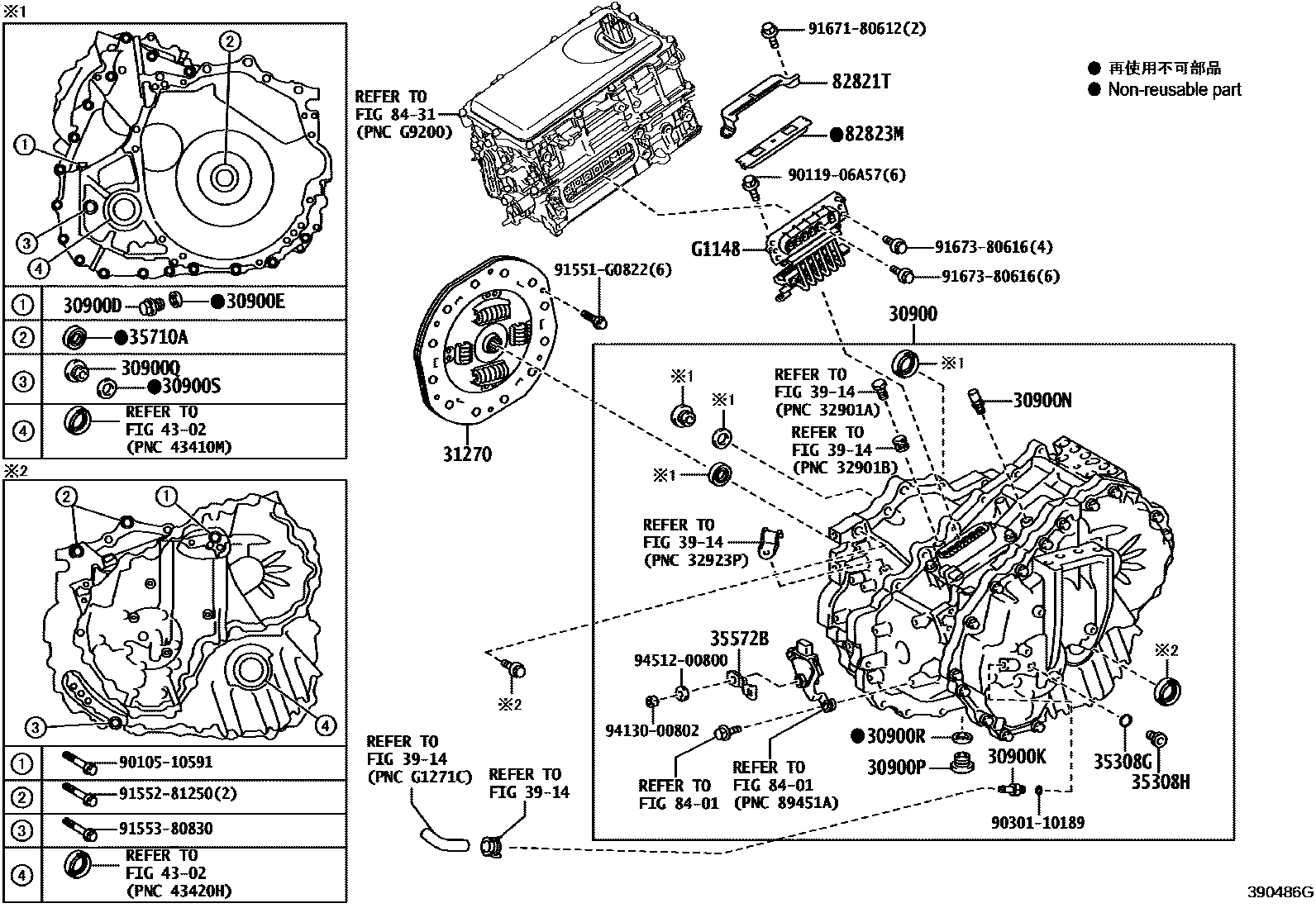

Toyota CAMRY EPC diagram 3901, HV或FCV传动桥总成, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-33100 · 30900-33110 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900K | Pipe connector (for transaxle housing) | 90404-13010 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | BOUCHON, VIDANGE(HEV) | 90341-18016 |
| 30900Q | BOUCHON, REMPLISSAGE(HEV) | 90341-18016 |
| 30900R | JOINT ETANCHEITE, BOUCHON VIDANGE(HEV) | 90430-18008 |
| 30900S | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-33030 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572B | Transmission outer lever | 35572-33070 |
| 35710A | T-type oil seal (for input shaft) | 90311-27011 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-47040 |
| G1148 | Motor cable | G1148-33050 |
