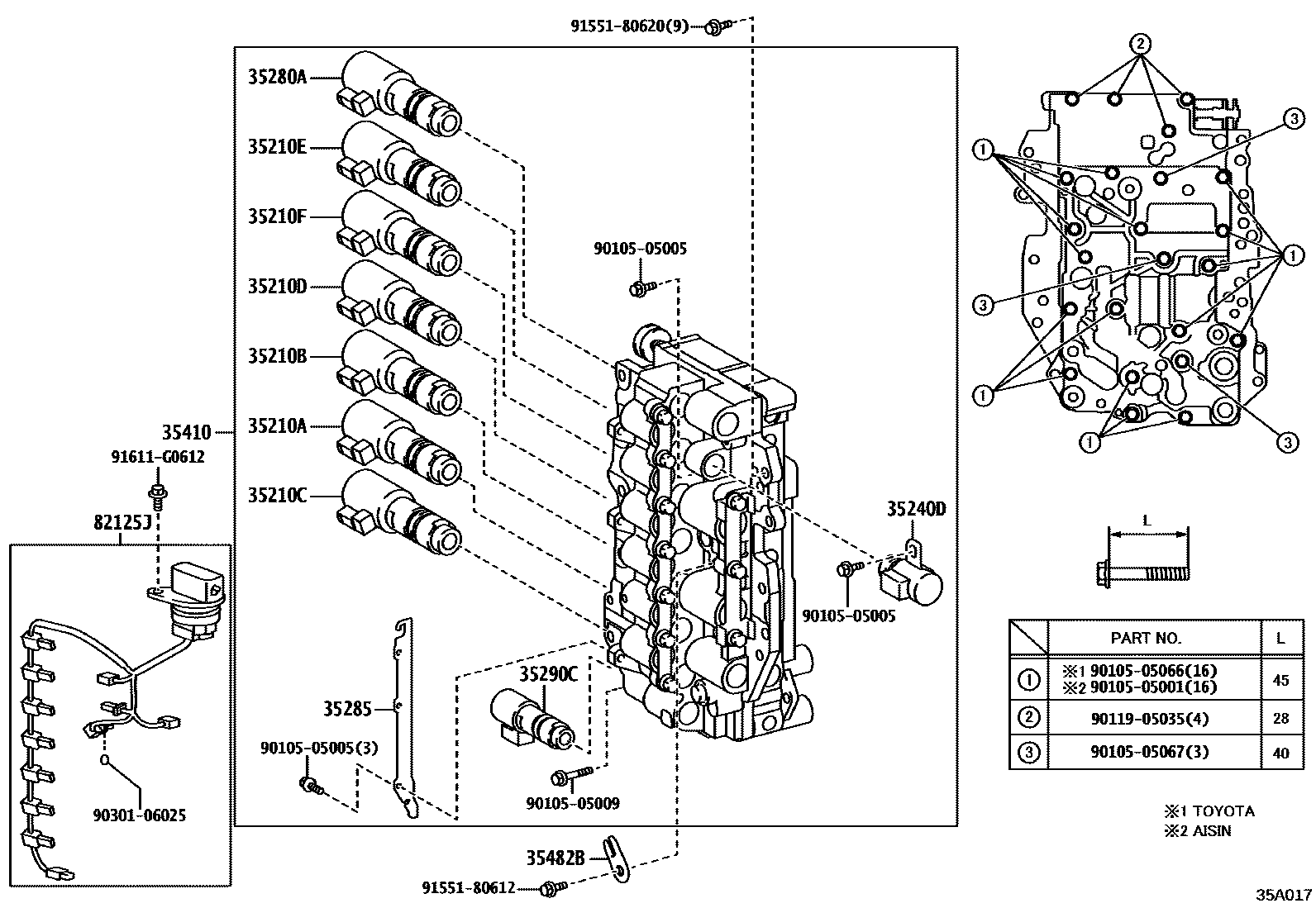

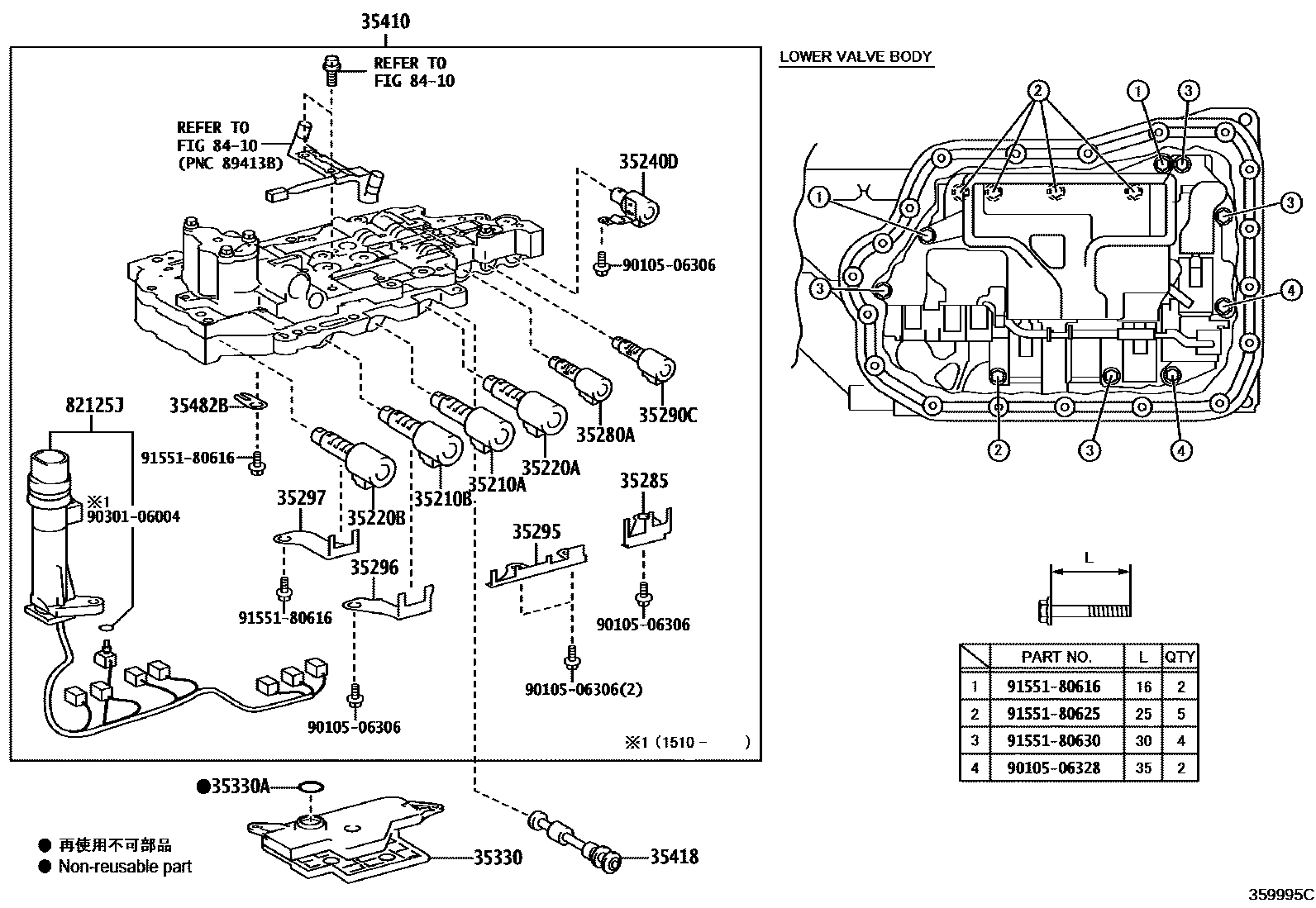

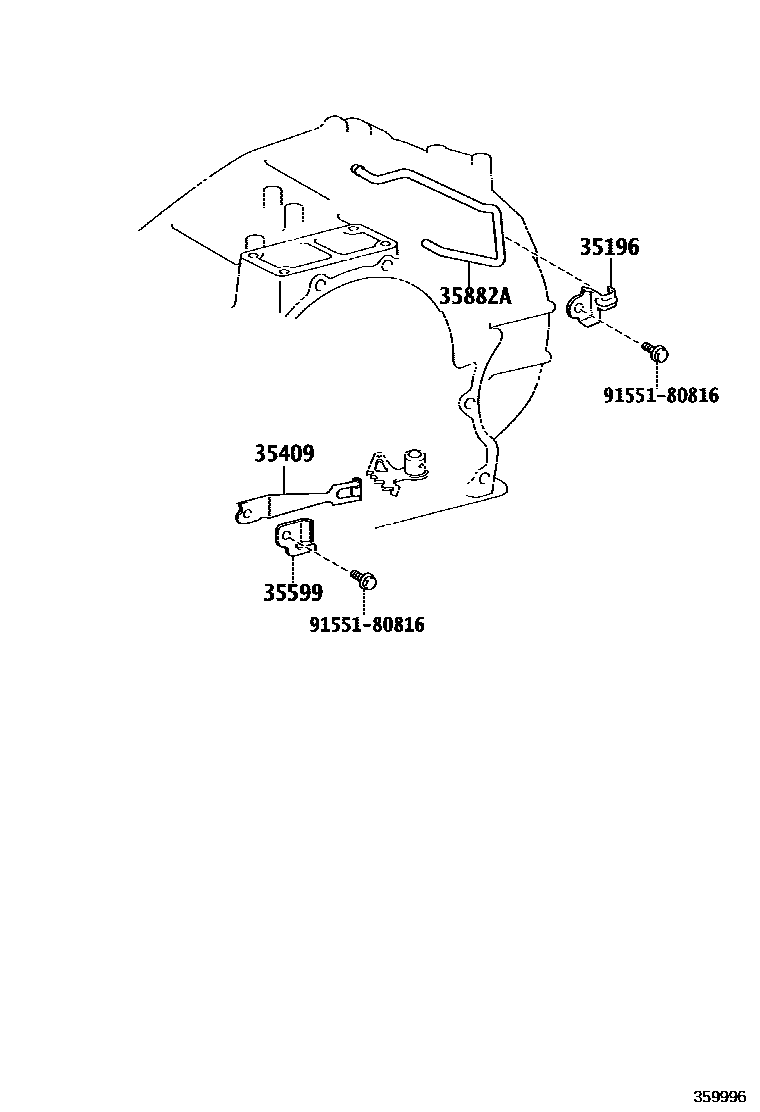

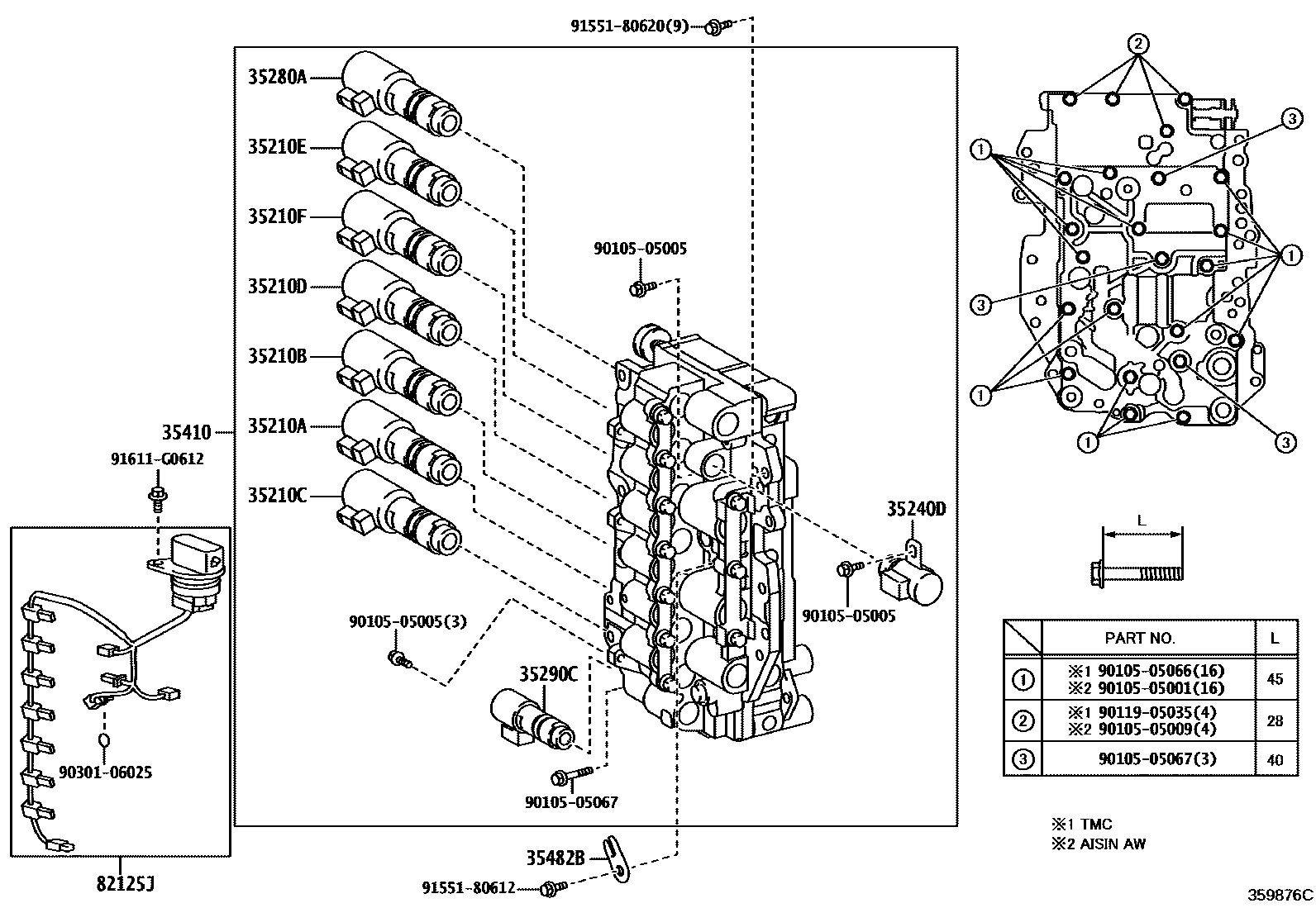

Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512
Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-33010 |
| 35210A | SOUPAPE, SOLENOIDE(SL1) | 35210-33030 · 35210-48020 · 35210-48030 |
| 35210B | SOUPAPE, SOLENOIDE(SL3) | 35210-33030 · 35210-48020 · 35210-48030 |
| 35210C | SOUPAPE, SOLENOIDE(SL2) | 35210-48020 |
| 35210D | SOUPAPE, SOLENOIDE(SL4) | 35210-48020 |
| 35210E | SOUPAPE, SOLENOIDE(SL5) | 35210-48020 |
| 35210F | SOUPAPE, SOLENOIDE(SL6) | 35210-48020 |
| 35220A | SOUPAPE, SOLENOIDE(SL2) | 35220-33100 · 35220-48020 |
| 35220B | SOUPAPE, SOLENOIDE(SL4) | 35220-33050 · 35220-48020 |
| 35240D | SOUPAPE, SOLENOIDE(SL) | 35240-48020 · 35240-73010 |
| 35280A | SOUPAPE, SOLENOIDE(SLU) | 35280-33020 · 35280-33040 · 35280-48030 |
| 35285 | Solenoid valve lock plate | 35285-33070 · 35285-48030 · 35285-73010 |
| 35290C | SOUPAPE, SOLENOIDE(SLT) | 35290-33040 · 35290-48020 · 35290-48030 |
| 35295 | No. 2 solenoid valve locking plate | 35295-33050 · 35295-73010 |
| 35296 | No. 3 solenoid valve locking plate | 35296-33050 · 35296-73010 |
| 35297 | No. 4 solenoid valve locking plate | 35297-33020 · 35297-33030 · 35297-73010 |
| 35330 | Valve body oil filter assembly | 35330-73010 · 35330-73021 |
| 35330A | O-ring (for oil filter) | 90301-27015 |
| 35409 | Manual lock spring sub-assembly | 35409-33010 |
| 35410 | Transmission valve body assembly | 35410-33250 · 35410-33260 · 35410-33270 · 35410-48070 · 35410-48090 |
| 35418 | Manual valve | 35418-33030 · 35418-73010 |
| 35482B | temperature sensor clip | 35482-73010 |
| 35599 | Manual locking spring cover | 35599-33010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-73010 |
| 82125J | Transmission wiring harness | 82125-33170 · 82125-33171 · 82125-73010 · 82125-73011 |
