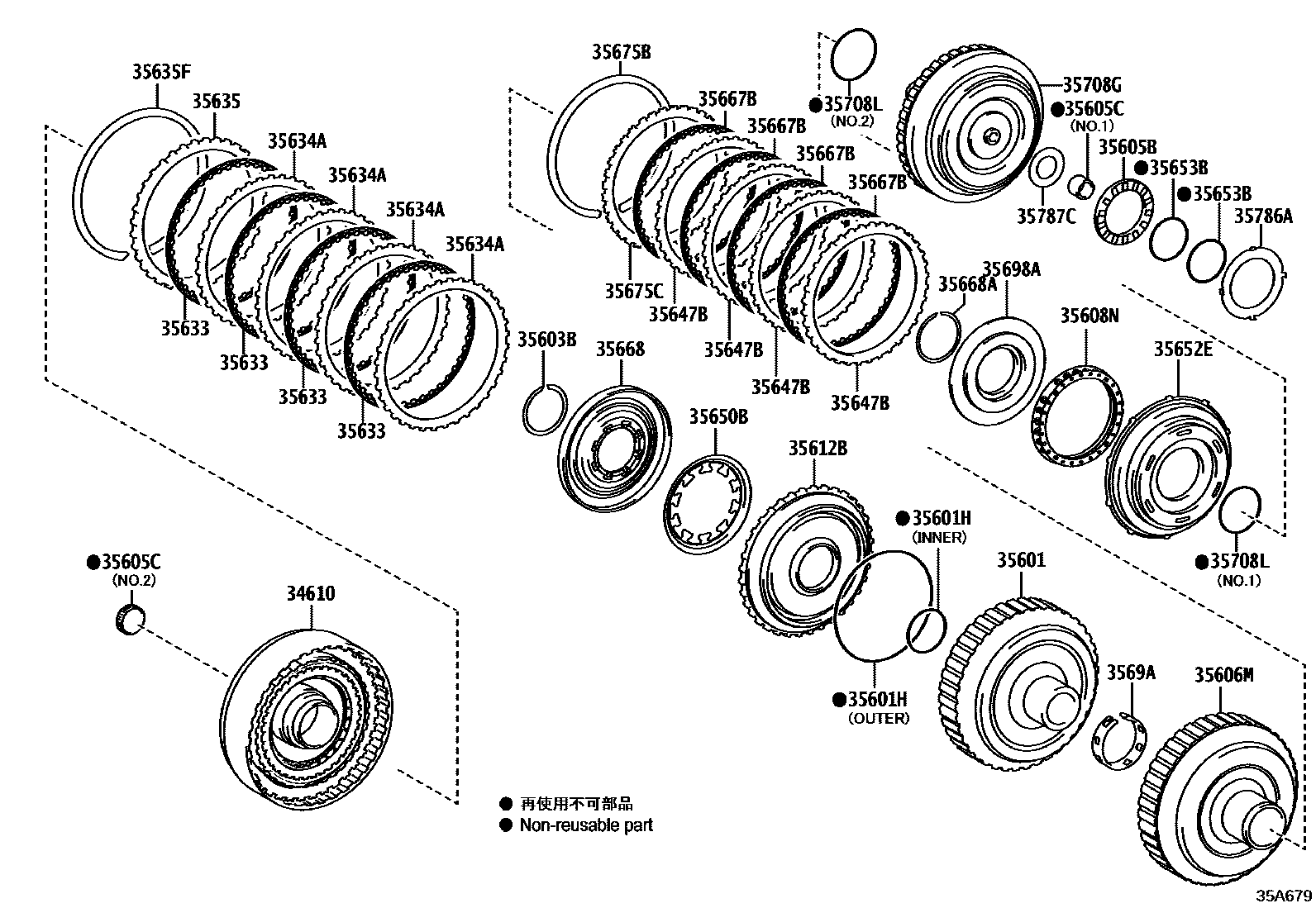

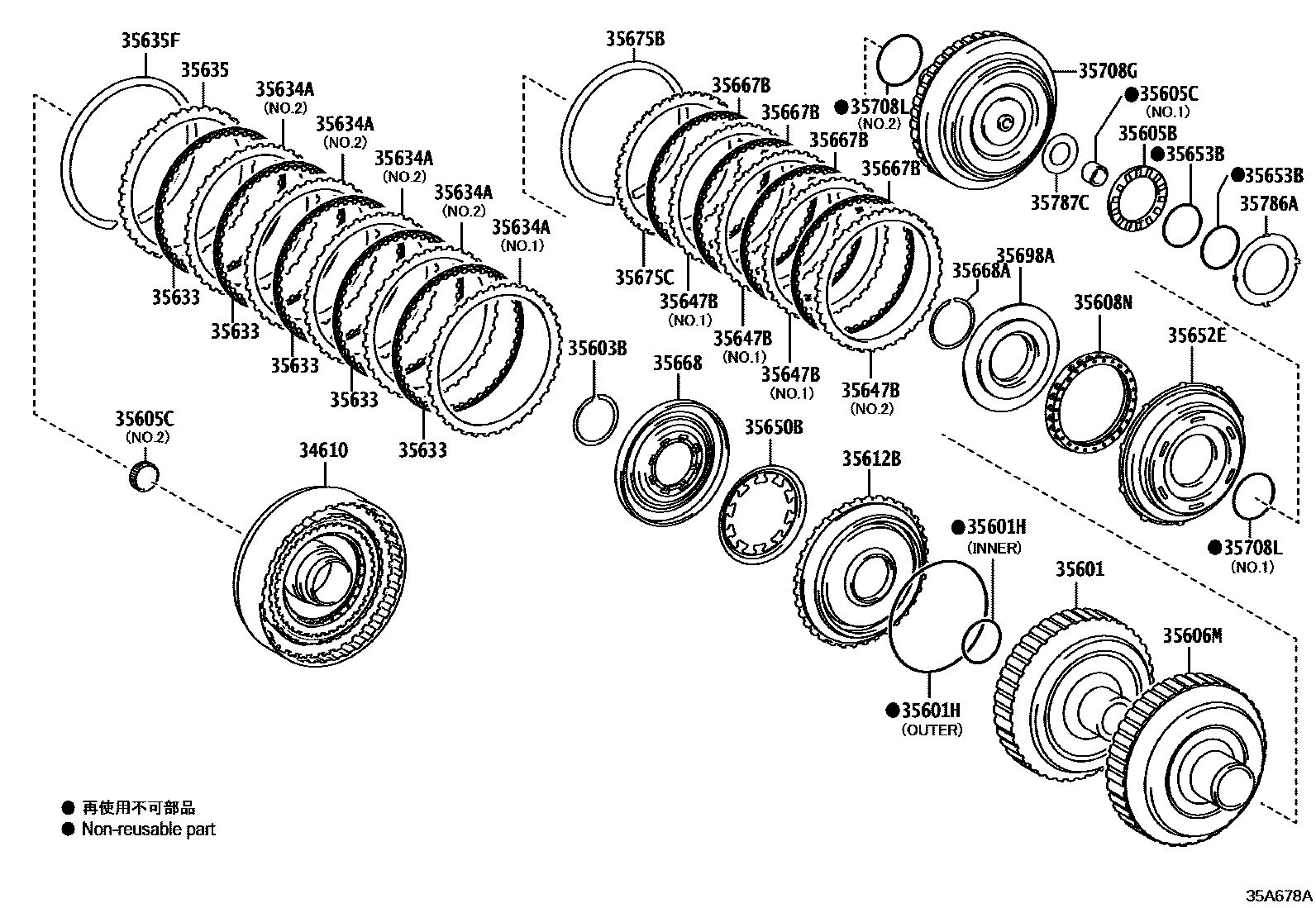

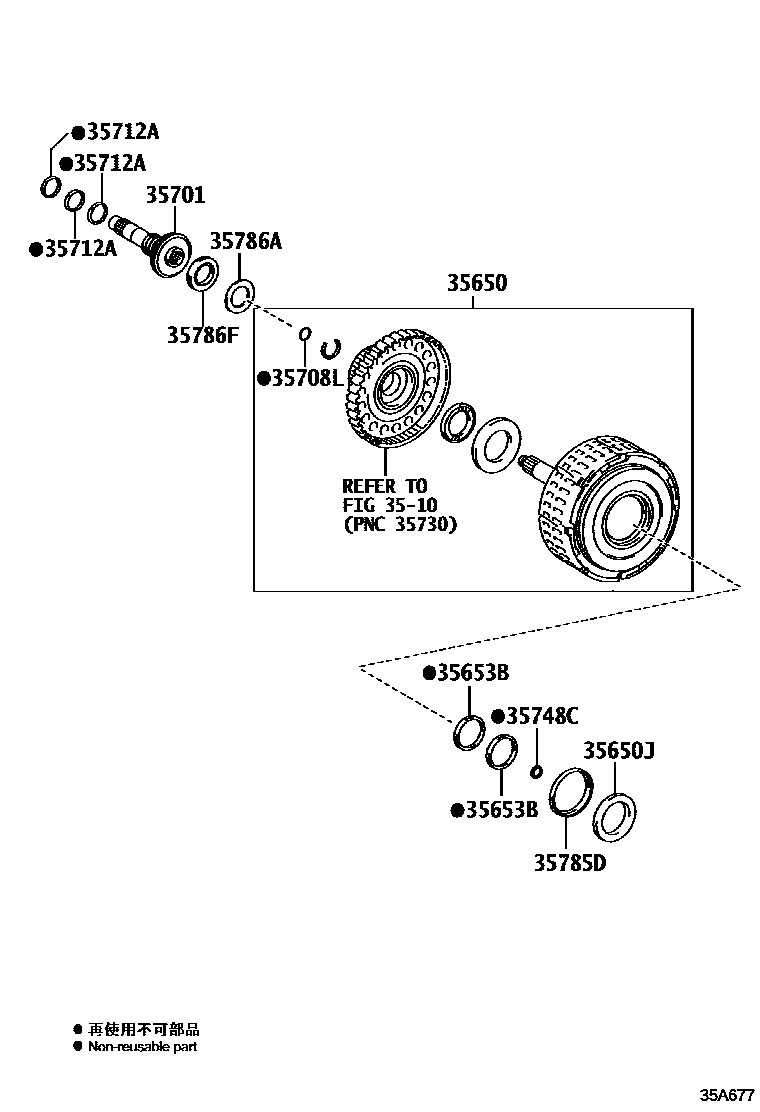

Toyota CAMRY 制动带和多片式离合器(ATM) — Figure 3507
Toyota CAMRY EPC diagram 3507, 制动带和多片式离合器(ATM), with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34610 | ENS. EMBRAYAGE, C-3 ET C-4 | 34610-33060 · 34610-48030 · 34610-48050 |
| 35601 | Clutch drum sub-assembly | 35601-33010 · 35601-48041 |
| 35601H | JOINT, TORIQUE(POUR TAMBOUR C-1) | 90301-99219 · 90301-99229 · 90302-40001 · 90302-42001 |
| 35603B | Shaft snap ring (for forward clutch piston) | 90520-44043 · 90520-46015 |
| 35605B | Thrust needle roller bearing | 90374-47005 · 90374-50002 |
| 35605C | Needle roller bearings | 90364-13010 · 90364-16011 · 90364-16012 · 90364-23006 · 90364-23007 · 90364-26007 · 90364-26008 · 90364-26009 |
| 35606M | SOUS-ENS MOYEU, ENTREE PLANETAIRE | 35606-33030 · 35606-33040 · 35606-48010 · 35606-48020 |
| 35608N | SOUS-ENS. RESSORT, RAPPEL EMBRAYAGE AV/ARRETOIR | 3560A-33010 · 3560A-48010 |
| 35612B | forward clutch piston | 35612-33070 · 35612-48020 |
| 35633 | Clutch disc (for front clutch) | 35633-33140 · 35633-48030 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-33090 · 35634-48050 · 35634-48060 |
| 35635 | forward clutch flange | 35635-33200 · 35635-33210 · 35635-33220 · 35635-33230 · 35635-33240 · 35635-33250 · 35635-33260 · 35635-48120 · 35635-48130 · 35635-48140 · 35635-48150 · 35635-48160 · 35635-48170 · 35635-48180 · 35635-48190 · 35635-48200 |
| 35635F | Snap ring (for forward clutch flange) | 90520-99188 · 90521-99194 |
| 35647B | Clutch plate No. 2 | 35647-33050 · 35647-48030 · 35647-48040 |
| 35650 | Rear multi-plate clutch assembly | 35650-33090 · 35650-33110 · 35650-73020 |
| 35650B | Compression spring (for rear clutch piston return) | 35628-33050 · 35628-48010 |
| 35650J | Thrust needle roller bearing (for direct gear disc clutch) | 90374-48009 |
| 35652E | PISTON, EMBRAYAGE C-2 | 35652-33020 · 35652-48020 |
| 35653B | Direct clutch drum oil guard ring | 35653-33010 · 35653-33020 · 35653-48020 |
| 35667B | No. 2 clutch disc | 35667-33040 · 35667-48030 |
| 35668 | No. 1 clutch balancer | 35668-33030 · 35668-48020 |
| 35668A | Snap ring (for clutch balancer) | 90520-45038 · 90520-48013 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99171 · 90521-99195 |
| 35675C | Direct clutch flange | 35675-33070 · 35675-33080 · 35675-33090 · 35675-33100 · 35675-33110 · 35675-33120 · 35675-33130 · 35675-33140 · 35675-33150 · 35675-33160 · 35675-33170 · 35675-33180 · 35675-33190 · 35675-33200 · 35675-48210 · 35675-48220 · 35675-48230 · 35675-48240 · 35675-48250 · 35675-48260 · 35675-48270 · 35675-48370 · 35675-48380 · 35675-48390 · 35675-48400 · 35675-48410 · 35675-48420 · 35675-48430 |
| 35698A | BALANCIER, EMBRAYAGE C-2 | 35698-33010 · 35698-48020 |
| 3569A | COURONNE, TOLERANCE TAMBOUR EMBRAYAGE | 3569A-33010 |
| 35701 | Input shaft sub-assembly | 35711-33080 · 35711-33090 |
| 35708G | Intermediate shaft sub-assembly | 35708-33060 · 35708-33070 · 35708-48031 · 35708-48041 |
| 35708L | O-ring (for intermediate shaft) | 90301-11032 · 90301-45007 · 90301-45008 · 90301-47008 · 90301-50004 |
| 35712A | Input shaft oil ring | 35712-33020 |
| 35748C | Intermediate shaft oil ring | 35748-33010 |
| 35785D | No. 4 thrust bearing race | 35785-48020 |
| 35786A | No. 1 thrust bearing race | 35786-33010 · 35786-33020 · 35786-48020 |
| 35786F | Thrust needle roller bearing | 90374-29007 |
| 35787C | No. 2 thrust bearing race | 35787-33030 · 35787-48030 |
