Toyota CAMRY vacuum tube — Figure 1708

Toyota CAMRY EPC diagram 1708, vacuum tube, with 8 images and 31 PNC and OE references.

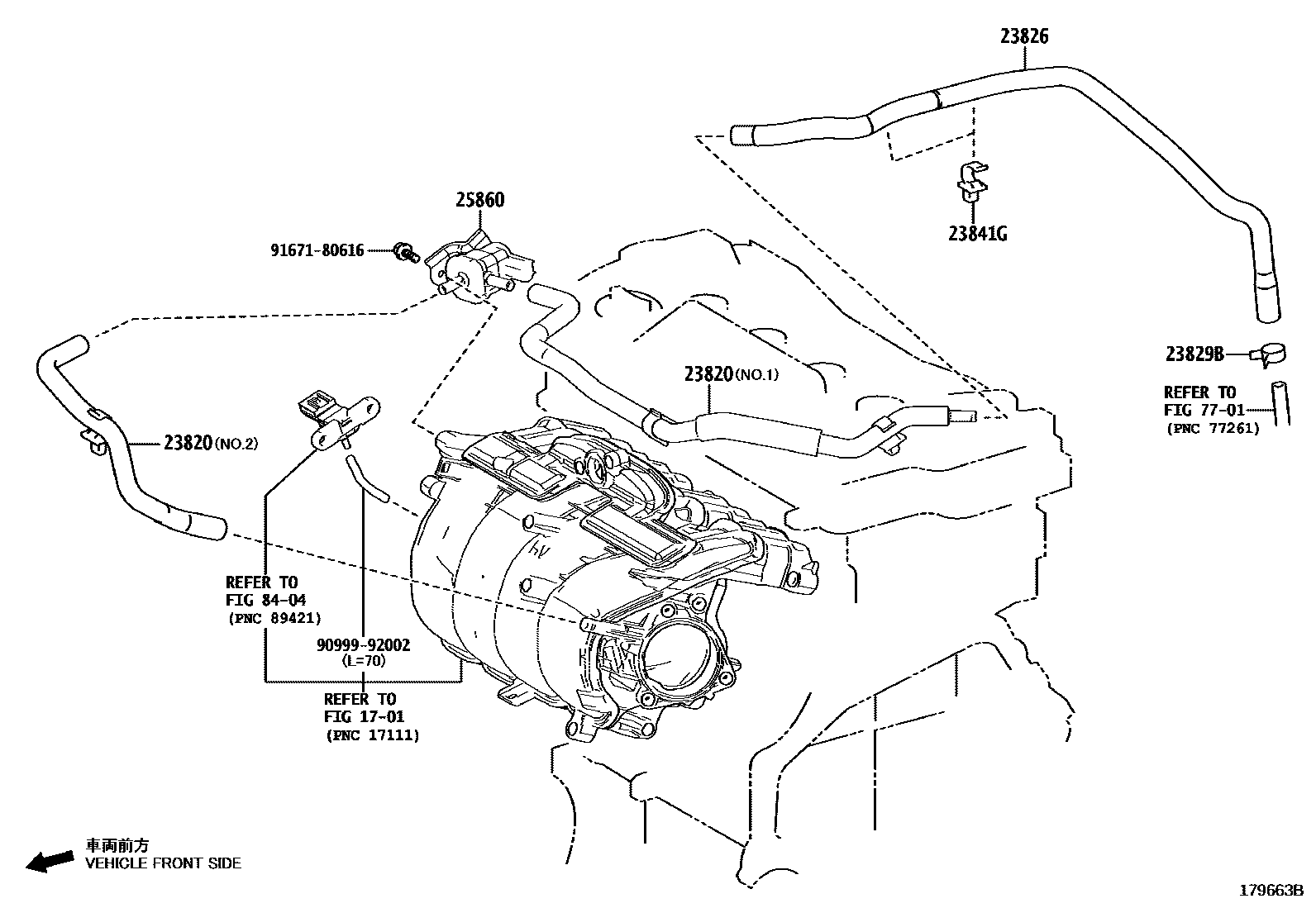

Toyota CAMRY vacuum tube EPC diagram — 179663B — vacuum tube — 179663B (201709 – 999999)

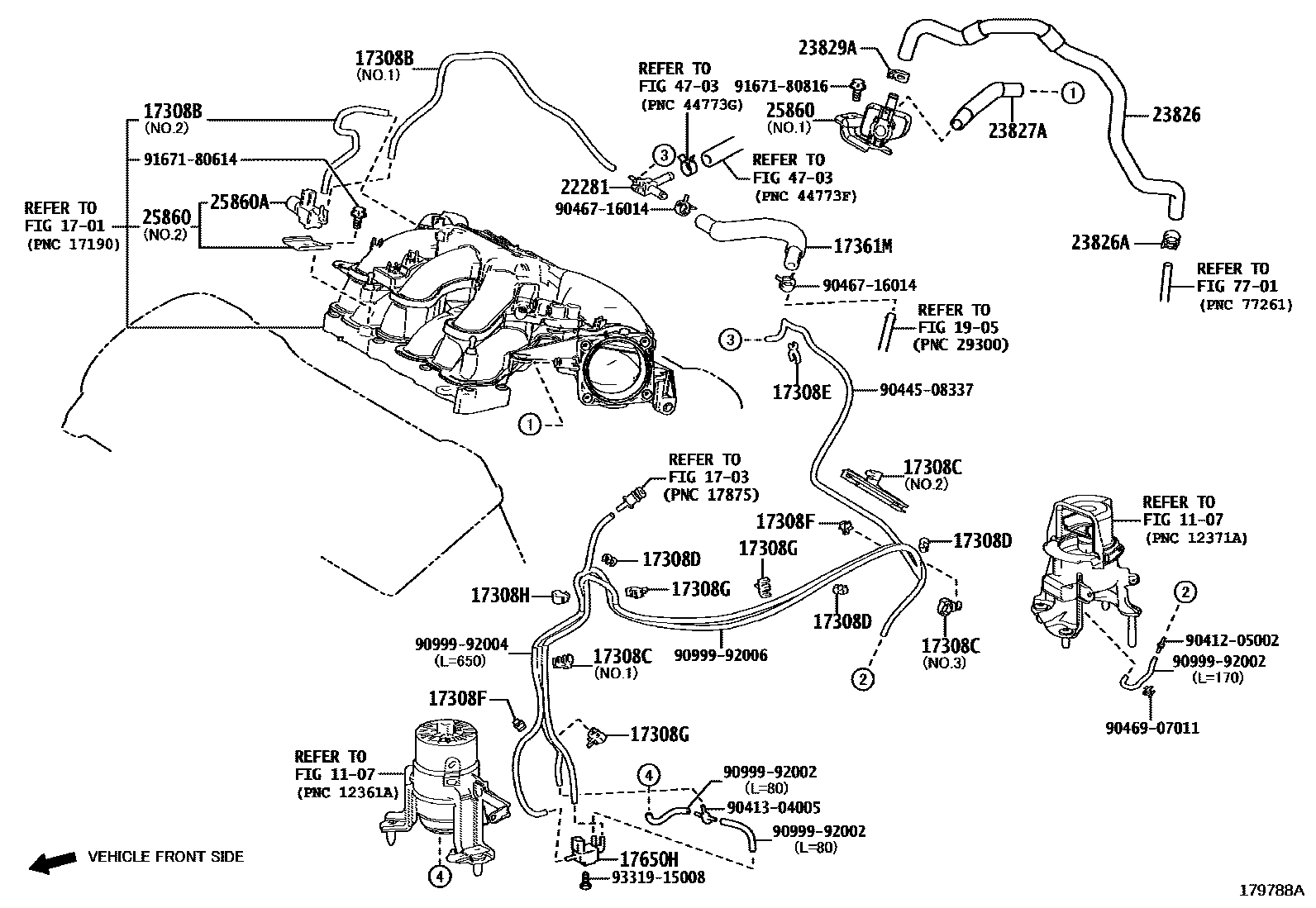

Toyota CAMRY vacuum tube EPC diagram — 179788A — vacuum tube — 179788A (201709 – 201802)

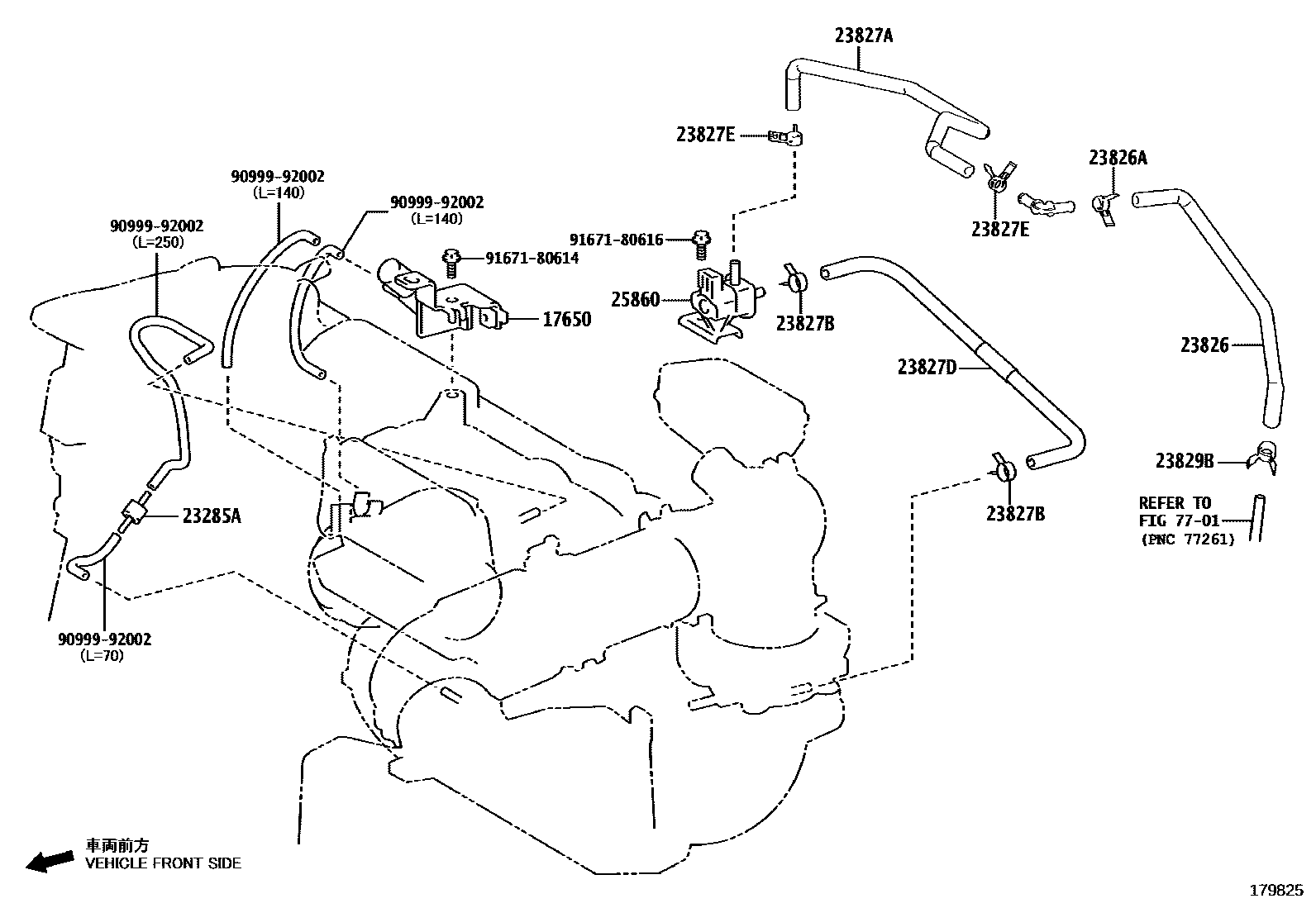

Toyota CAMRY vacuum tube EPC diagram — 179825 — vacuum tube — 179825 (201709 – 999999)

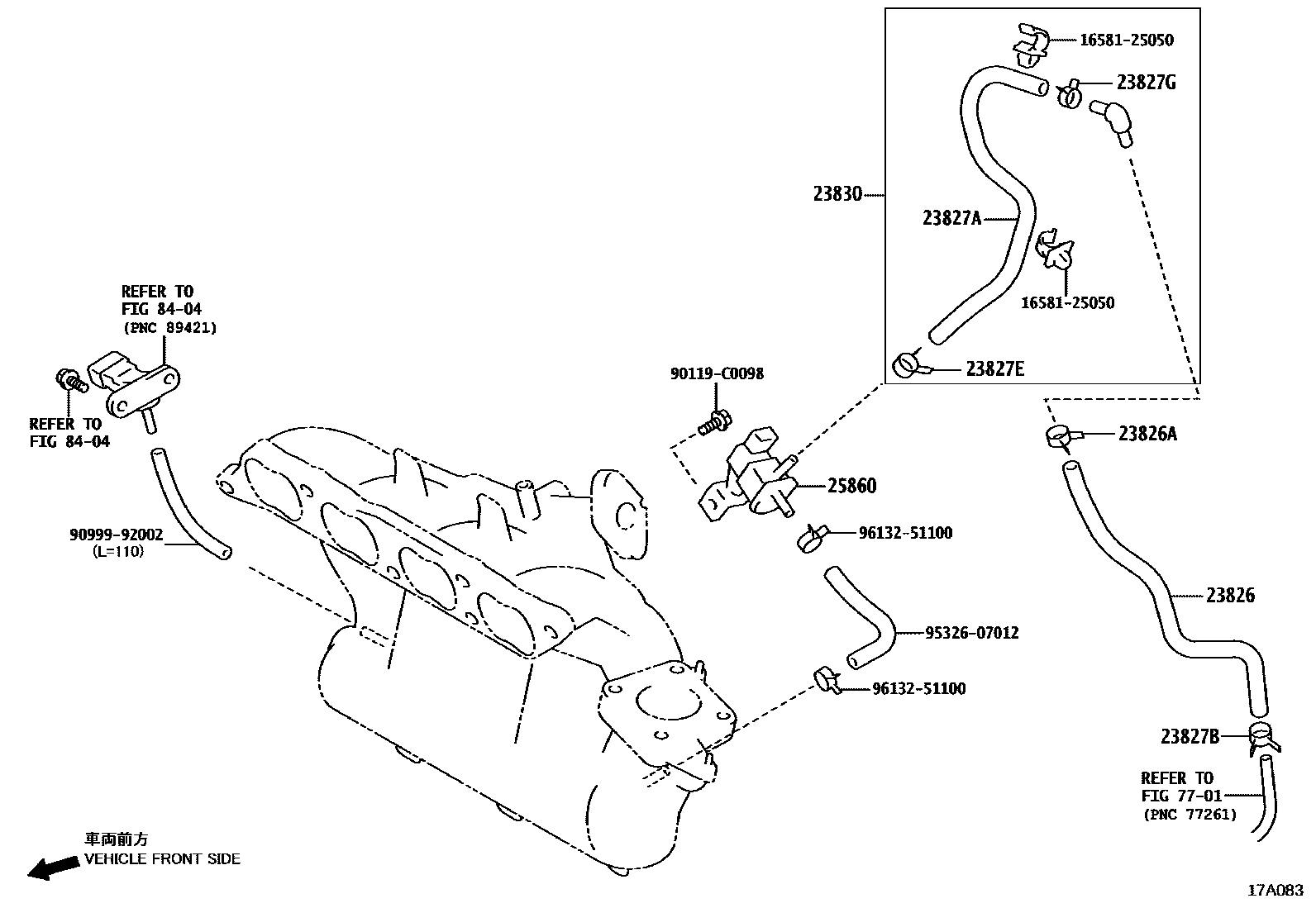

Toyota CAMRY vacuum tube EPC diagram — 17A083 — vacuum tube — 17A083 (201804 – 999999)

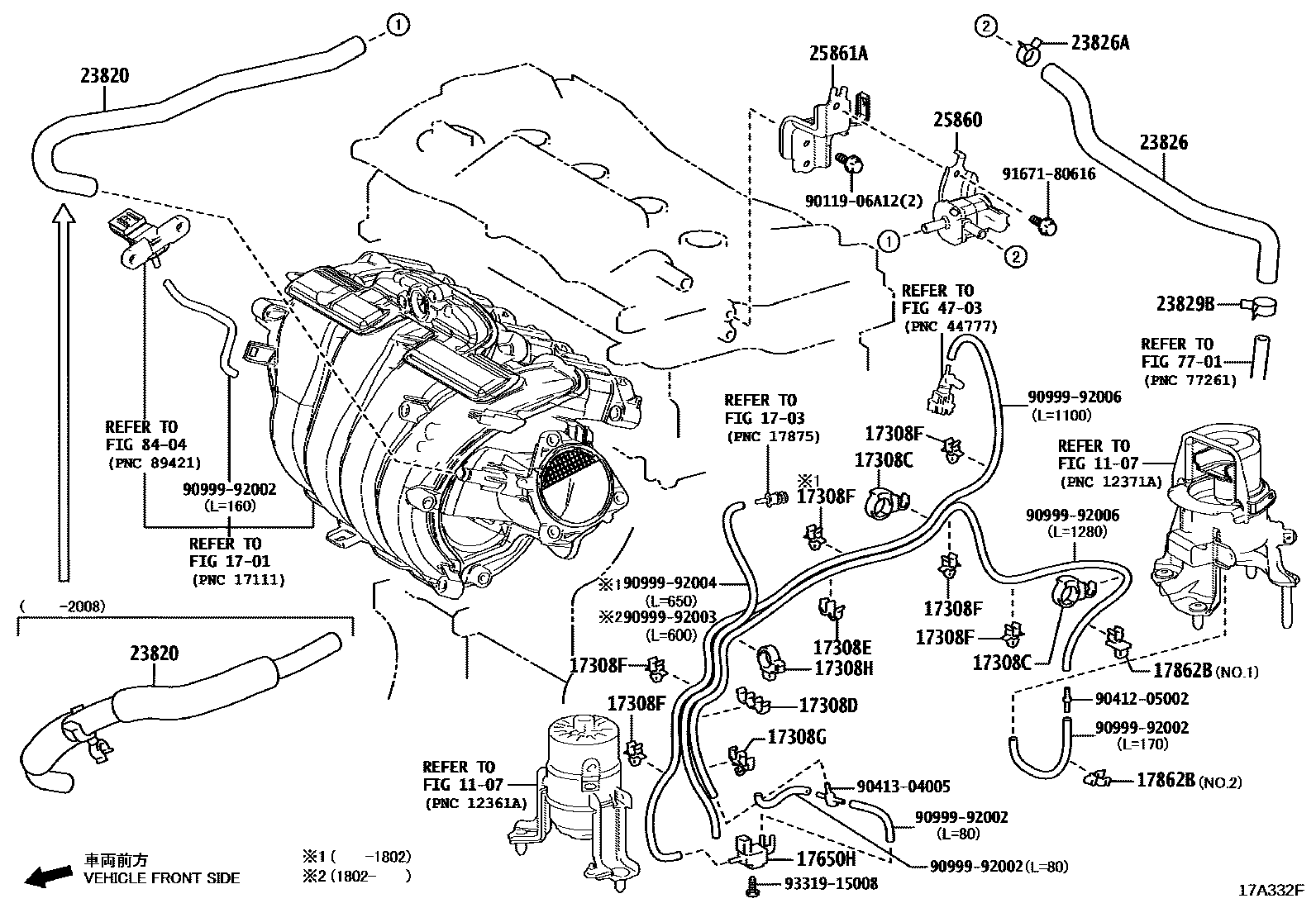

Toyota CAMRY vacuum tube EPC diagram — 17A332F — vacuum tube — 17A332F (201709 – 999999)

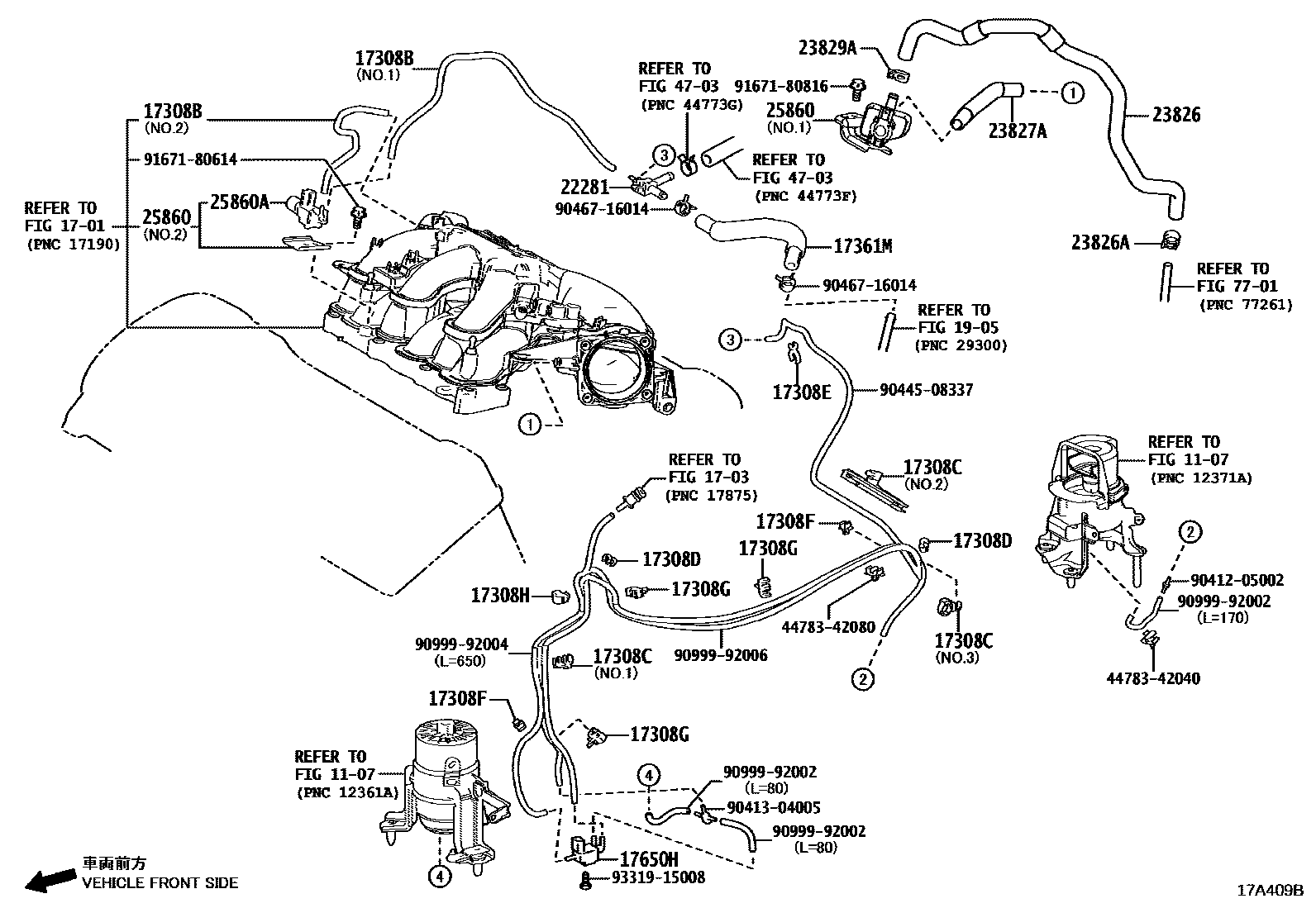

Toyota CAMRY vacuum tube EPC diagram — 17A409B — vacuum tube — 17A409B (201802 – 999999)

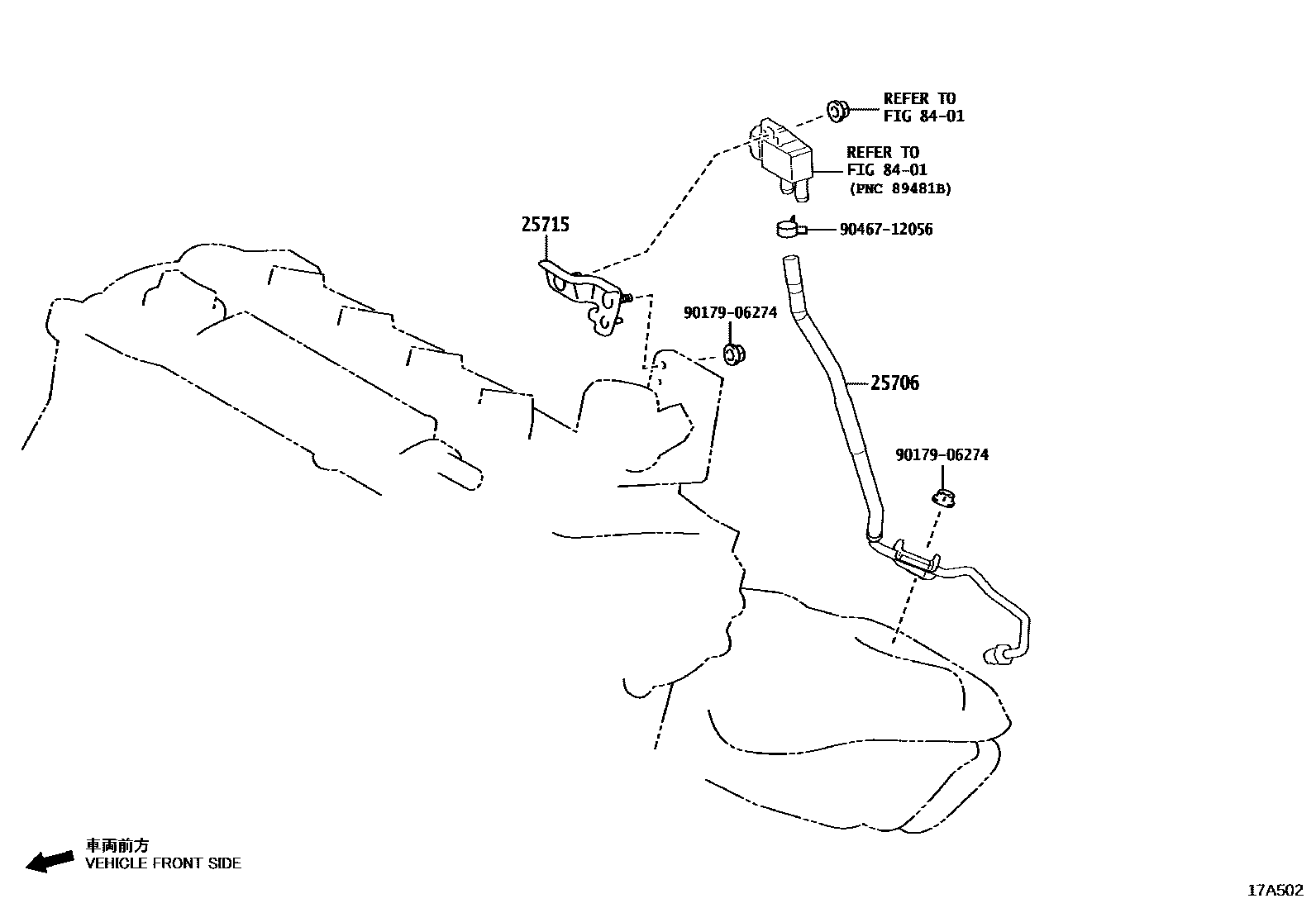

Toyota CAMRY vacuum tube EPC diagram — 17A502 — vacuum tube — 17A502 (201902 – 999999)

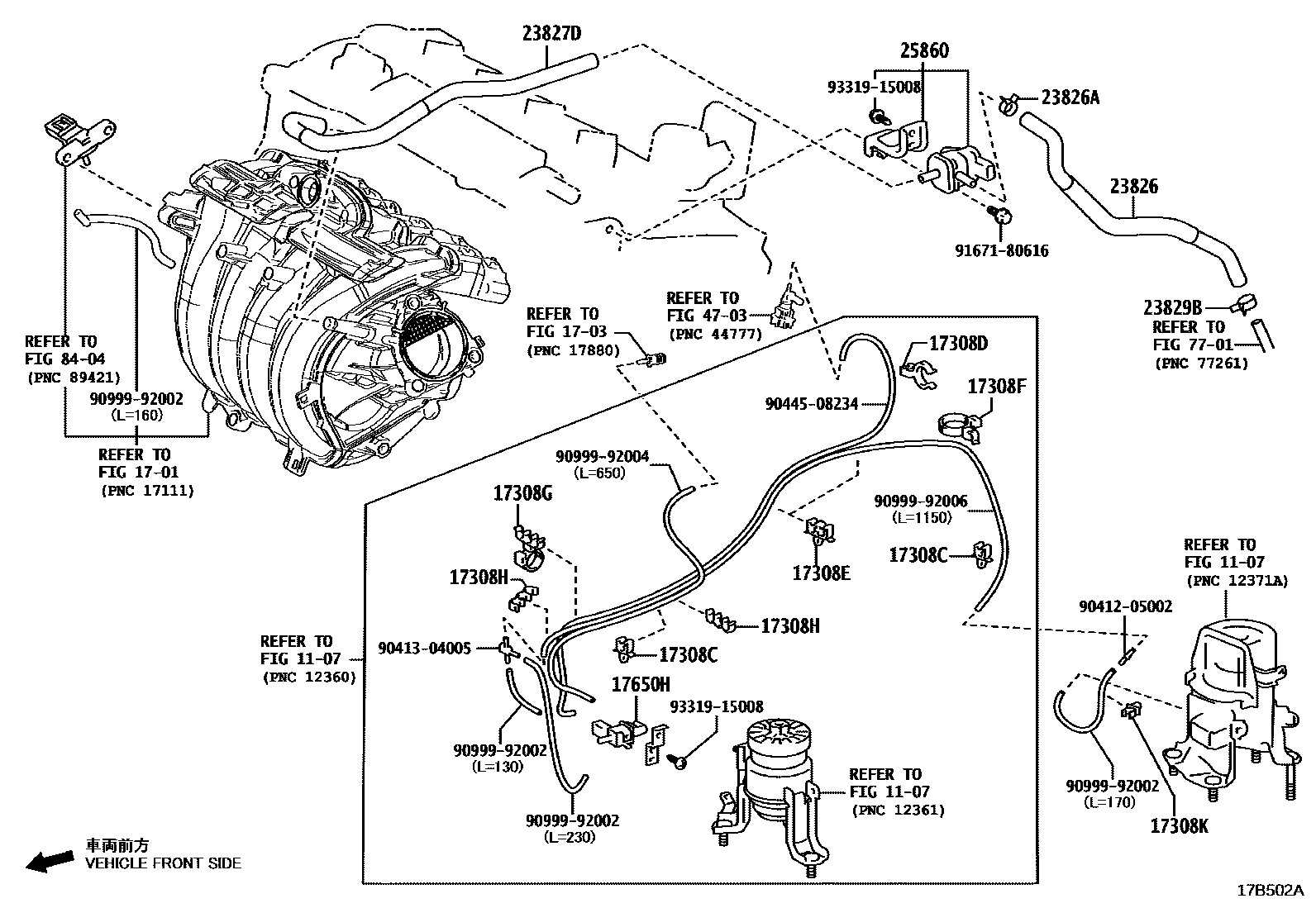

Toyota CAMRY vacuum tube EPC diagram — 17B502A — vacuum tube — 17B502A (202104 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17308B	Vacuum hose sub-assembly	25760-31020 · 90999-92002
17308C	Clamp (for vacuum hose)	44783-33040 · 44783-33050 · 44783-33060 · 44783-42040
17308D	Clamp No. 2 (for vacuum hose)	44783-42070 · 90464-00074 · 90464-00082
17308E	Clamp No. 3 (for vacuum hose)	44783-42070 · 44783-42080 · 90464-00082 · 90464-00175
17308F	No. 4 clamp (for vacuum hose)	44783-42040 · 44783-42090 · 90469-07011
17308G	No. 5 clamp (for vacuum hose)	44783-42100 · 90469-07012
17308H	Clamp No. 6 (for vacuum hose)	90464-00074 · 90959-01434
17308K	COLLIER, NO.7(POUR FLEX DEPRESSION)	44783-42040
17361M	air tube	17361-31040
17650	Vacuum switch valve assembly	25860-36010
17650H	Vacuum switch valve	90910-12059 · 90910-TC003
17862B	hose clamp	44783-42040 · 44783-42060 · 90469-07011 · 90949-01C91
22281	Air delivery pipe joint	22281-31010
23285A	No. 1 one-way valve	90917-10065
23820	Fuel vapor supply hose assembly	23820-25051 · 23820-25060 · 23820-25071 · 23820-25130 · 23820-25150 · 23820-25160 · 23820-25260
23826	No. 1 fuel vapor supply hose	23826-24180 · 23826-25010 · 23826-25011 · 23826-25020 · 23826-25030 · 23826-25190 · 23826-31350 · 23826-36110 · 23826-36240
23826A	Clamp (for No. 1 fuel vapor supply hose)	90466-11004 · 90466-13005 · 96133-41501
23827A	No. 2 fuel vapor supply hose	23826-31410 · 23827-36050 · 23827-36190
23827B	Clamp (for No. 2 fuel vapor supply hose)	90466-13005
23827D	No. 2 fuel vapor supply hose	23826-24020 · 23827-36130
23827E	Clamp (for No. 2 fuel vapor supply hose)	90466-11004
23827G	AGR. FIX. (DE COND. FLEX. VAP.ESSENCE NO.3)	96137-41301
23829A	Fuel vapor supply hose	96133-41101
23829B	Clamp (for fuel vapor supply hose)	90466-13005 · 90466-15004 · 96136-41901
23830	No. 2 fuel vapor supply hose assembly	23830-36170
23841G	fuel hose clamp	77196-48010 · 77281-06010
25706	No. 1 vacuum transfer tube sub-assembly	25706-25010
25715	Emission control valve bracket	25715-25010
25860	No. 1 vacuum switch valve assembly	25860-0V150 · 25860-24020 · 25860-25010 · 25860-25020 · 25860-25040 · 25860-25070 · 25860-31120 · 25860-31160 · 25860-36020
25860A	No. 1 vacuum switch valve	25860-46010
25861A	No. 2 vacuum switch valve bracket	25862-25011
