Toyota CAMRY Air Cleaner — Figure 1703

Toyota CAMRY EPC diagram 1703, Air Cleaner, with 7 images and 23 PNC and OE references.

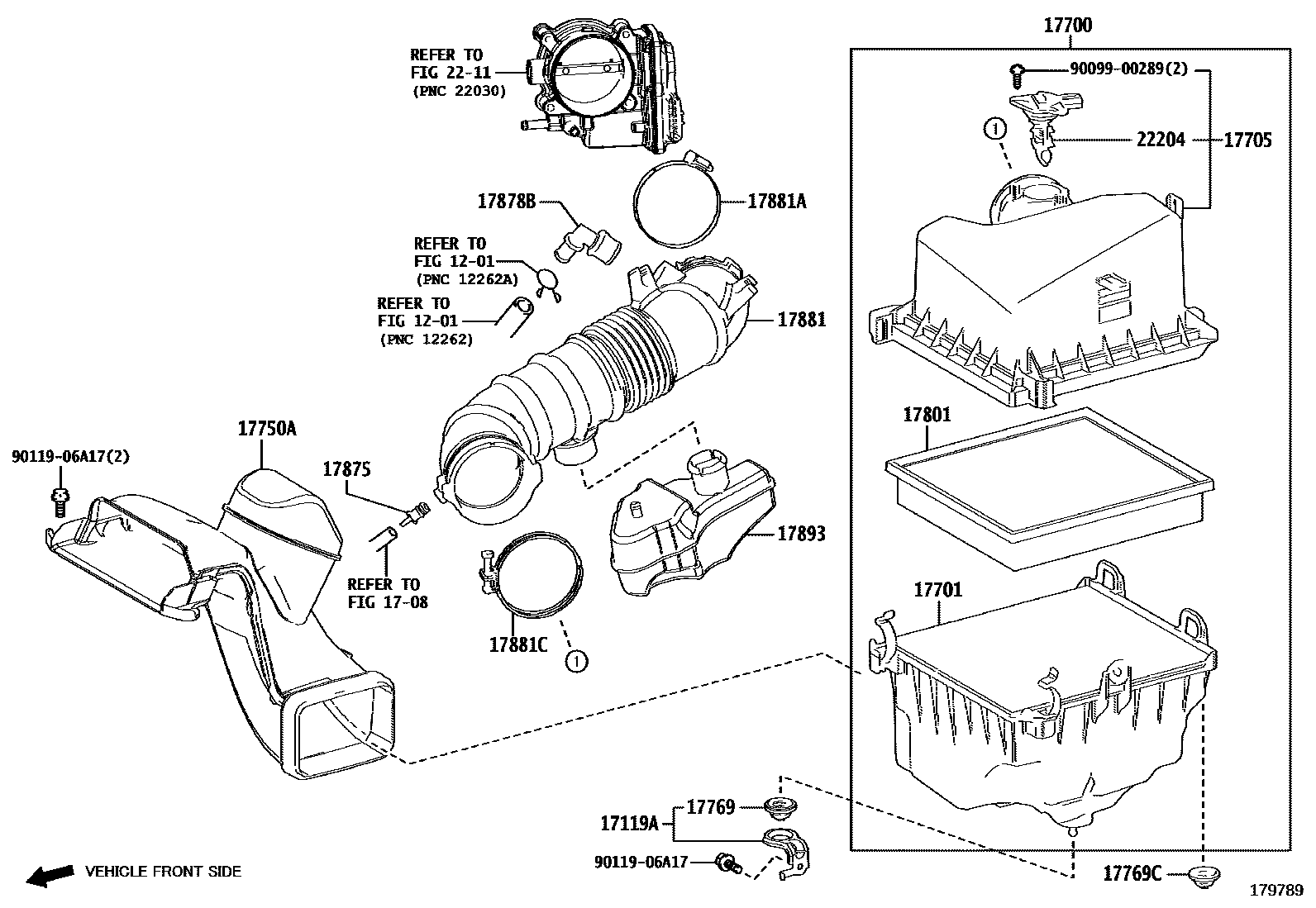

Toyota CAMRY Air Cleaner EPC diagram — 179789 — Air Cleaner — 179789 (201709 – 201907)

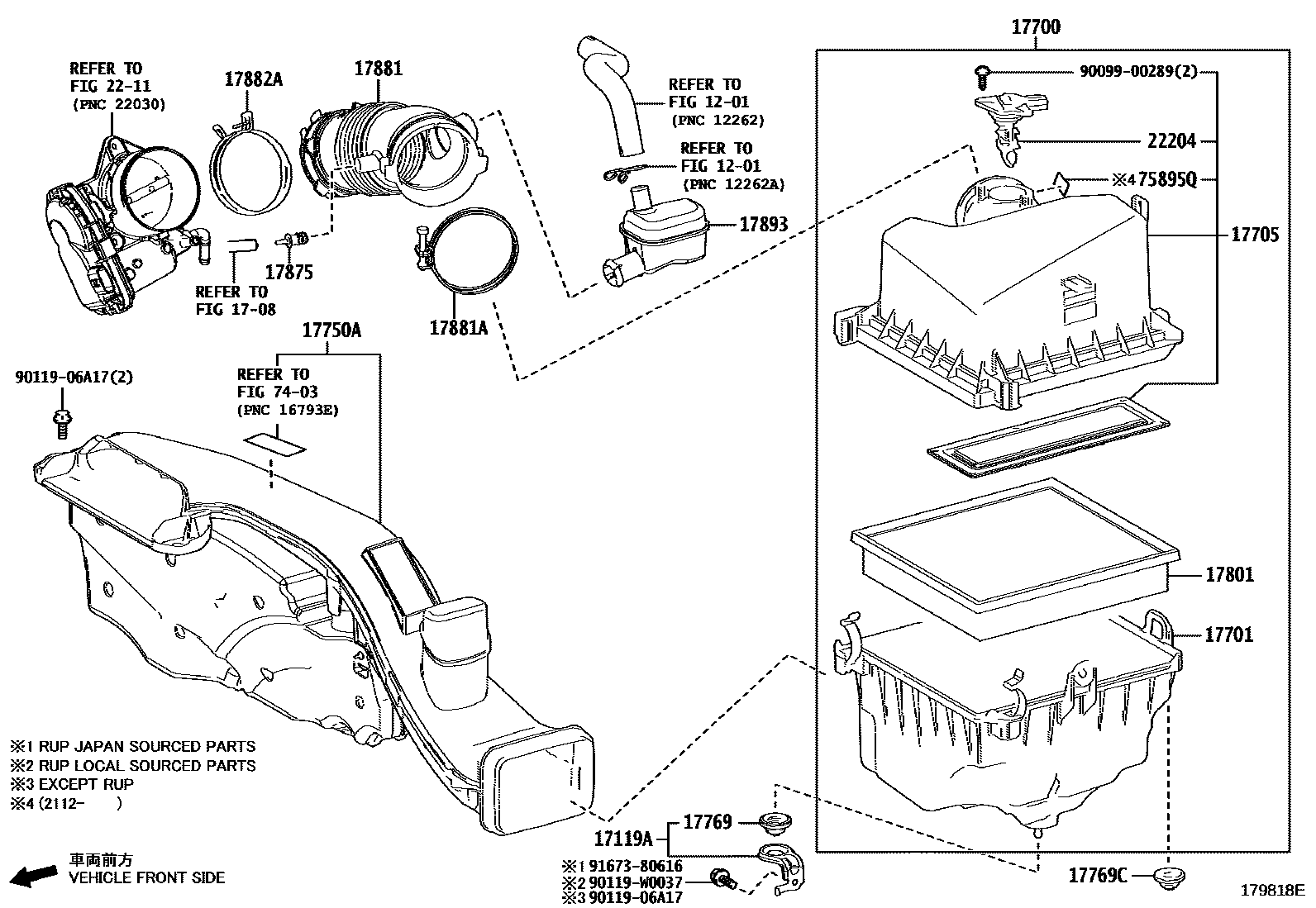

Toyota CAMRY Air Cleaner EPC diagram — 179818E — Air Cleaner — 179818E (201709 – 999999)

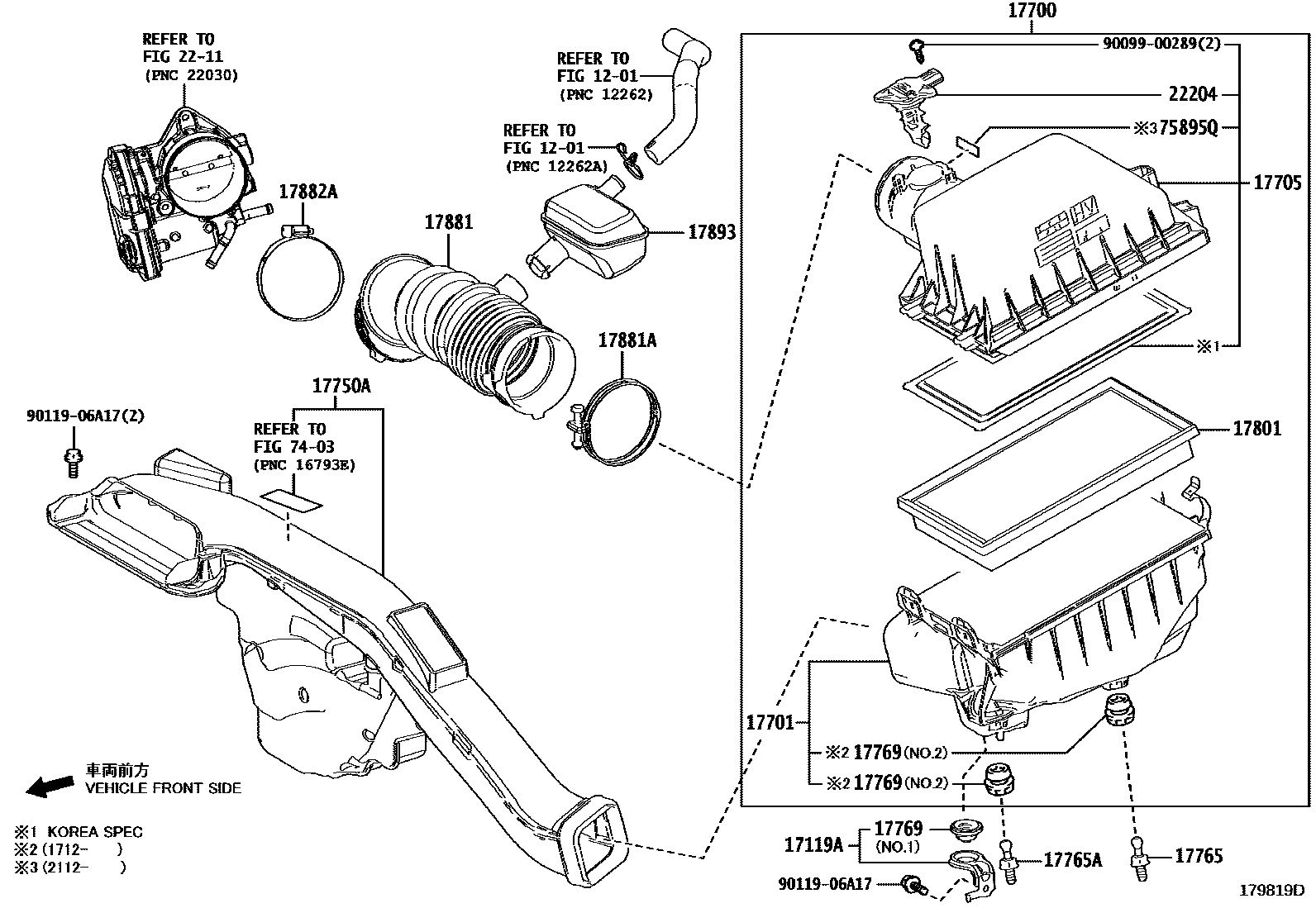

Toyota CAMRY Air Cleaner EPC diagram — 179819D — Air Cleaner — 179819D (201709 – 999999)

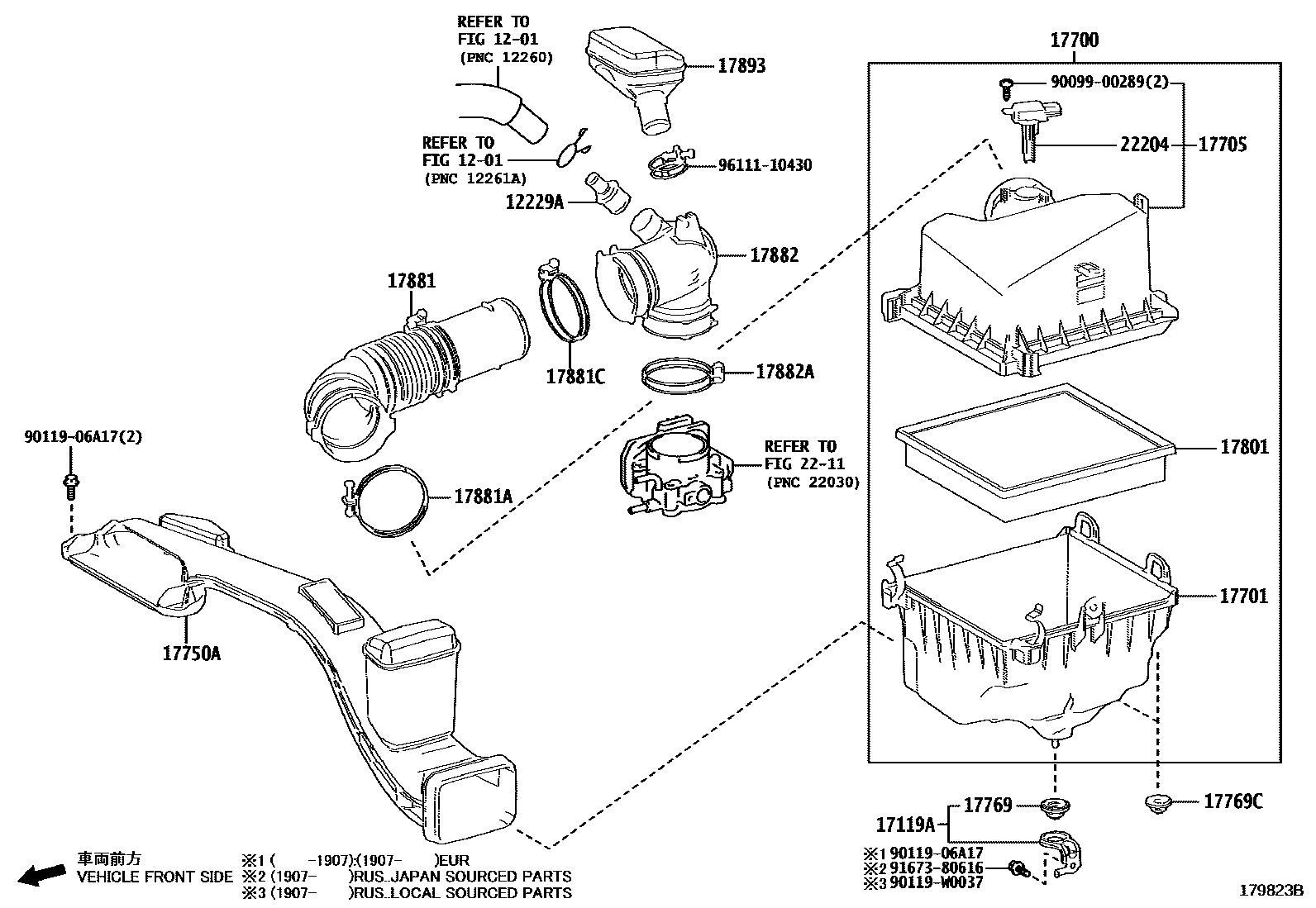

Toyota CAMRY Air Cleaner EPC diagram — 179823B — Air Cleaner — 179823B (201709 – 999999)

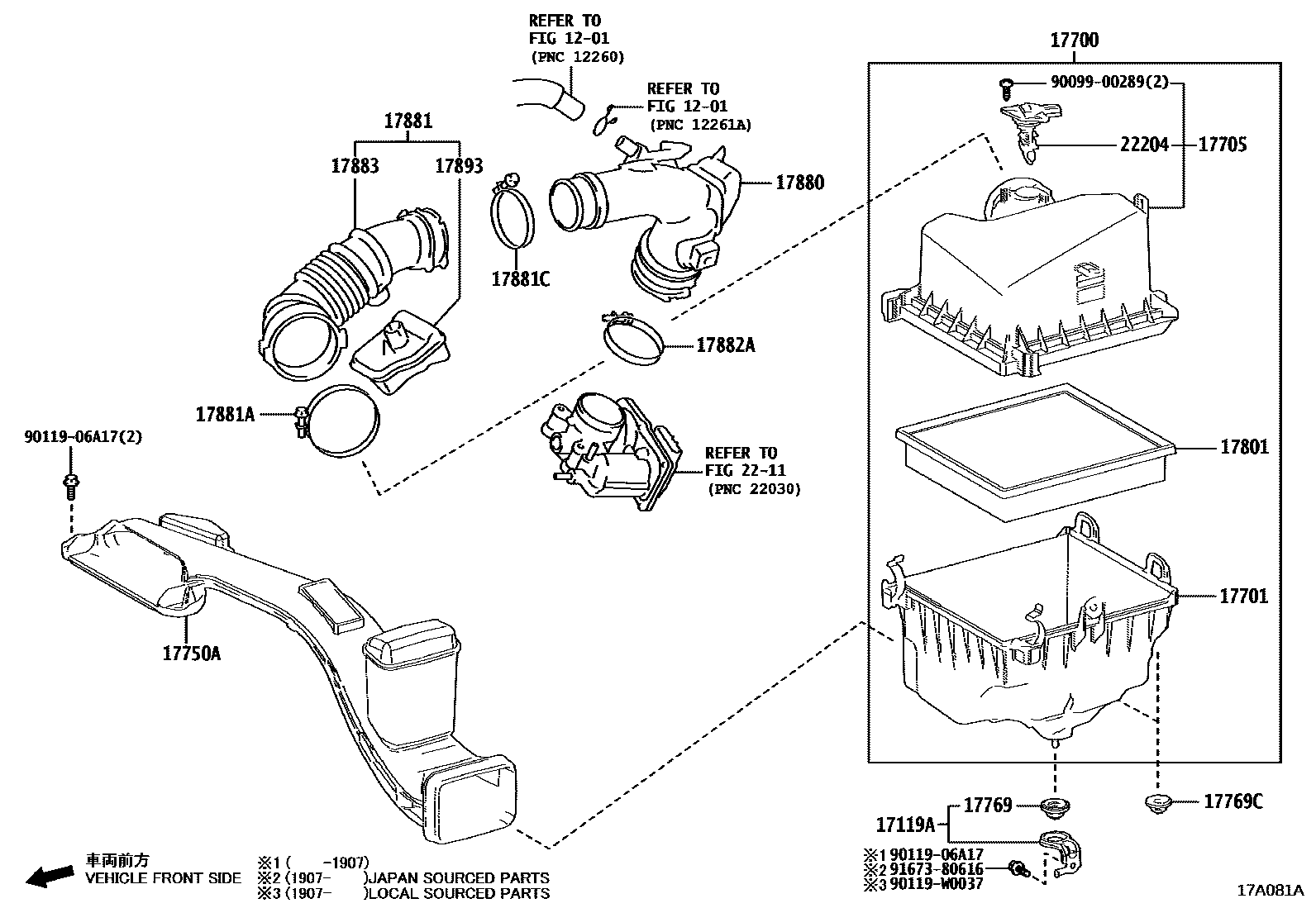

Toyota CAMRY Air Cleaner EPC diagram — 17A081A — Air Cleaner — 17A081A (201804 – 999999)

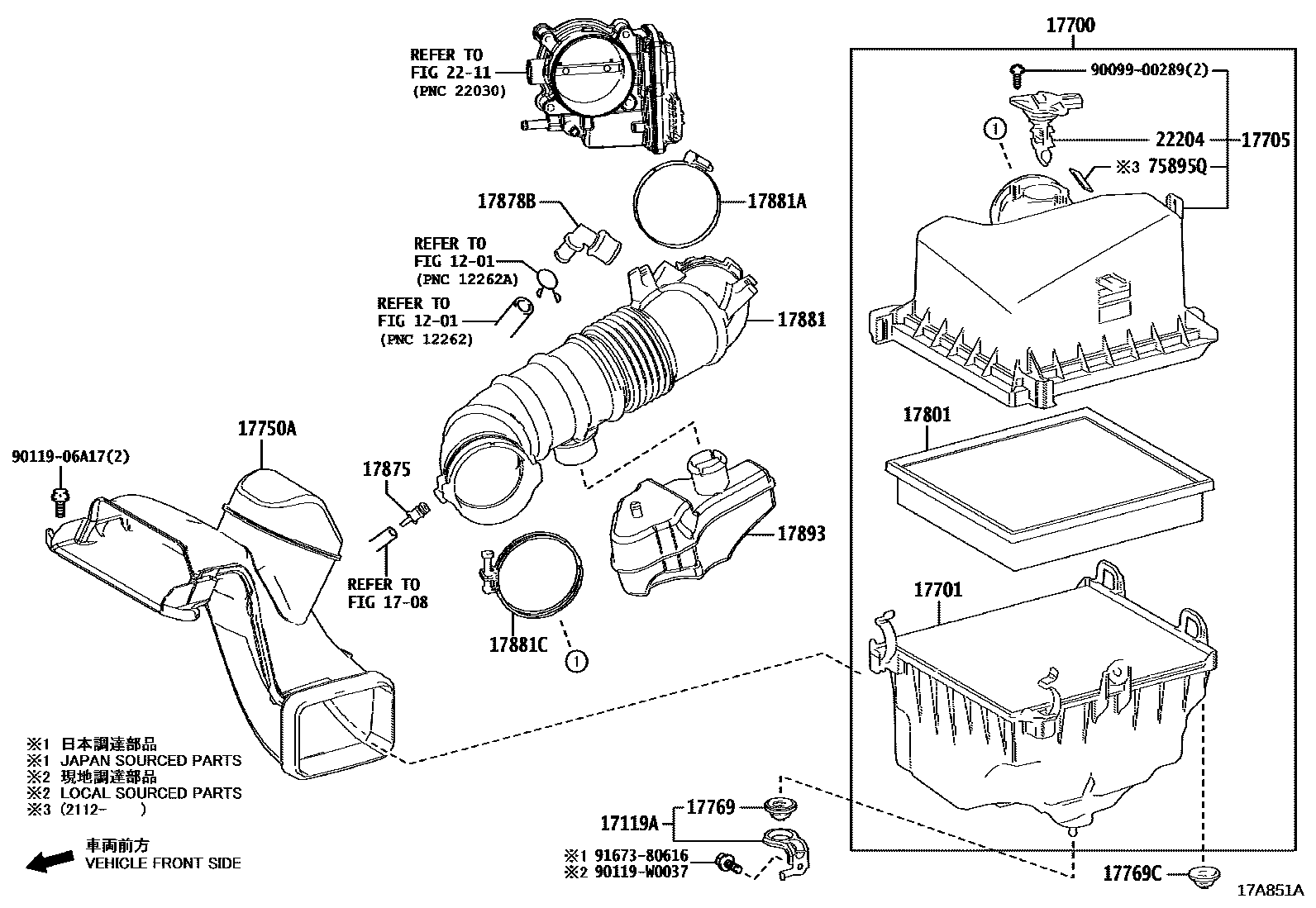

Toyota CAMRY Air Cleaner EPC diagram — 17A851A — Air Cleaner — 17A851A (201907 – 999999)

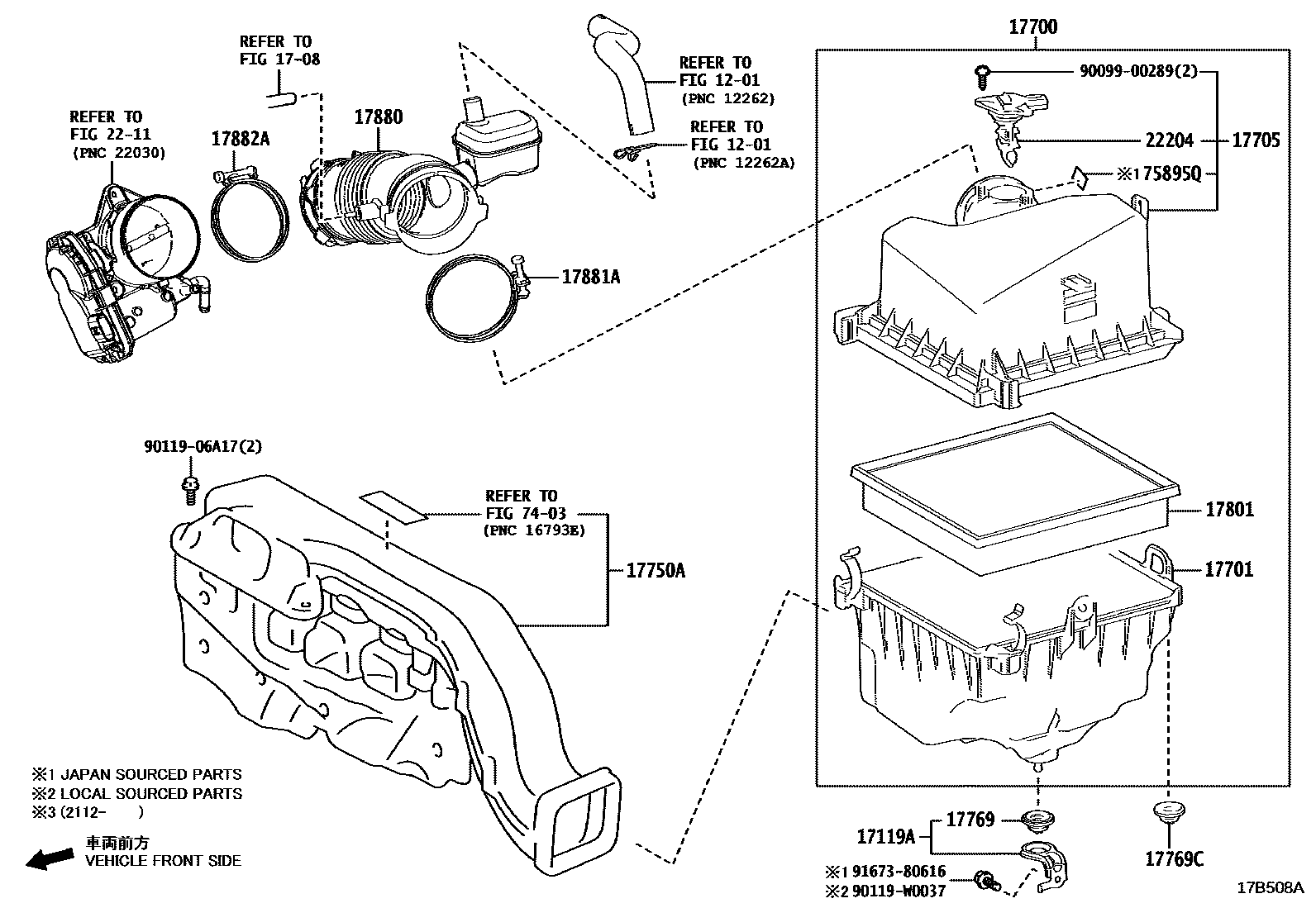

Toyota CAMRY Air Cleaner EPC diagram — 17B508A — Air Cleaner — 17B508A (202104 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12229A	ventilation duct	12229-33010
17119A	air filter bracket	17119-25010 · 17119-F0010
17700	air filter assembly	17700-25070 · 17700-25080 · 17700-25081 · 17700-25090 · 17700-25091 · 17700-25100 · 17700-25101 · 17700-25110 · 17700-25111 · 17700-25130 · 17700-25131 · 17700-25140 · 17700-25141 · 17700-25151
17701	Air filter housing sub-assembly	17701-25070 · 17701-25071 · 17701-25080 · 17701-25081 · 17701-25100 · 17701-25101
17705	Air filter cover sub-assembly	17705-25040 · 17705-25050 · 17705-25060 · 17705-25070 · 17705-25080 · 17705-25090
17750A	Air filter air inlet assembly	17750-24020 · 17750-25010 · 17750-25020 · 17750-31060 · 17750-36070
17765	No. 1 air filter stay	17765-25010
17765A	No. 1 air filter stay	17765-25010
17769	air filter bracket	17769-25020 · 17769-25030
17769C	SUPPORT, FILTRE A AIR, NO.1	17769-25020
17801	Air filter element sub-assembly	17801-25020 · 17801-77050
17875	Intake connecting pipe	17875-25010 · 17875-31010
17878B	ventilation duct	17878-31020
17880	Air cleaner hose assembly	17880-24020 · 17880-36200
17881	No. 1 air cleaner hose	17881-25020 · 17881-25030 · 17881-31440 · 17881-36200 · 17881-36220
17881A	Clamp (for No. 1 air cleaner hose)	90460-90005 · 96111-10850 · 96111-10880
17881C	Clamp (for No. 1 air cleaner hose)	96111-10690 · 96111-10850 · 96111-10880
17882	No. 2 air cleaner hose	17882-36050
17882A	Clamp (for No. 2 air cleaner hose)	17891-31010 · 90466-71001 · 96111-10730 · 96111-10830 · 96111-20800
17883	No. 3 air cleaner hose	17883-36010
17893	Intake resonator	17893-25010 · 17893-25040 · 17893-31190 · 17893-36180 · 17893-36200
22204	Intake air flow meter assembly	22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-75040
75895Q	RUBAN, MOULURE, NO.1	75895-52050
