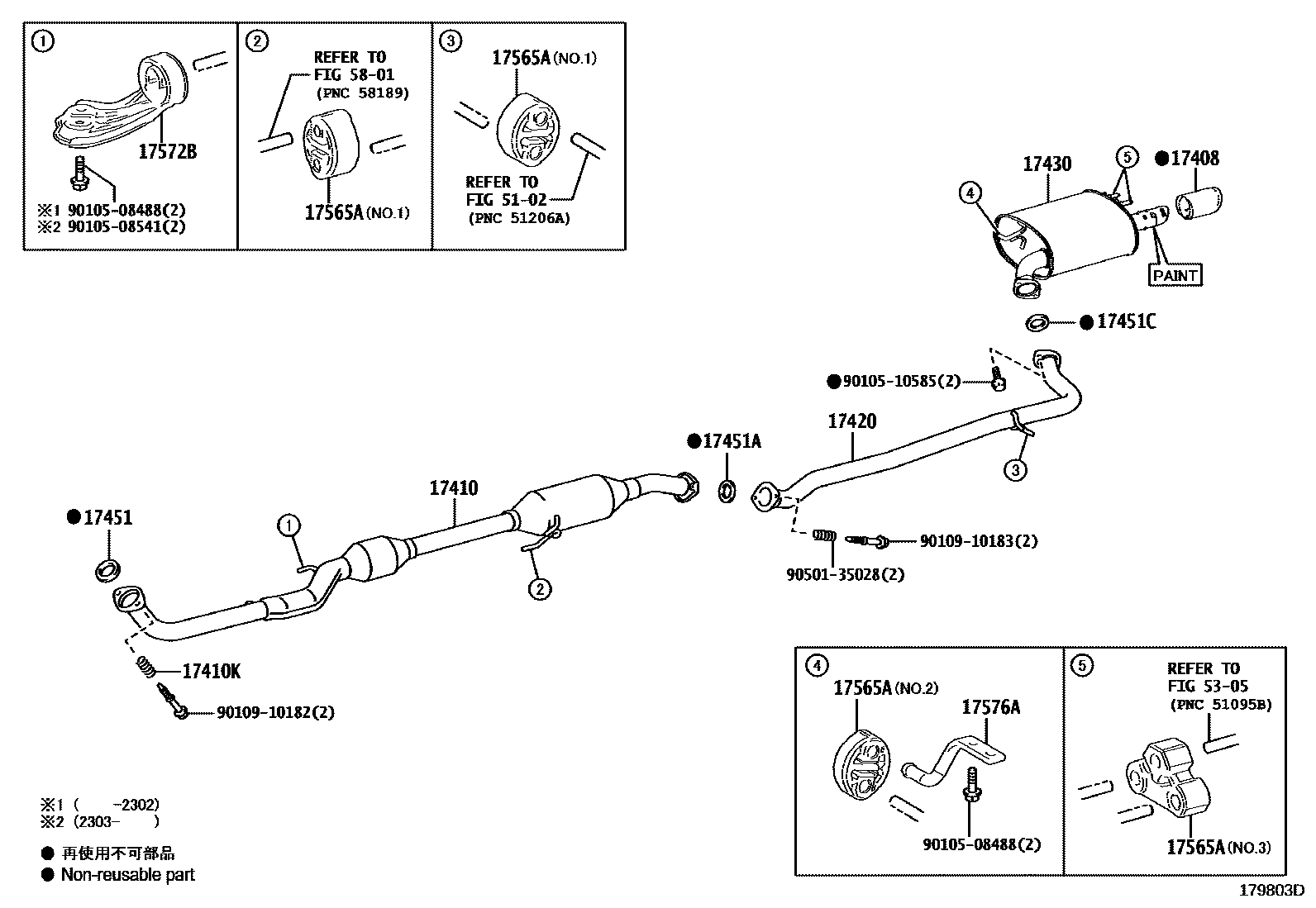

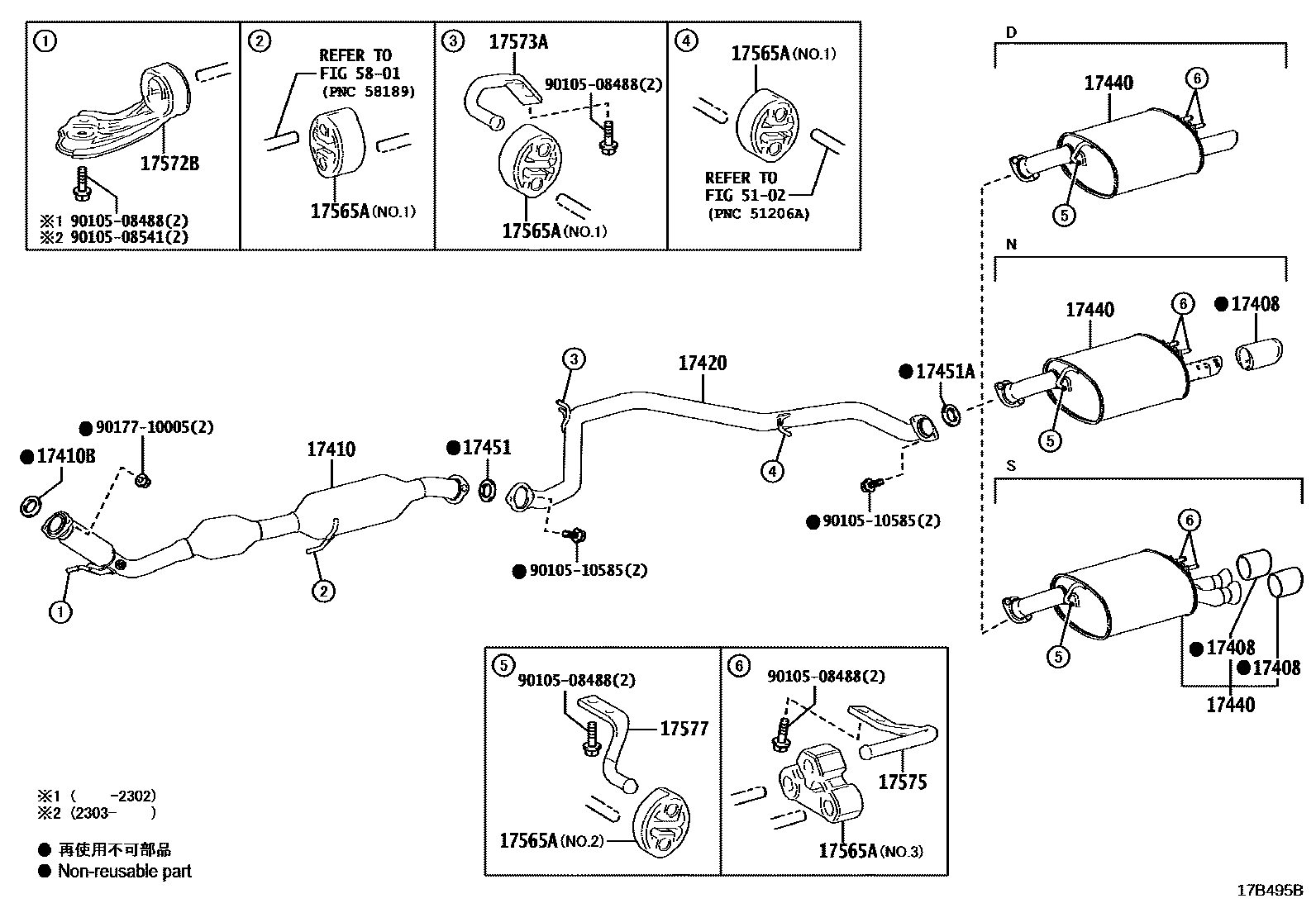

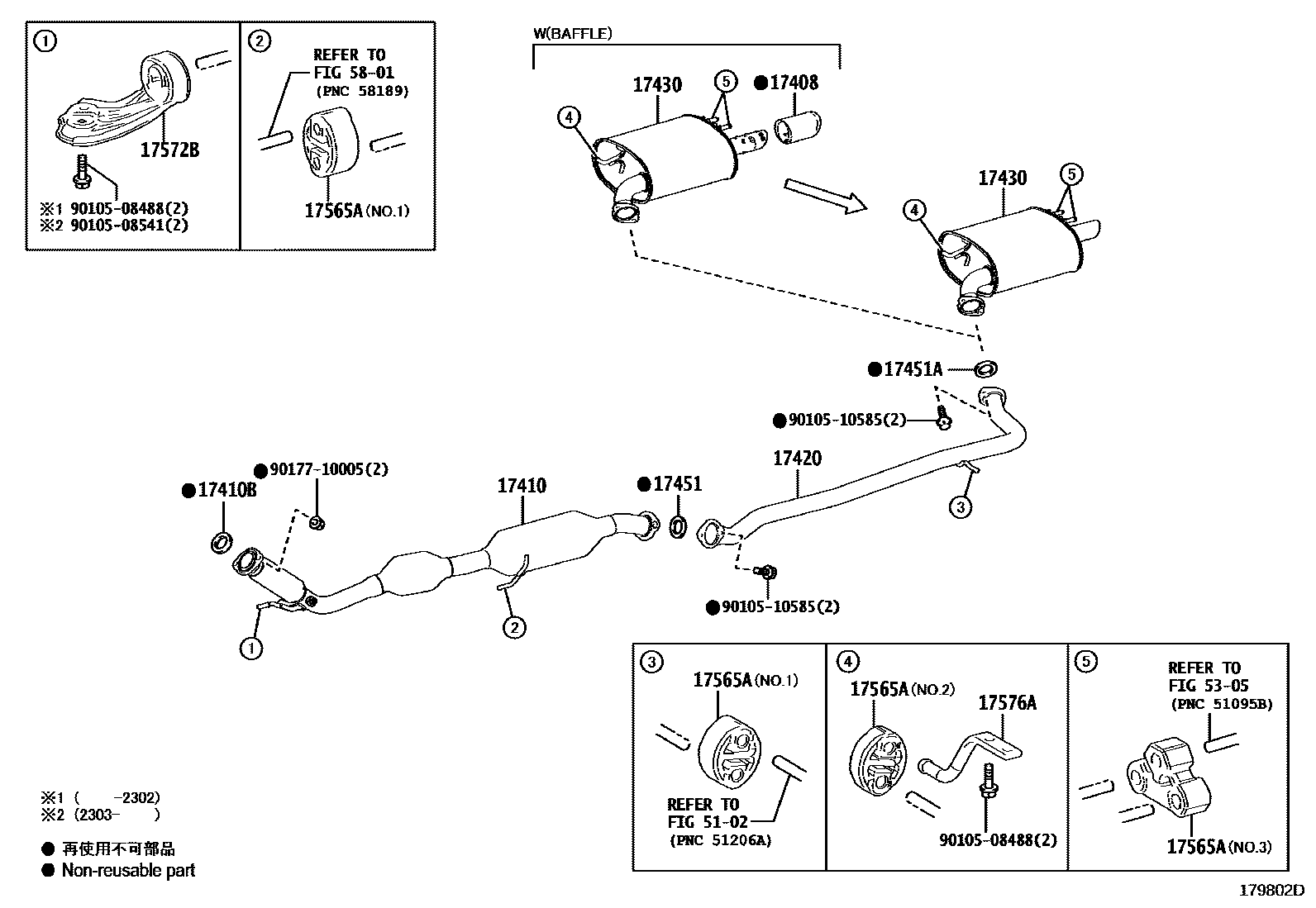

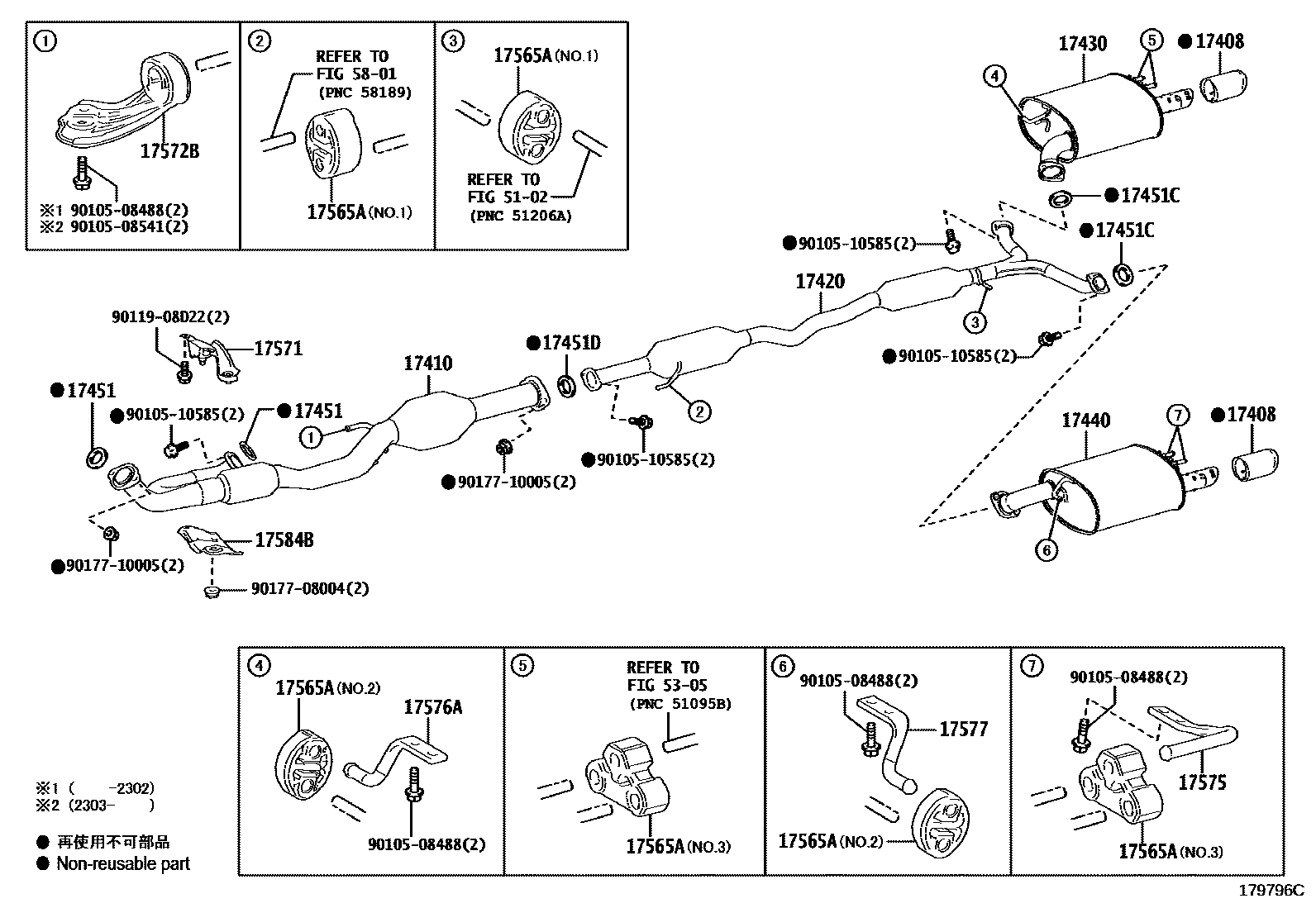

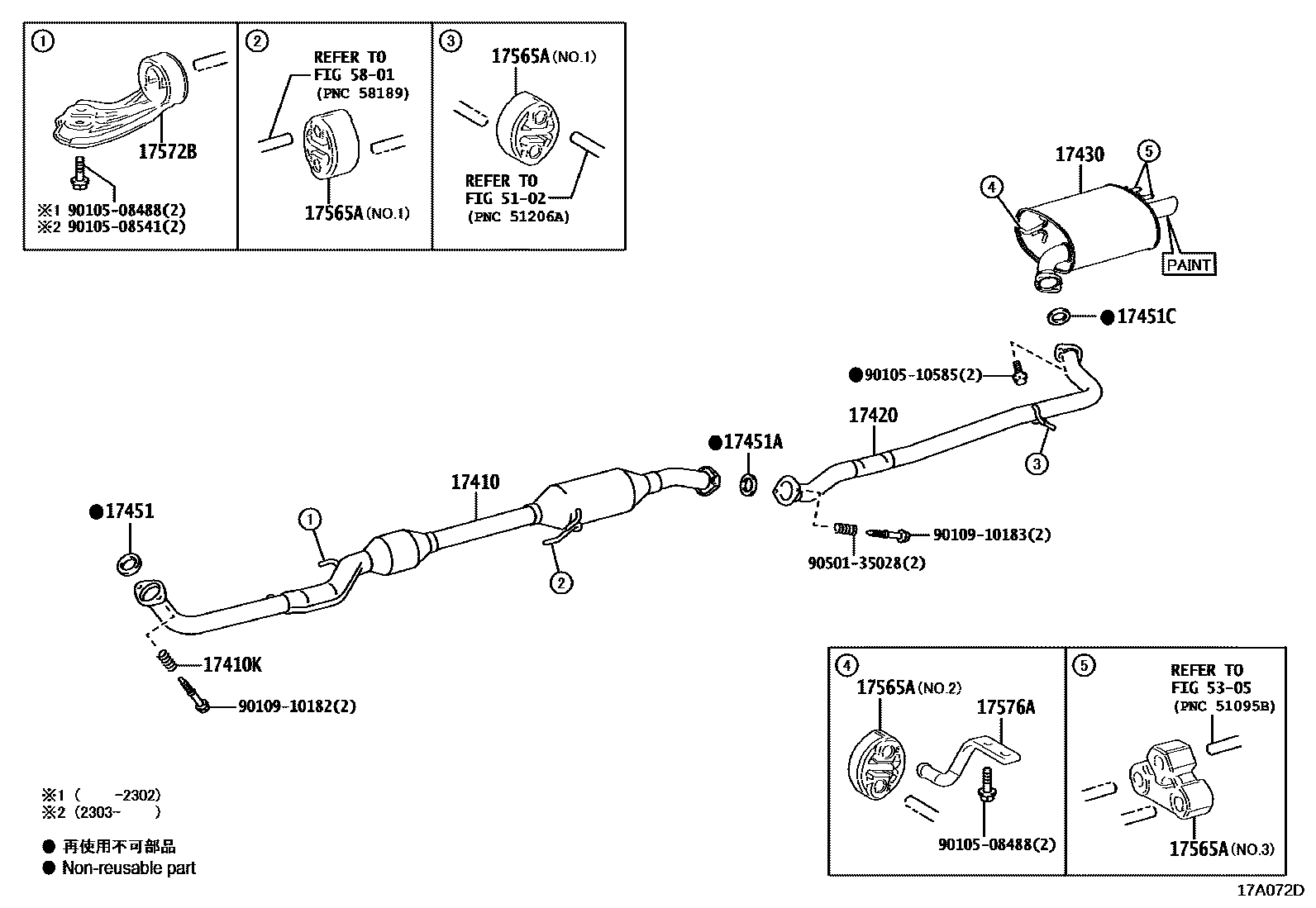

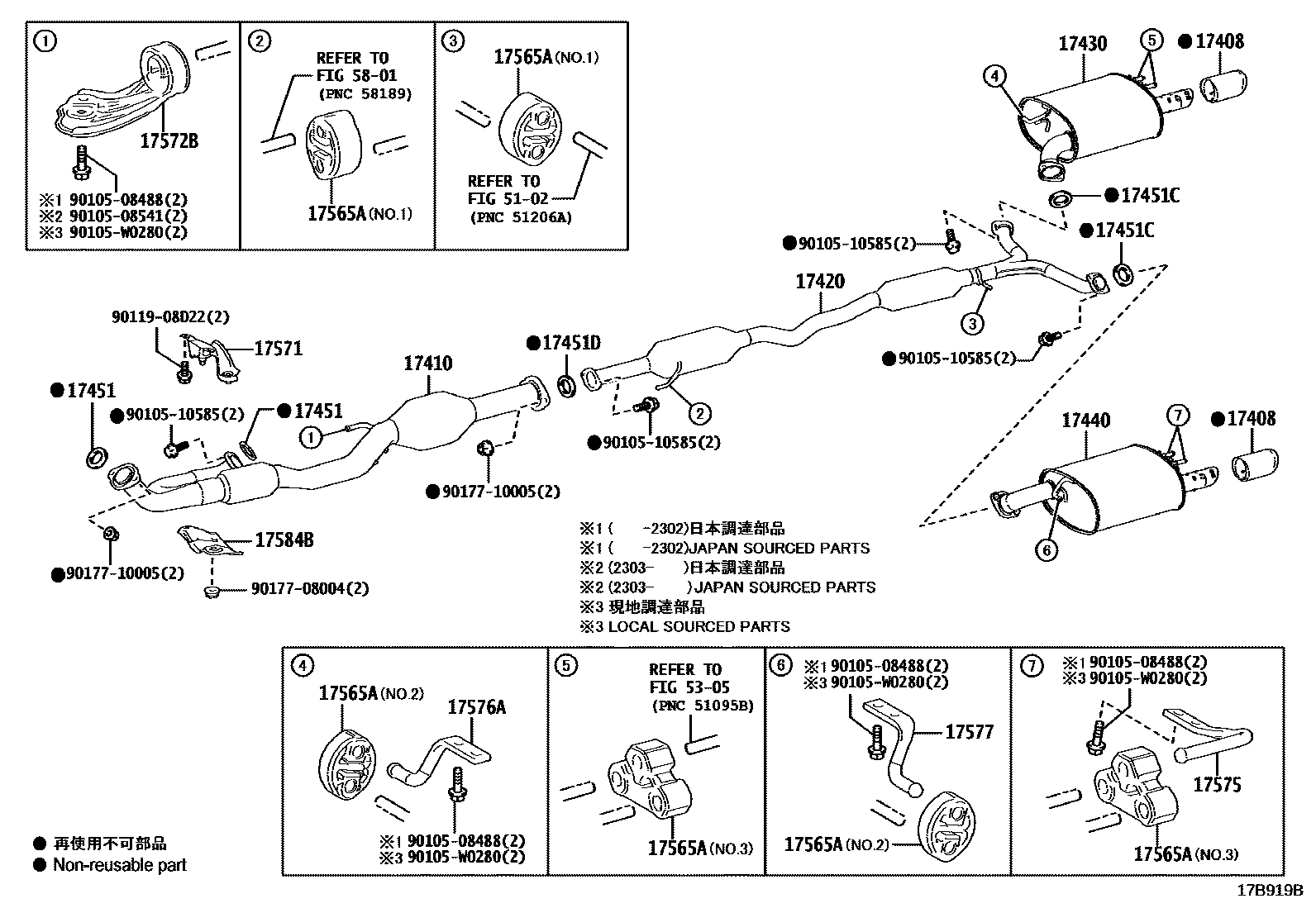

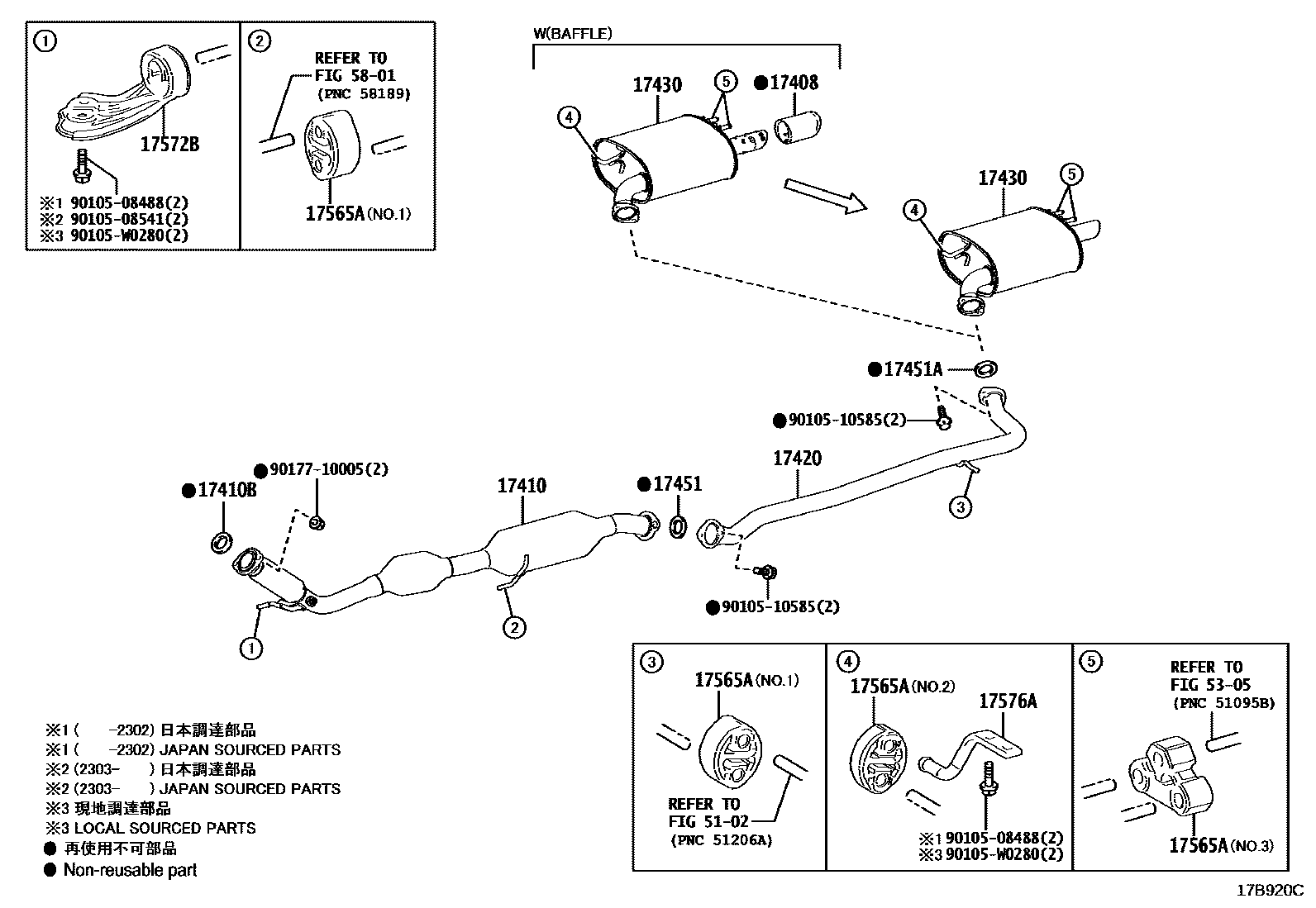

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-31080 · 17448-31160 |
| 17410 | Front exhaust pipe assembly | 17410-0V460 · 17410-0V470 · 17410-25100 · 17410-25120 · 17410-25130 · 17410-25350 · 17410-31J40 · 17410-36550 · 17410-F0470 · 17410-F0480 |
| 17410B | Exhaust pipe gasket | 90917-06094 |
| 17410K | Exhaust pipe spring | 90501-35037 |
| 17420 | Central exhaust pipe assembly | 17420-0V370 · 17420-0V450 · 17420-25020 · 17420-25021 · 17420-25040 · 17420-31600 · 17420-36160 · 17420-F0180 |
| 17430 | Exhaust tailpipe assembly | 17430-0V390 · 17430-0V391 · 17430-0V400 · 17430-0V401 · 17430-25140 · 17430-25150 |
| 17440 | Left exhaust tailpipe | 17440-25010 · 17440-25020 · 17440-25030 · 17440-31260 |
| 17451 | Exhaust pipe gasket | 17451-75010 · 90917-06089 · 90917-06090 |
| 17451A | No. 2 exhaust pipe gasket | 17451-31012 · 90917-06078 |
| 17451C | No. 3 exhaust pipe gasket | 90917-06078 |
| 17451D | No. 4 exhaust pipe gasket | 90917-06090 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0J031 · 17565-22040 · 17565-31040 · 17566-25010 · 17566-F0010 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0P250 · 17571-31320 |
| 17572B | No. 2 exhaust pipe bracket | 17572-0P170 · 17572-31150 |
| 17573A | No. 3 exhaust pipe bracket | 17573-25010 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0P200 · 17575-31160 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0P110 · 17576-31110 |
| 17577 | No. 7 exhaust pipe bracket | 17577-0P050 · 17577-31040 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0P150 · 17584-31050 |
