Toyota CAMRY V-Belt — Figure 1605

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 1 PNC and OE references.

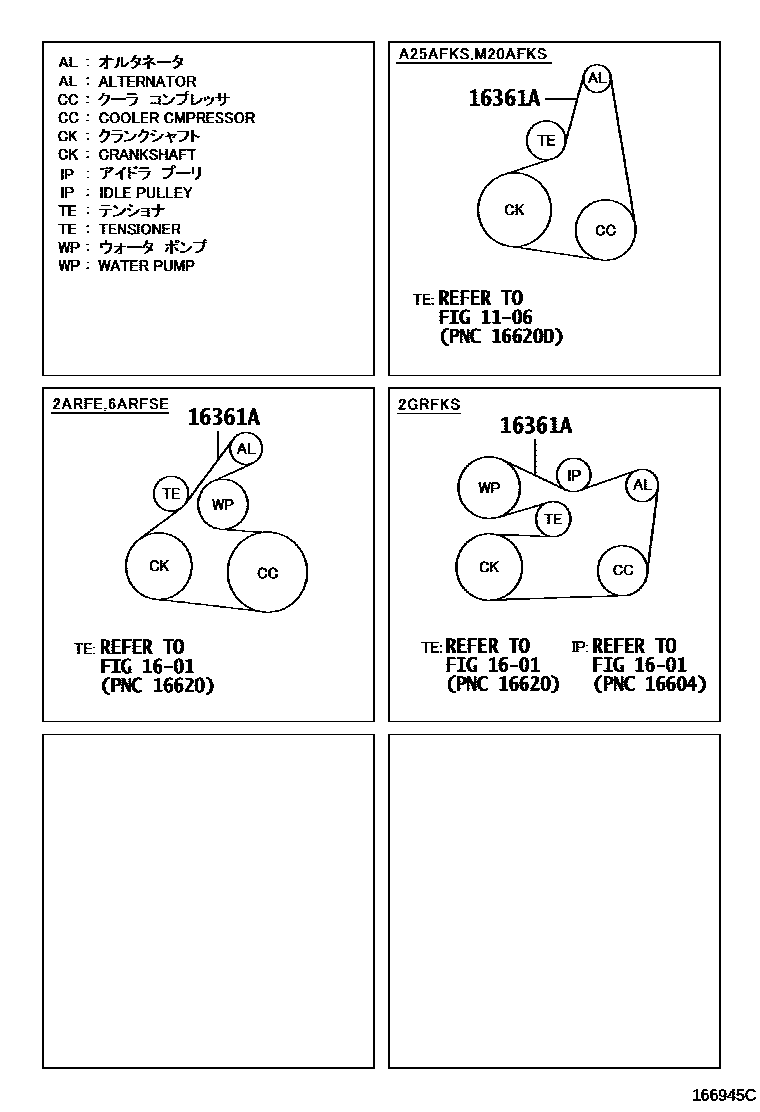

Toyota CAMRY V-Belt EPC diagram — 166945C
V-Belt — 166945C (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02728 · 90916-02735 · 90916-02739 · 90916-02748 · 90916-02778 · 90916-W2049
