Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 6 images and 12 PNC and OE references.

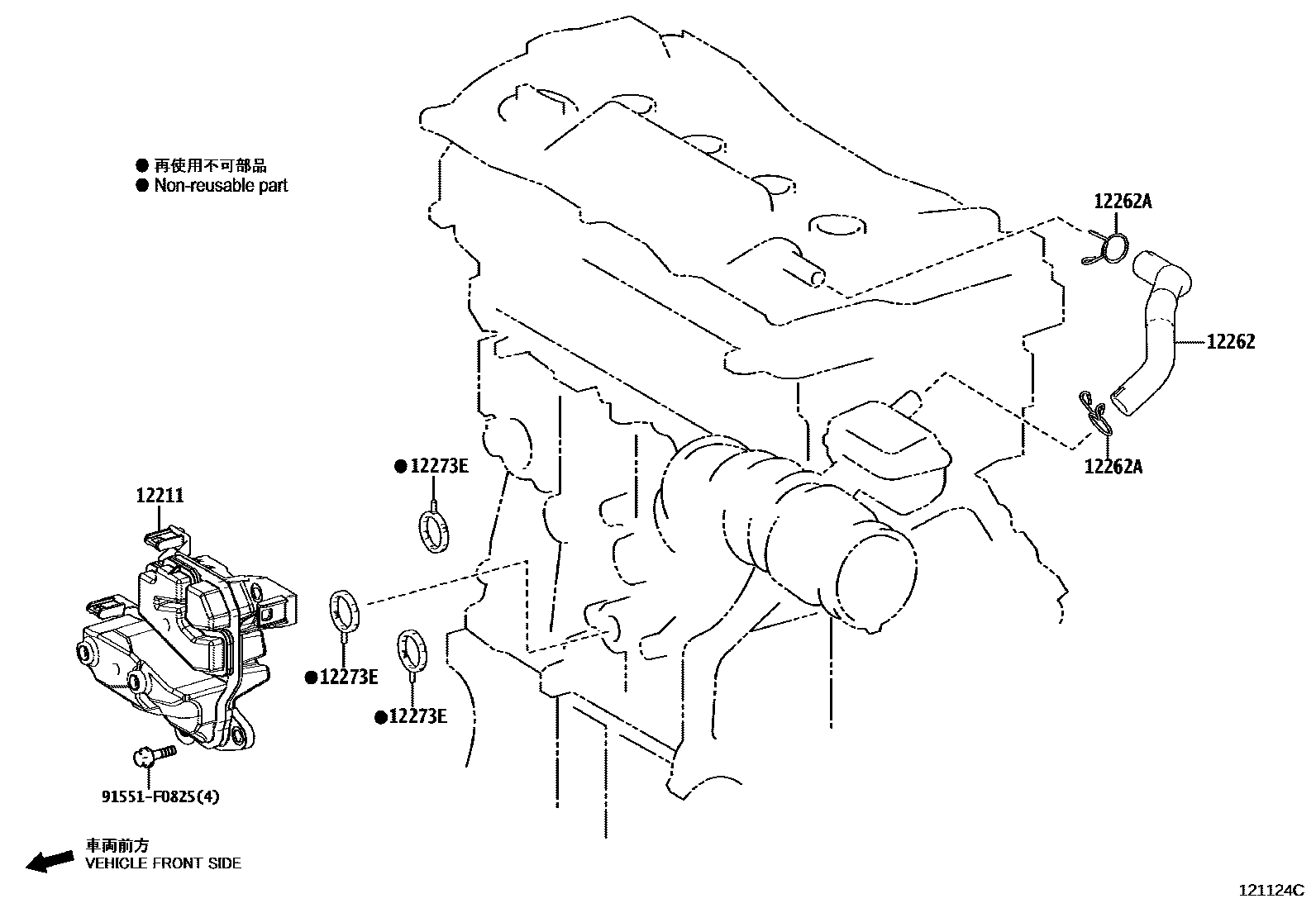

Toyota CAMRY Ventilation Hose EPC diagram — 121124C
Ventilation Hose — 121124C (201709 – 999999)

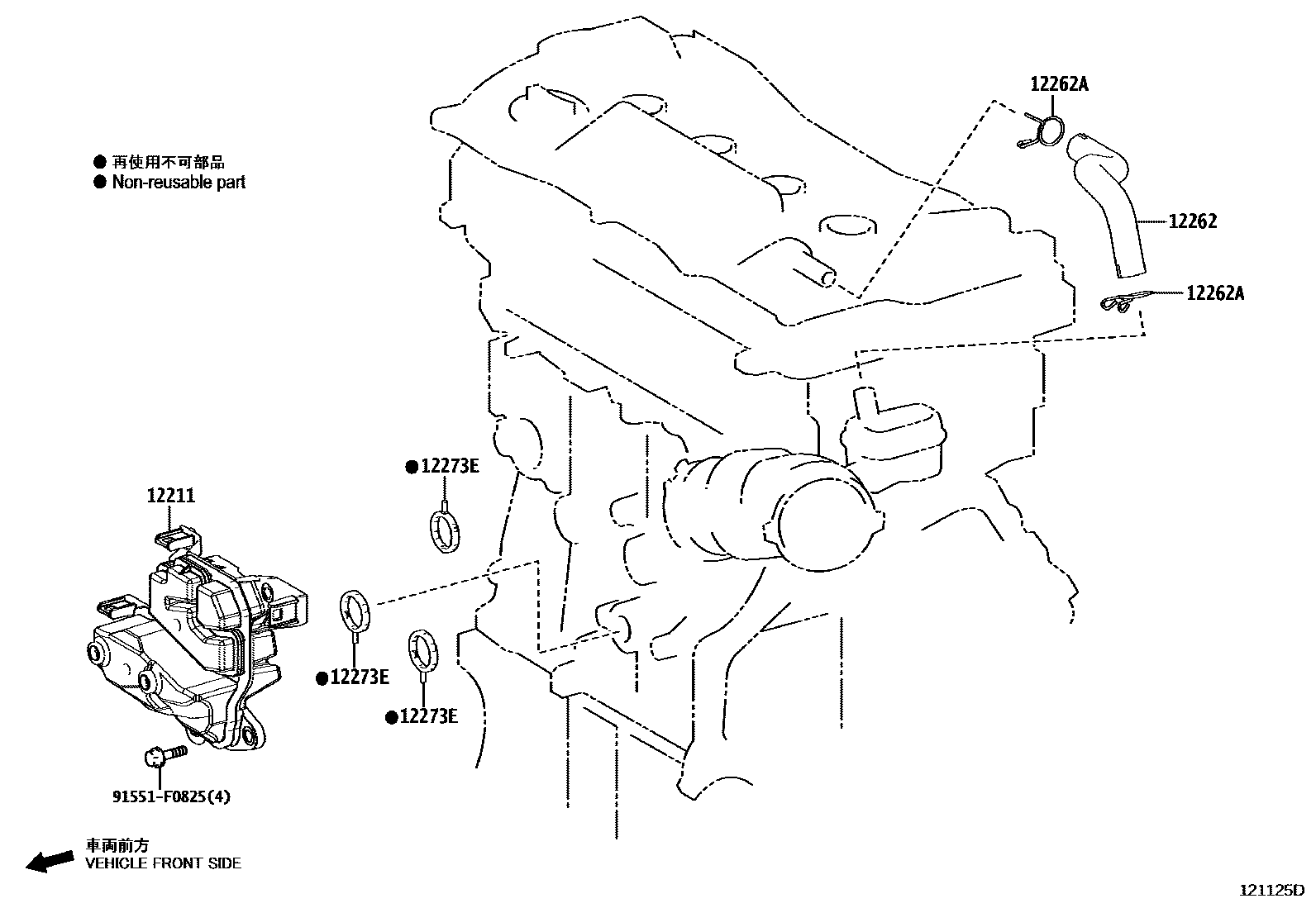

Toyota CAMRY Ventilation Hose EPC diagram — 121125D
Ventilation Hose — 121125D (201709 – 999999)

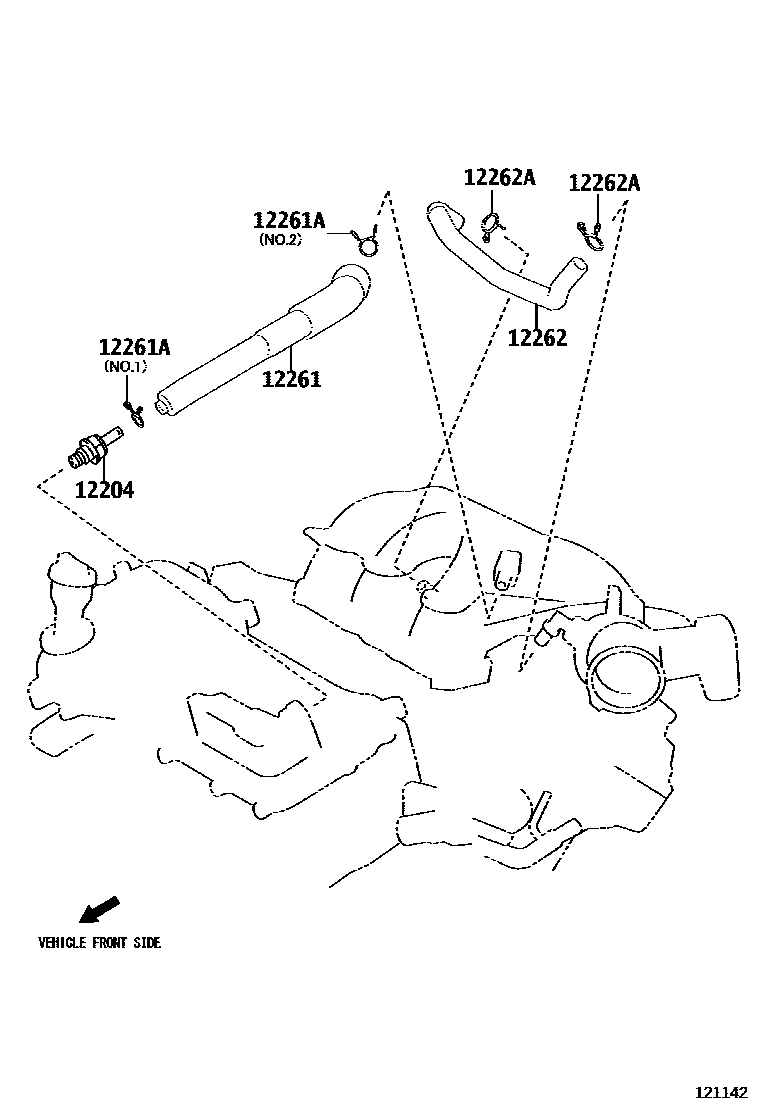

Toyota CAMRY Ventilation Hose EPC diagram — 121142
Ventilation Hose — 121142 (201709 – 999999)

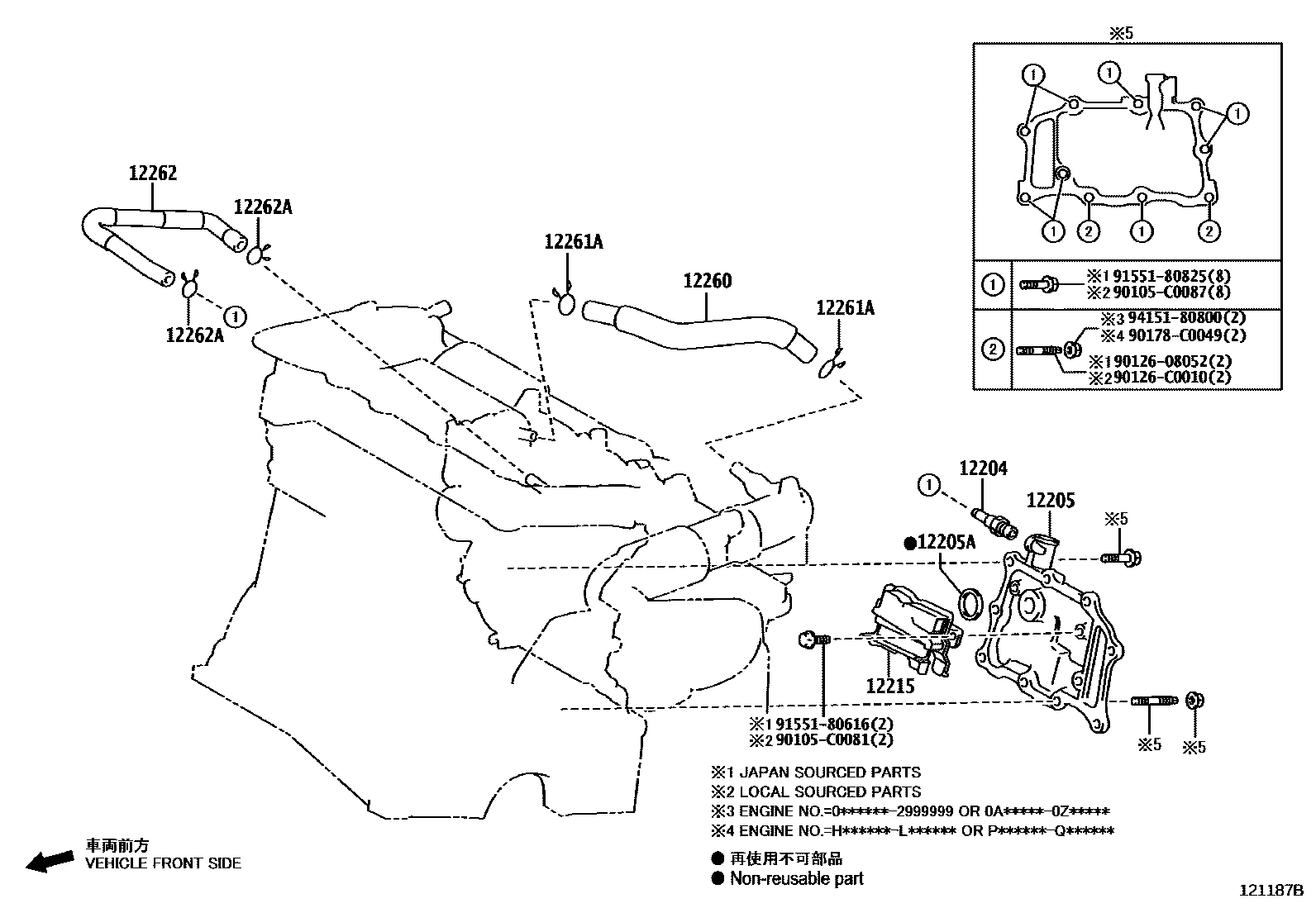

Toyota CAMRY Ventilation Hose EPC diagram — 121187B
Ventilation Hose — 121187B (201709 – 999999)

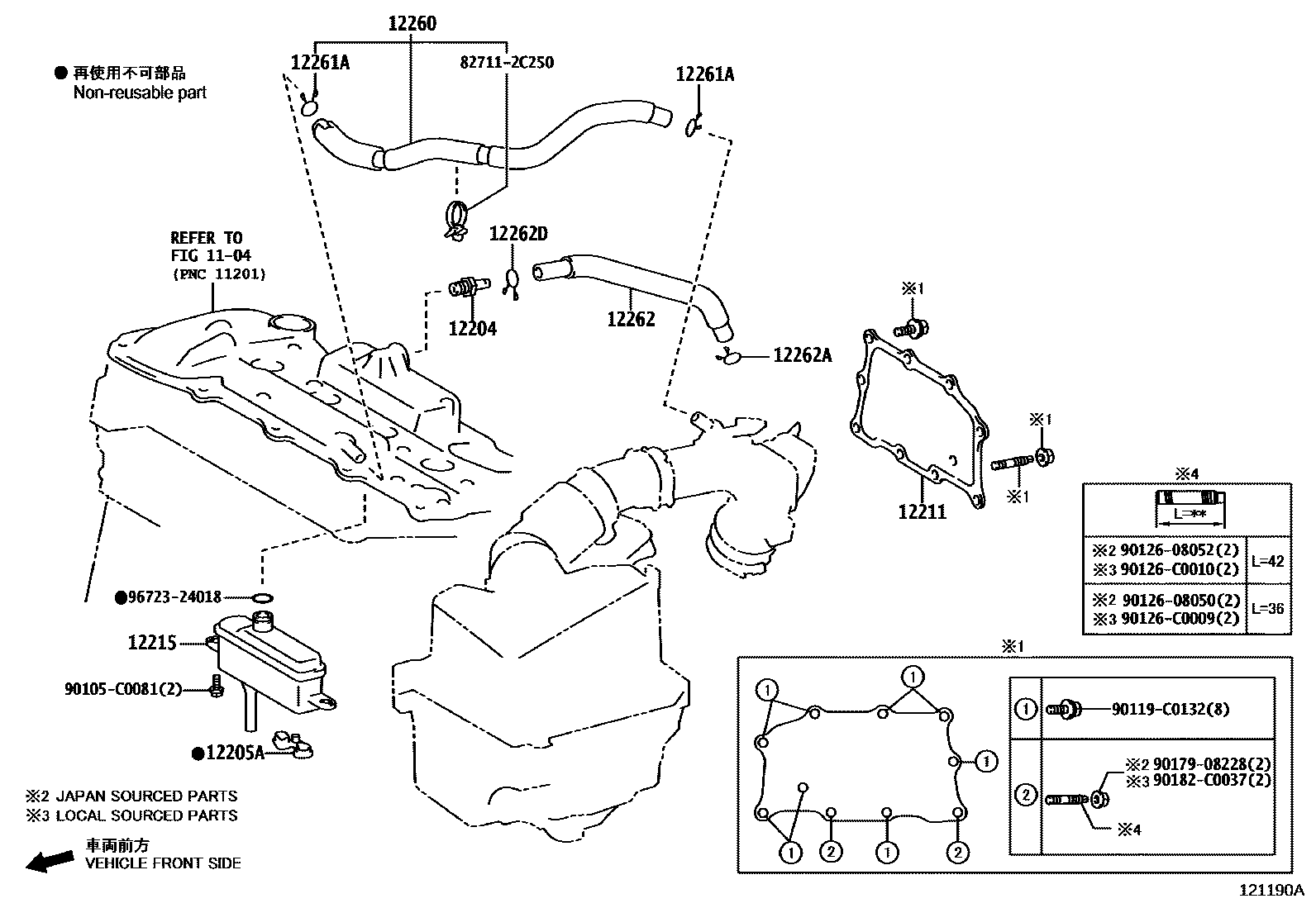

Toyota CAMRY Ventilation Hose EPC diagram — 121190A
Ventilation Hose — 121190A (201804 – 999999)

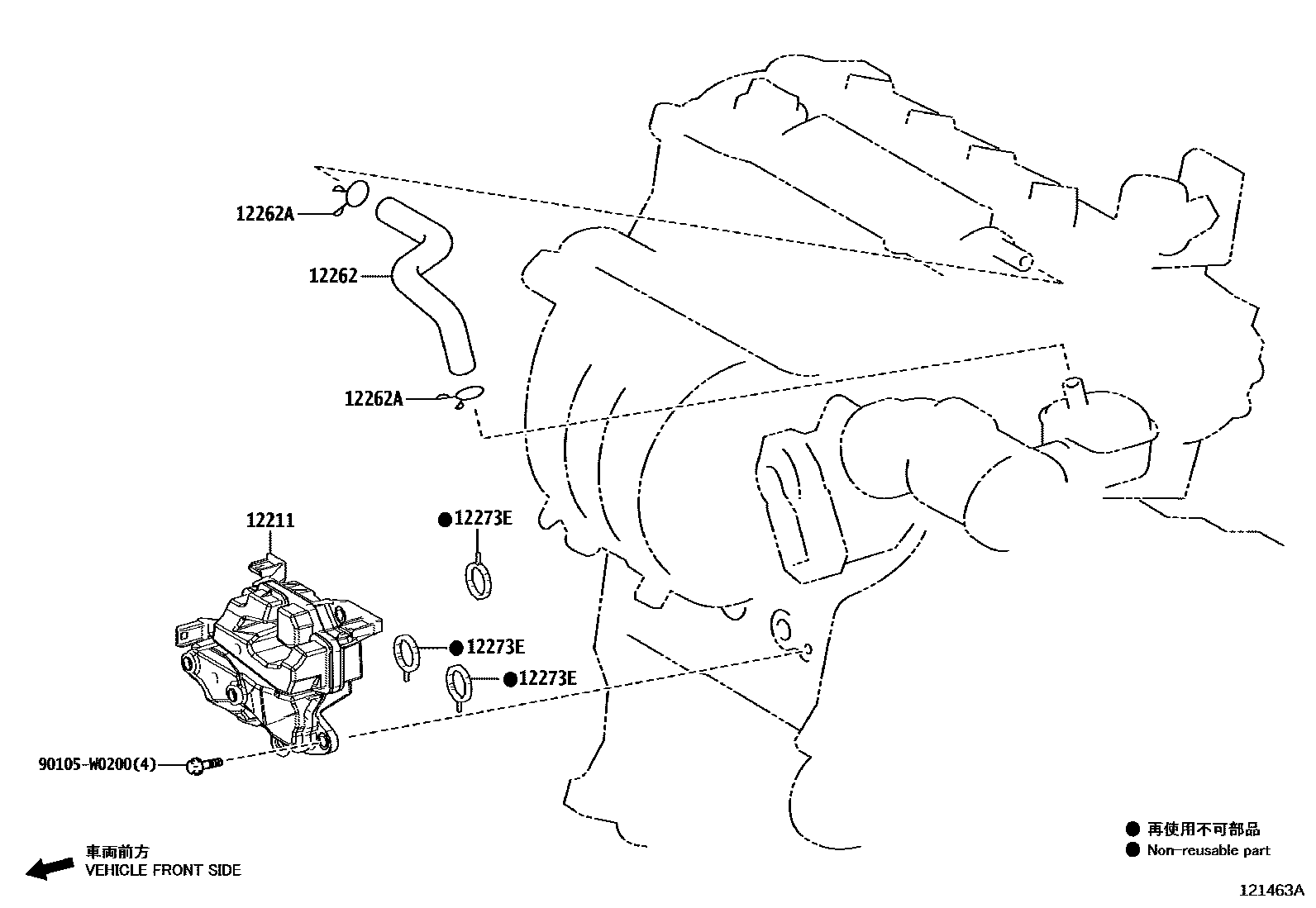

Toyota CAMRY Ventilation Hose EPC diagram — 121463A
Ventilation Hose — 121463A (202104 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0V030 · 12204-31150 · 12204-36030
12205Ventilation box sub-assembly12205-0V020 · 12205-36010
12205AO-ring (for ventilation box)12273-0V010 · 12273-0V030 · 12273-36010
12211Ventilation box No. 112211-0V030 · 12211-25010 · 12211-25011 · 12211-F2020
12215Ventilation box isolation device12215-0V030 · 12215-36010
12260Ventilation hose assembly12260-36090 · 12260-36100
12261Ventilation Hose12261-31200
12261AClip or clip (for vent hose)90467-15120 · 90467-19003 · 90467-21004
12262Ventilation hose No. 212262-0V010 · 12262-24060 · 12262-25030 · 12262-25060 · 12262-31190 · 12262-36040 · 12262-36100
12262AClamp (for vent hose No. 2)90467-16035 · 90467-17126 · 90467-21004
12262DClamp (for vent hose No. 2)90467-15120
12273EJOINT(POUR CARTER VENTILATION)12273-24010
