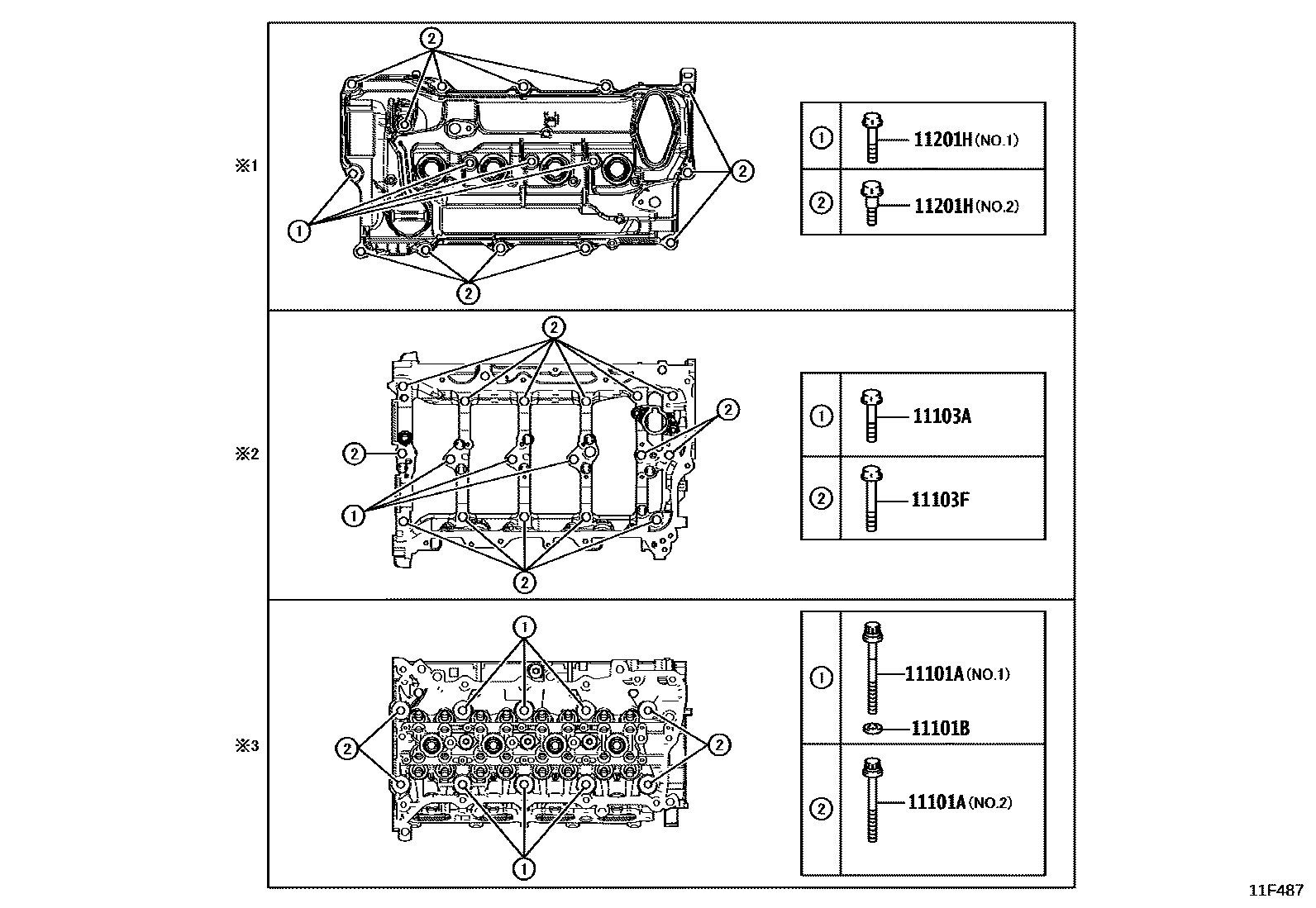

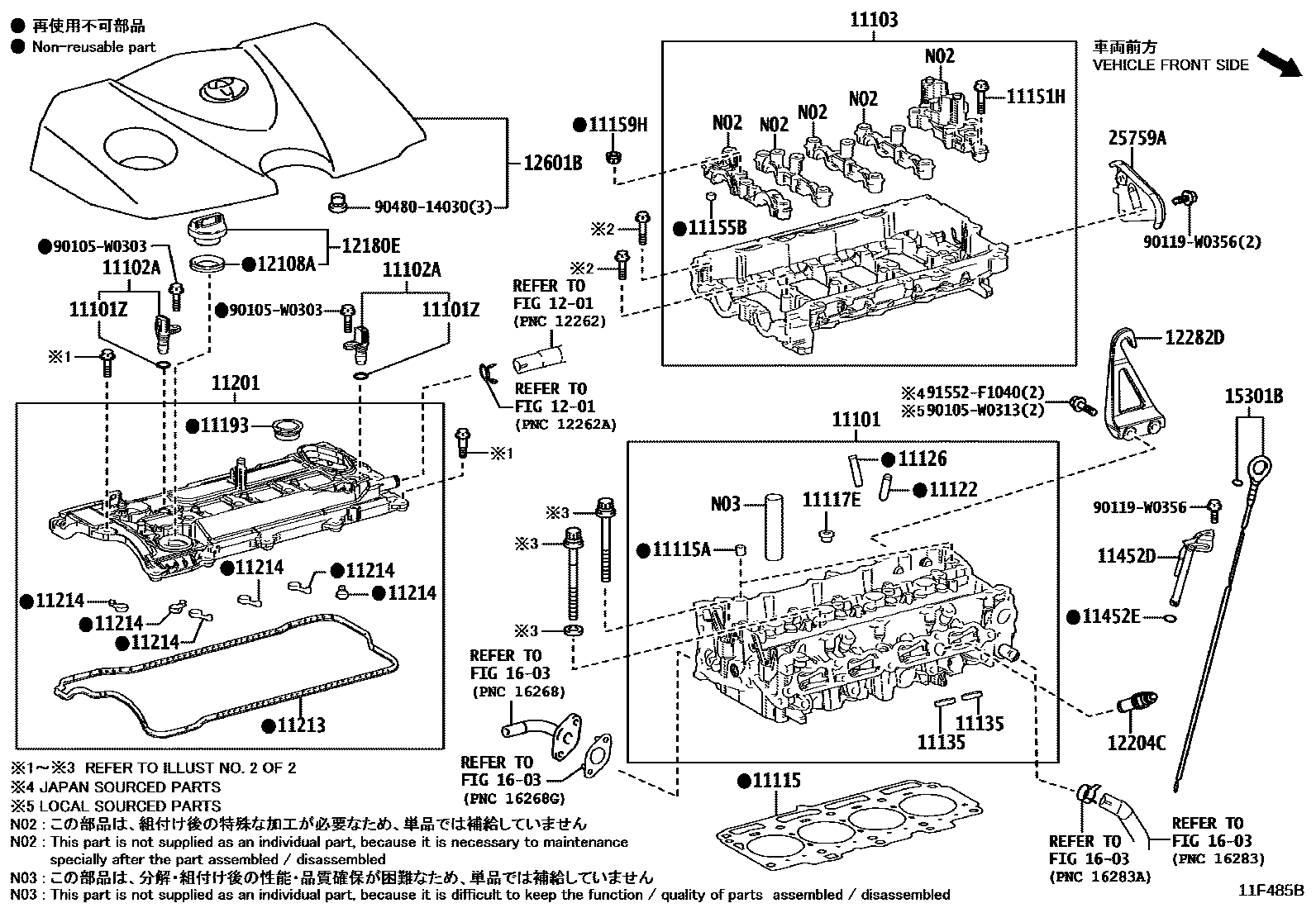

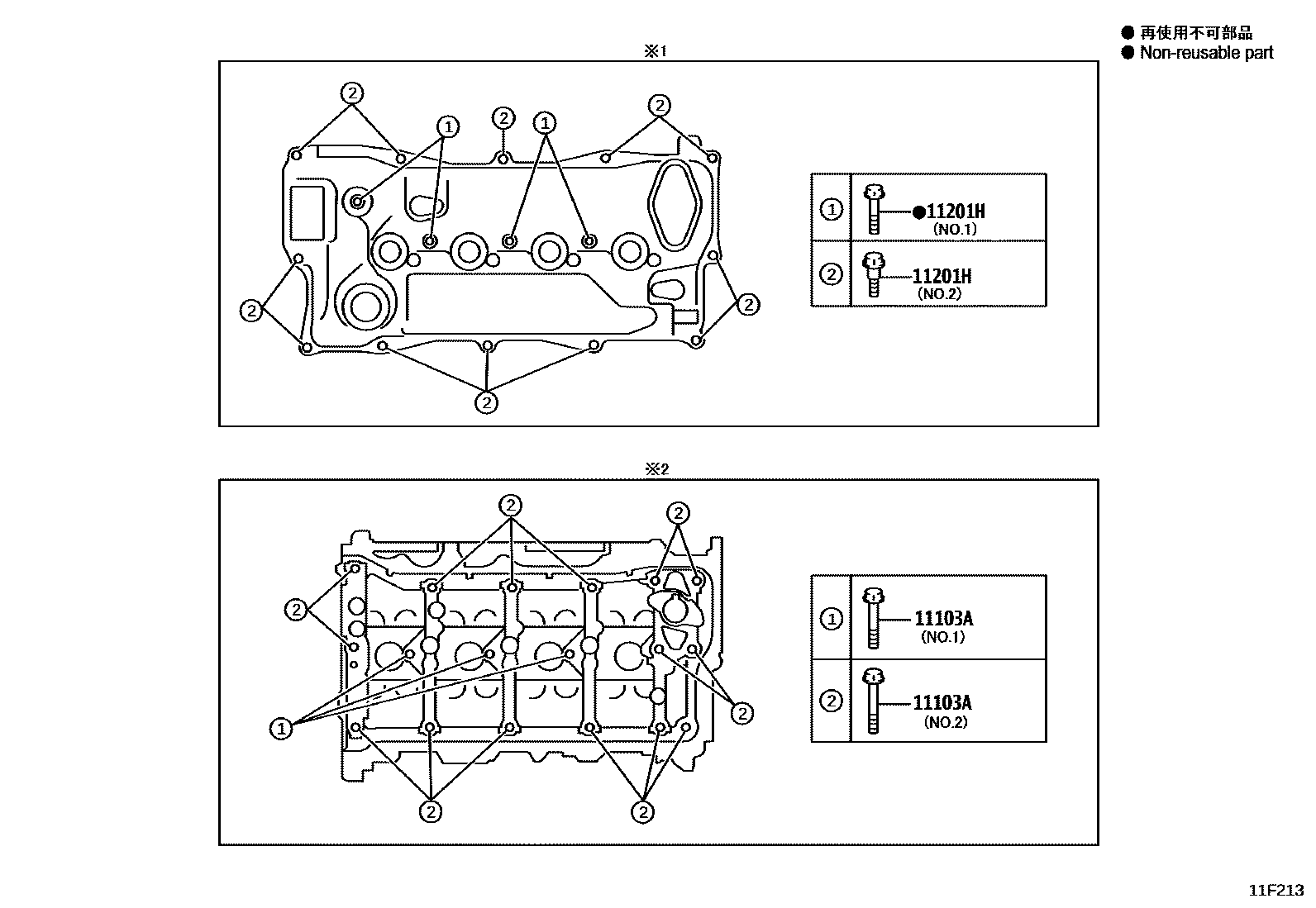

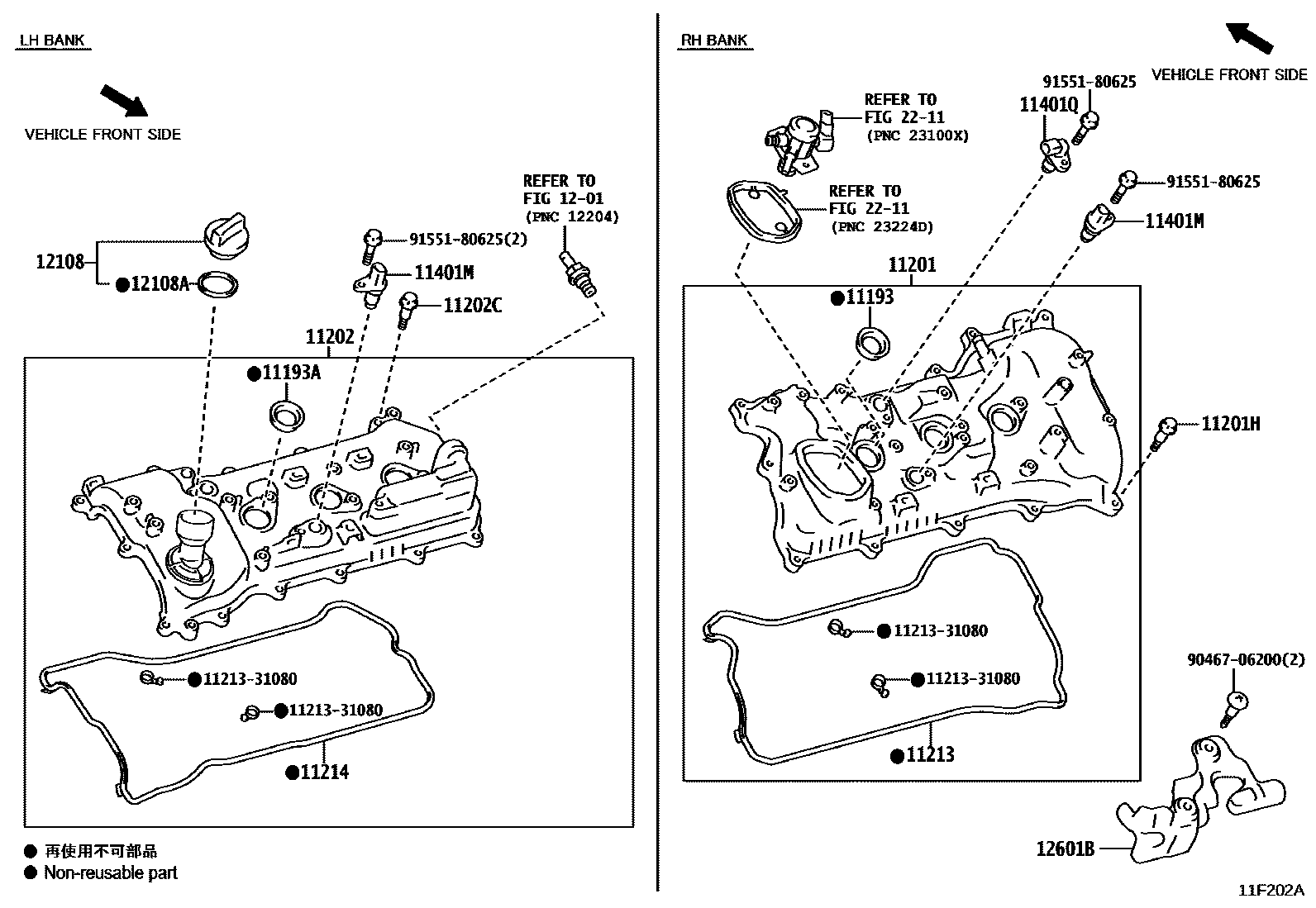

Toyota CAMRY Cylinder Head — Figure 1104

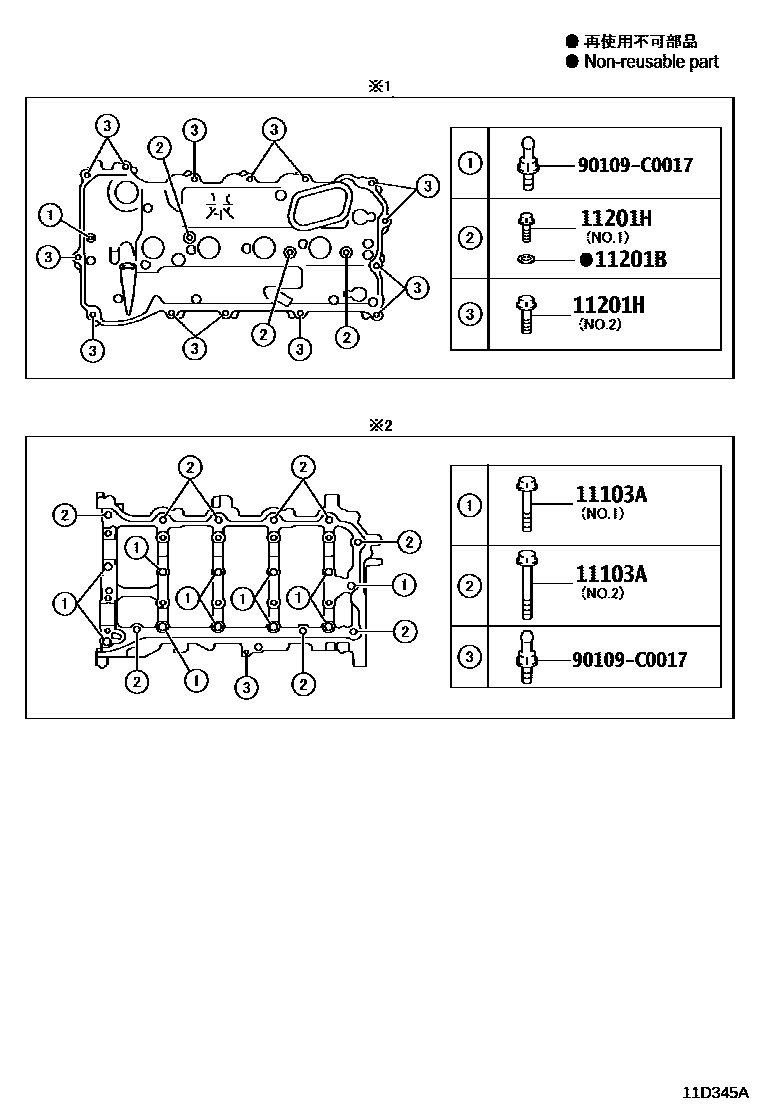

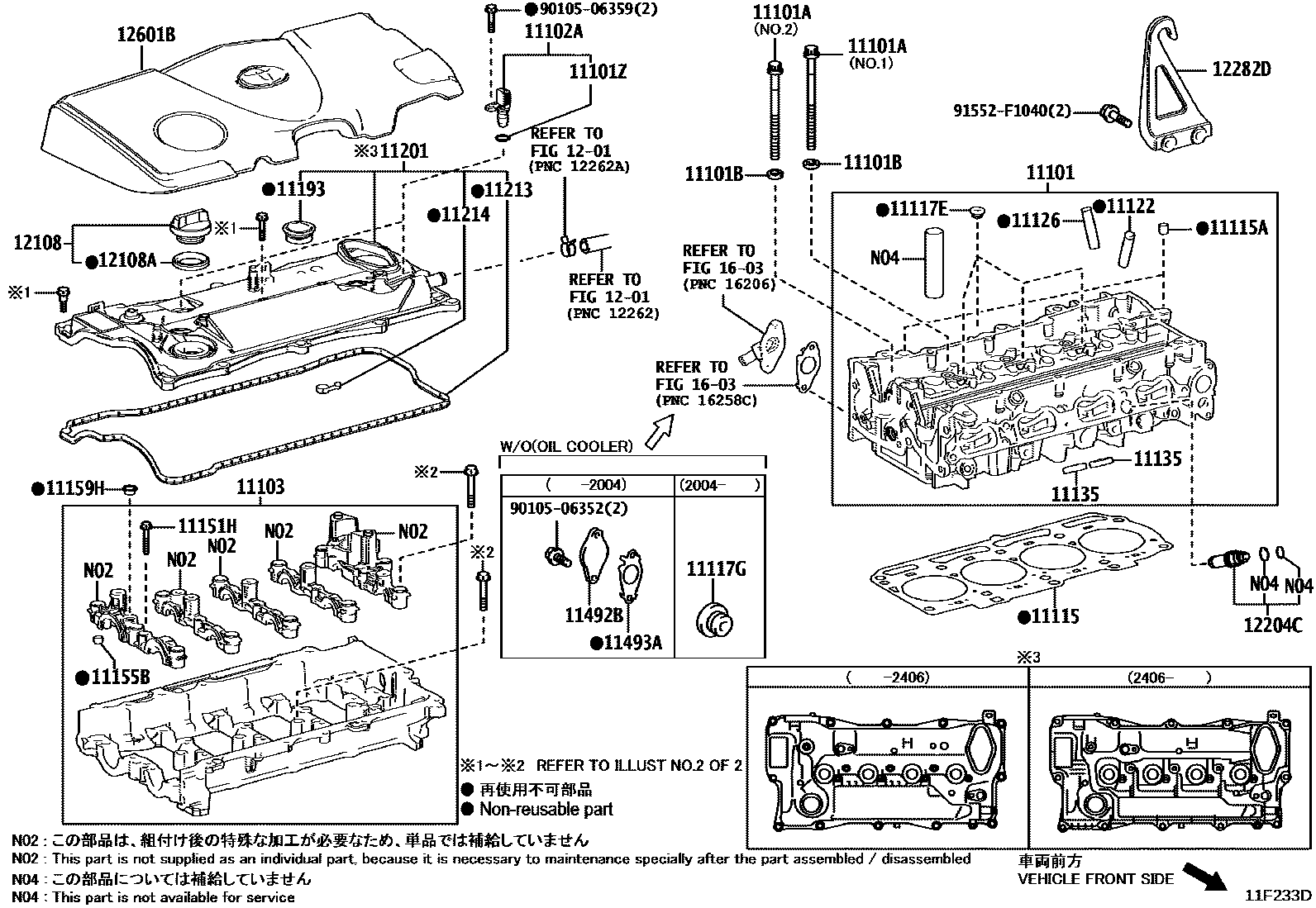

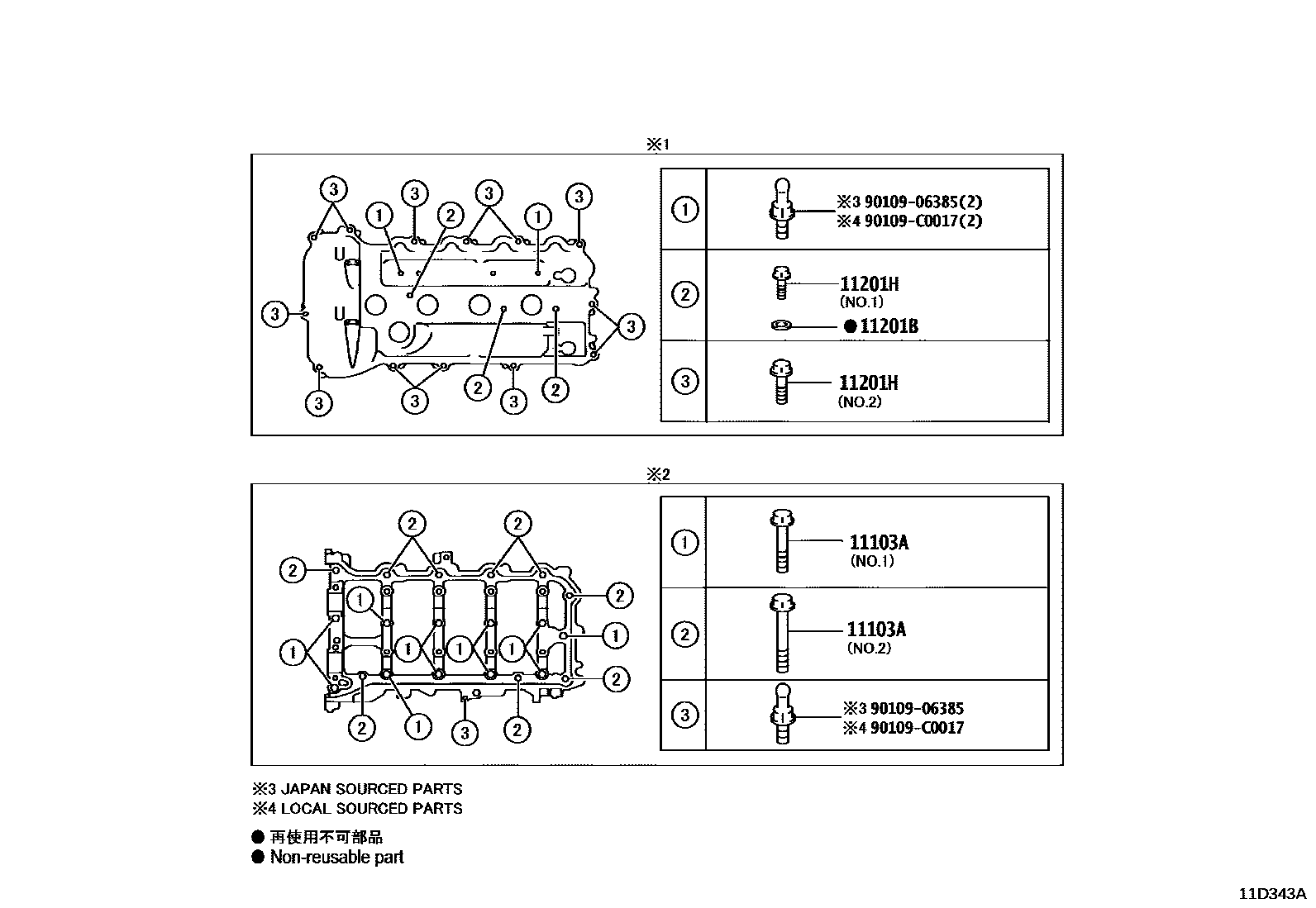

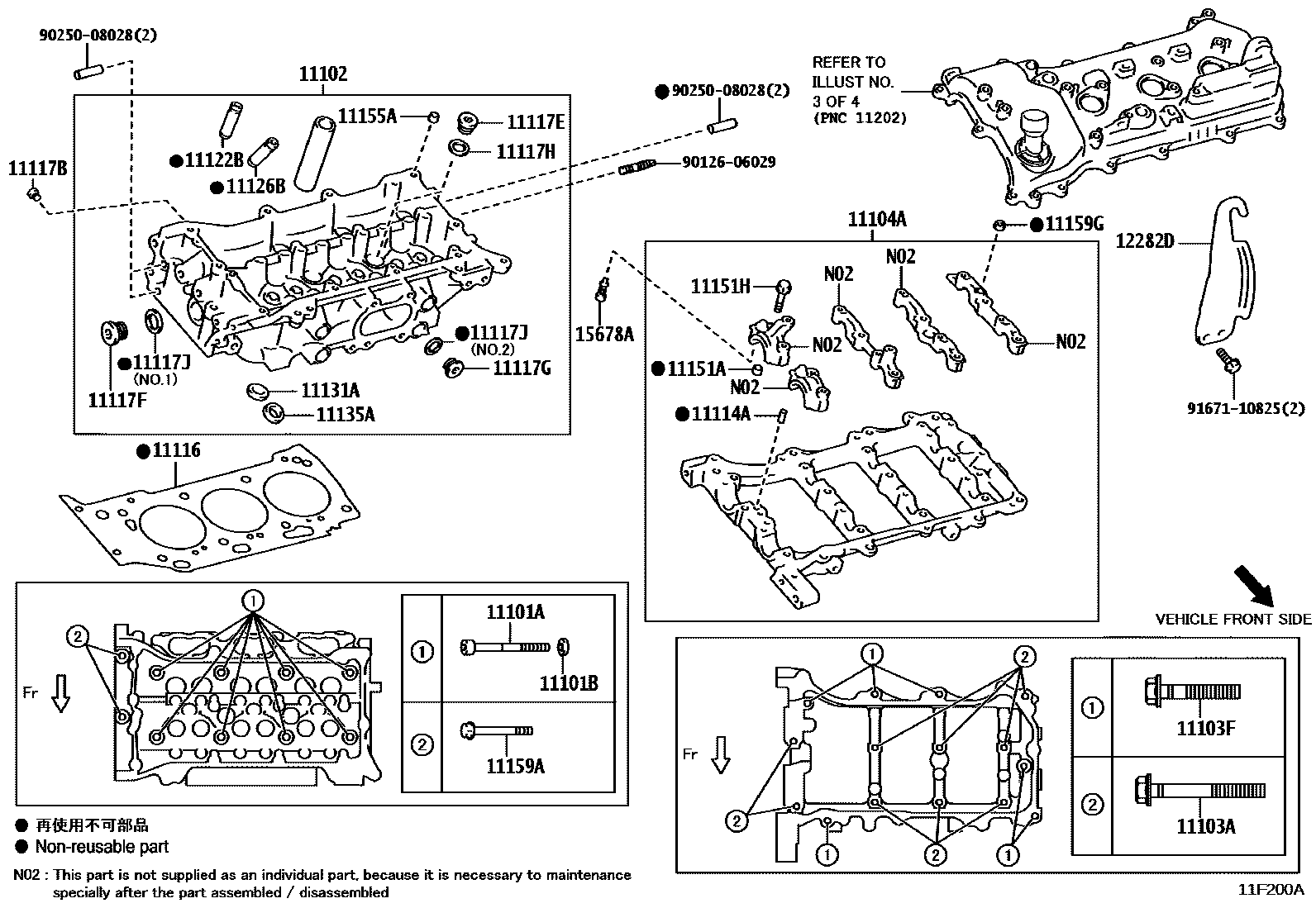

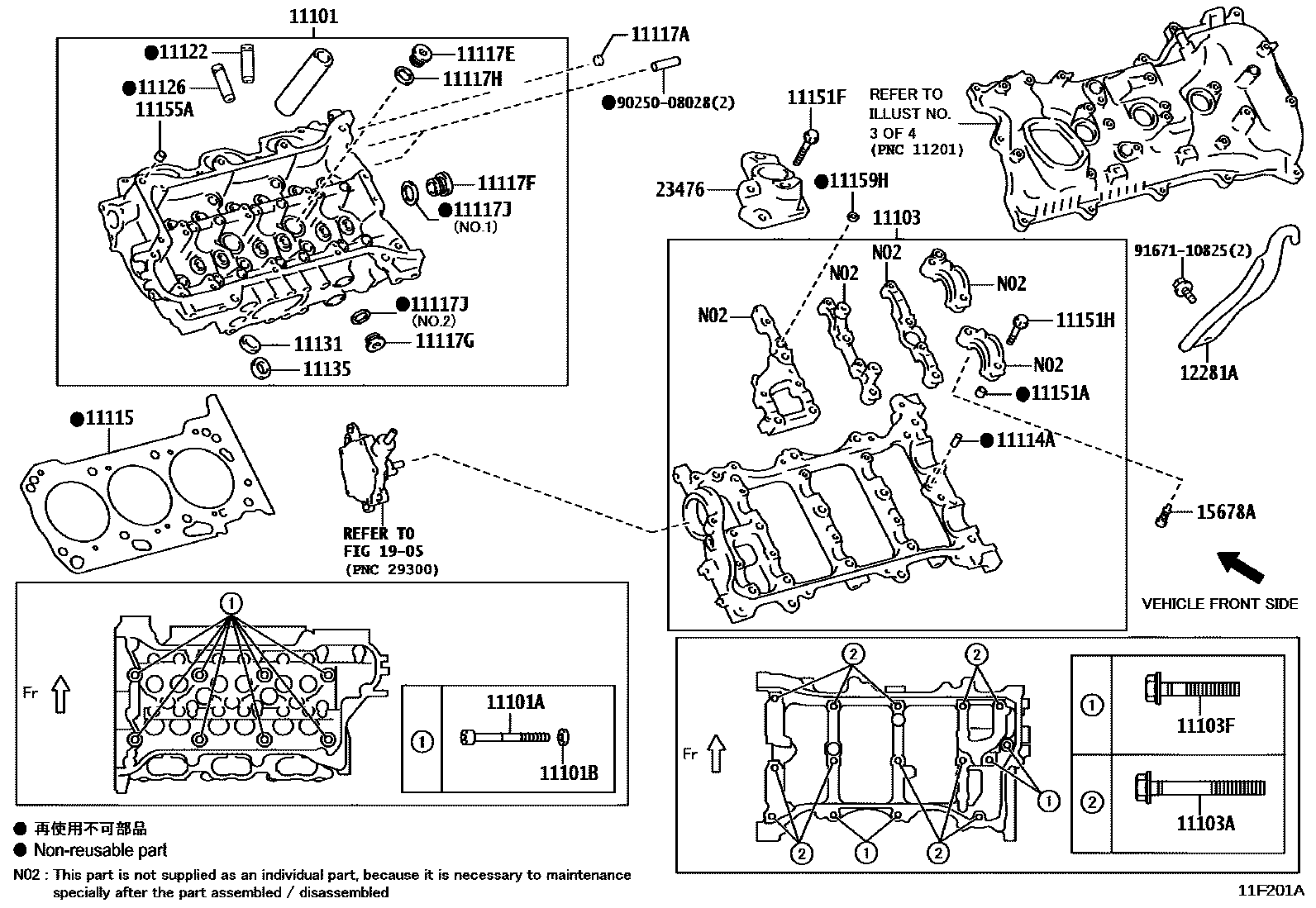

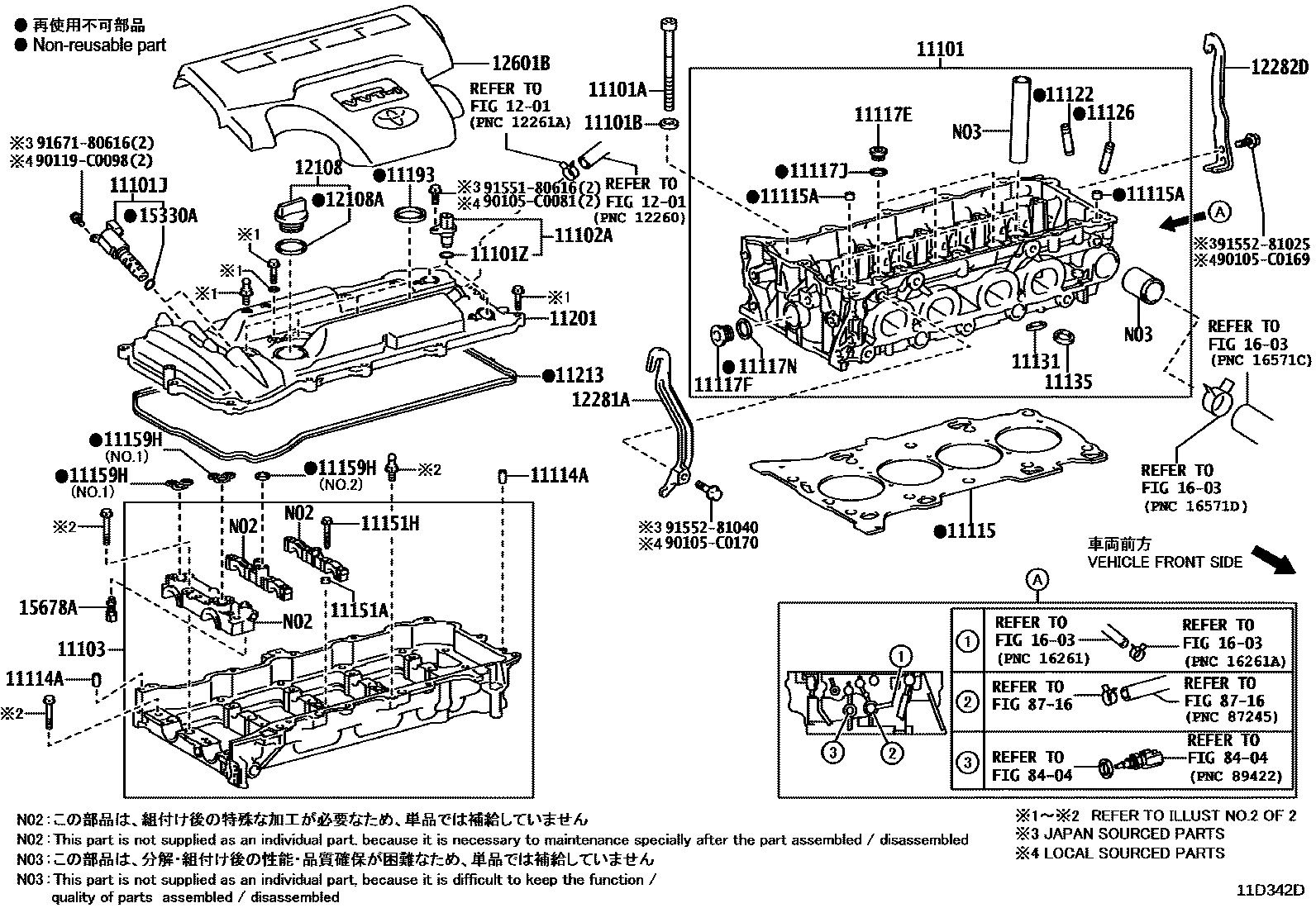

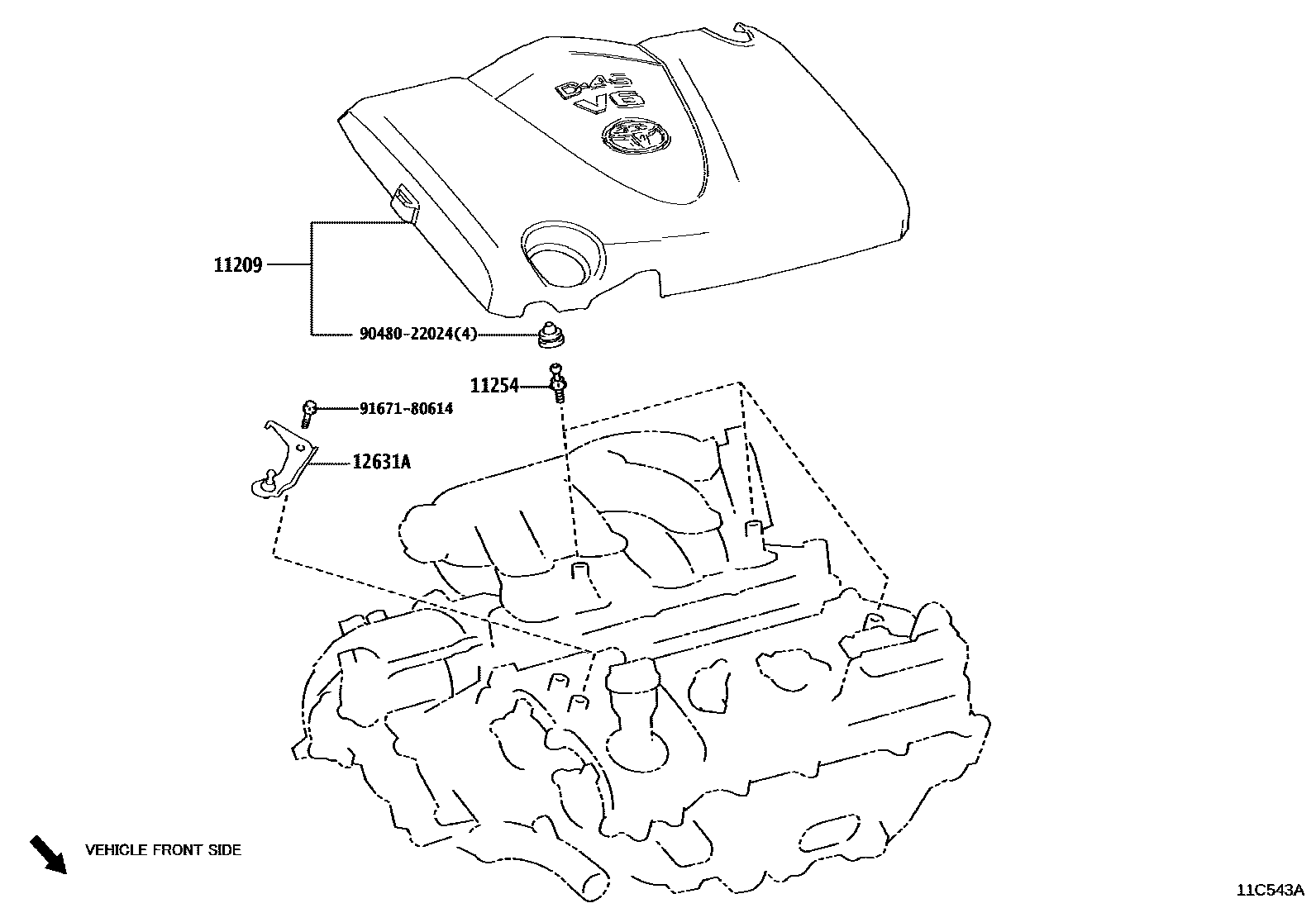

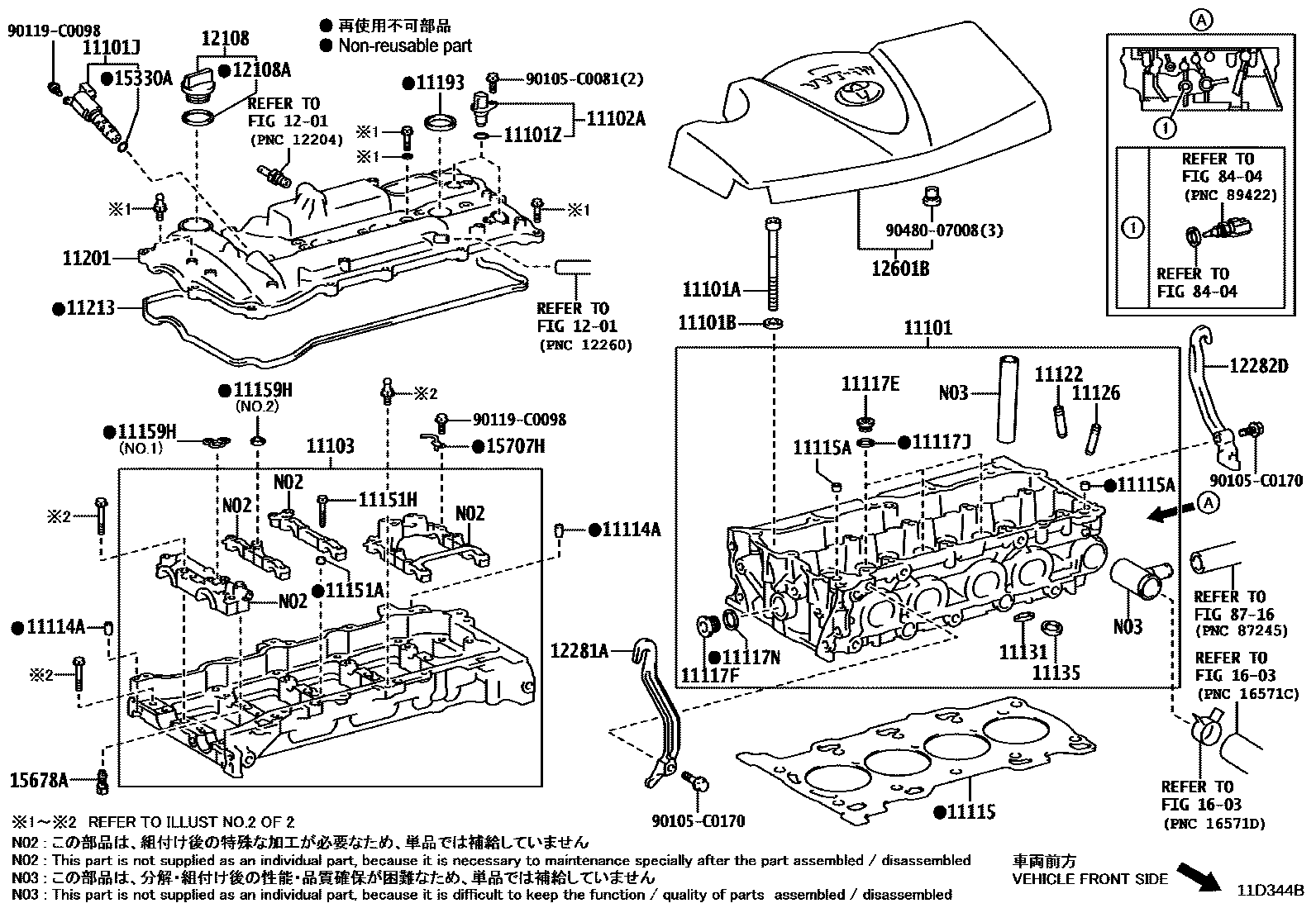

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 12 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09451 · 11101-09560 · 11101-29625 · 11101-29626 · 11101-29627 · 11101-39776 · 11101-80002 · 11101-80016 · 11101-80017 · 11101-F9050 · 11101-F9130 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02164 · 90910-02201 · 90910-02202 · 90910-02205 · 90910-C2006 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90201-12079 · 90201-C0005 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T030 · 15330-37010 |
| 11101Z | JOINT TORIQUE, CAPTEUR DE POSITION D'ARBRE A CAMES | 90301-11038 · 90301-14016 |
| 11102 | left cylinder head | 11102-39316 · 11102-39325 · 11102-39326 |
| 11102A | Camshaft position sensor | 90919-05060 · 90919-05096 · 90919-C5001 |
| 11103 | Camshaft housing sub-assembly | 11103-0V021 · 11103-0V070 · 11103-25010 · 11103-25011 · 11103-25020 · 11103-25021 · 11103-25080 · 11103-25090 · 11103-31051 · 11103-36011 · 11103-F2031 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-08464 · 90105-C0074 · 90105-C0167 · 90105-W0307 · 91551-G0840 · 91551-G0845 · 91551-G0865 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-08465 · 90105-W0309 · 91551-G0865 |
| 11104A | Left camshaft housing sub-assembly | 11104-31060 |
| 11114A | direct selling | 90250-05021 · 90250-06003 · 90250-C0010 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0V020 · 11115-0V031 · 11115-24040 · 11115-25050 · 11115-31120 · 11115-36031 |
| 11115A | PIN, RING | 90253-12002 · 90253-C0002 |
| 11116 | No. 2 cylinder head gasket | 11116-31100 |
| 11117A | No. 1 headed tapered thread plug | 90345-51006 |
| 11117B | No. 2 headed tapered thread plug | 90345-51006 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-20002 · 90341-20012 · 90341-C0012 |
| 11117F | No. 2 headed straight thread plug | 90341-24011 · 90341-27006 |
| 11117G | No. 3 headed straight thread plug | 90341-20002 · 90341-24006 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 16258-31020 · 90430-20004 · 90430-27005 · 90430-C0001 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-24246 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-31070 · 11122-31090 · 11123-31050 · 11123-31070 · 11123-31090 |
| 11122B | No. 2 intake valve guide bushing | 11122-31070 · 11123-31070 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 · 11126-31030 · 11126-31040 · 11127-31030 · 11127-31040 |
| 11126B | No. 2 exhaust valve guide bushing | 11126-31030 · 11127-31030 |
| 11131 | intake valve seat | 11131-0V030 · 11131-0V040 · 11131-31050 · 11131-31060 · 11131-36030 · 11132-0V030 · 11132-0V040 · 11132-31050 · 11132-31060 · 11132-36030 |
| 11131A | No. 2 intake valve seat | 11131-31050 · 11131-31060 · 11132-31050 · 11132-31060 |
| 11135 | Exhaust valve seat | 11135-0V020 · 11135-0V040 · 11135-25020 · 11135-31110 · 11135-36010 · 11135-F2020 · 11136-0V040 · 11136-25020 · 11136-31110 · 11136-36010 |
| 11135A | No. 2 exhaust valve seat | 11135-31110 · 11136-31110 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11021 · 90253-13005 · 90253-C0004 |
| 11151F | Bolts (for installing the camshaft bearing cap to the No. 2 right camshaft housing) | 90119-07008 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-C0469 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11155B | PIN, RING | 90253-13005 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-10521 |
| 11159G | Left camshaft bearing cap oil hole gasket | 11159-31040 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0V020 · 11159-31040 · 11159-36011 · 90430-10024 · 90430-C0006 |
| 11193 | spark plug bushing gasket | 11193-0V020 · 11193-31010 · 11193-36010 · 11193-37030 |
| 11193A | Left spark plug bushing gasket | 11193-31010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0V040 · 11201-0V060 · 11201-24032 · 11201-25031 · 11201-25032 · 11201-25033 · 11201-25090 · 11201-31301 · 11201-31302 · 11201-36010 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 · 90210-C0003 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-C0072 · 90105-C0084 · 90105-W0303 · 90109-06384 · 90109-W0019 · 91551-80635 · 91551-A0625 |
| 11202 | Left cylinder head cover sub-assembly | 11202-31100 · 11202-31101 · 11202-31102 |
| 11202C | Bolt (for left cylinder head cover) | 90109-06384 |
| 11209 | V-shaped cylinder head sub-assembly | 11209-31410 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0V010 · 11213-0V020 · 11213-24020 · 11213-25020 · 11213-31070 · 11213-31090 · 11213-36020 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 · 11214-31050 · 11214-31070 |
| 11254 | V-shaped cylinder block cover No. 1 bracket | 11254-31020 |
| 11401M | No. 2 crankshaft position sensor | 90919-05060 |
| 11401Q | crankshaft position sensor | 90919-05061 |
| 11452D | GUIDE, JAUGE NIVEAU HUILE | 11452-24020 |
| 11452E | JOINT, TORIQUE(POUR GUIDE JAUGE NIVEAU HUILE) | 96741-19010 |
| 11492B | coolant sealing plate | 11492-25010 |
| 11493A | Coolant sealing plate gasket | 16258-25010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0V010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | ASS.CAPUCHON, REMPLISSEUR HUILE | 12180-38010 |
| 12204C | SOUS.-ENS. DE SOUPAPE D'AERAGE | 12204-25010 · 12204-F2020 |
| 12281A | Engine No. 1 hanger | 12281-0V010 · 12281-31121 · 12281-36020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0V010 · 12282-0V030 · 12282-25010 · 12282-31100 · 12282-36021 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0V240 · 12601-24011 · 12601-25010 · 12601-25020 · 12601-25120 · 12601-25121 · 12601-31050 · 12601-36060 |
| 12631A | hood bracket | 12631-31010 |
| 15301B | Engine oil level scoring assembly | 15301-F2080 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14032 · 90099-14137 |
| 15678A | Oil control valve filter | 15678-0T020 · 15678-31020 · 15678-37010 |
| 15707H | SOUS-ENSEMBLE TUYAU, HUILE | 15707-0V010 |
| 23476 | fuel pump tappet housing | 23476-31020 |
| 25759A | SUPPORT, RESERV ACCUMUL DEPRESSION | 25759-F2040 |
