Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

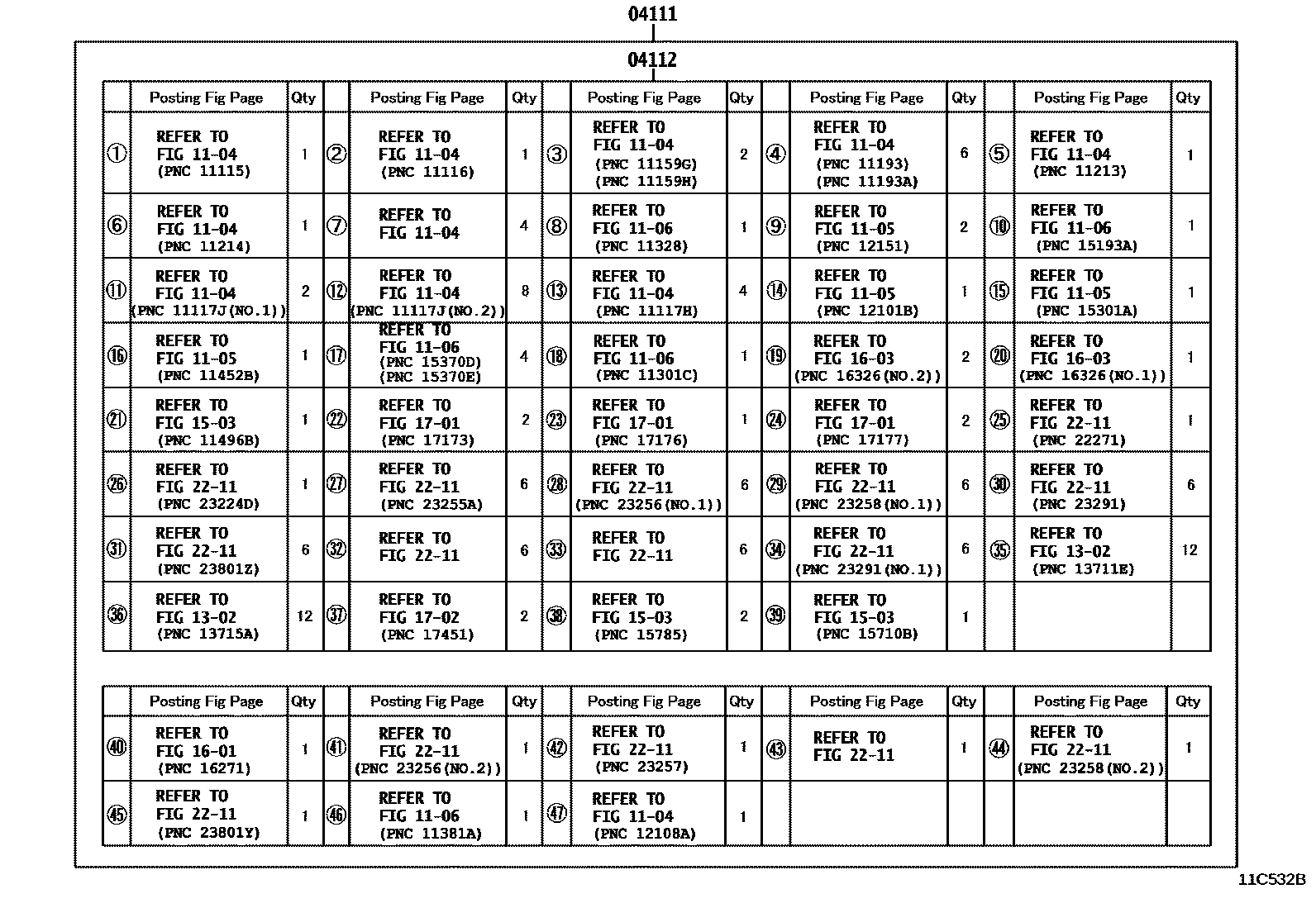

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C532B
Engine Overhaul Gasket Kit — 11C532B (201709 – 999999)

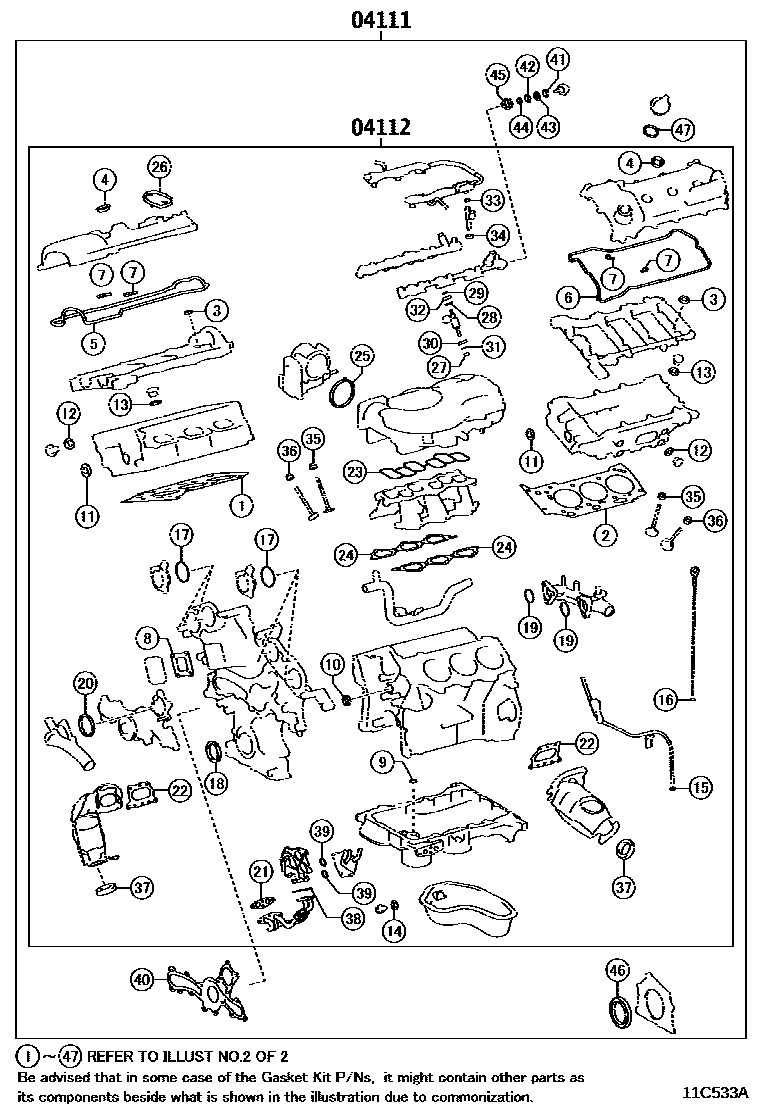

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C533A
Engine Overhaul Gasket Kit — 11C533A (201709 – 999999)

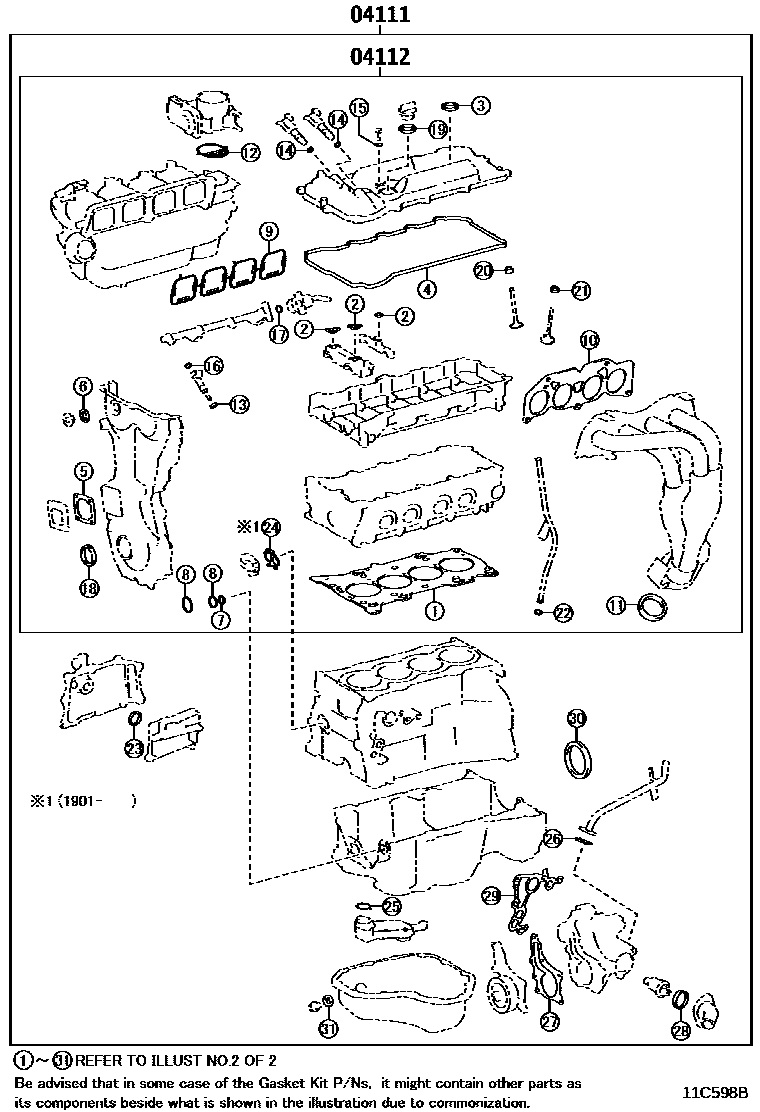

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C598B
Engine Overhaul Gasket Kit — 11C598B (201709 – 999999)

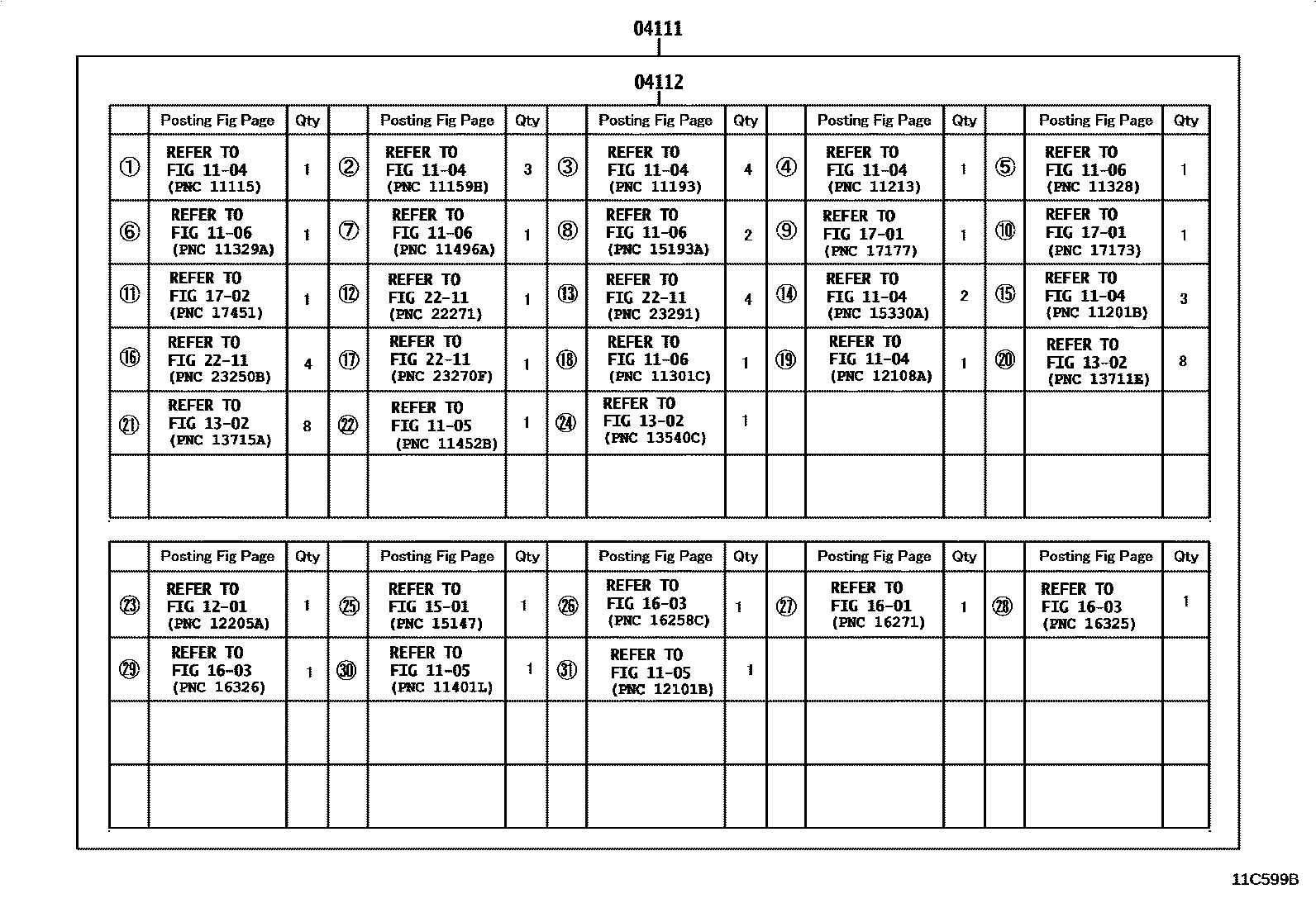

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C599B
Engine Overhaul Gasket Kit — 11C599B (201709 – 999999)

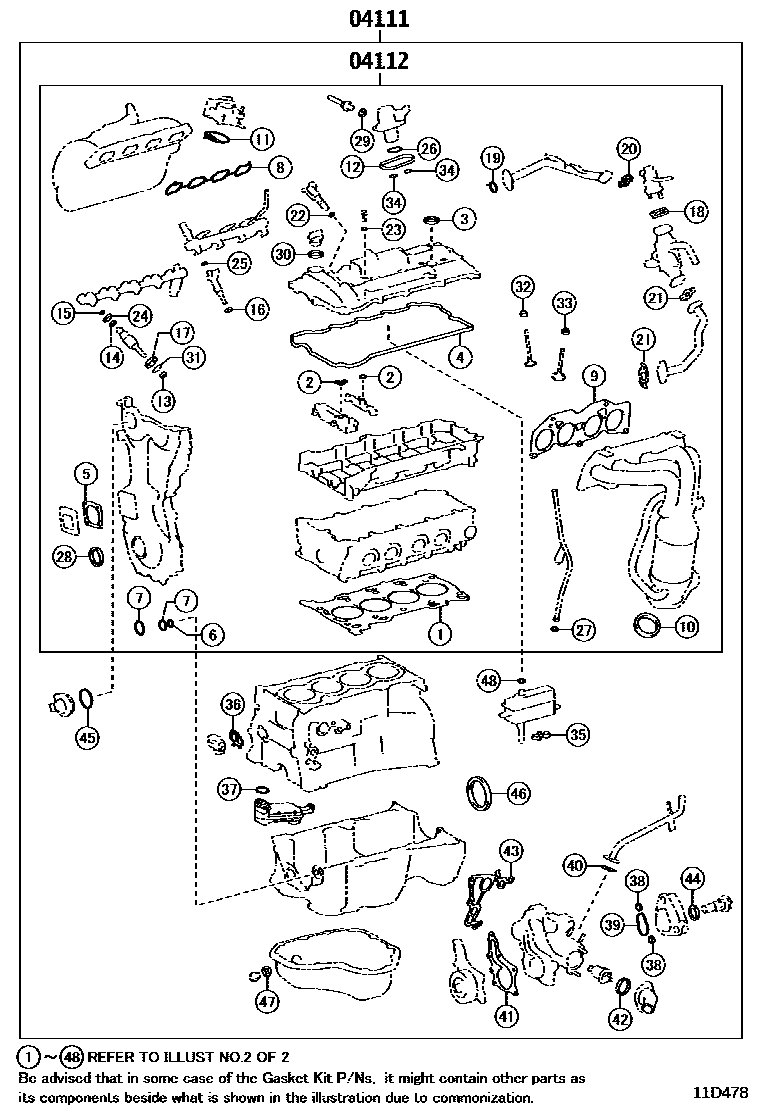

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D478
Engine Overhaul Gasket Kit — 11D478 (201804 – 999999)

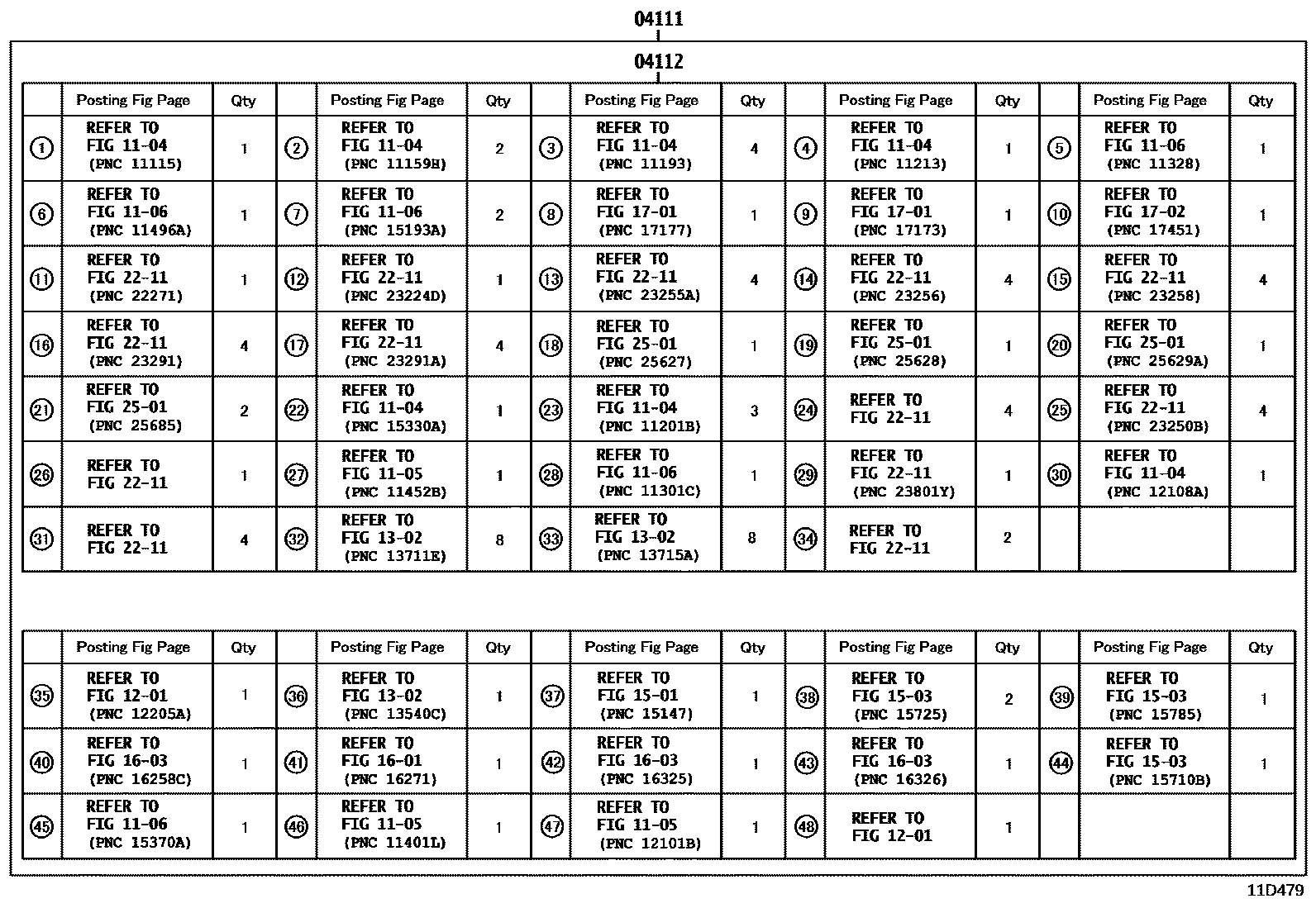

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D479
Engine Overhaul Gasket Kit — 11D479 (201804 – 999999)

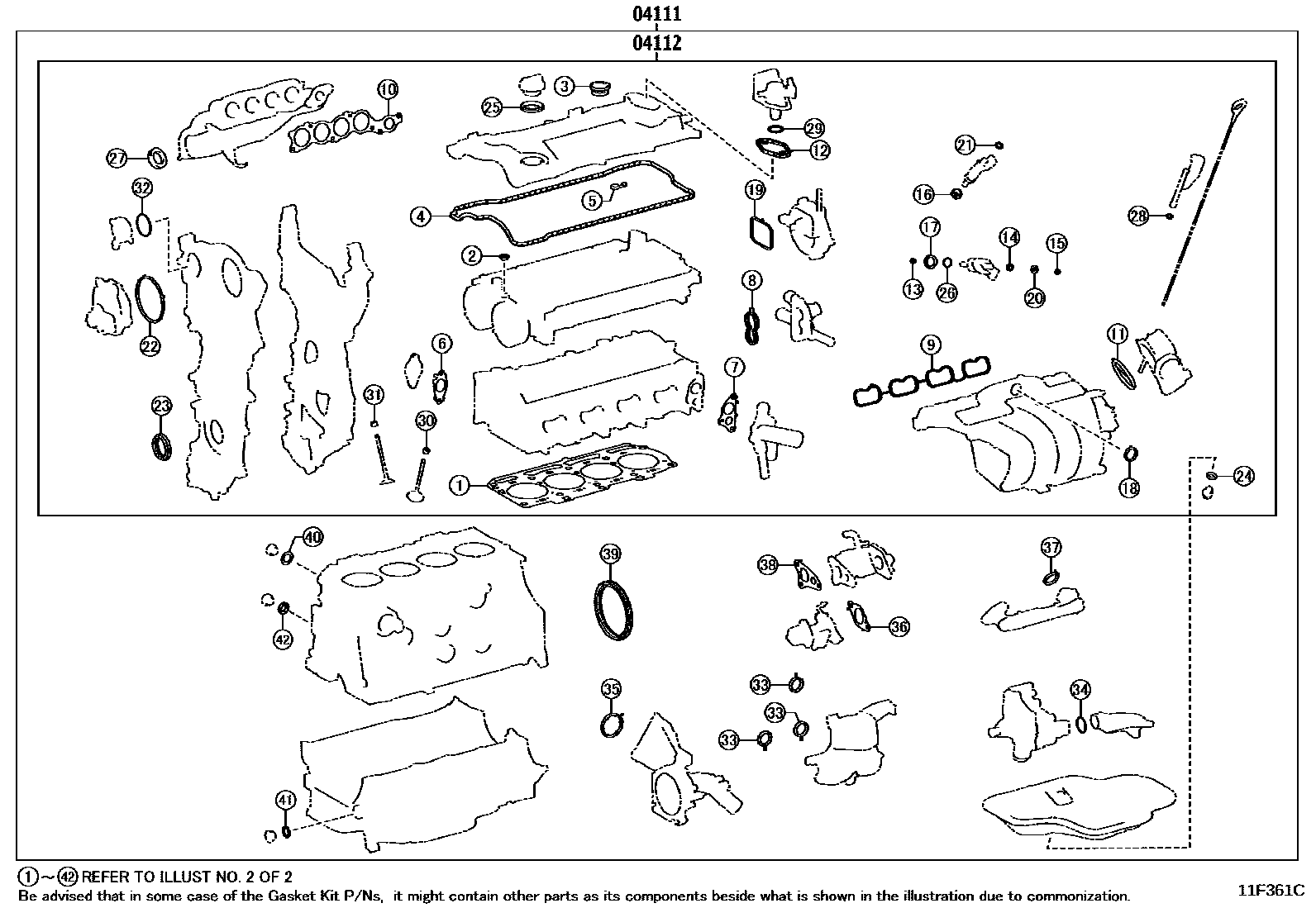

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F361C
Engine Overhaul Gasket Kit — 11F361C (201709 – 999999)

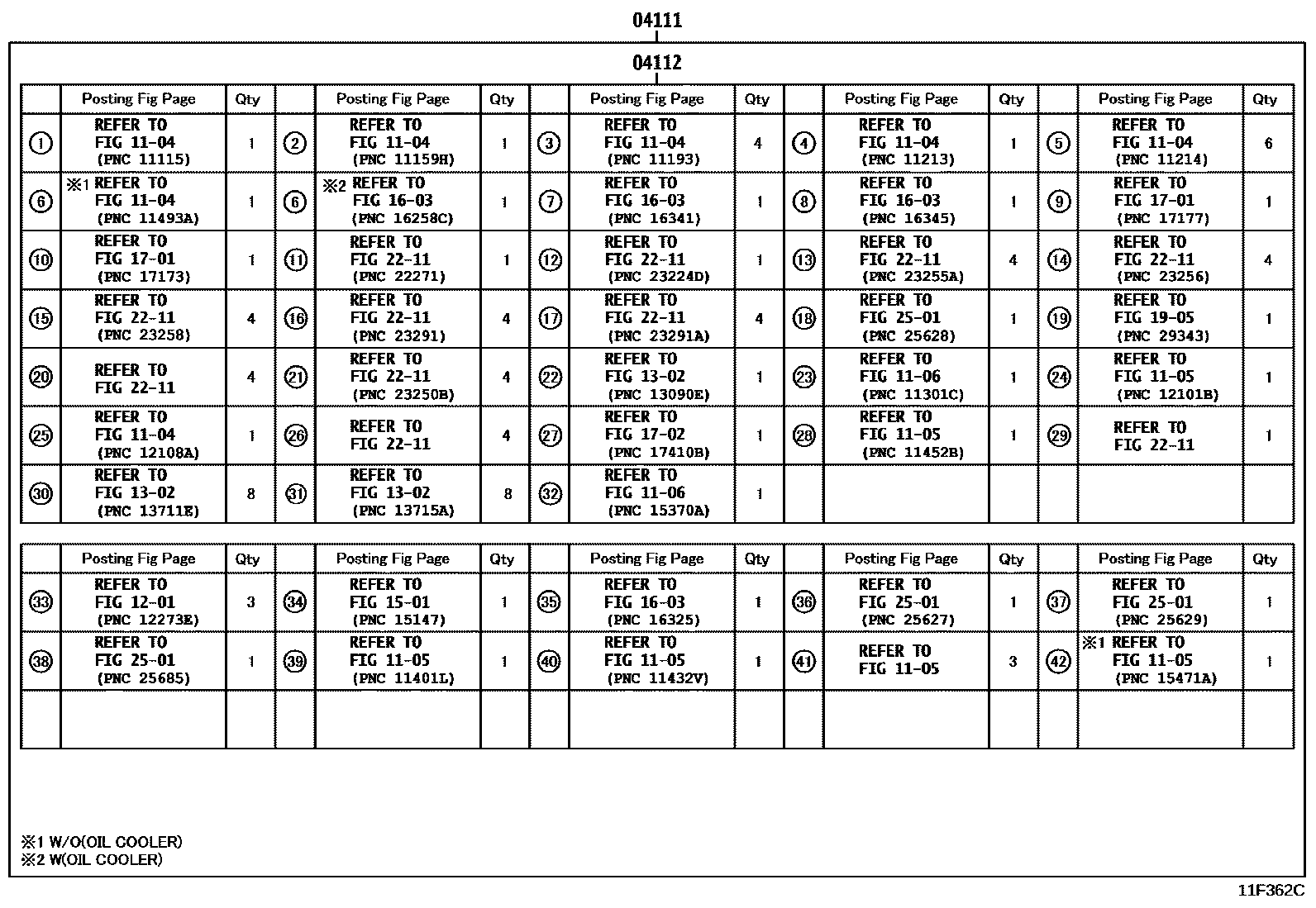

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F362C
Engine Overhaul Gasket Kit — 11F362C (201709 – 999999)

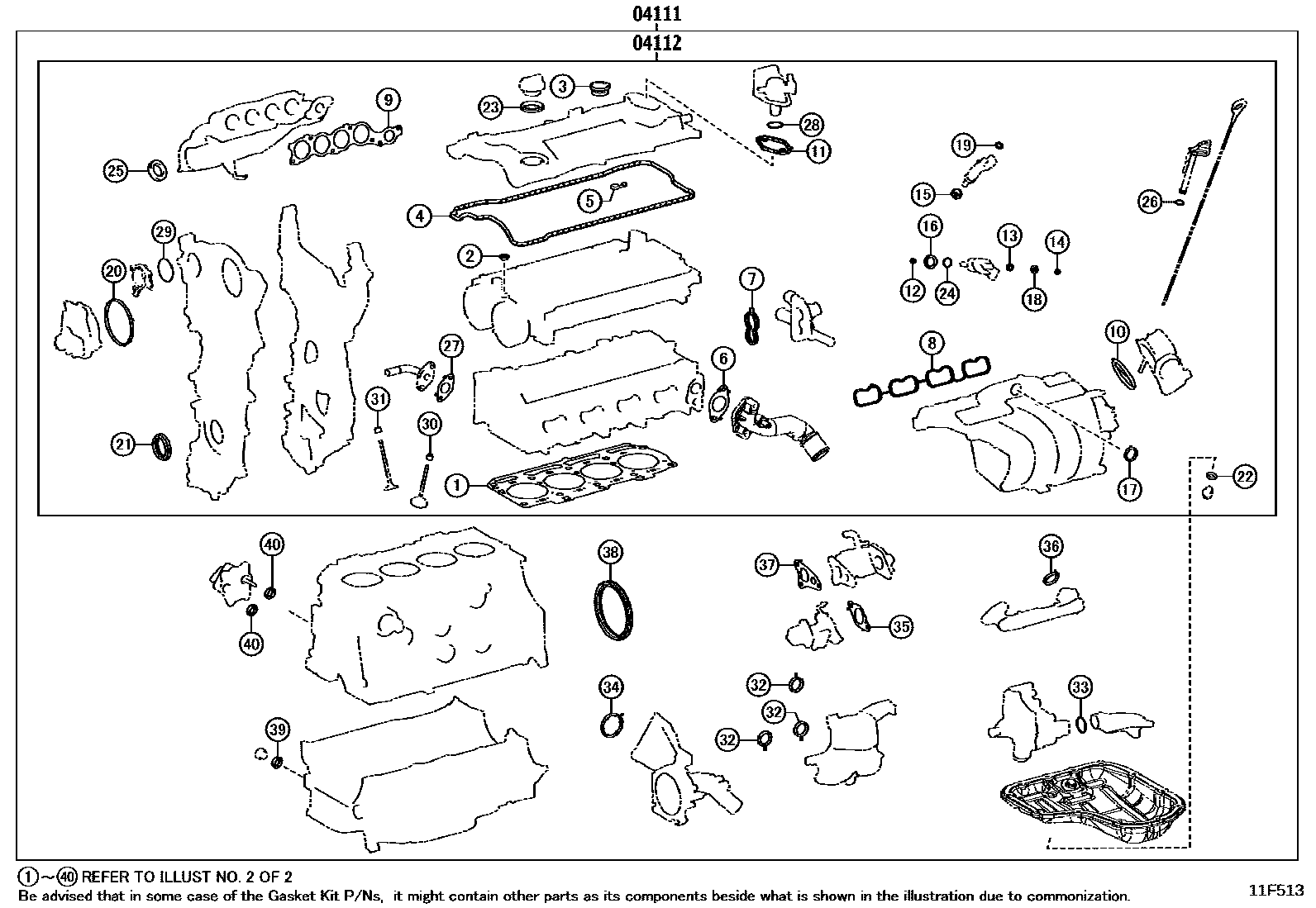

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F513
Engine Overhaul Gasket Kit — 11F513 (202104 – 999999)

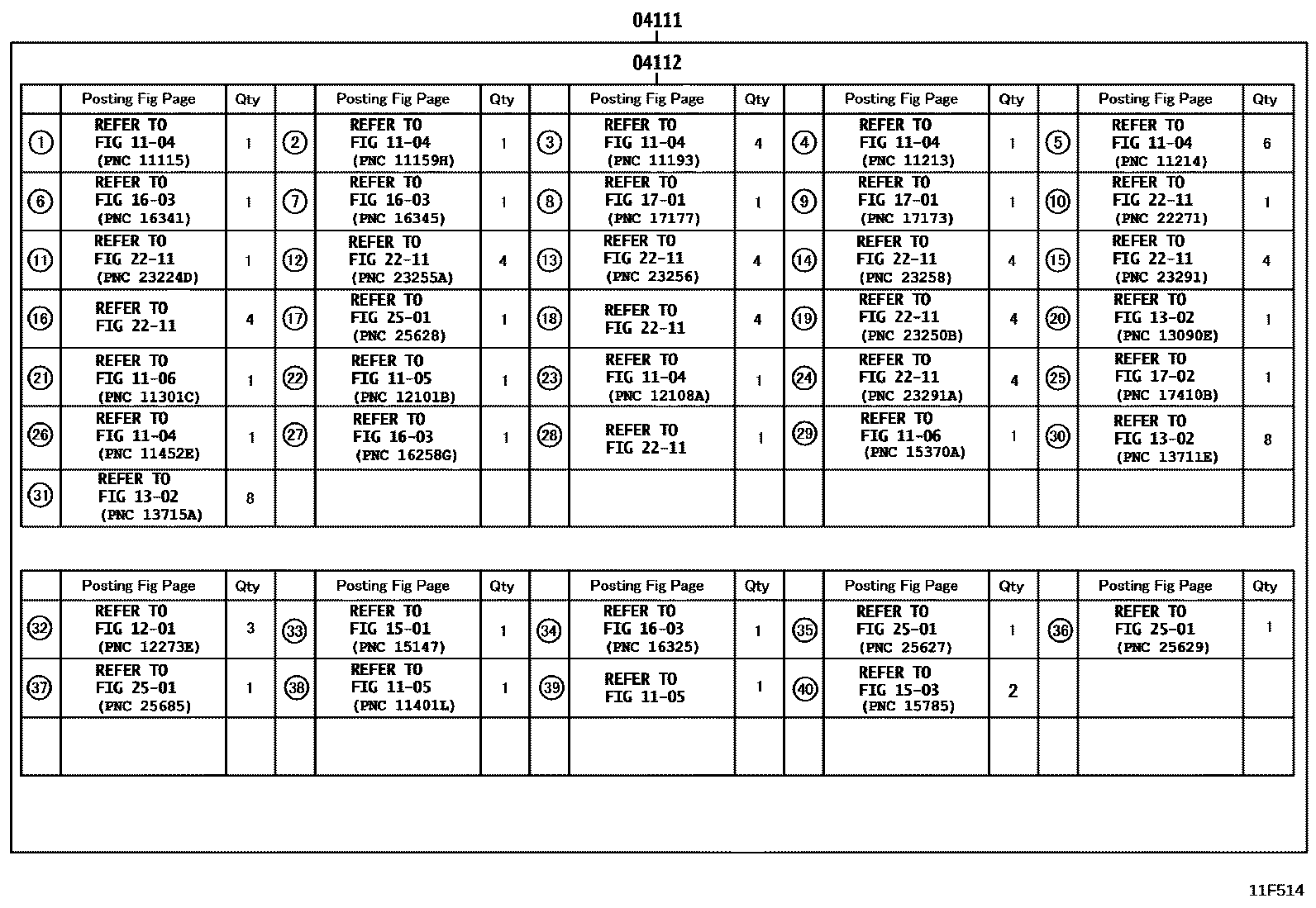

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F514
Engine Overhaul Gasket Kit — 11F514 (202104 – 999999)

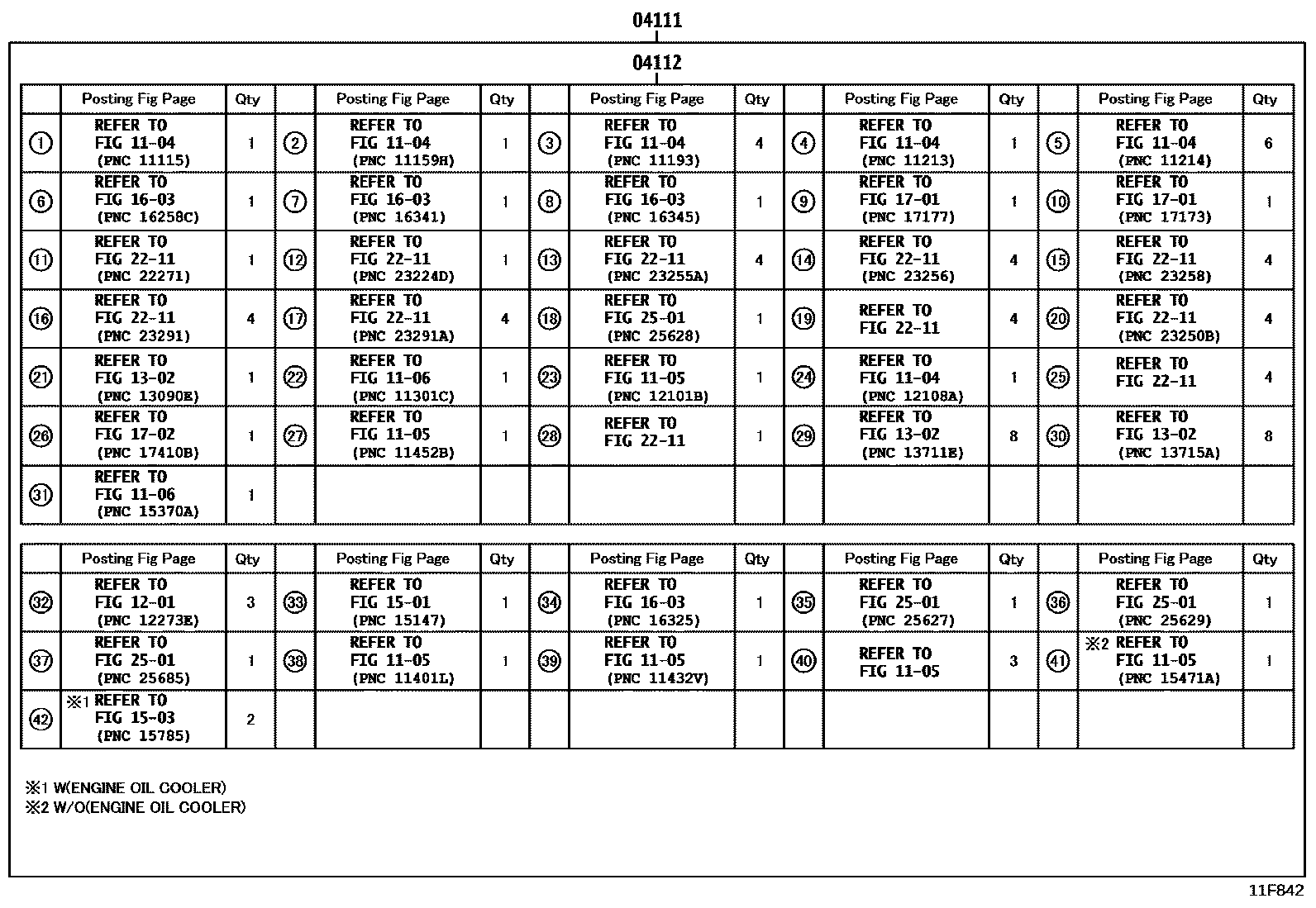

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F842
Engine Overhaul Gasket Kit — 11F842 (201709 – 999999)

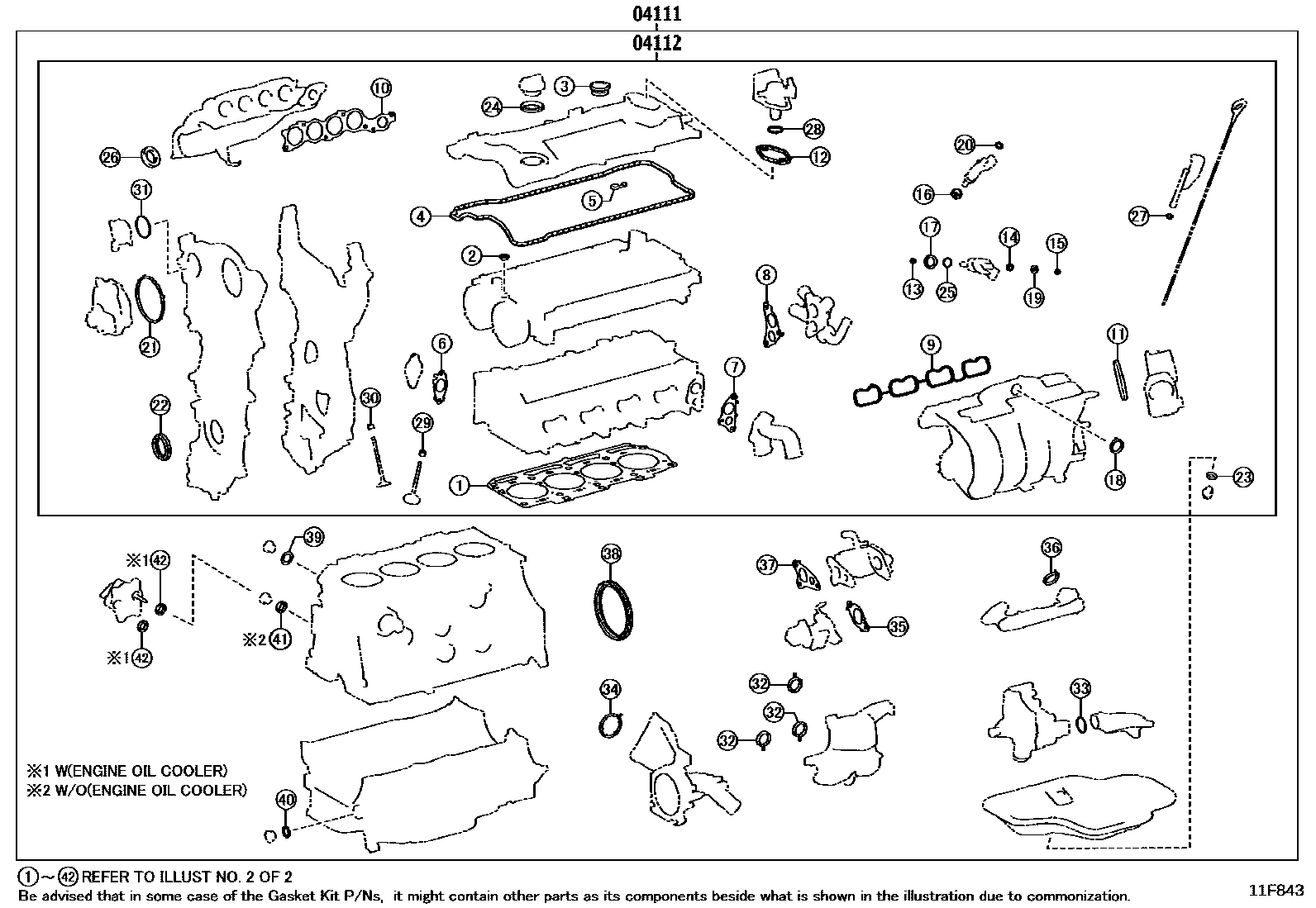

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11F843
Engine Overhaul Gasket Kit — 11F843 (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0V121 · 04111-25083 · 04111-25180 · 04111-25210 · 04111-25240 · 04111-25251 · 04111-25260 · 04111-25261 · 04111-25280 · 04111-25290 · 04111-31C60 · 04111-31C61 · 04111-31C62 · 04111-31C63 · 04111-36126 · 04111-36147 · 04111-F2031 · 04111-F2032
04112Engine valve grinding pad assembly04112-0V111 · 04112-0V112 · 04112-25120 · 04112-25150 · 04112-25170 · 04112-25171 · 04112-25180 · 04112-25181 · 04112-31A00 · 04112-31A01 · 04112-31A02 · 04112-36115 · 04112-36116 · 04112-36124 · 04112-36125 · 04112-F2031 · 04112-F2032
