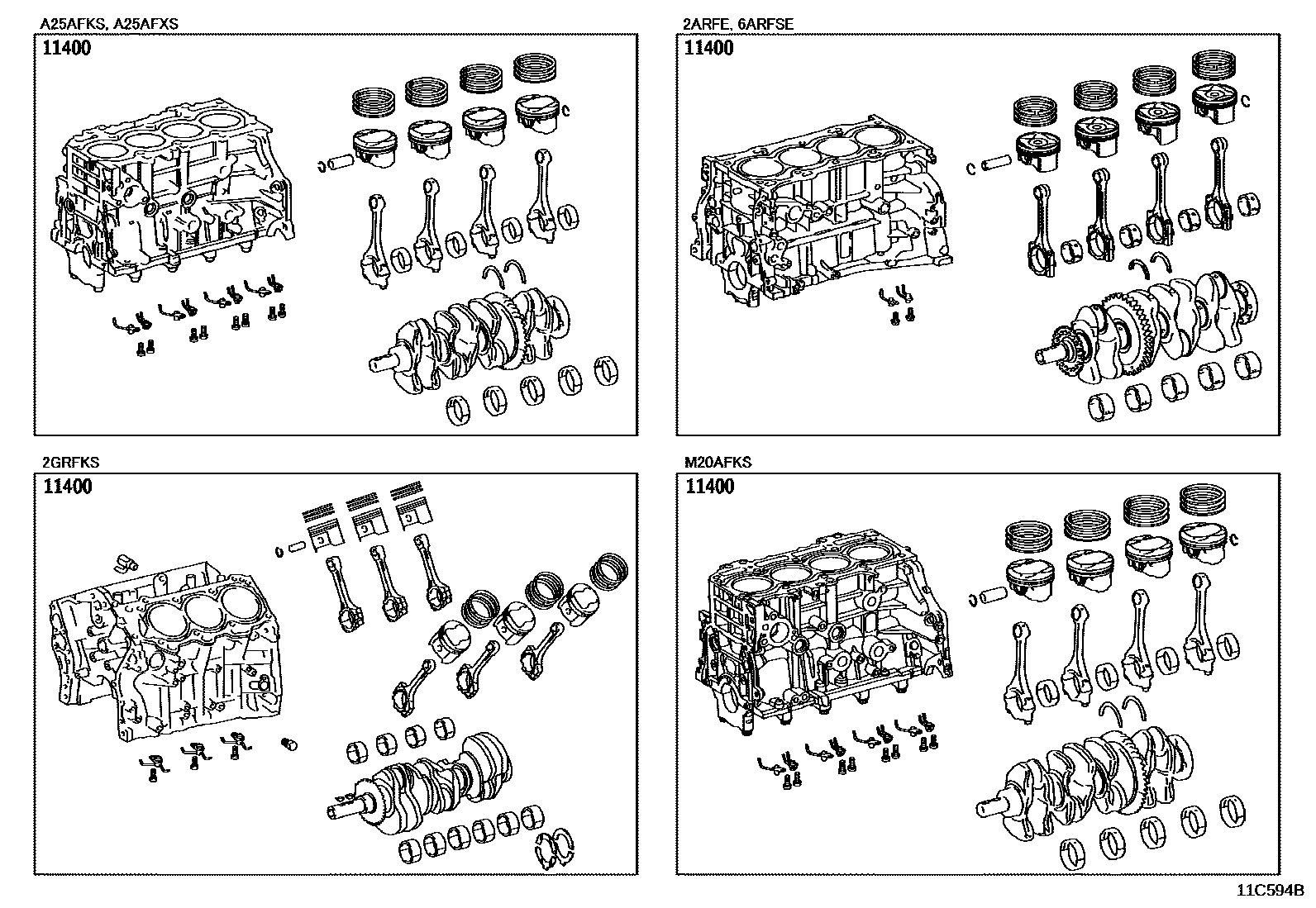

Toyota CAMRY Short Block Assembly — Figure 1102
Toyota CAMRY EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11400 | Short Block Assembly | 11400-0V060 · 11400-0V160 · 11400-25040 · 11400-25051 · 11400-25060 · 11400-25120 · 11400-25130 · 11400-25140 · 11400-25150 · 11400-2E010 · 11400-2E020 · 11400-2E030 · 11400-31420 · 11400-36061 · 11400-F2030 |
