Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

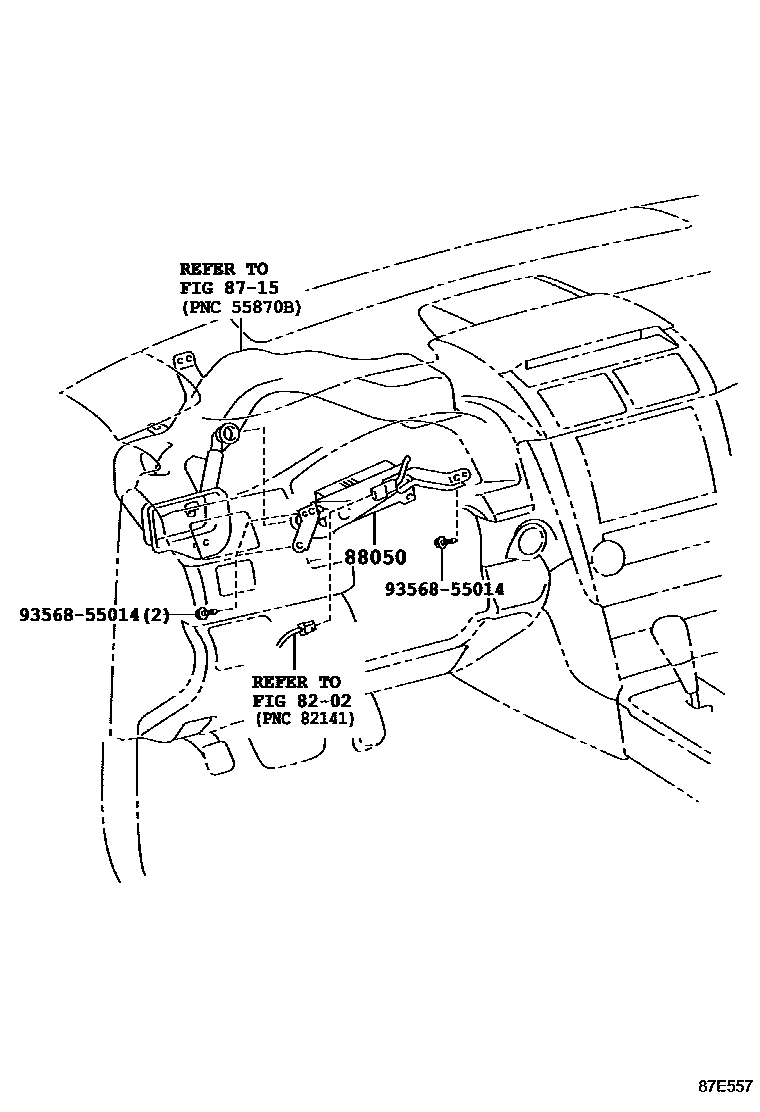

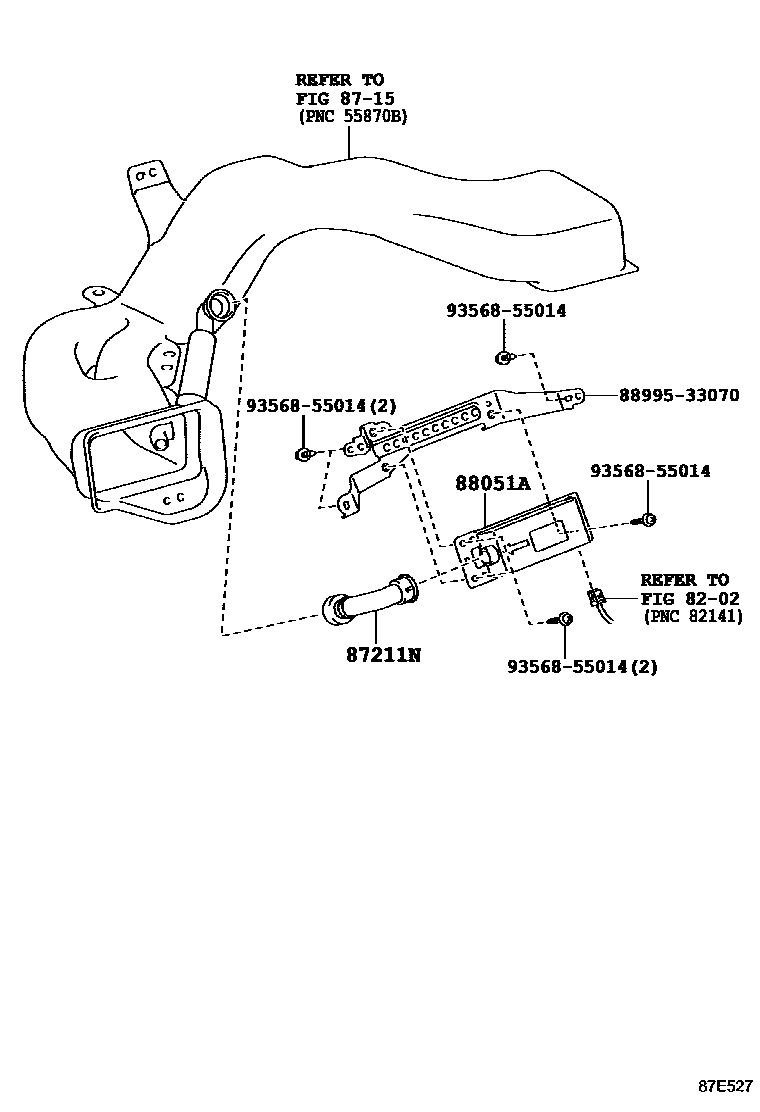

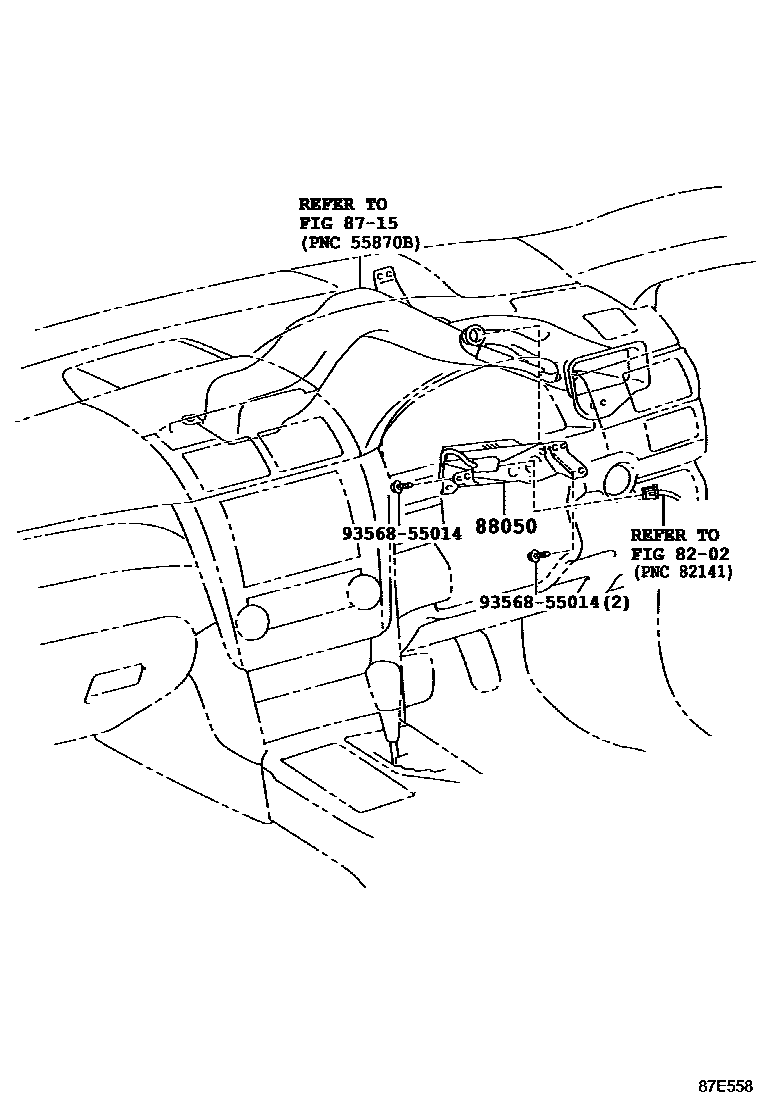

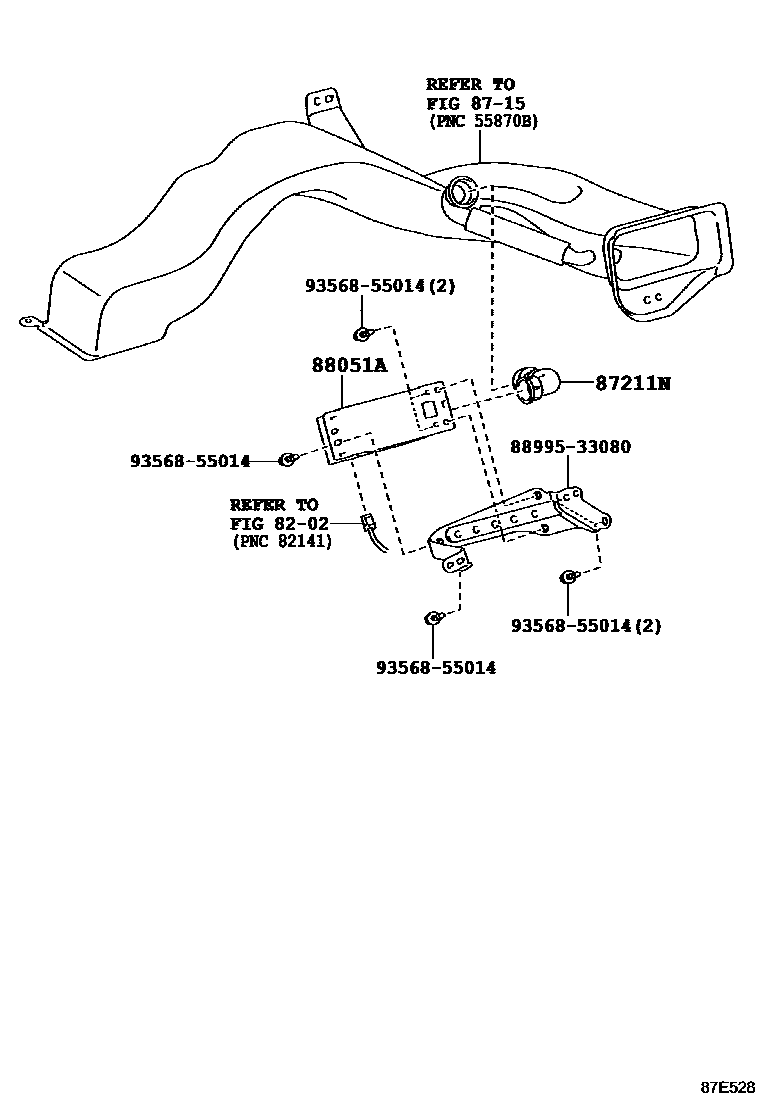

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 4 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87211N | Air purifier duct No. 1 | 87211-33040 · 87211-33050 |
| 88050 | Ion generator assembly | 88050-33030 · 88050-33040 |
| 88051A | Ion generator sub-assembly | 88051-28060 |
