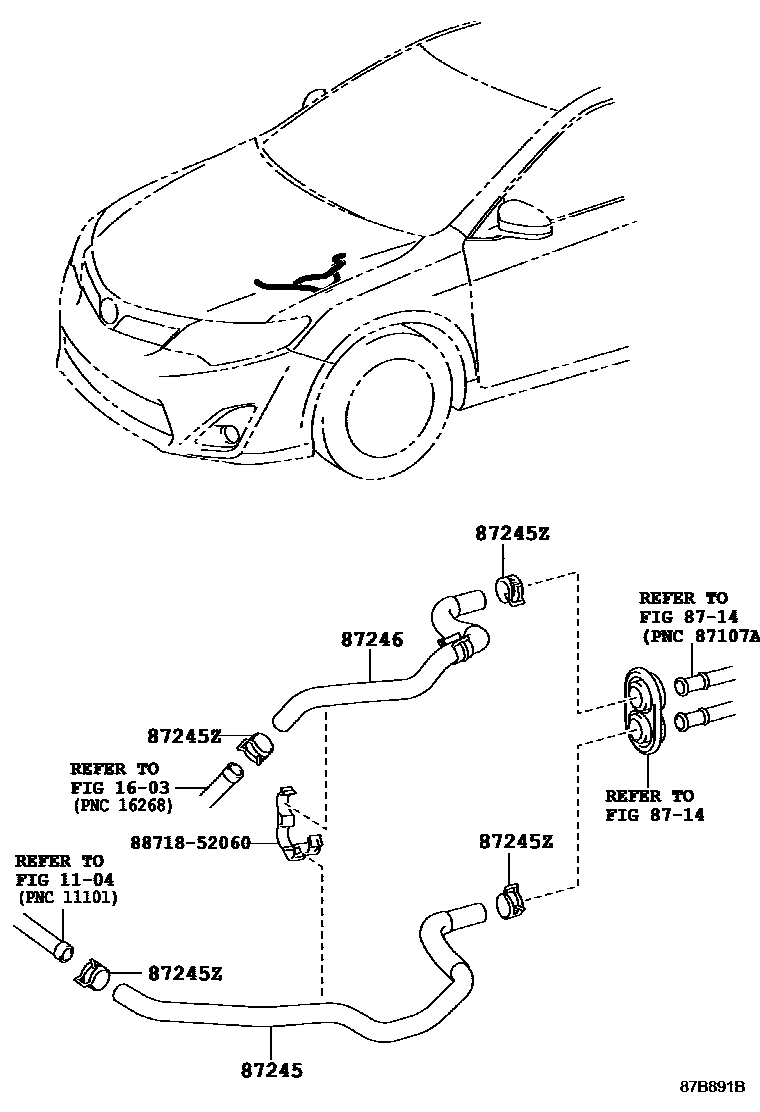

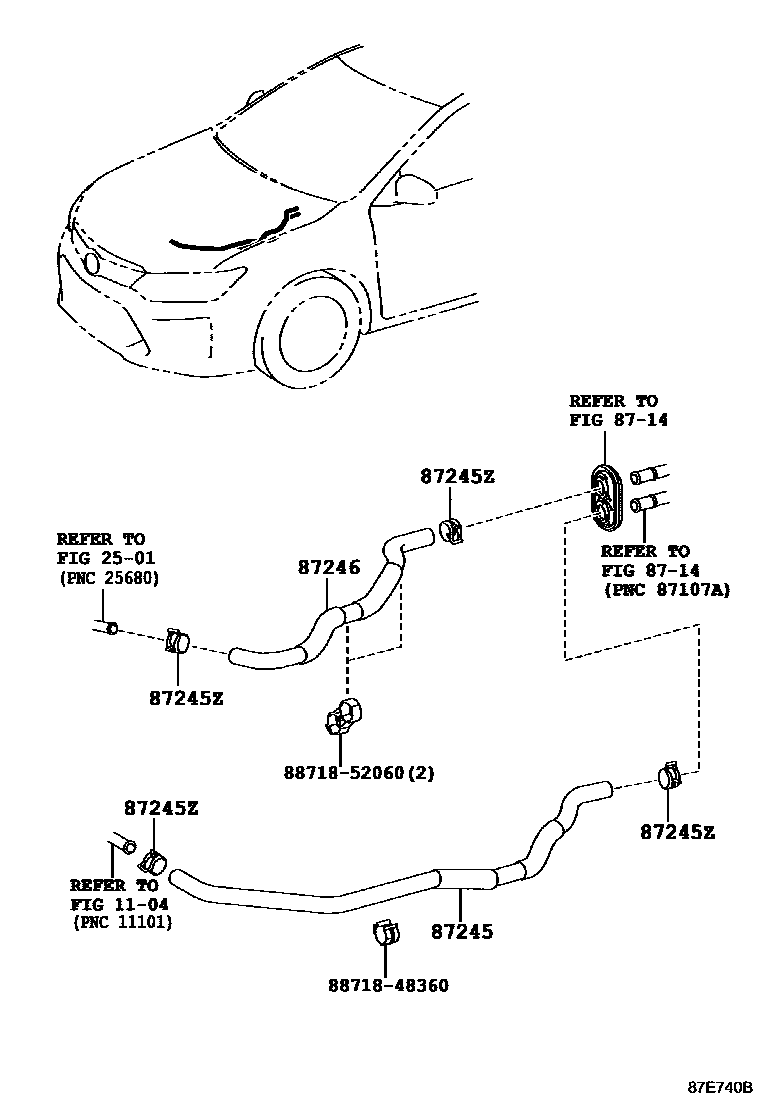

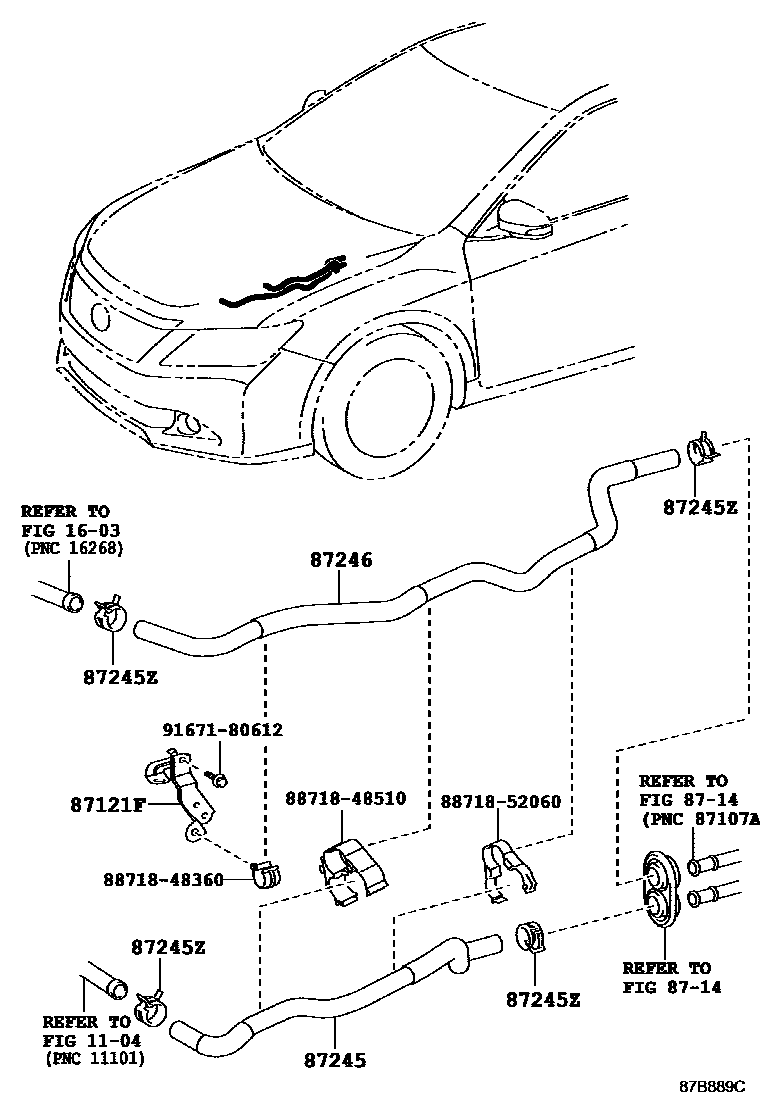

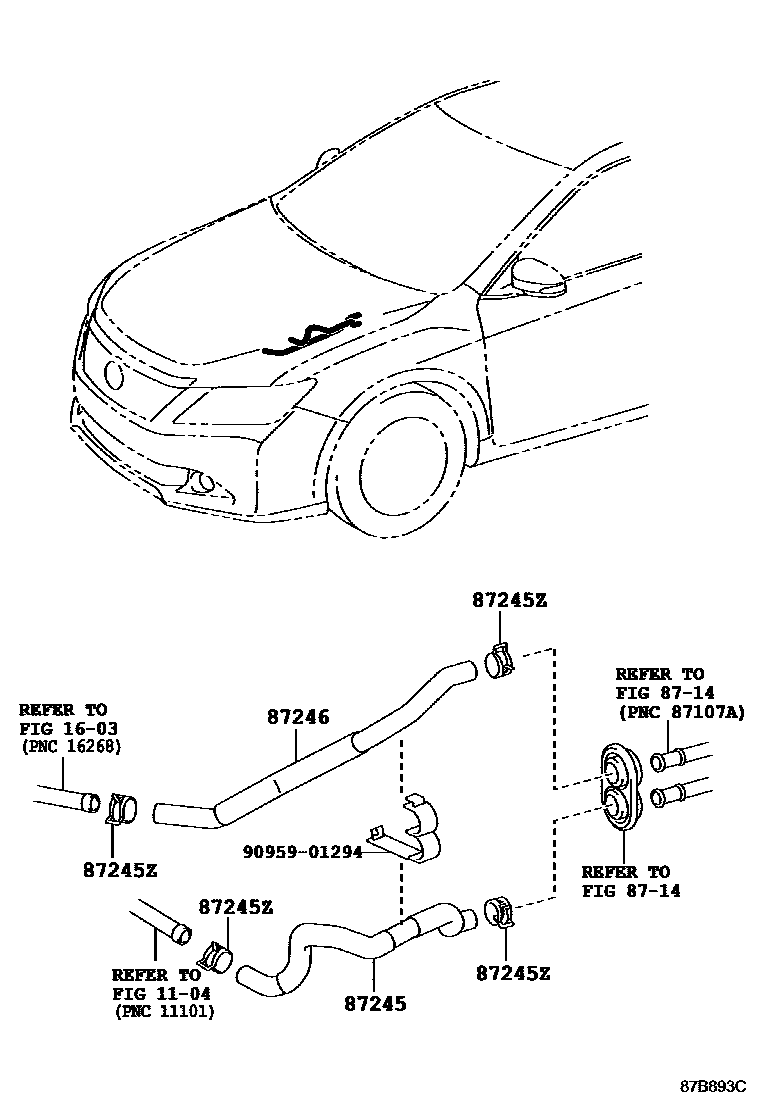

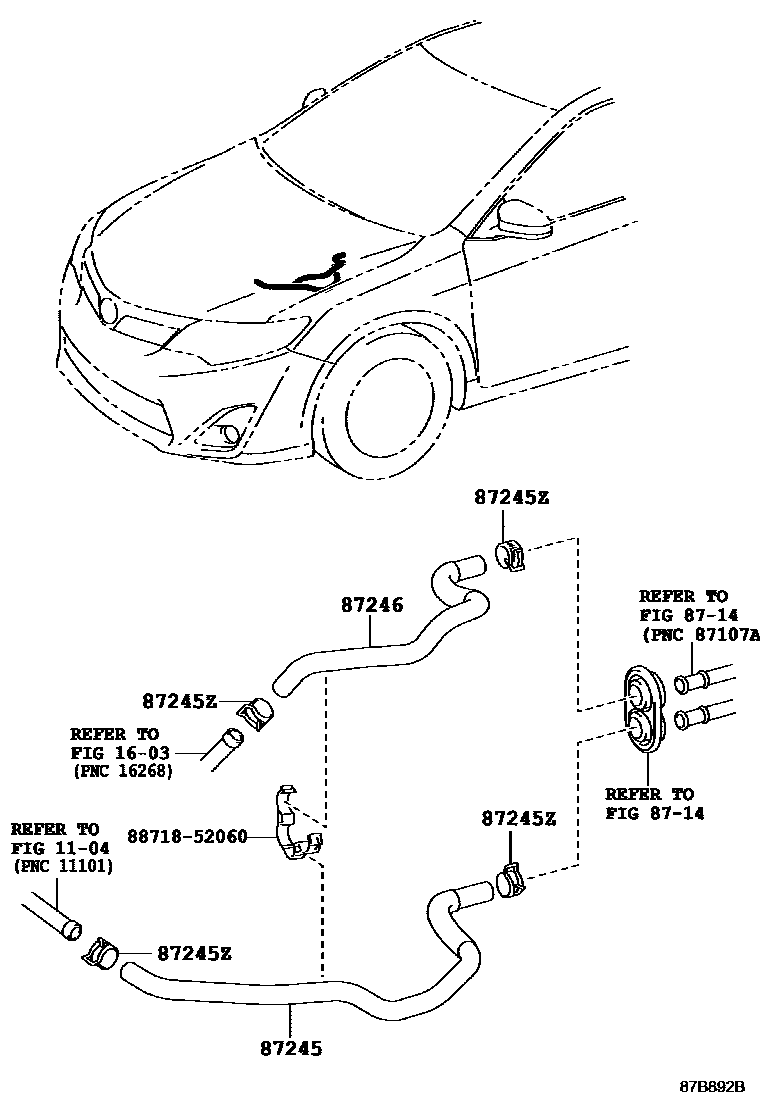

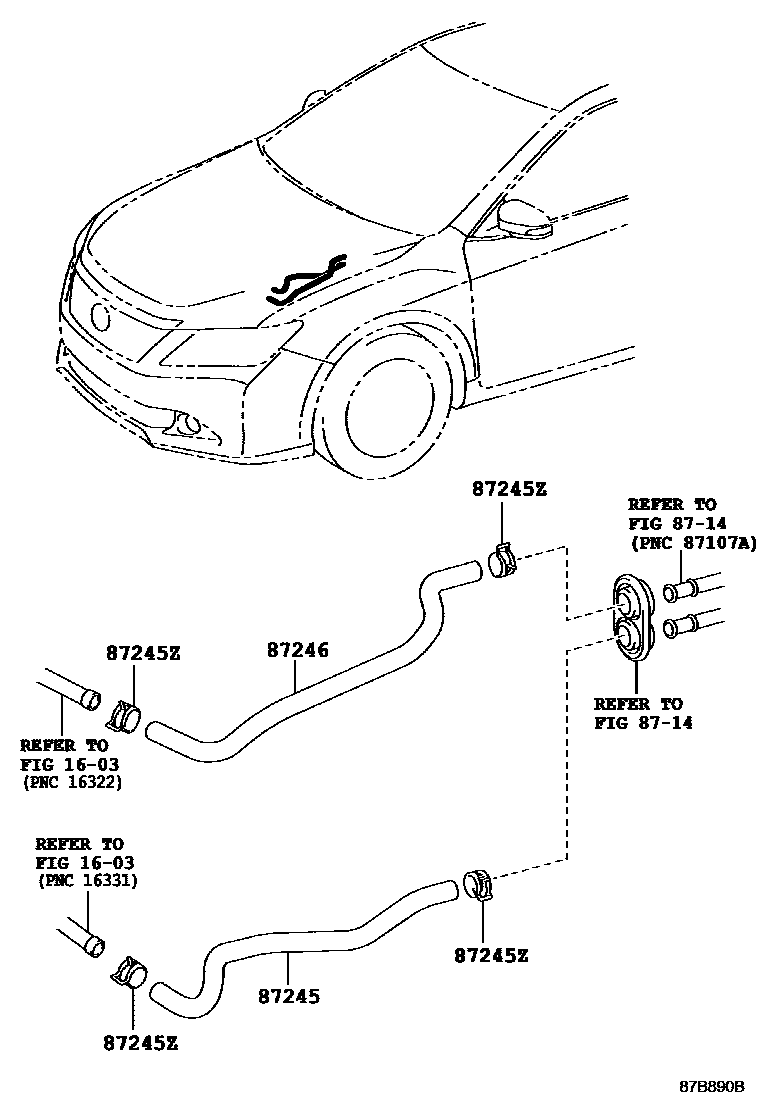

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87121F | heater bracket | 87121-33010 · 87452-33040 |
| 87245 | Heater water inlet hose | 87245-33630 · 87245-33650 · 87245-33670 · 87245-33740 · 87245-33780 |
| 87245Z | Clip or clip (for heater water hose) | 96136-42501 · 96138-42501 |
| 87246 | Heater outlet hose | 87245-33540 · 87245-33640 · 87245-33660 · 87245-33680 · 87245-33700 · 87245-33790 |
