Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

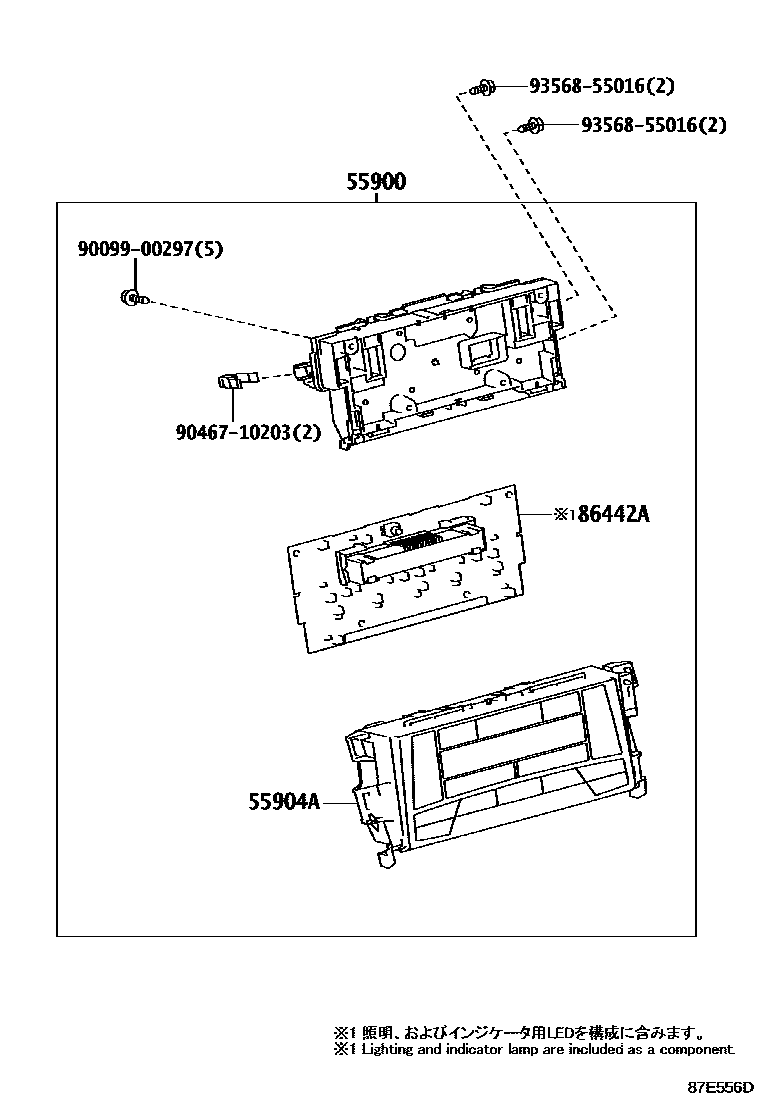

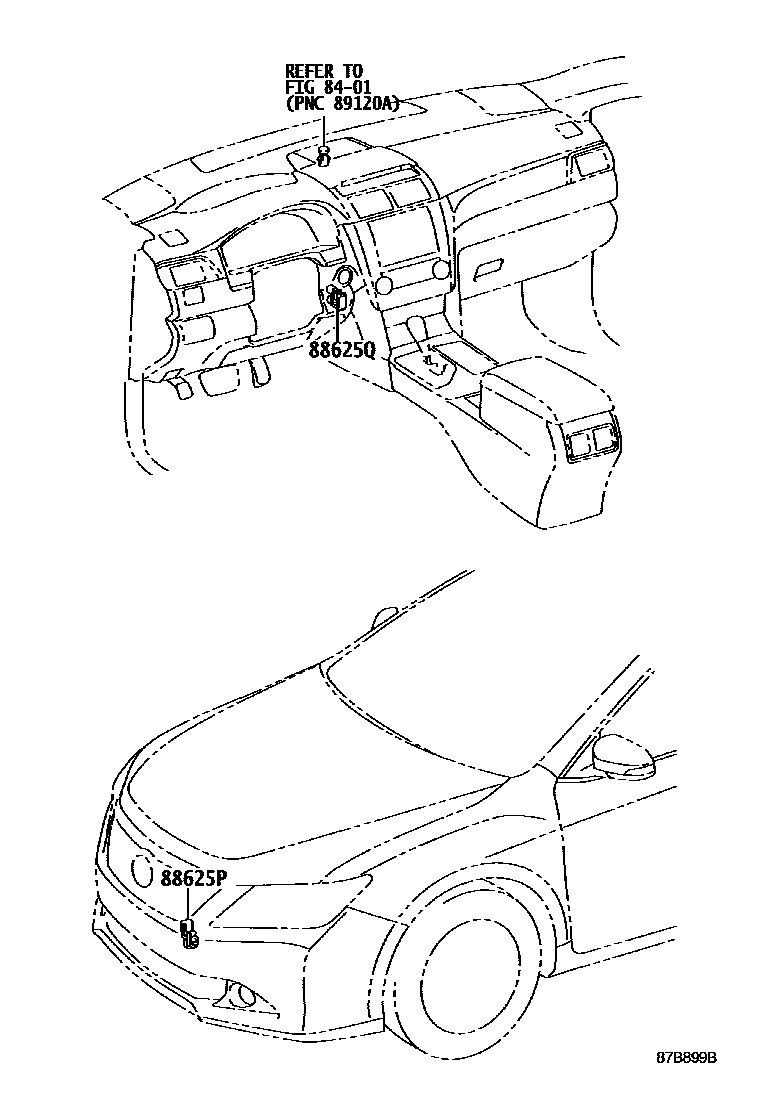

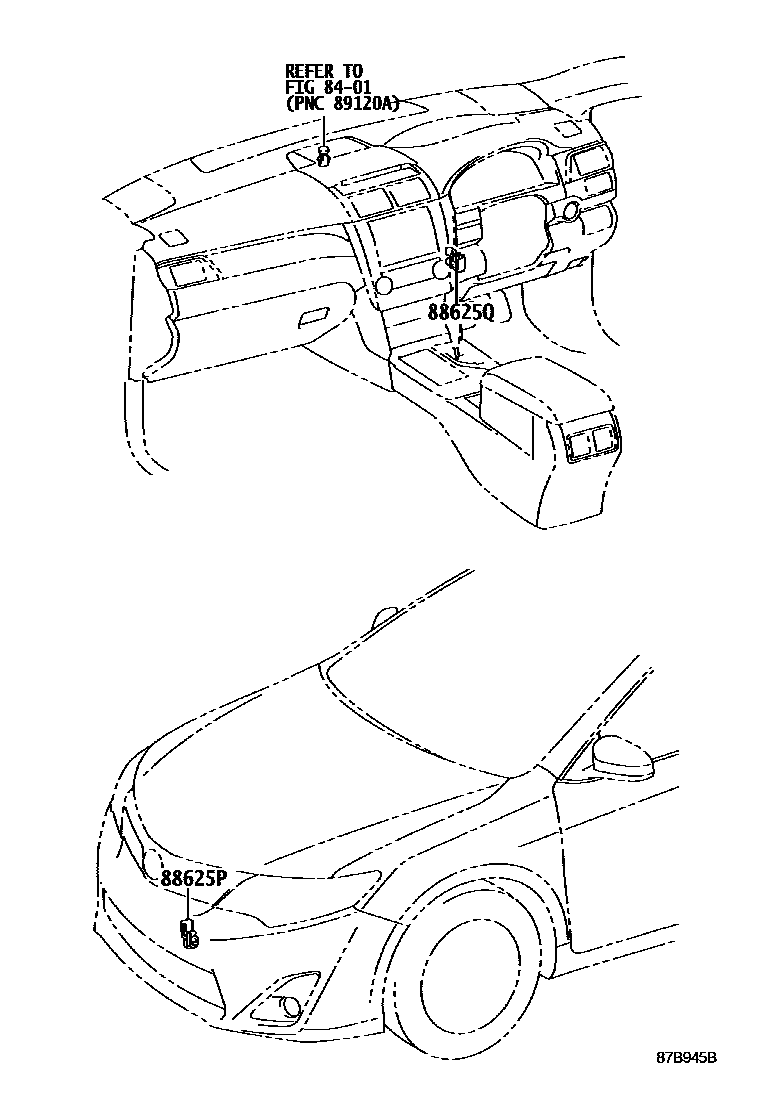

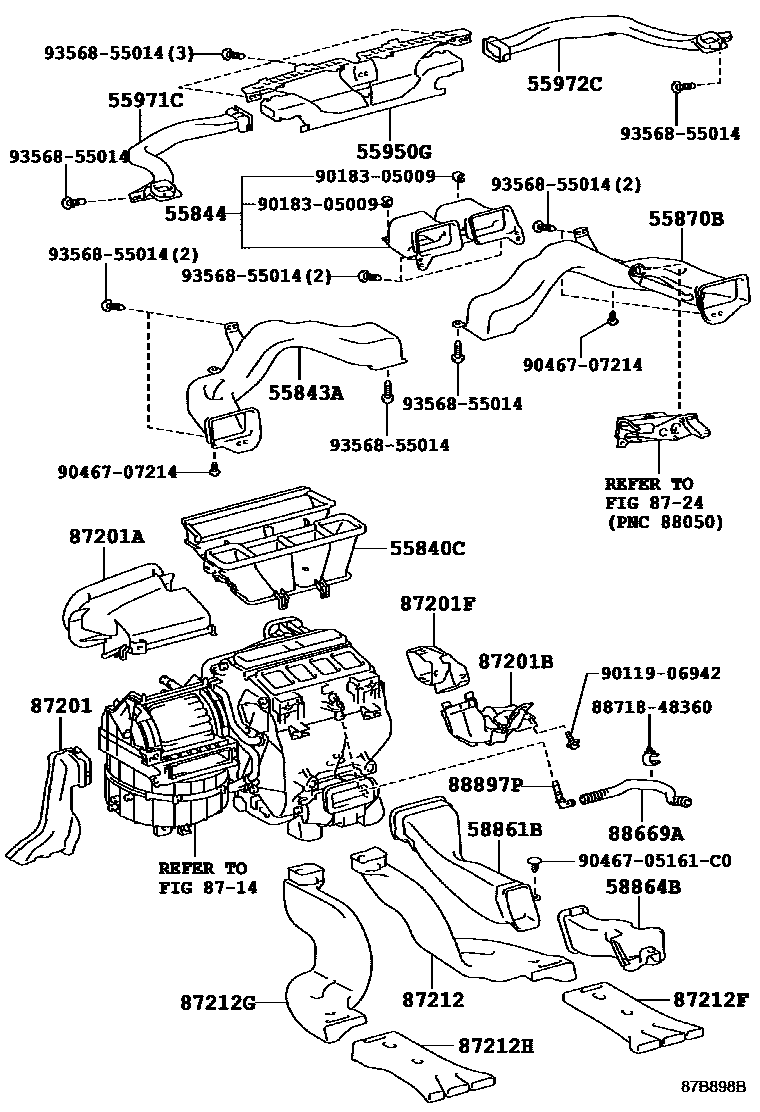

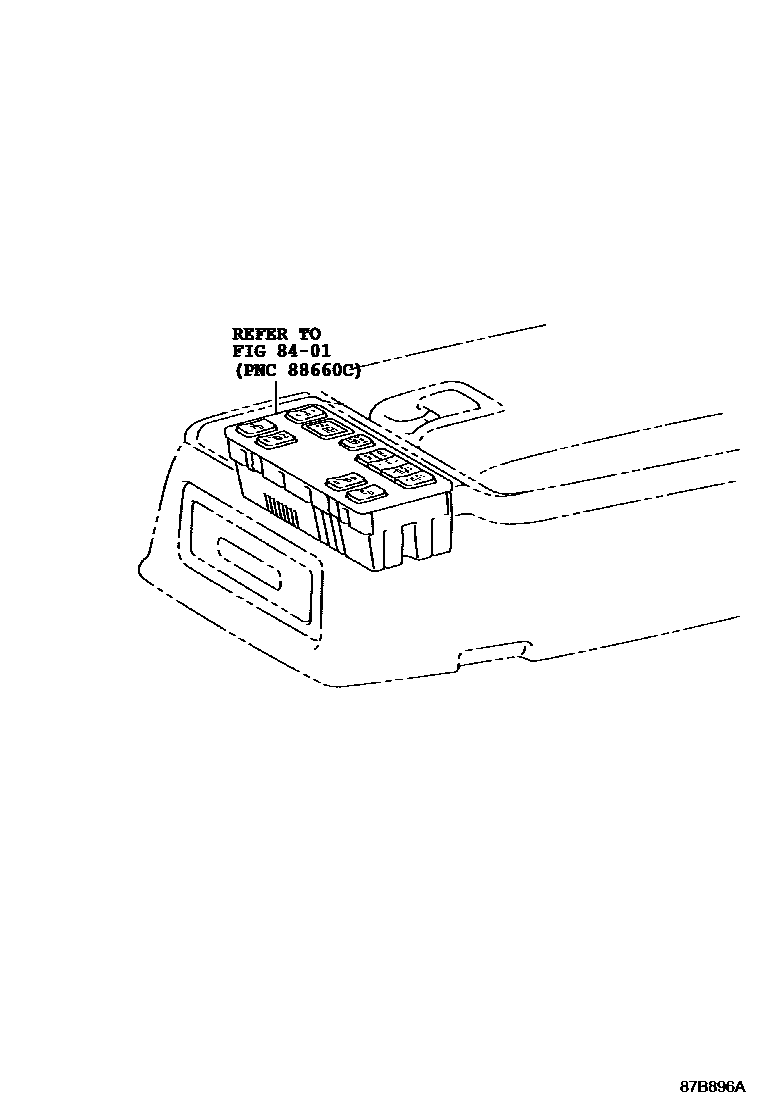

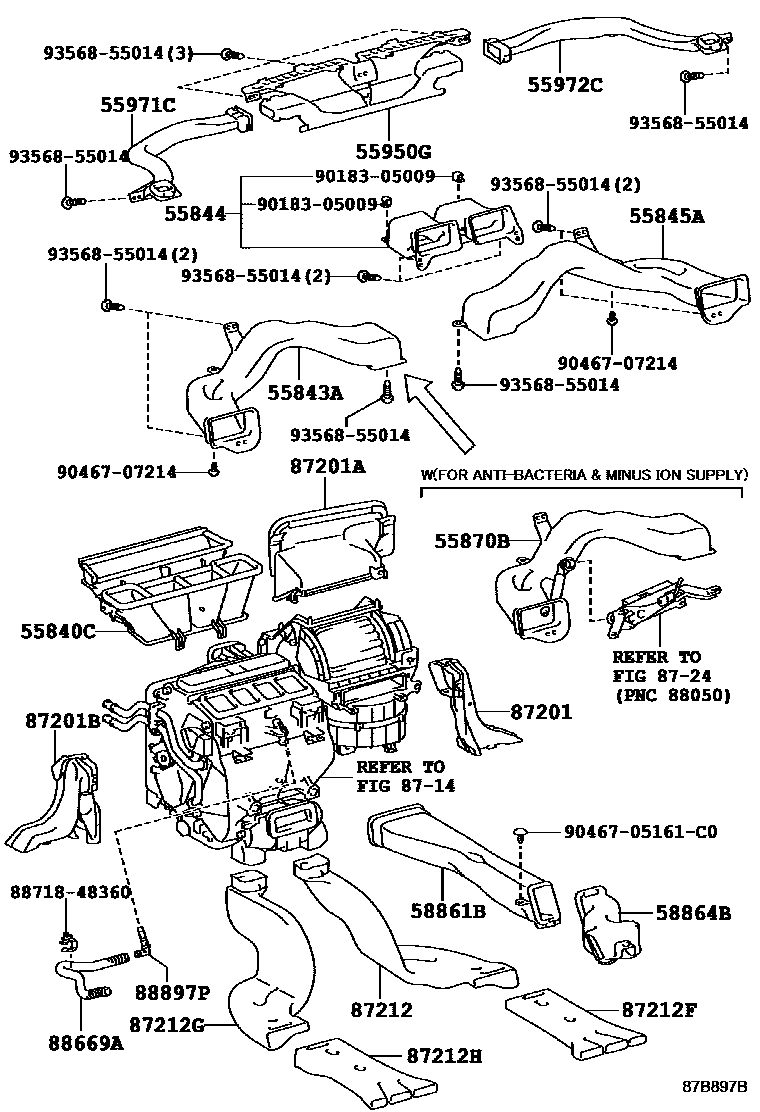

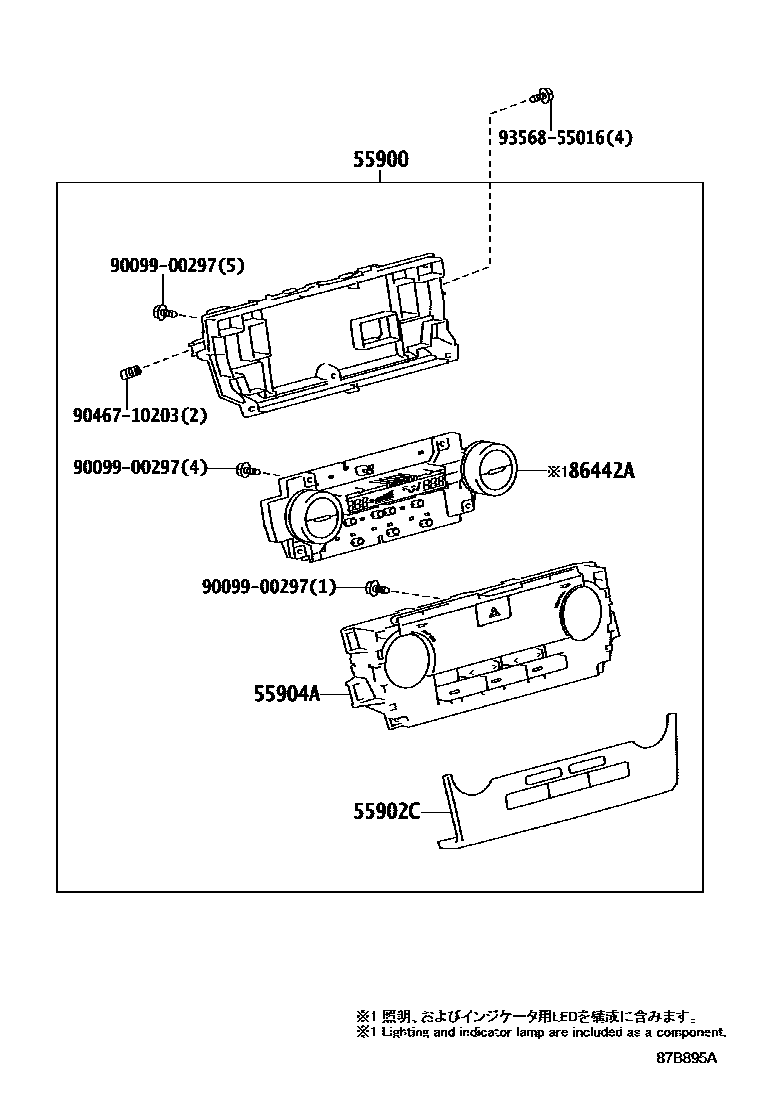

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-33011 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06290 · 55843-33190 · 55843-33220 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06160 · 55844-33170 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06190 · 55845-33150 |
| 55870B | Heater to air regulator air duct assembly | 55870-33010 · 55870-33020 |
| 55900 | Air conditioning control assembly | 55900-33C30 · 55900-33D50 · 55900-33D60 · 55900-33D70 · 55900-33D80 · 55900-33D90 · 55900-33E80 · 55900-33E90 · 55900-33F00 |
| 55902C | Air conditioning panel sub-assembly | 55902-33A80 |
| 55904A | Heater control housing sub-assembly | 55904-33240 · 55904-33250 · 55904-33290 · 55904-33300 · 55904-33310 · 55904-33320 · 55904-33330 |
| 55950G | Defroster nozzle assembly | 55950-33120 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06130 · 55971-33120 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06130 · 55972-33120 |
| 58861B | Air duct No. 1 for armrest box | 58861-06190 · 58861-33050 · 58861-33060 |
| 58864B | Armrest box No. 4 air duct | 58864-06150 · 58864-33020 · 58864-33030 |
| 86442A | Heater control switch board | 86442-33010 · 86442-33020 · 86442-33030 · 86442-33040 · 86442-33050 · 86442-33090 · 86442-33100 · 86442-33110 |
| 87201 | No. 1 air duct sub-assembly | 87201-33290 · 87201-33320 |
| 87201A | Air duct sub-assembly | 87201-33360 · 87201-33380 |
| 87201B | No. 2 air duct sub-assembly | 87201-33370 · 87201-33371 · 87201-33400 · 87201-33401 |
| 87201F | No. 3 air duct sub-assembly | 87201-33390 |
| 87212 | No. 1 rear air duct | 87212-33040 |
| 87212F | No. 2 rear air duct | 87215-33010 |
| 87212G | No. 3 rear air duct | 87213-33050 |
| 87212H | No. 4 rear air duct | 87216-33010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88669A | Hoses (for cooler thermistor) | 88669-28030 |
| 88897P | aspirator | 88897-33030 |
